ImagePro 9060
Powerful LCD Projector
• Super 6000 lumen brightness
• XGA resolution (scales to UXGA)
• Boardroom, house of worship,
auditorium or rental/stage event
• Complete set of features
• Power zoom and focus
• Separate, moveable lenses
• LAN, Wireless, and RS-232 operation
• 2 or 1 lamp operation
Audio
Out
2 Open
Slots
Composite
Video
w/Audio
Computer
RGB w/Audio
Control
In & Out
(RS-232)
DVI
Monitor
Out
S-Video
w/Audio Computer/Video/Audio
5 BNC + 2 RCA
USB-A
USB-B
PCMCIA Slot
(2 slots)
LAN
(RJ-45)
For Remote
Control
Wire for
IR Remote
Input & Output
Power
Screen Trigger
Output

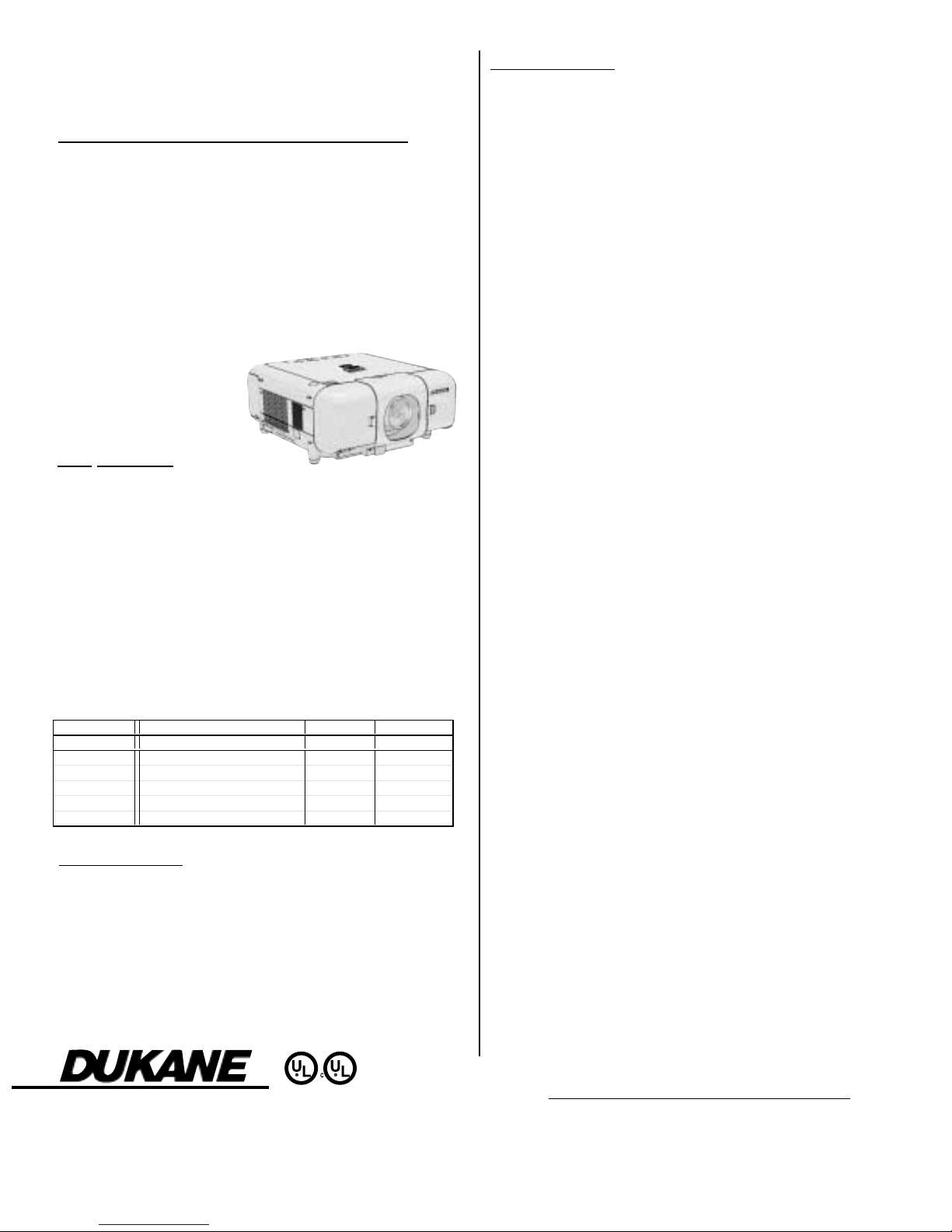

ImagePro 9060
Powerful LCD projector
Specifications
Image Element 1.4” polysilicon active-matrix TFT x3,
with microlens array
Brightness 6000 ANSI lumens std.mode, dual lamp
4800 ANSI lumens eco-mode, dual
lamp, 3000 single lamp, 2400 eco-mode
Resolution 1024 x 768 pixels (H X V)
Contrast 700 to 1
Scanning Frequency Horz.15-100 kHz, Vert. 48-120 Hz
Pixel clock Frequency 160 MHz
Lens Power zoom and focus, selectable lenses
A new way of thinking about projection
Key features:
The Dukane ImagePro 9060 is a projector that has the
light output and functions for a superior installation or
event. It has the very latest in image processing and
enhancement technology to provide the perfect image
in sharpness, color, and contrast.
With all possible interconnect features this projector
can be installed and will operate almost anywhere.
You can connect virtually any source and be assured
an outstanding image. The projector can be controlled
or monitored via a number of ways including over a
local area network (LAN).
It gives you the perfect
presentation.
• Super bright 6000 lumens
• XGA (Scaled UXGA)
• Great Computer and video images
• Choice of lenses with lens shift
• Keystone and off-center position correction
• Image enhancement and Faroudja DCDi™
• Wireless and LAN operation/networking
• Two PC MCIA slots for program memory
• Security locks and password protection
• Dual lamps with extended life options
• Screen trigger, monitor, and audio outputs
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
3YR
Audiovisual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax: [phone]
E-mail: [email protected]
#11612-B-06
LENSOPTIONS Throw Image Size,
Lens No. Desc. Distance, ft. Diagonal, in.
GT10RLB Lens F2.4, f=28.9mm, No-offset 2.5-16.6 40-250
GT13ZLB Lens F2.3-2.8, f=34.5-42.5mm 3.0-29.5 40-300
GT20ZL Lens F1.8-2.5, f=57.4-74.7mm 5.0-52.1 40-300
GT24ZLB Lens F2.5-3.2, f=64-93.8mm 8.4-86.7 60-400
GT34ZLB Lens F2.5-3.3, f=93.5-140.3mm 16.7-163.1 80-500
Lens Throw Ratio See table. Power lens shift in vert.and hoz.
Lens shift 0.5 image height, 0.32 width for
GT20ZL lens
Keystone Correction Vertical +/-40 deg, Horz +/- 30 deg
Aspect Ratio Selectable
Computer Compatibility SVGA, VGA, XGA, plus SXGA to UXGA
Compressed, Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL,PAL-M, PAL-N,
PAL60, SECAM, HDTV 1080i, 720p,
480p, 480i
Component Video, Component, Y/Cb/Cr, 800 TV lines
Image Control Freeze function, electronic magnification
and pan
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 275W NSH, dual lamp system
Lamp Life 1500 hr std. Mode, 2000 hr. eco-mode,
Extended life lamp has 4500 hr.
Audio 2 speaker , 5 watt each
Throw Distance See table
Image Size, diagonal See table
Inputs, Video and Audio (1) Component, BNC x 3, and
stereo audio, RCA x 2, shared
(2) S-video, Min DIN 4-pin, and
stereo audio, RCA x 2
(3) composite video, BNC x 1, and
stereo audio, RCA x 2
Inputs, Computer w/audio (4) RGB Signal:BNC x 5, and stereo
audio, RCA x 2, shared
(5) RGB Signal: D-sub, 15 pin and audio
stereo mini jack
(6) DVI 24 pin and audio, stereo mini
jack
Outputs RGB out, 15 pin D-sub, for monitor
Audio out, stereo, RCA x 2
Open slots for imput 2 slots
Other Terminals USB for mouse/Hub, typeA; USB for PC,
type B; PC card slot (PCMCIA) x 2;
Mini D-sub 9 pin, in, RS-232;
Mini D-sub 9 pin, out, RS-232
Control of screen Screen trigger, mini jack, to raise/lower
screen; LAN port RJ-45
Remote 1, mini D-sub 15 pin for contact
closure control
Remote control, wired Remote 2, mini jacks x 2, in and out for
remote control
Security Password protection can be set
Fan Level 45dB std., 40dB eco-mode, 40 dB ext
eco-mode
Operating Temperature 32 to 95 deg. F (0-35 deg C)
Power AC 100-120V, AC200-240V
Size (WxHxD) 20.4” x 9.5” x 21.6”
Weight 40.6 lbs.
Shipping Weight 54 lbs., lens 6 lbs.
Carton Size 26” x 17” x 24”, lens 10” x 10” x 14”
Accessories Included Remote control, batteries, power cord,
wired remote cable, operator’s manual
and CD Rom
Safety UL/CUL, FCC Class B
Optional Accessories Lamp 456-9060; Extended life Lamp
456-9060E Remote control, Lenses
Warranty 2 years, lamp 1000 hr. or 6 mo
