DULYTEK DHP5 hydraulic heat press is a machine engineered and manufactured for solvent-less
plant rosin oil extraction for further use in research laboratories, pharmaceutical, cosmetic, food
processing, and brewing industries.
INSTRUCTION MANUAL: DHP5 PAGE 2
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
Toavoidaccidents,rstreadSAFETYPRECAUTIONS(PAGE2)and
HANDLINGPRECAUTIONS(PAGE4).
Read this manual carefully to ensure you use the press correctly. After reading
and familiarizing yourself with the equipment, store the manual in a safe place
for future references.
READ BEFORE
OPERATING
MACHINERY
Copyright © 2020 by DULYTEK. All rights reserved. No part of this document
may be reproduced, distributed, or transmitted in any form or by any means,
including photocopying, recording, or other electronic or mechanical methods,
without the prior written consent of the company. Product design, logos, brand
names for various media, and product photos are the sole and exclusive
property of DULYTEK.
COPYRIGHT
NOTICE
This unit is intended for LEGAL use only, in accordance with your federal,
state, and local laws, ordinances, and regulations.
Please keep this manual in a safe place for future references.
DISCLAIMER
SAFETY PRECAUTIONS
The following precautions are provided to prevent harm or injury to yourself and others.
Please make sure to thoroughly read, understand, and follow these precautions before using the
product.

SAFETYPRECAUTIONS(continued)
If product is damaged, appears to be damaged, or malfunctions, contact DULYTEK customer service
at [email protected].
INSTRUCTION MANUAL: DHP5 PAGE 3
• Use this product only as described in this manual.
• Keep the equipment out of the reach of children at all times.
• Unplug the heat press from the electrical outlet and let it cool down
COMPLETELY before cleaning, performing maintenance, or repair.
• DO NOT operate the product after the appliance malfunctions or is dropped
or damaged in any way.
• DO NOT operate the press if the plates are dirty. Clean the plates with
isopropyl alcohol and wipe them dry with a clean cloth. Ensure both plates
are completely dry before use.
• DO NOT immerse the press, its power cord, and plugs in water or any other
liquid.
• DO NOT place the product on or near a hot gas or electric burner, heated
oven, or any other heat source.
• DO NOT operate the product with a damaged cord or plug.
• DO NOT leave any cords near a heat source. It can deform the cord or melt
itsinsulationcausingelectricalshockorre.
• Always insert the power plug all the way in.
• DO NOT handle a power plug or other components of the press with wet
hands.
• When unplugging a power cord, grasp and pull with the plug instead of the
cord.
• DO NOT scratch, cut, twist, excessively bend, or tie the cord or put a heavy
object on it.
• DO NOT let the power cord drape over the countertop or tabletop, where it
can be accidentally tripped over or pulled on.
• DO NOT connect too many power plugs to the same power outlet.
• DO NOT cover the press with a cloth. Doing so may trap heat within and
causere.
• Remove dust around the plug and power cord with a clean dry cloth. If the
WARNING: Follow the warnings below. Otherwise, death or serious injuries may occur.
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved

SAFETY PRECAUTIONS (continued)
INSTRUCTION MANUAL: DHP5 PAGE 4
surruoundingisdusty,humid,oroily,short-circuitmayoccur,causingare.
• DO NOT remove the machine cover.
• DONOTdisassemblethepressormakeanymodicationstothe
equipment.
HANDLING PRECAUTIONS
• The press must be operated on a hard, level surface, away from its edges
to prevent accidental tipping over.
• Work area must be kept clean, tidy, and free of obstructions to the press
moving parts.
• Alwaysattachthepowercordtothepressrst,thenplugitintothewall
outlet.
• To unplug the press, turn OFF the power switch, only then remove the plug
from the outlet.
• DO NOT touch the press’s hot surfaces. Use heat-resistant gloves or
tools. Care must be exercised as serious burns can occur from touching
hot platens.
• Keep your hands and other body parts away from the moving parts to
prevent injury.
• Thispresscomeswithapowercordthattsintoastandardhousehold
3-prongoutlet(110VAmericanmarketand220VEuropeanmarket).DO
NOT attempt to use the equipment with a two-prong electrical cord or any
other way without proper grounding.
• DO NOT exceed the rated capacity.
• Contact DULYTEK at [email protected] if the equipment does not start or
if smoke or unusual odors are detected.
• Always turn the machine OFF and unplug it when done using.
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved

UNPACKING
INSTRUCTION MANUAL: DHP5 PAGE 5
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
WARNING: Keep the packaging materials (cardboard, foam, plastic
bags, etc.) out of the reach of children to prevent accidental choking,
su󰀨ocation, strangulation, and other injuries.
Preserve the shipping container. DO NOT discard or disassemble the shipping
box. It is designed to hold the weight of the product and should be used in
case you need to return the equipment for repair or warranty maintenance in
thefuture.DONOTattempttoshipthepressinadi󰀨erentcontainer.
UNPACKING
PRECAUTIONS
Before starting, please make sure that the following items are included with
your press machine. If anything is missing, contact DULYTEK.
1. DULYTEK DHP5 Heat Press;
2. Pump Handle;
3. AC Power Cord;
4. Instruction Manual.
ITEM
CHECKLIST
The following items are recommended to successfully press rosin and pre-
serve the optimal yield:
1. Parchment paper sheets;
2. Filter bags;
3. Pre-press mold;
4. Humidity packs;
RECOMMENDED
PARTS
1. Placetheboxonalarge,sturdy,atsurface.
2. Open the box and remove the instruction manual and all parts that came
with the press.
3. Remove the packaging material and carefully lift the press out of the box.
4. Remove any protective or promotional labels from the press and other
parts if applicable.
5. Examine the heat press after unpacking for any damage. If found one, take
a picture and contact DULYTEK at [email protected] immediately.
UNPACKING
INSTRUCTIONS

5. Collectiontools(dabtools,glassstamp).
PleaseseeROSINPRESSINGTIPS(PAGE10)formoreinformation.
RECOMMENDED
PARTS
(continued)
GETTING FAMILIAR
INSTRUCTION MANUAL: DHP5 PAGE 6
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek

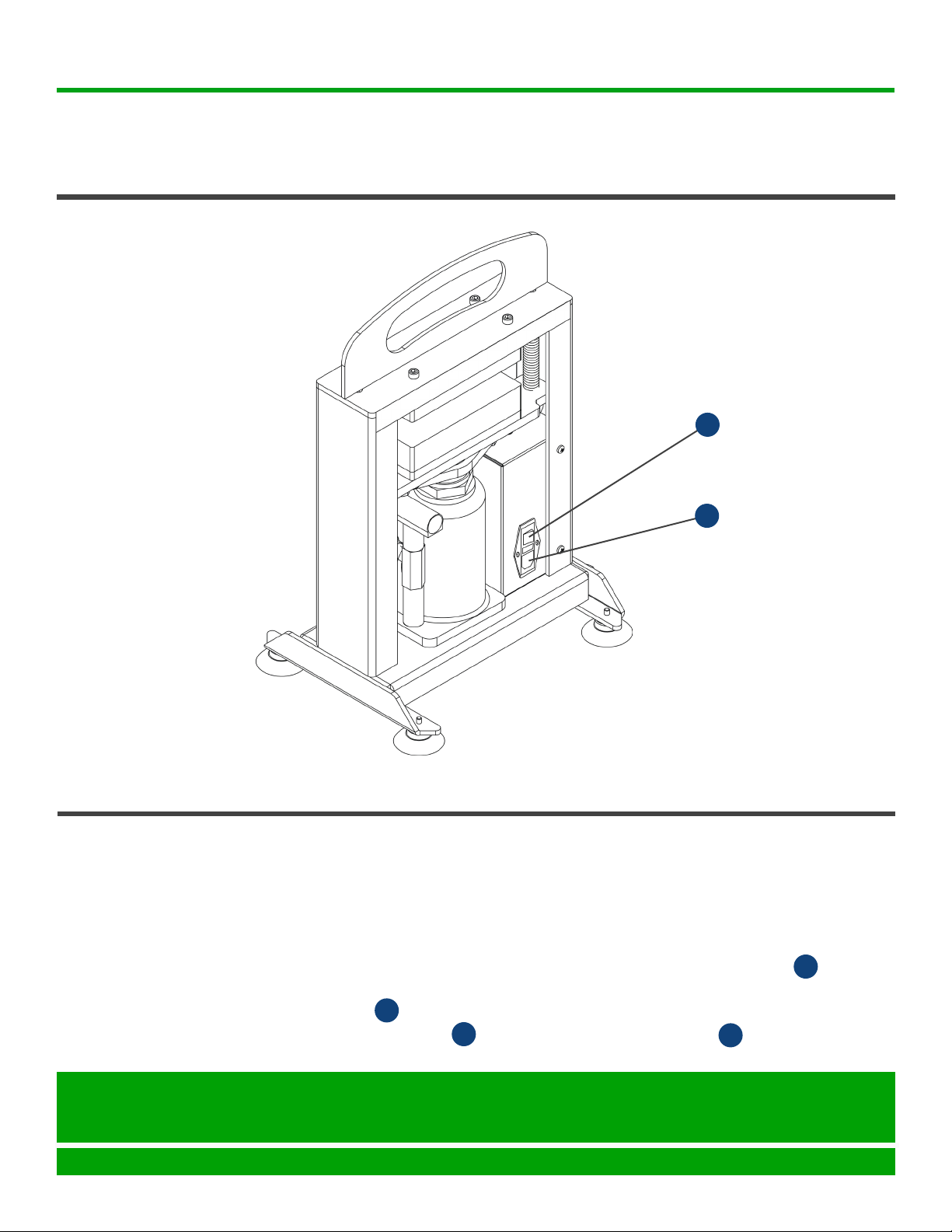

All rights reserved
DHP5 PRESS
FEATURES AND
CONTROLS -
FRONT
UNPACKING (continued)
Control Panel
Press Handle
Pump Handle
Bottom Platen
.
.
.
.
.
B
A
C
G
FReleaseValve
Knob
Top Platen
Pump Handle
Socket
.E
.
D

GETTINGFAMILIAR(continued)
INSTRUCTION MANUAL: DHP5 PAGE 7
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
DHP5 PRESS
FEATURES AND
CONTROLS -
BACK
OPERATING INSTRUCTIONS
PREPARING
PRESS
1. Prepare materials you wish to press. SeeROSINPRESSINGTIPS(PAGE
10).
2. Makesurethepressstandsonaatsturdycountertop.
3. Ensure the press is clean and free of residue or dust buildup.
4. Make sure all switches and controls are turned OFF.
5. Insert the included AC power cord into the AC power cord socket and
then plug the other end into an electrical outlet.
6. Turntheknobclockwiseuntilitisrmlyclosedtosealthereleasevalve.
7. Insert the pump handle into the pump handle socket .
I
.
.AC Power Cord
Socket
ON / OFF Switch
H
I
GE
F

The control panel is used to set temperature for the platens, timer, and
Fahrenheit or Celsius preferences. Please follow the steps below to record the
desired settings:
1. PressSetbuttononthecontrolpanel(Fig.1)togotothetemperature
setting mode for the top platen.
2. PressUporDownbuttonstoselectthedesiredtemperature(Fig.
2).Theselectedtemperatureisshownontheupperlineofthedisplay.
Tip: Enter the temperature either in °F or °C; you will be able to select the
temperature scale later.
3. PressSetbuttonagain(Fig.3)togotothetemperaturesettingmode
for the bottom platen.
1. Flip the ON / OFF switch to turn the press on. The control panel and
the power switch both become lit.
STARTING
PRESS
OPERATING INSTRUCTIONS (continued)
INSTRUCTION MANUAL: DHP5 PAGE 8
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
H D
SETTING
CONTROL
PANEL
D
4. PressUporDownbuttonstoselectthedesiredtemperature(Fig.
4).Theselectedtemperatureisshownonthelowerlineofthedisplay.
5. PressSetbuttonagain(Fig.5)togotothetimersettingmode.
6. Press Up or Down buttons to select the desired time in seconds
(Fig.6).
7. PressSetbuttontogotothetemperaturescaleselectionmode(Fig.7).
Tip: Depending on your machine’s default settings, you may either see “F”
or“C”onthedisplayindicatingthecurrentlyselectedtemperaturescale(°F
or°C).
8. PressUporDownbuttonstoselecteither°For°C(Fig.8)ORskip
thisstepifyouaresatisedwiththecurrentselection.
U
Fig. 1 Fig. 2 Fig. 3 Fig. 4
L

OPERATING INSTRUCTIONS (continued)
INSTRUCTION MANUAL: DHP5 PAGE 9
9. PressSetbuttononcemore(Fig.9)torecordallcontrolpanel’s
settings. The platens start heating, and the heating icons are now displayed
onthescreen(Fig.10).
SETTING
CONTROL
PANEL
(continued)
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
1. Waituntiltheplatensheatuptothedesiredtemperature(Fig.11).Tip:
Onceheatingisnished,theheatingiconsareturnedo󰀨.
2. Place the prepared material in the center of the bottom platen ..
3. Pump the jack handle to move the bottom platen up. Continue
pumping until the desired pressure is reached. Release the handle.
4. PressTIMERbuttononthecontrolpaneltostartthecountdown(Fig.
12).Thecountdownisnowshownonthelowerlineofthedisplay.
5. Wait until the countdown ends and the press starts beeping.
6. Press TIMER buttonagaintoturno󰀨thetimerandstopbeeping.
7. Turn the valve knob counterclockwise to release the press and lower
the bottom platen .
8. Remove the pressed material using heat resistant gloves or tools and
exercising extreme caution.
PRESSING
G
C
C
D
Fig. 5 Fig. 6 Fig. 7 Fig. 8
Fig. 9 Fig. 10 Fig. 11 Fig. 12
F
C

OPERATING INSTRUCTIONS (continued)
INSTRUCTION MANUAL: DHP5 PAGE 10
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
1. Remove the pump handle from the pump handle socket .
2. Turnthemachineo󰀨byippingON/OFFswitchwhendonepressing.
3. Unplug and then disconnect the AC power cord from the press.
4. Wait until the press cools down completely to clean and store it.
TURNING OFF
PRESS H
GE
ROSIN PRESSING TIPS
PLANT
MATERIAL
For the optimal yield and quality, select plant material that has been harvested
within 2 to 6 weeks of pressing.
Maintain your plant relative humidity at around 62%. Store your herbs in an
airtight containers with two-way humidity packs in a dark place. Allow at least
48 hours for the material to reach the optimal humidity level. Open the jars one
or two times per day to air them for a few minutes before re-sealing.
Grind or break up your starting material and compact it into a puck using a pre-
press mold.
Placingapuckintoalterbagisdescretionary.Filterbagshelptoproducea
high quality concentrate by removing plant contaminants from rosin. Pressing
withoutalterbagresultsinahigheryieldandalowerqualityproduct.
Don’ttrytoputtoomuchmaterialinsidethelterbag;doingsomaycauselter
bag blowout and reduce your yield.
Insertthepuckintoalterbagifusedandplaceitinsideafoldedparchment
CLEANING
PRESS PLATES
1. Make sure the press plates are completely cooled down before cleaning.
2. Apply a small amount of alcholol to a clean cloth and wipe down the plates
until clean. Use rubbing alcohol that contains at least 80% by volume of
isopropyl alcohol.
3. Wipe plates with a dry clean cloth.
4. Repeat these steps for cleaning all associated tools.

INSTRUCTION MANUAL: DHP5 PAGE 11
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
Use nylon mesh bags instead of stainless steel or polyester ones. Stainless
steel screens scratch press plates and cut yields. Polyester bags shrink with
heat and cause blowouts. Nylon screens are durable and expand up to 40%
without breaking making it a better choice for solventless extraction.
Filter bags are one-time use only unless you double or triple press the same
material.
Finemeshlterbagsareintendedfornermaterialssuchaskief,bubblehash,
or dry sift.
FILTER BAGS
Mesh Size, microns Intended For
25, 36
For kief, bubble hash, or dry sift - results in good yield
and excellent quality
Forhighqualityower-resultsingoodyieldandquality
72, 90, 100
For kief, bubble hash, and dry sift - results in excellent
yield and fairly good quality
Forowerandtrim-resultsinprettygoodbalance
between yield and quality
120, 160 Forowerandtrim-resultsinexcellentyieldandfairly
good quality
ROSIN PRESSING TIPS (continued)
paper sheet. Leave some space between the fold and the puck to avoid
tearing the parchment paper during pressing.
PLANT
MATERIAL
(continued)
Coldpressing(pressedat160°F - 190 °F / 70 °C - 87 °C for1-5minutes)
results in a malleable, batter consistency terpene-rich rosin but comes with a
sacriceinyield.
Hotpressing(pressedat190°F - 225 °F / 87 °C - 105 °C for 40 seconds to
3minutes)producesasappyorshatter-likerosin.Thehotteryoupress,the
higher yield you get. Anything over 225°F generally has a notable drop in
TEMPERATURE
AND TIME

ROSINPRESSINGTIPS(continued)
INSTRUCTION MANUAL: DHP5 PAGE 12
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
TEMPERATURE
AND TIME
(continued)
quality and terpenes.
For better terpene preservation, press at 210 °Forbelow.Forower,start
pressing at 200 °F / 93 °C for 85 - 125 seconds and evaluate from there.
COLLECTION
METHODS
Plant Material Temperature Time, seconds
Kief, hash, dry sift, trim 165 °F - 195 °F / 74 °C - 90 °C 60 - 130
Flower 190 °F - 225 °F / 87 °C - 105 °C 30 - 220
Constantly stir freshly pressed rosin with a warm dabbing tool until a creamy
texture is achieved. Whipped rosin, also known as “budder”, is more malleable
and easier to manage.
MAKING
BUDDER
Use a glass stamp to collect gooye rosin. Push the stamp down on the
extracted concentrate; it will pick up the material. Then scrape rosin from the
stamp with a clean stainless steel tool.
Please see our website and subscribe to our newsletter and Dulytek social
media pages for more tips, innovations, industry news, and promotional
discounts.
MORE
INFORMATION

INSTRUCTION MANUAL: DHP5 PAGE 13
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2020 Dulytek
All rights reserved
TECHNICAL SPECIFICATIONS
PARAMETER USA MARKET EU MARKET
Model DHP5 DHP5-E
Press Force 10000 lb / 5 Ton
Power 360 W
Current 3.3 A 1.65 A
Voltage 110V 220V
Frequency 50 / 60 Hz
Dual Heating Plates Yes
Platen Size 3 x 4 inch / 76 x 102 mm
Temperature Range up to 302 °F / 150 °C
Timer Range 0 - 999 sec
Dimensions 10 x 9 x 18 inch / 26 x 23 x 45 cm
Weight 31 lb / 14.1 kg
Package Dimensions 14 x 13 x 22 inch / 36 x 32 x 55 cm
Package Weight 36 lb / 16.2 kg
Certications CE / RoHS
