INTRODUCTION
DULYTEK DM1000 manual heat press is a machine engineered and manufactured for solvent-less
plant rosin oil extraction for further use in research laboratories, pharmaceutical, cosmetic, food pro-
cessing, and brewing industries.
INSTRUCTION MANUAL: DM1000 PAGE 2
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved
Toavoidaccidents,rstreadSAFETYPRECAUTIONS(PAGE3)andHAN-
DLINGPRECAUTIONS(PAGE4).
Read this manual carefully to ensure you use the press correctly. After read-
ing and familiarizing yourself with the equipment, store the manual in a safe
place for future references.
READ BEFORE
OPERATING
MACHINERY
Copyright © 2018 by DULYTEK. All rights reserved. No part of this document
may be reproduced, distributed, or transmitted in any form or by any means,
including photocopying, recording, or other electronic or mechanical meth-
ods, without the prior written consent of the company. Product design, logos,
brand names for various media, and product photos are the sole and exclu-
sive property of DULYTEK.
COPYRIGHT
NOTICE
This unit is intended for LEGAL use only, in accordance with your federal,
state, and local laws, ordinances, and regulations.
Please keep this manual in a safe place for future references.
DISCLAIMER

SAFETY PRECAUTIONS
The following precautions are provided to prevent harm or injury to yourself and others.
Please make sure to thoroughly read, understand, and follow these precautions before using the
product.
If product is damaged, appears to be damaged, or malfunctions, contact DULYTEK customer service
at [email protected].
INSTRUCTION MANUAL: DM1000 PAGE 3
• Use this product only as described in this manual.
• Keep the equipment out of the reach of children at all times.
• Unplug the heat press from the electrical outlet and let it cool down com-
pletely before cleaning, performing maintenance, or repair.
• DO NOT immerse the press, its power cord, and plugs in water or any
other liquid.
• DO NOT place the product on or near a hot gas or electric burner, heated
oven, or any other heat source.
• DO NOT operate the product with a damaged cord or plug.
• DO NOT leave any cords near a heat source. It can deform the cord or
meltitsinsulationcausingelectricalshockorre.
• Always insert the power plug all the way in.
• DO NOT handle a power plug with wet hands.
• When unplugging a power cord, grasp and pull with the plub instead of
the cord.
• DO NOT scratch, cut, twist, excessively bend, or tie the cord or put a
heavy object on it.
• DO NOT let the power cord drape over the countertop or tabletop, where
it can be accidentally tripped over or pulled on.
• DO NOT connect too many power plugs to the same power outlet.
• DO NOT operate the product after the appliance malfunctions or is
dropped or damaged in any way.
• DO NOT cover the press with a cloth. Doing so may trap heat within and
causere.
WARNING: Follow the warnings below. Otherwise, death or serious
injuries may occur.
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved

SAFETY PRECAUTIONS (continued)
INSTRUCTION MANUAL: DM1000 PAGE 4
• Remove dust around the plug and power cord with a dry cloth. If the sur-
ruoundingisdusty,humid,oroily,short-circuitmayoccur,causingare.
• DO NOT remove the machine cover.
• DONOTdisassemblethepressormakeanymodicationstotheequip-
ment.
HANDLING PRECAUTIONS
• The press must be operated on a hard, level surface, away from its
edges to prevent accidental tipping over.
• Work area must be kept clean, tidy, and free of obstructions to the press
moving parts.
• Alwaysattachthepowercordtothepressrst,thenplugitintothewall
outlet.
• To unplug the press, turn OFF all controls and switches, only then re-
move the plug from the outlet.
• DO NOT touch the press’s hot surfaces. Use heat-resistant gloves or
tools. Care must be exercised as burns can occur from touching platens.
• Keep your hands and other body parts away from the press moving parts
to prevent injury.
• Thispresscomeswithapowercordthattsintoastandardhousehold
3-prongoutlet(110VAmericanmarketand220VEuropeanmarket).DO
NOT attempt to use the equipment with a two-prong electrical cord or any
other way without proper grounding.
• Contact DULYTEK if the equipment does not start or if smoke or unusual
odors are detected.
• Always turn the machine OFF and unplug it when done using.
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved

UNPACKING
INSTRUCTION MANUAL: DM1000 PAGE 5
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved
WARNING: Keep the packaging materials (cardboard, foam, plastic
bags, etc.) out of the reach of children to prevent accidental choking,
su󰀨ocation, strangulation, and other injury.
Preserve the shipping carton. DO NOT discard or disassemble the shipping
box. It is designed to hold the weight of the product and should be used in
case you need to return the equipment for repair or warranty maintenance in
thefuture.DONOTattempttoshipthepressinadi󰀨erentcontainer.
UNPACKING
PRECAUTIONS
Before starting, please make sure that the following items are included with
your press machine. If anything is missing, contact DULYTEK.
1. DULYTEK DM1000 Heat Press;
2. AC Power Cord;
3. Instruction Manual.
ITEM
CHECKLIST
The following items are recommended to successfully press rosin oil:
1. Teabaglters;
2. Parchment paper sheets.
RECOMMENDED
PARTS
1. Placetheboxonalarge,sturdy,atsurface.
2. Open the box and remove the instruction manual and all parts that came
with the press.
3. Remove the packaging material and carefully lift the press out of the box.
4. Remove any protective or promotional labels from the press and other
parts if applicable.
5. Examine the heat press after unpacking for any damage. If found one,
take a picture and contact DULYTEK at [email protected] immediately.
UNPACKING
INSTRUCTIONS

GETTING FAMILIAR
INSTRUCTION MANUAL: DM1000 PAGE 6
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved

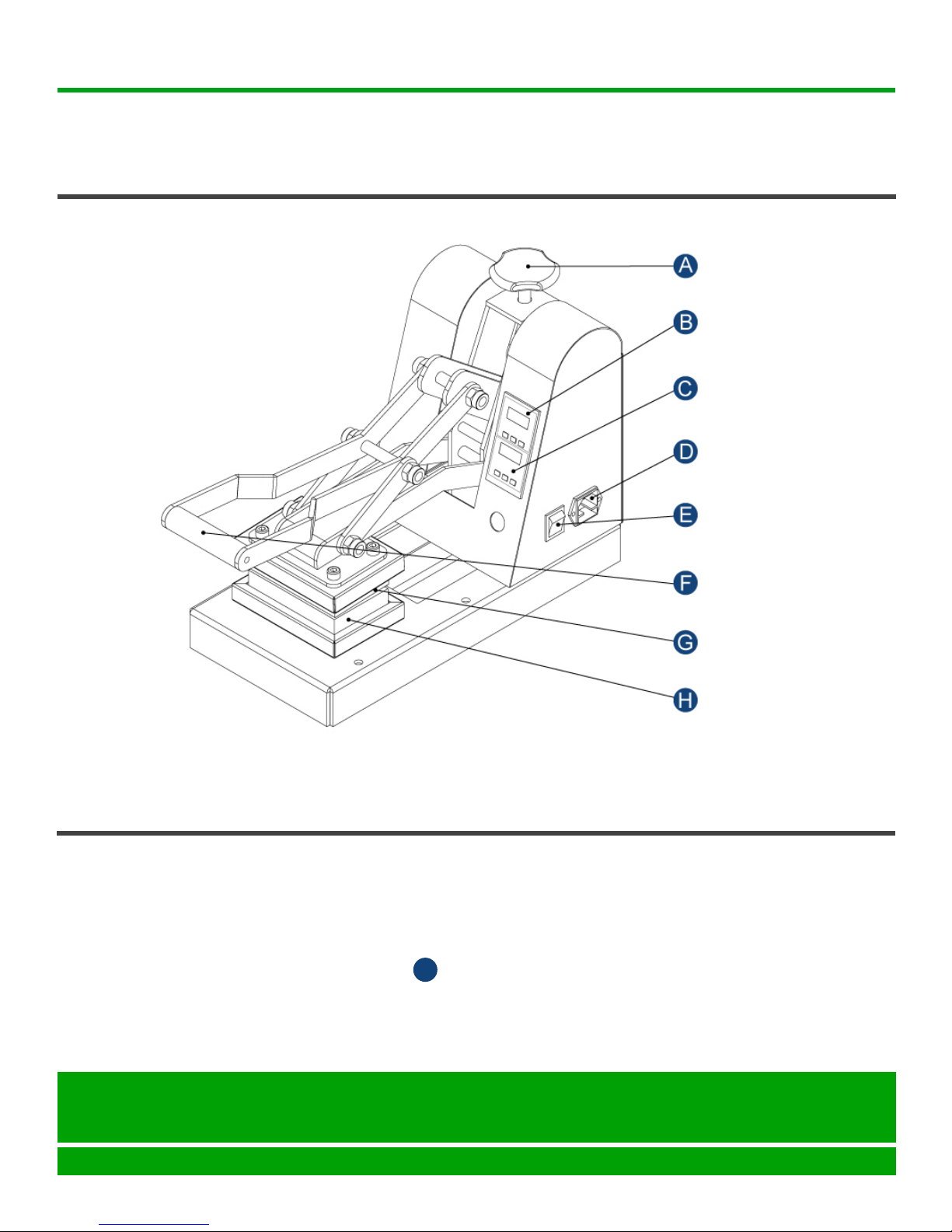

Pressure Knob
AC Power Cord
Socket
Temperature
Control Panel
Top Platen
Bottom Platen
ON / OFF Switch
Press Handle
DM1000 PRESS
FEATURES AND
CONTROLS
Timer Control
Panel
D
OPERATING INSTRUCTIONS
PREPARING
THE PRESS
1. Makesurethepressstandsonaatsturdycountertop.
2. Make sure all switches and controls are turned OFF.
3. Prepare materials you wish to press.
4. Insert the AC power cord that came with the product into the press AC
power cord socket and then plug its other end into an electrical outlet
(110VforUSA/220VforEUR).

OPERATING INSTRUCTIONS (continued)
INSTRUCTION MANUAL: DM1000 PAGE 7
Turn the pressure knob clockwise to increase pressure or counterwise to
reduce it. Use it to adjust the vertical position of the top platen in relation to
the bottom platen during the lock-in. The larger amount of pressing material
may require a larger distance between the platens to successfully close the
press. Experiment lifting and lowering the press handle to make sure it locks
at the right height for you.
SETTING
PRESSURE
A
Figure 1 Figure 2 Figure 3 Figure 4
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved
Set up the desired temperature for both top and bottom platens using the
temperature control panel . The panel is pre-programmed for Fahreinheit
degrees. You may need to experiment with the settings to determine the
best temperature for rosin extraction depending on the type of the pressed
material, its thickness, and weight.
1. PressSETbuttononthetemperaturecontrolpanelonce(Figure1).
SET TEMP indicator becomes lit.
2. Press UP and DOWN buttons to select the desired temperature in °F
(Figure2).
3. PressSETbuttonagaintorecordthesettings(Figure3).SETTEMP
indicatorturnso󰀨.
The press immediately starts heating the platens. The display shows rising
temperature,andHEATindicatorushesduringtheheatingstage(Figure4).
SETTING
TEMPERATURE B
B
STARTING
THE PRESS
1. Lift up the handle opening the press machine.
2. Flip the ON / OFF switch to turn the press on. The control panel and
the switch itself become lit.
F
E

OPERATING INSTRUCTIONS (continued)
INSTRUCTION MANUAL: DM1000 PAGE 8
PRESSING
F
F
1. Wait until the platens heat up to the desired temperature. Tip: you should
see the set temperature on the display.
2. Place the material you wish to press in the center of the bottom platen .
3. Lower the press handle locking in the press. The countdown starts im-
mediately.
4. Wait until the press starts beeping indicating the pressing time is up. The
display on the timer control panel should also show “0”, and ALARM indi-
catorshouldbelitaswell(Figure8).
5. Lift up the handle unlocking the press. Beeping stops. The timer re-
setstothesavedsettings,andALARMindicatorturnso󰀨.
6. Remove the pressed material using heat resistant gloves or tools and
exercising extreme caution.
H
Figure 5 Figure 6 Figure 7 Figure 8
Set up the desired press time in seconds using the timer control panel .
1. PressSETbuttononthetimercontrolpanel(Figure5).SETTIME
indicator becomes lit.
2. Press UP and DOWN buttons until the desired time in seconds is shown
onthedisplay(Figure6).
3. PressSETbuttonagaintorecordthesettings(Figure7).SETTIMEindi-
catorturnso󰀨.Tip:thecountdownstartswhenthepresshandleislow-
ered and the press is locked in.
SETTING
TIMER
C
C
1. Turnthemachineo󰀨byippingON/OFFswithwhendonepressing.
2. Unplug and then disconnect the AC power cord from the press.
3. Wait until the press cools down completely to store it.
TURNING OFF
THE PRESS
E
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved

TECHNICAL SPECIFICATIONS
INSTRUCTION MANUAL: DM1000 PAGE 9
Dulytek Equipment
www.dulytek.com Email: [email protected]
© 2018 Dulytek
All rights reserved
PARAMETER USA MARKET EU MARKET
Model DM1000 DM1000-E
Press Force 900 lb
Power 900 W
Current 8 A 4 A
Voltage 110V 220V
Frequency 50 / 60 Hz
Dual Heating Plates Yes
Platen Size 3 x 5 inch / 76 x 127 mm
Temperature Range 0 - 750 °F
Timer Range 0 - 999 sec
Dimensions 16 x 12 x 8 inch / 40.6 x 30.5 x 20.3 cm
Weight 33 lb / 15 kg
Package Dimensions 25.2 x 18.9 x 15 inch / 64 x 48 x 38 cm
Package Weight 38 lbs / 17.2 kg
