Dune 4WD Nomad Deluxe User manual

DUNE 4WD NOMAD DELUXE
HARDTOP ROOFTOP TENT 140CM
INSTRUCTION MANUAL

CONTENTS
Products Brief Instruction:
1.Product Brief Instruction---------------------1
2.Product Specification-------------------------1
3.Product Frame ---------------------------------1
Installation
1.Installing Your Roof Tent---------------------2
2.Setting up----------------------------------------5
3.Folding down------------------------------------7
Malfunction and Solution-----------------------8
Before using this product, please follow the
instruction manual to ensure proper use.

Product description：
Material and specification：

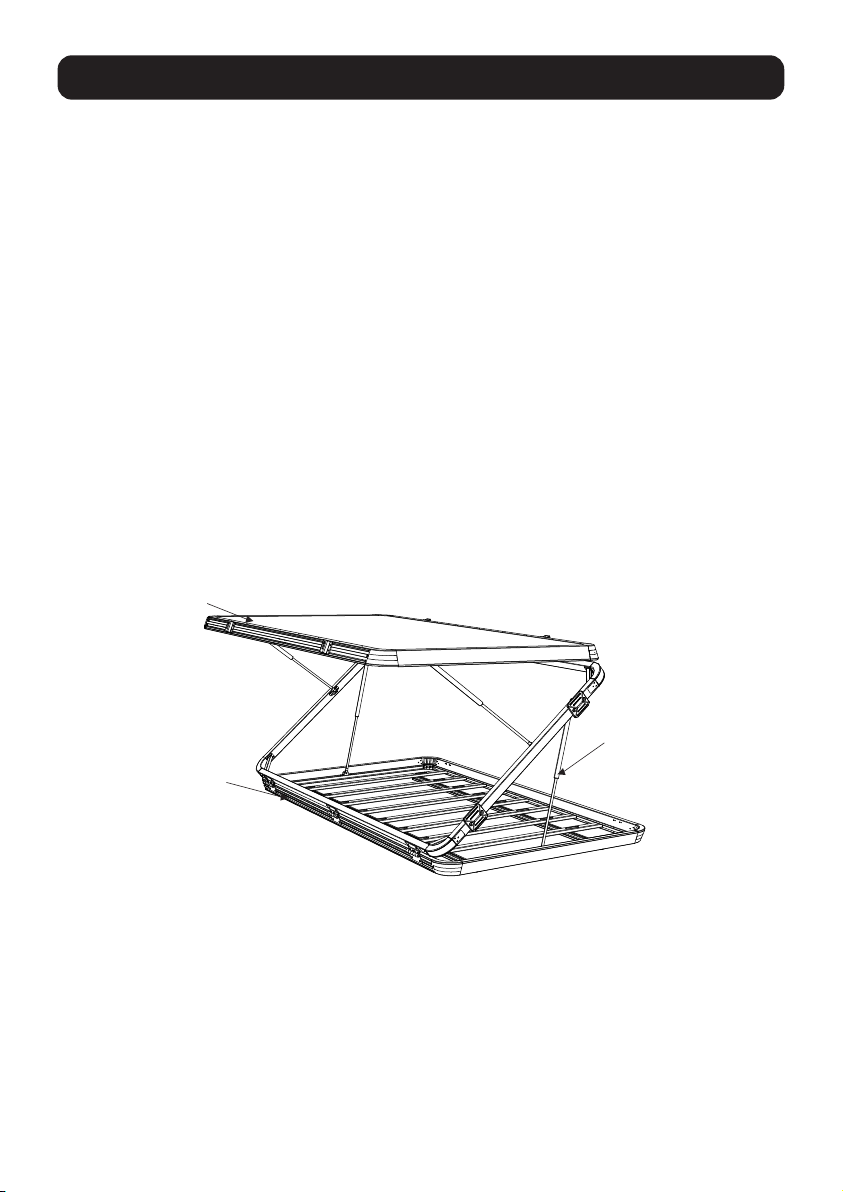

Product frame：
Top hard shell
This semi-auto roof top tent could be set up easily by 2 persons, set up and fold down in seconds
with patented gas strut assisted opening mechanism. Enjoy the outdoor life in whatever weather !
A. The whole frame uses aluminium alloy parts whilst using strong 100% virgin nylon.
B. Heavy duty tent material and all seam taped for great waterproof.
C. Good quality 50mm foam mattress provides comfortable sleep experience.
D. Telescopic aluminium alloy ladder is removable and endure 150kg
E. Tent fully opened dimensions: 205x139x100cm
F. Tent closed dimensions: 221x155x25cm
G. Net Weight: 75kg (ladder not included) Gross Weight: 94 kg
Gas strut assist
Bottom frame
-1-

Two detachable roof bars can be installed horizontally or vertically on shell as needed.
Please install the bars on the shell before mounting tent on car roof.
Horizontal installation
①Insert fixed parts of bar into slot of frame on both side.
Vertical installation
②Adjust the height of bar then screw tightly with M8x15mm Hex Bolt, M8 Flat Washer and
M8 Arc Washer.
③If install vertically, use Hex Wrench adjust the direction of fixed parts of bar as below, then
follow step 1 and 2.
Horizontal direction Vertical direction
Installation:
M8 Arc Washer
M8 Flat Washer
Note:Please make sure nothing loaded on the
top shell when opening/closing the tent.
-2-

Installation:
1. Install your roof rack per the manufacturers instructions and in the
load bearing position on the vehicle.
2. Lift up the tent onto the rack from car side. Adjust the tent to
the roof center, ensuring the rear door can be opened/closed.
4. Slide T Shape Bolts into the middle hole of rail,
with U-Shape Stator, M8 Arc Washer, M8 Flat
Washer, and Plastic Nut lightly screwed in
advance.(as P2)
5. Screw the other side of U Shaped Stator with
component in order as above, and ensure Stator
tightened(as P3, same operation for rest).
3. Slide the T Shape Bolts into the rails from two
sides(as P1).
P3
M8 Arc Washer
M8 Flat Washer
P1
P2
-3-

M8 Flat Washer
(4pcs)

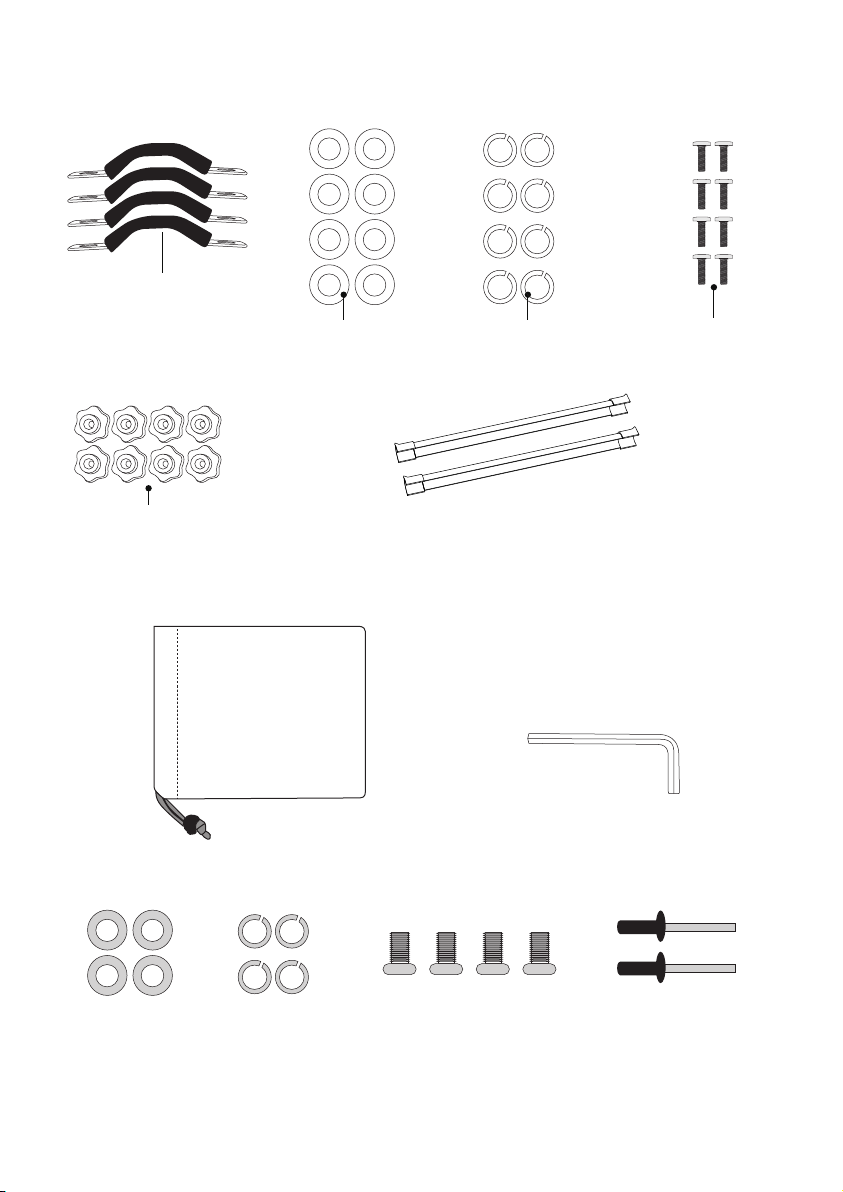

INCLUDED TOOLS:
Tool Bag
6mm Hex Key(1pc)
M8x15mm Hex Bolt
(4pcs)
Aluminum Rivet(2pcs)
U Shape Stator(4pcs)
M8 Flat Washer(8pcs) M8 Arc Washer(8pcs)
Plastic Nut(8pcs)
M8 Arc Washer
(4pcs)
T shape bolts(8pcs)
Spare locking sticks(2pcs)
-4-

1. Release all buckles around the tent.
2. Push up the tent from its back side.
Setting up:
3.Tent will be opened automatically with
the gas strut assist.
4. Push up the shell from the front side.
-5-

5. Hang ladder on the frame, then adjust the length.
(Ensure ladder is stable)
6. The tent is fully set up.
Setting up:
-6-

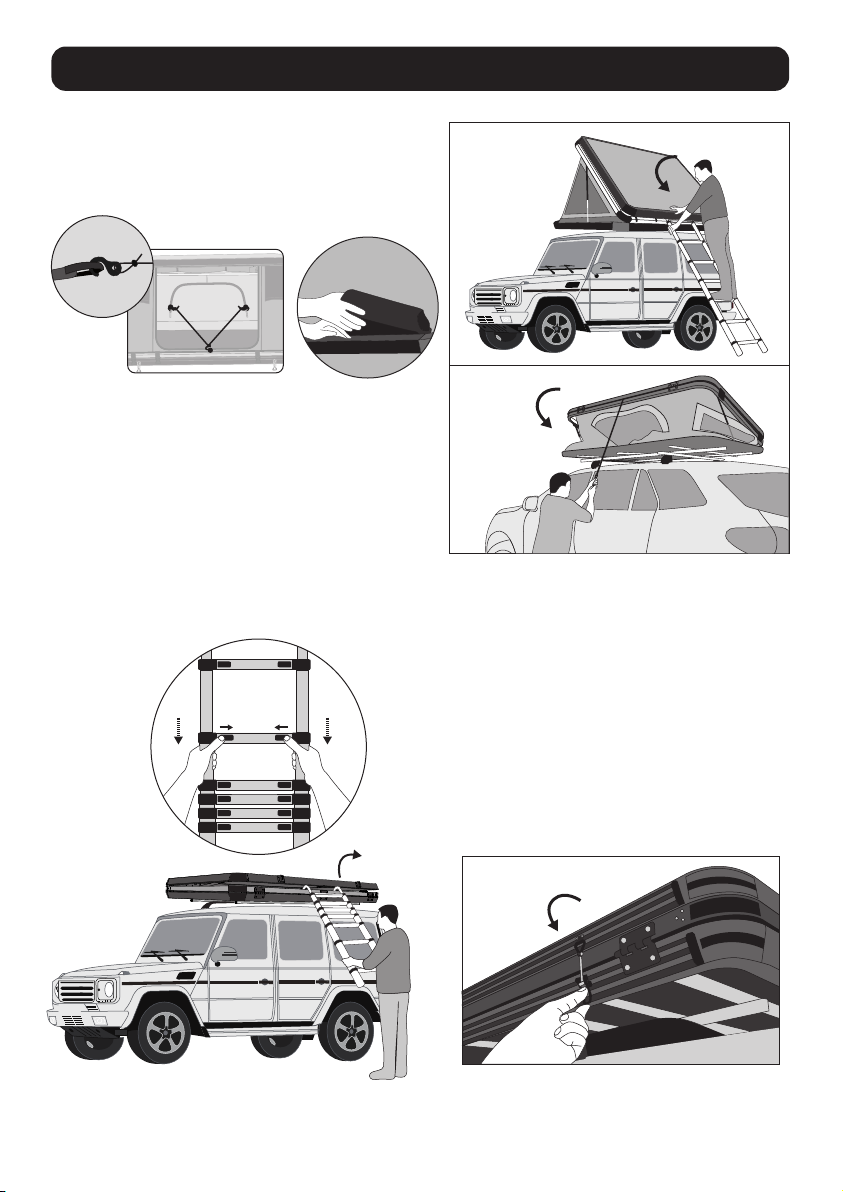

1. Close all windows. Hook the elastic ropes
inside the tent(as P1). Zip up the front door to
two thirds position. Tuck shoes bags
inside(as P2). Then press down the shell.
2. Pull down the belt puller on the
back side to collapse the tent.
3. Remove then shorten the ladder. Then lock
all buckles around the tent.
(Notice: ensure no fabric expose to outside)
Folding down:
PVC PVC
P1
P2
-7-

Once cylinder rod does not work , pls double check as below.
1. If cylinder rod is covered by any fabric.
2. If there is any air leaking from the cylinder rod. If
yes, the cylinder rods need to be replaced.
Loosen the scews of the cylinder rod with a
screwdriver, and change a new one. pls see
pictures below.
TROUBLESHOOTINS TIPS (IF NEEDED):
-8-
Usage of the spare locking sticks
Fasten the 2pcs locking sticks to the upper cover
gas structs on both sides from windows when
setting up the Dlx hardtop roof tent. (as P1)
Remove the 2pcs locking sticks before folding
down the Dlx hardtop roof tent. (as P2)
* This is an emergency solution to avoid the top lid from collapse when gas struct pressure is
insufficient especially when combine with the annex. And meanwhile it can extend the service
life of gas struct poles.
P1
P2

-9-
Safety Information
• We recommend that you DO NOT drive over 70mph ( 11Okmh) while
using your rooftop tent and that you always adhere to speed limits.
• CHECK at the start of every journey and at regular intervals that your
roof top tent is firmly fixed to your roof racks and that all locking straps
are securely fastened.
• DO NOT use your roof tent if there is any visible damage to any part of
it or its components, instead contact us to see how we can help. This is
especially applicable to the locking straps and buckles.
• Understand that secured loads and incorrectly mounted roof bars can
come lose during journeys and can cause serious accidents.
• Make sure that you give due consideration to the change in your
vehicle height and drive behaviour (side—wind sensitivity, corner and
braking behaviour).
• You must always consult your vehicle and roof bar manuals to ensure
you are following their advice, these must be always be carried in your
vehicle along with your roof tent safety and fitting instructions.
• Do not use bleach, alcohol or ammonia based cleaning liquids on your
roof tent otherwise the surface of your roof tent may get damaged
• Please note the following when using your roof tent:
—The height of your vehicle can increase by up to 90cm (dependant on
your roof bars).
—Beware of low entrances, low hanging branches, etc.
—Wind noise may be generated when travelling with a roof tent
—When using an automatic car—wash facility, your roof tent must first
be removed.

-10-
- In addition to these usage instructions, due consideration should also
be given to mounting instructions for your roof bars and the operating
instructions of your vehicle.
- For reasons of fuel economy and the safety of other road users, your
roof tent and roof bars should be removed when not in use.
- For your safety, you should only use tested (e.g. GS—tested) roof bars
that are authorised for usage in conjunction with your vehicle.
- In order to avoid generating excessive lifting forces, your roof tent
should be mounted parallel to the line of the road and not at an angle.
• When climbing in and out of your roof tent always use the ladder with
due caution and never allow children to use it alone. Make sure the
ladder hooks are in good condition, contact us if you need
replacements.
• You must not allow any naked flames in or near your roof tent.
Important Information
The manufacturer is not liable for any damage or accident that may
occur as a result of non— compliance with these usage instructions,
modifications made to parts or the usage of any parts other than the
manufacturer’ s original parts. The warnings, cautions and instructions in
this document can’ t cover every possible situation, so it is understood by
the operator that common sense and caution must be applied. It is your
responsibility to pass these instructions on to any third party who uses
this roof tent, including second hand sales.
Warranty
The manufacturer’s warranty covers manufacturing faults
and lasts one year within regular use. It is only valid if the
instructions and recommendations in this docoment are
adhered to and only applies to the first owner. Second hand
sales are not covered.
