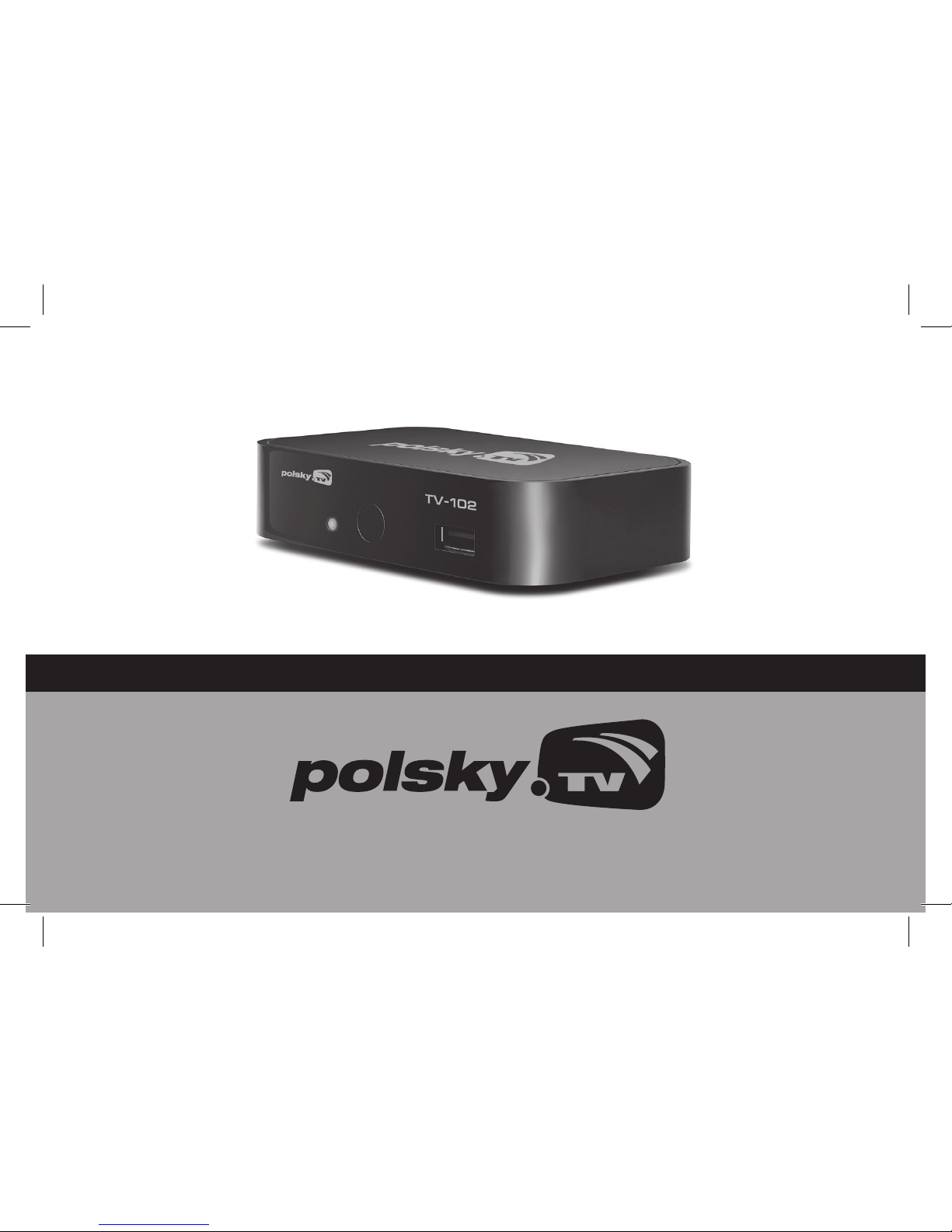

DUNE HD TV-102 User manual

English
Quick Start Guide ● Skrócona instrukcja obsługi
www.Polsky.TV

Dune HD TV-102 Quick Start Guide

3
Table of Contents
Table of Contents
English
Quick Start Guide
• Introduction
• Key Features
• Extra Functions
• Package Contents
• Exterior
• Remote Control
• Getting Started
• Quick Setting of Video Output Mode
• Conguring the connection to the router (LAN)
• Setting up the modem connection (PPPoE)
• Setting up a wireless connection (Wi-Fi)
• Usage of TV
• Creating list of «Favorites»
• Time shift
• Archive
• Connecting USB Drives
• Accessing Network Drives
• Formatting HDD
• Switching the Player On and Off
• NAS (Network Attached Storage)
• Wi-Fi
• Limitations
• Updating Your Player and Getting More Information
4 16 Polski
Skrócona instrukcja obsługi
• Wprowadzenie
• Główne Funkcje
• Funkcje Dodatkowe
• Zawartość pudełka
• Wyjścia
• Pilot
• Instalacja
• Szybkie Ustawienia Wideo
• Konguracja połączenia z routerem (LAN)
• Konguracja połączenia z modemem (PPPoE)
• Konguracja połączenia bezprzewodowego (Wi-Fi)
• Użytkowanie telewizji
• Tworzenie listy ulubionych
• Strefa czasowa (opóźnienie emisji)
• Archiwum
• Podłączanie Nośników USB
• Dostęp do Dysków Sieciowych
• Formatowanie Dysku
• Włączanie i Wyłączanie Dekodera
• NAS (Dysk Sieciowy)
• Wi-Fi
• Оgraniczenia
• Aktualizacja odtwarzacza i informacje dodatkowe

4
Quick Start Guide
Introduction
Dune HD TV-102 is an all-in-one solution for up to Full HD (1080p) video playback.
Key Features
● The newest Sigma Designs SMP867x media processor: enjoy excellent playback and performance of interactive
features.
●HDD player: connect an HDD to the player and play content directly from the HDD.
●Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS).
● MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top
quality HD video with very high bitrate.
● USB port: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices.
● HDMI port: ensure the best possible quality of HD video and HD audio.
● Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC).
● Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution.
● File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).
Extra Functions
● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC,
Monkey’s Audio APE, WAV/PCM, etc).
● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions.
● NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local
network (using SMB or FTP).
● Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics).

5
English
● Internet radio: playback and record various Internet radio stations (HTTP/MP3 and other formats).
● Digital TV: playback and record Digital TV channels using an internal tuner for terrestrial or cable TV*.
* For modifications with internal tuners for terrestrial or cable TV only.

6
Quick Start Guide

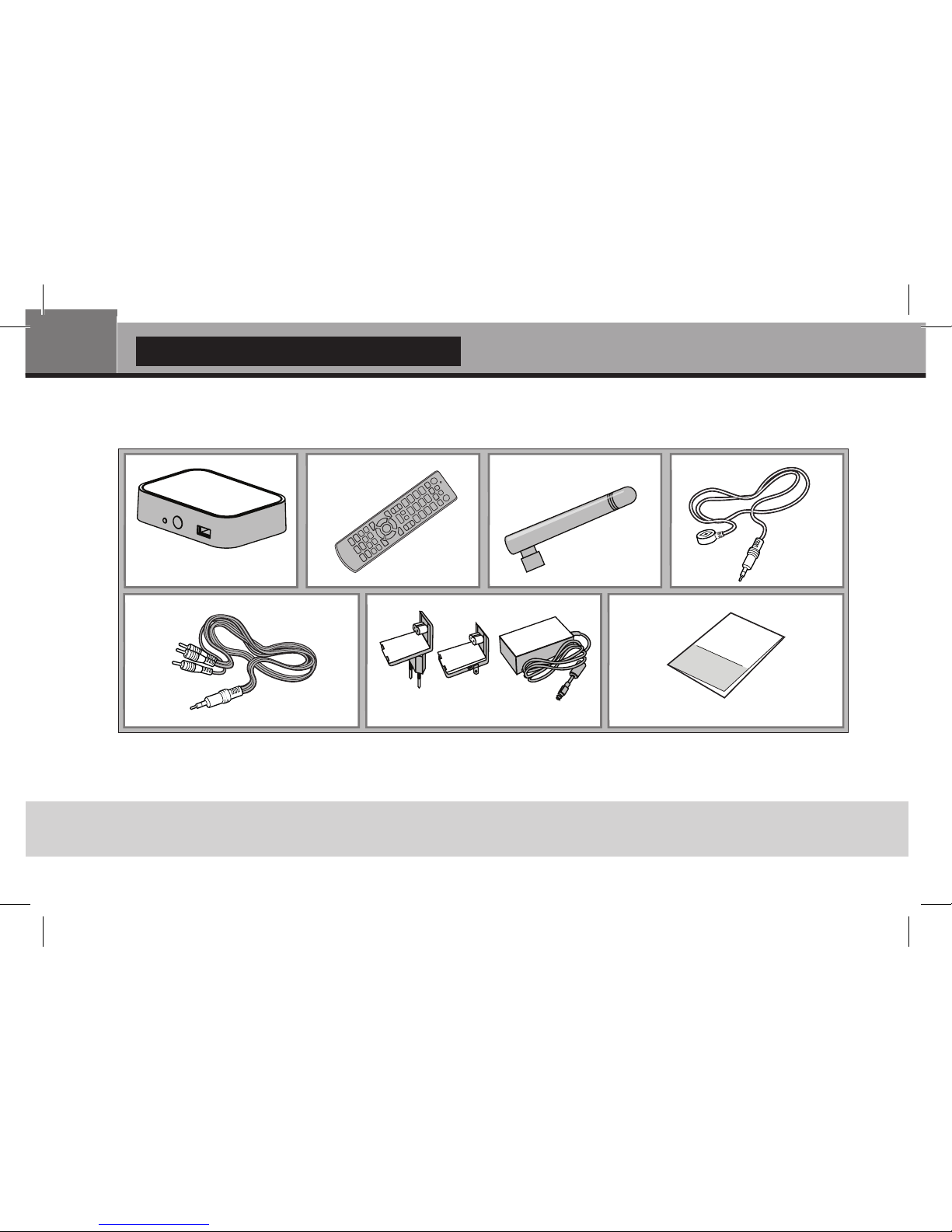

Package Contents
1. Dune HD TV-101 media player
2. Remote control (batteries may not
be included)
3. Wi-Fi antenna (optional)
4. IR extender
5. AV cable (3.5mm minijack to 3xRCA)
6. External power supply
7. Quick start guide
NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and
distributor.
1
5
2
76
3 4

7
English
Front view
Exterior
1. LED indicator
2. IR eye
3. USB 2.0 host
21 3
Rear view
21 345
1. IR Extender
2. HDMI
3. LAN 10/100
4. 3.5mm minijack AV out*
5. DC power 5V
6. Antenna input
*Composite video out, analog 2.0 audio out,
digital coaxial SPDIF out (via left channel on
analog audio output).
modifications with internal tuner
modifications without internal tuner
6

8
Quick Start Guide

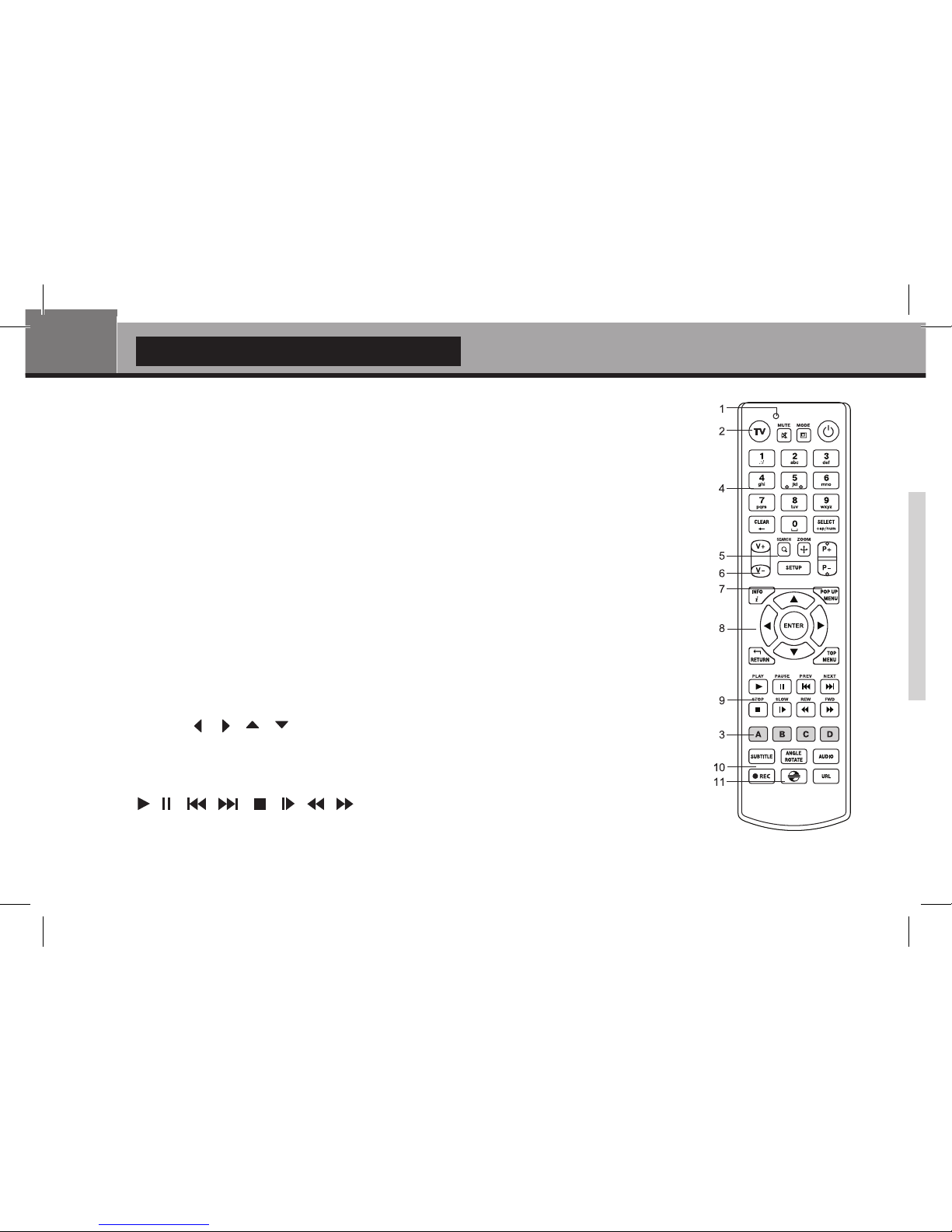

Remote Control
1. Command indicator — ashes in response to RC button pressing.
2. TV — switch to TV mode. MUTE — turn the sound on/off. MODE — switch the video
output mode; control some other player functions. POWER — toggle the standby mode.
3. A (Red), B (Green), C (Yellow), D (Blue) — control some player functions.
4. 0–9 — enter numbers and text; control some other player functions.
5. SEARCH — jump to a specied playback position. ZOOM — change the zoom factor for
the video content being played. SETUP — enter/leave the setup menu; adjust playback
settings during playback.
6. V+/V- (volume up / volume down) — adjust the volume.
7. P+/P- (page up / page down) — scroll up and down in various lists; control some other
player functions.
8. Arrows , ENTER, RETURN, TOP MENU, POP UP MENU,
INFO — main buttons for controlling the player (navigate across the items on the screen,
open/use the currently selected item, go back to the previous screen, go to main menu,
show popup menu with actions, show information, control some other player functions).
9.
— control the playback.

9
English
10. SUBTITLE, ANGLE/ROTATE, AUDIO, REC, DUNE, URL — control the playback and some other player functions.
11.
REC — start/stop TV channel recording, — launch Dune HD Portal, URL — open Web Browser with concrete URL
NOTES:
● Use alkaline AAA batteries.
● Observe polarity when inserting batteries.
● Direct the remote control to the player. There must be no obstacles between the RC and the player.
● If RC functions only at short distances or stops functioning, make sure to replace the batteries.
● Some RC buttons may have several functions depending on the current player mode.
● Some RC buttons may be available only in certain player modes or only during playback of a certain content.

10
Quick Start Guide
Getting Started
Ensure there is enough space around the player for proper cooling. The space at each side should be not less than
10 cm.
Ensure the RC has batteries installed.
Connect the player to your TV and to other A/V equipment in an appropriate way. Use HDMI connection to get the
best possible quality of video and audio. Make sure to switch off the player and all relevant A/V equipment before
connecting them. Ensure your TV and other A/V equipment are configured to use proper inputs.
Switch on the player. The player will perform its initial loading procedure, which may take up to about 1 minute. During
the loading procedure, "DUNE HD" logo is shown on the TV.
● If you do not see "DUNE HD" logo on the TV when you switch on the player, it may mean some problem with the
connection between the player and the TV or that a wrong video input is chosen in the TV or A/V receiver/switch. In
such a case, recheck the cables and the settings of the TV or A/V receiver/switch, or try to use different cables or a
different way of connecting the player to the TV.
● If you see "DUNE HD" logo on the TV when you switch on the player, but then the picture disappears and no other
picture appears during at least 10 seconds, it may mean that a wrong video output mode is configured in the player.
In such a case, press the "REC" RC button, and then press one of the RC buttons 1, 2, 3, 4 or 5 to switch to a
different video output mode (see "Quick Setting of Video Output Mode").
Finally, you should see the main screen of the player menu. The main screen shows items allowing to use different
player functions and access all storage devices and network drives connected to the player.
Adjust the player settings as needed using SETUP item on the main screen of the player menu. In particular, you may
want to adjust video settings, audio settings, and network settings.
To choose the language of the player menu, use “Setup / General / Interface language” setting.

11
English
Use the RC buttons LEFT, RIGHT, UP, DOWN, ENTER, RETURN to navigate through the player menu. Use the POP
UP MENU RC button to show the list of available commands. Use the INFO RC button to show the information about
the selected item.
Quick Setting of Video Output Mode
The “REC” RC button allows quick setting of video output mode without entering the player setup
menu. This way of video output conguration may be required if you see no picture on the screen after
connecting your player to a TV.
Press the REC RC button and then one of the RC buttons 1, 2, 3, 4, or 5 to switch to one of the following video output
modes respectively:
1. Composite PAL
2. Composite NTSC
3. HDMI, 480i, 60 Hz
4. HDMI, 720p, 60 Hz
5. HDMI, 1080i, 60 Hz
After you see a picture on the TV, press the ENTER RC button, and then go to the player setup menu to perform a
more precise conguration of the video output mode if needed.
NOTE: The procedure of quick setting of video output mode can not be used during playback and in some other
cases. To ensure this procedure can be used, switch the player off, then switch the player on, and the wait about 1
minute to ensure the player loading is finished. After that press STOP RC button to ensure playback is stopped. Then
use REC RC button.

12
Quick Start Guide
Configuring the connection to the router (LAN)
To configure LAN connection to the router in most cases there is no need to additionally change the router’s settings.
Connection process is as follows:
1. Connect the LAN port of the player with the router (for most routers LAN ports are yellow)
2. If the router is turned off, turn it on and wait until it is fully loaded (1 ~ 3 min.)
3. Turn on the player. Once it’s loaded (~ 1 min.) the main menu will appear, wait a minute until the player receives
an IP address, in the main menu choose the icon TV where you should enter the subscription details (login and
password) received from Polsky.TV.
Setting up the modem connection (PPPoE)
To connect the player with the modem you need to enter into it data essential for Internet connection, issued to you by
your Internet Service Provider. Connection process is as follows:
1. Connect the LAN port of the player with the modem (usually it is the port to which PC is being connected)
2. If the modem is turned off, turn it on and wait for a full load (~ 1 min.).
3. After that you need to go to SETUP, then NETWORK.
4. Select CONNECTION - PPPoE.
5. Insert LOGIN and PASSWORD and confirm with OK.
6. Click APPLY and wait until the player will receive IP-address (e.g. 192.168.0.199). Now the network is set up, go
back with the button RETURN to the main menu.

13
English
Setting up a wireless connection (Wi-Fi)
To connect the player with the WLAN-router you need to insert into it data required to connect with your home wireless
network. Connection process is as follows:
1. Screw the Wi-Fi antenna or connect to the player USB Wi-Fi receiver.
2. Turn on the router, if it was turned off and wait until it is fully loaded (1 ~ 3 min.)
3. Turn on the player. After it was loaded (~ 1 min.) the main menu of the player will be shown.
4. Go to SETUP, then NETWORK.
5. Select CONNECTION – WIRELESS (Wi-Fi). Find using the option SCAN FOR Wi-Fi NETWORKS... or enter Wi-Fi
NETWORK ID (SSID). Set up the SECURITY MODE and enter the PASSWORD then confirm with OK. The setting
MODE should not be changed without the need - the default is AUTO (DHCP).
6. Click APPLY and wait for the player to receive IP-address (e.g. 192.168.0.199). Now the network is set up, go back
with the button RETURN to the main menu.
Usage of TV
Choose TV in the main menu then the POLSKY.TV icon. You need to enter your subscription details: login and
password. These details you received from the operator after purchasing the TV subscription (sent via email). Once
you entered your subscription data, there will be shown group of TV channels. Choose the suitable group and press
ENTER on the remote control. Then on the screen there will be displayed list of channels. Select the channel and
press ENTER to start it. To go back to the list of channels and display it on the screen, press POP UP MENU or
ENTER. To go back to the main menu press button TOP MENU.
Edit subscription settings:

14
Quick Start Guide
1. Select SETUP in the main menu
2. Choose POLSKY.TV
3. The following subscription settings are awailable:
• EDIT SUBSCRIPTION to login with another subscription
• CODE FOR PROTECTED CHANNELS to change the parental password
• STREAMING SERVER to select the nearest broadcasting server
• BITRATE to select the broadcasting quality
• BUFFERING PERIOD to set up buffer time
• TIME SHIFT (HOURS) to select the broadcasting delay.
Creating list of FAVORITES
Adding channels to the list of FAVORITES is possible both in the main channel list and after the screen menu
navigation channels is opened during transmission (press ENTER).
1. Move the cursor to the desired channel in the list and press the button D (blue button). On the right hand side of the
channel’s name there will be an asterisk shown which indicates that the channel is added to the list of FAVORITES.
2. When all the desired channels are marked with an asterisk, go to the FAVORITES and arrange the channels in the
requested order using the button B (move channel up) and C (move channel down).
Time shift
Time shift or broadcasting delay - it’s not a problem with the broadcasting but the feature that enhance your viewing
of television. It allows people in different time zones to watch Polish programs which are broadcasted at Warsaw

15
English
time, at a convenient for them time. That means that until the introduction of the broadcasting delay the residents of
America had to watch in the morning the evening programs, and during the day most of the channels do not work,
because in Poland at this time was the night. Broadcasting delay is intended for residents of Europe and USA. The
delay can be set to the maximum of 11 hours according to Warsaw time. Why so? The difference between Warsaw
and the European average time is 2 hours, between Warsaw and Los Angeles (West Coast) - 11 hours. Residents of
the respective time zones can set a delay so that, for example, the morning news, broadcasted at 9:00 am Warsaw
time, can be watched at 9:00 am local time.
Archive
To work with the Archive first open the program guide with the button ENTER on the remote control. Press button
RIGHT to go to the program guide. Now you can see that all programs that were already broadcasted are marked on
their left hand side with red letter R (recorded). Each such record can be accessed and watched from the archive.
Sufficient is to select with help of buttons |◄◄ and ►►| the desired day (you can see the chosen day at the top, for
example <Tuesday, 17.03.2011>), and then with buttons UP, DOWN select the desired program and press ENTER
on the remote control.
After few seconds transmission of the recorded program will start. Use the PLAY / PAUSE buttons to pause and
continue playing. Using buttons PG-/PG+ you can move between days in the archive. The start of the program
is sometimes not exactly the same as the time specified in the program, due to the technical features of Internet
television. This can be easily fixed by rewinding. If you press one time and release the button ►►, then the rewind
bar appears on the screen. After pressing the button ►► or ◄◄ again the transmission of the recorded program will
start in a few seconds. If you press the ►► or ◄◄ several times in a row, it will rewind the number of minutes that
corresponds to the number of presses (you can also just hold down the rewind button and follow the increase of the
rewind time). Similarly, works rewinding in the opposite direction. In addition, to rewind the recorded program you can
use buttons UP / DOWN - 1 minute LEFT / RIGHT - 10 SECONDS.

16
Quick Start Guide
Connecting USB Drives
To connect a USB drive, ensure you are on the main screen of the player menu and connect the USB drive to an USB
port of the player. The player will recognize the USB drive, and will show an item corresponding to the USB drive on
the main screen.
When connecting a USB drive requiring signicant power (such as USB HDD), use an external power supply for the
USB drive. Power provided by the USB ports of the player may not be enough for correct functioning of the USB drive.
Do not disconnect or switch off the USB drive when some write operation is in progress.
Accessing Network Drives
To connect a network drive using SMB or NFS protocol, ensure you are on the main screen of the player menu, press the
“MENU” RC button, and choose “Create Network Folder”, then ll the parameters of the network drive as needed. The player
will show an item corresponding to the congured network drive on the main screen.
To browse the list of network resources accessible via SMB or UPnP protocols, use “Network Browser” item on the
main screen of the player menu.
NOTE: If some network resources are not shown by the player, you may need to wait some minutes and then retry (or
press the “MENU” RC button and choose “Refresh” command).
Formatting HDD
To format a HDD attached to the player, select the HDD item on the main screen of the player menu, press
the “INFO” RC button and choose “Format Disk” (to format the entire disk) or “Format Partition” (or to
format an already existing disk partition only). The player will format the disk. To format an unformatted HDD, just
press the “ENTER” RC button on the HDD item.
NOTE: To use disks formatted by the player on a Windows PC, you may need to install additional software on the PC,
such as “EXT2FSD” (http://www.ext2fsd.com/).

17
English
Switching the Player On and Off
To put the player into the standby mode, press the «POWER» RC button. To exit the standby mode, press this buttons
again.
Depending on the player settings (see the player setup menu), the «hardware standby» or «software standby» mode
may be used. In the «hardware standby» mode, almost complete power-off takes place and the player consumes
almost no power. In the «software standby» mode, the player produces no signal on the video output, but is still
functioning. For example, if you have some storage devices connected to the player, you may still access them from
network («NAS» function of the player). Exiting the «software standby» mode takes just a few seconds. When the
player is in the «software standby» mode, it still consumes significant power. It is not recommended to keep the player
in the «software standby» mode for a while if you do not need it.
To switch the player off completely, disconnect the power plug.
NOTE: After switching off the player completely or putting the player into the «hardware standby» mode, it is
recommended to wait about 1 minute before switching it on again.
NAS (Network Attached Storage)
You can access storage devices connected to the player from the local network using FTP and SMB protocols. On a
Windows PC, just type «ftp://ip_address» or «\\ip_address» in the Windows explorer, where «ip_address» is the IP
address of the player.
Wi-Fi
If you player does not include a built-in Wi-Fi adapter, you can use a USB Wi-Fi adapter to connect the player to the
local network via Wi-Fi.
Please see here for the information on supported USB Wi-Fi adapters: http://dune-hd.com/support/hw_compat/

18
Quick Start Guide
Limitations
Compatibility of the player with a particular hardware (A/V equipment, network equipment, disk drives, etc) may
depend on various factors (particular hardware model, specics of hardware installation and usage, conguration of
the player and the hardware, etc). If the player does not correctly work with a particular hardware, try to adjust the
conguration of the player or hardware, try to use the hardware in a different way, or try to use some other hardware.
Compatibility of the player with a particular media content (les, discs, etc) may depend on various factors (specics of
media content encoding, specics of the conguration of the player, etc). If the player does not play correctly a particu-
lar media content, try to adjust the conguration of the player, or try to use media content encoded in a different way.
Updating Your Player and Getting More Information
When the updated player rmware will be released your player will automatically detect it and display the respective
message. Please keep your player always up-to-date as it can improve or/and extend the functionality of your player.
NOTE: You can also connect the player to Internet and use the online firmware upgrade function, see Setup / Misc /
Firmware Upgrade.
For more information or newest documentation regarding your player please visit www.polsky.tv
*Errors and technical modication subject to change.

19
English

20
Skrócona instrukcja obsługi
Wstęp
DUNE HD TV 102 to rozwiązanie all-in-one stworzone do odtwarzania materiałów wideo Full HD (do 1080p).
Główne cechy
● Najnowszy procesor multimedialny Sigma Designs SMP867x: ciesz się doskonałą jakością odtwarzania oraz
wysoką wydajnością interaktywnych dodatków.
● Odtwarzanie z dysku: podłącz dysk zewnętrzny do odtwarzacza i oglądaj zawartość bezpośrednio z dysku.
● Odtwarzacz sieciowy: podłącz odtwarzacz do sieci lokalnej i oglądaj materiały bezpośrednio z udostępnionych
zasobów Twojego komputera lub serwera sieciowego NAS (obsługiwane protokoły UPnP, SMB, NFS).
● Odtwarzacz MKV: oglądaj filmy w jakości SD i HD w popularnym formacie MKV oraz innych najnowszych formatach,
ciesz się wysoką jakością wideo z wysokim bitrate’m.
● Port USB: podłączaj dyski twarde, USB, pamięci przenośne, czytniki kart pamięci i inne urzadzenia wyposażone
w złączę USB.
● HDMI 1.3: uzyskaj najwyższej jakości obraz oraz dźwięk w HD.
● Elastyczność wyjścia wideo: ustaw wyjście wideo w dowolnej rozdzielczości oraz formacie (od formatu SD do
jakości 1080p, 24p,PAL,NTSC).
● Skaler: wysokiej jakości wbudowany skaler zapewnia doskonały obraz podczas oglądania filmów DVD i innych
materiałów SD na ekranie telewizora Full HD (1080p).
● Menadżer plików: prosta przeglądarka plików z rozbudowanym zarządzaniem plików (kopiowanie, przenoszenie,
usuwanie, zmiana nazwy, organizacja, sortowanie).
