Service Manual
Model MD-K400
CODE: 1.01.52280.51

MD-K400
1
INDEX
1. GENERAL......................................................................................................................2
1.1 PRODUCT FRONT VIEW............................................................................................2
1.2 PRODUCT BACK VIEW..............................................................................................3
1.3 REMOTE CONTROL....................................................................................................5
2. TECHNICAL SPECIFICATION...................................................................................6
3. CALIBRATION SCRIPT............................................................................................11
4. MATERIAL LIST..........................................................................................................13
5. ELECTRICAL SCHEME............................................................................................40
5.1 FRONTAL PCB...........................................................................................................41
5.2 LATERAL PCB...........................................................................................................42
5.3 CD PCB ........................................................................................................................43
5.4 DECK PCB...................................................................................................................44
5.5 REMOTE CONTROL PCB........................................................................................45
6. SILKTOP AND SOLDERS........................................................................................46
6.1 MAIN PCB....................................................................................................................46
6.2 CD PCB ........................................................................................................................48
6.3 DECK PCB...................................................................................................................50
6.4 REMOTE CONTROL PCB........................................................................................52
7. EXPLODED VIEW......................................................................................................54
8. SPEAKERS – TECHNICAL SPECIFICATION......................................................55
8.1 PRODUCT MODEL....................................................................................................56
8.2 MATERIAL LIST AND EXPLODED VIEW.............................................................57

MD-K400
2
1. GENERAL

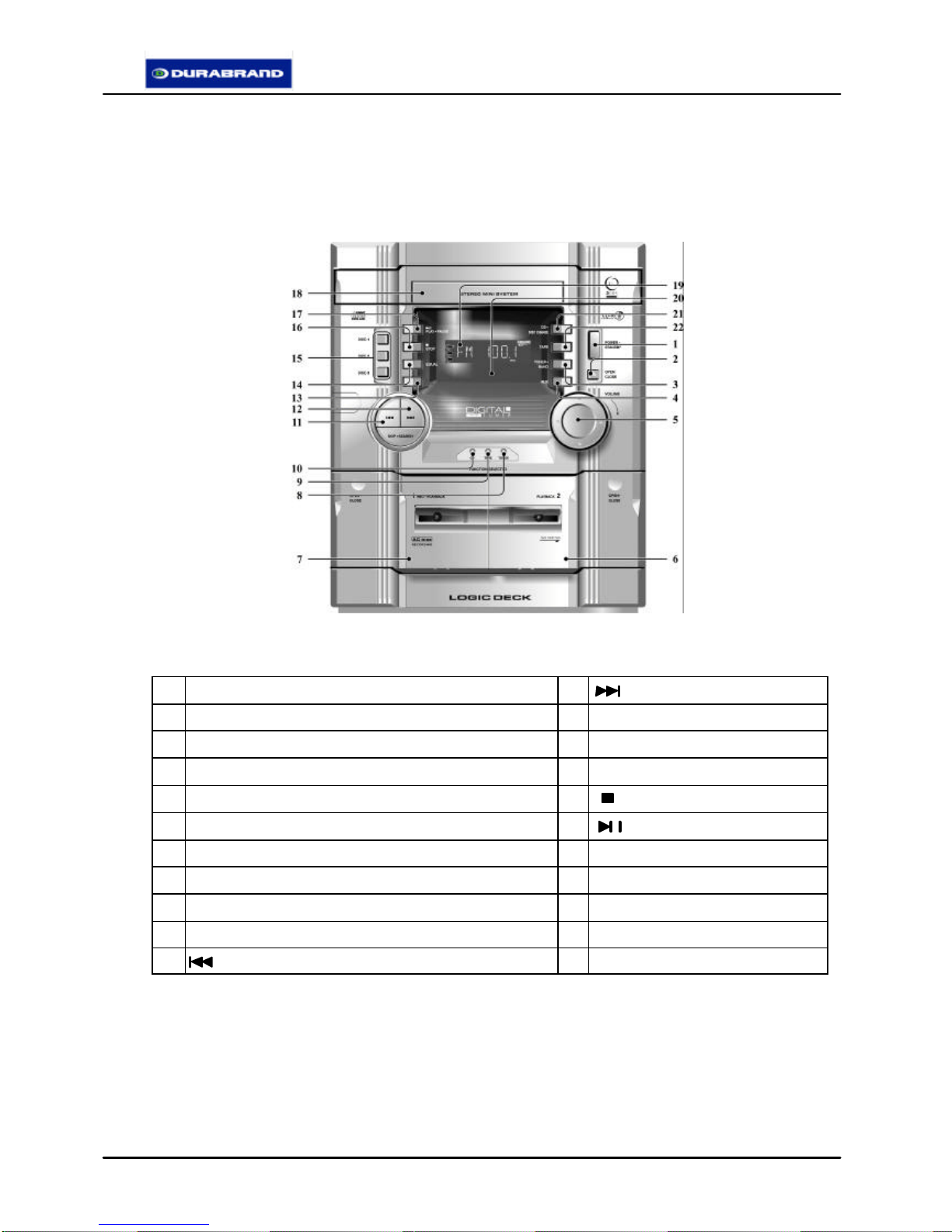

1.1 Product Front View
a) Front Panel
a.1) Front Panel Functions and Indications
1Power- Standby 12 - Forward Radio/CD
2Open/Close 13 REC
3Tuner - Band 14 EQUAL
4AUX 15 Disc 1, Disc 2, Disc 3
5Volume 16 - Stop
6Deck 2 17 - Play/Pause
7Deck1 18 CD Compartment
8Tuner 19 Display
9Tape 20 Remote Control Sensor
10 CD 21 CD – Disc Change
11 - Rewind Radio/CD 22 TAPE

MD-K400
3

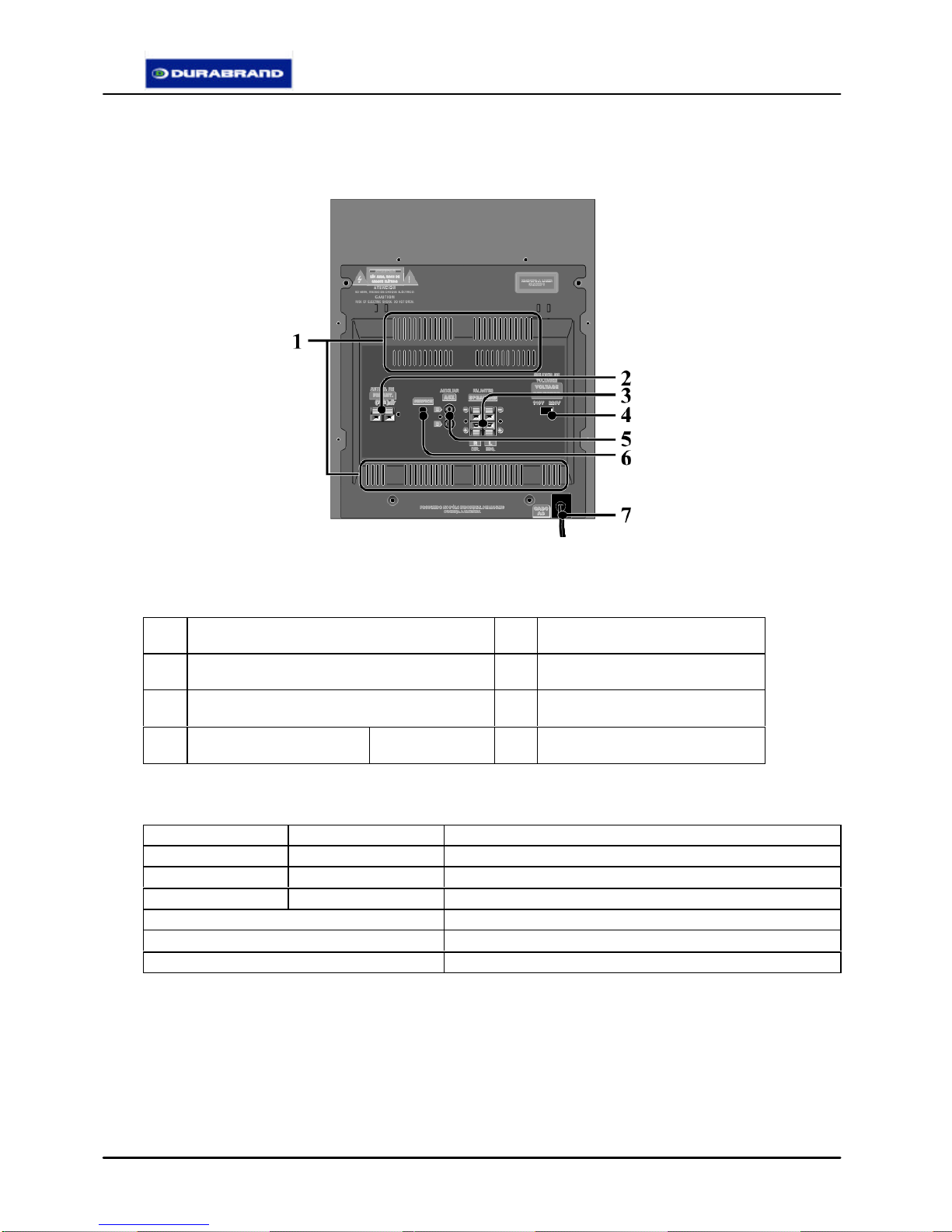

1.2 Product Back View
a) Back Panel
a.1) Back Panel Functions and Indications
01 Edges for Ventilation 05 AUX
02 FM antena 06 Service
03 Speakers L and R 07 Force Cable
04 Voltage Selector 110 / 220V
b) Functions
Functions CD Top
Tape Double Deck
Radio AM / FM - PLL digital – 10 memories
AUX Input Yes
Display FTD
Clock 24:00h – Timer Function (ON)
Surround Yes

MD-K400
4
c) Characteristics
Product Dimensions 265 x 310 x 333 mm
Weight 4,9 kg
Speaker Dimensions 195 x 310 x 208 mm
Weight 1,5 kg
Impedance 8Ω
d) Supply
Unit Nominal Min. Max.
Supply Voltage Vac 110 - -
Vac 220 - -
Supply Frequency Hz 50/60 - -
Consumed Power Stand by W7,7 -8,0
In Operation W60 -62
CD Player:
Type of Laser 3 beams ( λ= 780 nm)
Reproductivity
Realized Test Utilized Test Disc Utilized Track Conclusion
Interruption TCD 725A - Abex 01 to 04 OK
Black dots TCD 725A - Abex 07 and 08 OK
Fingerprints TCD 725A - Abex 13 OK
Vertical Deviation TCD 731RA - Abex 01 to 15 OK
Eccentricity TCD 710A - Abex 01 to 15 OK

MD-K400
5

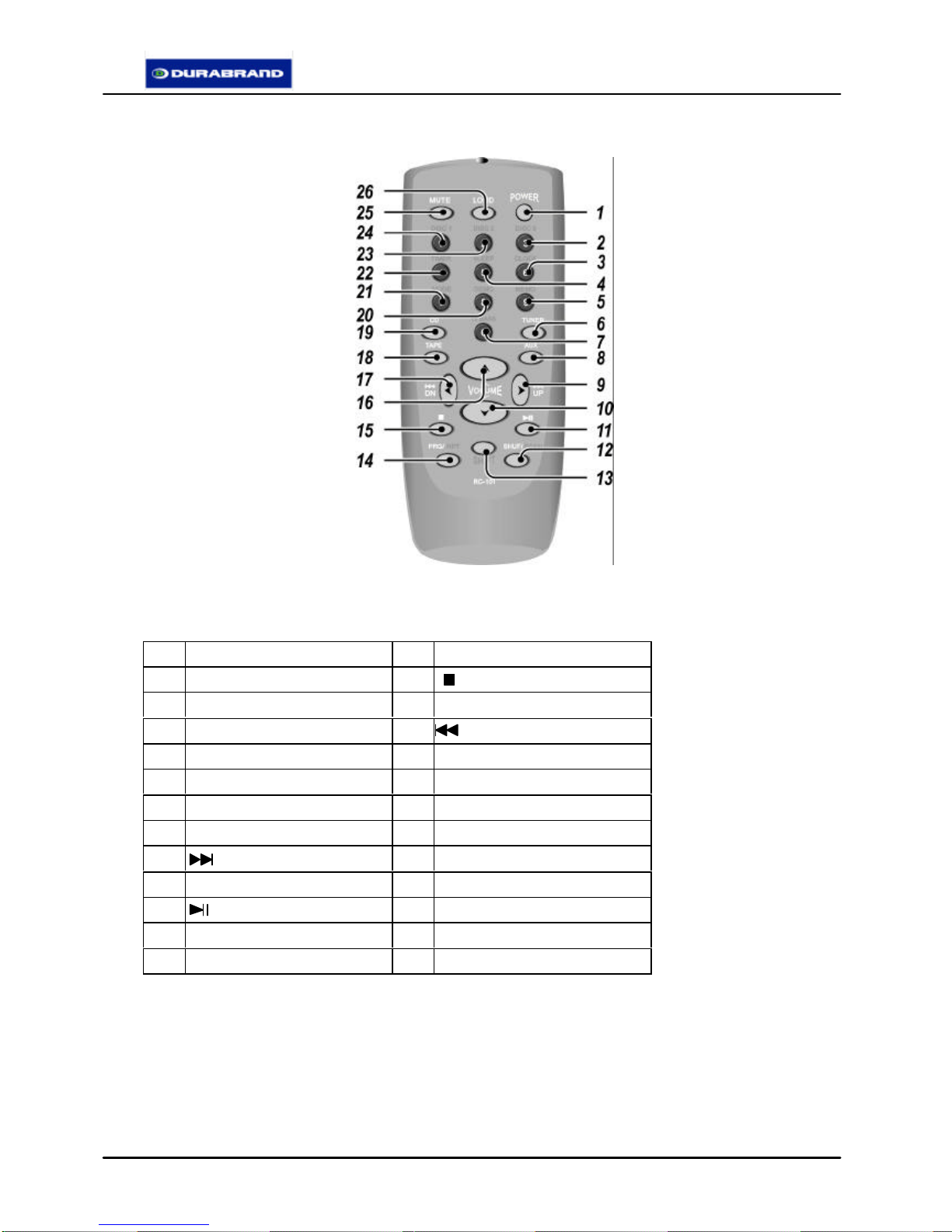

1.3 REMOTE CONTROL
1.3.1) Remote Control Functions
1Power 14 Prog/Rpt
2Numerical key 3 (Disc 3) 15 - Stop CD/Tape
3Numerical key 6 (Clock) 16 Vol +
4Numerical key 5 (Sleep) 17 - Rewind Radio/CD/Tape
5Numerical key 9 (Memo) 18 Tape
6Tuner 19 CD
7Numerical key 0 (Hi Bass) 20 Numerical key 8 (Demo)
8AUX 21 Numerical key 7 (Mode)
9- Forward Radio/CD/Tape 22 Numerical key 4 (Timer)
10 Vol - 23 Numerical key 2 (Disc 2)
11 - Play/Pause CD/Tape 24 Numerical key 1 (Disc 1)
12 Shuf/Scan 25 Mute
13 Shift 26 Loud

MD-K400
6
2. TECHNICAL SPECIFICATION
AMPLIFICADOR
AMPLIFIER
ENTRADA: AUX./ VIDEO = 1KHz ALIMENTAÇÃO : 127VAC
INPUT: AUX./ VIDEO = 1KHz POWER SOURCE: 127VAC
SAÍDA: CARGAS 8 OHMS
OUTPUT: OUT LOAD 8 OHMS
N°ÍTEM
ITEM CONDIÇÕES
CONDITIONS VALOR TÍPICO TYPI CAL VALUE VALOR LIMITE LIMIT VALUE
1POTÊNCIA DE SAÍDA
POWER OUTPUT 1KHz 0Dbv (127V)
10% THD 10 + 10 W 8,95 + 8,95 V ≥10 +10 W
≥8,95 + 8,95V
2DISTORÇÃO
DISTORTION 1KHz 0dBV, CARGA 2V 2V OUTPUT LOAD , FLAT 0,1% 0,5%
3SENSIBILIDADE DE
ENTRADA
INPUT SENSITIVITY
1KHz 0dBV VOLUME MAXIMO
MAXIMUM VOLUM 400 mV ±100 mV
4RUÍDO RESIDUAL
RESIDUAL NOISE
ENTRADA CURTO-CIRCUITADA
VOLUME MÍN. MIC. VOL. MIN
INPUT SHORTED
MIN. VOL MIC. VOL. MIN. 1 mV 10 mV
5NÍVEL DE RUÍDO
LEVEL NOISE
ENTRADA CURTO-CIRCUITADA
VOLUME MAX. MIC. VOL. MIN
INPUT SHORTED
MAX. VOL MIC. VOL. MIN. 10 mV 120 mV
-3dB UP 60 kHz ±10 kHz
6RESPOSTA EM
FREQUÊNCIA
FREQUENCY RESPONSE
1KHz 0dBV CARGA 2V
2V OUTPUT LOAD , FLAT
-3dB DOWN
20 Hz ±10 Hz
7SEPARAÇÃO DE
CANAIS
CHANNEL SEPARATION
1KHz 0dBV, CARGA 2V
2V OUTPUT LOAD , FLAT 45 dB 40 dB
8GANHO Av DO
AMPLIFICADOR
AMPLIFIER Av 1KHz 0dBV, CARGA 2V
2V OUTPUT LOAD , FLAT 23 dB 20 dB
9RELAÇÃO SINAL/ RUÍDO
SIGNAL NOISE RELATION 1KHz 0dBV, CARGA 2V
2V OUTPUT LOAD , FLAT 60 dB 50 dB
MODO STBY
STBY MODE 8W 12W
MEIO VOLUME - 1KHz 0dB
HALF VOLUM 20W 25W
10 POTÊNCIA DE
CONSUMO
POWER CONSUMER VOLUME MÁXIMO - 1KHz 0dB
MINIMUM VOLUM 55W 60W

MD-K400
7

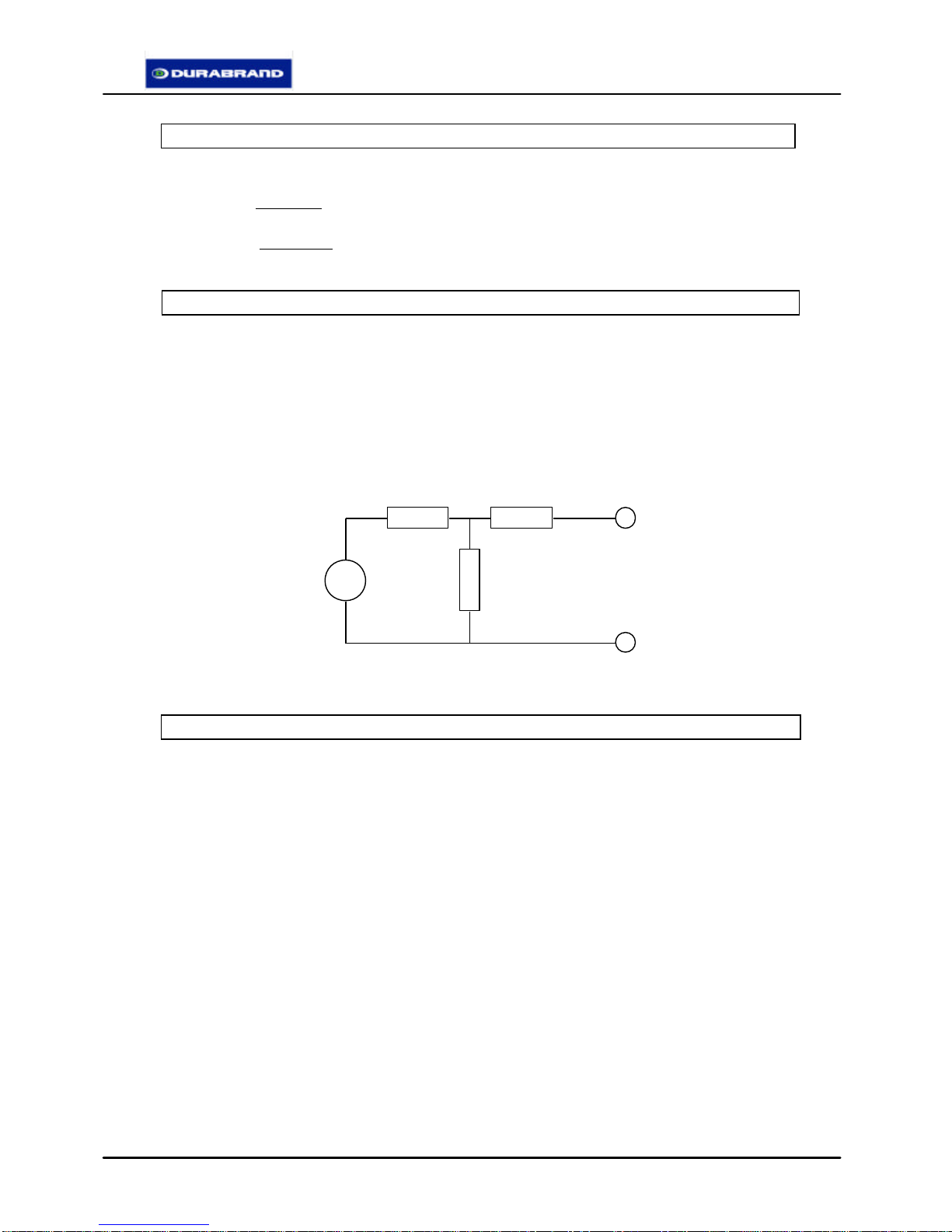

RÁDIO FM
FM RADIO
NÍVEL PADRÃO DE ENTRADA
STANDARD INPUT LEVEL MODULAÇÃO
MODULATION ANTENA ANTENNA IMPEDÂNCIA DE
ENTRADA
IMPEDANCE OF IMPUT
60dB
MONO: 1kHz, DESVIO: 75kHz
MONO: 1KHz, DEVIATION: 75kHz
ESTÉREO: L + R, 37,5kHz
STEREO: L + R , 37,5kHz
PILOTO: 7,5kHz
PILOT : 7,5kHz
DUMMY DA VI
ACOPLAGEM DIRETA
DIRECT COUPLING
PONTO DE MEDIÇÃO:
SAÍDA DO RÁDIO
MEASUREMENT POINTS: OUTPUT
RADIO
50 OHMS
N°
N°ITEM ITEM CONDIÇÕES CONDITION VALOR TÍPICO TYPICAL VALUE VALOR LIMITE LIMIT VALUE
MÍNIMO
MINIMUM 87,5 MHz 87,5 MHz
1FAIXA DE SINTONIA
TUNNING RANGER MÁXIMO
MAXIMUM 108,1 MHz 108,1 MHz
90,1MHz 18 dB 23 dB
98,1MHz 18 dB 23 dB2
SENSIBILIDADE
USUAL 30dB S/N
USABLE SENSITIVITY
106,1MHz 18 dB 23 dB
3REL. SINAL/RUÍDO
SIGNAL / NOISE 98,1MHz 40 dB 35 dB
4DISTORÇÃO
DISTORTION 98,1MHz 0,3 % 1,2 %
5REJEIÇÃO DE
IMAGEM
IMAGE REJECTION
98.1MHz 20 dB 15 dB
100 Hz ±1 dB ±3 dB
6RESPOSTA DE FREQUÊNCIA
FREQUENCY RESPONSE
98.1MHz
1kHz 6 KHz -9 dB -10 dB
90.1MHz 25 dB 30 dB
98,1MHz 25 dB 30 dB
7PARADA DO AUTO
SCAM
AUTO-STOP LEVEL
106.1MHz 25 dB 30 dB
8SEPARAÇÃO DE
CANAIS
CHANNEL SEPARATION 98,1MHz 25 dB 20 dB
ON 15 dB 20 dB
9SENSIBILIDADE DO
INDICADOR ESTÉREO
STEREO INDICATION
SENSITIVITY
98,1MHz
1KHz OFF 15 dB 20 dB
10 REJEIÇÃO DE FI
FI REJECTION 98,1MHz 50 dB 70 dB
UP 100 kHz 300 kHz
11 ATUAÇÃO DO AFC
AFC ATUACTION 98,MHz DOWN 100 kHz 300 kHz

MD-K400
8
RÁDIO AM
AM RADIO
NÍVEL PADRÃO DE ENTRADA: 74dBµV, MODULAÇÃO 30% 400Hz, ANTENA
LOOP
STANDARD INPUT LEVEL : 74dBµV, MODULATION: 30% 400Hz, ANTENNA LOOP
N°
N°ITEM ITEM CONDIÇÕES
CONDITION VALOR TÍPICO
TYPICAL VALUE VALOR LIMITE LIMIT VALUE
MINIMO
MINIMUM 520kHz 520kHz
1FAIXA DE SINTONIA
RANGE TUNNER MÁXIMO
MAXIMUM 1650kHz 1650kHz
600kHz 70 dB 72 dB
1000kHz 65 dB 72 dB
2
SENSIBILIDADE
USUAL 20dB S/N
USABLE SENSITIVITY
1400kHz 65 dB 70 dB
3REL. SINAL/RUÍDO
SIGNAL / NOISE 1000Hz 30 dB 25 dB
4AGC
AGC 1000kHz 60 dB ≥50 dB
5DISTORÇÃO
DISTORTION 1000kHz 0.8% <2%
100Hz ±3 dB ±5 dB
6RESPOSTA DE FREQUÊNCIA
FREQUENCY RESPONSE
1000kHz
400Hz 3kHz -8 dB -10 dB
DECK REPRODUÇÃO
REPRODUCTION DECK
N°
N°ITEM ITEM CONDIÇÕES
CONDITION VALOR TÍPICO TYPICAL VALUE VALOR LIMITE LIMIT VALUE
W&F 0,1% 0,3%
1WOW & FLUTER MTT 111 FREQ
.3 kHz ±3% 3 kHz ±6%
125Hz ±1 dB ±3 dB
2RESPOSTA EM
FREQUENCIA
FREQUENCY RESPONSE
MTT 117
MTT 117
( 1KHz = 0dB ) 6,3KHz ±1 dB ±3 dB
3SEPARAÇÃO DE
CANAIS
CHANNEL SEPARATION MTT 141 30 dB 20 dB
VOLUME MÍNIMO
MINIMUM VOLUM 5 mV 10 mV
4RUÍDO TAPE PLAY
TAPE NOISE PLAY VOLUME MÁXIMO
MAXIMUM VOLUM 50 mV 100 mV
5RELAÇÃO SINAL
RUÍDO
SIGNAL NOISE RELATION MTT 118 ( PLAY/STOP ) 35 dB 30 dB
6DISTORÇÃO
DISTORTION MTT 118 1% 2 %

MD-K400
9
7DIFERENÇA DE
CANAIS
CHANNEL DIFFERENCE MTT 118 1dB 2dB
DECK GRAVAÇÃO
WRITING DECK
N°
N°ITEM ITEM CONDIÇÕES
CONDITION VALOR TÍPICO
TYPICAL VALUE VALOR LIMITE LIMIT VALUE
1DIFERENÇA DE NÍVEL
REC/PLAY
LEVEL DIFERENCE
REC/PLAY
MTT 118 -1,0dB -3,0dB
2RELAÇÃO SINAL
RUÍDO
SIGNAL NOISE RELATION 1kHz -10dB via CD 30 dB 25 dB
125Hz ±3 dB ±5 dB
3RESPOSTA EM
FREQUENCIA
FREQUENCY RESPONSE ( 1KHz = 0dB ) 6,3KHz ±3 dB ±5 dB
4SEPARAÇÃO DE
CANAIS L/R
CHANNEL SEPARATION 1KHz - L/R 30 dB 25 dB
VOLUME MÍNIMO
MINIMUM VOLUM 5 mV 10 mV
5RUÍDO TAPE
REC/PLAY
TAPE NOISE REC/PLAY VOLUME MÁXIMO
MAXIMUM VOLUM 50 mV 120 mV
6DISTORÇÃO
DISTORTION MTT 118 1,5 % 3 %
CD
CD
N°
N°ITEM ITEM CONDIÇÕES
CONDITION VALOR TÍPICO
TYPICAL VALUE VALOR LIMITE LIMIT VALUE
1RELAÇÃO SINAL
RUÍDO
SIGNAL NOISE RELATION TNO 24 CD Yeds 18 80 dB 70 dB
125Hz ±0,5 dB ±3 dB
2RESPOSTA EM
FREQUENCIA
FREQUENCY RESPONSE
TNO 04
TNO 09
( 1KHz = 0dB ) 6,3KHz ±0,5 dB ±3 dB
3SEPARAÇÃO DE
CANAIS L/R
CHANNEL SEPARATION
TNO 33/34 - CD Yeds 18
1KHz - L/R 45 dB 40 dB
VOLUME MÍNIMO
MINIMUM VOLUM 5 mV 10 mV
4RUÍDO TAPE
REC/PLAY
TAPE NOISE REC/PLAY VOLUME MÁXIMO
MAXIMUM VOLUM 50 mV 120 mV
5DISTORÇÃO
DISTORTION TNO 24 - CD Yeds 18 0,3 % 1 %

MD-K400
10
EQUALIZADOR
EQUALIZATOR
Nº ÍTEM
ITEM CONDIÇÕES
CONDITION VALOR TÍPICO
TYPICAL VALUE VALOR LIMITE LIMIT VALUE
1LOUDNESS ON 100Hz – Vol.10 12dB ±5dB
2HI BASS ON 100Hz – Vol.10 3,5dB ±1dB
3PERSON (Vol.10) BASS +6
BASS –6
TREB +6
TREB –6 ±6dB ±1dB

MD-K400
11
3. CALIBRATION SCRIPT
Obs.: This procedures can be used to orientation , some item can be
changed by the factory engineering for best application and improve the
factoring process.
FM RANGE
Tunning in 87,5 MHz, adjust the coil OSC-FM (L.102) to obtain ~ 2,0 V in the
tunnig voltage (terminal 28 of IC101 with resistor of 10K in serie with the
voltimeter ).
Tunnig in 108,1 MHz, and verify if the tunnig voltage is ~ 7,1 V.
The voltage values can be slightly changed to help the production.
FI-FM
Connect a FM sweepings generator in the FM input.
Tunning the radio in 98,1 MHz.
Verify the shape of curve “S”, in the pin 23 of the IC101.
TRACKING FM
Connect a FM sweeping generator in the FM input.
The generator output must have a very low RF signal and cannot saturate the
IC output (pin 23 of the IC101 ).
Tunning in 90,1 MHz and adjust the RF-FM coil (L.101) to obtain maximum
output signal.
Tunning in 106,1 MHzand adjust VC.102 to obtain maximum output signal
AM RANGE
Tunning in 520 kHz, adjust the OSC-AM coil (T.101) to obtain ~ 1,0 V in the
tunning voltage.
Tunning in 1650 kHz, and verify if the tunning voltage is ~ 6,5 V.
The voltage values can be slightly changed to help the production.
FI-AM
Adjust an AM generator to1000 kHz with 30% of modulation in 400 Hz.
Tunning the radio in 1000 kHz.
Must be used a very low RF signal.
If haves undesirable noises, this frequency can be displaced for + or -, together
with a frequency of generator frequency.
Adjust the FI-AM coil (T.104) to obtain the maximum detected signal.

MD-K400
12
TRACKING-AM
Irradiate a AM sweeping to the ferrite antenna.
Tunning in 600 kHz and adjust the coil ANT-AM (T.102) to obtain maximum
output signal.
Tunning in 1400 kHzand adjust VC.101 to obtain maximum output signal.
Remake the adjust three times to obtain the best adjust point.
COMMENTS
The FM signal generator have be connected in the FM input through of DUMMY
DA-V.
The AM signal generator have be irradiated for a LOOP antenna and captured
by itself ferrite antenna of the device.
As much in the calibration of AM as in the one of FM, the used tool for calibrate
the coils have be of material not magnetic.
45
10
60
( 50 : 75 )
OSC. BIAS
Connect a VTVM in the point TP5 e TP6.
The VTVM output must be linked in a frequencymeter.
Put a tape with the unbroken rec constraint.
Select a AUX function whitout input signal.
Adjust T903 to obtain 59.068 Hz +/- 20Hz in the frequencymeter.
Verify if in the VTVM have a 0,035V signal.

MD-K400
13
4. MATERIAL LIST
MAIN PCB
CAPACITORS
CODE DESCRIPTION POSITION
1491047004 CAP.SMD NP0 47PF/50V J 0603 C606
1491047004 CAP.SMD NP0 47PF/50V J 0603 C607
1491047004 CAP.SMD NP0 47PF/50V J 0603 C608
1491047004 CAP.SMD NP0 47PF/50V J 0603 C609
1491047004 CAP.SMD NP0 47PF/50V J 0603 C611
1491047004 CAP.SMD NP0 47PF/50V J 0603 C614
1491047004 CAP.SMD NP0 47PF/50V J 0603 C615
1491047004 CAP.SMD NP0 47PF/50V J 0603 C618
1491047004 CAP.SMD NP0 47PF/50V J 0603 C619
1491047004 CAP.SMD NP0 47PF/50V J 0603 C620
1491047004 CAP.SMD NP0 47PF/50V J 0603 C621
1491047004 CAP.SMD NP0 47PF/50V J 0603 C622
1491047004 CAP.SMD NP0 47PF/50V J 0603 C624
1491047004 CAP.SMD NP0 47PF/50V J 0603 C625
1491047004 CAP.SMD NP0 47PF/50V J 0603 C626
1491047004 CAP.SMD NP0 47PF/50V J 0603 C632
1491047004 CAP.SMD NP0 47PF/50V J 0603 C633
1491047004 CAP.SMD NP0 47PF/50V J 0603 C634
1491047004 CAP.SMD NP0 47PF/50V J 0603 C635
1490447004 CAP.SMD NPO 47PF/50V J 0805 C606
1490447004 CAP.SMD NPO 47PF/50V J 0805 C607
1490447004 CAP.SMD NPO 47PF/50V J 0805 C608
1490447004 CAP.SMD NPO 47PF/50V J 0805 C609
1490447004 CAP.SMD NPO 47PF/50V J 0805 C611
1490447004 CAP.SMD NPO 47PF/50V J 0805 C614
1490447004 CAP.SMD NPO 47PF/50V J 0805 C615
1490447004 CAP.SMD NPO 47PF/50V J 0805 C618
1490447004 CAP.SMD NPO 47PF/50V J 0805 C619
1490447004 CAP.SMD NPO 47PF/50V J 0805 C620
1490447004 CAP.SMD NPO 47PF/50V J 0805 C621
1490447004 CAP.SMD NPO 47PF/50V J 0805 C622
1490447004 CAP.SMD NPO 47PF/50V J 0805 C624
1490447004 CAP.SMD NPO 47PF/50V J 0805 C625
1490447004 CAP.SMD NPO 47PF/50V J 0805 C626
1490447004 CAP.SMD NPO 47PF/50V J 0805 C632
1490447004 CAP.SMD NPO 47PF/50V J 0805 C633
1490447004 CAP.SMD NPO 47PF/50V J 0805 C634
1490447004 CAP.SMD NPO 47PF/50V J 0805 C635
1490447000 CAP.SMD NPO 47PF/50V K 0805 C606
1490447000 CAP.SMD NPO 47PF/50V K 0805 C607
1490447000 CAP.SMD NPO 47PF/50V K 0805 C608
1490447000 CAP.SMD NPO 47PF/50V K 0805 C609
1490447000 CAP.SMD NPO 47PF/50V K 0805 C611
1490447000 CAP.SMD NPO 47PF/50V K 0805 C614
1490447000 CAP.SMD NPO 47PF/50V K 0805 C615
1490447000 CAP.SMD NPO 47PF/50V K 0805 C618
1490447000 CAP.SMD NPO 47PF/50V K 0805 C619
1490447000 CAP.SMD NPO 47PF/50V K 0805 C620

MD-K400
14
CODE DESCRIPTION POSITION
1490447000 CAP.SMD NPO 47PF/50V K 0805 C621
1490447000 CAP.SMD NPO 47PF/50V K 0805 C622
1490447000 CAP.SMD NPO 47PF/50V K 0805 C624
1490447000 CAP.SMD NPO 47PF/50V K 0805 C625
1490447000 CAP.SMD NPO 47PF/50V K 0805 C626
1490447000 CAP.SMD NPO 47PF/50V K 0805 C632
1490447000 CAP.SMD NPO 47PF/50V K 0805 C633
1490447000 CAP.SMD NPO 47PF/50V K 0805 C634
1490447000 CAP.SMD NPO 47PF/50V K 0805 C635
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C128
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C129
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C506
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C507
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C519
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C520
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C617
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C629
1492022300 CAP.SMD X7R 22KPF/25V K 0603 C636
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C128
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C129
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C506
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C507
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C519
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C520
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C617
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C629
1490522300 CAP.SMD X7R 22KPF/50V K 0805 C636
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C128
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C129
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C506
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C507
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C519
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C520
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C617
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C629
1490522303 CAP.SMD X7R 22KPF/25V K 0805 C636
1492010300 CAP.SMD X7R 10KPF/50V K 0603 C637
1492010300 CAP.SMD X7R 10KPF/50V K 0603 C817
1492010300 CAP.SMD X7R 10KPF/50V K 0603 C818
1490510300 CAP.SMD X7R 10KPF/50V K 0805 C637
1490510300 CAP.SMD X7R 10KPF/50V K 0805 C817
1490510300 CAP.SMD X7R 10KPF/50V K 0805 C818
1363103303 C.C.D.Y5U 10KPF>=100V Z C215
1363103303 C.C.D.Y5U 10KPF>=100V Z C216
1363103303 C.C.D.Y5U 10KPF>=100V Z C217
1363103303 C.C.D.Y5U 10KPF>=100V Z C501
1363103303 C.C.D.Y5U 10KPF>=100V Z C502
1363103303 C.C.D.Y5U 10KPF>=100V Z C503
1363103303 C.C.D.Y5U 10KPF>=100V Z C504
1363103601 C.C.D. Y5U 10KPF/500V Z C510
1380229622 ELCO 2,2UF/100V M 5X11MM C406
1380229622 ELCO 2,2UF/100V M 5X11MM C407
1380229622 ELCO 2,2UF/100V M 5X11MM C408

MD-K400
15
CODE DESCRIPTION POSITION
1380229622 ELCO 2,2UF/100V M 5X11MM C409
1380229622 ELCO 2,2UF/100V M 5X11MM C410
1380229622 ELCO 2,2UF/100V M 5X11MM C411
1380229622 ELCO 2,2UF/100V M 5X11MM C421
1380229622 ELCO 2,2UF/100V M 5X11MM C422
1380229622 ELCO 2,2UF/100V M 5X11MM C424
1380229622 ELCO 2,2UF/100V M 5X11MM C425
1330104106 C.POLYEMT 100KPF/63V K C404
1330104106 C.POLYEMT 100KPF/63V K C405
1339104106 C.POLYM.100KPF/63V K MINI BLUE C404
1339104106 C.POLYM.100KPF/63V K MINI BLUE C405
1330104106 C.POLYEMT 100KPF/63V K C414
1330104106 C.POLYEMT 100KPF/63V K C415
1330104106 C.POLYEMT 100KPF/63V K C416
1330104106 C.POLYEMT 100KPF/63V K C417
1339104106 C.POLYM.100KPF/63V K MINI BLUE C414
1339104106 C.POLYM.100KPF/63V K MINI BLUE C415
1339104106 C.POLYM.100KPF/63V K MINI BLUE C416
1339104106 C.POLYM.100KPF/63V K MINI BLUE C417
1330224122 C.POLYMET 220KPF/63V K C207
1330224122 C.POLYMET 220KPF/63V K C208
1339224122 C.POLYM. 220KPF/63V K MINIBLUE C207
1339224122 C.POLYM. 220KPF/63V K MINIBLUE C208
1330272100 CAP. POLYMET MKT 2,7KPF/63V K C402
1330272100 CAP. POLYMET MKT 2,7KPF/63V K C403
1339272100 C.POLYM.2,7KPF/63V K MINIBLUE C402
1339272100 C.POLYM.2,7KPF/63V K MINIBLUE C403
1380100524 ELCO 10UF/50V M 5X11MM C201
1380100524 ELCO 10UF/50V M 5X11MM C202
1380100524 ELCO 10UF/50V M 5X11MM C212
1380100524 ELCO 10UF/50V M 5X11MM C419
1380100524 ELCO 10UF/50V M 5X11MM C420
1380100524 ELCO 10UF/50V M 5X11MM C602
1380100524 ELCO 10UF/50V M 5X11MM C630
1380101328 ELCO 100UF/25V M 6,3X11MM C211
1491033004 CAP.SMD NP0 33PF/50V J 0603 C639
1491033004 CAP.SMD NP0 33PF/50V J 0603 C640
1490433004 CAP.SMD NPO 33PF/50V J 0805 C639
1490433004 CAP.SMD NPO 33PF/50V J 0805 C640
1490433000 CAP.SMD NPO 33PF/50V K 0805 C639
1490433000 CAP.SMD NPO 33PF/50V K 0805 C640
1380470324 ELCO 47UF/25V M 5X11MM C603
1380470324 ELCO 47UF/25V M 5X11MM C803
1380471225 ELCO 470UF/16V M 8X11,5MM C508
1380471229 ELCO 470UF/16V M 10X12,5MM C508
1380221231 ELCO 220UF/16V M 6,3X11MM C509
1380101224 ELCO 100UF/16V M 5X11MM C521
1380101228 ELCO 100UF/16V M 6,3x11MM C521
1380101531 ELCO 100UF/50V M 8X11MM C511
1380101531 ELCO 100UF/50V M 8X11MM C512
1380101532 ELCO 100UF/63V M 8X11MM C511
1380101532 ELCO 100UF/63V M 8X11MM C512
1380101533 ELCO 100UF/50V M 8X11MM 105ºC C511

MD-K400
16
CODE DESCRIPTION POSITION
1380101533 ELCO 100UF/50V M 8X11MM 105ºC C512
1493010405 CAP.SMD Y5V 100KPF/25V Z 0603 C1901
1490610406 CAP.SMD Y5V 100KPF/25V Z 0805 C1901
1380101224 ELCO 100UF/16V M 5X11MM C205
1380101224 ELCO 100UF/16V M 5X11MM C206
1380101224 ELCO 100UF/16V M 5X11MM C401
1380101224 ELCO 100UF/16V M 5X11MM C418
1380101224 ELCO 100UF/16V M 5X11MM C522
1380101228 ELCO 100UF/16V M 6,3x11MM C205
1380101228 ELCO 100UF/16V M 6,3x11MM C206
1380101228 ELCO 100UF/16V M 6,3x11MM C401
1380101228 ELCO 100UF/16V M 6,3x11MM C418
1380101228 ELCO 100UF/16V M 6,3x11MM C522
1363103303 C.C.D.Y5U 10KPF>=100V Z C218
1492033300 CAP.SMD X7R 33KPF/25V K 0603 C638
1491047004 CAP.SMD NP0 47PF/50V J 0603 C604
1491047004 CAP.SMD NP0 47PF/50V J 0603 C605
1491047004 CAP.SMD NP0 47PF/50V J 0603 C610
1491047004 CAP.SMD NP0 47PF/50V J 0603 C612
1491047004 CAP.SMD NP0 47PF/50V J 0603 C613
1491047004 CAP.SMD NP0 47PF/50V J 0603 C616
1491047004 CAP.SMD NP0 47PF/50V J 0603 C623
1491047004 CAP.SMD NP0 47PF/50V J 0603 C631
1491047004 CAP.SMD NP0 47PF/50V J 0603 C641
1490447004 CAP.SMD NPO 47PF/50V J 0805 C604
1490447004 CAP.SMD NPO 47PF/50V J 0805 C605
1490447004 CAP.SMD NPO 47PF/50V J 0805 C610
1490447004 CAP.SMD NPO 47PF/50V J 0805 C612
1490447004 CAP.SMD NPO 47PF/50V J 0805 C613
1490447004 CAP.SMD NPO 47PF/50V J 0805 C616
1490447004 CAP.SMD NPO 47PF/50V J 0805 C623
1490447004 CAP.SMD NPO 47PF/50V J 0805 C631
1490447004 CAP.SMD NPO 47PF/50V J 0805 C641
1490447000 CAP.SMD NPO 47PF/50V K 0805 C604
1490447000 CAP.SMD NPO 47PF/50V K 0805 C605
1490447000 CAP.SMD NPO 47PF/50V K 0805 C610
1490447000 CAP.SMD NPO 47PF/50V K 0805 C612
1490447000 CAP.SMD NPO 47PF/50V K 0805 C613
1490447000 CAP.SMD NPO 47PF/50V K 0805 C616
1490447000 CAP.SMD NPO 47PF/50V K 0805 C623
1490447000 CAP.SMD NPO 47PF/50V K 0805 C631
1490447000 CAP.SMD NPO 47PF/50V K 0805 C641
1494047004 CAP.SMD CH 47PF/50V J 0805 C604
1494047004 CAP.SMD CH 47PF/50V J 0805 C605
1494047004 CAP.SMD CH 47PF/50V J 0805 C610
1494047004 CAP.SMD CH 47PF/50V J 0805 C612
1494047004 CAP.SMD CH 47PF/50V J 0805 C613
1494047004 CAP.SMD CH 47PF/50V J 0805 C616
1494047004 CAP.SMD CH 47PF/50V J 0805 C623
1494047004 CAP.SMD CH 47PF/50V J 0805 C631
1494047004 CAP.SMD CH 47PF/50V J 0805 C641
1491010004 CAP.SMD NP0 10PF/50V J 0603 C119
1491010004 CAP.SMD NP0 10PF/50V J 0603 C120

MD-K400
17
CODE DESCRIPTION POSITION
1490410004 CAP.SMD NPO 10PF/50V J 0805 C119
1490410004 CAP.SMD NPO 10PF/50V J 0805 C120
1494010003 CAP.SMD CH 10PF/50V D 0805 C119
1494010003 CAP.SMD CH 10PF/50V D 0805 C120
1490410000 CAP.SMD NPO 10PF/50V K 0805 C119
1490410000 CAP.SMD NPO 10PF/50V K 0805 C120
1491015004 CAP.SMD NP0 15PF/50V J 0603 C103
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C102
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C110
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C111
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C112
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C114
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C122
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C124
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C130
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C132
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C102
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C110
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C111
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C112
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C114
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C122
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C124
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C130
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C132
1380101224 ELCO 100UF/16V M 5X11MM C123
1380101224 ELCO 100UF/16V M 5X11MM C131
1380101228 ELCO 100UF/16V M 6,3x11MM C123
1380101228 ELCO 100UF/16V M 6,3x11MM C131
1380101228 ELCO 100UF/16V M 6,3x11MM C123
1380101228 ELCO 100UF/16V M 6,3x11MM C131
1380101224 ELCO 100UF/16V M 5X11MM C123
1380101224 ELCO 100UF/16V M 5X11MM C131
1493010405 CAP.SMD Y5V 100KPF/25V Z 0603 C116
1490610406 CAP.SMD Y5V 100KPF/25V Z 0805 C116
1380109622 ELCO 1UF/100V M 5x11mm C125
1380109622 ELCO 1UF/100V M 5x11mm C127
1380109622 ELCO 1UF/100V M 5x11mm C513
1380109622 ELCO 1UF/100V M 5x11mm C518
1380109622 ELCO 1UF/100V M 5x11mm C601
1380478622 ELCO 0,47UF/100V M 5x11mm C113
1380478622 ELCO 0,47UF/100V M 5x11mm C126
1380220528 ELCO 22UF/50V M 5X11MM C115
1380220528 ELCO 22UF/50V M 5X11MM C121
1380220528 ELCO 22UF/50V M 5X11MM C305
1380479622 ELCO 4,7UF/100V M 5x11mm C118
1380479522 ELCO 4,7UF/50V M 5X11MM C118
1380479522 ELCO 4,7UF/50V M 5X11MM C118
1380479622 ELCO 4,7UF/100V M 5x11mm C118
1491039104 CAP.SMD NP0 390PF/50V J 0603 C105
1491039104 CAP.SMD NP0 390PF/50V J 0603 C117
1494039104 CAP.SMD CH 390PF/50V J 0805 C105
1494039104 CAP.SMD CH 390PF/50V J 0805 C117

MD-K400
18
CODE DESCRIPTION POSITION
1491022004 CAP.SMD NP0 22PF/50V J 0603 C109
1490422004 CAP.SMD NPO 22PF/50V J 0805 C109
1490422000 CAP.SMD NPO 22PF/50V K 0805 C109
1492010200 CAP.SMD X7R 1KPF/50V K 0603 C106
1490510200 CAP.SMD X7R 1KPF/50V K 0805 C106
1494210200 CAP.SMD Y5P 1KPF/50V K 0805 C106
1491039004 CAP.SMD NP0 39PF/50V J 0603 C104
1490439000 CAP.SMD NPO 39PF/50V J 0805 C104
1492047300 CAP.SMD X7R 47KPF/16V K 0603 C134
1490547303 CAP.SMD X7R 47KPF/25V K 0805 C134
1492010200 CAP.SMD X7R 1KPF/50V K 0603 C135
1492010200 CAP.SMD X7R 1KPF/50V K 0603 C136
1490510200 CAP.SMD X7R 1KPF/50V K 0805 C135
1490510200 CAP.SMD X7R 1KPF/50V K 0805 C136
1494210200 CAP.SMD Y5P 1KPF/50V K 0805 C135
1494210200 CAP.SMD Y5P 1KPF/50V K 0805 C136
1492047100 CAP.SMD X7R 470PF/50V K 0603 C108
1490547100 CAP.SMD X7R 470PF/50V K 0805 C108
1494047104 CAP.SMD CH 470PF/50V J 0805 C108
1492047100 CAP.SMD X7R 470PF/50V K 0603 C203
1492047100 CAP.SMD X7R 470PF/50V K 0603 C204
1494047104 CAP.SMD CH 470PF/50V J 0805 C203
1494047104 CAP.SMD CH 470PF/50V J 0805 C204
1380229622 ELCO 2,2UF/100V M 5X11MM C412
1380229622 ELCO 2,2UF/100V M 5X11MM C413
1380221231 ELCO 220UF/16V M 6,3X11MM C514
1291102419 ELCO 1000UF/25V M 10X20MM C209
1291102419 ELCO 1000UF/25V M 10X20MM C210
1291222423 ELCO 2200UF/25V M 13X25MM C505
1291222422 ELCO 2200UF/25V M 16X20MM C505
1279006110 CAPACITOR TRIMER 10PF VC101
1279006110 CAPACITOR TRIMER 10PF VC102
1292222631 ELCO 2200UF/50V M 18X35MM C213
RESISTORS
CODE DESCRIPTION POSITION
1502547203 RES.SMD 4,7K 5% 0603 R1925
1502547203 RES.SMD 4,7K 5% 0603 R1931
1502547202 RES.SMD 4,7K 5% 0805 R1925
1502547202 RES.SMD 4,7K 5% 0805 R1931
1502510303 RES.SMD 10K 5% 0603 R645
1502510302 RES.SMD 10K 5% 0805 R645
1502547303 RES.SMD 47K 5% 0603 R214
1502547303 RES.SMD 47K 5% 0603 R414
1502547303 RES.SMD 47K 5% 0603 R415
1502547302 RES.SMD 47K 5% 0805 R214
1502547302 RES.SMD 47K 5% 0805 R414
1502547302 RES.SMD 47K 5% 0805 R415
1502512303 RES.SMD 12K 5% 0603 R417
1502512303 RES.SMD 12K 5% 0603 R418
1502512302 RES.SMD 12K 5% 0805 R417
1502512302 RES.SMD 12K 5% 0805 R418
1502510203 RES.SMD 1K 5% 0603 R503

MD-K400
19
CODE DESCRIPTION POSITION
1502510203 RES.SMD 1K 5% 0603 R505
1502510203 RES.SMD 1K 5% 0603 R508
1502510203 RES.SMD 1K 5% 0603 R610
1502510203 RES.SMD 1K 5% 0603 R619
1502510203 RES.SMD 1K 5% 0603 R626
1502510203 RES.SMD 1K 5% 0603 R627
1502510203 RES.SMD 1K 5% 0603 R628
1502510203 RES.SMD 1K 5% 0603 R633
1502510203 RES.SMD 1K 5% 0603 R647
1502510203 RES.SMD 1K 5% 0603 R648
1502510203 RES.SMD 1K 5% 0603 R802
1502510203 RES.SMD 1K 5% 0603 R803
1502510203 RES.SMD 1K 5% 0603 R822
1502510203 RES.SMD 1K 5% 0603 R823
1502510203 RES.SMD 1K 5% 0603 R824
1502510203 RES.SMD 1K 5% 0603 R825
1502510202 RES.SMD 1K 5% 0805 R503
1502510202 RES.SMD 1K 5% 0805 R505
1502510202 RES.SMD 1K 5% 0805 R508
1502510202 RES.SMD 1K 5% 0805 R610
1502510202 RES.SMD 1K 5% 0805 R619
1502510202 RES.SMD 1K 5% 0805 R626
1502510202 RES.SMD 1K 5% 0805 R627
1502510202 RES.SMD 1K 5% 0805 R628
1502510202 RES.SMD 1K 5% 0805 R633
1502510202 RES.SMD 1K 5% 0805 R647
1502510202 RES.SMD 1K 5% 0805 R648
1502510202 RES.SMD 1K 5% 0805 R802
1502510202 RES.SMD 1K 5% 0805 R803
1502510202 RES.SMD 1K 5% 0805 R822
1502510202 RES.SMD 1K 5% 0805 R823
1502510202 RES.SMD 1K 5% 0805 R824
1502510202 RES.SMD 1K 5% 0805 R825
1502522903 RES.SMD 2,2R 5% 0603 R207
1502522903 RES.SMD 2,2R 5% 0603 R208
1502522902 RES.SMD 2,2R 5% 0805 R207
1502522902 RES.SMD 2,2R 5% 0805 R208
1502522303 RES.SMD 22K 5% 0603 R1911
1502522303 RES.SMD 22K 5% 0603 R211
1502522303 RES.SMD 22K 5% 0603 R212
1502522303 RES.SMD 22K 5% 0603 R310
1502522303 RES.SMD 22K 5% 0603 R312
1502522303 RES.SMD 22K 5% 0603 R604
1502522302 RES.SMD 22K 5% 0805 R1911
1502522302 RES.SMD 22K 5% 0805 R211
1502522302 RES.SMD 22K 5% 0805 R212
1502522302 RES.SMD 22K 5% 0805 R310
1502522302 RES.SMD 22K 5% 0805 R312
1502522302 RES.SMD 22K 5% 0805 R604
1502510303 RES.SMD 10K 5% 0603 R1929
1502510303 RES.SMD 10K 5% 0603 R1930
1502510303 RES.SMD 10K 5% 0603 R201
1502510303 RES.SMD 10K 5% 0603 R202
