Duratech DURAFLOW DFI-150 User manual

MANUAL
Flow Inverter
DFI-150
DURAFLOW

2
Table of Contents
1. Box content.................................................................................................. 3
2. About the DFI-150.........................................................................................4
3. Technical specications ................................................................................5
3.1. General specications......................................................................5
3.2. DFI-150 overview .............................................................................6
3.2.1 Spare parts list ..........................................................................6
3.3. Wiring diagram and terminal blocks.................................................7
4. Installation instructions..................................................................................8
4.1. Warnings ..........................................................................................8
5. Operation modes...........................................................................................9
6. Special function description and application ..............................................10
6.1. Internal protection functions ..........................................................10
6.1.1. Voltage is too high or too low protection ...............................10
6.1.2. Over-current protection..........................................................10
6.1.3 IPM module protection............................................................10
6.1.4. Overheat protection ...............................................................10
6.1.5. Dry pumping protection (no water protection) .......................11
7. Attention points ...........................................................................................12
7.1. High-speed running at start-up.................................................12
7.2. Filter cleaning............................................................................12
8. Addendum...................................................................................................13
8.1 Error codes................................................................................................13

3
ENG
1. Box content

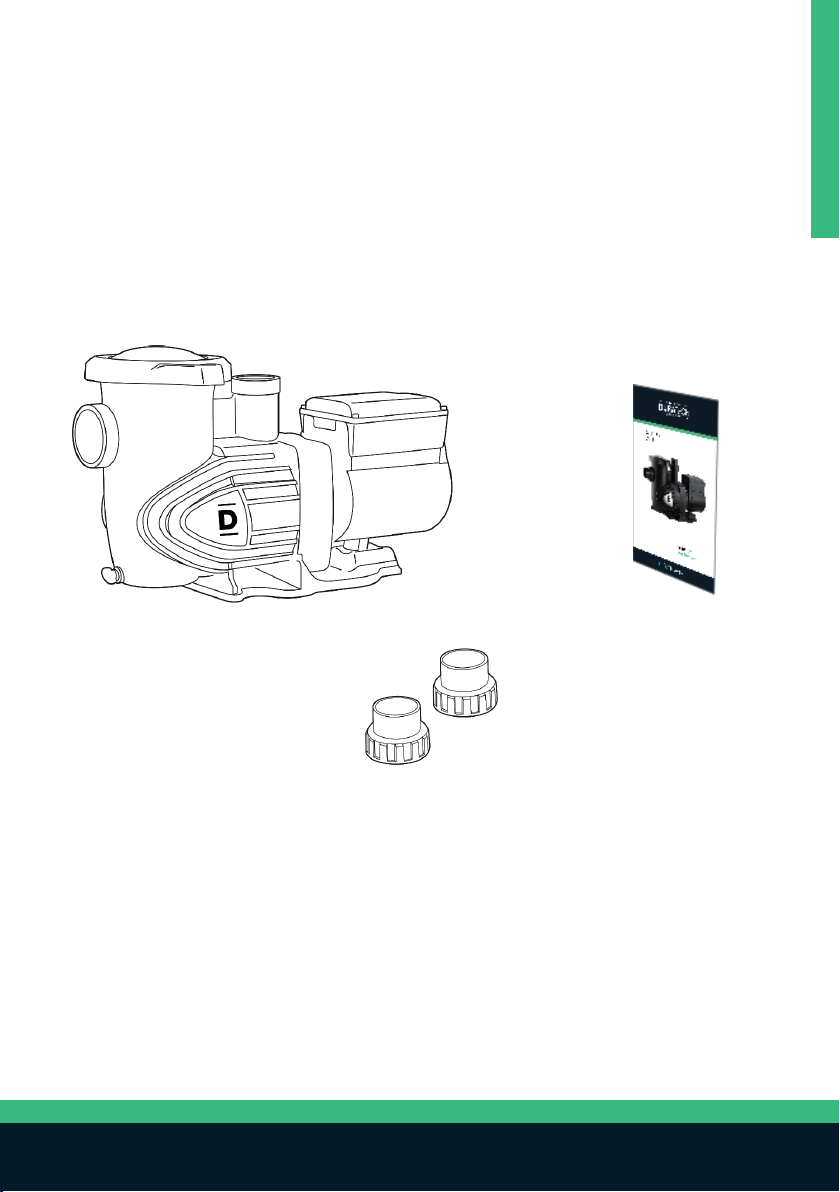

Included in the nal package with the DFI-150 are:
• 1x DFI-150 water circulation pump (incl. 3,5m power cable)
• 1x Inlet and outlet Fitting Ø63mm
• 1x Quick Guide

4
2. About the DFI-150
The Dura Flow inverter circulation pump, DFI-150 is a self-priming
centrifugal pump for recirculation and ltration of the water in small and
medium sized pools with prelter integrated.
The DFI-150 is part of the full DuraLink solution. Communication is done
using power line communication. Which means that only 1 cable connection
is required for power and communication between a remote-control system
and the circulation pump.
The inverter for the DFI-150 is integrated in the circulation pump and allows
the pump to run run at variable speeds.
The pump is using a permanent magnet electro motor which is energy
efcient.
The DFI-150 is durable, reliable and easy to install.
The ambient temperature must be between 0 °C and + 40 °C and must be as
constant as possible. The relative humidity at the installation location must
not exceed 90%, no condensation may occur. Keep out of direct sun light
and away from heat sources.
The DFI-150 will only be controllable by the LINK Master.

5
ENG
3. Technical specications
3.1. General specications
Input Voltage: 230VAC 50Hz 16A
• Flow rate max: 28,8m3/h
• Max. head: 22m
• Max current: 8,2A
• Min. speed: 750RPM
• Max. speed: 3450RPM
• P1 (Input power): 1,7kW (power consumption)
• P2 (Output power): 1,1kW/1.5HP (rated power)
• Ambient Air Temperature: 0°C to +40°C
• Humidity: 10% to 90% RH - non condensing
• Ingress protection rate: IP55
• Box outer size: 690 x 280 x 410 mm
• Weight: 23 kg
• CE compliance

6
3.2. DFI-150 overview
1
2
3
4
5
5
6
6
7
7
8
911
10
12 13
14
3.2.1 Spare parts list
Diagram reference number Description Spare part number
4Filter-basket SP_DFI-001
1, 2, 3 The lter cover + sealing SP_DFI-002
3Filter cover sealing SP_DFI-003
13 Mechanical sealing SP_DFI-004
5, 6, 7 63 mm tting (pipe tting + nut
tting) with sealing SP_DFI-005
12 Impeller SP_DFI-006
8, 9 drain plug with o-ring SP_DFI-007
15 Electrical inverter board
assembly (incl. housing) SP_DFI-008
11 support block SP_DFI-009
10 diffusor o-ring SP_DFI-010
14 pump cover o-ring SP_DFI-011

7
ENG
3.3. Wiring diagram and terminal blocks
See LINK Master manual for further details regarding the wiring diagram and
terminal blocks for connecting the power cable.

8
4. Installation instructions
4.1. Warnings
Before installation and use of the pump, the basic safety warnings need to be
understood. Specic contents include the following warnings:
1. Be careful of electric shock. The pump can only be installed in combination
with the LINK Master. The LINK Master has all safety devices on board to
make for a safe installation.
Please check the LINK Master manual for instructions on how to install and
connect the DFI-150 correctly with the LINK Master. The DFI-150 has a
pre-connected in power cable with a length of 3,5 m.
2. Make sure the pump motor is disconnected from the main power supply in
case of maintenance or repair of the DFI-150.
3. The national standards and regulations for installation of the country in
which the pump is installed, should be followed.
4. Failure to comply with safety instructions may result in serious body injury
or death. The installation and maintenance of the pump must be done by
professional pool service personnel, installers or operators.
5. The owner of the pool must carefully read the safety warnings and
instructions before using the pump.

9
ENG
5. Operation modes
For operation of the pump and instructions for scheduling, please consult the
manual of the Link Master (DLM-450, DLM-600).

10
6. Special function description and application
6.1. Internal protection functions
See addendum 8.1 for corresponding error codes. In case of error, the error
code will be displayed on the LinkTouch or can also be retrieved in the
DuraCloud application.
6.1.1. Overvoltage and undervoltage protection
• If the AC voltage is higher than 240V or lower than 208 V.
• Starting the motor is disabled.
• The following codes can be displayed: OV1 for overvoltage and UV1
undervoltage.
6.1.2. Over-current protection
• After the fault occurs, the controller stops the output and automatically
clears the fault and restarts after 10 or 30 seconds.
• After 3 consecutive errors, the motor will not restart and one of the
following error codes will be displayed: OC1, OC2, OC3, OC4.
6.1.3 IPM (Intelligent Power Module) protection
• In case of IPM failure, the motor will immediately stop running
• The following error code will be displayed: OC3.
• The controller will automatically clear the fault and will restart the pump
after 30 seconds.
• After 3 consecutive errors, the motor will not restart, and the fault can’t be
cleared. Only after a power cycle of the motor, the fault will be cleared.
• In case the OC3 alarm remains even after a power cycle, then this means
that the internal hardware has failed.
6.1.4. Overheat protection
• When the motor temperature is higher than 95 °C, the system will automa-
tically and gradually reduce the motor speed in steps of 50RPM to protect
the motor. When the temperature is too high, the system stops running.
The following error code will be shown: OH1.
