Durst Habitat 100V User manual

Habitat 100V
User Manual
Version 01/2021 REV1.0 - IV812EN

Habitat 100V Table of contents
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 3
Table of contents
1Introduction ................................................................................................................4
2Safety instructions .....................................................................................................5
3Description..................................................................................................................6
3.1 Overview .....................................................................................................................................6
3.2 Information signs.........................................................................................................................7
3.3 Specifications ..............................................................................................................................8
3.4 Scope of delivery.........................................................................................................................9
3.5 Function.......................................................................................................................................9
4How to use ................................................................................................................10
4.1 Assembling................................................................................................................................10
4.2 Positioning.................................................................................................................................11
4.3 Switch air purifier on and off......................................................................................................12
4.4 Daisy chain operation................................................................................................................13
5Maintenance and Troubleshooting.........................................................................14
5.1 Status and error messages.......................................................................................................14
5.2 Replace UV-C lamps.................................................................................................................15
5.3 Replace fuse .............................................................................................................................17
5.4 Spare parts................................................................................................................................20
5.5 Customer service and contact...................................................................................................21
6Declaration of Conformity .......................................................................................22

1 Introduction Habitat 100V
42021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
1 Introduction
The Durst UVC-R air disinfection system 'Habitat' is the solution against infectious aerosols,
viruses and germs. As scientific studies in Europe and the USA show, aerosols are primarily
the cause for the transmission of COVID-19. Durst Habitat effectively reduces the viral load
indoors.
Designed for interiors
Durst Habitat is designed to reduce the viral load in indoor environments such as offices,
schools, restaurants, bars, stores or banks and making the environment safer. The air
disinfection system with UV-C technology is highly efficient, whisper-quiet and can be
personalized for any environment.
High Tech made in South Tyrol
Durst Habitat has an airflow-optimized design that efficiently eliminates viruses like COVID-
19. The continuously drown-in infectious air is guided past several UV-C light sources via
mirrored channels. The fluid dynamics ensure a maximum exposure time and irradiation of the
air in the channels.
Developed in Durst Labs and tested by independent, accredited European test laboratories,
Durst Habitat achieves an effectiveness of >99.9%.

Habitat 100V 2 Safety instructions
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 5
2 Safety instructions
Only operate the device with the specified supply voltage.
Only operate the device with intact power plug and power cord.
Disconnect the power plug when cleaning or maintaining the device. The air purifier
switch does not disconnect the power supply.
Only connect Durst Habitat devices for daisy chain operation to the device’s output
socket.
Make sure that no liquids and / or objects get inside the device.
Make sure to keep a sufficient distance between the device’s suction surface and other
large surfaces when positioning the device.
Place the device on flat and dry surfaces.
Place the device on a stable and sufficiently robust base.
Do not block or impair the air circulation of the device with objects.
Do not place any objects on the device.
Do not place flammable substances near the device.
Do not use the device together with chemical and / or flammable substances (e.g. room
spray, insect spray). Ventilate rooms before use.
Do not lift or move the device during operation.
Do not use any liquids to clean the device.
Do not operate the device in rooms with high levels of dust.
Only operate the device under the environmental conditions specified in this document.
UV-C radiation inside the device can have harmful effects on eyes and skin. Always
protect eyes and skin from short-wave UV-C radiation. The membrane must be
mounted firmly and correctly during operation.
The device must not be operated or serviced by young children and / or persons with
limited sensory abilities.
Only use original spare parts and components supplied by Durst.
Only carry out activities on the device that are described in this manual.

3 Description Habitat 100V
62021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
3 Description
3.1 Overview

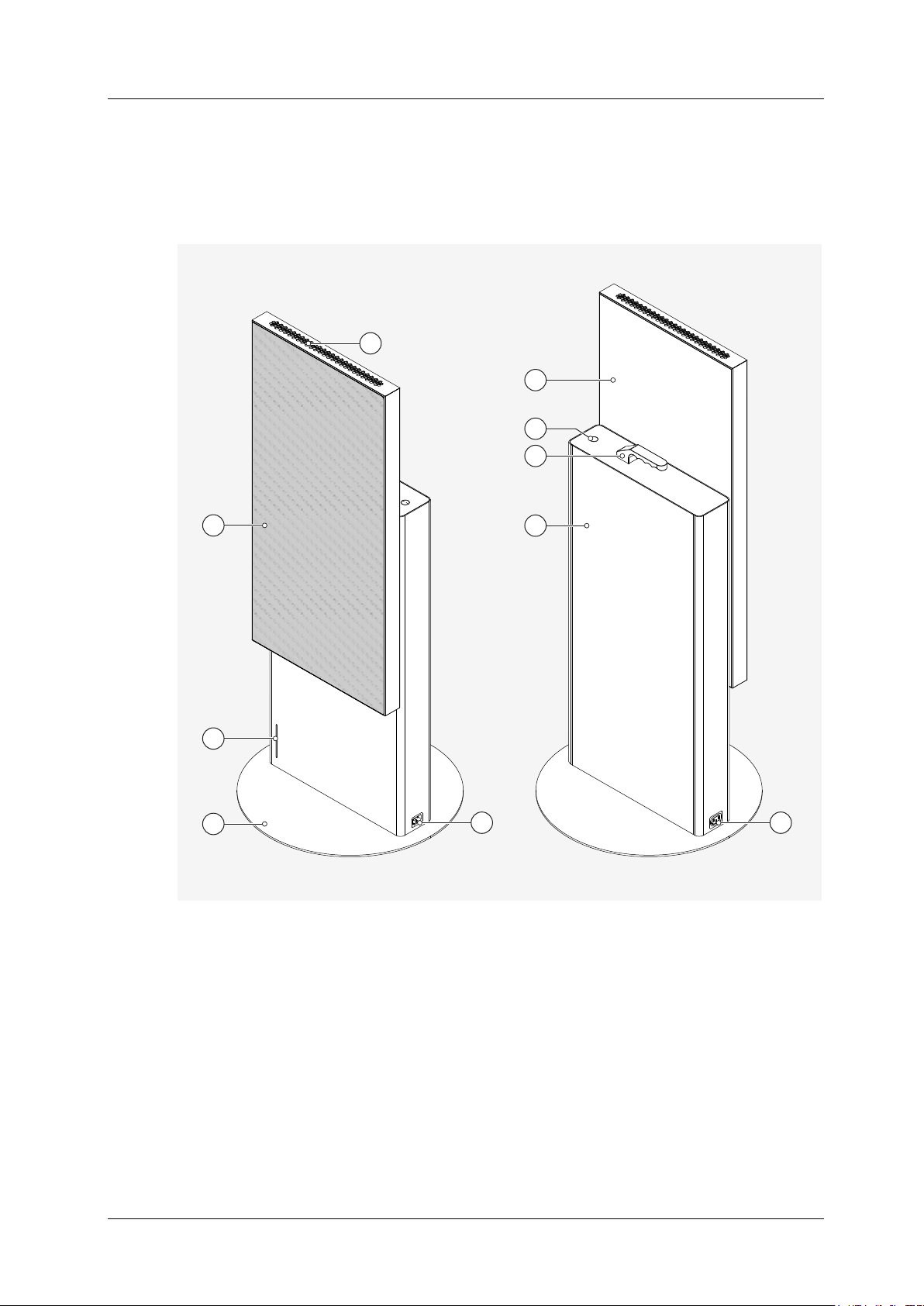

Fig. 1: Habitat 100V overview
1
membrane / suction surface
2
core-unit
3
pedestal
4
top-unit
5
air outlet
6
handle
7
output socket
8
input socket
9
switch air purifier ON / OFF
10
LED indicator
1
5
78
3
10
2
4
6
9

Habitat 100V 3 Description
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 7
3.2 Information signs

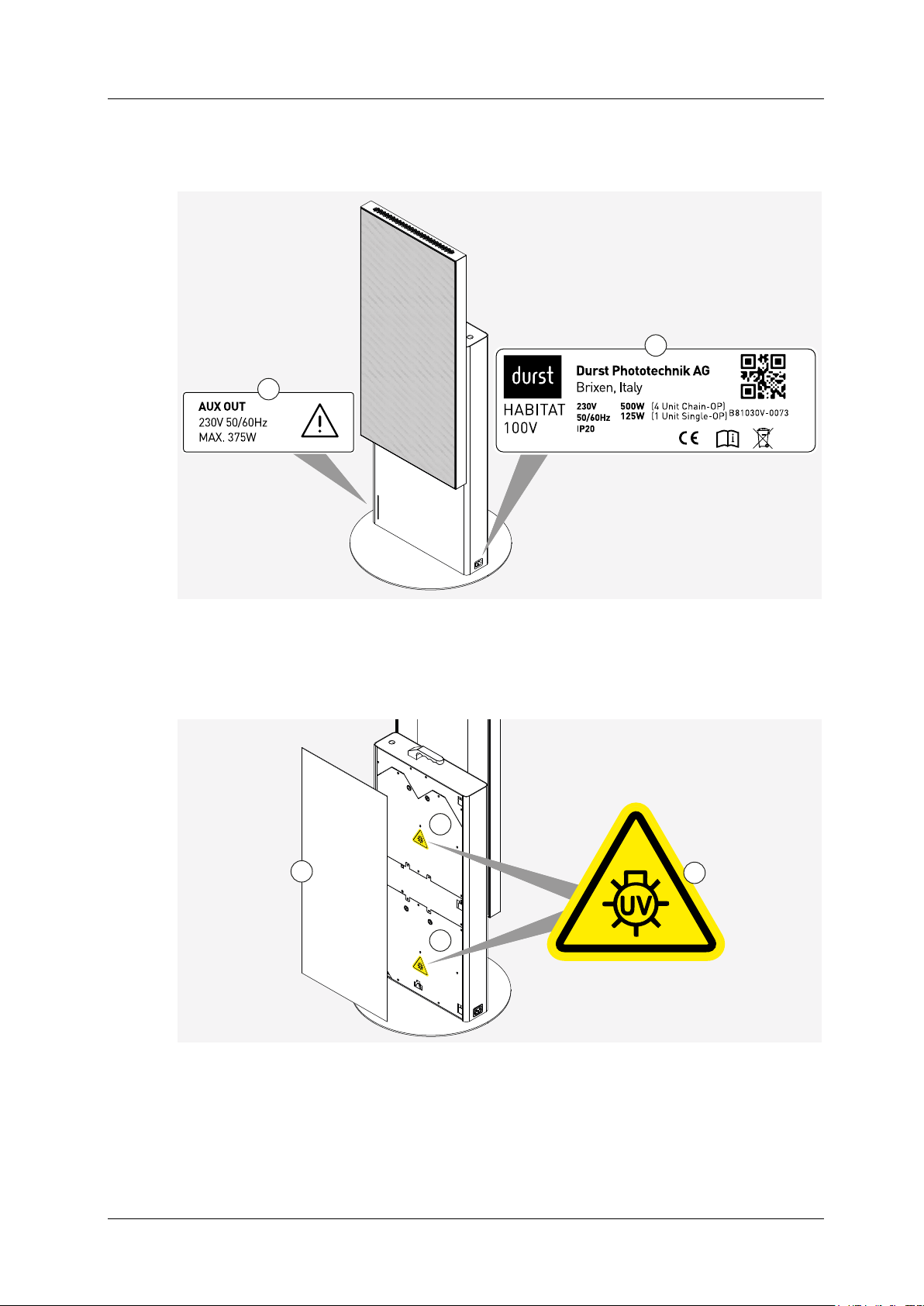

Fig. 2: Information signs on the device
1
name plate
2
output socket information sign
Fig. 3: information signs behind maintenance cover
1
UV light warning sign
2
maintenance cover
3
lower lamp cover / lower module
4
upper lamp cover / upper module
2
1
2
4
3
1

3 Description Habitat 100V
82021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
3.3 Specifications
general
model Durst Habitat 100V
dimensions (with pedestal) [mm] 450 x 1100 x 450
dimensions [mm] 375 x 1100 x 140
weight [kg] 27
supply voltage [V] 230
power frequency [Hz] 50/60
power consumption [W] max. 125
IP Code IP20
max. volumetric flow [m3/h] 50
max. volume [dB(A)] < 35
wavelength UV-C source [nm] 254
life span UV-C source [h] ca. 9000
room temperature range [°C] 20 - 50
humidity range [%] 0 - 70
max. altitude [m MSL] 2000
Viroblock® membrane
fabric DecoTex AVPGFS | 7048AVPGFS
weight [g/m2] 215
material 100 % polyester
print technology transfer printing, direct printing with sublimation inks
special features HeiQ Viroblock® coating by CHT
washability coating lasts at least 30 washes at 60 °C
Tab. 1: Durst Habitat 100V specifications

Habitat 100V 3 Description
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 9
3.4 Scope of delivery
Fig. 4: Habitat 100V scope of delivery
1
main unit (1x)
2
pedestal (1x)
3
felt protectors (6x)
4
allen key (1x)
5
countersunk screws for pedestal (5x)
6
power cord (1x)
7
daisy chain cable 0,7 m (1x)
8
daisy chain cable 2,5 m (1x)
3.5 Function
1. Air aspiration
Ambient air is absorbed homogeneously through the top-unit’s panel surface. The panel’s
antiviral coating renders bacteria, particles, germs, and viruses innocuous. Channels
inside the panel forward the absorbed air on into the core-unit.
2. Disinfection
The contaminated air is disinfected in the core-unit. The unit’s optimized dual channel
construction provides a sufficiently long and homogeneous irradiation of the previously
absorbed air. The used UV-C radiation possesses a maximum wavelength of 254 nm and
inactivates any present germs.
3. Air outlet
The purified air is guided to the device’s air outlet on the top through channels inside the
panel and is reintegrated into the room’s natural air circulation flow.
1 2
3
4
5
6
7
8

4 How to use Habitat 100V
10 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
4 How to use
4.1 Assembling
Get assistance from other people when
assembling heavy parts.
1. Connect the pedestal (1) to the
main unit (2). Use the four included
countersunk screws (3).
2.
Stick the included felt protectors (4) on the
pedestal.
3. Connect the power cord (5).
1
2
3
4
4

Habitat 100V 4 How to use
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 11
4.2 Positioning
Consider the orientation of the suction
surface within the room.
Make sure the suction surface is not
facing any walls.
Do not block or restrict air circulation by
placing large objects close to the device.

4 How to use Habitat 100V
12 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
Choose number and position of devices
according to room size and device
capacity.
surface [m²]
volume [m³]
max. number of persons
devices
0 … 40 0 … 100 12 2
20 … 80
100 … 200
25
4
80 … 120 200 … 300 38 6
120 … 160
300 … 400
50
8
160 … 200 400 … 500 63 10
Tab. 2: Recommended number of devices per surface and person with room height of 2.5 m
4.3 Switch air purifier on and off
Press core-unit switch (1) one time while
purifier is switched off:
– Air purifier ON.
– LED indicator (2) lights up white.
Press core-unit switch (1) again:
– Air purifier OFF.
– LED indicator (2) turns off.
1
2

Habitat 100V 4 How to use
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 13
4.4 Daisy chain operation
It is possible to run up to four Durst Habitat devices in daisy chain mode.
Do not run more than four devices in daisy chain mode.
Only use the included daisy chain cables to connect devices.
Do not use more than one daisy chain cable to connect two single devices.
Fig. 5: Daisy chain operation
1
main device
2
additional device
3
daisy chain cable
4
output socket
5
input socket
6
power cord
7
switch air purifier ON / OFF
1. Position main device and desired number of additional devices.
2. Connect first additional device to main device.
– Plug daisy chain cable into output socket of main device.
– Plug other end of daisy chain cable into input socket of first additional device.
3. Connect more additional devices.
– Plug daisy chain cable into output socket of already connected additional device.
– Plug other end of daisy chain cable into input socket of new additional device.
4. Connect power cord to input socket of main device.
5. Switch on all connected devices using the core-unit switch on each device.
122
3 3
3
6
4
7
5
2

5 Maintenance and Troubleshooting Habitat 100V
14 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
5 Maintenance and Troubleshooting

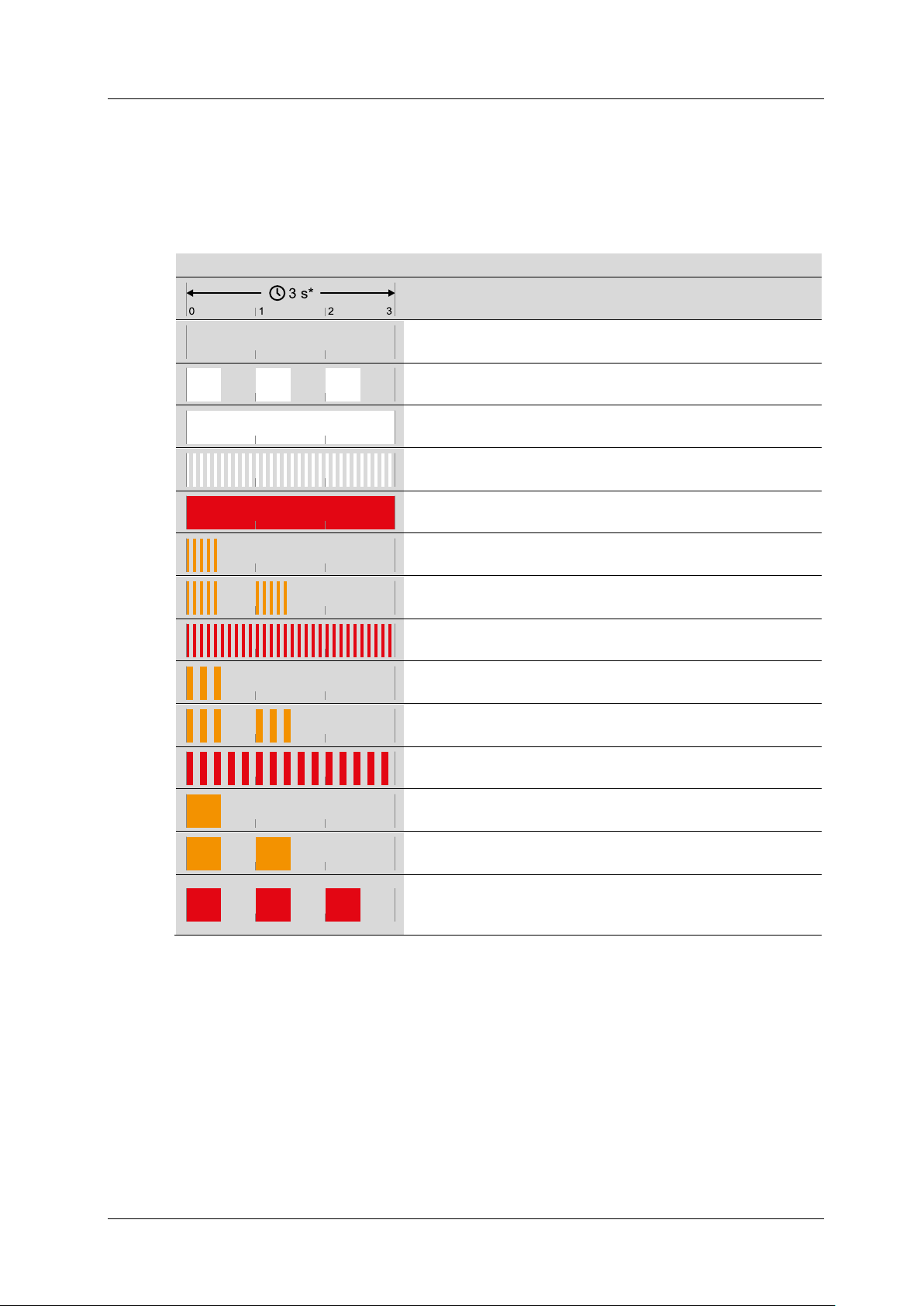

5.1 Status and error messages
LED indicator
status / error
measure
LED off: device currently
switched off.
-
Device switched on,
currently in warm-up phase.
-
White LED: device switched
on.
-
Temperature sensor
defective.
Contact Durst customer
service.
Red LED: maintenance
cover not closed.
Close maintenance cover.
UV-C lamps of lower
module defective.
Replace both UV-C lamps
of lower module.
UV-C lamps of upper
module defective.
Replace both UV-C lamps
of upper module.
UV-C lamps of both
modules defective.
Replace all lamps of both
modules.
Lower fan defective. Contact Durst customer
service.
Upper fan defective. Contact Durst customer
service.
Both fans defective. Contact Durst customer
service.
UV-lamps of lower module
and lower fan defective.
Contact Durst customer
service.
UV-lamps of upper module
and upper fan defective.
Contact Durst customer
service.
UV-C lamps of both
modules and both fans
defective.
Contact Durst customer
service.
* 3 seconds
Tab. 3: Status and error messages overview

Habitat 100V 5 Maintenance and Troubleshooting
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 15
5.2 Replace UV-C lamps
1. Switch off the device and disconnect the
power cord (1).
2. Remove the maintenance cover (2) on the
back side of the core-unit.
The maintenance cover is attached
magnetically.
3. Unscrew the Phillips head screws (3) to
remove the defect module’s lamp
cover (4).
Illustration shows upper module.
4. Remove all lamp retaining plates (5).
Every UV-C lamp is secured by four
retaining plates (5).
1
2
3
4
5
5

5 Maintenance and Troubleshooting Habitat 100V
16 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
5. Push the red latch (6) on the lamp socket
as indicated in the illustration. Remove
defective lamps from their socket.
Dispose of defective and unused lamps
properly.
6. Push the red latch (6) on the lamp socket
as indicated in the illustration. Insert new
lamps (8) into their socket.
7. Reinsert all lamp retaining plates (5).
Mind the two different plate types.
8. Close previously opened lamp cover (4).
Carefully screw in all Phillips
head screws (3).
6
7
6
8
5
5
3
4

Habitat 100V 5 Maintenance and Troubleshooting
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 17
9. Reattach the maintenance cover (2) to the
back side of the core-unit.
10. Connect the power cord (1).
5.3 Replace fuse
1. Disconnect the power cord (1).
2. Remove the maintenance cover (2) on the
back side of the core-unit.
The maintenance cover is attached
magnetically.
2
1
1
2

5 Maintenance and Troubleshooting Habitat 100V
18 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
3. Use a flat screwdriver to unscrew the fuse
holder cap (3) counterclockwise.
4. Pull the defective fuse (4) from the fuse
holder cap.
5. Insert new fuse (5) into the fuse holder
cap.
Only use an original fuse provided by
Durst.
6. Use a flat screwdriver to screw in the fuse
holder cap (3) clockwise.
3
4
5
3

Habitat 100V 5 Maintenance and Troubleshooting
2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0 19
7. Reattach the maintenance cover (2) to the
back side of the core-unit.
8. Connect the power cord (1).
2
1

5 Maintenance and Troubleshooting Habitat 100V
20 2021 © Durst Phototechnik AG, User Manual, Version 01/2021 REV1.0
5.4 Spare parts
description number illustration
Phillips head screws for lamp cover
M3x6
1127188
countersunk screw for pedestal
M5x12
1127021
UV-C lamp 1873861
fuse 1860084
felt protector kit 1344466
retaining plates for UV-C lamp AE81114
retaining plates for UV-C lamp (socket side) AE81116
power cord 1851664
daisy chain cable 0,7 m 1851666
daisy chain cable 2,5 m 1851658
