Dvico TViX PVR R-2210 User manual


Quick Guide
TViX PVR R-2200 Series
- Some specifications could change according with new firmware versions. Please refer to
the FAQ on our homepage for further information- http://www.tvix.co.kr.
- For detailed instructions, please refer to the enclosed TViX CD or the latest pdf file on
the TViX Homepage (www.tvix.co.kr).
Safety Notice
Do not try to disassemble or
remodel the TViX unit. Doing
so may cause malfunction or
fire.
Place all magnetized devices.
Such as speakers away from
the TViX .It may erase or cause
damage to the data stored in
the hard disk.
Do not Place the TViX . In
places that are exposed to
oil, water, dust, humidity, rain
and wind.
Keep your TViX away from
heated areas, such as direct
sunlight exposure, heaters etc.
Place it in a well ventilated
location. Ensure that a free
airflow is maintained around
the appliance.
Do not touch the power plug with
wet hands or use defective power
cables & electric outlets. It may
cause electric shocks or fire.
Do not drop the TViX from
heights. Doing so may cause
critical damage to the hard
drive.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Unplug the power cable when you will not use the product for a long time.
English


1.1 TViX PVR Function
The TVIX PVR can play HDTV without a digital TV set-top box with excellent
and super-clear display on HDTV screens. The TViX PVR supports standard
DTV features, such as EPG and Time-shifting.
DVICO Inc has no responsibility for recorded programs or files made or distributed for
purposes of illegal, commercial, or transactional activities. The party or parties who record
or distribute the contents bear all responsibility (Civil or Criminal) direct or indirect.
1.2 Multimedia Player Function
The TViX is a standalone, multimedia hard disk player that plays digital
videos, digital music, digital still images and DVD files to a TV display and
home entertainment system. You can enjoy digital contents in your living
room without having to burn discs or having to play it back on a DVD or
CD player anymore.
TViX plays back DVD movies with the full functionality of DVD navigation. You can
create your own virtual DVD library by storing your personal collection of DVDs in
.ISO or .IFO format and watch them exactly as if they were running from the original
DVDs (all original features included: Menu, Chapter, Audio Stream, Subtitle, Fast
Forward, Rewind, Slow, Pause, Step Forward, Repeat, Search etc.).
TViX plays back high definition video (up to 1920x1080i) and still images. Pre-
recorded HDTV programs from a digital TV set-top box or personal digital video
contents taken by a camcorder can be played back with the TViX on a high
definition display. The TViX features a HDMI connector, which will match the high
resolution of HD level video contents.
HDMI provides unparalleled qualities to digital video and audio, while DVI only
serves digital video. You don’t have to mess around with several AV cables. It
provides single, pure and simple way to connect your display. It can deliver
uncompressed digital video up to 1080i as well as digital audio.
TViX supports DTS hardware decoder to mix DTS sound into 2 channels for a more
dynamic sound quality.
The TViX can be networked with a PC system using its optional wireless network.
You are able to navigate to a PC file through TViX’s wireless network and play the
file from its original destination without having to copy it into the TViX first. FTP is
supporting the file copy via LAN.
With two USB2.0 host ports, you can now attach additional external USB hard drives
to further extend the storage capacity. You can also playback files from a digital
camera, USB flash driver, USB flash card reader or a MP3 player.
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
1. Introduction
English
Time shifting is the recording of programming to a storage medium to be
viewed or listened to at a time more convenient to the consumer. Being
interrupted while watching live TV programs (such as pick up phone calls &
answer the door), all you need to do is simply press the OK button to freeze
the picture for a period of time and then later press OK again to pick up right
where you left off. Note: You cannot use the DTV time-shifting on FAT32
partitions, so we recommend that you format your 2.5” SATA HDD to NTFS.
The TViX PVR has various recording features, including direct recording,
scheduled recording, and repeated manual recording, to enable the user not
to miss a single program of digital TV. It's a completely different type of PVR
since you can easily upgrade and expand the HDD capacity yourself, similar to
PC upgrading. And you can back up the recorded file to/from the PC. Also, it
can capture external analog video as well as analog TV signals.
The TViX PVR implements DTV features such as EPG-scheduled recording
and PC-connectivity to let the user enjoy all the fruits of digital broadcasting
as well as supreme audio and video qualities. You can set up scheduled
recording and scheduled watch using the EPG window. Note: The EPG is not
supported in analog TV or external input (A/V-in) modes.
When using the DTV mode, you can easily configure the sleep time with the
FUNCTION key. If the sleep time is reached when a recording is in progress,
the TViX will shut down after finishing the recording. In the file list mode, the
FUNCTION key performs the File copy/delete and password functions.



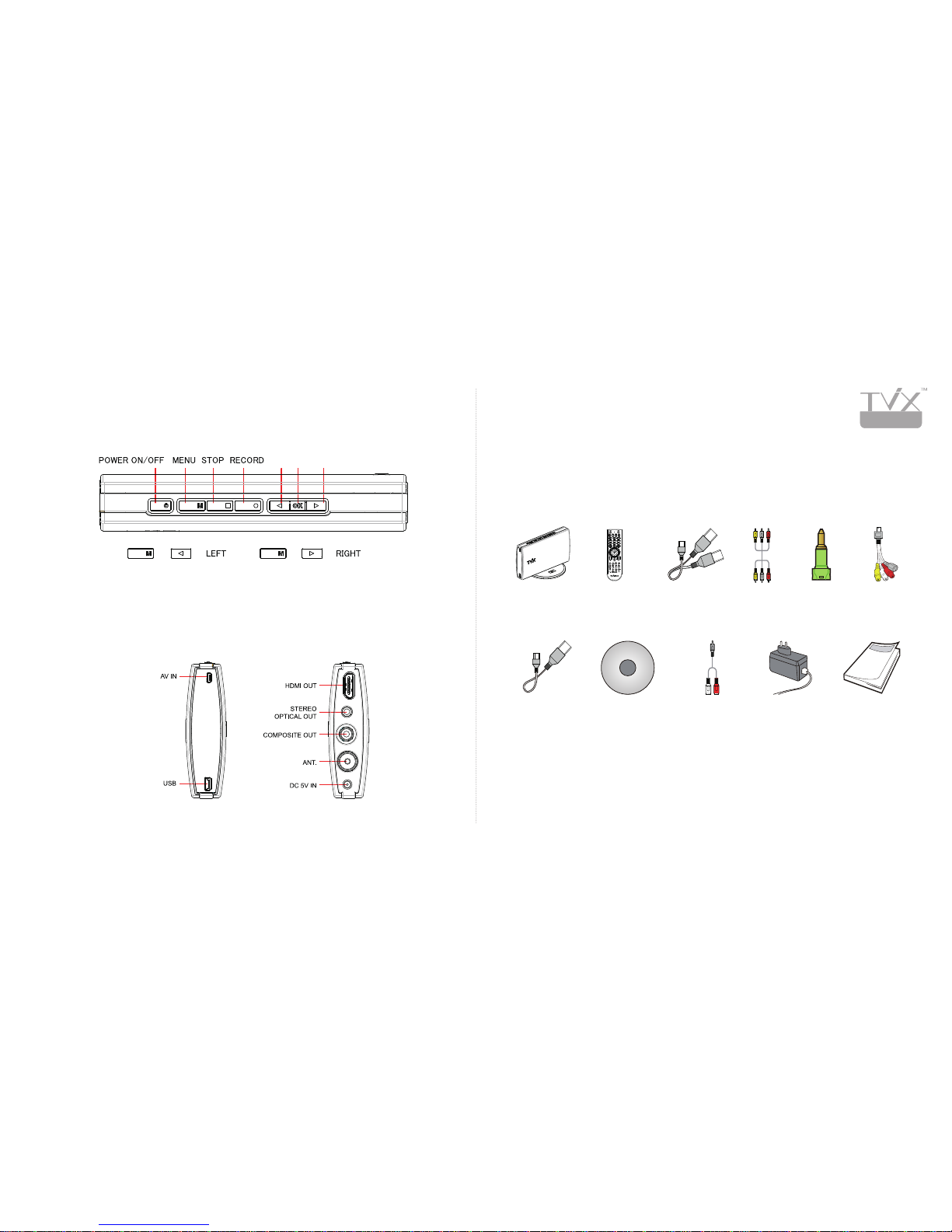

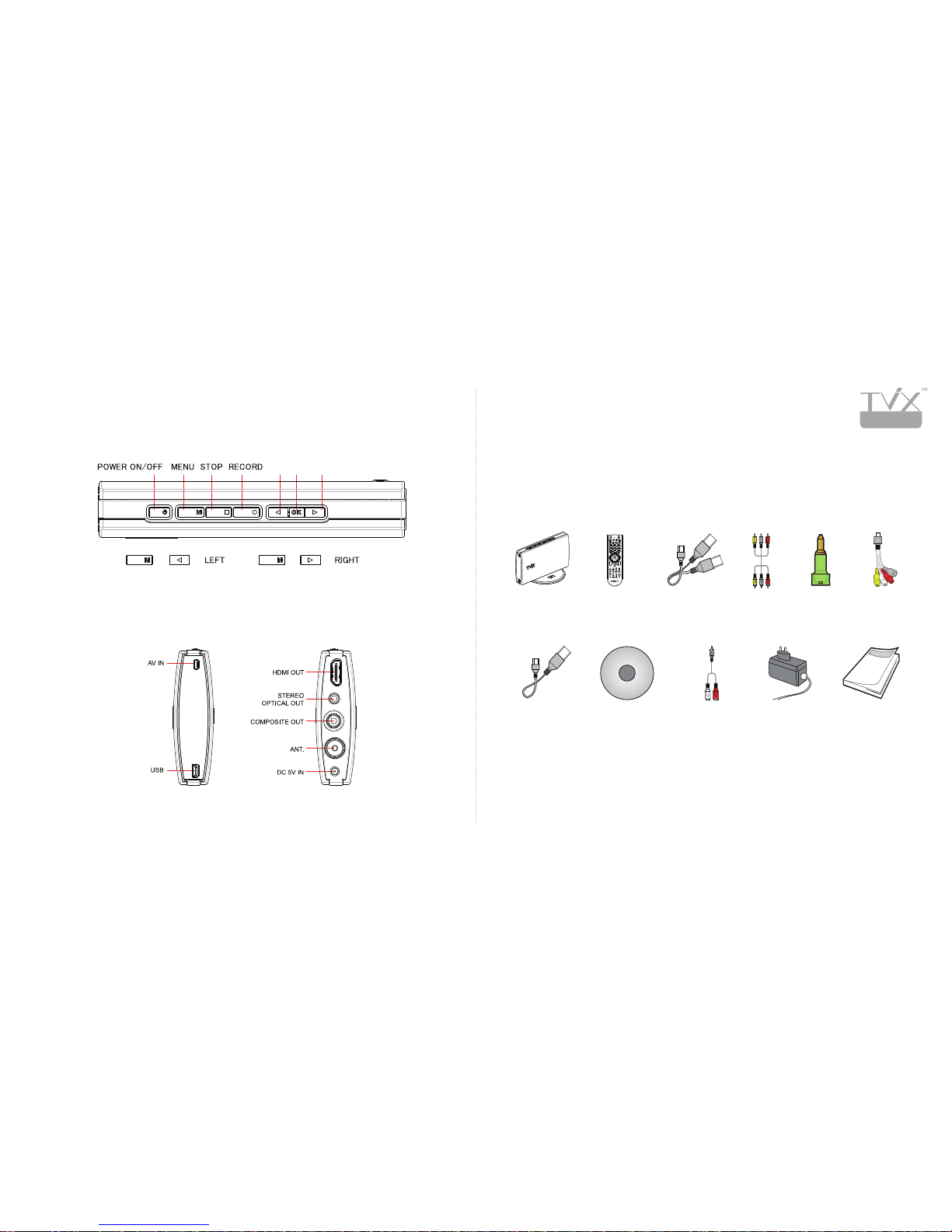

2. Name of Each Part
2. 1 Unit Control button
The TViX was designed to be controlled by its buttons as well as with the remote controller.
2.2 Cable Connection
You can connect the TViX to an analog TV display or audio amplifier by the A/V cable.
With USB Host jack, you can connect an external hard disk or a memory stick.
Please use DC 5V adaptor included. If you use any other products, the TViX can be
damaged.
2.3 Package Contents
Thank you for choosing this TViX product.
The TViX PVR package contains the following items. The items described below may differ
from the actual contents.
TViX unit Remote
Controller USB -Y Cable RCA Cable Optical
Jack
USB HOST Cable Manual CD Strereo Cable Power
Adaptor
Quick Guide
** For detailed instructions, please refer to the TViX CD enclosed or the latest pdf file on the
TViX Homepage (www.tvix.co.kr).
* TViX automatically formats when you install an unformatted new hard disk. Do not shut
the power down when formatting the hard disk.
- TViX PVR R-2200 : Analog TV only + A/V IN
- TViX PVR R-2210 : NTSC Analog TV & ATSC Digital TV + A/V IN
- TViX PVR R-2230 : DVB-T Digital TV only + A/V IN
A/V IN Cable
English
DOWNUP
+ += =
OK


2.4 HDD Installation/Exchange
** Installing or exchanging your HDD is very easy. Just follow up the instructions below. If
you already installed an HDD, you may skip this chapter.
2) Open the TViX cover towards the direction of the ①
arrow.
1) Press HDD lock button towards the direction of the
① arrow and then slide the casing cover towards the
direction of the ② arrow. Do not need any Screwdriver
to install or exchange an HDD.
3) Put an HDD and push the HDD into the connector in
the direction of the ② arrow.
4) Connect the hard disk guide between the HDD and
unit like the picture below.
5) Put TViX cover back and push it to the direction of
the ② arrow until you can hear ‘click’ sound.
6) After installing the hard disk, place the TViX unit on
the cradle of cooling FAN, and push the body to the
direction of the ② arrow. The LED of FAN would be on
when the unit works well.
English
1
2
1
1
2
1
1
2
1
2


3. Installation and Connection
3.1 Connecting the Video
The TViX supports HDMI and Composite video output for connecting to a TV and
each output needs to be selected in the settings menu depending on the cable used.
Connection to Composite Connection to HDMI Output
Connect the TViX output to your TV using
the included Composite (yellow) video
cable. Select an appropriate video input
mode on your TV until you get the main
page of the TViX
For the Audio, please connect the stereo
cable (red/White cable).
Connect the TViX output to your TV using a
HDMI cable.
TViX plays back high definition video (up to
1920x1080i) by using HDMI cables.
HDMI cable can transmit uncompressed
audio and video signals together. No
additional cables are necessary.
After you connect the video cable to your TV, press the TV Out button repeatedly on your
remote controller until you see the main page of the TViX.
3.2 Connecting the Audio
Connection to 2 CH Normal TV Connection to 5.1CH Amplifier (Digital)
Connect the two audio cables, the left
(white) and right (red), to the appropriate
terminal of your TV or Hi - Fi system for
sound output.
If you have a multi-channel decoder/
amplifier with an optical input, you can
enjoy 5.1 CH high-quality sound through
the optical cables.
The illustration above shows how to connect
the optical cable with included optical jack.
(These cables are not included in the
package and must be purchased separately.)
If there is no sound after connecting the coaxial/Optical Cable, you have to change the
audio setup of TViX to Digital on the SETUP menu.
3.3 Connecting the External Input
The TViX R2200 series also functions as a personal video recorder or
archiving machine, allowing you to capture analog video and store
it as a digital format. It can capture or time-shift the external analog
video as well as analog TV signal, and then record it in superb high-
quality digital format.
Connect the output of the external device to the dongle cables
included. Then connect this dongle cable to the TViX A/V IN port. Do
not connect this cable by force or you can damage the TViX unit.
You should configure the external device’s A/V output to NTSC(480i)/
PAL(576i) and analog sound.
CAUTION
NOTE
The TViX provides a composite or S-VHS A/V input.
English


3.4 Connecting the USB HOST
The TViX also provides a USB-host port with the USB host jack included, USB 2.0 compliant
host/ function processor.
USB-host allows communication between two USB devices. You can
connect any external storage device (e.g. memory stick) or an external
hard disk and play files stored on these external devices. You can even
connect your Digital Camera directly to play digital images and pictures
without any other devices.
After connecting the client device, press the left-arrow button on your
remote controller and then navigate to the desired storage unit. You
can thereby change the location from internal hard disk to external USB
device and back.
3.5 Connecting the Antenna
① Before connecting the Antenna, the power of TViX should be turned off.
② To improve the picture quality in a poor signal area, please purchase a signal amplifier
and install properly.
③ We recommend using a threaded-type antenna connector. Move clockwise to tighten.
④ If signal strength meter indicates less than the middle of the scale, adjust your
antenna to increase the signal strength. Continue to adjust the antenna until you find
the best position with the strongest signal.
Antenna. Cable
TViX PVR R-2200 : Analog TV only + A/V IN
TViX PVR R-2210 : NTSC Analog TV & ATSC Digital TV + A/V IN
TViX PVR R-2230 : DVB-T Digital TV only+ A/V IN
Connect the included power adapter to the jack labeled DC-IN
on the back of the TViX. Then plug the other end of the power
adapter into an available wall socket. Make sure that your TV is
switched to the AV input to which the TViX is connected (on the
back of the TV).
3.6 Using the remote control
This indicates Remote Buttons.
Some buttons have different functions in PVR mode and file play mode
POWER Toggle Unit Power on / off
MUTE Stop Audio Output from the Player
TV/HDTV Switch between TV or DTV mode
MOVIE Go to Movie folder
MUSIC Go to Music folder
PHOTO Go to Photo folder
Numeric Key Insert number or text
16:9/4:3 Aspect ratio(16:9/4:3 letter
box/4:3 Pan&Scan)
ZOOM Zoom Video / Image Playback
PREV Previous Chapter / File / Page Up on List
NEXT Next Chapter / File / Page Down on List
JUMP/REW Jump to USB Host or network drive
SORT/FF File Sort or FF playback
OK/TIMESHIFTING Selection/play/pause/time-shifting on/Pause
ARROW Cursor Navigation Arrow/Rewind / FF playback
RETURN Stop Playback/Return to Previous Screen / Folder
VOL +/- Volume (Increase / Decrease)
CH +/- Switch TV channel/adjust subtitle sync
INFO Display Media File Information
SUBTITLE Subtitle ON / OFF, Change Settings
MENU Display Main Menu Screen/ DVD Title Screen
GOTO Time-Stamp based Search/TV channel list
SETUP Enter Setup Menu, Apply/Confirm Setup Settings
AUDIO Select multi audio
REPEAT Repeat Media file(s) Playback
SHUFFLE Switch between Random –
Sequential Playback
TV OUT Toggle Video Output Modes
TITLE Select subtitle file
A/V IN Switch between AV-in(Composite /
S-VHS)
FUNCTION File copy/ folder password/ Sleep
Timer
GUIDE Display DTV EPG Guide
BOOKMARK/SCH Bookmark / manual recording in TV
mode
ADD/DELETE Add/Remove the recording list/
delete file
REC Instant recording in TV or AV-in
English


4. 4 TViX Setup Menu
4.1 SYSTEM Setting
This section indicates the SYSTEM (Language or Time) settings. Press SETUP button on
the remote controller and select SYSTEM.
This screen allows you to adjust the SYSTEM settings of your TViX to your personal
taste. Select menu to exit this SETUP.
Menu Language : Select your language
preference from the options.
File List Type : Switch between File list
mode and Preview.
Date/Time : Adjust the clock by using the
arrow and numeric keys.
Screen Saver : If there is no activity the
screen saver will start after a certain time.
You can change the Screen Saver time on
this menu.
Auto Run : You can play the files automatically when loading the TViX. If you select “random”, it
plays randomly.
Set Screen Position : Adjust the UI display position, so you can see exact main UI display on
your TV.
Check Disk : TViX provides the HDD check utility. If you have some problem with recording or
file playback, we recommend run this utility in advance.
TViX automatically formats when you connect an unformatted hard disk internally. Do not shut
the power down when formatting the hard disk.
Load Default Setting : In order to revert to the Default setting, Press this option. You will need
to configure the video and sound settings again.
English
3.7 Initial Setting
① Connect the TViX with your TV using A/V cables and turn on the TViX. You can see
this process when you turn it on for the first time or when you select “Load Default
Setting”.
② You may see the initial page on your TV screen as the picture below, then press the
“OK” button on the remote controller.
- In case of HDMI connection : The TViX sets to the best resolution automatically and
leads you to the next stage, “Language setting”.
- In case of other connections : The TViX changes screen resolutions as NTSC - PAL -
480P - 576P in about every three second, so press the “OK” button when you can see a
clear screen.
③ Select your language or the language you want to
choose.
④ Now you can see the TViX main page.


English
4.3 HDTV Setting
This section indicates the HDTV (TV or Time-shifting) settings. Press the SETUP button on
the remote controller and select HDTV.
This screen allows you to adjust the HDTV settings of your TViX to your personal taste.
Select menu to exit this SETUP.
TV Input : Select your input. The
TViX PVR R-2230 supports only
DVB-T (Air) signals.
TViX PVR R-2200 – Analog TV only
(Air & Cable)
TViX PVR R-2210 – NTSC Analog TV
& ATSC Digital TV (Air & Cable)
TViX PVR R-2230 – Free-to-Air
DVB-T Digital TV (Air only)
Country/Location : Select your country or location.
Time Zone : to use the EPG guide with correct recording times, you have to configure your time
zone by using the arrow keys.
Apply Video Output : press ‘Apply Video output’ to save current Video output mode.
Video Auto Switch : is used when the video out is changed according to the NTSC or PAL format.
Video Adjust : Set the Brightness - Contrast - Hue - Saturation.
Press OK or STOP button to save and exit current video setting.
4.2 Audio/Video Setting
This section indicates the A/V (Video or Audio) settings. Press SETUP button on the remote
controller and select the A/V.
This screen allows you to adjust the A/V settings of your TViX to your personal taste. Select
menu to exit this SETUP.
Analog Audio output : Select this when you
connect the audio with a stereo RCA cable (the
Red and White cable)
Digital Audio output: Select this when you
connect the audio with an optical cable for
digital audio connection to the Decoder/
Amplifier.
Video Output : Select this when you connect the video through a composite or HDMI cable. With
HDMI setting, you can select the output resolution among 720p 50hz/60hz, 1080i 50hz/60hz. Setting
it to 1080i will work on all HD grade TVs.
Video Aspect Ratio : 4:3 Letter Box / 4:3 Pan & Scan for ordinary TVs / 16:9 for Wide TVs like HDTV
or Plasma TV.
If the ratio of the TV is 4:3, select the 4:3 letter box or 4:3 Pan & Scan. If the ratio is 16:9, select 16:9.
* The 4:3 Letter box can show the original ratio of the multimedia file in 16:9.
* The 4:3 Pan & Scan will adjust the image of the 16:9 multimedia file to the 4:3 of the TV screen by
scaling the image. (Currently, not support this mode)
* 16:9 can adjust any ratio of the multimedia file to the TV screen with the original image.
HDMI Audio : Select ON when you want to hear
the audio from HDMI.
Dynamic Range Control : We recommend you to set the "DRC mode" to "Off", otherwise you could
not hear the sufficient sound (Volume Level Option).


English
Setup Network Disk : Write the PC’s IP address in the Server IP. (ex: 192.168.001.128). Supports up
to 4 Network disk server.
TVIX Network Info : You can see the information of TViX’s Network.
4.5 MISC Setting
This section indicates the MISC (Photo effect or Subtitle) settings. Press the SETUP button
on the remote controller and select MISC.
This screen allows you to adjust the MISC settings of your TViX to your personal taste.
Select menu to exit this SETUP.
Wi-Fi Ip Setting :
Default setting is DHCP. If you cannot access via LAN with DHCP setting, use the Static IP setting.
Search Wi-Fi Network : Connect the USB module into enclosed cradle after connecting the AP
Router to a PC. Press “Search Wi-Fi Network” to search for your AP or AP router. After some interval
of searching, you can see the AP LIST popup menu. Select the AP that you want to connect to.
FTP ID/PW: to use FTP function, you must use the ID & password displayed on the Network Menu
within SETUP. The FTP ID is tvixftp.
Audio Language : select default audio. To change the audio format, press the AUDIO button on the
remote.
TimeShift Duration : Set the maximum time-shifting interval.
Analog REC Quality : Set the analog recording quality.
Start Channel Scan : Press ‘Start Channel Scanning’ if you want to scan the channel.
4.4 NETWORK Setting
This section indicates the NETWORK (Network or FTP) settings. Press the SETUP button on
the remote controller and select NETWORK.
** For detailed Network instructions,
please refer to the enclosed TViX
CD or the latest pdf file on the TViX
Homepage (www.tvix.co.kr).
This screen allows you to adjust the NETWORK settings of your TViX to your personal taste.
Select menu to exit this SETUP.
Daylight Saving Time : set this option on if you are in the area of DST.

0
Digital Video Innovation
Slide Show Effect : is used when playing background music while watching picture slideshows.
Slide Show Delay: Set the slide show time interval.
OSD Display : Select the type of OSD display. We recommend the Normal mode.
Subtitle Color : Change the color of the subtitle and its outline.
Set Folder Password : In order to password-protect folders, you will first need to setup Admin
Password. Default Admin Password: 0000 (4-zeros). Perform the SETUP-SYSTEM-Load default
settings if Admin Password is lost.
