Dyaco Sole Fitness SB900 User manual
TABLE OF
CONTENTS
Product Registration 3
Important Safety Instructions 4
Important Operation Instructions 4
SB900 Assembly Instructions 7
Operation of Your New Indoor Cycle 13
Exploded View Drawing 27
Parts list 28
Manufacturer's Limited Warranty 31
ATTENTION
THIS FITNESS BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Ver.C
3
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
CONGRATULATIONS ON YOUR NEW INDOOR CYCLE TRAINOR AND WELCOME TO THE SOLE FAMILY!
Thank you for your purchase of this quality Sole indoor cycle from Dyaco Canada Inc. Your new indoor
cycle has been manufactured by one of the leading fitness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Dyaco Canada Inc. will do all we can to make your
ownership experience as pleasant as possible for many years to come.
If you have any questions about your new Sole product or questions about the warranty contact Dyaco
Canada Inc. at 1-888-707-1880.
Please take a moment at this time to record below the name of the dealer, their telephone number, and
the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and we will
always remember that you are the reason that we are in business. Please go to
www.dyaco.ca/warranty.html and complete the online warranty registration.
Yours in Health,
Dyaco Canada Inc.
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT REGISTRATION
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product in
the space provided below.
Serial Number
4
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
IMPORTANT SAFETY
INSTRUCTIONS
WARNING - Read all instructions before using this appliance.
1. Use this equipment only for its intended use as described in this manual. Do not attempt to ride this bike at high
pedal speeds until you have ridden the bike for some time and are comfortable riding at slower pedal speeds.
2. The bike is NOT equipped with a freewheel system which means that when the flywheel is in motion, the pedals
will be in motion. Do not attempt to stop the unit by applying backward pressure to pedals while they are turning
as knee injury may occur. Do not attempt to remove your feet from pedals while they are moving.
3. Wait for flywheel to coast to a stop before dismounting the bike. If you want to stop the flywheel, push down on
the brake knob.
4. Serious injury or death may occur from over-training. Consult a medical doctor or qualified fitness instructor to
determine an exercise program appropriate for your level of fitness.
5. Do not attempt to turn the pedal cranks by hand. Do not touch any driving mechanism while it is in motion as
possible injury could occur.
6. In a home setting, keep children away from the bike when it is not in use. Keep children and pets away from the
unit while it is in use.
7. Do not attempt to perform dip movements on handlebars.
8. Never drop or insert any object into any opening of the bike.
9. Only use the bike on a stable, level floor.
10. Follow instructions for safe use of the equipment, including proper seat position, handlebar position, and use of
foot positioning system of pedals. Do not attempt to pull up handlebar post and seat post over the 'MAX.'
graduation.
11. For safe operation, allow for at least 1foot (30cm) of free space to either side of the unit and 2 feet (60cm) of free
space to the rear of the unit.
Regularly examine the bike for damage and wear. Inoperable components should be replaced immediately, or the equipment
should not be used until it is repaired.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly
others) to injury, and reduce the longevity of the equipment.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT OPERATION
INSTRUCTIONS
WARNING - AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD INSIST THAT ALL USERS FOLLOW THE SAME
GUIDELINES: YOU SHOULD MAKE THIS MANUAL AVAILABLE TO ALL USERS.
1. Obtain a complete physical examination from your medical doctor and enlist a health/ fitness professional's aid in
developing an exercise program suitable for your current health status.
2. When working out for the first time, start out slowly for a minimum of five minutes. After your muscles are
warmed up, gradually increase the pedalling speed and/or resistance.
3. The speed and duration of your exercise program should always be subject to how you feel. Never permit peer
pressure to exceed your personal judgment while exercising.
4. Overweight or severely de-conditioned individuals should be particularly cautious when using the equipment for
the first time. Even though such individuals may not have histories of serious physical problems, they may perceive
the exercise to be far less intense than it really is, resulting in the possibility of overexertion or injury.
5. Proper installation and regular maintenance are required to ensure user's safety.
Maintenance is the sole responsibility of the owner.
5
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca

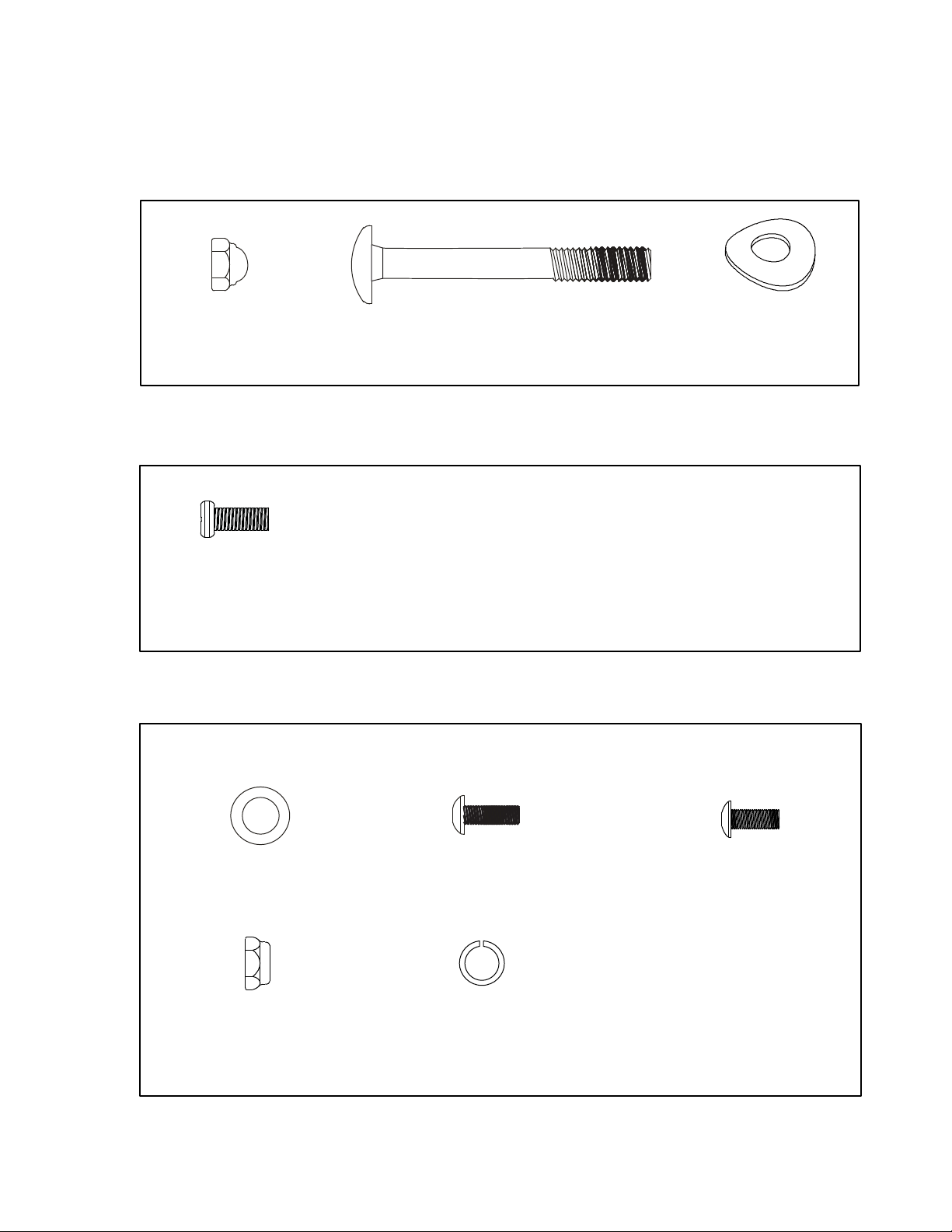

SB900 ASSEMBLY PACK CHECKLIST
1
HARDWARE
STEP 1
#82. 3/8" Nut
(4 pcs)
#81. 3/8" x 3-1/2"
Carriage Bolt (4 pcs)
#83. 3/8" x 23mm
Curved Washer (4 pcs)
2
HARDWARE
STEP 2
#91. M5 x 10mm
Phillips Head Screw (2 pcs)
4
HARDWARE
STEP 4
#47. Ø8.5 × Ø16 × 1.5T
Flat Washer (4 pcs)
#88. M8 × P1.25 × 25L Button
Head Socket Bolt
(4 pcs)
#143. 5/16" × 15L Button
Head Socket Bolt (4 pcs)
#144. 5/16" × 7T
Nylon Nut (4
pcs)
#146.Ø8 × 1.5T_
Split Washer (4 pcs)
7
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
SB900 ASSEMBLY
INSTRUCTIONS
PRE-ASSEMBLY
1. Using a razor knife (Box Cutter), cut the outside, bottom, edge of box along the dotted line. Lift Box over the unit and
unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing parts. If damaged parts are found or parts
are missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools first. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference.

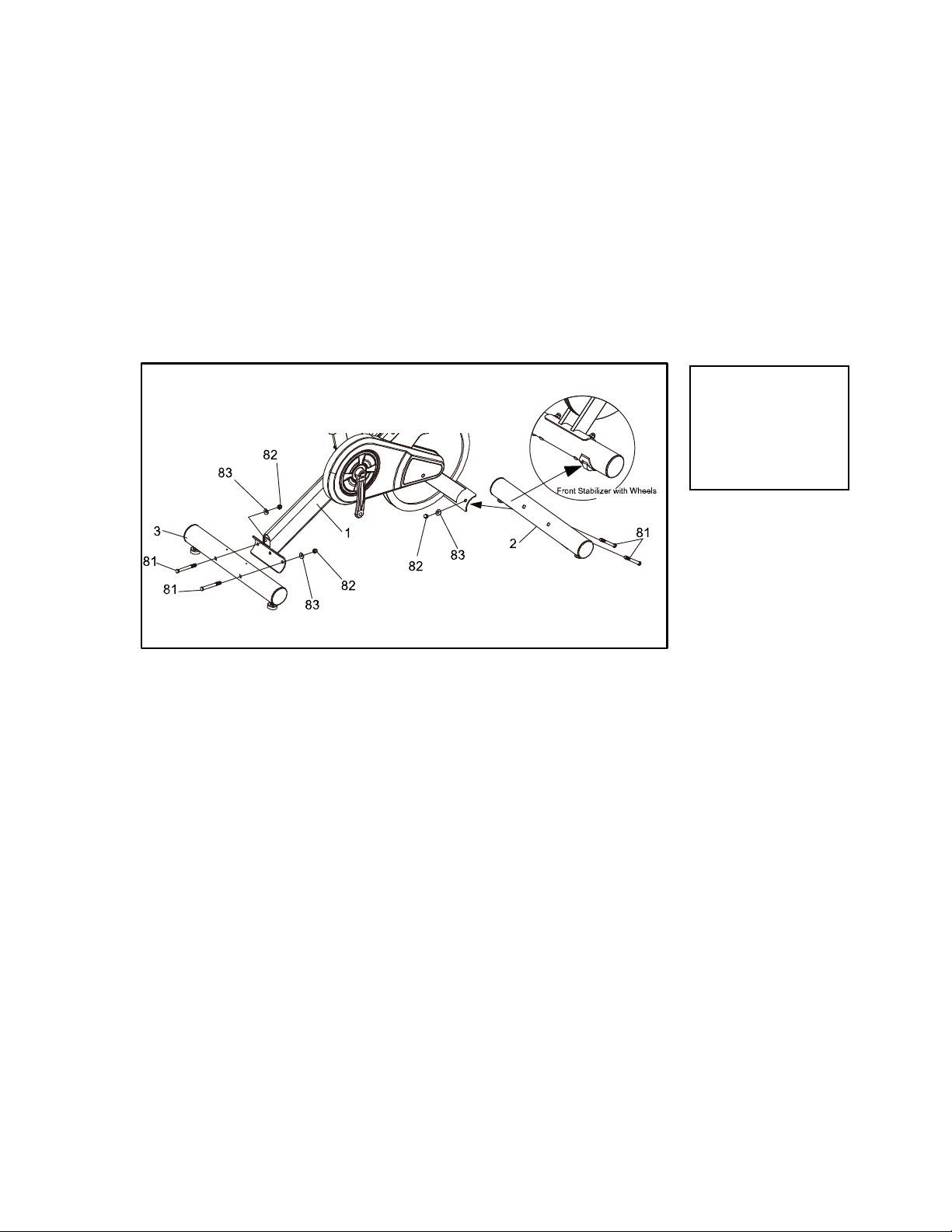

1
STABILIZER
TUBES
1. Install the front and rear stabilizers with four Carriage Bolts (81), four Curved
Washers (83) and four Nuts (82). The front and rear stabilizer are different. Be
sure to assemble the stabilizer with the wheels onto the front of the bike.
#82. 3/8” Nut (4 pcs)
#81. 3/8” x 3-1/2”
Carriage Bolt (4 pcs)
#83. 3/8” x 23mm
Curved Washer (4 pcs)
HARDWARE STEP 1
8
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
2
REAR STABILIZER
COVER
HARDWARE STEP 2
#91. M5 x 10mm
Phillips Head Screw
(2 pcs)
1. Install the rear stabilizer cover with two Phillips Head Screws (91).
3
CONSOLE
1 – Console
2 –Clamp mounting
screw
3 –Mounting Clamp
9
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
4
HANDLEBAR
HARDWARE STEP 4
#47. Ø8.5× 16 × 1.5T
Flat Washer (4 pcs)
#88. M8 × P1.25 × 25L
Button Head Socket
Bolts (4 pcs)
#143. 5/16" ×15L_
Button Head Socket
Bolt (4 pcs)
#144.5/16" × 7T_Nylon
Nut (4 pcs)
#146. Ø8 × 1.5T_Split
Washer(4 pcs)

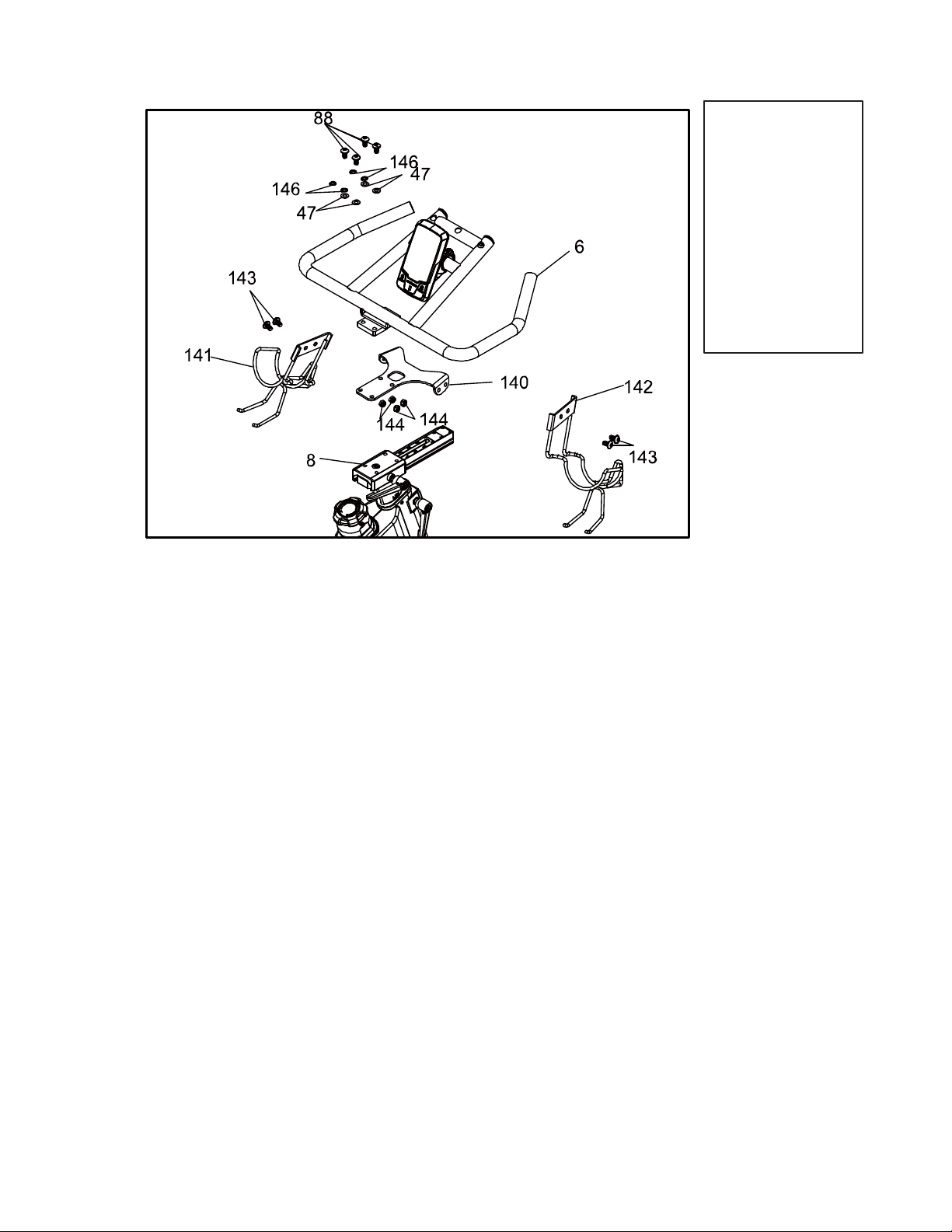

1. Install the Handlebar(6). Fixing Plate(140) and Sliding Handlebar Mount(8)
with four M8 × P1.25 × 25L Button Head Socket Bolts (88), four Ø8.5× 16
× 1.5T_Flat Washers (47) and four 5/16"×1.5T _Split Washers (146). Tighten the
bolts securely by using the M5_Combination M5 Allen Wrench & Phillips Head
Screw Driver (86).
2. Install the Drink Bottle Holder(L) (141)and Drink Bottle Holder(R) (142) with
four 5/16" × 15L_Button Head Socket Bolt (143) and four 5/16" × 7T_Nylon
Nut (144)by using the M5_Combination M5 Allen Wrench & Phillips Head
Screw Driver (86)and 13/14m/m_Wrench(145).
10
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
5
LEFT/RIGHT
PEDALS
1. Install the Left (25L) and Right (25R) pedals to the crank arms. Please note that the Left
pedal has a reverse threaded bolt and needs to be tightened in a counterclockwise
direction. The pedals are identified by either an R or L stamped into the end of the bolt.
11
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
6
TABLET
HOLDER

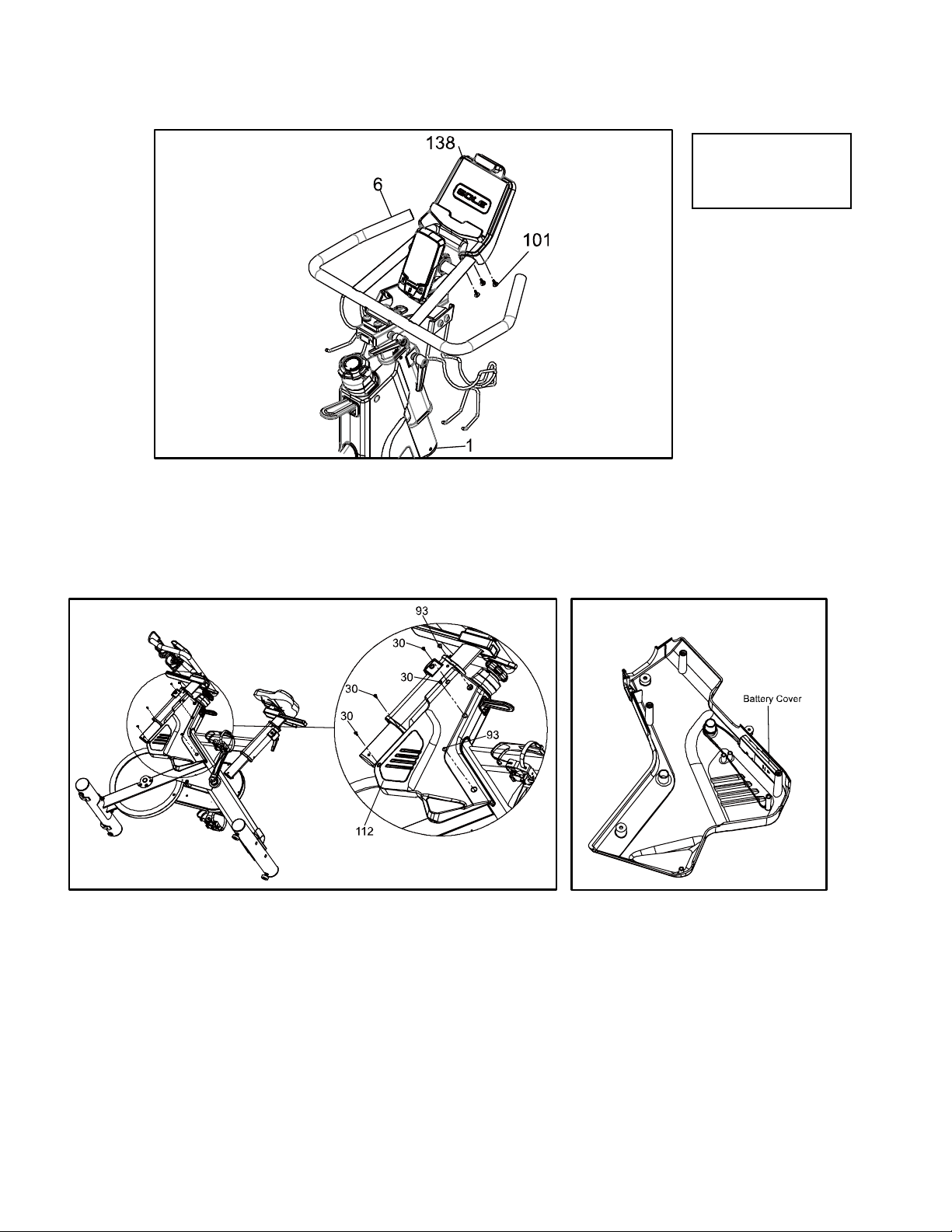

1. Install the Tablet Holder (138) on the Handlebar (6) with 3pcs of 4 x 16mm
Sheet Metal Screws (101) by using the M5_Combination M5 Allen Wrench &
Phillips Head Screw Driver (86)
INSTALL / REPLACE SENSOR TRANSMITTER BATTERIES
1. Remove the left cover (112) by removing four screws (30) and two screws (93).
2. Without removing the transmitter from the left cover (112), remove the Battery Cover from the
transmitter.
3. Install 2 AAA batteries in the battery compartment and reinstall the battery cover.
4. When new batteries are installed in the transmitter or console, you must perform the synchronizing
procedure below for the console to work properly
5. After synchronizing, make sure the wire from transmitter is wrapped around the plastic as in the above
image.
6. Reinstall left cover.
HARDWARE
STEP 6
#101
. 4 × 16mm
Sheet Metal Screw
(3 pcs)
12
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
Sole Indoor Cycling Console charging
1. This requires a standard USB to micro-USB cable.
2. Connect your console input to a standard USB wall charger.
3. When battery icon is showing, console battery is low. Please charge your console as soon as possible.
Speed Sensor Transmitter Battery Installation
1. Remove the battery cover from the transmitter.
2. Install 2 AAA batteries in the battery compartment and reinstall the battery cover.
3. When new batteries are installed in the transmitter or console, you must perform the
synchronizing procedure below for the console to work properly

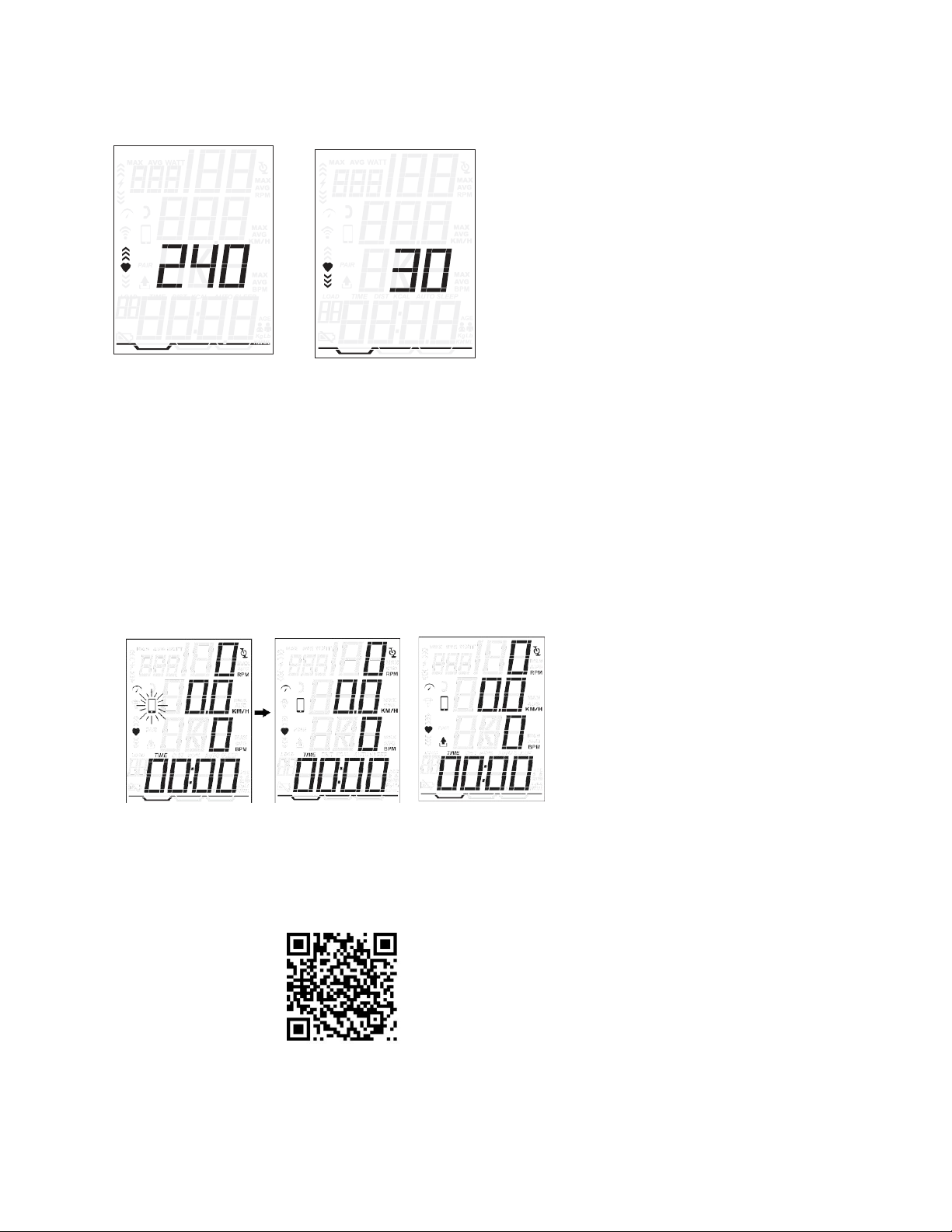

Synchronizing the transmitter to the console:
After installing the batteries, and before attaching the console and transmitter to the bike, you must
synchronize the two, so they can 'talk' to each other.
1. Press and hold the two keys on the front of the console for about 3 seconds until the display
shows ID - -
2. Now press and hold the blue button on the transmitter for 3 seconds and release. The console display
should show ID 0. NOTE: You must press the blue button within 10 seconds after the console is showing
ID - - otherwise, the console will show: ID ER. If the console shows this error, then restart the procedure
again.
3. It may be necessary to remove and re-install the batteries in both the console and
transmitter if you continue to receive an error.
Console Installation:
1. Install the mounting clamp (2) to the back of the console (1) with the clamp mounting
screw (3).
2. Install and slightly tighten the thumbscrew (4), then adjust the console angle for optimal
visibility. Once the console is adjusted, continue to tighten the screw until it is securely attached to
the handlebar.
＊See P.11 for replacing transmitter battery.
13
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
OPERATION OF YOUR INDOOR
CYCLE
GETTING FAMILIAR WITH THE CONTROL PANEL
SB900 CONSOLE
TIME
Time is the length of time (min. / sec.)
The time will count up or count down when user is pedalling. When pedalling stops, timer will stop to count up or count
down after 3 seconds.
CADENCE & SPEED
Cadence is measurement of how fast the cranks are rotating in RPM's. The approximate speed of the bike can also be
displayed (MPH/KPH) in this section.
In addition to MPH/KPH, CADENCE will also display a bar graph that allows riders to keep track of approximate cadence.
Average Cadence or Speed will be automatically shown after rider stop pedalling for 3 seconds.
DISTANCE
Distance is measurement of the approximate distance achieved on the bike. This distance is calculated based on user
riding a bike with tires having same diameter as flywheel.
This is measured by RPM.
CALORIES (KCAL)
Kcal is the approximation of calories burned during workout. Calories are calculated by measuring rider's instantaneous heart
rate, age, and weight.
14
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
HEART RATE (apply to HR featured models only) This is the approximation of heart rate detect from Bluetooth HR
monitor during workout. Average Heart Rate will automatically shown after 3 seconds if console cannot detect current
Heart Rate.
POWER (WATT)
Watt is the approximation of Applied force during work out.
QUICK Start
In power-saving mode, press page key to bring the console to 'QUICK Start' state.
Power Saving Mode Quick Start Mode
MODE SELECT
Press' MODE' key to select TIME, DIST, KCAL display.
RESETTING ALL MEASURED VALUE
To clear all measured values, press and hold Page key under TIME Mode for 3 seconds. All measured values AVG SPEED, AVG
PULSE, TIME, DIST, KCAL will reset.
TIMER SETTING
TIMER displays user's workout duration. If the user does not set the COUNT DOWN TIME, TIMER will count up from 00:00 to
99:59.
If user presets the COUNT DOWN TIME, the TIME will count down to zero with flashing display, then start counting up the
Timer.Under DIST or KCAL, user can go into TIMER setting by holding 'PAGE' key for 3 seconds.
15
Customer Service 1-888-707-1880 Dyaco Canada Inc.
Email: customerservice@dyaco.ca
HEART RATE TARGET ZONES
Under DIST or KCAL, hold Page key for 3 seconds to go into settings, Press "MODE" key to go to heart rate icon, then press page
to go to heart rate target zones window.
Press Mode key to increase maximum heart rate limit.
After setting maximum heart rate, press Page key to adjust minimum heart rate.
PERSONAL DATA SETTING
Accurate personal data will make your estimated calories burned more accurate. Under KCAL or DISTANCE MODE, Hold Page
key for 3 seconds to go into setting, continuously' key to get to heart rate windows.
1. Press Page key to select gender, either: Male / Female
2.
Press Page key to go to weight unit settings. Press Mode key to select weight, Kg. / Lb. Note: change of metric units to
imperial units will affect all displaying units: MPH/KPH, Lb/KG and ML/KM.
3.
Press Page key, will go to weight settings Press Mode key to increase weight by 0.5 Kg. or 0.5Lb.
Console pairing with Kinomap / Zwift
1. Please download Kinomap / Zwift from GooglePlay/App Store
2. After open, the APP, press the phone icon on bike console.
3. After APP search for bike console, the bikeconsole will display the pairing interface.
4. Video of pairing process
This manual suits for next models
1
Table of contents
Other Dyaco Exercise Bike manuals
