Dycon d1800 Series User manual



Installation Manual for
D1800 Series
High Power PoE Midspan
Power Supply
Dycon Ltd
Tel: [phone] - Fax: [phone]
Cwm Cynon Business Park – Mountain Ash – CF45 4ER - UK
www.dyconsecurity.com‐[e-mail]
All manuals and user guides at all-guides.com
all-guides.com

D18XX Series PoE Midspan 4 to 16 ports - Installation Manual - D18XX-INST /11E/v1 Page 2 of 6


1 Package Contents
- D18XX PoE Mid-span unit
- Mains cable
- Four M4 x 8mm Philips flat head screws
- Dycon warranty statement
- D1800 series manual
2 Description
The D1800 PoE Midspan Series is powered by one or more highly efficient switched mode power
supplies that reduce rack cabinet heat and user running costs. The unit is designed for simplicity and
true “Plug and Play” system integration. The unit will simultaneously supply over 30 watts to each
connected powered device and individual ports are over-current protected according to the class of
the connected device.
2.1 Features
•IEEE 802-af and IEEE 802-at Type 1 and Type 2 compliant
•Power supply better than 85% efficient at full load
•Genuine full power available simultaneously across all ports
•Fully automatic powered device signature detection and power limiting
•4 to 16 port model variants available
•3U 19 inch rack mounted and desk mounted versions
•Simple “Plug and Play” system integration
•Full thermal and over-current protection
•Power outputs transient protected
•Power supply failure redundancy limited to multiples of 4 ports
3 Installation

D1804 – 4 ports – front plate

D1808 – 8 ports – front plate
All manuals and user guides at all-guides.com

D18XX Series PoE Midspan 4 to 16 ports - Installation Manual - D18XX-INST /11E/v1 Page 3 of 6



D1812 – 12 ports – front plate

D1816 – 16 ports – front plate
3.1 Power Cable Connection
The AC power cable is connected to the switched IEC power inlet located at the rear of the Dycon
PoE Midspan unit. The power cord must be plugged into an earthed 230V nominal power outlet,
with a minimum current rating of 10A.
3.2 Ethernet Connection
Category 5e cables using 10BASE-T and 100BASE-T Ethernet 8P8C modular connections can be
used with this PoE midspan power injector. The unit can provide nominal maximum of ~34W
(measured at the midspan output depending on the class of the powered device) at ~54V (~630mA)
per port and is IEEE 802-at complaint and backwards compatible with IEEE 802-af.
The Ethernet ports are organised in multiples of 4 pairs of 8P8C modular connectors (RJ45).
Depending on the model a maximum of 16 ports are available. The Ethernet data input (from an
Ethernet switch etc.) is connected to the lower data input connectors and the output with injected
power is connected to the corresponding upper data and power output connector.
1. Check the unit is plugged in and switched on at the rear of the unit. The yellow standby
LEDs on the front modular connectors will be illuminated indicating that power is available.
2. Connect the Ethernet data cables to the bottom row data inputs.
3. Connect the cable to the powered device to the corresponding upper data and power output
modular connector.
4. Wait for a few seconds and check that the Green LED illuminates indicating that a valid
power signature has been detected from the powered device and output power has been
successfully applied.
3.3 LED Indicators
INDICATORS OFF ON
YELLOW Port power not available, unit switched off1Port power available
GREEN Powered device disconnected or invalid device
plugged in Powered device signature successfully detected and power applied over Ethernet
Notes:Each 4 pairs of modular connectors are powered by an individual power supply. Should an
individual power supply fault develop or the power supply temporarily close down after a thermal
overload, only four out a potential 16 ports will be affected.
All manuals and user guides at all-guides.com

D18XX Series PoE Midspan 4 to 16 ports - Installation Manual - D18XX-INST /11E/v1 Page 4 of 6


4 Technical Specifications

Part Number D1804 - 4 ports D1808 - 8 ports D1812 - 12 ports D1816 - 16 ports
Power Available Max. 120 watts Max. 240 watts Max. 360 watts Max. 480 watts
Max. Input
Current at 230V 0.65A 1.3A 1.95A 2.6A
AC Power Supply
Voltage 207V to 253V
AC Input 49Hz to 61Hz
Network Inputs 10/100 Base-T
Outputs 54V nominal, +/- 3%
Port Power
Output 35W (630mA at 55.5V) maximum
Fuse Rating Time delay T6.3A 20mm fuse, 250 V
Operating
Temperature
Range
-10°C to +40°C
Size (L x W x D) 485mmx285mmx90mm
Weight 4kg 4.3kg 4.6kg 4.9kg
5 Safety and environmental Information
5.1 Equipment Modifications
This equipment must be installed and used in strict accordance with the instructions given in this
manual. This equipment contains no user-serviceable components. Unauthorised changes or
modifications to this equipment will invalidate all applicable regulatory certifications and approvals.
Every care has been taken in the preparation of this manual. Please inform us of any inaccuracy or
omission. Dycon Ltd cannot be held responsible for any technical or typographical errors and
reserves the right to make changes to the product and manuals without prior notice.
All manuals and user guides at all-guides.com

D18XX Series PoE Midspan 4 to 16 ports - Installation Manual - D18XX-INST /11E/v1 Page 5 of 6



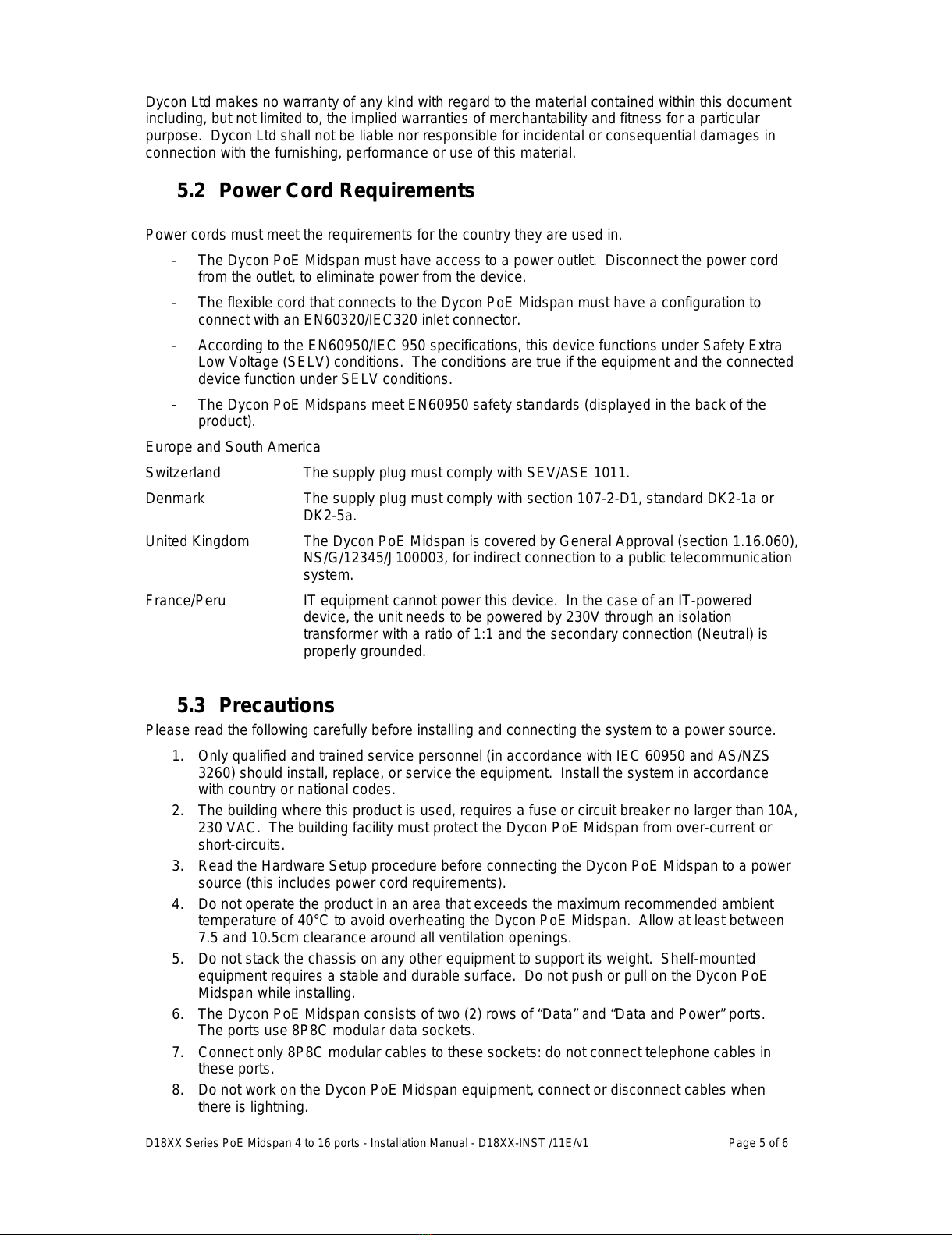

Dycon Ltd makes no warranty of any kind with regard to the material contained within this document
including, but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. Dycon Ltd shall not be liable nor responsible for incidental or consequential damages in
connection with the furnishing, performance or use of this material.
5.2 Power Cord Requirements

Power cords must meet the requirements for the country they are used in.
- The Dycon PoE Midspan must have access to a power outlet. Disconnect the power cord
from the outlet, to eliminate power from the device.
- The flexible cord that connects to the Dycon PoE Midspan must have a configuration to
connect with an EN60320/IEC320 inlet connector.
- According to the EN60950/IEC 950 specifications, this device functions under Safety Extra
Low Voltage (SELV) conditions. The conditions are true if the equipment and the connected
device function under SELV conditions.
- The Dycon PoE Midspans meet EN60950 safety standards (displayed in the back of the
product).
Europe and South America
Switzerland The supply plug must comply with SEV/ASE 1011.
Denmark The supply plug must comply with section 107-2-D1, standard DK2-1a or
DK2-5a.
United Kingdom The Dycon PoE Midspan is covered by General Approval (section 1.16.060),
NS/G/12345/J100003, for indirect connection to a public telecommunication
system.
France/Peru IT equipment cannot power this device. In the case of an IT-powered
device, the unit needs to be powered by 230V through an isolation
transformer with a ratio of 1:1 and the secondary connection (Neutral) is
properly grounded.
5.3 Precautions
Please read the following carefully before installing and connecting the system to a power source.
1. Only qualified and trained service personnel (in accordance with IEC 60950 and AS/NZS
3260) should install, replace, or service the equipment. Install the system in accordance
with country or national codes.
2. The building where this product is used, requires a fuse or circuit breaker no larger than 10A,
230 VAC. The building facility must protect the Dycon PoE Midspan from over-current or
short-circuits.
3. Read the Hardware Setup procedure before connecting the Dycon PoE Midspan to a power
source (this includes power cord requirements).
4. Do not operate the product in an area that exceeds the maximum recommended ambient
temperature of 40°C to avoid overheating the Dycon PoE Midspan. Allow at least between
7.5 and 10.5cm clearance around all ventilation openings.
5. Do not stack the chassis on any other equipment to support its weight. Shelf-mounted
equipment requires a stable and durable surface. Do not push or pull on the Dycon PoE
Midspan while installing.
6. The Dycon PoE Midspan consists of two (2) rows of “Data” and “Data and Power” ports.
The ports use 8P8C modular data sockets.
7. Connect only 8P8C modular cables to these sockets: do not connect telephone cables in
these ports.
8. Do not work on the Dycon PoE Midspan equipment, connect or disconnect cables when
there is lightning.
All manuals and user guides at all-guides.com

D18XX Series PoE Midspan 4 to 16 ports - Installation Manual - D18XX-INST /11E/v1 Page 6 of 6


9. The AC plug/socket combination must be accessible at all times, as it is the main
disconnection device to the product.
10. Follow appropriate national laws and regulations when discarding this product.
5.4 RoHS
This product complies with the European RoHS directive 2002/95/EC.
5.5 WEEE
This product complies with the WEEE (Waste Electrical and Electronic Equipment) directive.
5.6 Electromagnetic Compatibility (EMC)
This digital equipment fulfils the requirements for radiated emission according to limit B of
EN55022/1998, and the requirements for immunity according to EN55024/1998 residential,
commercial and light industry.
6 Support / Trouble-shooting
In case you require any technical assistance, please contact Dycon Technical Support on +44
(0)1443 471 064 or email [e-mail].
From our website www.dyconsecurity.com, you can download the product datasheet and user
manual.
