Dyconn M13CT1630T User manual

Thoroughly read all instructions before installing the enclosed product.
Read and take note of all safety, care, and maintenance information.
Product Features:
Frameless backlit Mirror
Extra thick frosted LED light
5.5” cabinet thickness
Built-in internal light
Touch switch on & off
Anti-fog pad
LED Mirror Cabinet
Sizes: 16” W x 30”H
34” W x 24”H
Model: M13CT1630T, M13CTB3424T (Bluetooth), M16CT3424T

1
Model: M13CT1630T
M13 Mirror Cabinet
Size: 16” x 30” (40.6 cm x 76.2 cm)
Product Features: Package Content:
LED backlit Mirror
Screws
Studs
Mounting bracket
Frameless backlit Mirror
Extra thick frosted LED light
5.5” cabinet thickness
Built-in internal light
Touch switch on & off
Anti-fog pad
* All diagrams are for reference only. All model dimensions and proportions will vary.
Front View Side View
Mounting
Hole
Mounting
Hole
Internal light
2835 LED,
6000K, 3.6W
Cabinet
Frosted mirror
3mm copper free
silver mirror with
Vinyl backing
2835 SMD LED,
Waterproof 32W,
6000K, 24Vdc
Sensor Touch
on/o button,
Temp. Change,
Dim function
1” (25 mm) 3/4” (19 mm)
51/4” (140 mm)
16” (406 mm)
30” (762mm)
30” (762mm)
287/16” (722 mm)

2
Model: M13CTB3424T
M13 Bluetooth Mirror Cabinet
Size: 34” x 24” (86.4 cm x 60 cm)
Model: M16CT3424T
M16 Mirror Cabinet
Size: 34” x 24” (86.4 cm x 60 cm)
* All diagrams are for reference only. All model dimensions and proportions will vary.
Frosted mirror
Mounting
Cleat
Door
Front View Side View
Internal light
2835 LED,
6000K, 5.4W
Cabinet
3mm copper free
silver mirror with
Vinyl backing
2835 SMD LED,
Waterproof 38W,
6000K, 24Vdc
Sensor Touch
on/o button
34” (864 mm)
24” (610mm)
24” (610mm)
227/16” (570mm)
1 1/8” (30mm)
51/2” (140 mm)
3/4” (19mm)
Door
Front View Side View
Mounting
Cleat
Internal light
2835 LED,
6000K, 5.4W
Cabinet
Frosted mirror
3mm copper free
silver mirror with
Vinyl backing
2835 SMD LED,
Waterproof 38W,
6000K, 24Vdc
Sensor Touch
on/o button
34” (864 mm)
24” (610mm)
24” (610mm)
24” (610mm)
1 1/8” (30mm)
51/2” (140 mm)
3/4” (19mm)

3
Tools & Preparation
IMPORTANT WARNING
TOOLS REQUIRED
Tape Measure Electronic Drill Spirit level
Pencil Philips Screwdriver Hammer
Warning: Always switch o the electrical supply at the mains during installation
and maintenance.
Do not switch on the electrical supply at the mains until the end of the installation.
This product is fragile and easily breaks with glass, be cautious while tting or handling to
prevent personal injury or damage. If the glass is broken, please stop using it and replace
it with the manufacturer. Ensure the mounting surface is dry and strong enough to bear
four times the weight of the product for safe tting.
Special care should be taken when drilling walls to avoid hidden pipes or electrical cables.
This product covers the outlet box and the wirings after installation.
Wipe clean with a soft dry cloth. Never use abrasives or chemical cleaners.
Please put a soft cushion under the mirror while you take the mirror down from the wall.

4
Wall hanging Installation
STEP 1 Turn o the power supply.
STEP 2 Place the metal 'Z' bar
against the wall and mark
the suitable position of the
screw holes ensuring it is
level.
STEP 3 Drill the holes and put in the
wall plugs for 'Z' bar.
STEP 4 Screw the metal 'Z' bar onto
the wall with the mounting
screws supplied.
STEP 5 Place the mirror cabinet on a
proper position so that the
wires can access to the main
power supply.

5
Wall hanging Installation
STEP 6 Connect the wires of the
cabinet with the main power
by the wire connectors.
BLACK WIRE --- POWER SUPPLY (LIVE)
WHITE WIRE --- POWER SUPPLY
(NEUTRAL) GREEN WIRE --- POWER
SUPPLY E (EARTH)
WARNING: This product must be
earthed.
STEP 7 Hang the mirror cabinet
onto the 'Z' bar until they are
completely stuck.
STEP 8 Peel o the protective lm
from the mirror and clean it
with a soft cloth.
BLACK
LIVE
GROUND/
EARTH
POWER SUPPLY
GREEN
WHITE

6

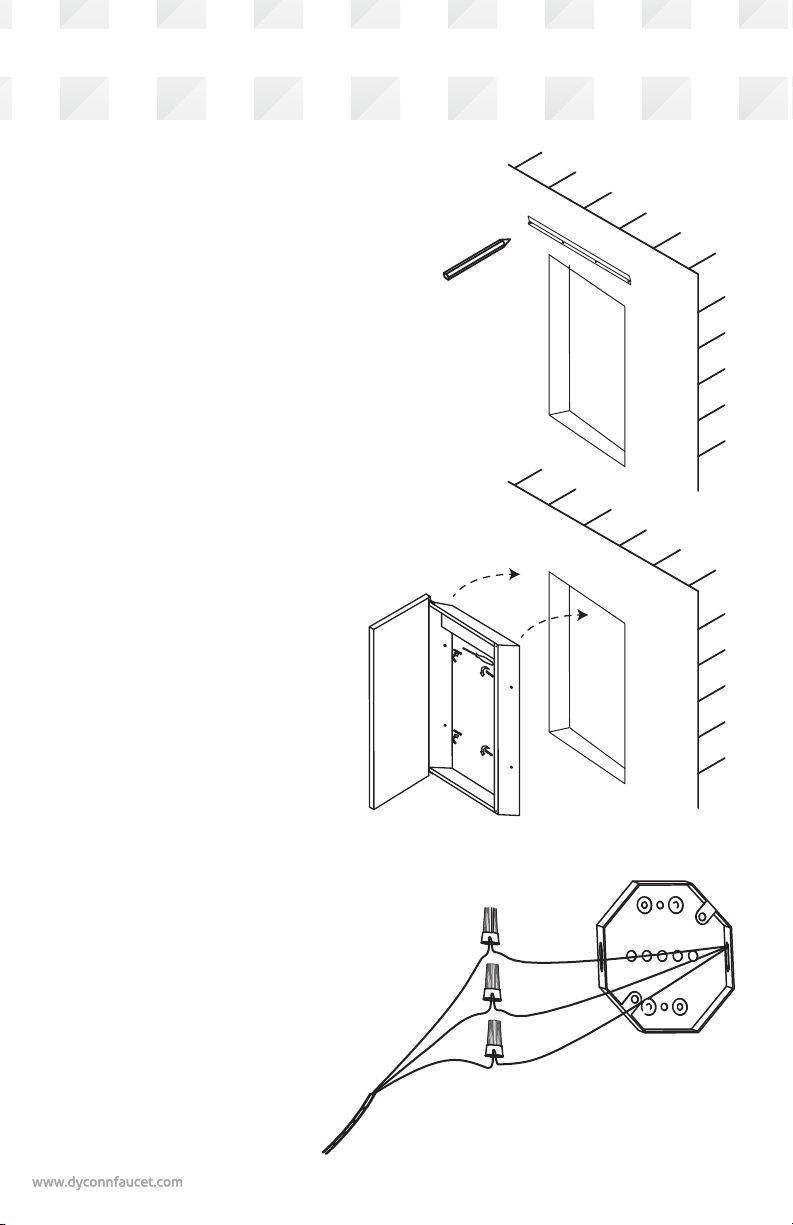

Recess Wall hanging Installation
STEP 1 Turn o the power supply.
STEP 2 Mark the positions of the
mounting holes on both
sides of the wall, using a
pencil and a spirit level,
insert the wall plugs after
you drill the holes, The
maximum recessed depth is
90mm.
STEP 3 Connect the wires of the
cabinet with the main
power by the wire
connectors.
BLACK WIRE --- POWER SUPPLY
(LIVE)
WHITE WIRE --- POWER SUPPLY
(NEUTRAL) GREEN WIRE --- POWER
SUPPLY E (EARTH)
WARNING: This product must be
earthed.
STEP 4 Recess the whole cabinet
into the wall, screw the
cabinet on both sides of the
wall. Ensure the cabinet is
xed rmly by the screws on
the wall.
STEP 5 Carefully put the glass
shelves into the cabinet.
Peel o the protective lm
from the mirror and clean it
with a soft cloth.
BLACK
LIVE
GROUND/
EARTH
POWER SUPPLY
GREEN
WHITE

7
Touch Sensor & Bluetooth Settings
BLUETOOTH Settings
1. The Bluetooth is controlled by the touch switch when the rocker switch inside the
cabinet is on, it won’t work when the rocker switch is o.
2. Activate the Bluetooth on your device and search for ‘RRD-126L’.
The mirror will give out a tone to conrm the connection successfully.
3. Play the music which will come out from your mirror.
Adjust the volume on your device.
Touch Sensor Settings
1. Switch on Light and Defogger by short-touching the button.
2. Adjusting color temperatures (CCT) between warm white and cool white by
long-touching the button.
3. Adjusting the brightness (Dimming) by long-touching the button.
4. Repeat Step2 and 3 by long-touching the button again.
5. Switch o Light and Defogger by short-touching the button.
Rocker switch
Speaker
