Dyconn DMS-172 User manual
Mobile TV Mount Stand with Hydraulic Height Adjustment
Model: DMS-172
Instruction Manual
Images may be different from actual product
Disclaimer
It is Dyconn’s intention to have all the correct information present within this manual. Although we try
our best, Dyconn makes no claim that the information comprised herein covers all conditions or details
in connection with installation or use of this product. Dyconn assumes no responsibility for accuracy or
adequacy of information comprised in this document. The information comprised here is subject to
change without notice or obligation of any kind.
•This warning informs you of the possibilities of personal injury or damage to equipment if you
do not follow the corresponding instructions. It is the installer's responsibility to make sure all
components are properly assembled and installed using the instruction manual provided.
•Using improper screws or screw size may damage your display. If spacers are required, be
sure to use screws of the correct size. Proper screws will easily and completely thread into
the display mounting holes. Inadequate thread engagement in the display may cause display
to fall.
•It is the installer’s responsibility to make sure the combined weight of all components does not
exceed the weight capacity of 66lbs (30kg). Exceeding weight capacity can result in severe
personal injury or damage to equipment.
•Allowing any part of your component cables to be caught between movable parts can result in
serious personal injury or damage to equipment.
Please read the following Instructions before installing
This warning notifies you of the possibilities of personal injury or damage to equipment if you do not
follow the corresponding instructions.
zDo not exceed maximum weight capacity for the mobile stand.
zDo not mount a display larger than the recommended monitor sizes.
zDo not allow children to climb on top of Mobile Stand.
zDo not leave the mobile stand on a sloping surface.
zDo not move Mobile Stand by pushing on display.
Specifications
Weight Capacity 66lbs (30kg)
Suits LCD Flat Panel Displays 42”- 60”(1066mm-1524mm)
Arm Lift Range +/-40° 11.8"(300mm)
Vertical Height Adjustments 11.8" (300mm)
VESA Mounting Patterns 400x400mm / 600x400mm
Tilt +5° / -15°

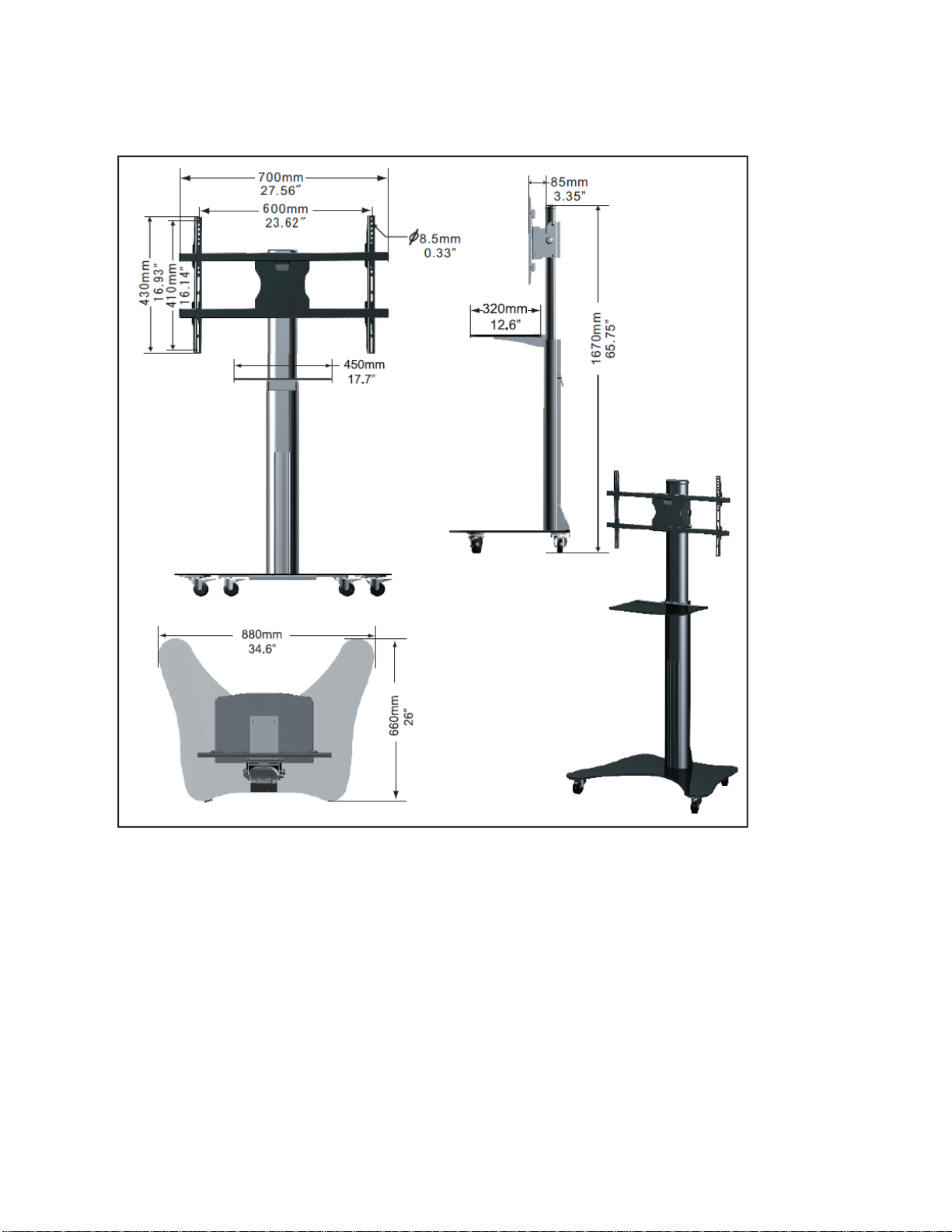

Product Dimensions
Parts List
Installation Instructions
1) Place the 2” swivel casters (26) onto the base (3) so that their holes are aligned. Thread the hex
screws M6x8mm (27) through the washers (25), the swivel casters and into the base. Tighten the
screws using the M5 Allen wrench (15) until they are firmly in place.
1) First, remove the bracket cover from the pillar. Place the pillar (3) onto the base so that the holes
are aligned. Thread the hex screws M8x15mm (10) through the bracket at the bottom of the pillar
and into the base using the M5 Allen Wrench (15). Tighten screws until the pillar is firmly secured
to the base.
2) Thread the hex screws M8x25mm (9) underneath the base and up into the pillar. Tighten the
screws using the M5 Allen Wrench (15) until they are firmly in place.

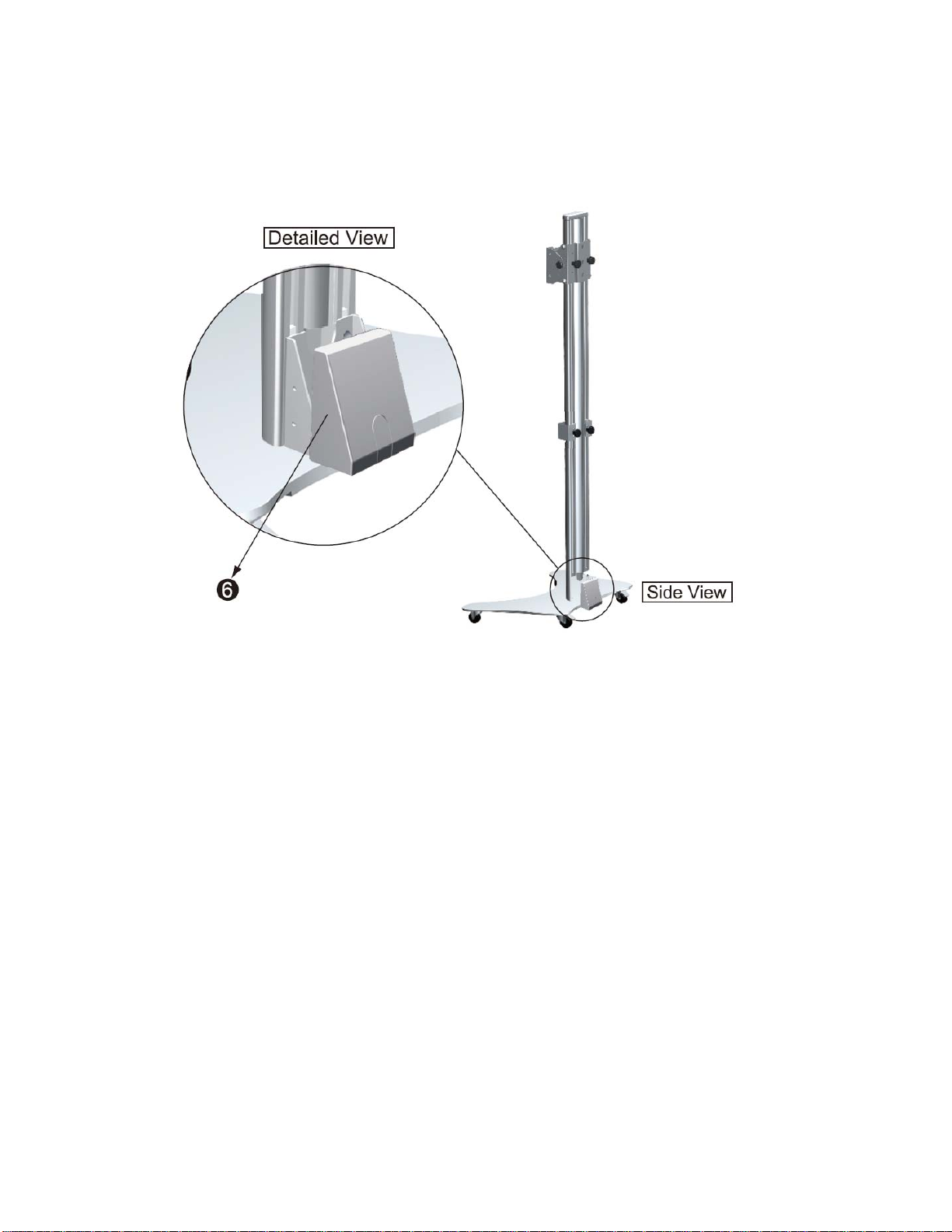

3) After the base and pillar are secured, proceed to reattach the bracket cover (6) over the bracket at
the bottom of the pillar.

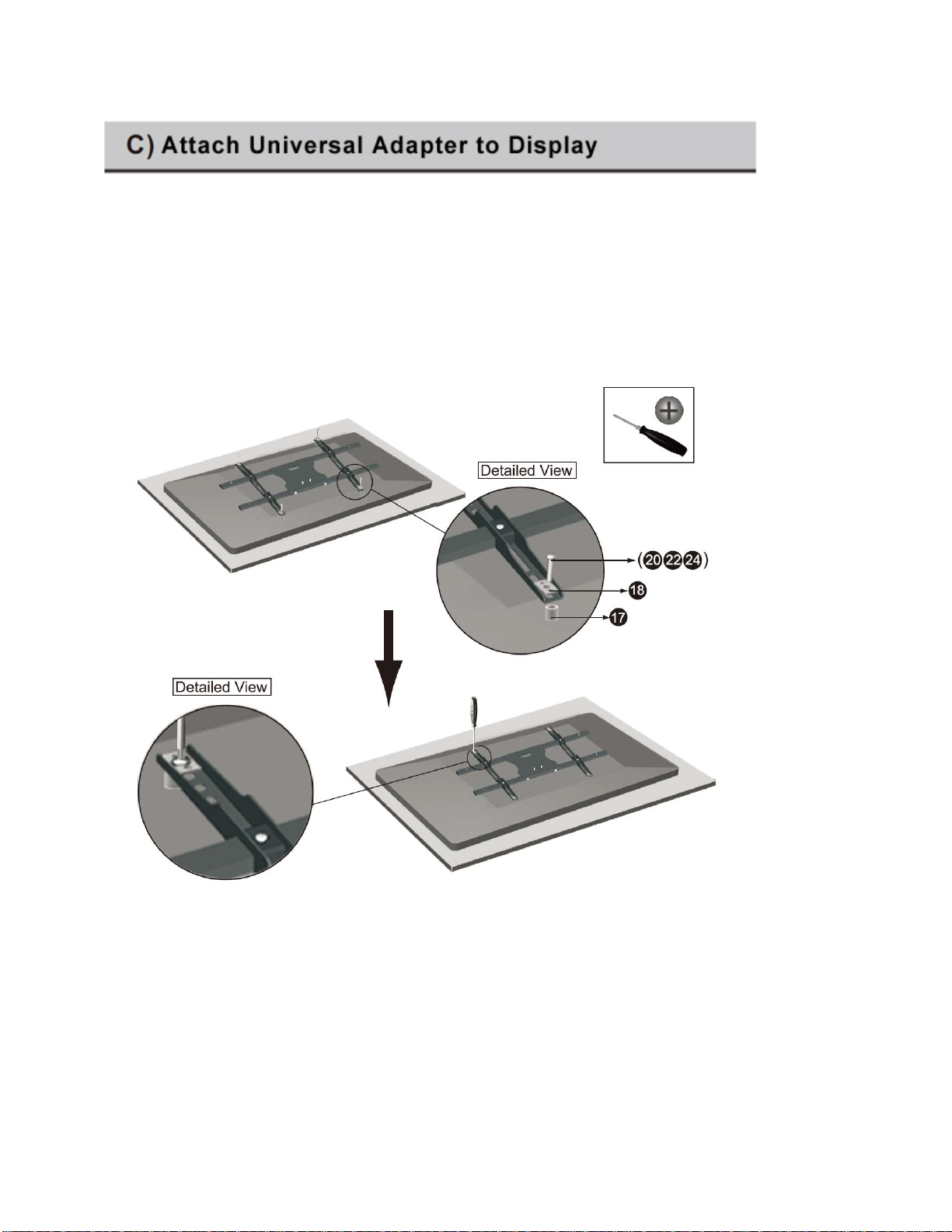

1) Align the holes of the universal adaptor (2) with the holes on the back of the display. For
recessed mounting holes, use spacers (17).
2) Use the screws that suit your display’s specifications (20, 22, 24) and thread them through the
washer (18), the universal adaptor, spacer (if needed), and into the back of the display. Failing to
choose screws of the correct size could result in severe damage to equipment. Tighten the screws
using a Phillips Screwdriver. Do not over tighten the screws; doing so could result in severe damage
to equipment. Stop immediately if you encounter any resistance.
Make sure to lock the wheels before attaching the display.
Disconnect power before removing the display from Mobile Stand.
You will need assistance with this step. Failure to do so could result in serious injury or damage to
equipment.
1) Carefully lift the display and attach the hooks on the universal adaptor to the pillar.
2) As you attach the display, make sure that it is level. Once the display is level, slightly push the
display forward until the rivet screws of universal bracket are inserted into the pillar bracket.

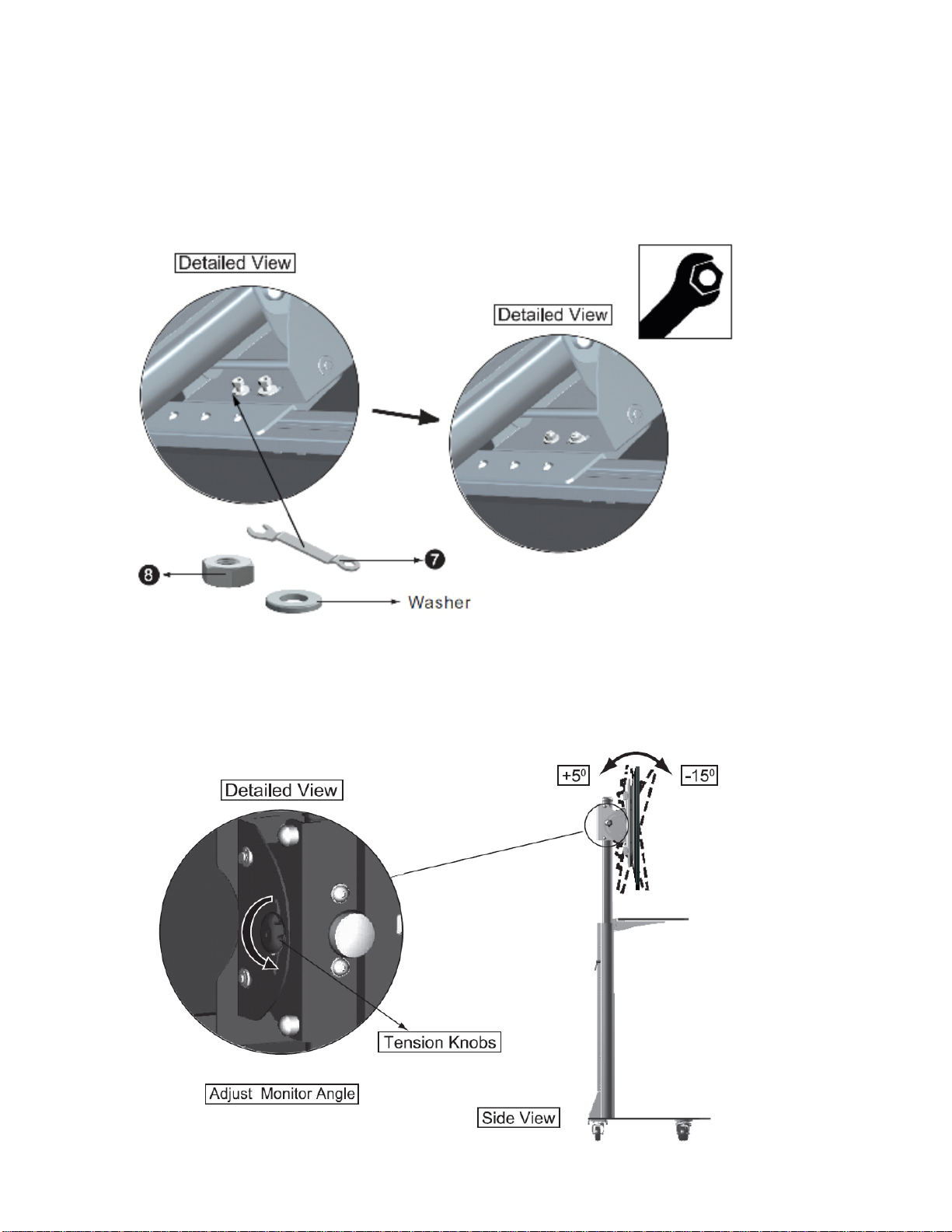

3) First, place the washers onto the rivets and follow by attaching the M8 nuts (8). Tighten the nuts
using the spanner (7).
4) To adjust the tilt of +5°/ -15°, loosen the tension knobs on Pillar bracket, and then adjust tilt
position to desired position. Retighten to secure tilt position.
1) Place the LT bracket (4) onto glass shelf (5). Thread screws M5x12mm (12) through the bracket
and into the glass shelf. Tighten the screws using a Philips Screwdriver. Do not over tighten the
screws; doing so could result in severe damage to equipment or cause severe personal injury.
2) Hook on the assembled Glass Shelf onto the pillar bracket slot. Once it is in position, proceed to
thread Screws M4x8mm (13), through the M4 washer (11) and into the pillar bracket slot. Tighten
the screws with a Phillips screwdriver until the glass shelf is firmly secured to the pillar.
DYCONN PRODUCT WARRANTY
To obtain warranty service, contact Dyconn customer service at (855) 239-2666 or visit
www.dyconn.com. Dyconn disclaims any liability for modification, improper installations, or
installations over specified weight range. Dyconn will not be liable for any damages arising out of the
use of, or inability to use of Dyconn products. Warranty specification is subject to change without prior
notice.
