Dyer CDC-0252 1-TMS+ Series User manual

CDC-0252-1-TMS+ instructions
Please order bracket sets separately

Safety notes
Safety extra low voltage 24 V DC!
Do not connect directly to the mains supply!
- Connection must be carried out by a certified
electrical technician
- Danger of crushing hands and fingers!
- Keep people away from the operating area of the
drive
- Keep children away from the control
- Observe pressure load diagram of the chain
- Use only in dry rooms
- Suitable for indoor mounting only. Use rain
detector in locations if there is a risk of rain
- Use unmodified original D+H parts only
- Observe mounting instructions of bracket set!
Observe enclosed red safety note!
Intended use

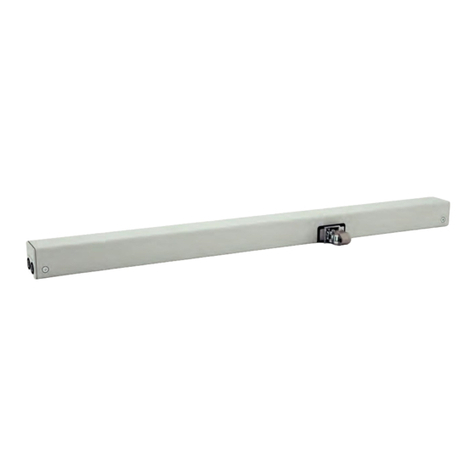

- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 V DC
- Useable for smoke ventilation as well as daily
natural ventilation
- Suitable for indoor mounting only
CDC-0252-1-TMS+
CDC-0252-1-TMS+ 7/20
99.827.61 1.0/01/18 English
Technical Data
* Programmable with software SCS ** + approx. 20 % switch-off reserve (temporary)
C3*
250 N
Opening and Closing Ranges
O1*
C1* C2*
O2* O3*
23 mm
150 N
77 mm
150 N
23 mm
250 N
15 mm
250 N
250 N
Type
CDC-0252-0350-1-TMS+ -R
CDC-0252-0600-1-TMS+ -R
CDC-0252-0800-1-TMS+ -R
Power supply
Nominal force
24 V DC / ± 15 %
250 N**
Nominal current
0,6 A
0,8 A
1,0 A
Nominal stroke length*
350 mm ± 2 %
600 mm ± 2 %
800mm ± 2 %
Running speed: ventilation (SHEV high-speed function)*
O1, O2
O3
C3
C2, C1
6,7 mm/s (9,4 mm/s)
6,7 mm/s (6,7 mm/s)
5 mm/s
5 mm/s
6,7 mm/s (13,6 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s
5 mm/s
6,7 mm/s (15,0 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s
5 mm/s
Nominal locking force
Service life
Duty cycle
Housing
Ingress protection
Temp. range
Fire stability
Ambient humidity
Emission sound pressure level
Additional functions*
approx. 1500 N
>20.000 double strokes
30% (with cycle time 10 min.)
Aluminium powdercoated (~ RAL 9006)
IP 32
-5 ... +75 °C
30 min / 300 °C
≤ 90 %, not condensing
LpA 35 dB(A)≤
Closing edge protection = activated (3 repetitions of stroke);
Locking relief = activated (retraction lift max. 0,2 mm)
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this product.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Observe maximum pressure load of the chain!
Maximum pressure load of chain is not automatically
identical with maximum pressure force of the drive!
100 200 300 400 500 600 700 800
250
300
200
150
100
50
0
Pressure load (N)
Stroke (mm)
Pressure load diagram
Main closing edge
Beside closing edge
Beside
closing edge
Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges C3 and C2, the drive
runs "OPEN" for 10 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range C2
and C1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing
edges. Danger of crushing hands and
fingers!
Scope of supply
Drive unit with 2.5 m silicone cable.
Depending on the type of window, different bracket
sets are available separately.
Performance features
- Micro processor controlled electronics
- Individually programmable via Powerline (PLP1
and SCS)
- Stroke programming with magnets
- Outstanding quiet performance thanks to acoustic
decoupling of the drive components and reduced
speed in ventilation mode
- Connection via plug connector
- Tandem-safety function for operation of two
CDC-0252-1-TMS+ drives on one sash
Up to two CDC-0252-1-TMS+ drives and one locking
drive can be used in tandem. Combined TMS and
BRV signal.
The BRV signal is only output when in the end
position - this prevents locking drives and modules
from malfunctioning.
During the learning phase, the activated stroke is
transferred to the tandem drive via the TMS+
function.
TMS+ / -BRV function

Safety notes
Safety extra low voltage 24 V DC!
Do not connect directly to the mains supply!
- Connection must be carried out by a certified
electrical technician
- Danger of crushing hands and fingers!
- Keep people away from the operating area of the
drive
- Keep children away from the control
- Observe pressure load diagram of the chain
- Use only in dry rooms
- Suitable for indoor mounting only. Use rain
detector in locations if there is a risk of rain
- Use unmodified original D+H parts only
- Observe mounting instructions of bracket set!
Observe enclosed red safety note!
Intended use
- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 V DC
- Useable for smoke ventilation as well as daily
natural ventilation
- Suitable for indoor mounting only
99.827.61 1.0/01/18
CDC-0252-1-TMS+
6/20 CDC-0252-1-TMS+
English
Technical Data
* Programmable with software SCS ** + approx. 20 % switch-off reserve (temporary)
C3*
250 N
Opening and Closing Ranges
O1*
C1* C2*
O2* O3*
23 mm
150 N
77 mm
150 N
23 mm
250 N
15 mm
250 N
250 N
Type
CDC-0252-0350-1-TMS+ -R
CDC-0252-0600-1-TMS+ -R
CDC-0252-0800-1-TMS+ -R
Power supply
Nominal force
24 V DC / ± 15 %
250 N**
Nominal current
0,6 A
0,8 A
1,0 A
Nominal stroke length*
350 mm ± 2 %
600 mm ± 2 %
800mm ± 2 %
Running speed: ventilation (SHEV high-speed function)*
O1, O2
O3
C3
C2, C1
6,7 mm/s (9,4 mm/s)
6,7 mm/s (6,7 mm/s)
5 mm/s
5 mm/s
6,7 mm/s (13,6 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s
5 mm/s
6,7 mm/s (15,0 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s
5 mm/s
Nominal locking force
Service life
Duty cycle
Housing
Ingress protection
Temp. range
Fire stability
Ambient humidity
Emission sound pressure level
Additional functions*
approx. 1500 N
>20.000 double strokes
30% (with cycle time 10 min.)
Aluminium powdercoated (~ RAL 9006)
IP 32
-5 ... +75 °C
30 min / 300 °C
≤ 90 %, not condensing
LpA 35 dB(A)≤
Closing edge protection = activated (3 repetitions of stroke);
Locking relief = activated (retraction lift max. 0,2 mm)
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this product.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Observe maximum pressure load of the chain!
Maximum pressure load of chain is not automatically
identical with maximum pressure force of the drive!
100 200 300 400 500 600 700 800
250
300
200
150
100
50
0
Pressure load (N)
Stroke (mm)
Pressure load diagram
Main closing edge
Beside closing edge
Beside
closing edge
Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges C3 and C2, the drive
runs "OPEN" for 10 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range C2
and C1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing
edges. Danger of crushing hands and
fingers!
Scope of supply
Drive unit with 2.5 m silicone cable.
Depending on the type of window, different bracket
sets are available separately.
Performance features
- Micro processor controlled electronics
- Individually programmable via Powerline (PLP1
and SCS)
- Stroke programming with magnets
- Outstanding quiet performance thanks to acoustic
decoupling of the drive components and reduced
speed in ventilation mode
- Connection via plug connector
- Tandem-safety function for operation of two
CDC-0252-1-TMS+ drives on one sash
Up to two CDC-0252-1-TMS+ drives and one locking
drive can be used in tandem. Combined TMS and
BRV signal.
The BRV signal is only output when in the end
position - this prevents locking drives and modules
from malfunctioning.
During the learning phase, the activated stroke is
transferred to the tandem drive via the TMS+
function.
TMS+ / -BRV function

1
STOP
32
ca.120 mm
Minimum sash height/ -width
The details apply to a
non-rotational installation of the drive!
(Window inwards opening)
Standard chain:
Minimum size (mm) = Stroke (mm) x 3.9
Maximum stroke : 800 mm
x
x
CDC-0252-1-TMS+
CDC-0252-1-TMS+ 9/20
99.827.61 1.0/01/18 English
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
DisposalDeclaration of Conformity
We declare under our sole responsibility that the
product described under “Technical Data” is in
conformity with the following directives:
2014/30/EU, 2014/35/EU
Technical file at:
D+H Mechatronic AG, D-22949 Ammersbek
Dirk Dingfelder Maik Schmees
Member of the Board Authorized signatory, Technical Director
29.01.2018
Maintenance and cleaning
Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repairistobecarried out exclusively byD+H.
Wipe away debris or contamination with a dry, soft
cloth.
Donot use cleaningagentsor solvents.
Guarantee
You will get 2 years guarantee for all D+H products
from date of verified handing over of the system up to
maximal 3 years after date of delivery, when
mounting and starting has been carried out by an
authorized D+H-distributor.
D+H guarantee is expired, with connection of D+H
components with external systems or with mixing of
D+H products with parts of other manufacturers.
- Mount the drives whilst under zero stress. With
that, an even load distribution is provided by all
the drive chains.
- At vertical active pulling application (e.g. for a
skylight) the forces must be rearranged by
software SCS.
- If after mounting, the distance X is greater than 23
mm, null balance with software SCS is neccesary.
Closure Ranges will shift in relation to new zero
point.
Mounting information
≥ 23 mm ? X
Stroke limiting with magnets
Voltage must continue to
be applied to the drive when
moving in the “CLOSE”
direction. Hold the magnet next
to the drive as shown in the
diagramme (2 sec.) until you hear
a pulsating ton > The drive is now
in learning mode. The magnet can
now be removed and the drive no
longer has to be under voltage.
Close drive. Allow the drive to run
“OPEN” until you reach the
required stroke.
If the stroke is set incorrectly,
the procedure is accidentally
interrupted or the drive
continues to the full stroke
length, please return to point 1
and start again.
learning mode
appr. 2 sec.
When using two CDC-0252-1-TMS+ on one window, both drives must be electrically connected
in order to set the stroke, although only one drive needs to be switched to the stroke learning
mode with the magnet.

1
STOP
32
ca.120 mm
Minimum sash height/ -width
The details apply to a
non-rotational installation of the drive!
(Window inwards opening)
Standard chain:
Minimum size (mm) = Stroke (mm) x 3.9
Maximum stroke : 800 mm
x
x
99.827.61 1.0/01/18
CDC-0252-1-TMS+
8/20 CDC-0252-1-TMS+
English
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
DisposalDeclaration of Conformity
We declare under our sole responsibility that the
product described under “Technical Data” is in
conformity with the following directives:
2014/30/EU, 2014/35/EU
Technical file at:
D+H Mechatronic AG, D-22949 Ammersbek
Dirk Dingfelder Maik Schmees
Member of the Board Authorized signatory, Technical Director
29.01.2018
Maintenance and cleaning
Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repair is to be carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft
cloth.
Do not use cleaning agents or solvents.
Guarantee
You will get 2 years guarantee for all D+H products
from date of verified handing over of the system up to
maximal 3 years after date of delivery, when
mounting and starting has been carried out by an
authorized D+H-distributor.
D+H guarantee is expired, with connection of D+H
components with external systems or with mixing of
D+H products with parts of other manufacturers.
- Mount the drives whilst under zero stress. With
that, an even load distribution is provided by all
the drive chains.
- At vertical active pulling application (e.g. for a
skylight) the forces must be rearranged by
software SCS.
- If after mounting, the distance X is greater than 23
mm, null balance with software SCS is neccesary.
Closure Ranges will shift in relation to new zero
point.
Mounting information
≥ 23 mm ? X
Stroke limiting with magnets
Voltage must continue to
be applied to the drive when
moving in the “CLOSE”
direction. Hold the magnet next
to the drive as shown in the
diagramme (2 sec.) until you hear
a pulsating ton > The drive is now
in learning mode. The magnet can
now be removed and the drive no
longer has to be under voltage.
Close drive. Allow the drive to run
“OPEN” until you reach the
required stroke.
If the stroke is set incorrectly,
the procedure is accidentally
interrupted or the drive
continues to the full stroke
length, please return to point 1
and start again.
learning mode
appr. 2 sec.
When using two CDC-0252-1-TMS+ on one window, both drives must be electrically connected
in order to set the stroke, although only one drive needs to be switched to the stroke learning
mode with the magnet.

CDC-0252-1-TMS+
CDC-0252-1-TMS+ 19/20
99.827.61 1.0/01/18 DE/EN/FR/ES
Anschluss / Connection / Raccordement / Conexión
2 Antriebe sternförmig /
2 drives star-shaped /
2 moteurs en étoile /
2 accionamientos en estrella
Mot. a Mot. b
123 4 5
L
6
N–
7
ZA E/X ab
LT
Gruppe / Group / Groupe / Grupo
MOT
(BK) (BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(OG)
(YE)
(YE)
(GN)
(GN)
(WH)
(BN)
Mot. a
Mot. b
HS
HS
TMS+
TMS+
n.c.
n.c.
CDC-0252-1-TMS+
CDC-0252-1-TMS+
****
***
(GY)
n.c. **
Abzweigdose /
Junction box /
Boîte de dérivation /
Caja de conexión
?**
(GY)
n.c.
**
(BN)Mot. b
(WH)Mot. a
Überwachung / Monitoring / Supervision / Supervisión *
* Not in case of GVL -E/ -K/ -M
** Protect wire against short circuit
*** In case of connection to D+H SHEV control panels with E/HS line monitoring
**** Cable according to D+H table for layout of cables (See instructions for use of control panel)
Mot. a Mot. b
123 4 5
L
6
N–
7
ZA E/X ab
LT
Group
MOT
(BK) (BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(OG)
(YE)
(GN)
(WH)Mot. a
(BN)Mot. b
HS
TMS+
n.c.
CDC-0252-1-TMS+
****
***
**
**
(GY)
n.c. **
Junction box
?**
High-Speed
High-Speed
High-Speed
***
Mot. b
(BN)
Mot. a
(WH)
24 V DC
24 V DC
Monitoring *
Normal mode
SHEV- fast running
1 drive
**
(OG) ***
?**
**
Connection
Pin Assignment
6x 0,5 mm²
Ø 7,1 ± 0,5 mm
(WH) white
(BN) brown
(OG) orange
(YE) yellow
(GN) green
(GY) grey
BN (Mot. b)
OG (HS)
GY (n.c.)
GN (n.c.)
YE (TMS+/BRV)
WH (Mot. a)

99.827.61 1.0/01/18
CDC-0252-1-TMS+
18/20 CDC-0252-1-TMS+
DE/EN/FR/ES
Connection
2 drives star-shaped
Mot. a Mot. b
123 4 5
L
6
N–
7
ZA E/X ab
LT
Group
MOT
(BK) (BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(OG)
(YE)
(YE)
(GN)
(GN)
(WH)
(BN)
Mot. a
Mot. b
HS
HS
TMS+
TMS+
n.c.
n.c.
CDC-0252-1-TMS+
CDC-0252-1-TMS+
****
***
(GY)
n.c. **
Junction box
?**
(GY)
n.c.
**
(BN)Mot. b
(WH)Mot. a
Monitoring *
* Nicht bei / Not in case of / Pas pour / No en el caso : GVL -E/ -K/ -M
** Gegen Kurzschluss sichern / Protect wire against short circuit /
Protéger contre les courts-circuits / Proteger contra cortacircuitos
*** Bei Anschluss an D+H RWA Zentralen mit E/HS Leitungsüberwachung /
In case of connection to D+H SHEV control panels with E/HS line monitoring /
En cas de raccordement à des centrales D+H RWA, avec une surveillance des lignes E/HS /
En caso de conexión con paneles de control D+H SHEV con control de líneas E/HS
**** Kabel gemäß D+H Kabelverlegetabelle (siehe Gebrauchsanleitung der Zentrale) /
Cable according to D+H table for layout of cables (See instructions for use of control panel) /
Câble selon le tableau de câblage de D+H (voire fiche technique de la centrale) /
Cable conforme a la tabla de cableado D+H (véanse instrucciones de uso de la central)
Mot. a Mot. b
12345
L
6
N–
7
ZA E/X ab
LT
Gruppe / Group / Groupe / Grupo
MOT
(BK) (BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(OG)
(YE)
(GN)
(WH)Mot. a
(BN)Mot. b
HS
TMS+
n.c.
CDC-0252-1-TMS+
****
***
**
**
(GY)
n.c. **
Abzweigdose /
Junction box /
Boîte de dérivation /
Caja de conexión
?**
High-Speed
High-Speed
High-Speed
***
Mot. b
(BN)
Mot. a
(WH)
24 V DC
24 V DC
Überwachung / Monitoring / Supervision / Supervisión *
Normalbetrieb
Normal mode
Activité normale
Servicio normal
RWA- Schnelllauf
SHEV- fast running
EFC fonctionnement rapide
marcha rápida SVHC
1 Antrieb /
1 drive /
1 moteur /
1 accionamiento
**
(OG) ***
?**
**
Anschluss / Connection / Connexion / Conexión
Aderbelegung Stecker / Pin Assignment / Brochage des fiches / Asignación de cables
6x 0,5 mm²
Ø 7,1 ± 0,5 mm
(WH) weiss / white / blanc / blanco
(BN) braun / brown / brun / marrón
(OG) orange / orange / orange / naranja
(YE) gelb / yellow / jaune / amarillo
(GN) grün / green / vert / verde
(GY) grau / grey / gris / gris
BN (Mot. b)
OG (HS)
GY (n.c.)
GN (n.c.)
YE (TMS+/BRV)
WH (Mot. a)

BC
= =
405 mm 242 mm 163 mm
530 mm 367 mm 163 mm
635 mm 472 mm 163 mm
CDC-0252-0350-1-TMS+
CDC-0252-0600-1-TMS+
CDC-0252-0800-1-TMS+
A B C
Dimensions
30 mm
35 mm
A
Dyer Environmental Controls Ltd
Unit 10 Lawnhurst Trading Estate, Cheadle Heath,
Stockport SK3 0SD
Tel: [phone]
E-Mail: [email protected]
www.dyerenvironmental.co.uk
