Dyer CDC-TW-0502-0500-1-ACB User manual

CDC-TW-0502-1-ACB instructions
Please order bracket sets separately

CDC-TW-0502-1-ACB
CDC-TW-0502-1-ACB 7/20
99.827.08 1.0/02/17 English
Intended use
- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 V DC
- Useable for smoke ventilation as well as daily
natural ventilation
- Suitable for indoor mounting only
Chain type
The mounting instructions for the bracket
set must be observed before mounting.
Always observe and comply with the
information in the mounting instructions.
Attention with side bow chains SBD and SBU
-SBD
Standard chain
-SBU
Side bow chain Side bow chain
Features
- ACB (Advanced Communication Bus) bus
interface with ModBus protocol for the connection
to compatible D+H control panels or direct
integration into building management systems,
for example
- BSY+ electronics for reliable and accurate
synchronous operation
- Individually programmable via software SCS
- Outstanding quiet performance thanks to
acoustic decoupling of the drive components and
reduced motor speed in ventilation mode
- SHEV-high speed function (fast-running feature
in case of an alarm)
- Protection system for the main closing edge
- Connection possible from both sides
- The force can be increased at the factory up to
2x 400 N in the seal area
- Relief of pressure on window gasket after closing
- Direct connection of additional closing edge
protection at the drive possible (SKS option)
Technical Data
* Programmable with software SCS ** + approx. 20 % switch-off reserve (temporary)
Opening and Closing Ranges
Type
CDC-TW-0502-0500-1-ACB
CDC-TW-0502-0800-1-ACB
Power supply
Nominal force
24 V DC / ± 15 %
2x 250 N**
Nominal current
1,6 A
2,0 A
Nominal stroke length*
500 mm ± 2 %
800mm ± 2 %
Running speed: ventilation (SHEV high-speed function)*
O1, O2
O3
C3
C2, C1
6,7 mm/s (13,6 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s (13,6 mm/s)
5 mm/s (5 mm/s)
6,7 mm/s (15,0 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s (15,0 mm/s)
5 mm/s (5 mm/s)
Nominal locking force
Service life
Duty cycle
Housing
Ingress protection
Temp. range
Fire stability
Ambient humidity
Emission sound pressure level
Additional functions*
2x approx. 1500 N
>10.000 double strokes
30 % S6 (EN 60034-1)
Aluminium powdercoated (~ RAL 9006)
IP 32
-5 ... +75 °C
30 min / 300 °C
≤ 90 %, not condensing
LpA = 35 dB(A)
Closing edge protection = activated (3 repetitions of stroke);
Locking relief = activated (retraction lift max. 0,2 mm)
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this product.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Observe maximum pressure load of the chain!
Maximum pressure load per chain is not
automatically identical with maximum pressure
force of the drive!
Standard -SBD / -SBU
100
200
300
400
500
600
700
800
250
300
350
400
200
150
100
50
0
Pressure load (N)
Stroke (mm)
250
50
Pressure load diagram Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges C3 and C2, the drive
runs "OPEN" for 10 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range C2
and C1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing
edges. Danger of crushing hands and
fingers!
Scope of supply
Drive unit with 2.5 m silicone cable.
Depending on the type of window, different bracket
sets are available separately.
Main closing edge
Beside
closing edge
Beside closing edge
C1* C2*
23 mm
2x 150 N
77 mm
2x 150 N
C3*
250 mm
2x 250 N
O1* O2* O3*
23 mm
2x 250 N
15 mm
2x 250 N
2x 250 N
Safety notes
Safety extra low voltage 24 V DC!
Do not connect directly to the mains supply!
- Connection must be carried out by a certified
electrical technician
- Danger of crushing hands and fingers!
- Keep people away from the operating area of the
drive
- Keep children away from the control
- Observe pressure load diagram of the chain
- Use only in dry rooms
- Suitable for indoor mounting only. Use rain
detector in locations if there is a risk of rain
- Use unmodified original D+H parts only
- Observe mounting instructions of bracket set!
Observe enclosed red safety note!

99.827.08 1.0/02/17
CDC-TW-0502-1-ACB
6/20 CDC-TW-0502-1-ACB
English
Intended use
- Chain drive for electric opening and closing of
windows and flaps in the facade and roof area
- Operating voltage 24 V DC
- Useable for smoke ventilation as well as daily
natural ventilation
- Suitable for indoor mounting only
Chain type
The mounting instructions for the bracket
set must be observed before mounting.
Always observe and comply with the
information in the mounting instructions.
Attention with side bow chains SBD and SBU
-SBD
Standard chain
-SBU
Side bow chain Side bow chain
Features
- ACB (Advanced Communication Bus) bus
interface with ModBus protocol for the connection
to compatible D+H control panels or direct
integration into building management systems,
for example
- BSY+ electronics for reliable and accurate
synchronous operation
- Individually programmable via software SCS
- Outstanding quiet performance thanks to
acoustic decoupling of the drive components and
reduced motor speed in ventilation mode
- SHEV-high speed function (fast-running feature
in case of an alarm)
- Protection system for the main closing edge
- Connection possible from both sides
- The force can be increased at the factory up to
2x 400 N in the seal area
- Relief of pressure on window gasket after closing
- Direct connection of additional closing edge
protection at the drive possible (SKS option)
Technical Data
* Programmable with software SCS ** + approx. 20 % switch-off reserve (temporary)
Opening and Closing Ranges
Type
CDC-TW-0502-0500-1-ACB
CDC-TW-0502-0800-1-ACB
Power supply
Nominal force
24 V DC / ± 15 %
2x 250 N**
Nominal current
1,6 A
2,0 A
Nominal stroke length*
500 mm ± 2 %
800mm ± 2 %
Running speed: ventilation (SHEV high-speed function)*
O1, O2
O3
C3
C2, C1
6,7 mm/s (13,6 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s (13,6 mm/s)
5 mm/s (5 mm/s)
6,7 mm/s (15,0 mm/s)
6,7 mm/s (6,7 mm/s)
6,7 mm/s (15,0 mm/s)
5 mm/s (5 mm/s)
Nominal locking force
Service life
Duty cycle
Housing
Ingress protection
Temp. range
Fire stability
Ambient humidity
Emission sound pressure level
Additional functions*
2x approx. 1500 N
>10.000 double strokes
30 % S6 (EN 60034-1)
Aluminium powdercoated (~ RAL 9006)
IP 32
-5 ... +75 °C
30 min / 300 °C
≤ 90 %, not condensing
LpA = 35 dB(A)
Closing edge protection = activated (3 repetitions of stroke);
Locking relief = activated (retraction lift max. 0,2 mm)
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this product.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Observe maximum pressure load of the chain!
Maximum pressure load per chain is not
automatically identical with maximum pressure
force of the drive!
Standard -SBD / -SBU
100
200
300
400
500
600
700
800
250
300
350
400
200
150
100
50
0
Pressure load (N)
Stroke (mm)
250
50
Pressure load diagram Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges C3 and C2, the drive
runs "OPEN" for 10 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range C2
and C1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing
edges. Danger of crushing hands and
fingers!
Scope of supply
Drive unit with 2.5 m silicone cable.
Depending on the type of window, different bracket
sets are available separately.
Main closing edge
Beside
closing edge
Beside closing edge
C1* C2*
23 mm
2x 150 N
77 mm
2x 150 N
C3*
250 mm
2x 250 N
O1* O2* O3*
23 mm
2x 250 N
15 mm
2x 250 N
2x 250 N
Safety notes
Safety extra low voltage 24 V DC!
Do not connect directly to the mains supply!
- Connection must be carried out by a certified
electrical technician
- Danger of crushing hands and fingers!
- Keep people away from the operating area of the
drive
- Keep children away from the control
- Observe pressure load diagram of the chain
- Use only in dry rooms
- Suitable for indoor mounting only. Use rain
detector in locations if there is a risk of rain
- Use unmodified original D+H parts only
- Observe mounting instructions of bracket set!
Observe enclosed red safety note!

CDC-TW-0502-1-ACB
CDC-TW-0502-1-ACB 9/20
99.827.08 1.0/02/17 English

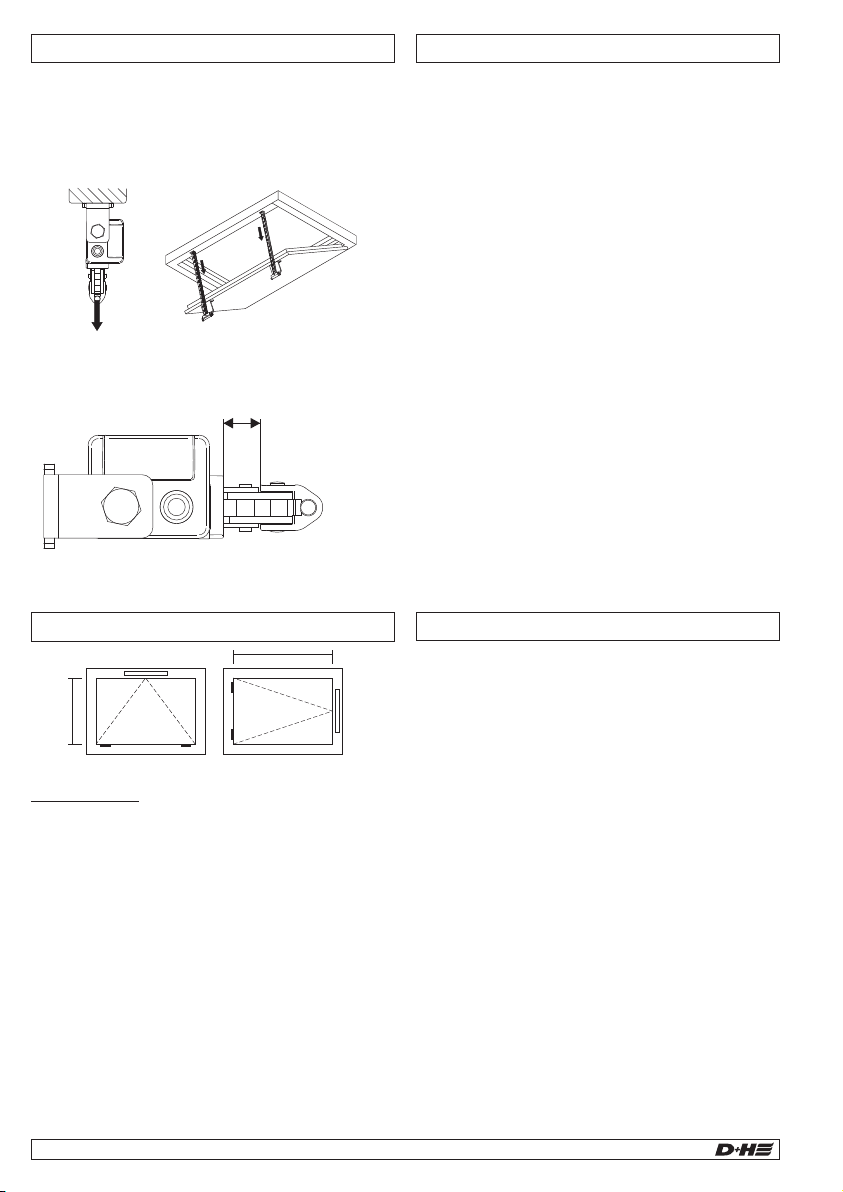

- Mount the drives whilst under zero stress. With
that, an even load distribution is provided by all
the drive chains.
- At vertical active pulling application (e.g. for a
skylight) the forces must be rearranged by
software SCS.
- If after mounting, the distance X is greater than 23
mm, null balance with software SCS is neccesary.
Closure Ranges will shift in relation to new zero
point.
Mounting information
≥ 23 mm ?
X
ACB bus interface
ACB is used for secure communication between the
drive and compatible D+H control systems. It
enables activation, diagnostics and configuration
with perfect position, directly from the control panel.
In this process, all status messages, such as the
OPEN and CLOSED signals, opening stroke and
drive errors, are transmitted to the control panel.
Functional description
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
DisposalDeclaration of Conformity
We declare under our sole responsibility that the
product described under “Technical Data” is in
conformity with the following directives:
2014/30/EU, 2014/35/EU
Technical file at:
D+H Mechatronic AG, D-22949 Ammersbek
Dirk Dingfelder Maik Schmees
Member of the Board Authorized signatory, Technical Director
21.02.2017
Maintenance and cleaning
Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repairis tobecarried out exclusively byD+H.
Wipe away debris or contamination with a dry, soft
cloth.
Donot use cleaning agents or solvents.
Guarantee
You will get 2 years guarantee for all D+H products
from date of verified handing over of the system up to
maximal 3 years after date of delivery, when
mounting and starting has been carried out by an
authorized D+H-distributor.
D+H guarantee is expired, with connection of D+H
components with external systems or with mixing of
D+H products with parts of other manufacturers.
Wiring:
Is the drive wired properly?
See connection plans.
Diagnostics with SCS software:
The SCS software and a BSY+ interface is
required for further troubleshooting or
configuration.
TroubleshootingMinimum sash height/ -width
The details apply to a
non-rotational installation of the drive!
(Window inwards opening)
Standard chain:
Minimum size (mm) = Stroke (mm) x 3.9
Maximum stroke bottom-hung vent: 1200 mm
Maximum stroke side-hung vent: 800 mm
Side bow chain:
Minimum size (mm) = Stroke (mm) x 1,6
Maximum stroke bottom-hung vent: 800 mm
Maximum stroke side-hung vent: 350 mm
x
x
Dimensions
939 mm 163 mm
= =
163 mm
= =
30 mm
35 mm
1265 mm

99.827.08 1.0/02/17
CDC-TW-0502-1-ACB
8/20 CDC-TW-0502-1-ACB
English
- Mount the drives whilst under zero stress. With
that, an even load distribution is provided by all
the drive chains.
- At vertical active pulling application (e.g. for a
skylight) the forces must be rearranged by
software SCS.
- If after mounting, the distance X is greater than 23
mm, null balance with software SCS is neccesary.
Closure Ranges will shift in relation to new zero
point.
Mounting information
≥ 23 mm ?
X
ACB bus interface
ACB is used for secure communication between the
drive and compatible D+H control systems. It
enables activation, diagnostics and configuration
with perfect position, directly from the control panel.
In this process, all status messages, such as the
OPEN and CLOSED signals, opening stroke and
drive errors, are transmitted to the control panel.
Functional description
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
DisposalDeclaration of Conformity
We declare under our sole responsibility that the
product described under “Technical Data” is in
conformity with the following directives:
2014/30/EU, 2014/35/EU
Technical file at:
D+H Mechatronic AG, D-22949 Ammersbek
Dirk Dingfelder Maik Schmees
Member of the Board Authorized signatory, Technical Director
21.02.2017
Maintenance and cleaning
Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repair is to be carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft
cloth.
Do not use cleaning agents or solvents.
Guarantee
You will get 2 years guarantee for all D+H products
from date of verified handing over of the system up to
maximal 3 years after date of delivery, when
mounting and starting has been carried out by an
authorized D+H-distributor.
D+H guarantee is expired, with connection of D+H
components with external systems or with mixing of
D+H products with parts of other manufacturers.
Wiring:
Is the drive wired properly?
See connection plans.
Diagnostics with SCS software:
The SCS software and a BSY+ interface is
required for further troubleshooting or
configuration.
TroubleshootingMinimum sash height/ -width
The details apply to a
non-rotational installation of the drive!
(Window inwards opening)
Standard chain:
Minimum size (mm) = Stroke (mm) x 3.9
Maximum stroke bottom-hung vent: 1200 mm
Maximum stroke side-hung vent: 800 mm
Side bow chain:
Minimum size (mm) = Stroke (mm) x 1,6
Maximum stroke bottom-hung vent: 800 mm
Maximum stroke side-hung vent: 350 mm
x
x
Dimensions
939 mm 163 mm
= =
163 mm
= =
30 mm
35 mm
1265 mm

CDC-TW-0502-1-ACB
CDC-TW-0502-1-ACB 19/20
99.827.08 1.0/02/17 DE/EN/FR/ES
Connection
High-Speed
High-Speed
High-Speed
***
Mot. b
(BN)
Mot. a
(WH)
24 V DC
24 V DC
(WH) weiss / white / blanc / blanco
(BN) braun / brown / brun / marrón
(OG) orange / orange / orange / naranja
(YE) gelb / yellow / jaune / amarillo
(GN) grün / green / vert / verde
(PK) rosa / pink / rose / rosa
(GY) grau / grey / gris / gris
* Nicht bei / Not in case of / Pas pour / No en el caso : GVL -E/ -K/ -M
** Gegen Kurzschluss sichern / Protect wire against short circuit /
Protéger contre les courts-circuits / Proteger contra cortacircuitos
*** Bei Anschluss an D+H RWA Zentralen mit E/HS Leitungsüberwachung /
In case of connection to D+H SHEV control panels with E/HS line monitoring /
En cas de raccordement à des centrales D+H RWA, avec une surveillance des lignes E/HS /
En caso de conexión con paneles de control D+H SHEV con control de líneas E/HS
**** Kabel gemäß D+H Kabelverlegetabelle (siehe Gebrauchsanleitung der Zentrale) /
Cable according to D+H table for layout of cables (See instructions for use of control panel) /
Câble selon le tableau de câblage de D+H (voire fiche technique de la centrale) /
Cable conforme a la tabla de cableado D+H (véanse instrucciones de uso de la central)
123 4 5
L
6
N–
7
ZA E/X ab
LT
Gruppe
Mot. a
Mot. b
MOT
(BK)
(BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(WH)
(BN)
(OG)
(YE)
(GN)
(GY)
Mot. a
Mot. b
ACB.a/HS
BSY+.a
BSY+.b
ACB.b
CDC-TW 0502-1
****
***
**
**
**
?**
Junction box
Monitoring*
123 4 5
L
6
N–
7
ZA E/X ab
LT
Gruppe
Mot. a
Mot. b
MOT
(BK)
(BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(WH)
(BN)
(OG)
(YE)
(GN)
(GY)
Mot. a
Mot. b
ACB.a/HS
BSY+.a
BSY+.b
ACB.b
CDC-TW 0502-1
****
***
**
?**
Abzweigdose /
Junction box /
Boîte de dérivation /
Caja de conexión
Überwachung /
Monitoring /
Supervision /
Supervisión *
SHEV- fast running
Normal mode
Anschluss / Connection / Raccordement / Conexión
FRA 11 BSY+ /
VLD 51-BSY+
-VP
FRA 11-BSY+ /
VLD 51-BSY+
Mot. a
Mot. b
BSY+.a
BSY+.b

99.827.08 1.0/02/17
CDC-TW-0502-1-ACB
18/20 CDC-TW-0502-1-ACB
DE/EN/FR/ES
Anschluss / Connection / Raccordement / Conexión
High-Speed
High-Speed
High-Speed
***
Mot. b
(BN)
Mot. a
(WH)
24 V DC
24 V DC
(WH) white
(BN) brown
(OG) orange
(YE) yellow
(GN) green
(PK) pink
(GY) grey
* Not in case of GVL -E/ -K/ -M
** Protect wire against short circuit
*** In case of connection to D+H SHEV control panels with E/HS line monitoring
**** Cable according to D+H table for layout of cables (See instructions for use of control panel)
123 4 5
L
6
N–
7
ZA E/X ab
LT
Gruppe
Mot. a
Mot. b
MOT
(BK)
(BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(WH)
(BN)
(OG)
(YE)
(GN)
(GY)
Mot. a
Mot. b
ACB.a/HS
BSY+.a
BSY+.b
ACB.b
CDC-TW 0502-1
****
***
**
**
**
?**
Abzweigdose /
Junction box /
Boîte de dérivation /
Caja de conexión
Überwachung /
Monitoring /
Supervision /
Supervisión *
123 4 5
L
6
N–
7
ZA E/X ab
LT
Group
Mot. a
Mot. b
MOT
(BK)
(BK)
(OG)
2x47kW
Endmodul
Terminal module
Module terminal
EM 47 K *
(WH)
(BN)
(OG)
(YE)
(GN)
(GY)
Mot. a
Mot. b
ACB.a/HS
BSY+.a
BSY+.b
ACB.b
CDC-TW 0502-1
****
***
**
?**
Junction box
Monitoring*
Normalbetrieb
Normal mode
Activité normale
Servicio normal
RWA- Schnelllauf
SHEV- fast running
EFC fonctionnement rapide
marcha rápida SVHC
Connection
FRA 11 BSY+ /
VLD 51-BSY+
-VP
FRA 11-BSY+ /
VLD 51-BSY+
Mot. a
Mot. b
BSY+.a
BSY+.b

6x 0,5 mm²
Ø 7,1 ± 0,5 mm
6x 0,5 mm²
Ø 7,1 ± 0,5 mm
(WH) white
(BN) brown
(OG) orange
(YE) yellow
(GN) green
(PK) pink
(GY) grey
Type plate
Standard /
Estándar
BN (Mot. b)
OG (ACB.a/HS)
GY (ACB.b)
GN (BSY+.b)
YE (BSY+.a)
WH (Mot. a)
BN (Mot. b)
OG (ACB.a/HS)
GY (ACB.b)
GN (BSY+.b)
YE (BSY+.a)
WH (Mot. a)
Option / Opción
-SKS
BN (Mot. b)
OG (SKS)
GY (SKS)
GN (BSY+.b)
YE (BSY+.a)
WH (Mot. a)
BN (Mot. b)
OG (ACB.a/HS)
GY (ACB.b)
GN (BSY+.b)
YE (BSY+.a)
WH (Mot. a)
Connection
Pin Assignment
Dyer Environmental Controls Ltd
Unit 10 Lawnhurst Trading Estate, Cheadle Heath,
Stockport SK3 0SD
Tel: +44 (0)161 491 4840
E-Mail: [email protected]
www.dyerenvironmental.co.uk
This manual suits for next models
1
Table of contents
Other Dyer DC Drive manuals
Popular DC Drive manuals by other brands

Nidec
Nidec Power Module Frame 12 Power Installation Guide

ISOMET
ISOMET RFA21 0 Series instruction manual

Danfoss
Danfoss VLT HVAC Series Programming guide

SEW-Eurodrive
SEW-Eurodrive Movidrive MDX61B operating instructions

Nidec
Nidec NE200 Series quick start guide

Becker
Becker C12 PLUS Assembly and operating instructions
