Dymax BlueWave®LED Prime UVA User
Guide
LED Spot-Curing System
■Instructions for Safe Use
■Setup and Operation
■Maintenance
■Ordering Spare Parts and Accessories
System Discontinued 1/1/2019

2
Dymax BlueWave® LED Prime UVA User Guide
About Dymax
UV/Visible light-curable adhesives. Systems for light curing, fluid dispensing, and fluid packaging.
Dymax manufactures industrial adhesives, light-curable adhesives, epoxy resins, cyanoacrylates, and activator-cured adhesives.
We also manufacture a complete line of manual fluid dispensing systems, automatic fluid dispensing systems, and light-curing systems.
Light-curing systems include LED light sources, spot, flood, and conveyor systems designed for compatibility and high performance
with Dymax adhesives.
Dymax adhesives and light-curing systems optimize the speed of automated assembly, allow for 100% in-line inspection, and increase
throughput. System designs enable stand-alone configuration or integration into your existing assembly line.
Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the
intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in the Dymax
standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to insure that desired
performance criteria are satisfied. Dymax is willing to assist users in their performance testing and evaluation by offering equipment trial
rental and leasing programs to assist in such testing and evaluations. Data sheets are available for valve controllers or pressure pots upon
request.

3
Dymax BlueWave® LED Prime UVA User Guide
Contents
Introduction................................................................................................................................................ 4
Introduction to the User Guide ....................................................................................................................................... 4
Where to Get Help .......................................................................................................................................................... 4
Safety.......................................................................................................................................................... 4
Dymax UV Light-Curing System Safety Considerations ................................................................................................... 6
Product Overview........................................................................................................................................ 8
Description of the BlueWave LED Prime UVA.................................................................................................................. 8
Intensity Control Feature ................................................................................................................................................ 9
Validation ........................................................................................................................................................................ 9
Assembly and Setup ...................................................................................................................................10
Unpacking and Inspecting Your Shipment..................................................................................................................... 10
Parts Included in the BlueWave LED Prime UVA Spot Lamp System ............................................................................. 10
Installation & System Interconnect ............................................................................................................................... 11
Operation...................................................................................................................................................13
9-Pin Connector I/O Signals........................................................................................................................14
Input Signals .................................................................................................................................................................. 14
Output Signals ............................................................................................................................................................... 15
Cleaning and Maintenance .........................................................................................................................16
Lightguide...................................................................................................................................................................... 16
Fan Filter........................................................................................................................................................................ 17
Fuse Replacement ......................................................................................................................................................... 17
Troubleshooting.........................................................................................................................................18
Frequently Asked Questions.......................................................................................................................19
Spare Parts and Accessories........................................................................................................................20
Options/Accessories...................................................................................................................................................... 20
Spare/Replacement Parts.............................................................................................................................................. 20
Specifications.............................................................................................................................................21
Specifications................................................................................................................................................................. 21
Warranty....................................................................................................................................................23
Index..........................................................................................................................................................23

4
Dymax BlueWave® LED Prime UVA User Guide
Introduction
Introduction to the User Guide
The enclosed BlueWave LED Prime UVA Spot-Curing System was developed and manufactured by the Dymax
team, driven by a desire to best serve your needs. Before shipping, your BlueWave LED Prime UVA was
thoroughly checked and tested for trouble-free performance.
The proper setup and operation of this system will maximize safety and user-friendly performance, providing
optimum yield of your technological process.
Therefore, we encourage you to read, understand, and follow all safety and operating instructions and
recommendations compiled in this and other related manuals prior to setting up and operating this new
spot-lamp system or its individual components.
If you encounter a problem, have any questions, or have a suggestion or recommendation, please contact our
Technical or Customer Service Departments at 860-482-1010. Trained Dymax professionals are standing by to
serve you.
Par conséquent, nous vous encouragez à lire, comprend, et suivre tout sécurité et instructions d’opération
et conseillations rédiger dans cette et autre manuels etablir un lien avant de mettre en place et de faire
marcher cette nouveau système de lampe de tache ou cette composants individuel.
Si vous rencontrez un problème, avait n’importe de questions, ou si vous voudrez de nous aider avec tes
suggestions ou conseillations, s’il vous plait contacte notre départements technique ou service client à 860-
482-1010. Dymax formé professionnels attendre à vous servir.
Intended Audience
Dymax prepared this user guide for experienced process engineers, technicians, and manufacturing personnel.
If you are new to UV light-curing systems and do not understand the instructions, contact Dymax Application
Engineering to answer your questions before using the equipment.
Where to Get Help
Dymax Customer Support and Application Engineering teams are available in the United States, Monday
through Friday, from 8:00 a.m. to 5:30 p.m. Eastern Standard Time. You can also email Dymax at
[email protected]. Contact information for additional Dymax locations can be found on the back cover of this
user guide.
Additional resources are available to ensure a trouble-free experience with our products:
◼Detailed product information on www.dymax.com
◼Dymax adhesive Product Data Sheets (PDS) on our website
◼Material Safety Data Sheets (MSDS) provided with shipments of Dymax adhesives

5
Dymax BlueWave® LED Prime UVA User Guide
Safety
Before continuing with the installation, please read the following chapters of this manual for safety
recommendations and installation, operation, and troubleshooting instructions.
CAUTION! Always wear protective goggles or face shield when working near the front of the
unit, which emits high-intensity visible light!
WARNING! Always observe safety requirements!
CAUTION! Risk of electrical shock if cover is removed!
To use this system safely, it must be set up and operated in accordance with the instructions given by Dymax.
The system’s design was developed to maximize operator safety and minimize exposure to UV. Using the
system in any other manner will impair the protection of the system. Dymax assumes no liability for any
changes that may impair the protection of the system.
Safety Recommendations
■Use the goggles provided or an approved face shield for eye/face protection.
■Long-sleeved shirts or a lab coat are recommended for arm protection. The use of UV opaque gloves will protect
the hands.
NOTE: The BlueWave LED Prime UVA emits high-intensity light. Never look directly at the light-emitting end of
the lightguide while the unit power is on.
Safety Symbol Index
The following symbols are displayed on the curing system. Please see below for their meanings.
Refer to Manual
Warning!
Eye Protection Required
Warning! UV Light Hazard
Sécurité
PRÉ-CAUTION! Toujours faisez de l’usage des lunettes de protection ou protéger de visage
marche près du devant d’élément!
AVERTISSEMENT! Remmarquez toujours besoin de sécurité!
PRÉ-CAUTION! Risque de décharge électrique quand le couvert est enlever!

6
Dymax BlueWave® LED Prime UVA User Guide
L’équipment ètre concu pour ètre utilisé correctement constituer, avec composants brancher correctement,
et marché en conformément avec instructions important. Le plan étais developer pour render au maxime
opérateur sécurité et minimiser expositon à ultraviolette.
Recommander de Sécurité
■Emploi lunettes, ou un protéger de visage pour protection de ultraviolet pour protéger vous oeux.
■Chemises à manche long, ou manteau de labo, sont recommander pour protéger les bras, et utilisation de
ultraviolette gants opague vais protéger les mains.
REMARQUER: Avec le filtre intérieur installé, l’Onde Bleu émettre lumière. Ne jamais regardez directement à la
source de lumière pendant que l’élément est en opération.
Dymax UV Light-Curing System Safety Considerations
Dymax light-curing technology has been used successfully for over 30 years. The fast cure, one-component
nature of our curing technology has made it the process of choice for many manufacturers requiring a “Cure
on Demand” assembly process. There are four common questions/concerns related to light-curing systems:
UV exposure, high-temperature surfaces, ozone, and bright, visible light.
NOTE: The energy emitted from the Dymax BlueWave LED Prime UVA spot-curing system is in the upper end of
the UV portion of the spectrum. To ensure that all safety aspects regarding operations of this equipment are
addressed, please review and follow information and safety information listed below.
UV Exposure
Figure 1. UV Spectrum
Standard Dymax UV-curing systems have been designed to primarily emit UVA light (as shown in Figure 1).
UVA light is generally considered the safest of the three UV ranges: UVA, UVB, and UVC. Although OSHA does
not currently regulate ultraviolet-light exposure in the workplace, the American Conference of Governmental
Industrial Hygienists (ACGIH) does recommend Threshold Limit Values (TLV’s) for ultraviolet light. The strictest
interpretation of the TLV (over the UVA range) for workers’ eyes and skin is 1 mW/cm2(intensity), continuous
exposure. Unless workers are placing bare hands into the curing area, it is unusual to exceed these limits. To
put the 1 mW/cm2limit into perspective, cloudless summer days in Connecticut regularly exceed 3 mW/cm2of

7
Dymax BlueWave® LED Prime UVA User Guide
UVA light, which includes the more dangerous UVB light, primarily responsible for sun tans, sun burns, and
skin cancer.
Checking the Workstation
The human eye cannot detect “pure” UV light. A radiometer should be used to measure stray UV light to
confirm the safety of a UV-curing process. A workstation that continuously exposes an operator to more than
1 mW/cm2of UVA light should be redesigned.
Protecting Operators
Light-curing technology can be a regulatory compliant, "worker-friendly" manufacturing process when the
proper safety equipment and operator training is utilized. There are two ways to protect operators from UV
exposure: shield the operator and/or shield the source.
Shield the Operator —UV-Blocking Eye Protection - UV-blocking eye protection is recommended when
operating UV light-curing systems. Both clear and tinted UV-blocking eye protection is available from Dymax.
UV-Blocking Skin Protection —Where the potential exists for UV exposure upon skin, opaque UV-blocking
clothing, gloves, and full-face shields are recommended.
Shield the Source of UV
Any substrate that blocks UV light can be used as a shield to protect workers from stray UV light. The following
materials can be used to create simple shielding structures:
Sheet Metal –Aluminum, steel, stainless steel, etc. Sheet metal should be coated black or black anodized to
minimize reflection of UV and visible light toward operators.
Rigid Plastic Film —Transparent or translucent/UV-blocking plastics (typically polycarbonate or acrylic) are
commonly used to create shielding where some level of transparency is also desired.
Flexible Film —Translucent UV-blocking, flexible urethane films can be used to quickly create workstation
shielding. This UV-blocking, flexible urethane film is available from Dymax. Call for assistance.
High-Temperature Surfaces
Surfaces exposed to high-intensity curing lights will rise in temperature. The intensity, distance, exposure
time, cooling fans, and the type/color of the surface can all affect the actual rise in surface temperature. In
some cases, exposed surfaces can reach temperatures capable of producing a burn or causing damage to a
substrate. In these cases, care must be taken to ensure either a more moderate surface temperature or
appropriate protection/training for operators. No infrared radiation is produced by these LED systems, so
surface temperatures will be lower than with conventional lamp systems. Empirical testing should be used to
verify the exact temperature rise in each application.
Ozone
The Dymax BlueWave LED Prime UVA does not generate UVB or UVC, therefore no ozone is generated while
operating this equipment.

8
Dymax BlueWave® LED Prime UVA User Guide
Bright, Visible Light
The bright, visible light energy emitted by curing systems can cause eye strain if proper eye protection or
shielding is not used. The proper use of tinted eye protection and/or opaque/tinted shielding can be utilized to
reduce eye strain and address this concern.
Summary
UV-light sources can be more “worker friendly” than many commonly accepted industrial processes, provided
the potential concerns are addressed. Both the lower working temperature and lack of spurious frequency
transmission that this system produces make it even more user friendly. Contact your Dymax representative
for information regarding the proper use of Dymax curing systems.
Product Overview
Description of the BlueWave LED Prime UVA
The BlueWave LED Prime UVA is a light-curing spot lamp that generates curing energy using high-intensity
Light Emitting Diodes (LEDs). The relatively narrow frequency band produced by LEDs generates cooler curing
temperatures and makes the BlueWave LED Prime UVA an excellent choice for spot curing various coatings
and adhesive bonding of polycarbonate, PVC, PET, metal, glass, and many other substrates. LED light-curing
systems offer many advantages over conventional spot-curing systems including no bulbs to change, cooler
cures, no warm-up, and constant intensity for thousands of hours. The BlueWave LED Prime UVA is rated for
continuous operation and can run in either timed or manual operating modes. The power supply operates on
line voltages of 100 to 240 VAC, 50/60 Hz.
The BlueWave LED Prime UVA unit is comprised of an anodized aluminum housing which contains an
electronic power supply, circuit protection, an LED assembly, cooling fans, a lightguide mount, a lightguide
safety interlock, and a control PCB with connections for a remote operation system. Cooling fans are provided
to keep the housing and internal components of the unit at the optimum operating temperature. The fan filter
should be changed or cleaned frequently to prevent blockage and reduced ventilation airflow. The air vents
must not be covered or otherwise blocked. A thermal shutdown sensor is provided for internal temperature
control of the unit.
The unit’s curing energy is emitted from a lightguide. This guide can be hand-held for complete mobility,
fixtured into position for repetitive operations, or mounted to automated equipment. The lightguide is
separate from the unit and plugs into the lightguide mount on the front panel of the unit.
WARNING! Insert the lightguide into the lightguide mount before the light is turned on, and remove the
lightguide ONLY AFTER the light is turned off. To secure the lightguide, lightly tighten the set screw (located on
the top of the lightguide mount) after the lightguide is inserted. If the lightguide is removed at any time during
an exposure cycle, the power is removed from the LED immediately. Replacing the lightguide will
automatically re-energize the LED.
The unit also features an intensity control on the front panel, which allows operators to adjust the output
intensity during process validation and production. Users can adjust and maintain the output intensity level
from 0 - 100% to meet their process curing parameters.

9
Dymax BlueWave® LED Prime UVA User Guide
Intensity Control Feature
The components used in all curing systems degrade with use. Intensity, therefore, decreases as the system
ages. The BlueWave LED Prime UVA’s intensity control allows for compensation to address this slow
degradation. Users can eliminate this variation by manually increasing output intensity to offset this
degradation. The intensity can be adjusted with a tool as shown in Figure 2Figure 2. Intensity . The intensity
adjustment is a 10-turn potentiometer and allows fine control of output intensity. This feature is useful for
both validation and control.

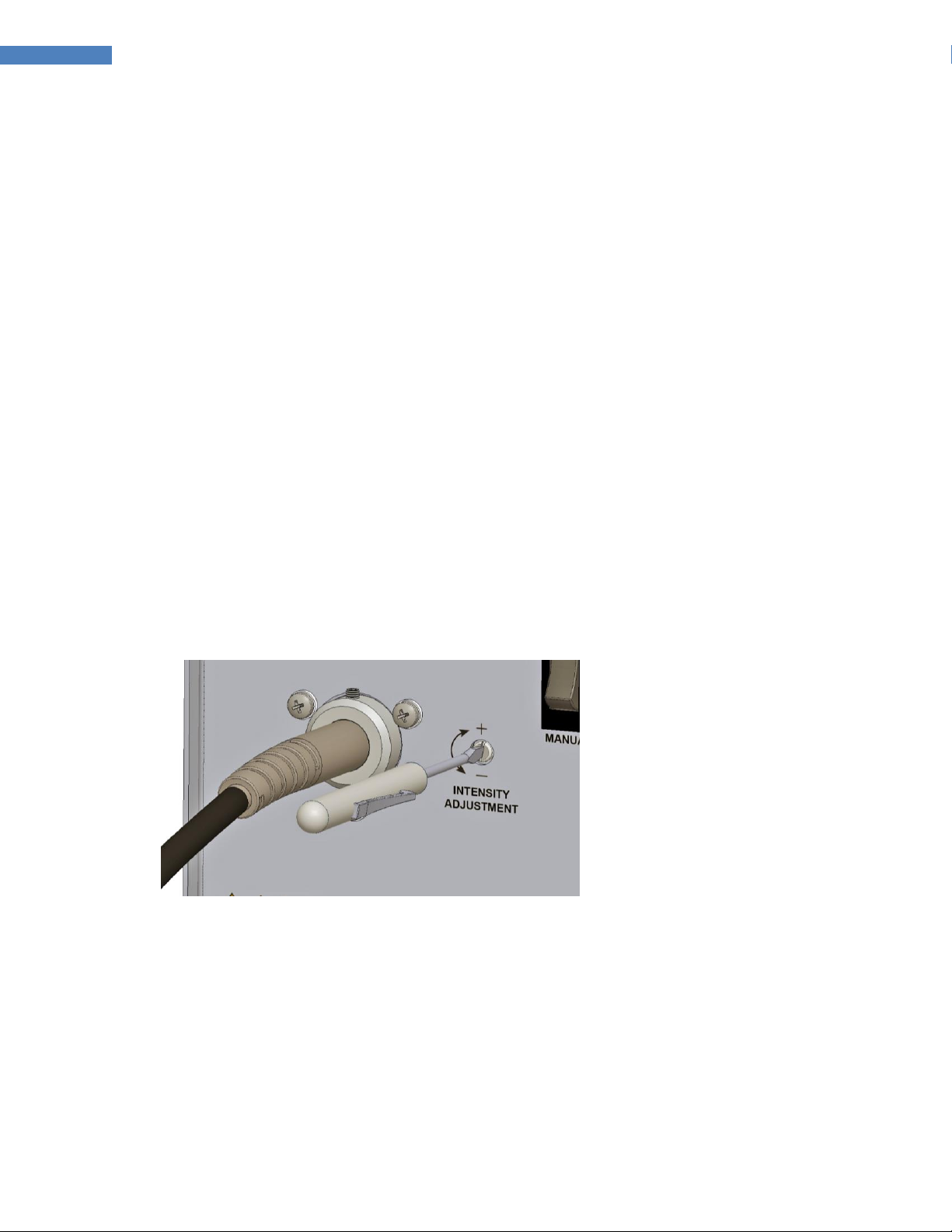

Figure 2. Intensity Adjustment
Validation
Tests should be conducted prior to production to determine the time and light intensity required to fully cure
your light-curable material in your specific application. The following approaches may be used to validate the
curing process.
Set Exposure Time, Determine Intensity
Users can specify a cure time, and through empirical testing, determine the intensity required to achieve a full
cure. As with any manufacturing process, it is advisable to incorporate a safety factor.
Set Intensity, Determine Exposure Time
Users can specify light intensity and through empirical testing, determine the exposure time required to
achieve a full cure. As with any manufacturing process, it is advisable to incorporate a safety factor.
Control
Process validation confirms a minimum acceptable intensity. Users can then choose to operate at a higher
available intensity level (using the additional intensity as a cure safety factor) or adjust the output to a specific
intensity level. To insure consistent and repeatable process results, it is advisable to monitor intensity levels
with the use of a radiometer. This allows identification of any potential maintenance requirements or intensity
adjustment necessary.

10
Dymax BlueWave® LED Prime UVA User Guide
Assembly and Setup
Unpacking and Inspecting Your Shipment
Your BlueWave LED Prime UVA arrived in one or two boxes. Inspect the boxes for damage and notify the
shipper of box damage immediately.
Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim
for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately.
Check that the parts included in your order match those listed below. If parts are missing, contact your local
Dymax representative or Dymax Customer Support to resolve the problem.
Figure 3. BlueWave LED Prime UVA Components
Parts Included in the BlueWave LED Prime UVA Spot Lamp System
■BlueWave LED Prime UVA (1)
■Footswitch (2)
■5-mm Lightguide –Models 40321 Only (3)
■UV Protection Goggles (4)
■2-mm Hex Wrench (5) –Model 40321 Only
■Flat Blade Screwdriver (6) –Model 40321 Only
■BlueWave LED Prime UVA User Guide (7)
■Snap-In Clip –Model 40321 Only
■Filter Media (80mm 45 PPI) –Model 40321 Only
■Power Cord (8)
Model 40321 & 40322 - Standard 120V North American Power Cord
Model 40950 - Type G Plug
Model 40960 –No Power Cord (Note: For European customers, the appropriate power cord will be added)

11
Dymax BlueWave® LED Prime UVA User Guide
Installation & System Interconnect
1. Connect the Power Cord to the rear of the unit and plug into a grounded wall outlet.
2. Connect the Footswitch to the connection in the rear of the unit.
Figure 4. Rear Panel Cable Connections
3. Install the Lightguide:
■Remove the protective cover from the unit’s Lightguide Mount.
■Remove the protective end caps from the Lightguide.
■Visually inspect the two ends of the Lightguide to verify that no foreign material is present.
NOTE: Dymax liquid-filled lightguide ends can be cleaned with isopropyl alcohol to remove foreign
material and outgassing deposits.
■Fully insert the large end of the Lightguide into the Lightguide Mount on the front panel.
NOTE: When properly seated, a light “click” may be heard/felt.
Figure 5. Lightguide Mount Set Screw

12
Dymax BlueWave® LED Prime UVA User Guide
■If desired, the Lightguide may be fastened into place by lightly tightening the Securing Set Screw in the top of
the Lightguide Mount. A Hex Wrench is provided with the unit for this purpose. The Set Screw should be
tightened gently to prevent damaging the Lightguide.
NOTE: Multi-pole lightguides should be checked for leg-to-leg output uniformity. Rotate the lightguide
to verify the desired intensity of each leg before tightening the set screw.
■The Lightguide is now installed and ready for use. The end of the Lightguide should be periodically cleaned
with isopropyl alcohol. Adhesive build-up may be removed from the end of the Lightguide by gently scraping
using a razor blade or razor knife.
4. Turn the Power Switch to the on position.
5. There is no need to for allow any warm-up or cool down times with this LED system. The unit may be
powered down and powered up again immediately without causing any negative effects.
6. Activate an exposure cycle by pressing on the Footswitch. With the Timer/Manual Selector Switch (located
on the front panel of the unit) in the manual position, the exposure time is controlled directly from the
Footswitch. In the timed position, operation is determined by the setting displayed on the electronic
timer. Simply push the timer setting buttons to enter the desired number of seconds the LED needs to be
powered.
7. With the system exposure active, adjust the Intensity Adjustment Screw as required to achieve the desired
output intensity on an appropriate radiometer. The Intensity Adjustment Screw is a 10- turn
potentiometer.
Figure 6. Intensity Adjustment Screw

13
Dymax BlueWave® LED Prime UVA User Guide
Operation
The BlueWave LED Prime UVA will arrive almost fully assembled. Please refer to the installation section of this
manual for installation of the lightguide, power cord, and footswitch. The system should be positioned in a
dry location that does not obstruct airflow around the unit.
IMPORTANT: To ensure that exposure output of the system is obtained, be sure that the lightguide is
fully inserted and seated into the entrance fitting prior to tightening the set screw. Be sure to lightly tighten
the set screw to ensure the lightguide remains in place during use.
To energize the system, turn the main power switch from the “O” position to the “l” position; the power
supply and timer should begin to function.

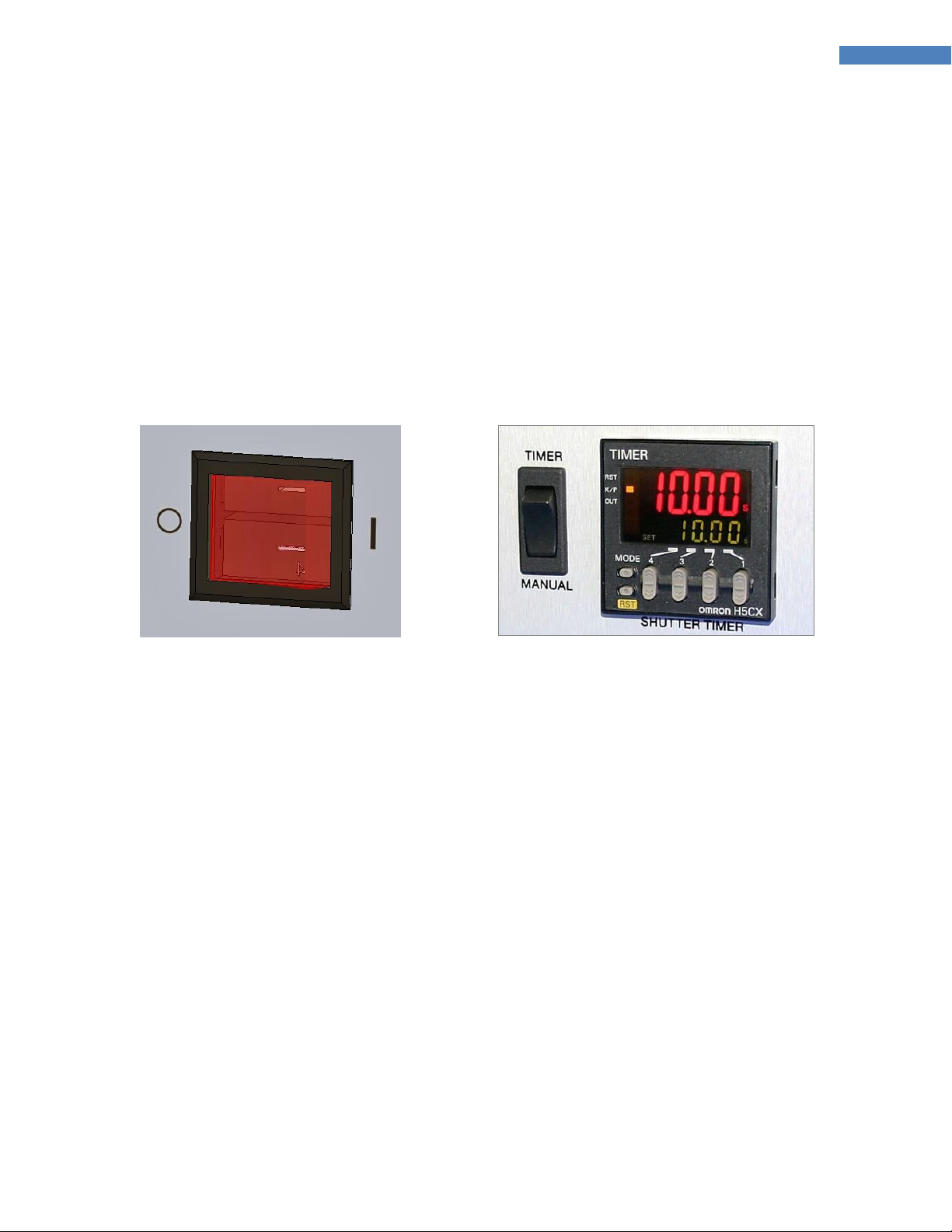

Figure 7. Main Power Switch
Figure 8. Timer
CAUTION: Always wear protective goggles or a face shield when working near UV or bright visible light.
Never look directly at the light-emitting end of a lightguide.
The timer located on the front panel of the BlueWave LED Prime UVA is factory set to the most common
operating mode and recommended operation of the timer with the BlueWave LED Prime UVA.
The front panel of the timer contains an LED display and keypad. The LED display has a reset indicator, key-
protect indicator, output indicator, preset value, set value, and timing operation indicator.
A brief description of each display and location:
◼Output Indicator - Displays OUT in upper left corner of timer display. Displayed when relay is switched
on; is not displayed when relay is switched to off.
◼Present Value –Four-digit segmented display in center of timer. Shows current status of time.
◼Set Value –Four-digit segmented display in lower right corner of timer. Shows set length of time.
◼Reset Indicator –Display on the left of meter face. Active when the timer is reset by pressing the
“RST” button on the lower left face of timer. Or when the rear panel PLC Safety Interlock is active.
◼Key Protect –Located on center left side of display. Will always be lit because the timer function is
programmed at the factory and locked before shipment.

14
Dymax BlueWave® LED Prime UVA User Guide
To operate the timer, select the “timer” option of the Timer/Manual Selector Switch on the front panel.
Program the time into the Timer and depress the Footswitch. Factory settings will power the LED and the
preset value will begin to count backward. When the Timer reaches 00.00, it will reset the value to the set
value and remove power from the LED. The Timer can be stopped by pressing the RESET button on the lower
left face of the Timer. If power is removed from unit, the Timer will reset to the set value.
To select the time, press the appropriate key (up or down) until the corresponding digit increments or
decrements in the set value. By pressing the up key labeled (1), it will increment the left most digit on the set
value. By pressing the up key (2), it will increment the second digit of the set value. The same will happen
with the up key (3) and the third digit of the set display, and up key (4) and the fourth digit of the set display.
The Timer will increment from 9 back to 0. The Timer comes programmed for a range of 00.01 seconds to
99.99 seconds. Consult the factory for other time ranges and function options available.
The LED does not employ an automatic life-end shutdown circuit. The only condition that may shut off the LED
would be an over-temperature shutdown. If an over-temperature shutdown occurs, check that the airflow is
not restricted to the system and that the fan filter is clean. If the condition persists, consult the factory for
further assistance. If the lightguide is not fully seated into the unit, or if it becomes dislodged by as little as ⅛”
from the Lightguide Mount, the Safety Interlock built into the assembly will terminate power to the LED. Re-
seating the lightguide will automatically re-activate it. No user-serviceable parts exist within the enclosure.
Position the curing end of the lightguide no closer than ¼” from material being cured. Placing the lightguide
end too close can cause the lightguide to become cloudy from vapors coming off of the curing material.
In a typical bulb-based system, lamp life is reduced each time it is started. The new LED-based systems have
no such limitations. They can be shut off and then immediately restarted with no cool-down or warm-up
periods or loss of system lifetime.
9-Pin Connector I/O Signals
The BlueWave LED Prime UVA unit is equipped with a 9-pin D-subminiature connector that provides interface
between the device and a PLC or similar factory control equipment. The following describes available inputs
and outputs.
Input Signals
Each input signal is optically isolated from the internal circuit of the BlueWave LED Prime UVA. A positive +24V
and maximum 10-milliamp current source is required to activate each signal input. All inputs are returned to
the common terminal, and have built-in current-limiting resistors to protect the isolators.
Pin 1 –+24V: Applying power to this pin enables the Safety Interlock (4). The safety interlock will not function
unless +24V is applied to this pin.
Pin 2 –Common: All signals, both inputs and outputs, are returned to this pin. Common may be used
independently of +24V for all outputs and inputs, except for the safety interlock (4) input.
Pin 3 –Shutter In: This signal line may be used to remotely activate the BlueWave LED Prime UVA. When it is
being used, the local footswitch on the rear of the BlueWave LED Prime UVA box is still capable of operating

15
Dymax BlueWave® LED Prime UVA User Guide
the unit. Similar to the footswitch, if the timer/manual selector switch is in Timer Mode, the unit will power
the LED for the time set on the timer. In the Manual Mode, the unit will power the LED for the duration of the
remote activate signal.
Pin 4 –Safety Interlock In: A safety interlock can be connected between Pins 1 and 4. While +24V is applied
to Pin 4, the system will allow activation of the LED. If the connection is broken, power is immediately
removed from the LED. The safety interlock relies on the +24V signal being present on Pin 1. In addition to
removing power from the LED, if the system is being operated in the TIMED mode, breaking this connection
will reset the timer to zero. A second “shutter” signal will reactivate the LED for the timed duration.
Pin 5 –Intensity In (PWM): This input is supplied as a means to actively control the output intensity of the
BlueWave LED Prime UVA unit. It can be used to Pulse Width Modulate (PWM) the power to the LED. This
input cannot increase the intensity over the set point of the front panel intensity adjustment, but can only
reduce it. The front panel adjustment should be set fully clockwise to give Pin 5 the greatest range.
A high level (+24V) on Pin 5 will turn off the LED and a low level (0V) will allow maximum LED intensity. A
signal of 1.K Hz should be used with a duty cycle of 0 to 60%.
NOTE: A 10% duty cycle will generate a greater intensity than a 50% duty cycle.
This input can be used with an external controller to create any number of customized step-cure profiles or
with an additional sensor to regulate the output.
Output Signals
The output signals are all opto-isolated signals. Each signal has an NPN output transistor. The emitters of all
output transistors are tied together and connected to the PLC common on DB9 Pin 2. Each individual output
signal line is connected to the collector of each transistor. When the transistor is turned on, this provides a
ground to the PLC system that can be used to enable a relay coil signal to an opto-coupler. The conducting
transistor can also function as a set of contacts that can initiate actions within the PLC. When the transistor is
on, the signal is said to be “enabled” or “asserted”. When the transistor is off, the signal is said to be
“disabled” or “unasserted”. The transistors have a max current rating of 30 mA, and a max power rating of
150mW. Only positive voltages with respect to the PLC common should be used to a maximum of 24 Volts DC.
Series-limiting resistors should be used to ensure that the max conditions are not exceeded.
Pin 6 –Lightguide Engaged Out: When a lightguide is fully inserted into the unit, an internal switch will allow
the LED to operate. The same switch will send a signal to turn on the transistor and connect Pin 6 to Pin 2. This
output can be used to verify the condition of the system, should an error occur, or alert a user to the failure.
Pin 7 –LED Powered Out: Pin 7 will be shorted to Pin 2 when the LED power supply is powered up and the
set point is above a predetermined level. Pin 7 will be open with respect to Pin 2, if the LED power supply is off
for any reason. This output can be used as go/no go confirmation that the array power supply is engaged.
Note: Verification of LED illumination should be made visually to ensure proper operation.
Pin 8 –Intensity Out (PWM): An internal circuit monitors the current sent to the LED, and generates a PWM
signal whose frequency and duty cycle varies with the current. Adjusting the front panel Intensity Adjustment
Screw, or using the Intensity Input on Pin 5, will cause a change in the signal seen on Pin 8. This output can be

16
Dymax BlueWave® LED Prime UVA User Guide
used to verify step or ramped changes in the intensity for customized profiles, or to alert the remote
controller when the system has reached maximum intensity in a closed-loop system.
Pin 9 –Over Temp Out: A sensor constantly monitors the temperature of the LED in the system. If, for any
reason, the reading rises above a predetermined limit, the control PCB will shut off current to the LED to
prevent damage. When the measured temperature drops to a lower threshold, the PCB will re-enable current
to the LED.
NOTE: If this fault occurs check for proper airflow into and out of the unit. Also verify that the air filter is clean.
Figure 9. 9-Pin D Connector I/O Signals
Cleaning and Maintenance
The BlueWave LED Prime UVA was designed to operate with minimum maintenance. Follow the schedule
below to assure top unit performance.
Lightguide
Clean the lightguide ends monthly or as required. The ends of the lightguide should be kept clean to transmit
as much light as possible. Cured adhesive can carefully be removed from liquid-filled lightguide ends with a

17
Dymax BlueWave® LED Prime UVA User Guide
razor blade. Avoid sharp bends with the lightguide since this reduces light output and permanently damages
the guide.
Fan Filter
The external fan filter should be inspected and cleaned periodically to prevent dust buildup from affecting
airflow through the unit. Spare filters are provided with each unit. The fan filters are washable and may be
reused. Remove the fan filter by removing the snap-on cover from the rear of the fan.
Figure 10. Cooling Fan Filter & Cover
Fuse Replacement
The unit is supplied with two Fuses that are installed in the Power Receptacle. To remove the Fuses, unplug
the unit and remove the Fuse Holder with a small screwdriver. Remove the Fuses from the Fuse Holder and
install new Fuses. Replace the Fuses with 2.0 Amp fast-blow types (Dymax PN 37236 or equivalent). Reinstall
the Fuse Holder into the Power Receptacle.
Figure 11. Power Receptacle
Figure 12. Fuse Holder
Figure 13. Fuses (PN 37236)

18
Dymax BlueWave® LED Prime UVA User Guide
Troubleshooting
WARNING: Only qualified maintenance personnel should attempt the following procedures.
AVERTISSEMENT: Seulement personnel d’entretien diplomé devrais essayer les procedures suivant.
Table 1. Troubleshooting Chart for BlueWave LED Prime UVA
Problem
Possible Cause
Testing
Corrective Action
The unit’s LED
will not
illuminate
There is an incorrect
connection
Visually inspect all input/output
connections (i.e. power cord,
foot switch, lightguide).
Secure all connections.
The main line fuse is
blown (nothing in unit
operates)
Remove the fuse from the power
receptacle and check it with an
ohmmeter.
Replace the fuse if defective.
The lightguide is not fully
inserted
Remove the lightguide.
Re-insert the lightguide into
the lightguide mount.
The unit has
low output
intensity
or
The unit fails to
cure the
material in the
allotted time
The intensity adjustment
is set too low
Use a radiometer (Dymax ACCU-
CAL 50-LED) to measure the
output intensity.
Adjust the setpoint to the
desired intensity.
The transmission loss in
the lightguide is too great
Compare the lightguide output
against a new lightguide or use a
Dymax lightguide simulator to
determine the transmission loss.
Replace the lightguide.
There are contaminants
on the lightguide
Visually examine ends of
lightguide for contaminants.
Clean the lightguide ends with
isopropyl alcohol or an
equivalent. Heavy deposits on
liquid lightguides may be
carefully removed using a
razor blade. Replace the
lightguide if it cannot be
cleaned.
The system has
inadequate cooling
Check the air filter for debris and
blockages at the exit vents.
Clean or replace the filter.
Remove all air blockages from
around the unit.
The footswitch
is not operating
There is an incorrect
connection
Check the connection of the
footswitch into the unit.
Re-insert the footswitch into
the unit.

19
Dymax BlueWave® LED Prime UVA User Guide
Frequently Asked Questions
Q.) My BlueWave LED Prime UVA will not turn on.
A. Check the power cord connection.
B. Check the fuses located where the power cord plugs into the unit.
Q.) The LED will not light, but the unit is powered up.
A. Check that the lightguide is fully seated in the lightguide mount.
B. Confirm that the intensity adjustment is not at the minimum setting.
C. Check the condition of the signals on the DB9 connector (+24V, Safety Interlock, and Intensity Input)
Q.) I have low intensity.
A. The end of the lightguide may have a build-up of adhesive. Carefully remove any build-up with
isopropyl alcohol or for heavier deposits gently scrape it with a razor blade.
B. The condition of the lightguide can also affect the intensity. All lightguides degrade with time, but
intensity will also drop if the lightguide is bent or compressed. The intensity reading from the lightguide
should be compared to the intensity reading from a lightguide simulator to determine the efficiency.
C. The intensity adjustment is set incorrectly. Turn the knob fully clockwise for the maximum intensity out.
D. The connections or signals applied to the DB9 connector are incorrect. Verify that the safety and
intensity input lines are not shutting down current to the LED.
Q.) Why does my BlueWave LED Prime UVA unit seem to run very hot?
A. Replace the fan filter media on the intake fan (located on the back panel). This is your first line of
defense against airborne dust and debris. This filter media and several spares are supplied with new
units and should be changed regularly.
B. Ideal operation of this equipment suggests at least 6 inches of clearance around the unit for proper
ventilation. Also confirm that the intake fan is not feeding from the exhaust of other equipment.
C. Confirm that the fan is operating.
D. Your equipment may already be full of dust and debris, causing over heating of the unit’s internal
electronics.
NOTE: The internal fans do not activate until required. If the setting of the intensity output is low or if
the ambient air temperature is lower than normal, the fans may not be active or they may take longer
than usual to engage.

20
Dymax BlueWave® LED Prime UVA User Guide
Spare Parts and Accessories
Options/Accessories
Item
Part Number
Personal Protection Equipment
Protective Goggles —Green
35286
Protective Goggles —Gray (standard model included with unit)
35285
Face Shield
35186
Radiometer
Dymax ACCU-CAL™ 50-LED Radiometer (spot)
40505
Lightguides
Lightguide Simulator, 5 mm
38408
Liquid-D Lightguide, 5 mm x 1 M
5720
Liquid-D Lightguide, 5 mm x 1.5 M
5721
Liquid-D Lightguide, 8 mm x 1 M
5722
Miscellaneous
Carry Case with Foam Inserts
1-40009
1-40010
2-40011
1-40012
Spare/Replacement Parts
Item
Part Number
Fuses
Fuses: F2.0 amp
37236
Fan
Fan
40034
Fan Assembly
40004
Fan Filter and Holder
40460
Fan Filter Media
40008
Footswitch and AC Power Cords
Footswitch
40402
Power Cord, North American
35255
Power Cord, China Type G Plug
40542
Tools & Hardware
2 mm Hex Wrench
38656
Flat Blade Screwdriver
39695
Miscellaneous
Rubber Feet
5039
