Choose your LabelManager™ label maker
and get down to business.

2

3
Whether you label a little, or a lot.
We’ve got a label maker that is right for you.
Choose the LabelManager™ label maker that’s right for you –
and see just how quickly and easily you can organise the busiest oce,
small business or warehouse.
1
Heavy use
Labelling is part of your job –
you’re responsible for labelling
warehouse inventory, massive files
or archives, and other high-volume
labelling jobs.
Moderate use
You want to keep your busy oce
or workplace more organised,
ecient and professional by
labelling storage areas, files,
equipment and supplies.
Light use
You regularly use labels for
presentations, mailings or other
projects – and want to replace
handwritten labels with clear,
impressive printed labels.
Choose your usage level
HEAVY MODERATE LIGHT
PORTABLE
2
On the go
You never know when you’re going
to need to create labels – so you
want a label maker that goes
wherever you go.
At your desk
You do most of your labelling at
your desk and appreciate a larger,
computer-style keyboard.
Choose your location
DESKTOP
DISPLAY
3
Large display
See more characters and more
lines of text, without scrolling –
so it’s easier to check your work
before you print.
Rechargeable
lithium-ion battery
Label without the expense,
inconvenience and waste of
disposable batteries.
PC or Mac® connectivity
Design labels using the fonts and
graphics on your computer – even
print batches of labels from
spreadsheet or database files.
Choose your special features
CONNECTBATTERY
Large
Li-ion

4
Heavy Use
Maximize productivity with
LabelManager™ label makers.
Reliable, easy-to-use and innovative, DYMO® LabelManager™
label makers are the right choice for professionals who demand
optimal labelling performance every single day.
2Warehousing
Label packages, shelves, parts and more with easy-to-read text labels
and scannable barcodes. DYMO® labels are temperature and UV
resistant and will stay stuck under demanding warehouse conditions.
1Massive filing and archiving
Don’t rely on hard-to-read handwriting – print crystal-clear labels for
folders, binders, drawers and cabinets. And choose from a variety of
colors for instant color-code identification.
3Workflow management
Label paper trays, workstations and other items to specify
workflows and processes – and prevent mistakes. Even label oce
equipment with step-by-step instructions and barcodes.
HEAVY

5
Your team is working harder, faster, smarter.
Choose the label maker that’s built to keep up.
The DYMO® LabelManager™ 420P label maker is the right choice
for anyone who depends on labels to create a more ecient and
productive workplace. Connect it to your PC1 or Mac®2 and use
DYMO Label™ Software to design labels on your computer screen,
with barcodes, logos or graphics – or to print batches of labels
from text in spreadsheet or database files. Disconnected from your
computer, the LabelManager™ 420P label maker is a portable
labelling powerhouse – with an easy-to-use interface, quick access
keys and plenty of fonts and text eects.
LabelManager™ 420P Features
• Large 4-line backlit display – shows text eects on screen
before you print
• 8 fonts, 7 font sizes, 10 text styles, 8 boxes plus underline
• Powered by a rechargeable lithium-ion battery – no more
disposable AA battery expense and inconvenience
• Uses DYMO® D1 labels in 6 mm, 9 mm, 12 mm and
19 mm widths
1
Windows® XP, Windows Vista®, Windows® 7, 2 Mac OS® v10.4 or later
With or without your computer, customise,
create and take labelling to the next level.
The LabelManager™ 450D gives you more ways then ever to add
impact to your labels. By itself, it’s a professional label maker with
dozens of label printing options. Connect it to your PC1 or Mac®2
and watch the DYMO® software open up a new world of labelling
possibilities like importing barcodes and logos and multiple
typefaces for hundreds of extended applications.
LabelManager™ 450D Features
• Large semi-graphical integral display with print preview
for viewing and editing labels
• 7 fonts, 5 font sizes, 13 text styles, 6 boxes, several background
patterns and 6 types of barcodes
• Prints up to 5 lines of text (on 19 and 24mm labels)
• Runs on 6 AA batteries (not included) or optional
AC adaptor (included)
• Uses DYMO® D1 labels in 6 mm, 9 mm, 12 mm, 19 mm
and 24 mm widths
High-Performance Portable Label Maker with PC or Mac® Connection
420P
LabelManagerTM
High-Performance Desktop Label Maker with PC or Mac® Connection
450D
LabelManagerTM
NEW
DISPLAY
PORTABLE CONNECT
BATTERY
CONNECTDESKTOP
Large
Li-ion

6
Moderate Use
Keep any office organised,
efficient and under control.
Mid-range DYMO® LabelManager™ label makers let you bring
instant order to the busiest oce or workplace – so everyone
spends less time looking for stu, and more time focused
on their work.
1Extensive filing
Label file folders, cabinets and drawers with neat, easy-to-read labels
– your files will stay organised, and everyone will find files faster.
2Organisation
Find anything faster when you know where to look! Label closets,
shelves, baskets and other storage areas to make sure everything
is stored where it belongs.
3Asset management
Prevent confusion, loss, and ‘unauthorized borrowing’ – label supplies
with information for identification and tracking.
MODERATE

7
260P
LabelManagerTM 360D LabelManagerTM
1
Windows® XP, Windows Vista®, Windows® 7, 2 Mac OS® v10.5 or later

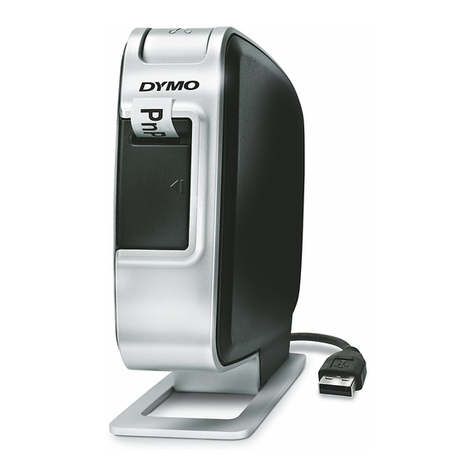

Just plug, type and print – it's that easy!
Finally, printing a label is fast and easy! With the LabelManager™
PnP label maker there’s no software to install – just plug it into
your PC1 or Mac®2, and you’re ready to create great-looking labels
as fast as you can type! Plus you can customise your labels
using the fonts and graphics on your computer. The lightweight,
compact LabelManager™ PnP label maker is ideal for labelling
at your desk – and it runs on a lithium-ion battery that recharges
over the USB connection.
LabelManager PnP Features
• No software to install – built-in software pops up on your
computer screen
• Ready to use Lithium-ion battery recharges via USB connection –
no power adapter or AA batteries needed
• Customise your label with any fonts or graphics on your computer
• Uses DYMO® D1 labels in 6 mm, 9 mm and 12 mm widths
Uninterrupted labelling power whenever you
need it, with no more AA batteries.
The DYMO® LabelManager™ 260P label maker is powered
by a rechargeable lithium-ion battery so you can charge
and go unlike an AC adaptor.
LabelManager™ 260P Features
• Customise labels and add emphasis by choosing from 3 font styles,
6 font sizes,7 text styles and 8 box styles or underline
• Quick access keys to punctuation, diacriticals, currency
and symbols
• Compact keyboard for easy handling
• Powered by a rechargeable lithium-ion battery – no more
disposable battery expense or inconvenience
• Uses DYMO® D1 labels in 6 mm, 9 mm and 12 mm widths
More power. More features. No more
AA batteries.
The DYMO LabelManager™ 360D has a computer style keyboard
that speeds text entry. Plus it is powered by a rechargeable lithium-
ion battery so you can charge and go unlike an AC adaptor.
LabelManager™ 360D Features
• Customise labels and add emphasis by choosing from 3 font styles,
7 font styles, 7 text styles and 8 box styles or underline
• Quick access keys to punctuation, diacriticals, currency
and symbols
• Computer style keyboard speeds text entry
• Powered by a rechargeable lithium-ion battery – no more disposable
battery expense or inconvenience
• Uses DYMO® D1 labels in 6 mm, 9 mm, 12 mm and 19 mm widths
Plug and Play Label Maker for PC or Mac®
PnP
LabelManagerTM
NEW
Portable and Rechargeable Label Maker Rechargeable Desktop Label Maker
DISPLAY BATTERY PORTABLE DISPLAY BATTERIE DESKTOP
DESKTOP BATTERY CONNECT
Large Large
Li-ion Li-ion
Li-ion

8
All-Purpose Label Maker with Large Graphical Display
210D
LabelManagerTM
Large screen for easy and quick labelling.
With such a smart user interface, this compact label maker
belongs on every desk, especially yours. So versatile,
it not only provides a logical labelling flow, it handles
all sorts of labelling tasks professionally and quickly.
LabelManager™ 210D Features
• Quick access buttons to punctuation, currency
symbols and diacriticals
• Prints 1 or 2 lines per label (on 9 mm and 12 mm)
• Right, center or left alignment
• Stores up to 9 labels and oers the possibility to
insert saved text
• Runs on 6 AA batteries (not included) or optional
AC adaptor (not included)
• Uses DYMO® D1 labels in 6 mm, 9 mm and 12 mm
Portable labelling
at your fingertips.
Introduce yourself and your oce to the
benefits of labelling – with basic DYMO®
LabelManager™ models that fit even the
tightest budget.
Basic Label Maker with One-Touch Smart Keys
120P
LabelManagerTM
Smart keys with one-touch formatting
Easy to use, this basic portable label maker features quick
access to functions you’ll use most. You’ll not only speed
through a range of labelling tasks, you’ll get them done
accurately the first time, thanks to the graphical display
that previews your label before you print.
LabelManager™ 120P Features
• 2 font sizes, 3 text styles and 1 box style
• Auto-o power saver to extend battery life
• Last label memory saves you time
• Runs on 6 AA batteries (not included)
• Uses DYMO® D1 labels in 9 mm and 12 mm
Portable Label Maker with PDA-Style Keyboard
220P
LabelManagerTM
Unique keyboard like your favourite PDA.
If you like using your PDA, you’ll love the keyboard layout
of the LabelManager™ 220P. And you’ll love the results you
get with this popular portable label maker.
LabelManager™ 220P Features
• Computer-style keyboard with PDA-style layout
for easy text entry
• Large graphical display shows text eects on
screen before you print
• 6 font sizes, 7 text styles and 8 box styles
• 9-label memory and save text feature
• Print 1 or 2 lines per label (on 9 or 12mm width labels)
• Runs on 6 AA batteries (not included) or optional
AC adaptor (not included)
• Uses DYMO® D1 labels in 6 mm, 9 mm and 12 mm
LIGHT
Light Use
PORTABLE
PORTABLE
DESKTOP
DISPLAY
Large

9
6 mm S0720780 - S0720790 - - -
9 mm S0720680 S0720700 S0720730 S0720720 S0720710 S0720740
12 mm S0720530 S0720550 S0720580 S0720570 S0720560 S0720590
19 mm S0720830 S0720850 S0720880 S0720870 S0720860 S0720890
24 mm S0720930 S0720950 S0720980 S0720970 S0720960 S0720990
6 mm S0720770 - - - - -
9 mm S0720670 - S0720690 - - -
12 mm S0720500 S0720520 S0720540 S0720610 S0720600 S0720510
19 mm S0720820 - S0720840 S0720910 S0720900 -
24 mm S0720920 - S0720940 S0721010 S0721000 -
12 mm S0718060
19 mm S0718070
12 mm S0718040
19 mm S0718050
ABC
ABC ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
DYMO® D1 Label Guide
Created specifically for your LabelManager™ label maker, D1 labels oer the
performance and variety you need for any labelling job – indoor or outdoor, in your
oce, your workshop, your store or anywhere else you work. All DYMO® D1 labels
have an “Easy Peel” back-slit for trouble-free application.
Water Resistant
Withstands water, oils,
greases and most
milder solvents
Temperature
Can withstand
temperatures from
-18°C to 90°C
Removable
Labels can be removed
without leaving adhesive
residue (Standard and
Flexible labels only)
Easy Peel
Remove backing
easily for quick and
simple application
UV Resistant
Withstands exposure
to sunlight without
fading or peeling
Standard Polyester
For hundreds of tasks around the oce or home oce, such as filing, storage and asset management.
Available in 6 mm, 9 mm, 12 mm, 19 mm and 24 mm x 7 m
Permanent Polyester
For surfaces that demand a permanent solution.
Available in 12 mm and 19 mm x 5,5 m
Flexible Nylon
For curved or heavily textured surfaces.
Available in 12 mm and 19 mm x 5,5 m

10
LabelManager™
PnP
LabelManager™
450D
LabelManager™
420P
LabelManager™
Product Overview
PRINTING Resolution 180 dpi 180 dpi 180 dpi
180 dpi 180 dpi 180 dpi 180 dpi 180 dpi
Number of print lines 4 5 (on 24mm) Variable
22212
Tape widths 6 | 9 | 12 | 19 mm 6 | 9 | 12 | 19 | 24 mm 6 | 9 | 12 mm
6 | 9 | 12 mm 6 | 9 | 12 | 19 mm 6 | 9 | 12 mm 9 | 12 mm 6 | 9 | 12 mm
STYLES & EFFECTS Number of styles 10 Windows/
Mac fonts
13 Windows/
Mac fonts
Windows/Mac fonts
77737
Normal ✔ ✔
✔✔✔✔✔
Bold (Wide) ✔ ✔
✔✔✔✔✔
Vertical ✔ ✔
✔✔✔✔✔
Outline ✔ ✔
✔✔✔ -✔
Shadow ✔ ✔
✔✔✔ -✔
Italic ✔ ✔
✔✔✔ -✔
3D ✔ ✔
✔ ✔ ---
Strikethrough ✔ ✔
✔ ✔ ---
Mirror ✔ ✔
✔✔✔ -✔
Box ✔ ✔
✔✔✔✔✔
Underline ✔ ✔
✔✔✔✔✔
Background pattern ✔ ✔
-----
Number of char. sizes 7 5
67626
FONTS &
SYMBOLS
KEYBOARD
MEMORY
Number of fonts 8 7
33111
Number of symbols 325 175
221 221 132 62 132
Layout ABC Qwerty/Qwertz/Azerty -
ABC Qwerty/Qwertz/Azerty Qwerty/Qwertz/Azerty ABC Qwerty/Qwertz/Azerty
Last label ✔✔✔
✔✔✔✔✔
Label memory 9 10 -
9 9 9 - 9
Personal preferences - 10 -
-----
SPECIFIC OPTIONS Fixed length ✔✔✔
✔✔✔ -✔
Multiple copies max 10 16 49
10 10 10 - 10
Incremental printing ✔✔✔
✔ ✔ ---
Alignment ✔✔✔
✔✔✔ -✔
Mixed formats - 3 ✔
-----
Barcode ✔✔✔
-----
TYPE CUTTER
POWER
Manual/Automatic Manual Automatic Manual
Manual Manual Manual Manual Manual
Low battery indicator ✔✔✔
✔✔✔✔✔
Number of batteries - 6 -
- - 6 6 6
Battery type Li-ion AA Li-ion
Li-ion Li-ion AA AA AA
Charging adaptor ✔- Charges via USB
✔ ✔ ---
Power adaptor - ✔-
- - ✔-✔
Automatically turns o ✔✔✔
✔✔✔✔✔
COMPUTER
COMPATABILITY PC and Mac®PC and Mac®PC and Mac®PC and Mac®
-----

11
LabelManager™
210D
LabelManager™
120P
LabelManager™
220P
LabelManager™
360D
LabelManager™
260P
PRINTING Resolution 180 dpi 180 dpi 180 dpi
180 dpi 180 dpi 180 dpi 180 dpi 180 dpi
Number of print lines 4 5 (on 24mm) Variable
22212
Tape widths 6 | 9 | 12 | 19 mm 6 | 9 | 12 | 19 | 24 mm 6 | 9 | 12 mm
6 | 9 | 12 mm 6 | 9 | 12 | 19 mm 6 | 9 | 12 mm 9 | 12 mm 6 | 9 | 12 mm
STYLES & EFFECTS Number of styles 10 Windows/
Mac fonts
13 Windows/
Mac fonts
Windows/Mac fonts
77737
Normal ✔ ✔
✔✔✔✔✔
Bold (Wide) ✔ ✔
✔✔✔✔✔
Vertical ✔ ✔
✔✔✔✔✔
Outline ✔ ✔
✔✔✔ -✔
Shadow ✔ ✔
✔✔✔ -✔
Italic ✔ ✔
✔✔✔ -✔
3D ✔ ✔
✔ ✔ ---
Strikethrough ✔ ✔
✔ ✔ ---
Mirror ✔ ✔
✔✔✔ -✔
Box ✔ ✔
✔✔✔✔✔
Underline ✔ ✔
✔✔✔✔✔
Background pattern ✔ ✔
-----
Number of char. sizes 7 5
67626
FONTS &
SYMBOLS
KEYBOARD
MEMORY
Number of fonts 8 7
33111
Number of symbols 325 175
221 221 132 62 132
Layout ABC Qwerty/Qwertz/Azerty -
ABC Qwerty/Qwertz/Azerty Qwerty/Qwertz/Azerty ABC Qwerty/Qwertz/Azerty
Last label ✔✔✔
✔✔✔✔✔
Label memory 9 10 -
9 9 9 - 9
Personal preferences - 10 -
-----
SPECIFIC OPTIONS Fixed length ✔✔✔
✔✔✔ -✔
Multiple copies max 10 16 49
10 10 10 - 10
Incremental printing ✔✔✔
✔ ✔ ---
Alignment ✔✔✔
✔✔✔ -✔
Mixed formats - 3 ✔
-----
Barcode ✔✔✔
-----
TYPE CUTTER
POWER
Manual/Automatic Manual Automatic Manual
Manual Manual Manual Manual Manual
Low battery indicator ✔✔✔
✔✔✔✔✔
Number of batteries - 6 -
- - 6 6 6
Battery type Li-ion AA Li-ion
Li-ion Li-ion AA AA AA
Charging adaptor ✔- Charges via USB
✔ ✔ ---
Power adaptor - ✔-
- - ✔-✔
Automatically turns o ✔✔✔
✔✔✔✔✔
COMPUTER
COMPATABILITY PC and Mac®PC and Mac®PC and Mac®PC and Mac®
-----

Distributed by:
DYMO bvba, Industiepark-Noord 30
B-9100 Sint-Niklaas, Belgium
www.dymo.com
©2010 DYMO
S0944100
