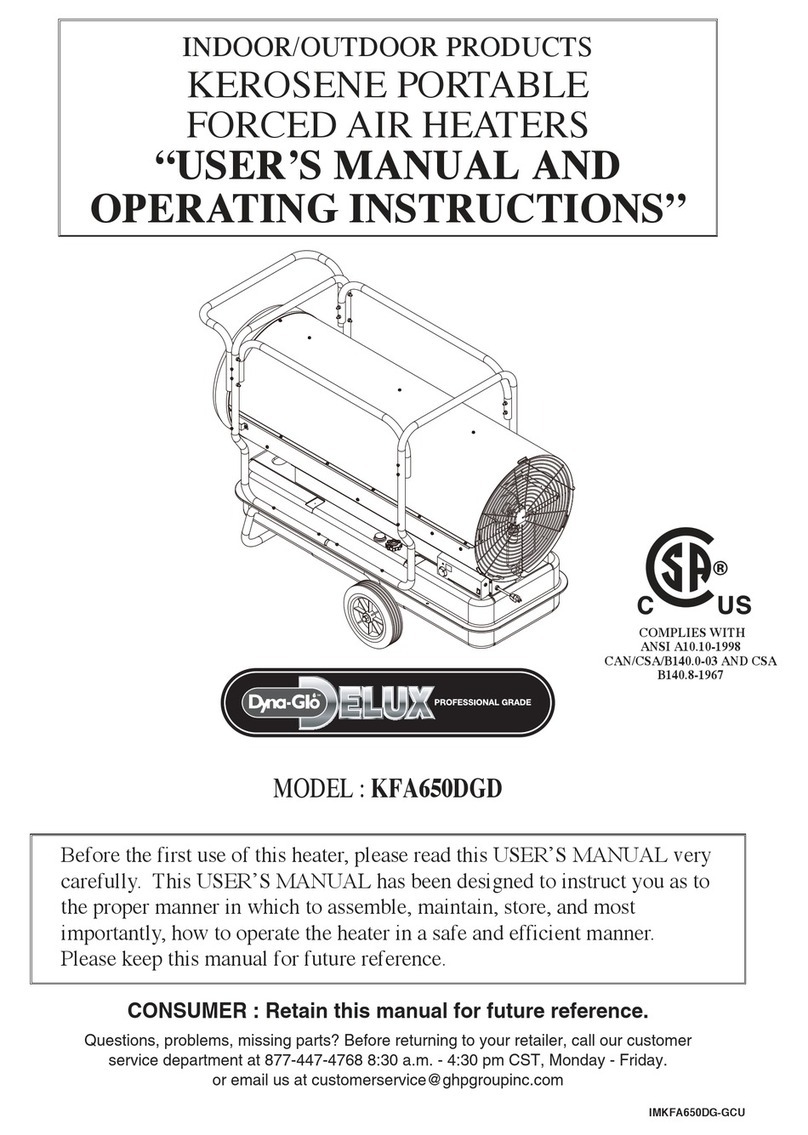

Dyna-Glo Delux KFA650DGD Manual

CONSUMER : Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.
or email us at [email protected]
INDOOR/OUTDOOR PRODUCTS
KEROSENE PORTABLE
FORCED AIR HEATERS
“USER’S MANUAL AND
OPERATING INSTRUCTIONS”
Before the first use of this heater, please read this USER’S MANUAL very
carefully. This USER’S MANUAL has been designed to instruct you as to
the proper manner in which to assemble, maintain, store, and most
importantly, how to operate the heater in a safe and efficient manner.
Please keep this manual for future reference.
COMPLIES WITH
ANSI A10.10-1998
CAN/CSA/B140.0-03 AND CSA
B140.8-1967
MODEL : KFA650DGD
IMKFA650DG-KDS

1
DANGER: IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH
FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON
MONOXIDE POISONING.
WARNINGS:
1. RISK OF INDOOR AIR POLLUTION!
• Use this heater only in well ventilated areas. Provide at least a three-square foot (2,800 sq. cm.)
opening of fresh outside air for each 100,000 BTU/hr. of heater rating.
• People with breathing problems should consult a physician before using the heater.
• Carbon monoxide poisoning: headaches, dizziness
and/or nausea. If you have these signs, the heater may not be working properly.
Get fresh air at once! Have the heater serviced. Some people are more affected by carbon monoxide than others.
These include pregnant women, persons with heart or lung diseas
those at high altitudes.
• Never use this heater in living or sleeping areas.
2. RISK OF BURNS / FIRE / EXPLOSION!
• NEVERuseany fuelotherthan1-Kkerosene,#1/#2 disel/fuel oil,JETAorJP-8 fuelsinthisheater.
• NEVER use use fuel such as gasoline, benzene, paint thinners or other oil compounds in this heater.
(RISK OF FIRE OR EXPLOSION)
• NEVER
• NEVER ill hot.
CAUTION:Hot while in operation. Do not touch. Keep children,
clothing and combustibles away from heater.
Minimum Clearances: Outlet: 8 feet (250cm) / Sides, top and rear: 4 feet (125cm)
• NEVER block air inlet (rear) or air outlet (front) of heater.
• NEVER use duct work in front or behind of heater.
• NEVER move or handle heater while it is hot, operating, or plugged in.
• NEVER transport heater with fuel in it’s tank.
• When used with an optional thermostat or if equipped with a thermostat, heater may start at any time.
• ALWAYS locate heater on a stable and level surface.
• ALWAYS keep children and animals away from heater.
• Bulk fuel storage should be a minimum of 25 ft. from heaters, torches, portable generators or other sources of ignition.
All fuel storage should be in accordance with federal, state or local authorities having jurisdiction.
3. RISK OF ELECTRIC SHOCK!
• on the model plate of the heater.
• Use only a three-prong, grounded outlet and extension cord.
• ALWAYS install the heater so that it is not directly exposed to waterspray, rain, dripping water or wind.
• ALWAYS unplug the heater when not in use.
MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in any
building which is used in whole or in part for human habitation. Use of this heating device in
CANADIAN RESIDENTS: Use of this heater shall be in accordance with authorities having
jurisdiction and CSA Standard B139.
NEW YORK CITY RESIDENTS: For use only at construction sites in accordance with applicable NYC
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
WARNING: This product and the fuel used to operate this product (kerosene or other
approved fuels), and the products of combustion of such fuel, can expose you to chemicals including
benzene, which is known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov

Figure 1.KFA650DGD MODEL
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
CONTENTS OF USER’S MANUAL
2
ITEM PAGE #
1EDIUGYTEFAS-SNOITUACERP
2NOITCUDORTNI.1
2SERUTAEF.2
3YLBMESSADNAGNIKCAPNU.3
4FUEL SELECTION.4
5NGISEDRETAEHFOWEIVREVO.5
5RETAEHRUOYGNILEUF.6
6NOITAREPO.7
8RETAEHRUOYFOEGAROTSMRETGNOL.8
9ECNANETNIAM.9
1. INTRODUCTION
Please read this USER’S MANUAL carefully. It will show you how to assemble, maintain, and operate the
heater safely and efficiently to obtain full benefits from its many built-in features.
2. FEATURES
Front Handle
Hot Air Outlet
Shell Lower
Fuel Gauge
Fuel Cap
Lamp
Thermostat Knob
Room Temp. Display
Operating Switch
Wheel
Fan Guard
Power Cord
Fuel Drain Bolt
Upper Shell
15
14
EDIUGGNITOOHSELBUORT11
REPLACING FUSE10
16MARGAIDGNIRIW12
17SNOITACIFICEPS13
18GNIWARDSTRAPDEDOLPXE14
19TSILSTRAP15

3
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
3. UNPACKING AND ASSEMBLY
1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (See Fig.2)
NOTE: Save the shipping carton and packing materials for future storage.
Figure 2. PACKING MATERIALS
2. ASSEMBLING
Tools Required
Medium Phillips Screwdriver.
24 Socket Wrench.
Assembling wheel &handle
1. Slide threaded axle through the rear section of the wheel support frame.
2. Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.
Attach one cap nut on to each side of the threaded axle and tighten well.
3. Loosen 4 screws on the front handle in order to remove handle front.
4. Move the removed handle front to the handle on the front side as Figure 5 and then tighten 4 screws
after matching handle and handle front.
CAUTION: DO NOT OPERATE heater without support frame assembled to tank.
Wheels Cap Nuts Bushings Threaded Axle
Hardware Kit
HW-KFA1020

4
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
Figure 3. Assembling Handle & Wheel and Cord wrap
Wheel
Cap Nut
Screw
Front Handle
Axle
Nut
Bushing
CAUTION: DO NOT OPERATE heater without support frame assembled to tank.
NOTE:
4. FUEL SELECTION
1. All models can use 7 different fuels: K1 Kerosene, #1 Fuel Oil, #1, Diesel, #2 Fuel Oil, #2 Diesel, Jet A, JP-8
2. K1 Kerosene is recommended for optimal combustion and performance, and for less maintenance. K1 is also
the optimal fuel choice in extremely low temperatures of 15°F or less, as its pour-point/"gel-point" varies
3. Jet A and JP-8 are also excellent choices for clean combustion, reduced maintenance, and temperatures below
15°F, but they are rarely found outside of the aviation industry or the military.
4. #1 Fuel Oil, #1 Diesel, #2 Fuel Oil, #2 Diesel are often selected, as they are readily available. However, the
following:
a. #1 Diesel and #1 Fuel Oil will have some degree of increased smoke/soot during ignition, increased smell,
and increased regular cleaning/maintenance. , burn dirtier than #1 fuels. The
use of #2 fuels will result in a little more smoke/soot during ignition, a greater increase in smell, and will
require more regular cleaning/maintenance than #1 fuels.
c. At temperatures lower than 15°F, most diesel/fuel oil blends will become more viscous (start to gel) as
the diesel falls below its pour point (starts to "gel"), and may pose a challenge igniting the heater and with
continuous operation of the heater. There are troubleshooting steps for this situation, but selecting K1 (or
JP-8/Jet A) is recommended when operating below 15°F. The colder the temperatures the more likely you
could problems you will experience diesel gelling.
temperature drops. At 32°F, the wax in liquid form will crystallize and leave the fuel clouded; this can start
correct which can cause white smoke and performance problems.
NEVER store kerosene in the living space. Kerosene should be stored in a well ventilated place outside the
living area.
NEVER use any fuel other than 1-K kerosene (#1/#2 diesel/fuel oil, JETA or JP-8 fuels are acceptable substitutes)
NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil
compounds in this heater. These are volatile fuels that can cause an explosion or uncontrolled
NEVER store kerosene in direct sunlight or near a source of heat.
NEVER use kerosene that has been stored from one season to the next. Kerosene deteriorates over time.
KEROSENE SHOULD ONLY BE STORED IN A BLUE CONTAINER THAT IS CLEARLY
MARKED “KEROSENE”. NEVER STORE KEROSENE IN A RED CONTAINER.
Red containers are associated with gasoline.
“OLD KEROSENE” WILL NOT BURN PROPERLY IN THIS HEATER.

5
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
5. OVERVIEW OF HEATERS DESIGN
Fuel System: This heater is equipped with a Fuel
pump(Gear)that pulls fuel through the fuel line connected
to the fuel tank and then pushes fuel through a filter and a
solenoid valve and out the burner head nozzle.
This fuel is sprayed into the combustion chamber in a
fine mist.
“Sure Fire Ignition”: The electronic ignitor sends
voltage to a specially designed spark plug.
The spark plug ignites the fuel and air mixture.
The Air System: The heavy duty motor turns a fan that forces air into and around the
combustion chamber. This air is heated and then forced out the front of the heater.
The Safety System:
A. Temperature Limit Control: This heater is equipped with a Temperature Limit Control designed to
turn off the heater should the internal temperature rise to an unsafe level.
If this device activates and turns your heater off it may require service.
C. Flame-Out Sensor : Utilizes a photocell to monitor the flame in burn chamber during normal operation.
It will cause the heater to shut-off should the burner flame extinguish.
6. FUELING YOUR HEATER
NEVER FILL THE HEATER FUEL TANK IN THE LIVING SPACE: FILL THE TANK
OUTDOORS.
DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED.
IMPORTANT NOTICE REGARDING FIRST IGNITION OF HEATER:
The first time you light the heater, it should be done outdoors. This allows the oils, etc. used in
manufacturing the heater to burn off outside.
WARNING!!: NEVER REFILL HEATER FUEL TANK WHEN HEATER IS OPERATING OR
STILL HOT.
Internal Shut-Off Temp. Reset Temperature
Plus/Minus 10 Degrees Plus/Minus 10 Degrees
160˚F/71˚C120˚F/49˚C
B. Electrical System Protection : This heaters electrical system is protected by a fuse mounted to the PCB
assembly that protects it and other electrical components from damage.
If your heater fails to operate check this fuse first and replace as needed.
FUSE TYPE: 250 VAC / 8 amps

6
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
7. OPERATION
A.) VENTILATION
RISK OF INDOOR AIR POLLUTION/USE HEATER ONLY IN WELL VENTILATED AREAS.
Provide at least a three-square foot (2,800 sq. cm.) opening of fresh outside air for each 100,000 BTU/Hr.
of heater rating.
B.) OPERATION
TO START HEATER
2. Attach fuel cap.
3. Plug power cord of heater into three-prong, grounded extension cord.
Extension cord must be at least six feet long.
Extension Cord Wire Size Requirements
• 6 to 100 feet long, use 14 AWG conductor.
• 101 to 200 feet long, use 12 AWG conductor.
• 201 to 300 feet long, use 10 AWG conductor.
• 301 to 400 feet long, use 8 AWG conductor.
• 401 to 500 feet long, use 6 AWG conductor.
INDICATOR LAMP
ROOM TEMP. DISPLAY
THERMOSTAT CONTROL KNOB
OPERATING SWITCH
Figure 4. CONTROL PARTS
NOTICE : The major electrical components of this heater are protected by a safety fuse mounted to the PCB board.
If your heater fails to start, check this fuse first and replace as necessary. You should also check your
power source to insure that proper voltage and frequency are being supplied to the heater.
4. Turn “Thermostat Control Knob” to desired setting (setting range : 40℉~110℉) and push operating
switch to “ON” position, power indicator lamp and room temp. display will light and heater will start.
NOTE: Room Temp. display indicates as following,
• When room temp. is less than 0℉ : “Lo”
• When room temp. is between 0℉and 99℉ : Indicates in figure.
• When room temp. is more than 99℉ : “Hi”
If heater does not start, the thermostat setting may be too low, turn “THERMOSTAT CONTROL
Knob” to higher position to start heater. If heater still does not start, turn operating switch to “OFF”
and then to “ON” position. (Figure 4). If heater still does not start, see Troubleshooting Guide on
page 13.
1. Fill fuel tank with fuel.
NOTE : Kerosene is recommended when the temperature drops below 0℉ (-18℃) to prevent
ignition delay or failure.

7
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
TO STOP HEATER
TO RESTART HEATER
1. Wait until cooling cycle is finished after stopping heater.
2. Repeat steps under to start HEATER.
The cooling cycle cools the combustion chamber.
CAUTION ; Never unplug heater while heater is running
Heater must go through cooling cycle. The cooling cycle cools the
combustion chamber. Damage to heater can occur if combustion chamber
is not cooled. Do not restart heater until cooling cycle is complete.
CAUTION ; Do not restart heater until cooling cycle is finished.
1. Turn operating switch to “OFF”.
This will cause heater flame to go out.
The motor will continue to run during the cooling cycle.
(Room Temp. Display will show “CC” during the cooling cycle)
This allows the fan to cool the combustion chamber. When the cooling cycle
(approx.1Min) is finished, the motor will stop.
Do not unplug heater until cooling cycle is finished.
2. Unplug power cord.
3. To temporarily stop heaters, set thermostat at a temperature lower than air around heater,
Heater will cycle back on if air temperature around heater matches thermostat setting.

8
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
8. LONG TERM STORAGE OF YOUR HEATER
1. Remove fuel drain bolt from rear bottom side of fuel tank using 3/4” socket or adjustable wrench and
drain.
2. Using a small amount of kerosene, swirl and rinse the inside of the tank.
NEVER mix water with the kerosene as it will cause rust inside the tank.
Pour the kerosene out making sure that you remove it all.
IMPORTANT : Do not store kerosene over summer months for use during next heating season.
Using old fuel could damage heater.
3. Reinstall Fuel Drain Bolt to Fuel tank and tighten firmly using 3/4” socket or adjustable wrench.
IMPORTANT : Before reinstalling the fuel drain bolt, make sure the seal is on the bolt. If the seal is
not used the bolt cannot be installed correctly and the fuel tank will leak.
4. Store heater in dry well ventilated area. Make sure storage place is free of dust and corrosive fumes.
5. Store the heater in the original box with the original packing material and keep the USER’S MANUAL
with the heater.
Fuel Drain Bolt
Seal
Figure 5. Drain Bolt

9. MAINTENANCE
WARNING!! NEVER SERVICE HEATER WHILE IT IS PLUGGED IN
OR WHILE HOT!
USE ORIGINAL EQUIPMENT REPLACEMENT PARTS. Use of third party
or other alternate components will void warranty and may cause unsafe
operating conditions.
A.) UPPER SHELL REMOVAL
B.) FAN BLADES AND AIR DEFLECTOR
CLEAN EVERY SEASON OR AS NEEDED.
- Remove upper shell (See figure 6 above)
- Clean fan blades and air deflectors using a soft cloth
moistened with kerosene or solvent.
- Dry fan blades and air deflectors thoroughly.
- Reinstall upper shell.
AIR DEFLECTOR
FAN BLADE
Figure 7. Fan Blades and Air Deflectors
-Remove screws along each side and top of
heater using medium phillips screw driver.
-Lift upper shell off.
(See Figure 6)
Figure 6. Upper Shell Removal
9
NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!
