Dynamic Saunas DYN-6209-01 User manual

1
DYN-6209-01 / DYN-6209-02 / DYN-6209-03
2 Person FAR Infrared Sauna
Owner’s Manual
CARBON MODEL SAUNA
SAUNA IS FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.

2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 9
Assembly Instructions 15
Operating the Sauna 21
Tips for Using Your Sauna 24
Safety Instructions 25
Safeguards for Your Sauna 27
Troubleshooting Guide 27
Warranty 33
Warranty Card 35
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Right Side Panel
1pc Left Side Panel 1pc Roof Panel 1pc Roof Cover
1pc Bench 1pc Bench Heat Emitter Panel 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

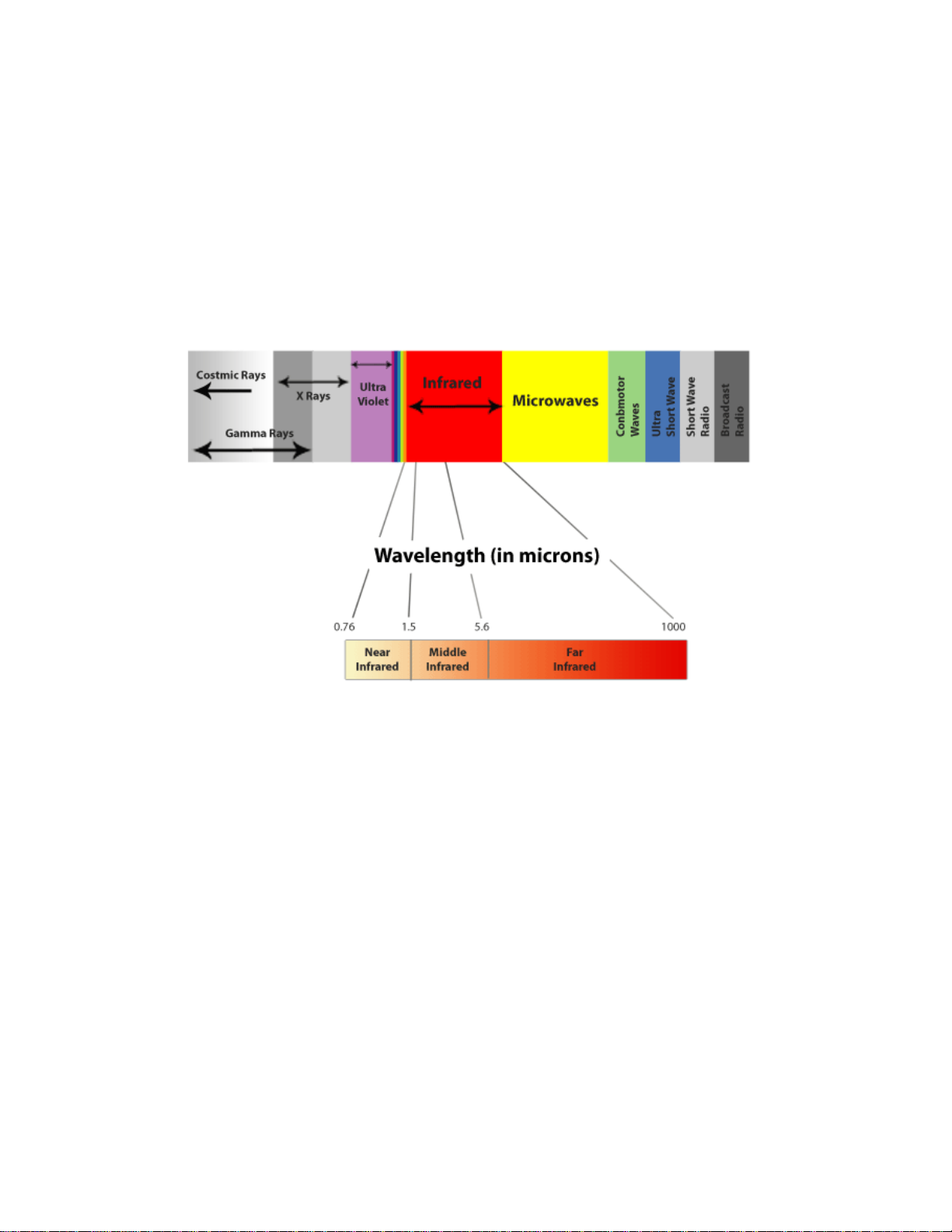

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. The magnetic field is
measured in milligauss (mG). Our sauna products have been developed to have low EMF.
Our Low EMF carbon heater panels range between an average of 5mG-10mG at about
two inches from the heater panel, our Ultra Low EMF sauna models range between 3mG-

4
5mG, and our Near Zero EMF models range at less than 3mG (NIR heaters range at about
5mG-7mG at the same approximate 2 inches).

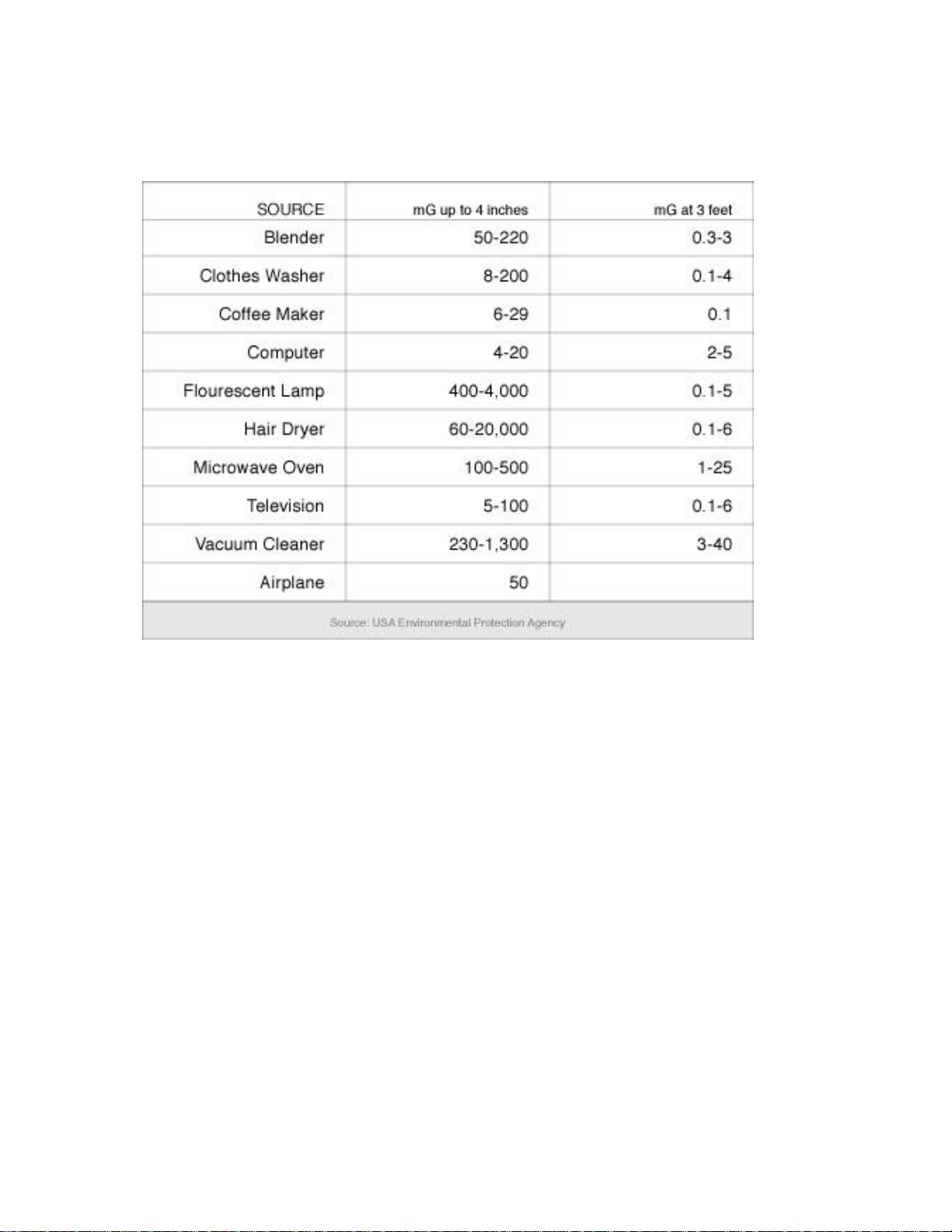

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short or long term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.

5
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to 120
degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.

6
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
Visual Assembly Diagram

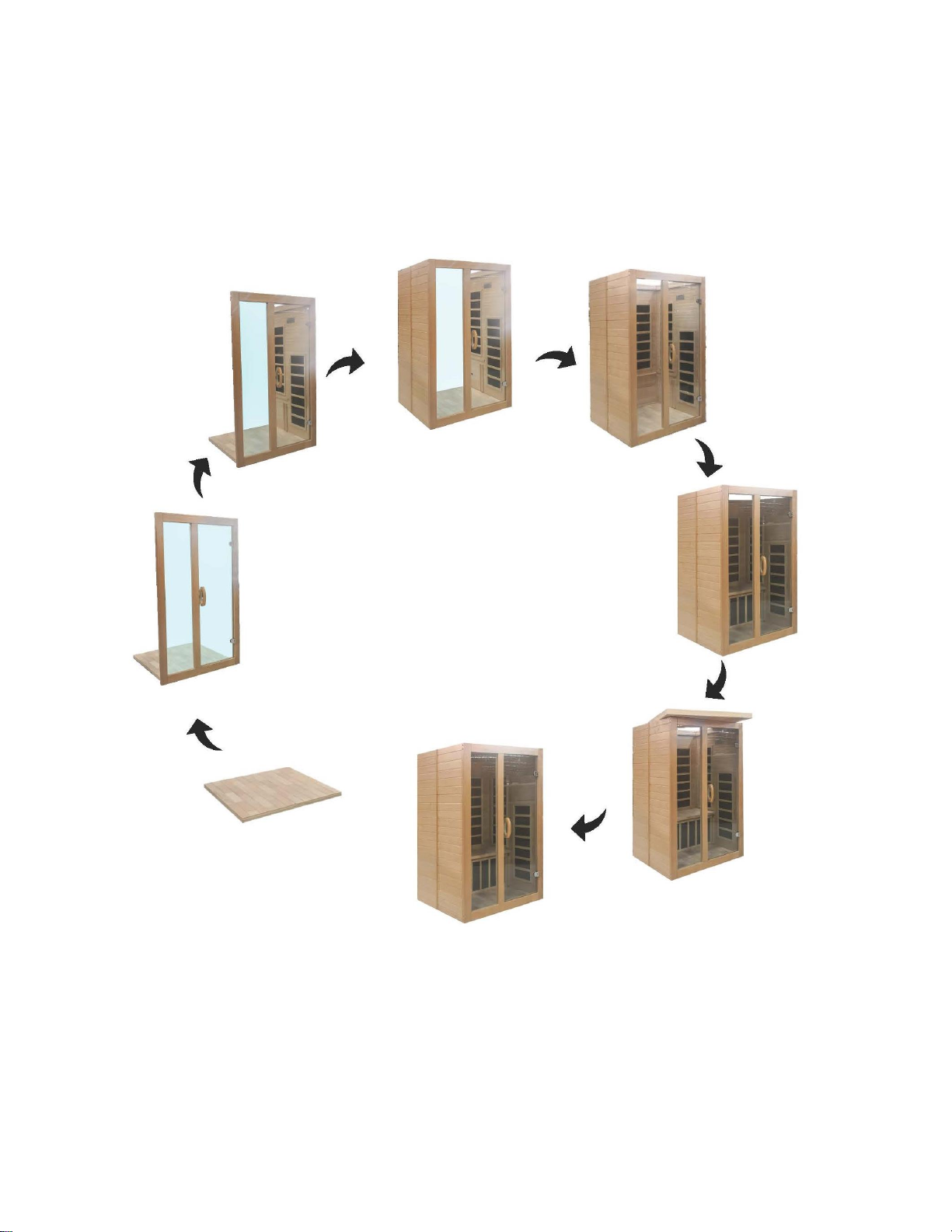

DYN-6209-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

7
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
Visual Assembly Diagram
DYN-6209-02
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

8
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

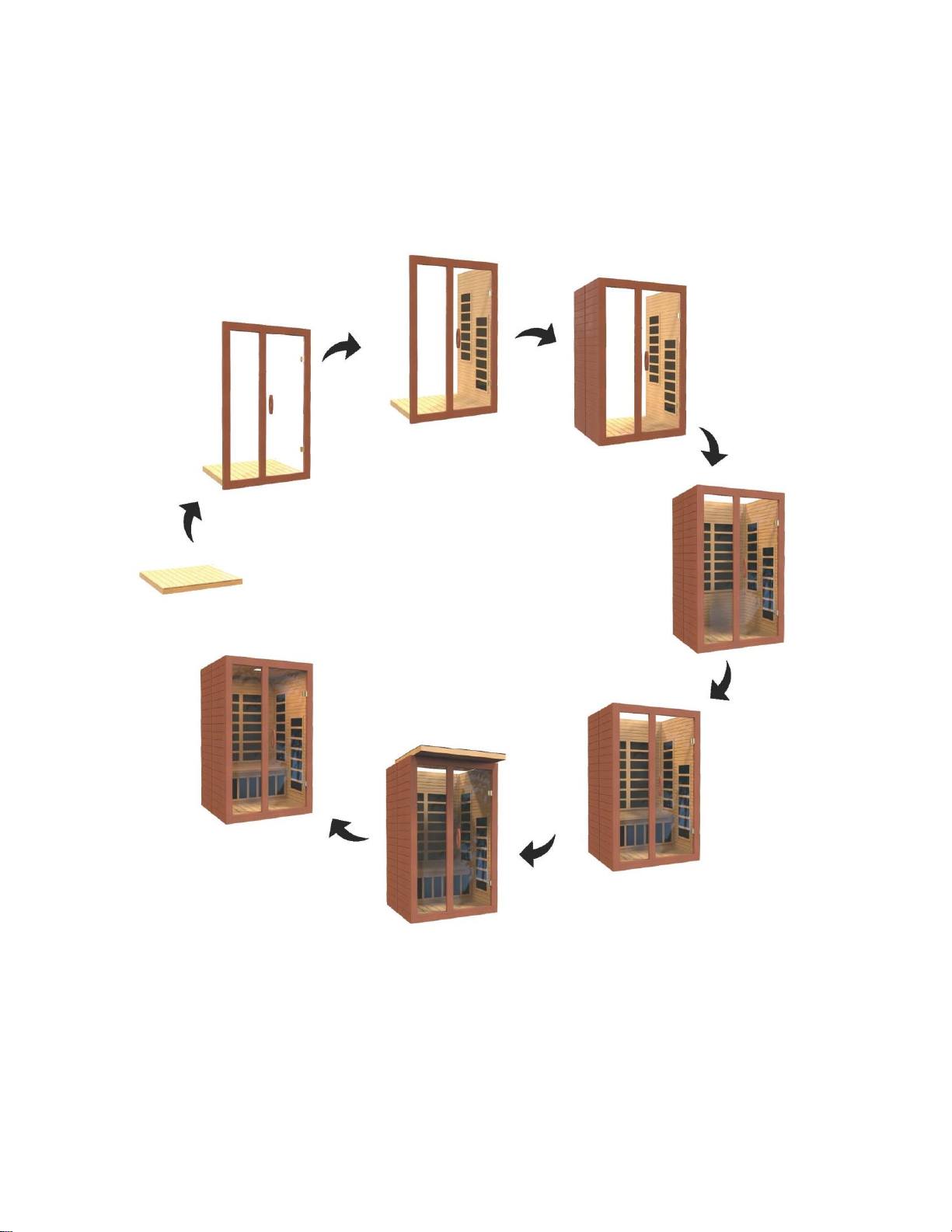

Visual Assembly Diagram
DYN-6209-03
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

9
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

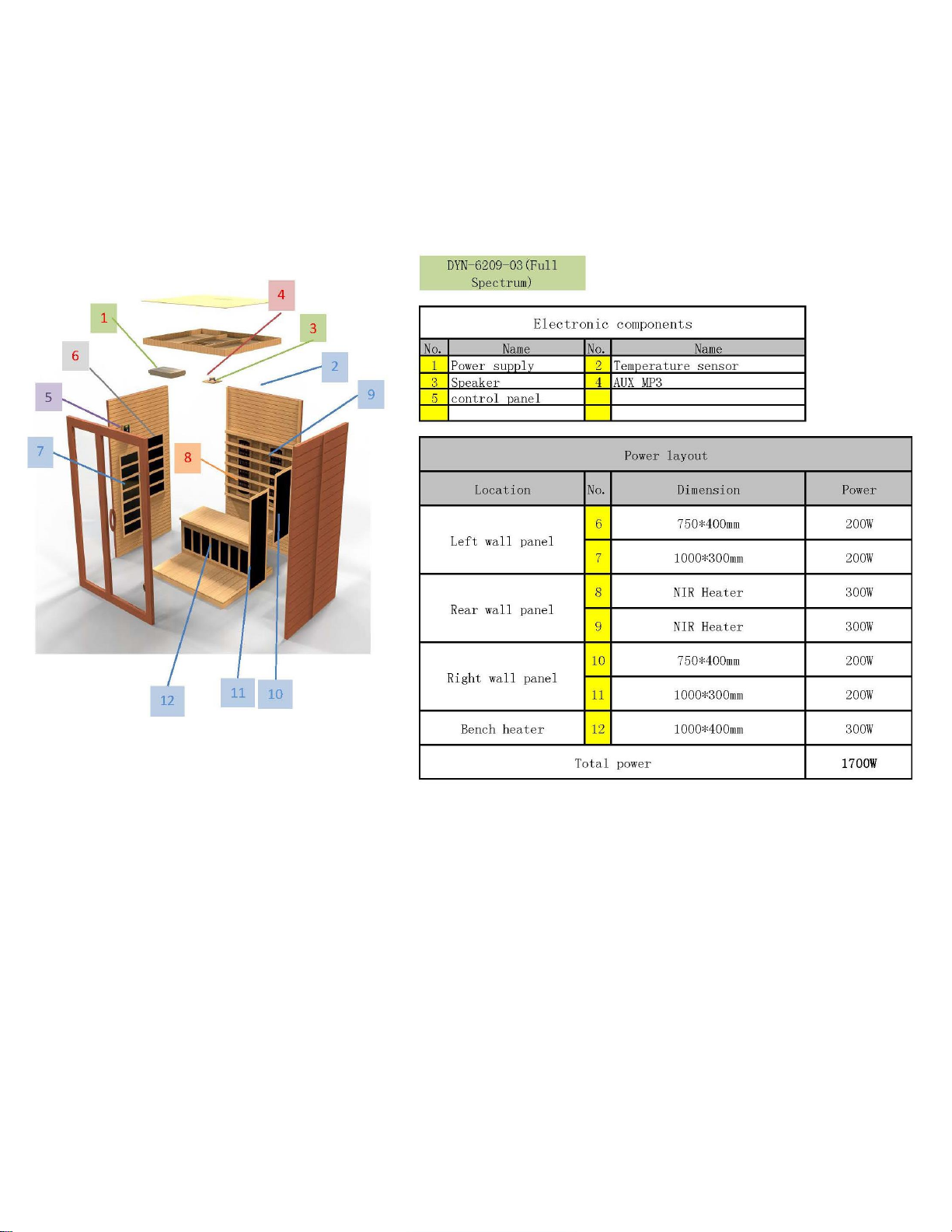

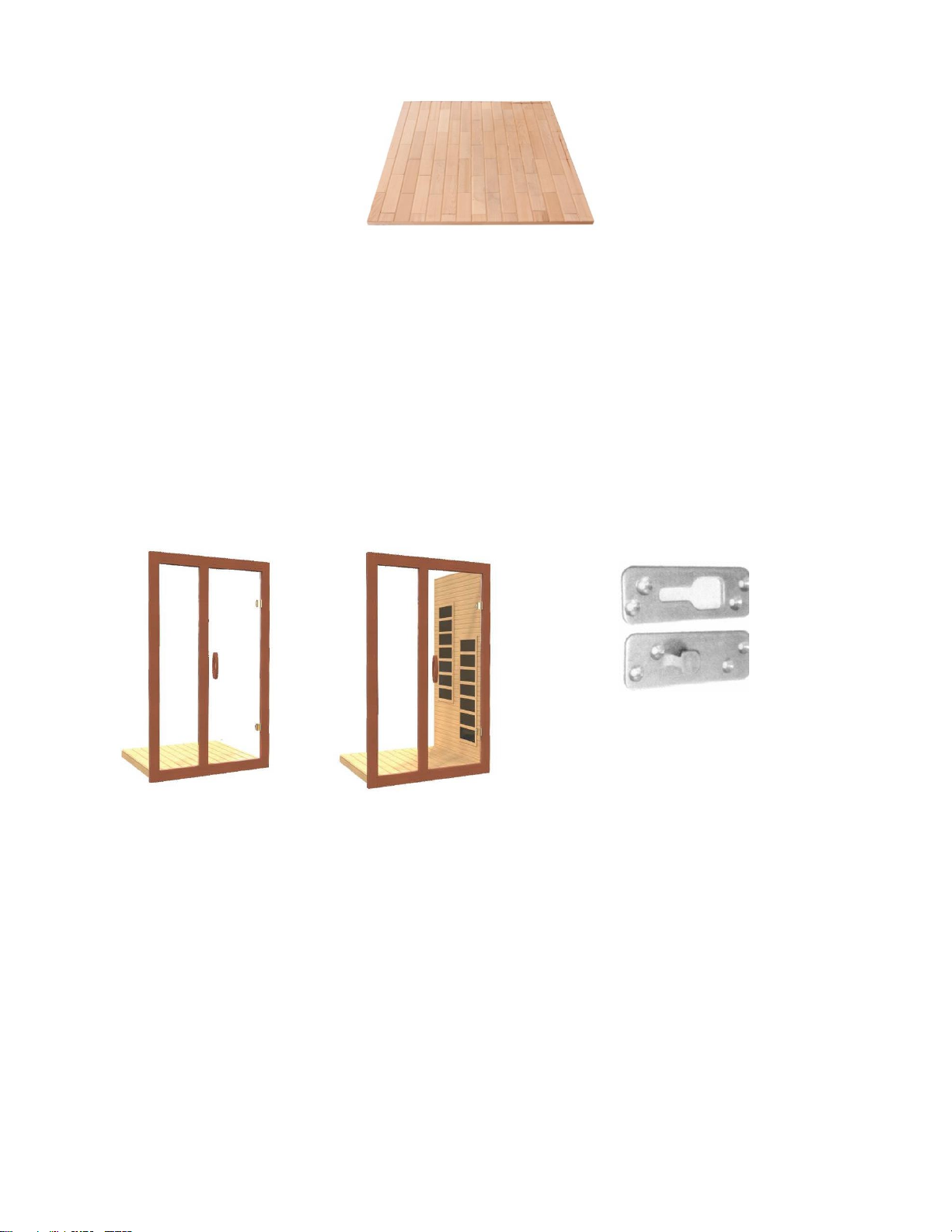

PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

10
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

11
*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*

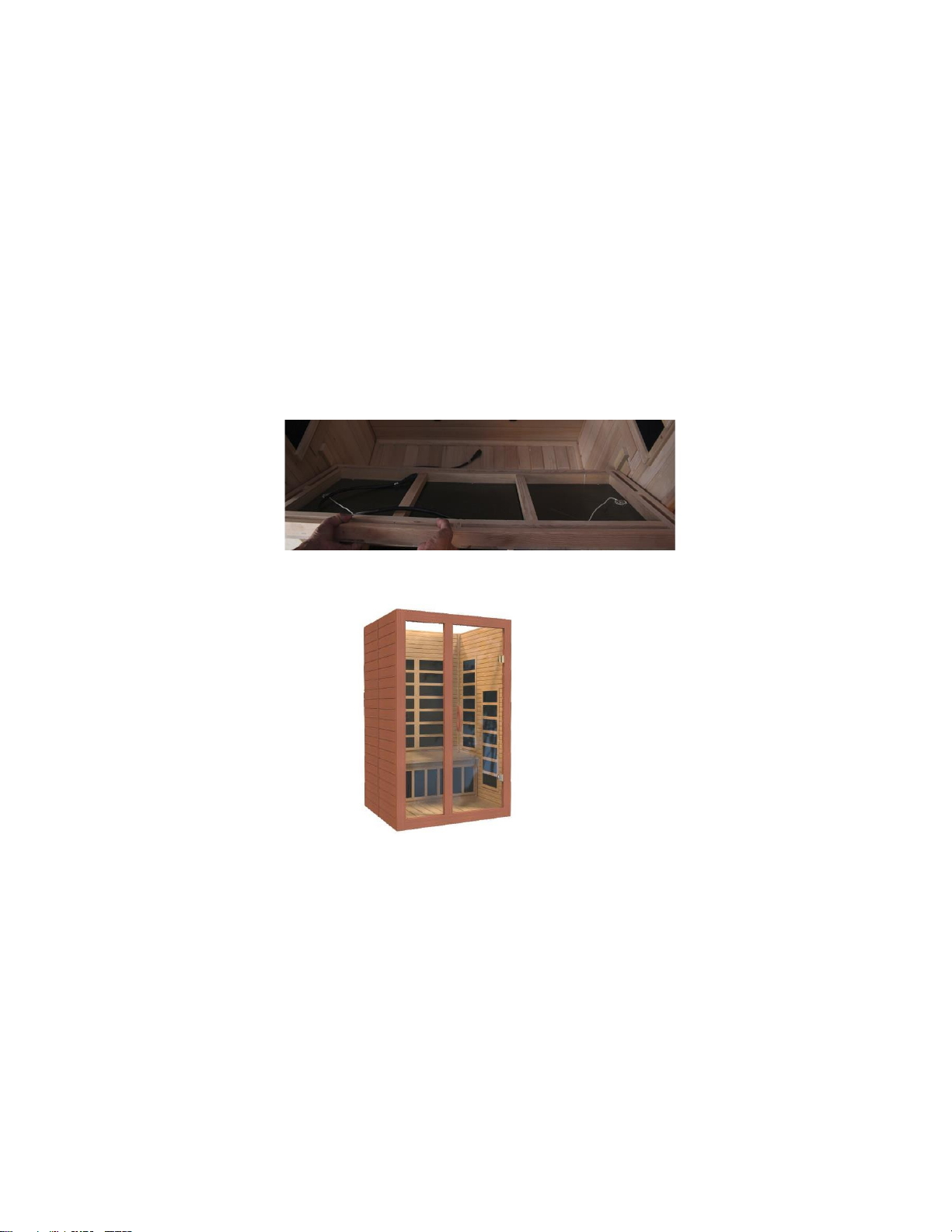

PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.

12
I. Power Supply
The POWER SUPPLY is the control center of the sauna room. It is installed on the
rooftop and has inputs/outputs connected to it. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this
port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel

13
III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the
auxiliary function to the speakers in the sauna room for your listening pleasure. (see
Figure 2)
Figure 2
IV. Buckles
A. External Buckles

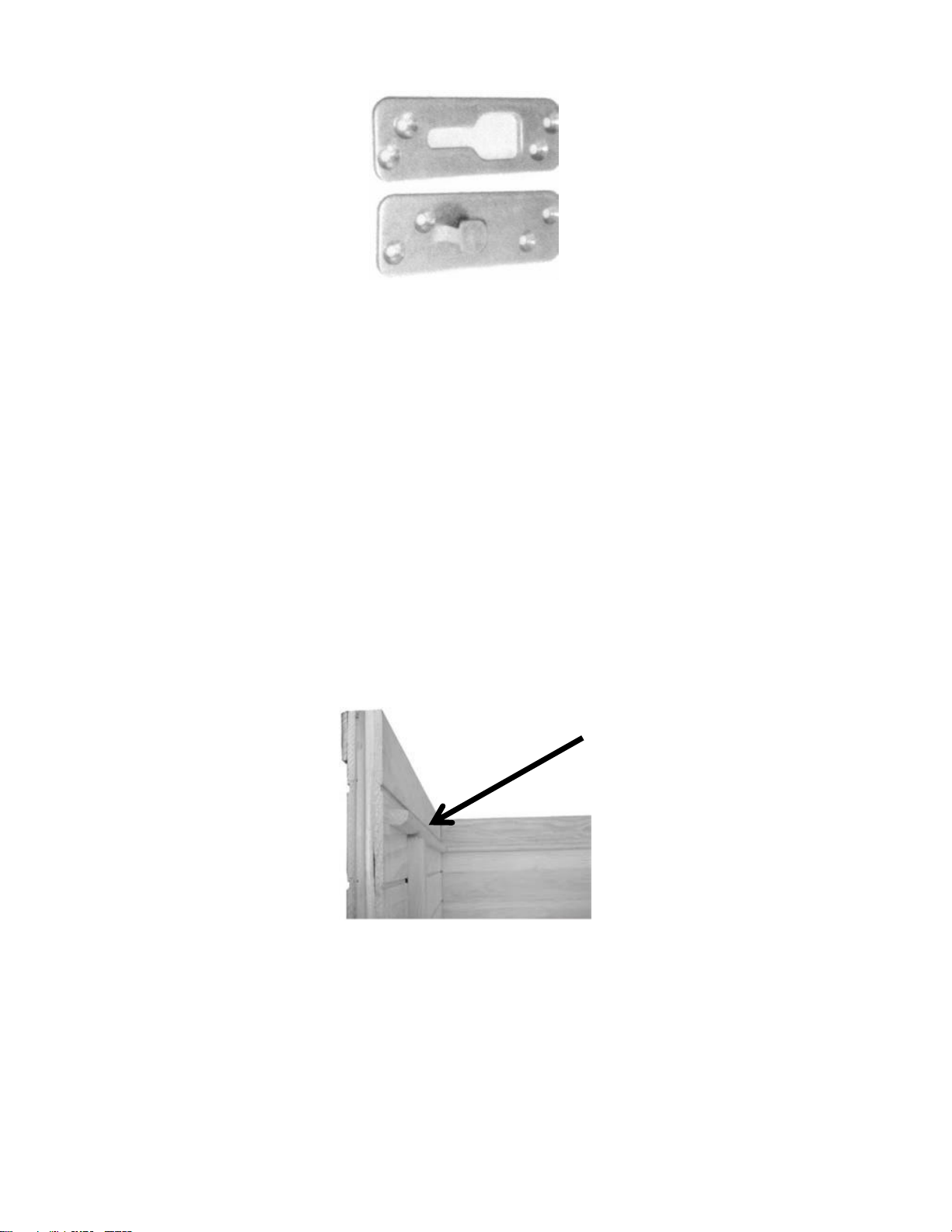

The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL
to the RIGHT SIDE PANEL and the LEFT SIDE PANEL. (see Figure
4)

14
Figure 4
V. Panel Descriptions
For easier assembly, please understand and distinguish the differences between
each panel.
A. Floor Panel
When the FLOOR PANEL faces upward, the surface will be flat. (see
Figure 7)
B. Understanding the Difference Between the Top and Bottom of the
Wall Panels
The (4) panels are in the upright position when the moldings are at the
top. The moldings will be facing inward towards the interior of the
sauna room. You will see the heat emitter cords coming from the
topside of the wall panels. (see Figure 5)
Molding
Figure 5
C. Rear Panel
The REAR PANEL is the panel with the buckles. The buckles are
mounted on the exterior side of the REAR PANEL. (see Figure 6)

15
Figure 6
D. Understanding the Difference Between the Inside and Outside of
the Rear Panel
You will find the heat emitters on the inside of the REAR PANEL.
Assembly Instructions
1. Choose a good location to assembly the sauna
a. The location must be dry, level, and away from any source of water.
b. The dedicated outlet must be easily accessible.
c. Two adults will be needed to assemble.
d. Wood Cabin Assembly: Floor Panel Front Panel Right Side Panel
Left Side Panel Rear Panel Bench Emitter
Panel Bench Roof Panel Roof Cover
The sauna can be assembled in different sequences, but the above is
recommended.
e. Tools Required: Philips screwdriver and ladder
2. Installing the FLOOR PANEL
A. Place the FLOOR PANEL onto your floor where the sauna is to be
assembled. The front side and back side are the same. (see Figure 7)

16
Figure 7
3. Installing the FRONT PANEL with the RIGHT SIDE PANEL with GLASS DOOR
A. Place the FRONT PANEL up against the FLOOR PANEL as seen in Figure
8. There will be a molding at the bottom of the FRONT PANEL that will rest
on the FLOOR PANEL. One adult will need to hold the FRONT PANEL
stationary up against the FLOOR PANEL. The second adult will need to lift
the RIGHT SIDE PANEL up and onto the FRONT WALL PANEL. Once the
guide and guide insert brackets are engaged, the RIGHT SIDE PANEL will
need to be pulled downward until the top of both wall panels is flush. Please
see Figure 9. Figure 10 shows the guide and guide insert brackets.
Figure 10
Figure 8 Figure 9
4. Installing the LEFT SIDE PANEL
A. One adult will need to hold the FRONT WALL PANEL stationary while the
second adult places the LEFT SIDE PANEL up against the FLOOR PANEL.
Next, the second adult will need to lift the LEFT SIDE PANEL up and onto the
FRONT WALL PANEL. Once the guide and guide insert brackets are engaged,
the LEFT SIDE PANEL will need to be pulled downward until the top of both wall
panels is flush. (see Figure 11)

17
Figure 11
5. Installing the REAR PANEL
A. Place the REAR PANEL up against the FLOOR PANEL. There will be a
molding at the bottom of the REAR PANEL that will rest on the FLOOR PANEL.
You may need to open up the RIGHT SIDE PANEL and LEFT SIDE PANEL to fit
the REAR PANEL between the two. Please note that the REAR PANEL will fit
with the RIGHT SIDE PANEL and LEFT SIDE PANEL like a puzzle as it inserts
into both side panels. Once the REAR PANEL is in place, you can buckle the
side panels to the REAR PANEL using the external buckles. (see Figure 12)
Figure 12
6. Installing the BENCH HEAT EMITTER PANEL and BENCH (Please note that
the BENCH and BENCH HEAT EMITTER PANEL do vary in installation and
design.)
Option 1
A. First, locate the BENCH HEAT EMITTER and slide it downward by aligning it
with the vertical guides on the side panels. The emitter grid will face outward
(toward the front of the sauna). Push the BENCH HEAT EMITTER PANEL all
the way down until it is resting on the FLOOR PANEL and secure in place.
B. Plug in the BENCH HEAT EMITTER connector to the inlet on the REAR
PANEL.

18
C. Install the BENCH by sliding it over the horizontal bench guides on the side
panels. Push the BENCH all the way in until it touches the REAR PANEL and is
secured in place. Make sure to install the BENCH with the smooth and finished
side facing up.
Option 2
A. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will
need to slide the BENCH HEAT EMITTER PANEL into place at an angle as
indicated in Figure 13. After the BENCH HEAT EMITTER PANEL is
installed, you can connect the BENCH HEAT EMITTER cord into the
applicable inlet on the REAR PANEL. Next, slide the BENCH over the
BENCH HEAT EMITTER PANEL. Make sure to slide the BENCH all the way
back. (see Figure 14)
Figure 13
Figure 14
*For model DYN-6209-03, you may need to remove the protection grid on the rear
wall panel to screw down the bench.
7. Installing the FRONT GLASS DOOR HANDLE
A. Next, the inner and outer door handles need to be mounted to the FRONT
GLASS DOOR. The natural finish side will need to be installed on the interior
side of the sauna room. The clear coat/stain finished side will be installed on the
exterior side of the sauna room. The screws will be used to mount the door
handle to the glass door.

19
8. Installing the ROOF PANEL
A. The side of the ROOF PANEL with the ceiling vent will be situated towards
the rear of the sauna. Two adults can carefully lift the ROOF PANEL up and
onto the top of the sauna room. Be careful when setting the ROOF PANEL into
place as the cords and wire harness will need to be fed up to the topside of the
ROOF PANEL. (see Figure 15)
Figure 15
9. Connecting the plugs on the ROOF PANEL
A. Connect the cords according to their respective labels. (see Figure 16)
B. Connect the CTRL connection from the power supply to the CTRL
connection from the control panel. (see Figure 16 & 16a)
Figure 16 Figure 16a
10. Installing the TEMPERATURE SENSOR
A. Enter the sauna and remove the protective covering (tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is
vertical and pointing downward. (see Figure 17)

20
Figure 17
Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside
the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit.
The manufacturer decides this according to sauna models and packaging.
11. Installing the ROOF DUST COVER (optional)
A. Place the ROOF DUST COVER over the top of the ROOF PANEL. Be
cautious when pulling the power cord through the hole in the ROOF DUST
COVER. When the edges are aligned, screw the ROOF DUST COVER into
place. The installation of the ROOF DUST COVER is optional.
12. Installing the SHELF (sauna may or may not have this option)
A. If your sauna came with the optional MP3 shelf, use the two screws provided
to mount the shelf on either of the interior side wall panels. (see Figure 18)
Figure 18
Assembly Completed
