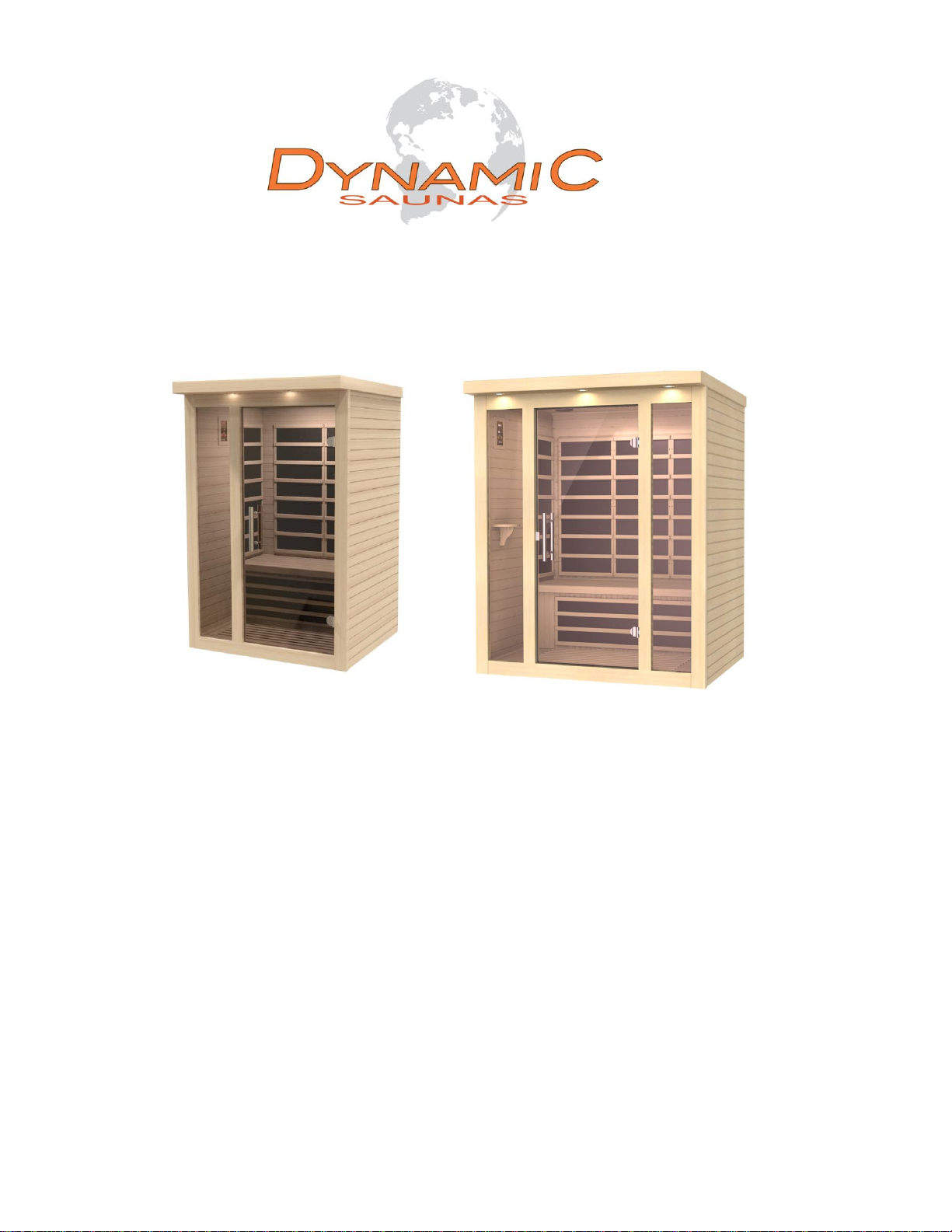

Dynamic Saunas DYN6215-02 User manual

1
DYN6215-02 / DYN6315-02
2 Person and 3 Person Model Saunas
OWNER’S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
DYN6215-02 - 120V 15 AMP DEDICATED CIRCUIT
DYN6315-02 - 120V 20 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

2
WHAT ARE INFRARED RAYS?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we
can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared
segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process
is called conversion.

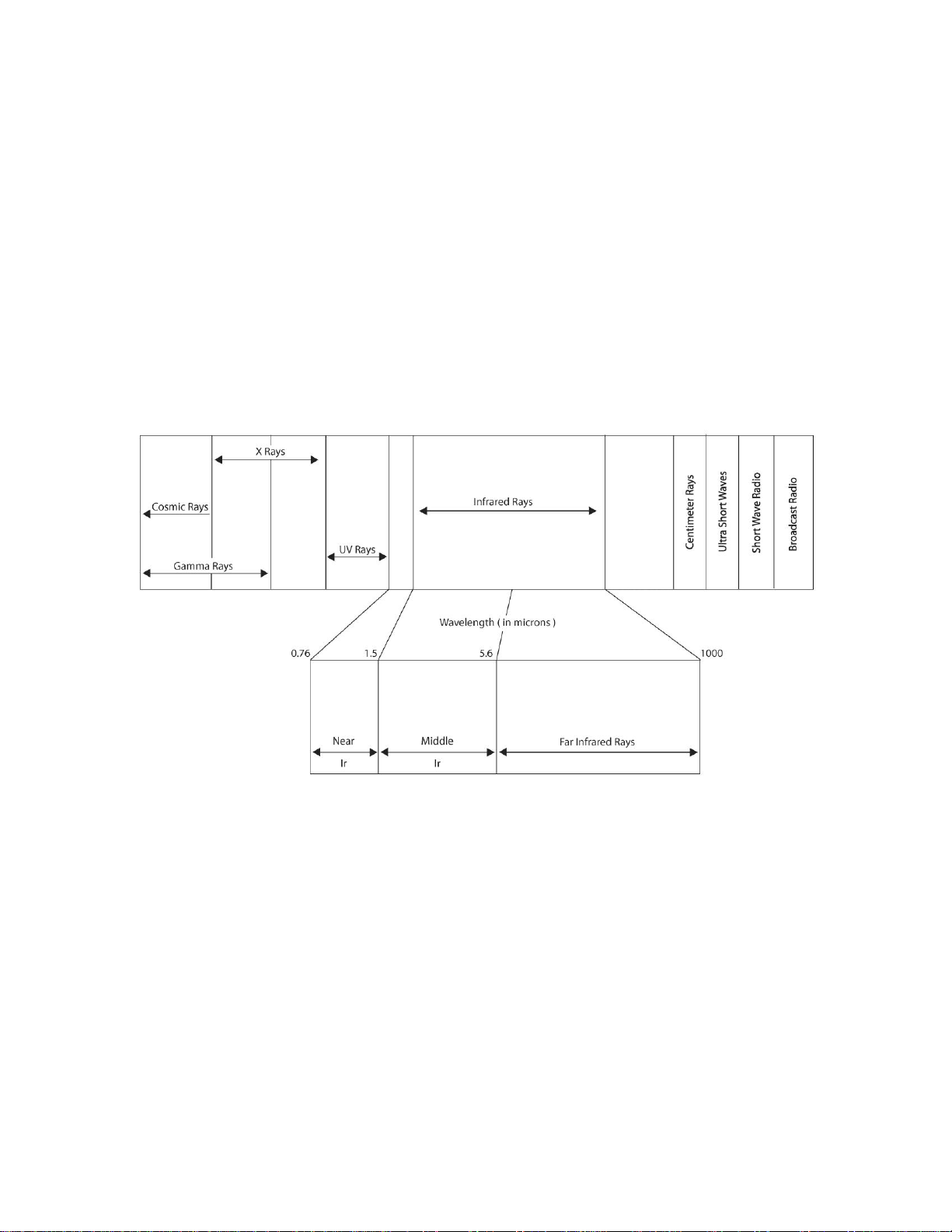

The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5
microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only
far infrared penetrates organic substances such as the human body two to three inches so that the
warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint
problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.

3
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.
Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.
BENEFITS
Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.

4
Benefits include, but are not limited to:
- Pain relief from Rheumatoid Arthritis
- Relaxing muscle spasms
- Increases blood circulation
- Cardiovascular conditioning
- Clears rashes, acne
- Reduces cellulite
- Removes toxins and mineral waste
- Reduces stress and fatigue
- Enhances skin tone
SAUNA MAINTENANCE
Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning
chemicals as they can be absorbed into the wood and be released into your sauna during use.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.
CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.

5
TABLE OF CONTENTS
Product Introduction 5
Parts Description 6
Assembly Instructions 10
Operating the Sauna 18
Tips for Using Your Sauna 20
Safety Instructions 20
Safeguards for Your Sauna 21
Troubleshooting Guide 22
Warranty 24
Warranty Card 25
WARNING: Visually inspect all heaters before assembly to make sure they are not
damaged. Any excessive vibrations during transport could cause damage to the
heating elements. DO NOT START the sauna if damage is detected! Contact your
dealer or manufacturer for troubleshooting and replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FLOOR PANEL, RIGHT SIDE WALL PANEL, FRONT PANEL with GLASS DOOR,
LEFT SIDE WALL PANEL, REAR WALL PANEL, ROOF PANEL, BENCH HEAT EMITTER PANEL, and
BENCH. The infrared sauna comes with an interior control panel, drink shelf/magazine rack/towel rack (all
optional), reading lamp and/or color therapy lighting, MP3 AUX Input jack, speakers, and infrared heat
emitters.
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary.

6
PARTS DESCRIPTION
DYN-6215-02
DYN-6315-02

7
I. Power Supply (Control Box)
The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and
has input/outputs connected to it as seen below. (see Figure 1)
Figure 1
MAIN POWER main power of the sauna room
HT1, HT2, HT3, HT4 emitter power output cords
LIGHT reading lamp power output cord
ROOF LAMP roof lamp power output cord (optional)
CTRL control panel connection
CD/SIG signal cable group
II. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
ROOF LAMP Roof lamp connector (not available on all models)
COLOR LAMP Color lamp connector (not available on all models)
CTRL Control panel connector
CD/SIG For speakers/temperature sensor/buzzer/etc. connectors
CD-POWER CD/radio power connector (not available on all models)
FAN-POWER CD/radio fan power connector (not available on all models)
ANALOG AUDIO Audio frequency signal connector
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
BUZZER Buzzer connector
TEMP SENSOR Temperature sensor

8

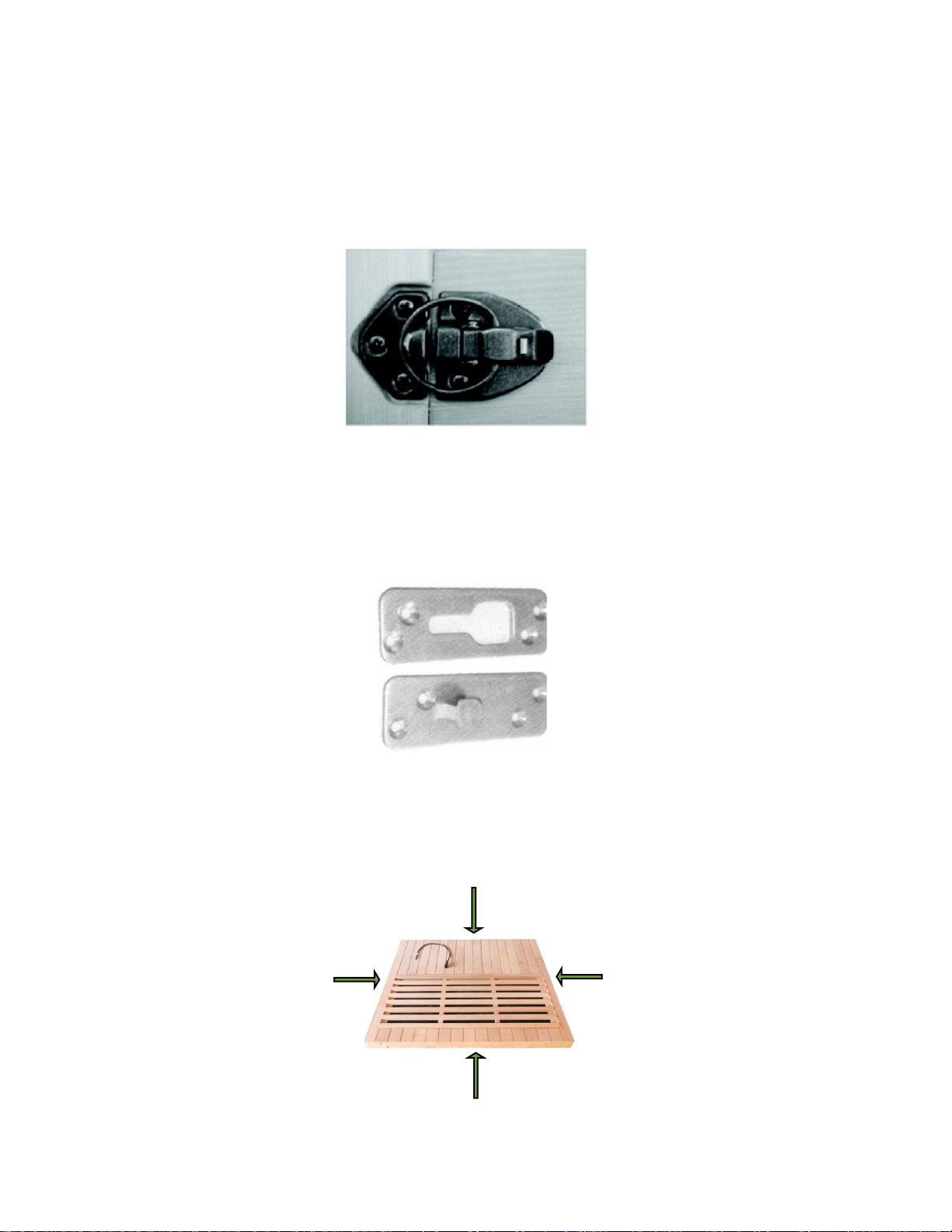

III. Buckles
A. External Buckles
The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL
PANEL and RIGHT SIDE WALL PANEL. (see Figure 2)
Figure 2
B. Metal Guide Insert Brackets
The Metal Guide Insert Brackets connect the FRONT WALL PANEL to the LEFT SIDE WALL
PANEL and RIGHT SIDE WALL PANEL. (see Figure 3)
Figure 3
C. Wall Panels Will Be Placed Up Against The FLOOR PANEL
The FLOOR HEAT EMITTER PANEL is located towards the front of the sauna room. The arrows
in the Figure 4 below are indicating where the wall panels will be placed up against the FLOOR
PANEL.
Figure 4

9
IV. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When you place the FLOOR PANEL at its designated location, leave enough space so that you
are able to move around the FLOOR PANEL in order to install the sauna wall panels. To identify
the front of the FLOOR PANEL, locate the FLOOR HEAT EMITTER PANEL (with the wood grid
cover). Again, this is going to be the front of the Sauna room once assembly is completed. (see
Figure 5)
Front of Sauna Room
Figure 5

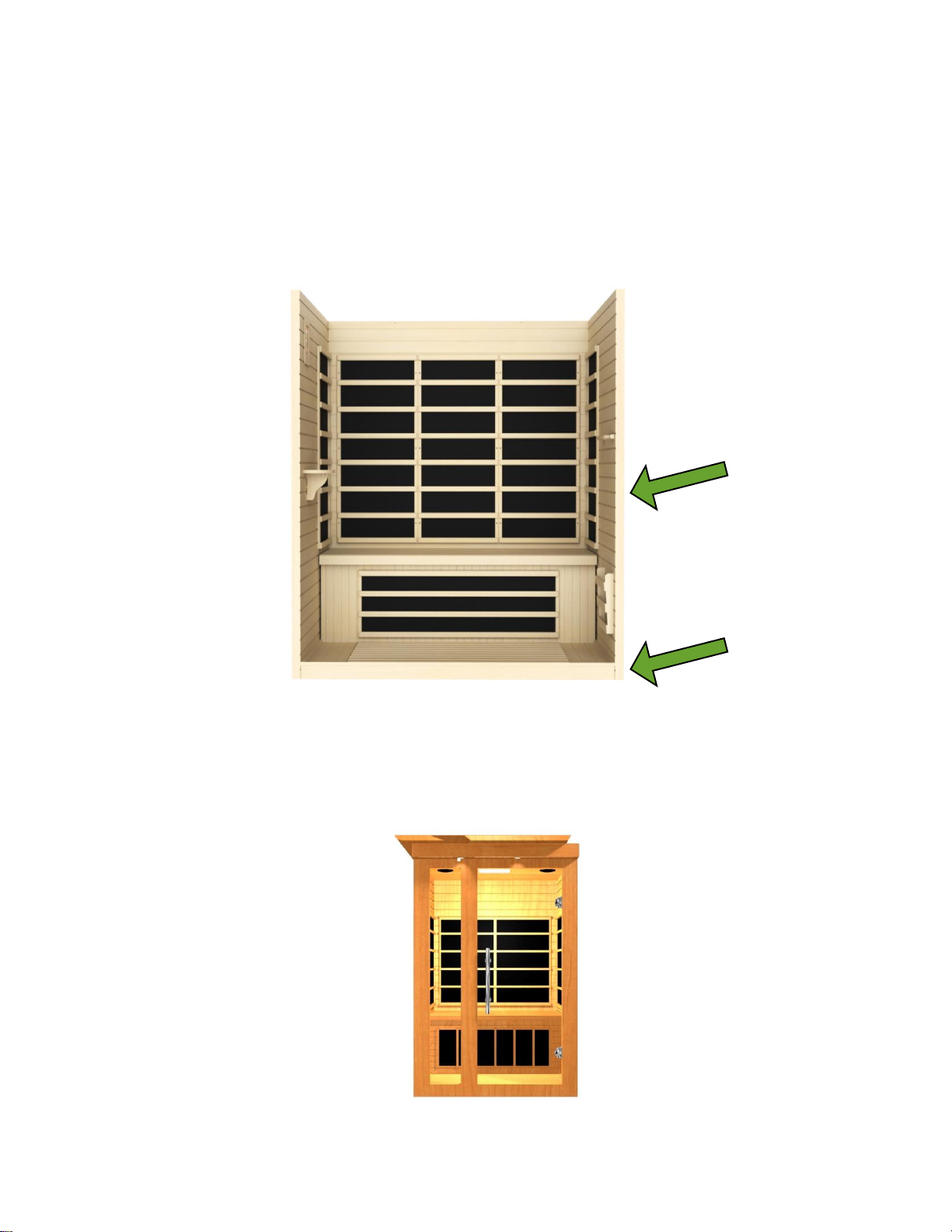

B. Understanding The Wall
The REAR WALL PANEL and the FRONT WALL PANEL with the GLASS DOOR are the largest
of the wall panels. The REAR WALL PANEL houses HEAT EMITTER PANELS. The wall panels
will have a ¼ round molding that will sit on the floor panel. (see Figure 6 and 7)
Figure 6 Figure 7

10
C. Roof Panel
The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp.
Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the
roof.
Assembly Instructions
A. Choose a good location to assemble the sauna
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Front Wall Panel Right Side Wall Panel 
Left Side Wall Panel Rear Wall Panel Bench Heat Emitter Panel Bench Roof
Panel Roof Cover
5. Tools Required: Philips Screwdriver and Ladder

11
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. Make sure the front side of the FLOOR PANEL is
facing the correct direction. (Please Note: The floor heater cord is located at the rear of the
sauna room.) (see Figure 8)
Floor Heater Cord
Figure 8
C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT SIDE WALL
PANEL
1. Place the FRONT WALL PANEL up against the FLOOR PANEL. Align the Metal Guide Insert
Brackets on the FRONT WALL PANEL and the RIGHT SIDE WALL PANEL. The RIGHT
SIDE WALL PANEL will need to be lifted in order to lock the Metal Guide Insert Brackets onto
the FRONT WALL PANEL. Secure into place by pulling downward on the RIGHT SIDE WALL
PANEL. Make sure the Metal Guide Insert Brackets are locked into place and the top of the
FRONT WALL PANEL is flush with the RIGHT SIDE WALL PANEL. Do the same for the
LEFT SIDE WALL PANEL. (see Figure 9)
Figure 9

12
D. Installing the REAR PANEL
1. Remove the protection paper from the buckles on the REAR WALL PANEL. Place the REAR
WALL PANEL up against the FLOOR PANEL with the ¼ round molding resting on the FLOOR
PANEL. Next, attach the REAR WALL PANEL to the RIGHT SIDE WALL PANEL and use the
buckles to latch together. Do the same for the LEFT SIDE WALL PANEL. (see Figure 10)
Figure 10
E. Installing the BENCH HEAT EMITTER PANEL and BENCH
1. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the
BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below.
(see Figure 11)
2. Plug in the BENCH HEAT EMITTER connector to the corresponding inlet located on the right
side of the REAR WALL PANEL. Also plug in the FLOOR HEAT EMITTER PANEL connector
to the corresponding inlet on the left side of the REAR WALL PANEL.
3. Install the BENCH at an angle as also seen in Figure 11. Connect the connection for the
Accent LED lighting on the underside of the bench. Please note that one end of the LED
lighting wire will have an open connection. Then slide it over the horizontal bench guides on
the side panels. Slide the BENCH all the way in and against the REAR WALL PANEL. Make
sure to install the BENCH with the smooth and finished side facing upward. If screws were
provided, use them to screw down the bench.

13
Figure 11
F. Installing the FRONT GLASS DOOR HANDLE
1. Now that the FRONT WALL PANEL has already been installed, the inner and outer door
handles need to be mounted to the FRONT GLASS DOOR. According to Figure 12 and
Figure 13, the FRONT GLASS DOOR must sit between the (2) white washers. The screws
are inserted from the inside of the FRONT GLASS DOOR and screwed into the outer
handle. BE SURE NOT TO OVER TIGHTEN THE SCREWS OR YOU WILL SHATTER THE
FRONT GLASS DOOR. Next, the inner door handle needs to be inserted over the screws.
Used the provided Hex Wrench to tighten the (4) hex screws. (see Figure 14)

14
Figure 13
Figure 12 Figure 14
G. Installing the ROOF PANEL
1. The side of the ROOF PANEL with the power supply (control box) is the top of the ROOF
PANEL.
2. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires
coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the
panels. Feed the wires through the holes in the ROOF PANEL. Feed the control cable and
buzzer plug up through the ROOF PANEL.
3. Be careful not to force the ROOF PANEL into place. Make sure that the wires are properly
fed through the holes. Furthermore, make sure the ROOF PANEL sits snugly into the RIGHT
SIDE WALL PANEL and RIGHT FRONT WALL PANEL. Pull down on the ROOF PANEL
slightly to make sure it is secured in place. (see Figure 15)

15
Figure 15
H. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to their respective labels. (see Figure 16)
2. Connect the CTRL plug from the power supply box to the CTRL plug from the control panel.
Then screw together. (see Figure 17)
3. Connect the buzzer connection. (see Figure 18)
4. On the top of the roof and at the rear, connect the connection for the Accent LED lighting.
Figure 16 Figure 17
Figure 18

16
I. Installing the TEMPERATURE SENSOR and Optional MAGAZINE RACK/TOWEL RACK
1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see
Figure 19)
Figure 19

17
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the
TEMPERATURE SENSOR is damaged during transit. The manufacturer decides this
according to sauna models and packaging.
2. If your sauna comes with the optional Magazine Rack and/or optional Towel Rack
and/or optional shelf, use the screws provided to mount the these accessories. (see
Figure 20)
Towel Rack
Magazine Rack
Figure 20
J. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord
through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL.
When the edges are aligned, screw the ROOF COVER to the roof panel. (see Figure 21)
Figure 21

18
Operating the Sauna
NOTE: Before the sauna is turned on, remove plastic protective covering from the
CONTROL PANELS. Please check and confirm that the connections to the POWER
SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected
properly. The power supply voltage and frequency must match the requested voltage
and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP
Dedicated Circuit).
Since many materials absorb the infrared rays, minimal clothing is recommended for
maximum effect. The infrared sauna emitters are designed to heat you and not
necessarily the air inside the sauna. It is not a hot box like a traditional sauna. The
temperature gauge is a guide for your safety. It is recommended that you drink water
before, during, and after sauna use to prevent dehydration since body fluids will be lost
through perspiration. It is not recommended to shower after use since the pores in your
skin will be open and could possibly absorb anything in the water.
Control Panel
1. Plug the sauna into the outlet receptacle.
2. Press the button once. The POWER light will come on, the TIME DISPLAY will show 90
(minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel
will flash.
3. Press the button and then the up/down arrows to adjust the amount of time you want the
sauna to remain on. Press the C/F button to choose between Celsius and Fahrenheit. Press the
button and then the up/down arrows to adjust the temperature setting. Once you have set
these adjustments to the desired settings, press the button. You will need to pre-heat the
sauna room to the set temperature before entering. Please keep in mind that you will increase the
time it takes for the sauna room to reach the set temperature if you enter the sauna room before it
has reached the set temperature.
4. The set-up time will count downward in minutes one by one. The time will continue to count
downward unless you interrupt the time by pressing the clock button and then adjust the time to
your preference by pressing the up/down arrow buttons. Once again, you can adjust the time in
minutes by pressing the button and then the up/down arrows. If you do choose to adjust the
time, the control panel will flash and the emitters will stop generating heat. Once you set the time
to the desired setting, then press the button twice and the control panel will stop flashing and
heat will began coming from the emitters once again.
5. Heating times do vary. Generally, it will take approximately twenty to thirty minutes to preheat the
sauna to 50 degrees Celsius / 122 degrees Fahrenheit. When the ambient temperature is low,
heating requires additional time. For the first few times of use, you may use 46 degrees Celsius
/115 degrees Fahrenheit as a reference starting point for a time period of about 15 minutes (this
represents the actual time you are in the sauna at the desired temperature). As you become more
comfortable and familiar with the sauna, you can increase the temperature and time period
according to personal preference.
6. When the temperature is at the set-up value, the digital control will maintain the set temperature.
The emitters will stop generating heat. Once the inside temperature drops approximately 4

19
degrees, the heat will again be generated by the emitters. The inside temperature will always
remain around the set-up value.
7. Reading lamps and/or roof lamps and/or color therapy lamps are operated by pressing the
button located on the control panel. These lamps are offered on some models and are not
available on all models. When you press the button once, the interior light will come ON.
When you press the button twice, the interior light will turn OFF. When you press the
button three times, the interior white light and exterior white lights will come ON. When you press
the button four times, both the interior and exterior lights will turn OFF.
8. Chromotherapy/Color Therapy Lighting (optional/not available on all models) can be
operated as follows. First, you will need to install the battery. Once the battery has been inserted
into the remote, you are ready to operate the chromotherapy/colortherapy lighting system. Press
the button on the sauna control panel. The white light will come on. While pointing the
remote at the ceiling light, you can press any of the colors on the remote and that color will be
displayed. You can use the SHADE button on the remote to go through a sequence of colors. If
you want to turn the light off during your sauna session, you can press the POWER button on the
remote. Please note: You must be inside the sauna room for the remote to work.
9. Bluetooth can be used on the sauna room. You first will need to pair your device with the sauna
room. Open your device’s Settings Menu and then locate and open Bluetooth. You will find
iSauna. Now you can pair your device with iSauna. If you are prompted to enter a
passcode, try entering 0000 or 1234. Once pairing is successful, your device will be connected.
Control Panel (Optional)
Power On/Off: Press to control the main power of the sauna
Work Start/Stop: Press to control the working functions of the sauna
Light: Press to control the lighting function
Time Function: Press to get into the timer function
Time Adjust: Press to adjust the timer setting
Temperature Display: Press to get into the temperature function
Temperature Adjust: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0C/0F
Bluetooth: Control panel can be connected to devices to play music

20
Tips for using Your Sauna
1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience
more comfort.
2) Drink water prior to, during, and after your sauna session to replenish body fluids.
3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation
or leave the door open slightly. The roof ventilation is installed on the sauna and used based on
personal preference.
4) Use 2 or 3 towels during your sauna session. Fold one of the towels several times and place it on the
bench. This towel will absorb some of your perspiration while adding comfort as you sit on the bench.
Place another towel on the floor to absorb perspiration as it falls from your body. If your model sauna has
a floor heat emitter, do not place any towels over the floor heat emitter. Use the additional towel to
wipe perspiration from your body from time to time.
5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your
immune system and decreasing the reproductive rate of viruses.
6) To help relieve sore and tense muscles, massage the affected areas during your sauna session.
7) To treat your ankles and feet more effectively, you can elevate them and move them close to one of the
heat emitters to achieve a deep heating effect.
8) To utilize the sauna's heat therapy effect, put oil or treatment into your hair and wrap it with a towel. After
your sauna session is over, rinse your hair thoroughly. Please follow the product directions for the
intended benefits.
9) The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
10) To conserve energy consumption, please unplug your sauna when not in use.
11) After the sauna session is over, do not jump into the shower or bath immediately. Because your body
was heated up during the sauna session, it will continue to perspire even after the heat emitters are off.
Sit in the sauna with the door open slightly and let your body cool down. Once your body has cooled
down and you feel comfortable, you can exit the sauna. After about twenty minutes and when your body
has completely cooled down, you can take a shower to rinse the perspiration off your body.
Safety Instructions
1. Read and follow all instructions carefully before using the sauna.
2. When installing and using the electrical equipment, safety precautions should always be followed.
3. To reduce the risk of injury, do not allow children to use the sauna unless they are closely supervised
at all times by an adult.
4. Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to
allow the body to cool down completely.
5. Pregnant or possibly pregnant women should contact their physician prior to using the sauna.
Excessive temperature has a high potential for causing fetal damage during pregnancy.
6. Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of
excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting. The effects of excessive
hyperthermia may include failure to perceive heat, physical inability to exit sauna, unawareness of
impending hazard, unconsciousness and fetal damage in pregnant women. Hyperthermia could make
your body's core temperature rise. Setting desired temperature to an excessively high temperature is
not recommended.
7. The use of alcohol, drugs, or medications prior to or during the sauna session may lead to
unconsciousness and/or other harmful physical injuries .
