Infrared Sauna Instruction Manual
Models: DYN-6215-02 / DYN-6315-02
2 & 3 Person FAR Infrared Saunas
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required (2 Person Models)
120VAC 20AMP Dedicated Circuit Required (3 Person Models)
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.

2
TABLEOFCONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 8
Assembly Instructions 13
Operating the Sauna 20
Tips for Using Your Sauna 23
Safety Instructions 23
Safeguards for Your Sauna 25
Troubleshooting Guide 26
Warranty 32
Warranty Card 35
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Right Side Panel
1pc Left Side Panel 1pc Roof Panel 1pc Roof Cover
1pc Bench 1pc Bench Heat Emitter Panel 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

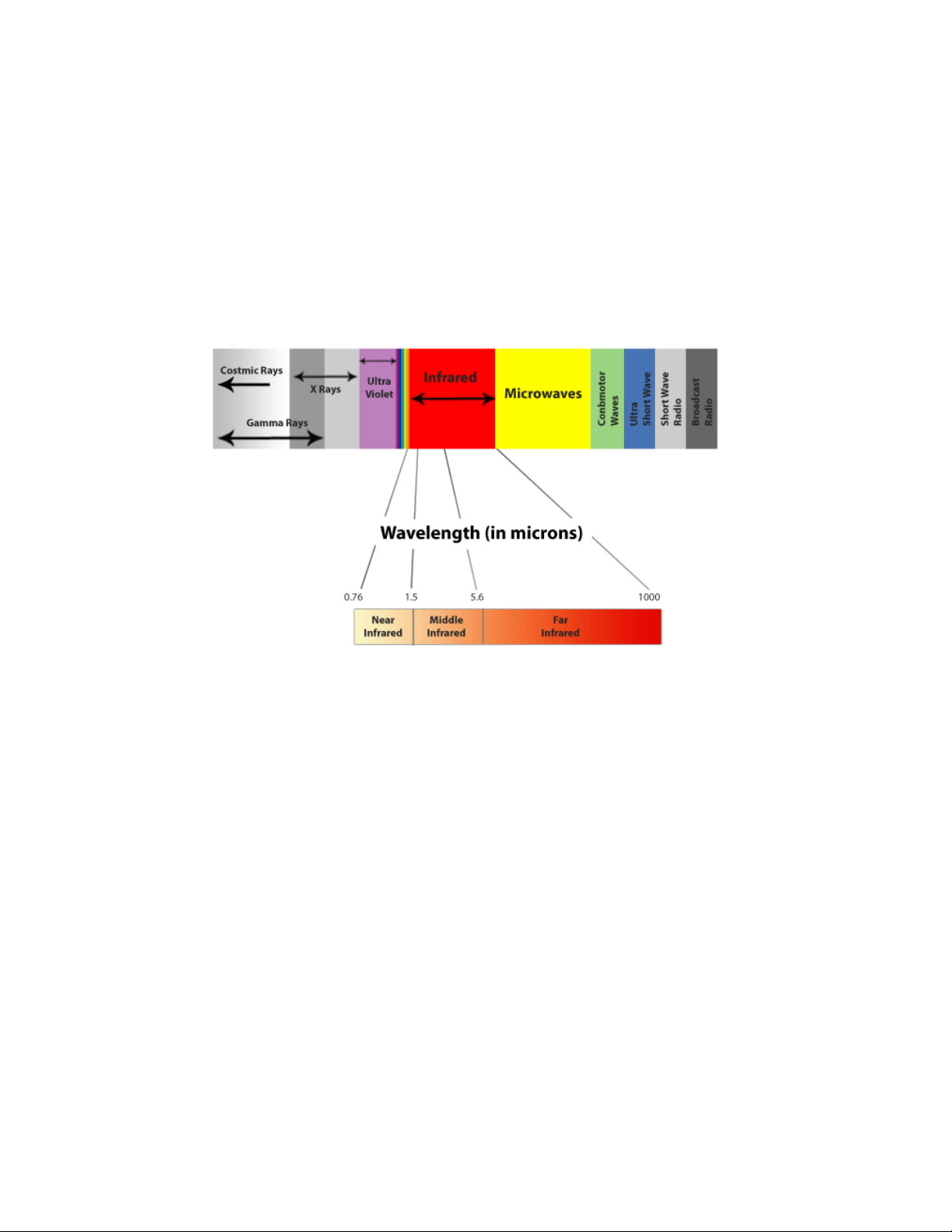

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. The magnetic field is
measured in milligauss (mG). Our sauna products have been developed to have low EMF.
Our Low EMF sauna models range between an average of 5mG-10mG at about two
inches from the heater panel and our Ultra Low EMF sauna models range between 3mG-
5mG at the same approximate distance.

4

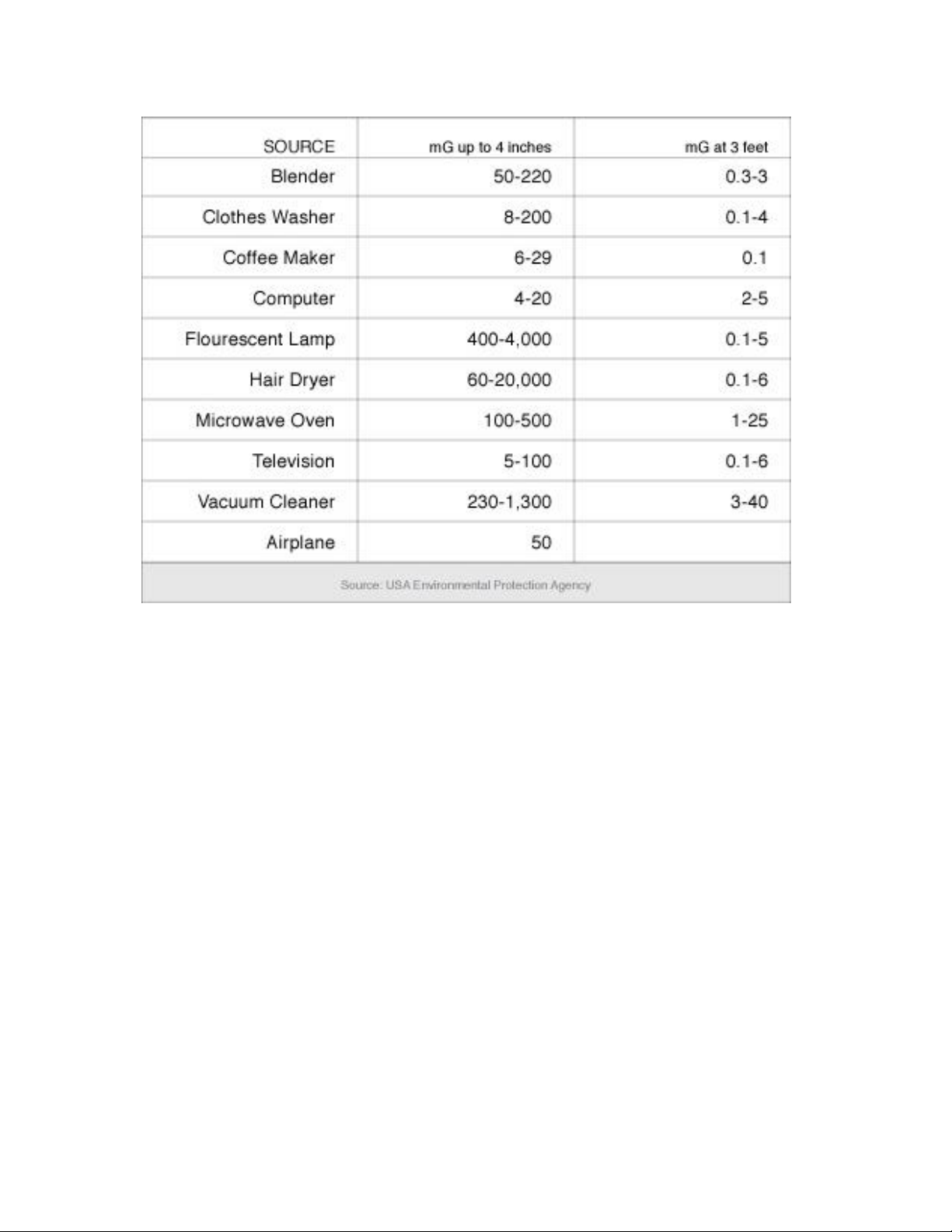

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short or long term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.

5
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to 120
degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.

6
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
Visual Assembly Diagram
DYN-6215-02
*The above assembly diagram is for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Backrests are sold separately.

7
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
Visual Assembly Diagram
DYN-6315-02
*The above assembly diagram is for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Backrests are sold separately.

8
PARTS DESCRIPTION
DYN-6215-02
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.

9

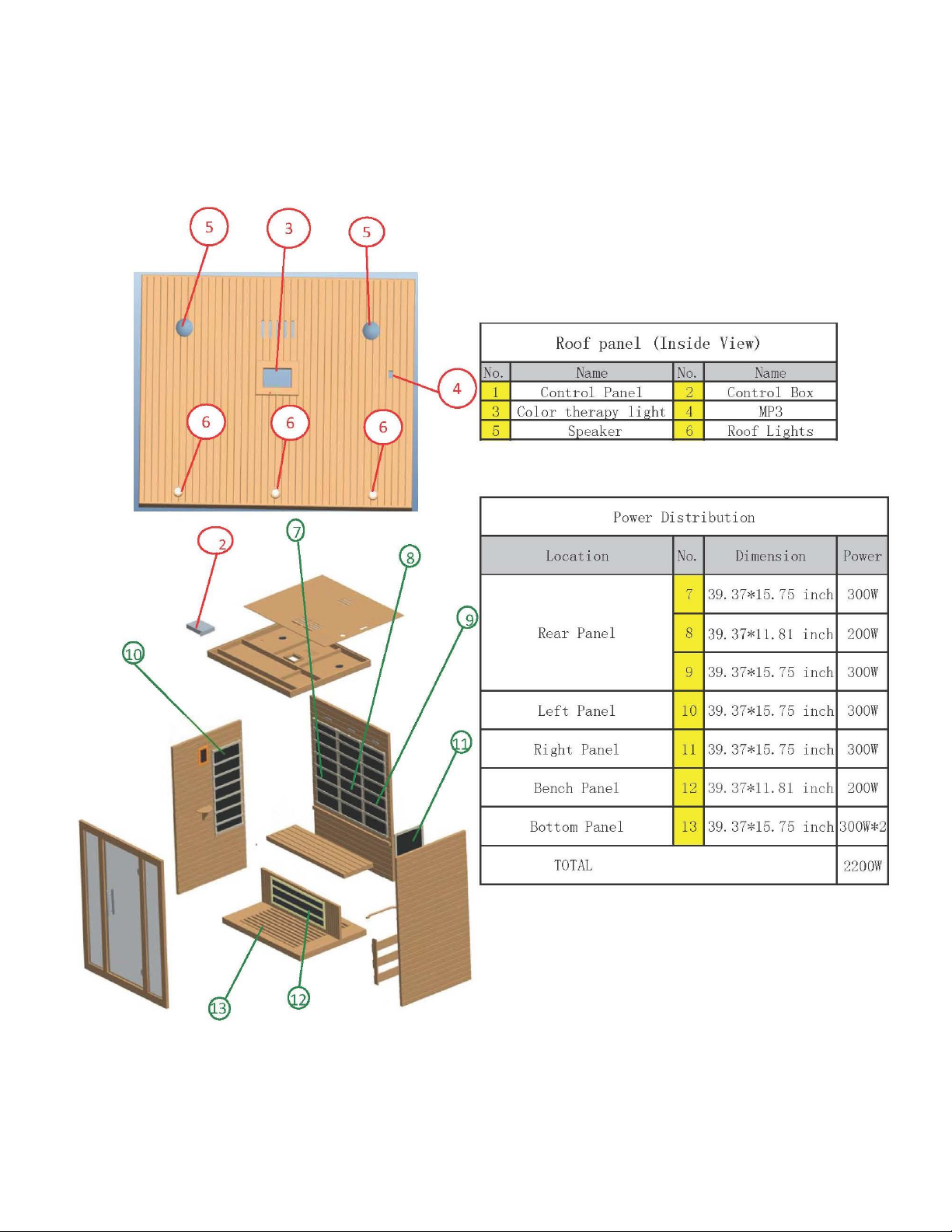

PARTS DESCRIPTION
DYN-6315-02
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.

10
Highlights
I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power

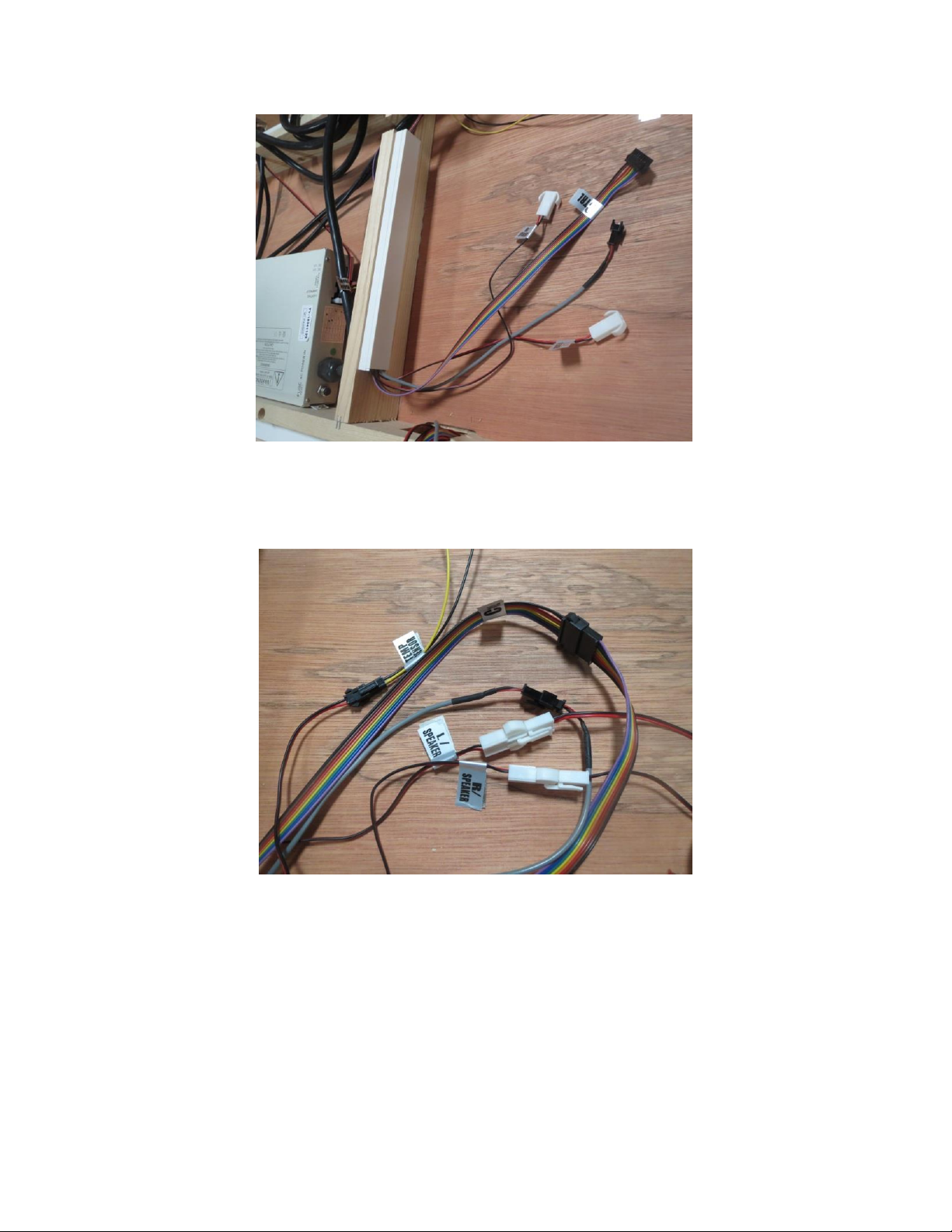

II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this
port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel

11
III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the
auxiliary function to the speakers in the sauna room for your listening pleasure. (see
Figure 2)
Figure 2
IV. Buckles
A. External Buckles
The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL
to the LEFT SIDE PANEL and the RIGHT SIDE PANEL. (see Figure
4)
Figure 4

12
V. Panel Descriptions
For easier assembly, please understand and distinguish the differences between
each panel.

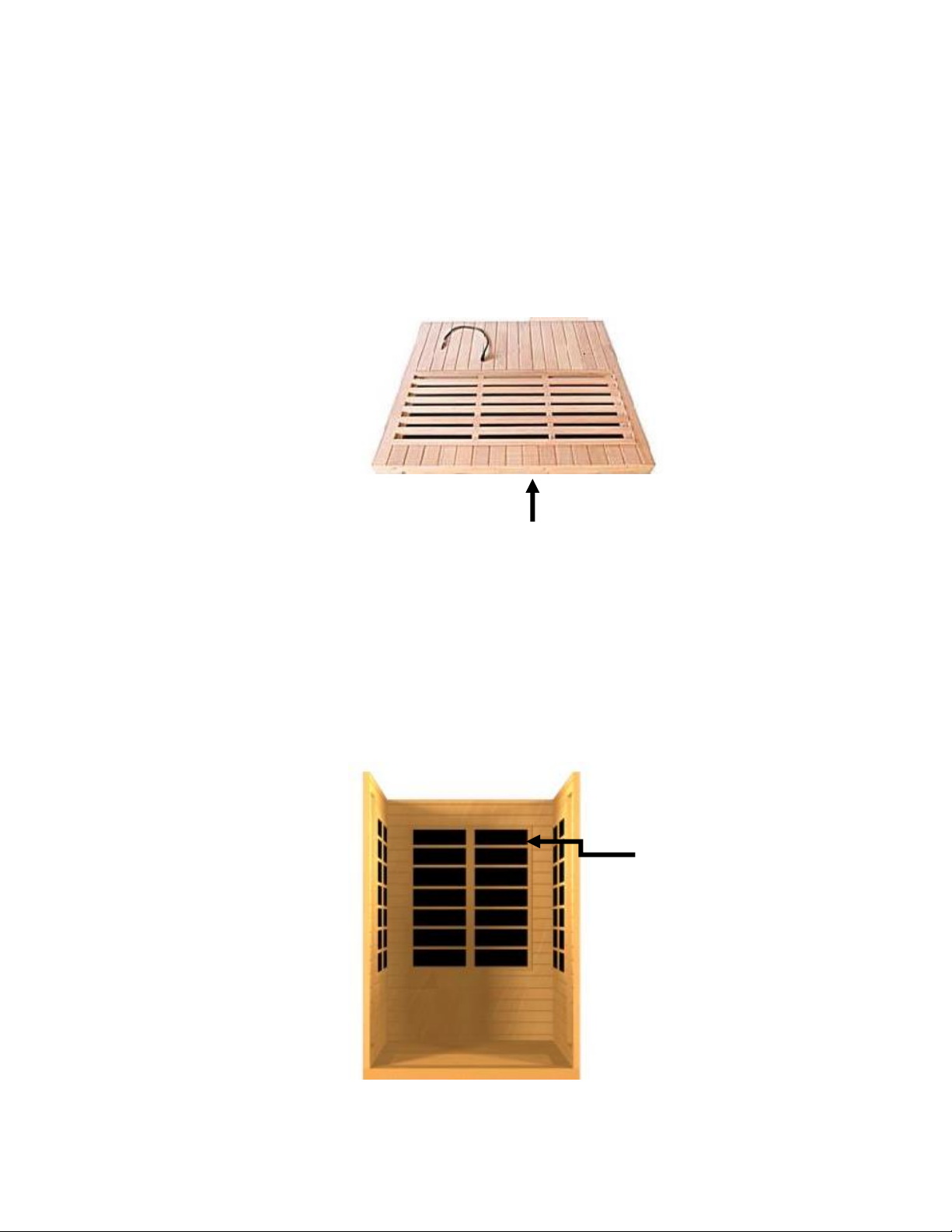

A. Floor Panel
When the FLOOR PANEL faces upward, you will find the floor heat
emitter(s) on the topside of the FLOOR PANEL. The heater cord will
be towards the rear. (see Figure 5)
Front
Figure 5
B. Understanding the Difference Between the Top and Bottom of the
Wall Panels
The (4) panels are in the upright position when the heat emitter panels
are closer to the top of the wall panel than the bottom of the wall
panel. (see Figure 6)
Heat emitter panels
are closer to the top
Figure 6

13
Assembly
Please note the following:
A. You will need a Philips screwdriver, ladder, and two adults to assemble.
B. Do not plug any other appliances into the power supply of the sauna room other
than the designated sauna connections/plugs.
C. Assemble the sauna room on a completely level surface.
D. Do not spray or get water on the exterior/interior walls of the sauna room. If the floor
which the sauna will sit on is damp or wet, install a barrier between your floor and
the sauna floor to keep the sauna’s floor from becoming damp or wet.
E. Do not store flammable objects or chemical substances near the sauna.
F. 3-person model is packed into three cartons.
1. Installing the FLOOR PANEL

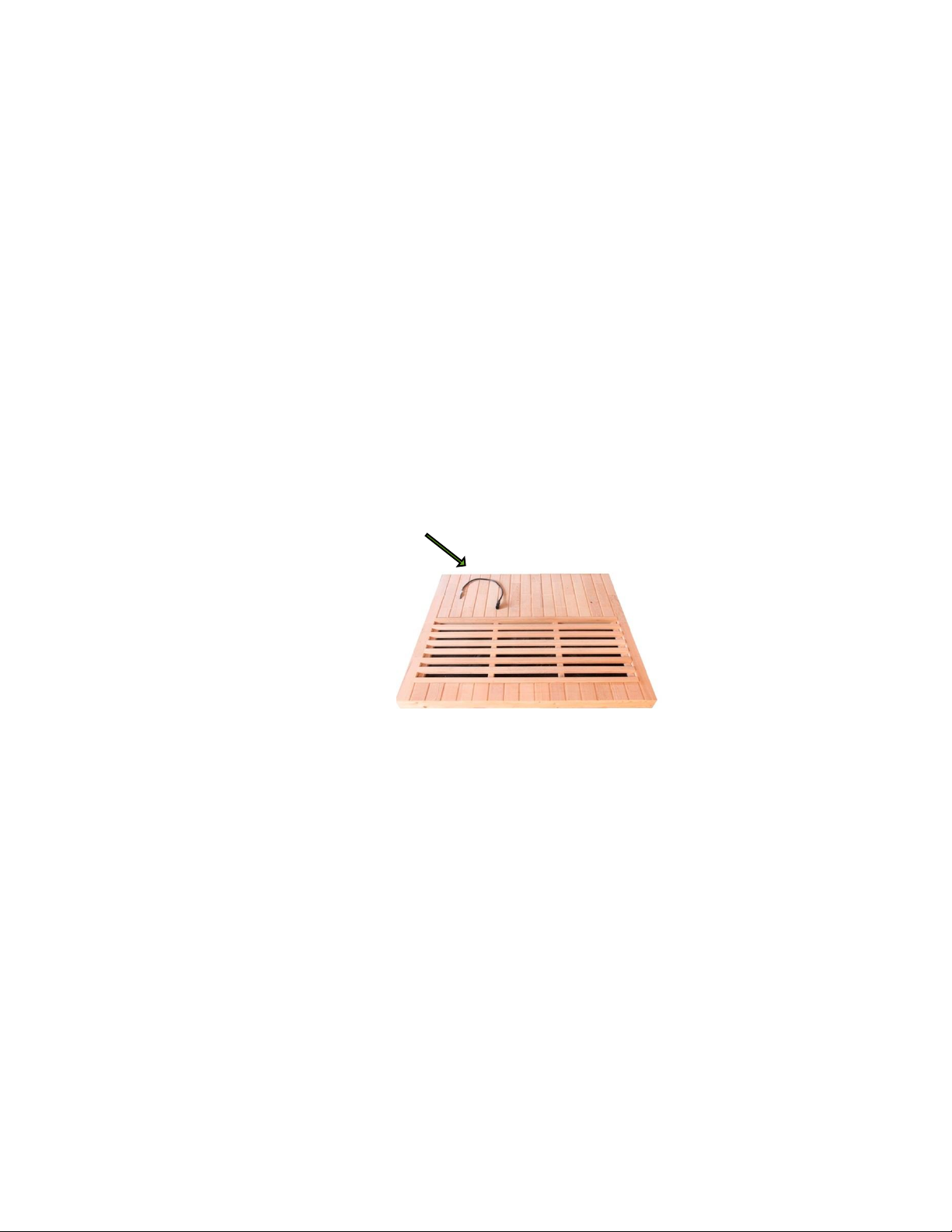

A. Place the FLOOR PANEL on the floor. Make sure the front side of the
FLOOR PANEL is facing the correct direction. (Please Note: The floor
heater cord is located at the rear of the sauna room.) (see Figure 7)
Floor Heater Cord
Figure 7
2. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT
SIDE WALL PANEL
A. Place the FRONT WALL PANEL up against the FLOOR PANEL. Align
the Metal Guide Insert Brackets on the FRONT WALL PANEL and the
RIGHT SIDE WALL PANEL. The RIGHT SIDE WALL PANEL will need
to be lifted in order to lock the Metal Guide Insert Brackets onto the
FRONT WALL PANEL. Secure into place by pulling downward on the
RIGHT SIDE WALL PANEL. Check to confirm that the wall panels are sitting
flush up against the FLOOR PANEL. Make sure the Metal Guide Insert
Brackets are locked into place and the top of the FRONT WALL PANEL is
flush with the RIGHT SIDE WALL PANEL. Do the same for the LEFT SIDE
WALL PANEL. (see Figure 8)

14
Figure 8
3. Installing the REAR PANEL
A. Remove the protection paper from the buckles on the REAR WALL PANEL.
Place the REAR WALL PANEL up against the FLOOR PANEL with the ¼
round molding resting on the FLOOR PANEL. Next, attach the REAR WALL
PANEL to the RIGHT SIDE WALL PANEL and use the buckles to latch
together. Do the same for the LEFT SIDE WALL PANEL. (see Figure 9)
Figure 9

15

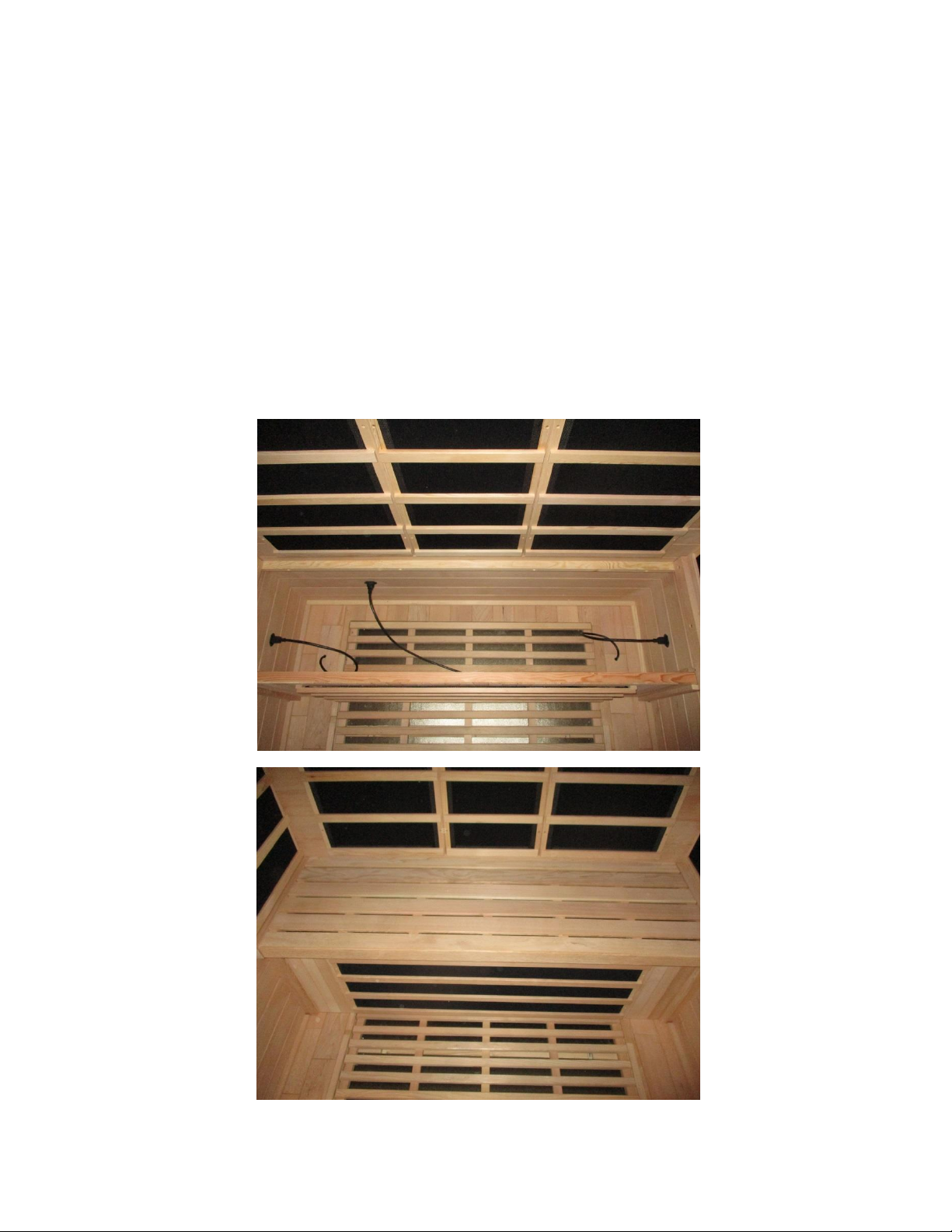

4. Installing the BENCH HEAT EMITTER PANEL and BENCH
A. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will
need to slide the BENCH HEAT EMITTER PANEL down evenly into place as
indicated in the pictures below. (see Figure 10)
B. Plug in the BENCH HEAT EMITTER connector to the corresponding inlet
located on the left side of the REAR WALL PANEL. Also plug in the
FLOOR HEAT EMITTER PANELS to the corresponding inlets on the
RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANELS.
C. Install the BENCH as also seen in Figure 10. Slide it horizontally over the
BENCH HEAT EMITTER PANEL all the way in and against the REAR WALL
PANEL. Make sure to install the BENCH with the smooth and finished side
facing upward. If screws were provided, use them to screw down the bench.
Figure 10

16

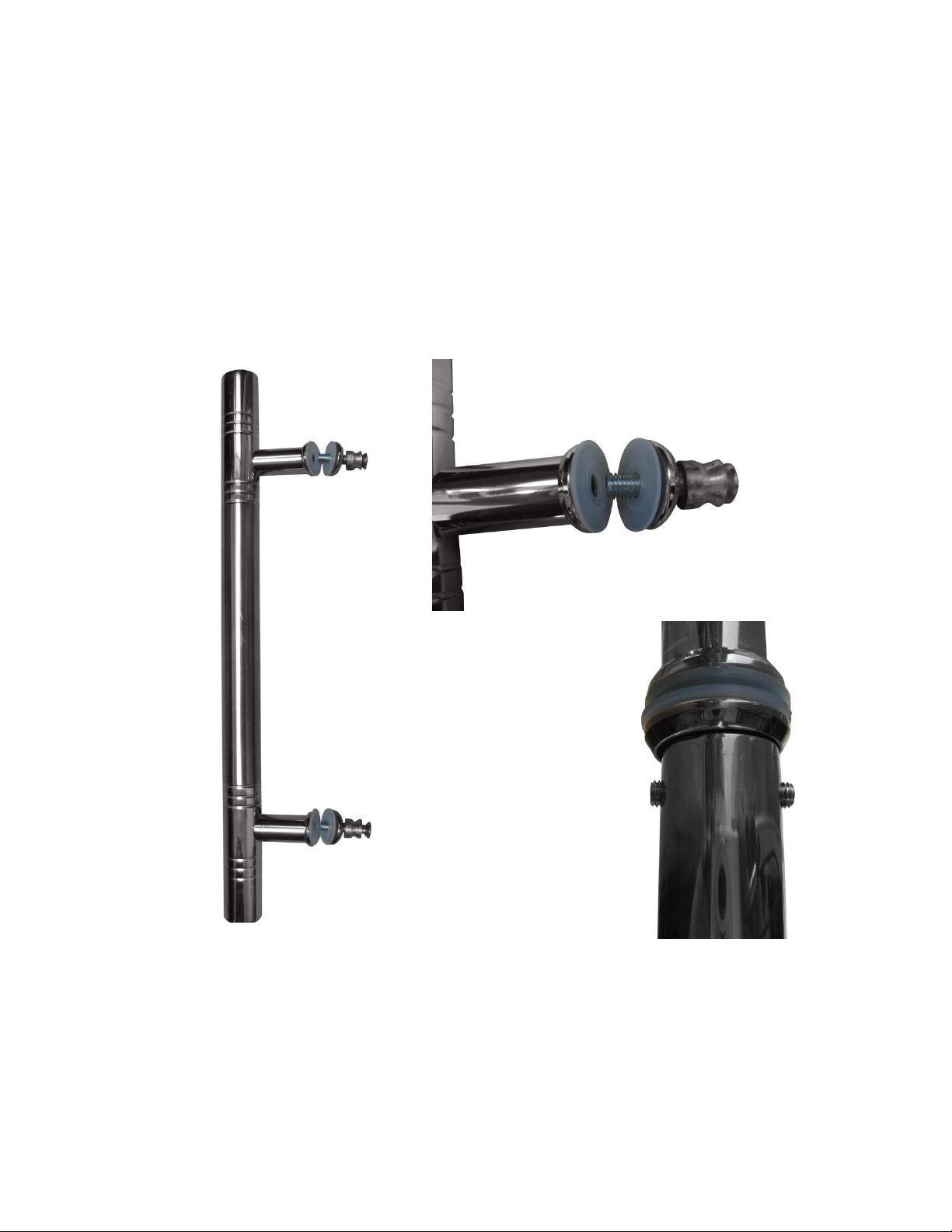

5. Installing the FRONT GLASS DOOR HANDLE
A. Now that the FRONT WALL PANEL has already been installed, the inner and
outer door handles need to be mounted to the FRONT GLASS DOOR.
According to Figure 11 and Figure 12, the FRONT GLASS DOOR must sit
between the (2) white washers. The screws are inserted from the inside of
the FRONT GLASS DOOR and screwed into the outer handle. BE SURE
NOT TO OVER TIGHTEN THE SCREWS OR YOU WILL SHATTER THE
FRONT GLASS DOOR. Next, the inner door handle needs to be inserted
over the screws. Used the provided Hex Wrench to tighten the (4) hex
screws. (see Figure 13)
Figure 12
Figure 11 Figure 13

17
6. Installing the ROOF PANEL
A. The side of the ROOF PANEL with the power supply (control box) is the top
of the ROOF PANEL.
B. The edge nearest the power supply is the front of the ROOF PANEL. Be
careful of the wires coming from the SIDE and REAR PANELS when you set
the ROOF PANEL down onto the panels. Feed the wires through the holes
in the ROOF PANEL. Feed the control cable and buzzer plug up through the
ROOF PANEL.
C. Be careful not to force the ROOF PANEL into place. Make sure that the
wires are properly fed through the holes. Furthermore, make sure the ROOF
PANEL sits snugly into the RIGHT SIDE WALL PANEL and RIGHT FRONT
WALL PANEL. Pull down on the ROOF PANEL slightly to make sure it is
secured in place. (see Figure 14)
Figure 14
7. Connecting the plugs on the ROOF PANEL
A. Connect the plugs according to their respective labels. (see Figure 15)
B. You will need to connect the right and left speaker connectors, the MP3
connector, and the CTRL (Panel Control) harness wire connector. (see
Figure 16)

18
Before Connecting
Figure 15
After Connecting
Figure 16
8. Installing the TEMPERATURE SENSOR and Optional MAGAZINE
RACK/TOWEL RACK
A. Enter the sauna and remove the protective covering (masking tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is
vertical and pointing downward. (see Figure 17)

19
Figure 17
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in
case the TEMPERATURE SENSOR is damaged during transit. The manufacturer
decides this according to sauna models and packaging.
B. If your sauna comes with the optional MP3 shelf, magazine rack, cup holder
shelf, or towel rack, use the provided screws and mount according to
designated labeled locations. The optional backrest can lean directly up against
the heat emitter panels. Please note that all accessories may not be for all
sauna models. (see figures 18 - 22)
Figure 18 (MP3 Shelf Figure 19 (Magazine Rack) Figure 20 (Cup Holder Shelf)
Figure 21 (Towel Rack)
Figure 22 (Backrest)
Installation Completed.

20
Operating the Sauna
Control Panel
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main power
Work Start/Stop: Press to control the working functions of the
sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature of
the sauna room in
0
C/
0
F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0
C/
0
F
1. Plug the sauna into the wall outlet.
2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY
will show 90 (minutes), the TEMPERATURE DISPLAY will show 1510F / 660C, and
the control panel will flash.
3. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you
want the sauna to remain on. Press the C/F button to choose between Celsius and
Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust
the temperature setting. Once you have set these adjustments to the desired settings,
press the START/WORK button. If you do not press the button for 5 seconds, the
control panel will stop flashing and the set-up values will be memorized. The WORK
and HEAT lights will now be on and the emitters will now be generating heat. You can
either pre-heat the sauna to the set temperature before entering or sit inside the sauna
as the temperature rises to the set temperature. Please keep in mind that you will
increase the time it takes for the sauna to reach the set temperature if you enter the
sauna room before it has reached the set temperature.
4. During your sauna session, set-up time will count down the minutes one by one. You
can use the up/down arrows to adjust the time. If you do choose to adjust the time,
the control panel will flash and the emitters will stop generating heat. Once you set the
time to the desired setting, then press the START/WORK button twice and the control
panel will stop flashing and heat will began coming from the emitters once again.
5. Heating times do vary. Generally, it will take approximately twenty to thirty minutes to
preheat the sauna to the average used temperature range of approximately 118
