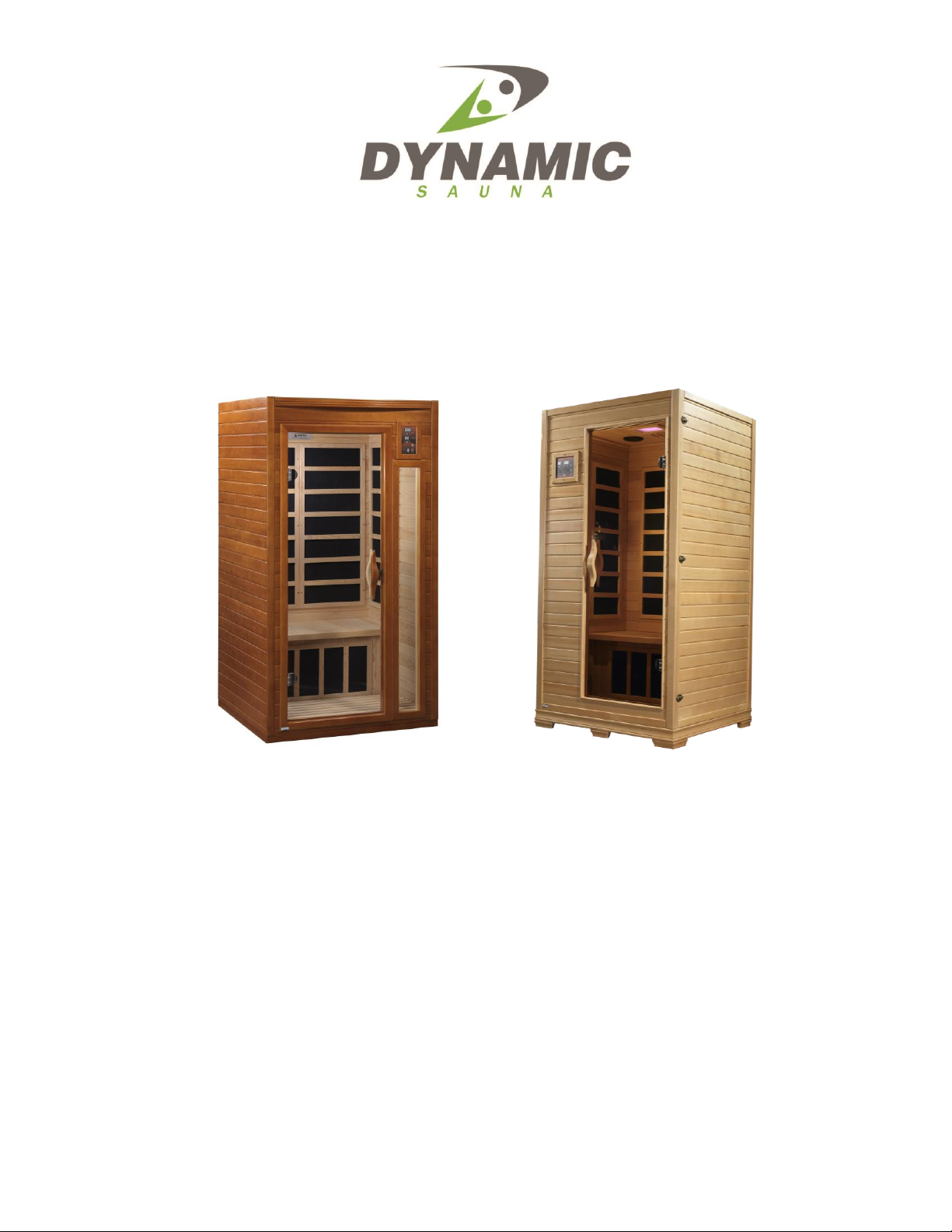

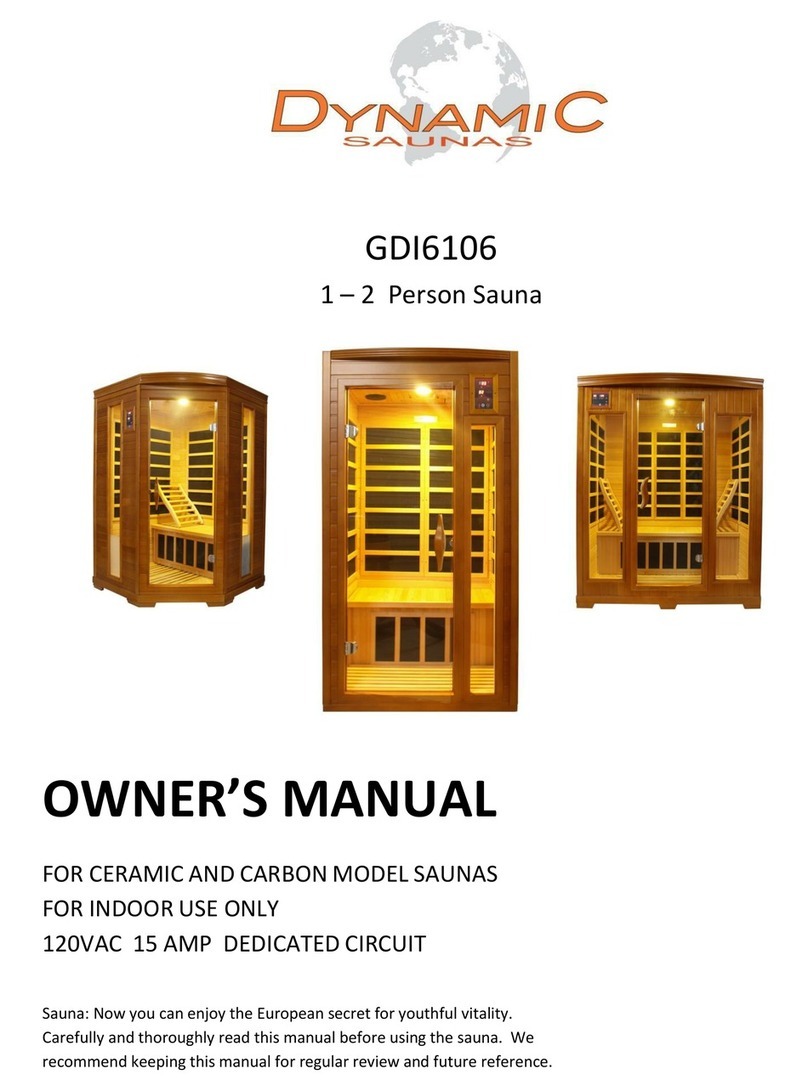

Dynamic Saunas DYN610601 User manual

1
DYN-6106-01 / GDI-6106-01/ GDI-6109-01
1 –2 Person Model Saunas
OWNER’S MANUAL
CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner’s Manual before using/operating
the sauna. We recommend keeping this Owner’s Manual for regular review
and future reference.

2
TABLE OF CONTENTS
Packing List 2
Visual Assembly Diagrams 6
Parts Description 8
Assembly Instructions 14
Operating the Sauna 20
Tips for Using Your Sauna 23
Safety Instructions 24
Safeguards for Your Sauna 26
Troubleshooting Guide 26
Warranty 33
Warranty Card 35
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage
to the heating elements. DO NOT START the sauna if damage is detected!
Contact your dealer or manufacturer for troubleshooting and replacement
parts.
Packing List (main panels)
1pc Front Panel 1pc Rear Panel 1pc Right Side Panel
1pc Left Side Panel 1pc Roof Panel 1pc Roof Cover
1pc Bench 1pc Bench Heat Emitter Panel 1pc Floor Panel
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy,
Or Any Discomfort.
The pictures and diagrams shown within this owner’s manual are representations
of this model. Actual model may vary.

3
What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.
The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-
1000 microns. Among these segments, Far Infrared penetrates organic substances such
as the human body two to three inches so that the warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial
to our bodies on a cellular level. Health professionals have used infrared heat lamps for
decades to treat muscle and joint problems. In hospital baby care units, incubators are
often equipped with infrared heating systems to keep newborn babies warm.
WHAT IS AN ELECTROMAGNETIC FIELD (also known as EMF)?
An Electromagnetic Field is a physical field produced by electrically charged objects. It is
one of the fundamental forces of nature. The field can be viewed as the combination of
an electric field and a magnetic field. The electric field is produced by stationary charges
and the magnetic field by moving charges referred to as currents. The magnetic field is
measured in milligauss (mG). Our sauna products have been developed to have low
EMF. Our Low EMF sauna models range between an average of 5mG-10mG at about
two inches from the heater panel and our Ultra Low EMF sauna models range between
3mG-5mG at the same approximate distance.

4

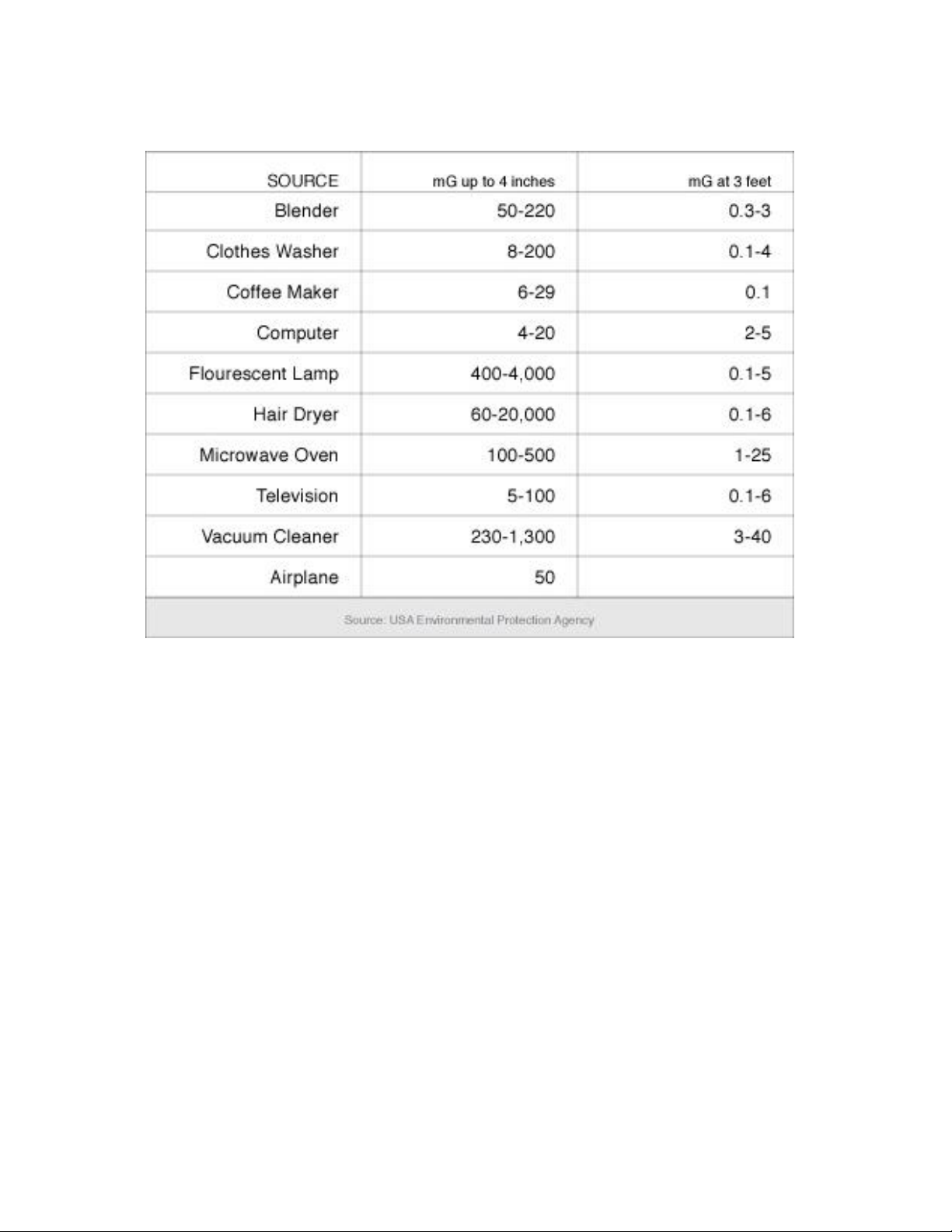

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard
from any exposure to EMF. The mainstream scientific evidence suggests that low-power,
low-frequency, electromagnetic radiation associated with household currents like that of
the infrared sauna does not constitute a short or long term health hazard.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.

5
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to
directly penetrate into the body's tissue to produce perspiration. Traditional saunas use
steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the
upwards of 190 degrees Fahrenheit. Infrared saunas only need a temperature of up to
120 degrees Fahrenheit to obtain the same effect. This lower temperature makes the
environment more tolerable and allows you to breathe easier.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of
perspiring. Through the perspiration process, acid and waste residue like toxins, sodium,
alcohol, nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed
from the cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open
and discharge waste products shedding any old skin cells leaving the skin glowing and
clean, with improved tone, elasticity, texture, and color.
Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Reduces cellulite
*Increases blood circulation *Clears, rashes, acne *Enhances skin tone
*Cardiovascular conditioning *Reduces stress & fatigue *Removes toxins
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.

6
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*

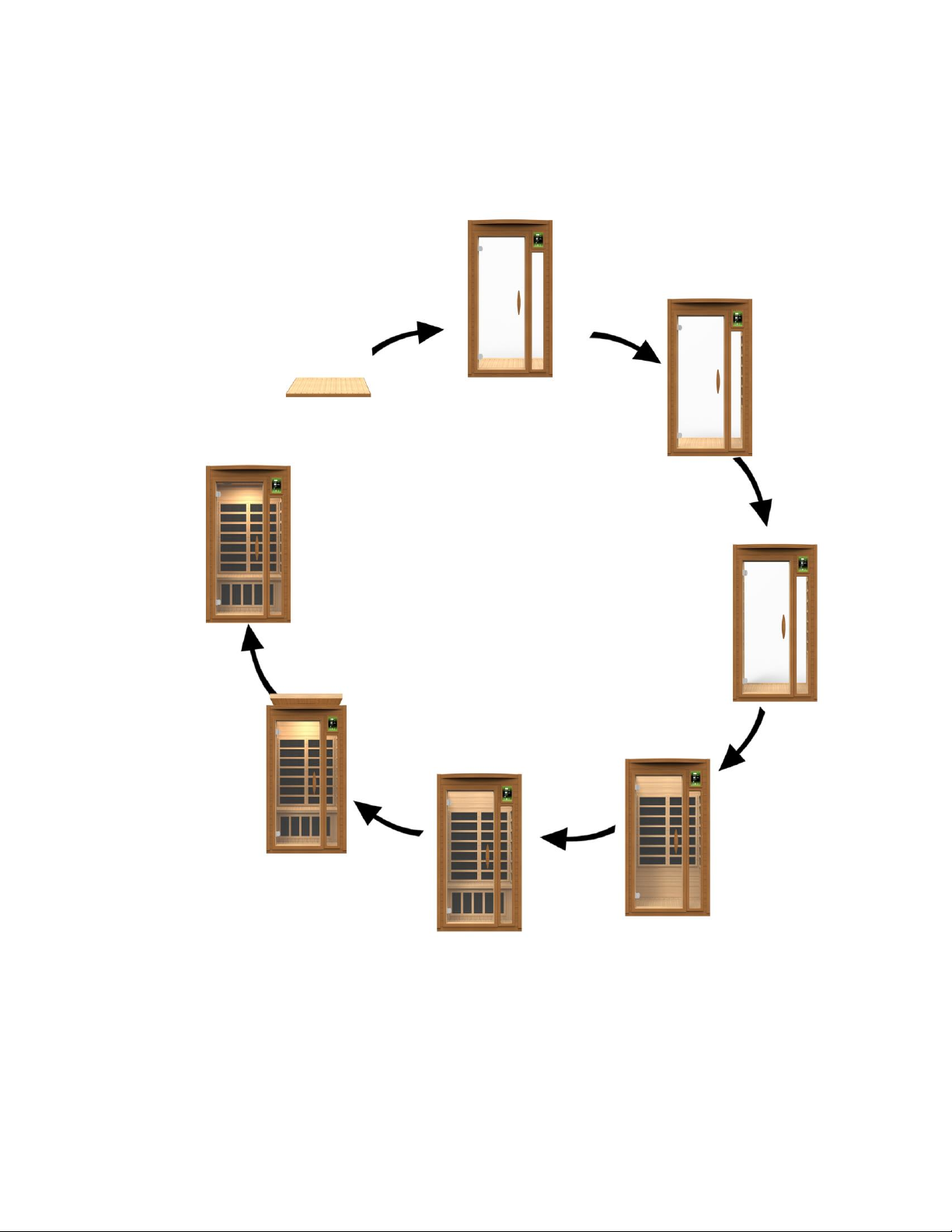

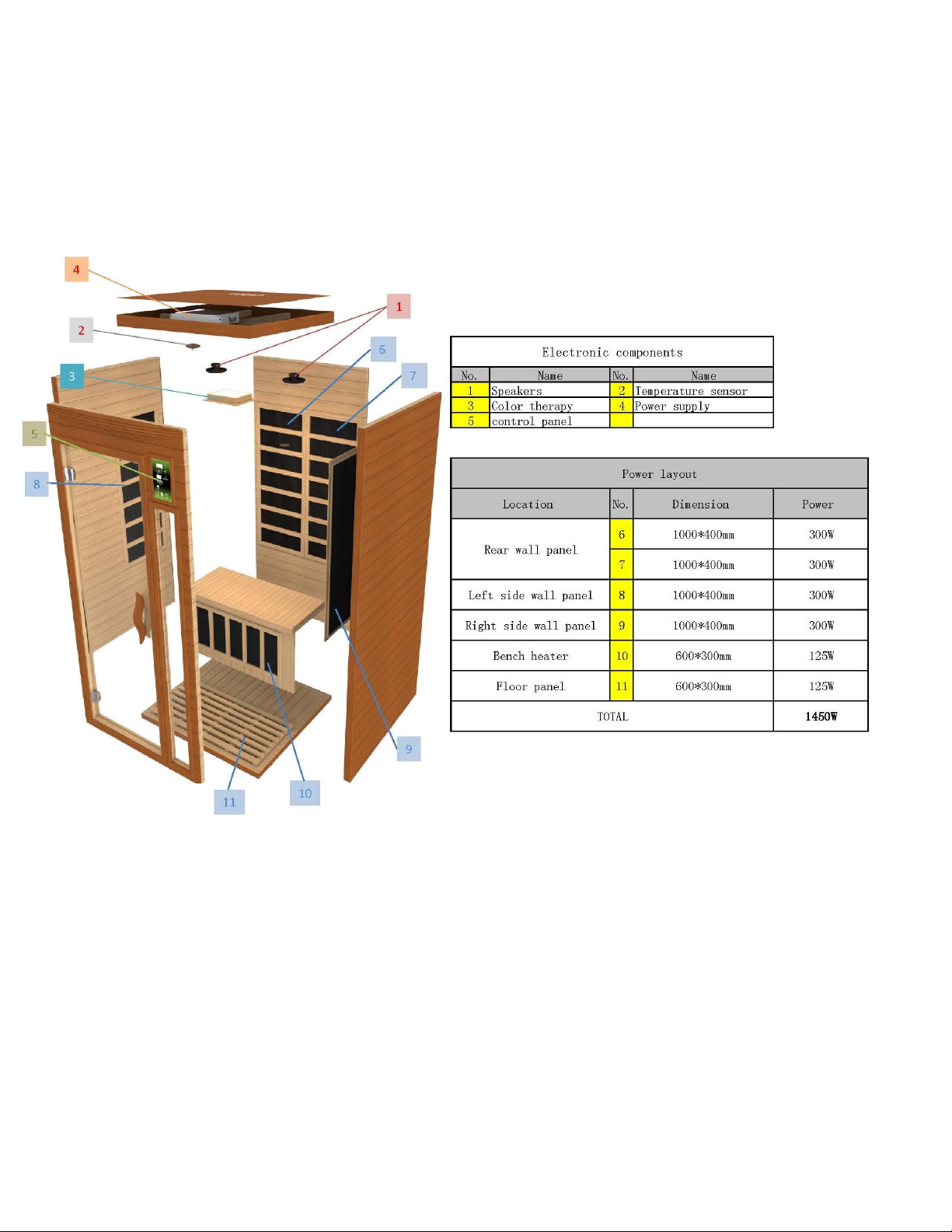

Visual Assembly Diagram
DYN-6106-01/GDI-6106-01
*The above assembly diagram is for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.

7
*PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY*
Visual Assembly Diagram
GDI-6109-01
*The above assembly diagram is for a quick reference visual guide only. All
sauna models are not shown. Parts and accessories may vary and are subject
to change. Backrests are sold separately. We have found that starting the
assembly process with the floor and front wall panel first may be the easiest,
but it is not mandatory.

8

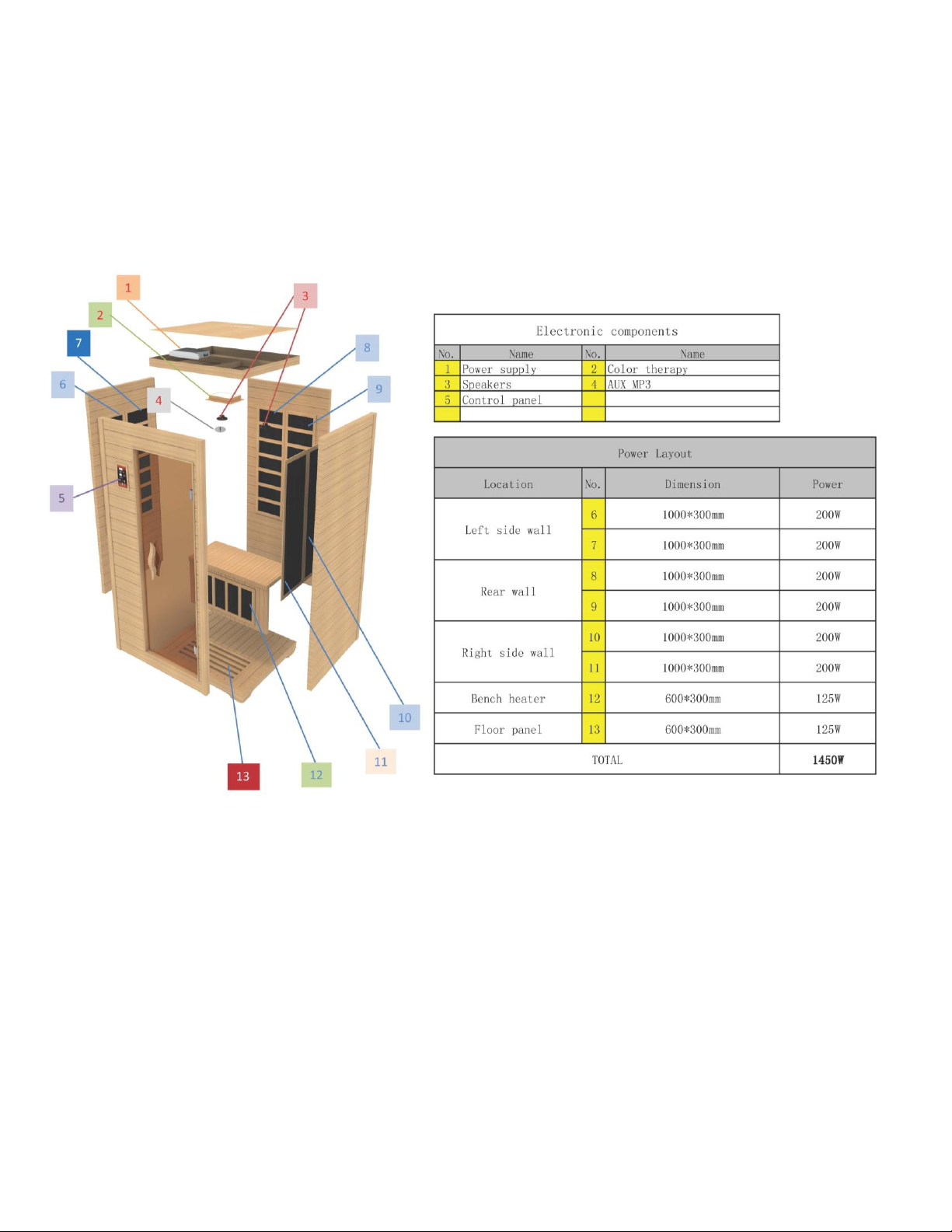

PARTS DESCRIPTION
DYN-6106-01/GDI-6106-01
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.

9
PARTS DESCRIPTION
GDI-6109-01
NOTE: The pictures and diagrams shown within this owner’s manual are
representations of this model. Actual model may vary. Design and Construction
are subject to change. Backrests are sold separately.

10
Highlights
I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights

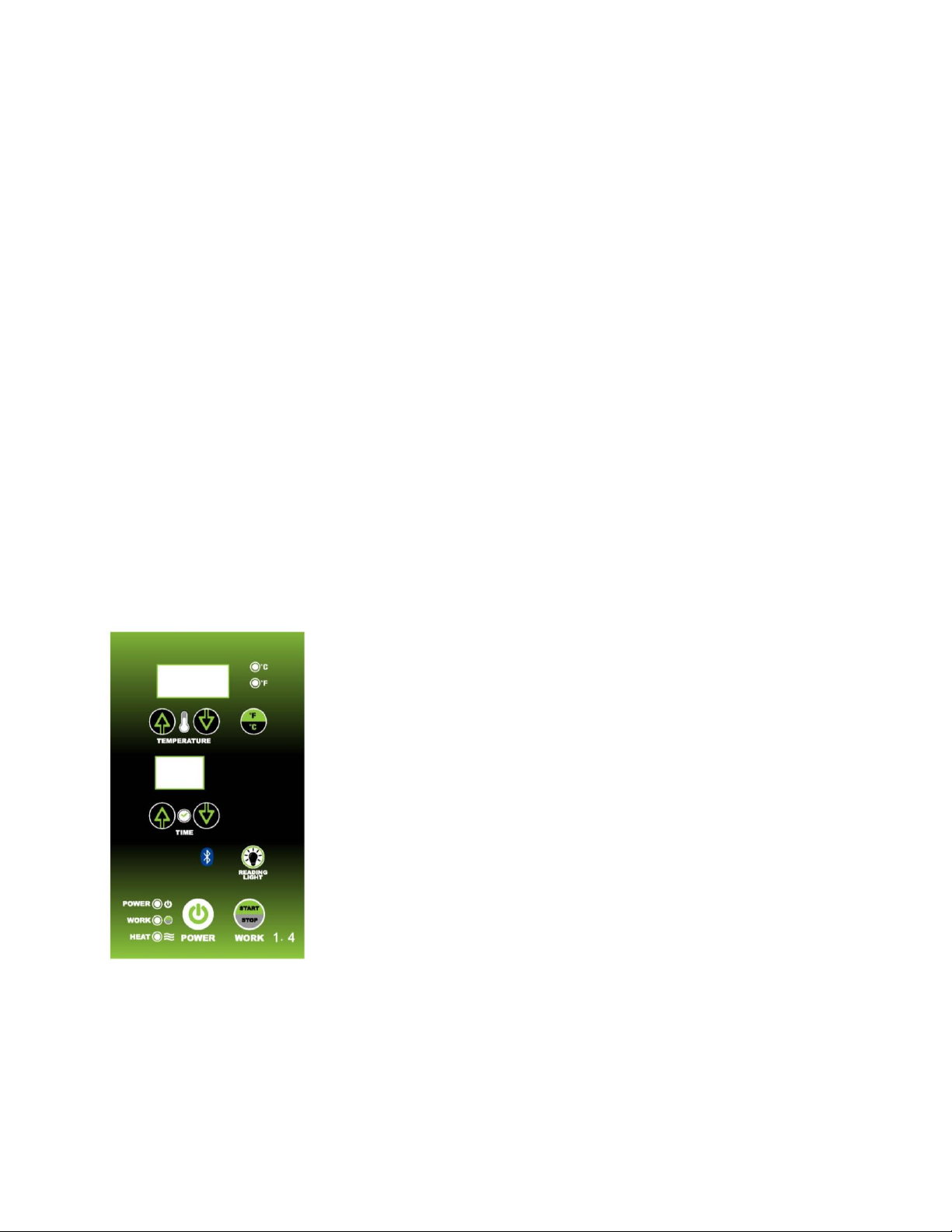

PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this
port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at
this port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel

11

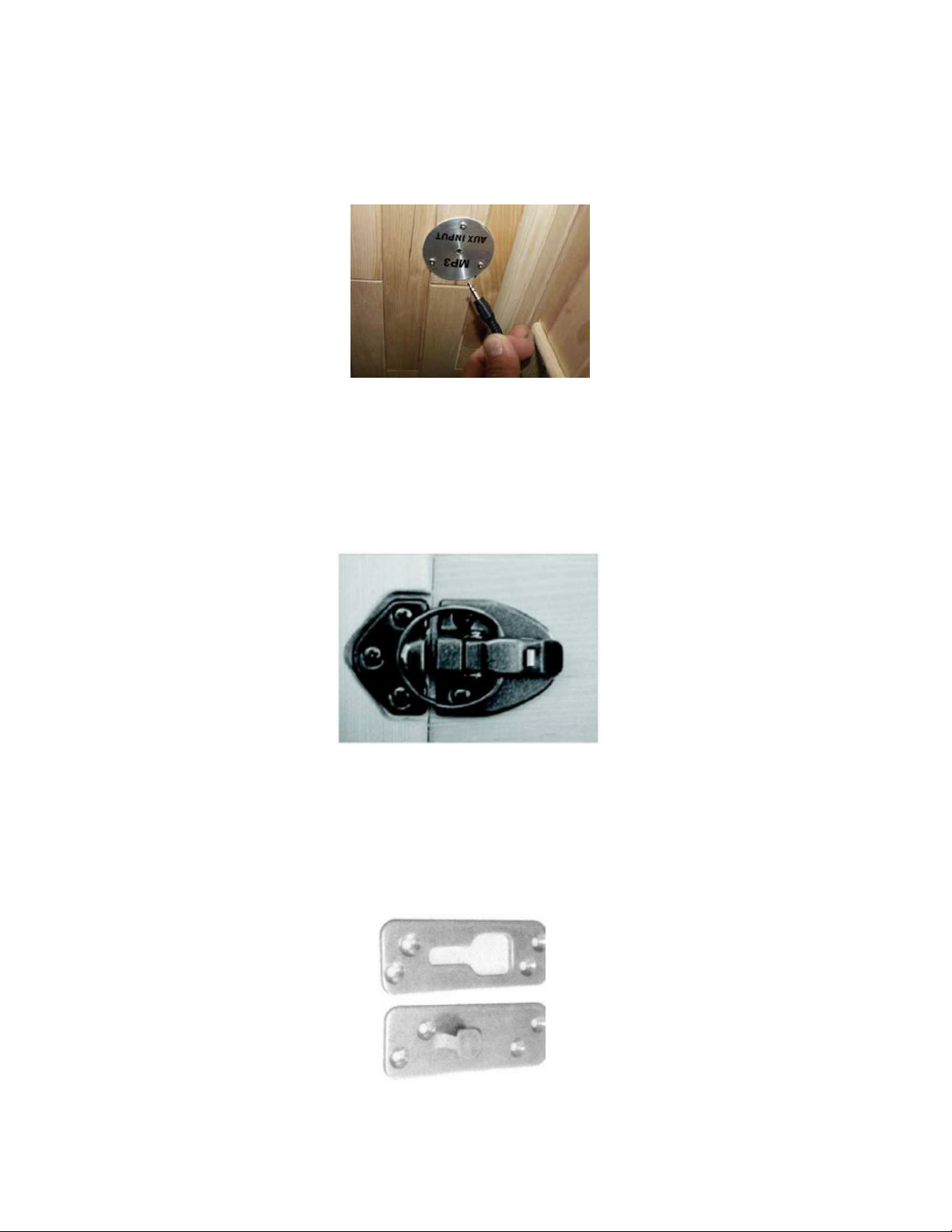

III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with
the auxiliary function to the speakers in the sauna room for your listening pleasure.
(see Figure 2)
Figure 2
IV. Buckles
A. External Buckles
The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL
to the LEFT SIDE PANEL and the RIGHT SIDE PANEL. (see Figure
4)
Figure 4

12
V. Panel Descriptions
For easier installation, please understand and distinguish the differences between each
panel.
A. Floor Panel
When the floor panel faces upward, you will find (2) raised moldings, one
along what will be the front and one along what will be the rear of the
sauna room. (see figure 5)
FLOOR HEATER
DYN-6106-01/GDI-6106-01 GDI-6109-01
FRONT OF SAUNA FRONT OF SAUNA
Figure 5
B. Understanding The Difference Between The Top And Bottom Of The Wall
Panels
The (4) panels are in the upright position when the moldings are at the top. The
moldings will face inward. (see figure 6)

13
HEATER CORDS
MOLDING
Figure 6
C. Rear Panel
The rear panel is the panel with the buckles. The buckles are mounted on the
outside of the rear panel. (see figure 7)
Figure 7
D. Understanding The Difference Between The Inside And Outside Of The
Rear Panel
You will find the heat emitters on the inside of the rear panel.
Assembly Instructions
A. Choose a good location to install the sauna

14
1. The location must be dry, leveled, and away from any source of water
2. MAIN POWER cord must be easily accessible
3. Two adults are required for installation
4. Wood cabin installation order: Floor Panel Front Panel Right Side
Panel Left Side Panel Rear Panel Bench Emitter Panel
Bench Roof Panel Roof Cover
5. Tools Required: Philips Screwdriver and Ladder
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. For model GDI-6109-01, there
will be wood braces that must be installed on the underside of the
FLOOR PANEL. Mount the wood braces according to the designated
labels located on the underside of the FLOOR PANEL. Once installed,
turn the FLOOR PANEL right side up. Make sure the
front side of the FLOOR PANEL is facing the correct direction. The
notches on the floor will be closer to the rear of the sauna than the
front of the sauna. (see the Highlights section)
C. Installing the FRONT PANEL and SIDE PANELS
1. Place the FRONT PANEL onto the recessed area on the FLOOR
PANEL. For model DYN-6106-01 and GDI-6106-01, align guides on the
RIGHT SIDE PANEL with the guide inserts on the FRONT PANEL. The
RIGHT SIDE PANEL will need to be lifted in order to lock the guide inserts
on the FRONT PANEL into the guides on the RIGHT SIDE PANEL.
Secure in place by pulling down on the RIGHT SIDE PANEL. Make sure
all the guides are locked in place and the top of the LEFT SIDE PANEL is
even with the FRONT PANEL. For GDI-6109-01, align the buckles on the
RIGHT SIDE PANEL with the catch on the FRONT PANEL. After aligning,
buckle the walls panels together. Then you can buckle the LEFT SIDE
PANEL to the FRONT PANEL. (see figure 8 & 9)

15
Figure 8
Figure 9
D. Installing the REAR PANEL
1. Remove the protection paper from the buckles (tape). Place the REAR
PANEL onto the recessed area on the FLOOR PANEL. Attach the REAR

16
PANEL to the SIDE PANELS and buckle together. (see figure 10)
Figure 10
E. Installing the FLOOR EMITTER PANEL, BENCH EMITTER PANEL, and
BENCH
1. Place the FLOOR EMITTER PANEL on the FLOOR PANEL and towards the
front of the sauna. The cord will be toward the rear of the sauana. (see figure
11 & 12)
Figure 11 Figure 12
2. Slide down the BENCH EMITTER PANEL by lining up its sides with the
vertical guides on each side panel. The emitter grid will face outward (toward
the front of the sauna). Push the BENCH EMITTER PANEL all the way

17
down until it is touching the FLOOR PANEL and is secured in place.
3. Plug in the BENCH EMITTER connector to the inlet located on the REAR
PANEL.
4. Install the BENCH by sliding it over the horizontal bench guides on the side
panels. Push the BENCH all the way in until it touches the REAR PANEL and
is secured in place. Make sure to install the BENCH with the smooth and
finished side facing up.
Please note that the BENCH and BENCH HEAT EMITTER PANEL do vary in
installation and design.
F. Installing the ROOF PANEL
1. The side of the ROOF PANEL with the power supply box faces upward.
2. The edge nearest the power supply is the front of the ROOF PANEL. Be
careful of the wires coming from the REAR PANEL when you set the ROOF
PANEL down onto the panels. Feed the wires through the holes in the
ROOF PANEL. Do the same for any wiring harnesses coming from the
SIDE or FRONT PANELS.
3. Be careful not to force the ROOF PANEL into place. Make sure that the wires
are properly fed through the holes.
4. When all the wires are fed through their appropriate holes, lower the ROOF
PANEL into place.
5. The four screws taped to the four sides of the ROOF PANEL are used to
mount the ROOF PANEL to each of the wall panels. This is optional. Use
the pre-drilled holes on the four sides of the ROOF PANEL.
G. Connecting the plugs on the ROOF PANEL
1. Connect the plugs according to the respective labels. (see figure 13 & 14)
2. Connect the CTRL connection from the power supply to the CTRL connection
from the control panel. (see Figure 13 & 14)

18
Figure 13 Figure 14
H. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it
is vertical, pointing downward. (see figure 15)
Figure 15
Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR
in case the TEMPERATURE SENSOR is damaged in transit. The manufacturer
decides this according to sauna models and packaging.

19
I. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Be cautious when
pulling the power cord through the hole in the roof cover. Gently place the
ROOF COVER onto the ROOF PANEL. When the edges are aligned,
screw the ROOF COVER to the roof panel. (see figure 16)
Figure 16
J. Optional MP3 Shelf
1. If your sauna comes with the optional MP3 shelf, use the two screws
provided to mount the self on either the side panels or front panel. (see
figure 17)
Figure 17

20
Operating the Sauna
NOTE: Before the sauna is turned on, remove plastic protective covering from
the CONTROL PANELS. Please check and confirm that the connections to the
POWER SUPPLY(includingthepowercord), HEAT EMITTERS, CD/RADIO, and
TEMPERATURE SENSOR are connected properlyandaresnugandtight. The
power supply voltage and frequency must match the requested voltage and
frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP
Dedicated Circuit). Please consult a certified electrician for any electrical
modifications or repairs.
Since many materials absorb the infrared rays, minimal clothing is recommended
for maximum effect. The infrared sauna emitters are designed to heat you and not
necessarily the air inside the sauna. It is not a hot box like a traditional sauna.
The temperature gauge is a guide for your safety. It is recommended that you
drink water before, during, and after sauna use to prevent dehydration since body
fluids will be lost through perspiration. It is not recommended to shower
immediately after use since the pores in your skin will be open and could
possibly absorb anything in the water.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or Any Discomfort.
Control Panel
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main power
Work Start/Stop: Press to control the working functions of the
sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature of
the sauna room in
0
C/
0
F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0
C/
0
F
Control Panel Styles Vary
1. Plug the sauna into the wall outlet.
2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY
will show 90 (minutes), the TEMPERATURE DISPLAY will show 1510F / 660C, and
