Dynamic Saunas DYN-5830 User manual

DYN-5830 / DYN-5860
3 & 6 Person FAR Infrared Saunas
Owner’s Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 20AMP Single Dedicated Circuit Required (3 Person Model)
120VAC 20AMP Dual Dedicated Circuits Required (6 Person Model)
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.

What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

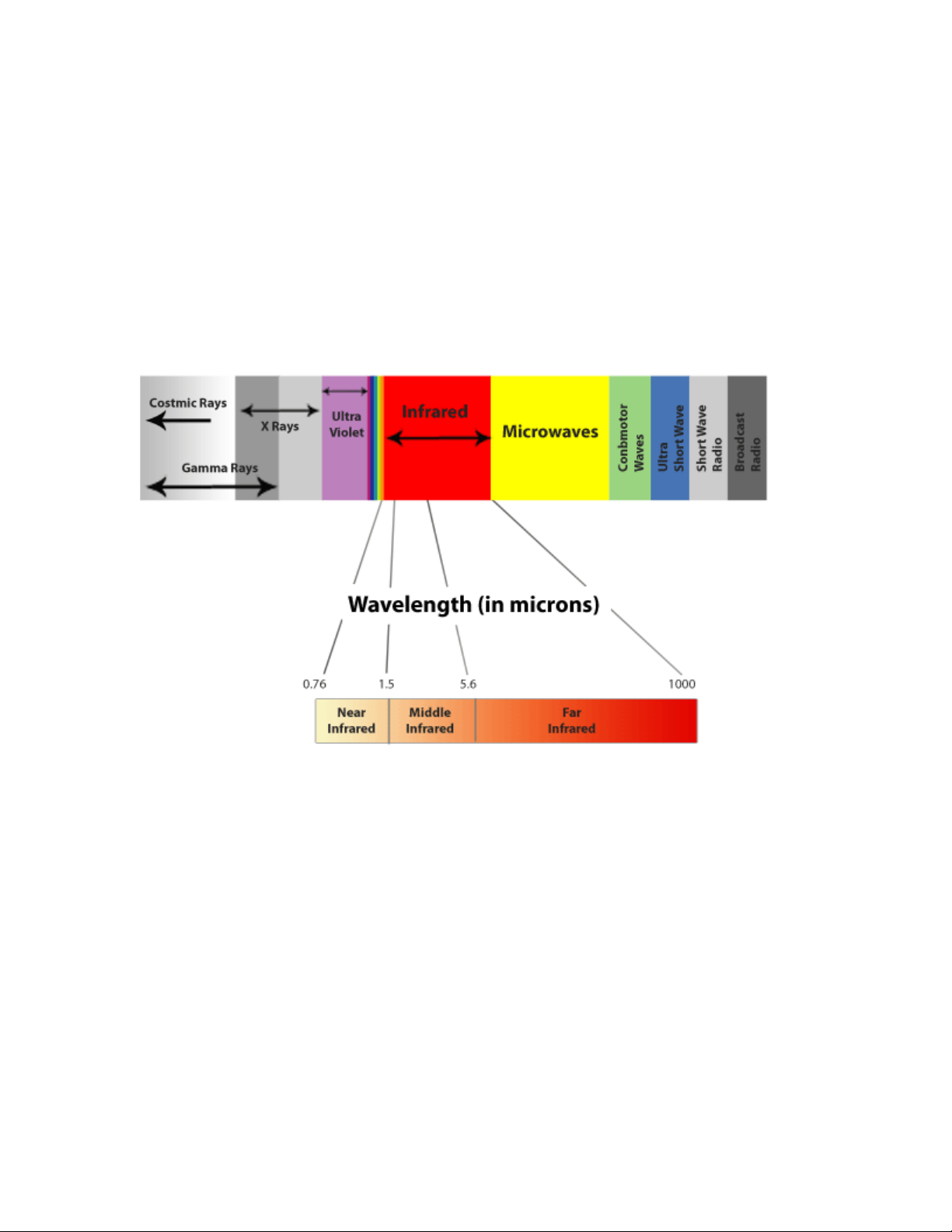

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Page 1

Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis
*Relaxes muscle spasms
*Increases blood circulation
*Cardiovascular conditioning
*Clears rashes, acne
*Reduces cellulite
*Removes toxins and mineral waste
*Reduces stress and fatigue
*Enhances skin tone
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.
What are electric and magnetic fields?
Electric and magnetic fields are a basic force of nature (like gravity), generated by
electricity. They are found almost everywhere. Electric and magnetic fields are found in
nature, where they are created by such things as lightning and static electricity. Manmade
fields are found wherever people use electricity, such as near powerlines and electrical
appliances. Like sound, electric and magnetic fields are made of a mixture of components
and so can be described in many different ways. Both have wave-like properties
such as strength and “frequency” (how often they cycle back and forth). Sound can be
loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or
constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture
of components. They can be strong or weak, have a high or low frequency, have sudden
increases in strength (“transients”) or a constant strength, and consist of one pure
frequency or several (called “harmonics”). For example, the strength of a field can be weak
and constant, as in most nighttime home environments, or it can be strong and vary from
high to low every few seconds, as from an electric blanket set on high. Powerlines and
wiring in buildings and appliances generate 50 and 60 Hertz fields, sometimes referred to
Page 2

as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the
number of wave cycles each second. The lower the frequency of a field, the lower its
energy. Power frequency fields are low frequency fields and have low energy levels.
Microwave and x-ray fields are high frequency fields and have high energy levels. Below
are some EMF measurements.
EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short or long term health hazard.
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.
Page 3

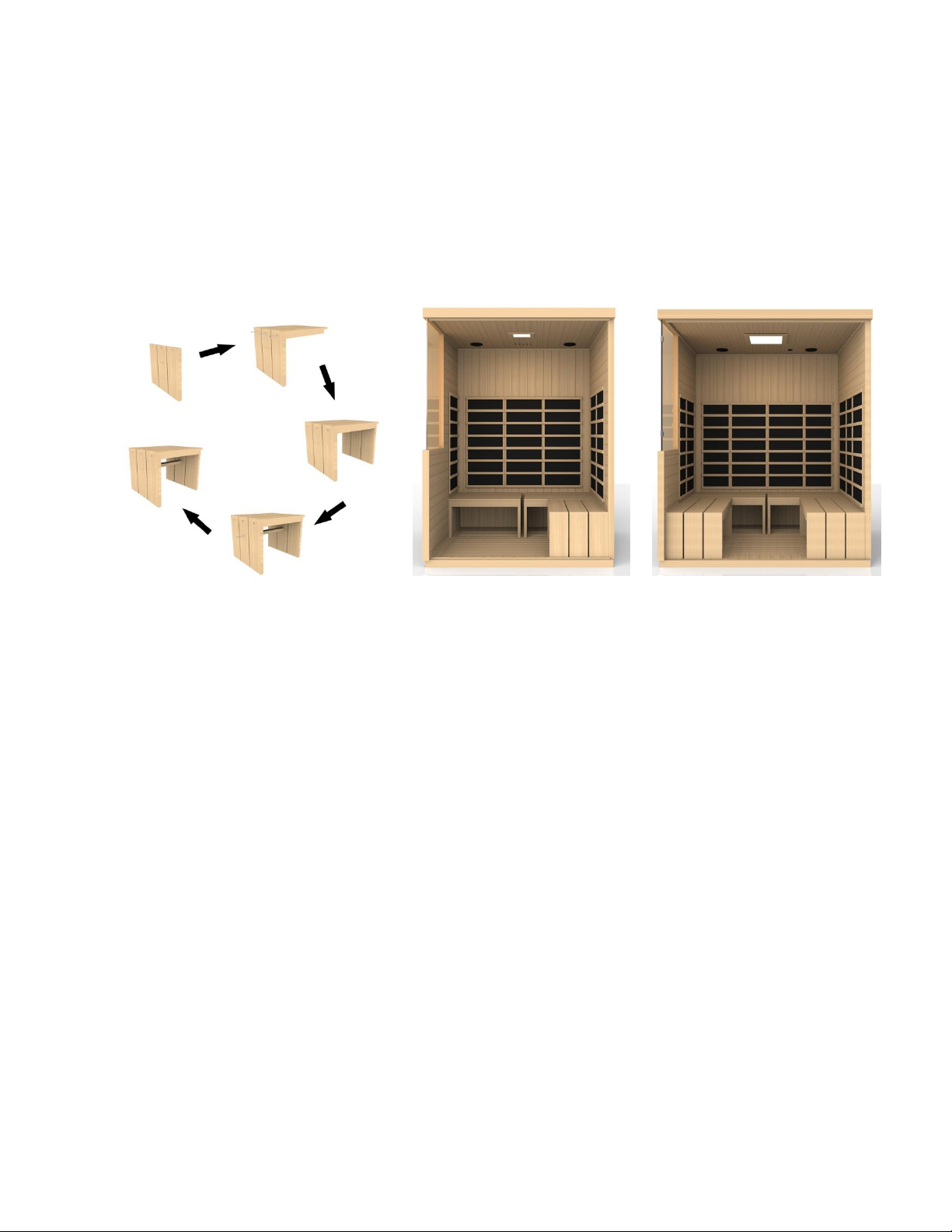

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
DYN-5830-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 4

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
DYN-5860-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 5

TABLEOFCONTENTS
ProductIntroduction 6
PartsDescription 7
AssemblyInstructions 13
OperatingtheSauna 20
TipsforUsingyourSauna 23
SafetyInstructions 23
SafeguardsforyourSauna 25
TroubleshootingGuide 26
Warranty 32
WarrantyCard 34
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a
control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT
SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR
PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna
comes with control panels, a drink shelf (optional), a reading lamp/color light, and
infrared heat emitters.
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.
Page 6

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 7

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 8

I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. See Figure 1.
Model DYN-5860-01 will have two power supplies of which you will need two
separate dedicated 120V 20AMP outlets.
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this
port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel
Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel Page 9

III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device
with the auxiliary function to the speakers in the sauna room for your listening
pleasure. (see Figure 2)
Figure 2

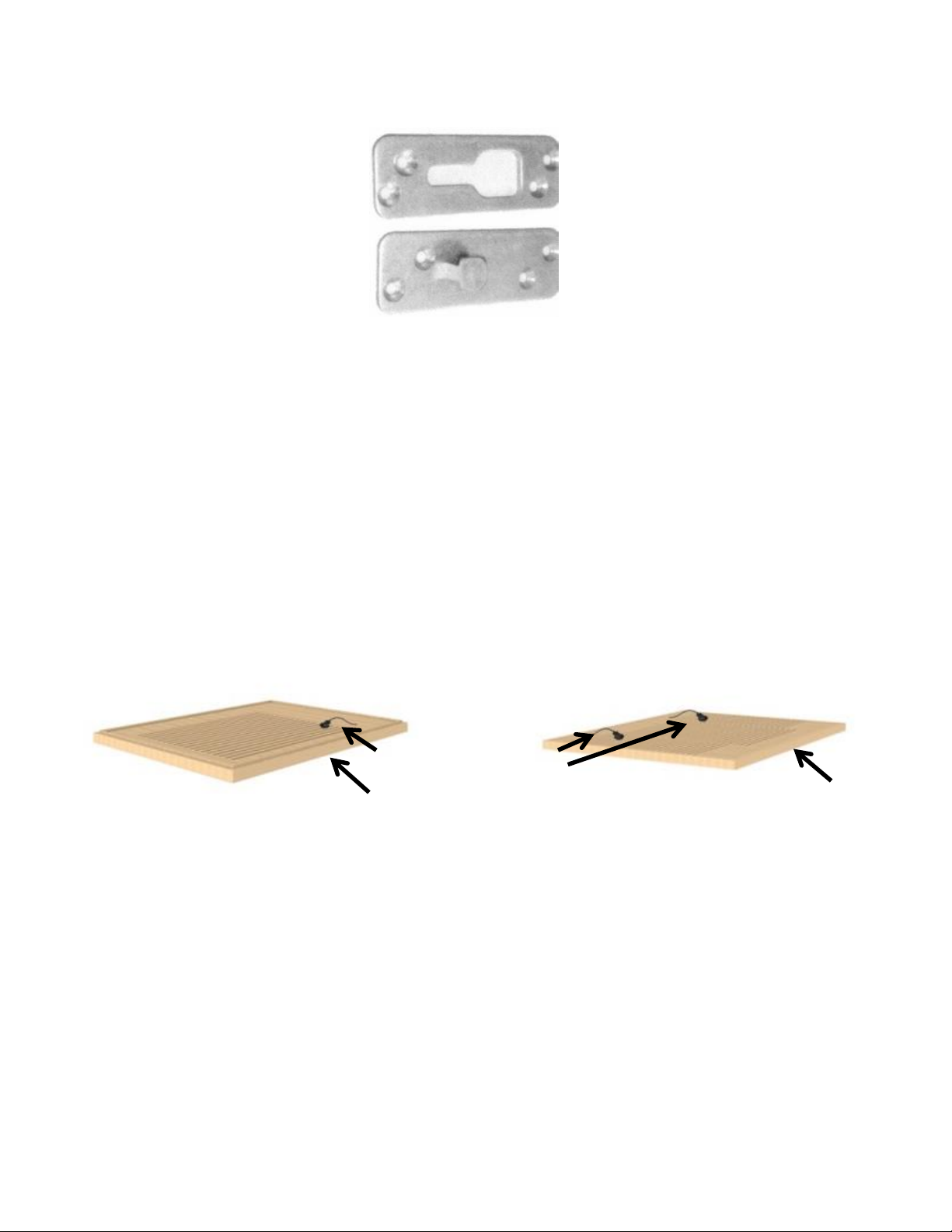

IV. Buckles
A. External Buckles
The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL
to the RIGHT SIDE PANEL and the LEFT SIDE PANEL. (see Figure
4)
Page 10

Figure 4
V. Panel Descriptions
For easier assembly, please understand and distinguish the differences between
each panel.

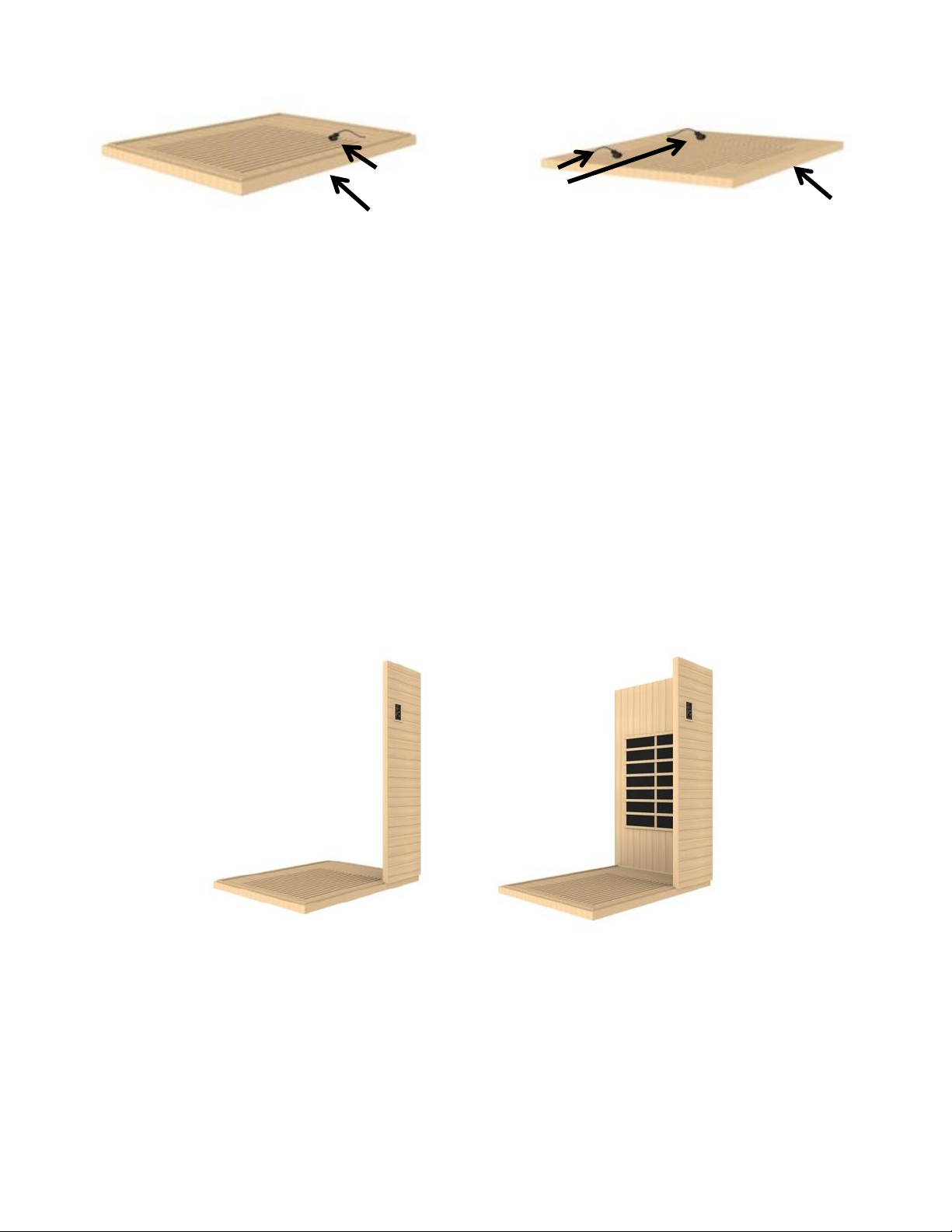

A. Floor Panel
When the FLOOR PANEL faces upward, you will find the floor heat
emitter(s) on the topside of the FLOOR PANEL. See Figure 5 for
model DYN-5830-01 and Figure 5a for DYN-5860-01.
Floor Heater Cord
Front Front
Figure 5 Figure 5a
B. Understanding the Difference Between the Top and Bottom of the
Wall Panels
The (4) panels are in the upright position when the heat emitter panels
are closer to the top of the wall panel than the bottom of the wall
panel. (see Figure 6)
Page 11

Heater Cords
Heater Cords
Floor Heater
Outlet
Figure 6
C. Rear Panel
The REAR PANEL is the panel with the buckles. The buckles are
mounted on the exterior side of the REAR PANEL. (see Figure 7)
Figure 7

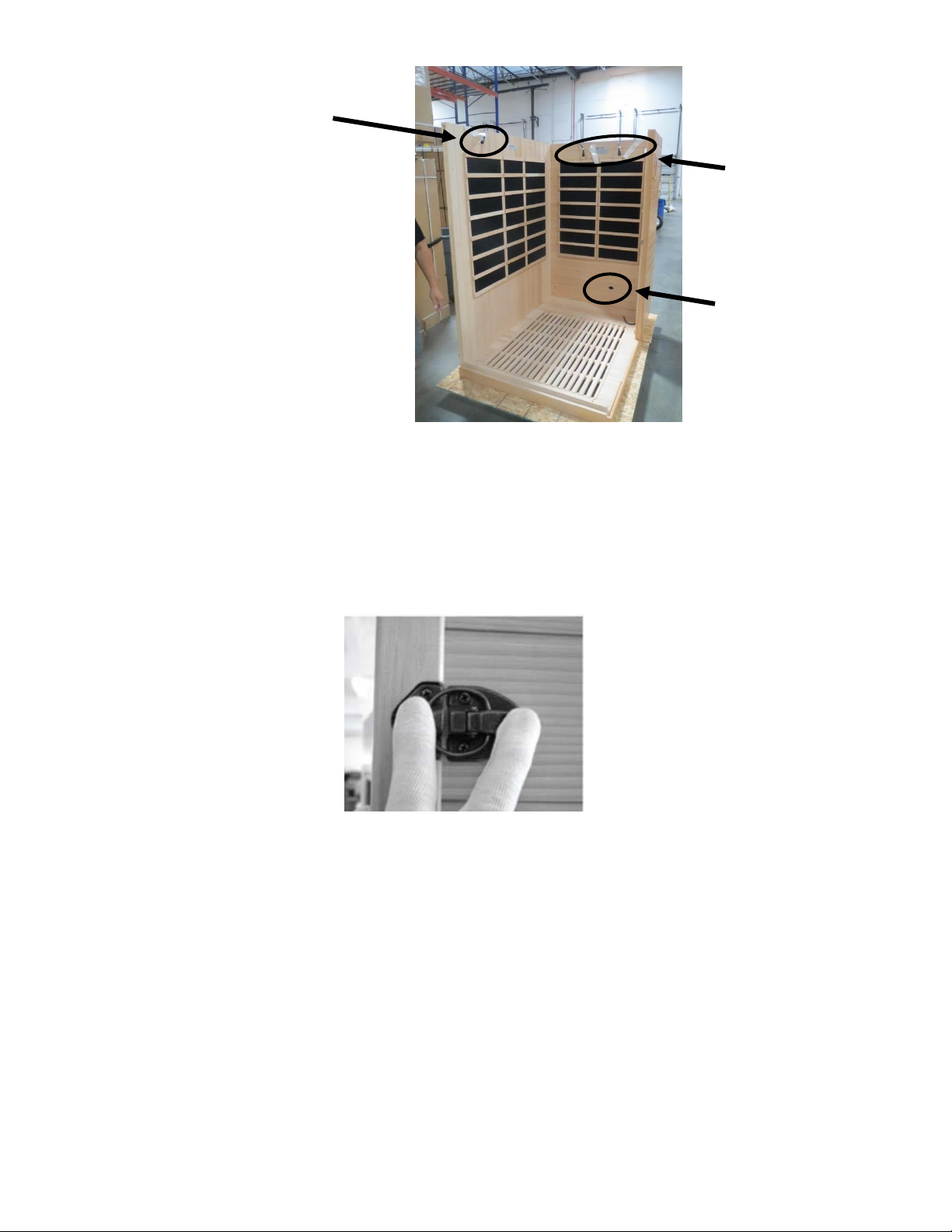

D. Understanding the Difference Between the Inside and Outside of
the Wall Panels
You will find the heat emitters on the interior of the WALL PANELS.
(see Figure 8)
Page 12

Heat Emitters Heater Emitters
Figure 8
Assembly Instructions
1. Choose a good location to assembly the sauna
a. The location must be dry, level, and away from any source of water.
b. The dedicated outlet must be easily accessible.
c. Please note that model DYN-5860-01 will need two separated dedicated
120V 20AMP circuits.
d. Two adults will be needed mostly to assemble, but three adults will be
needed to install the FRONT SIDE STATIONARY GLASS with GLASS
DOOR.
e. Wood Cabin Assembly: Floor Panel Front Right Panel Right Side Panel
Rear Panel Left Side Panel Left Side
Stationary Glass Front Side Stationary
Glass with Glass Door Roof Panel Roof Cover
The sauna can be assembled in different sequences, but the above is
recommended.
e. Tools Required: Philips screwdriver and ladder
2. Installing the FLOOR PANEL
A. Place the FLOOR PANEL onto your floor where the sauna is to be
assembled. See Figure 9 for model DYN-5830-01 and Figure 9a for model
DYN-5860-01.
Page 13

Floor Heater Cord
Front Front
Figure 9 Figure 9a

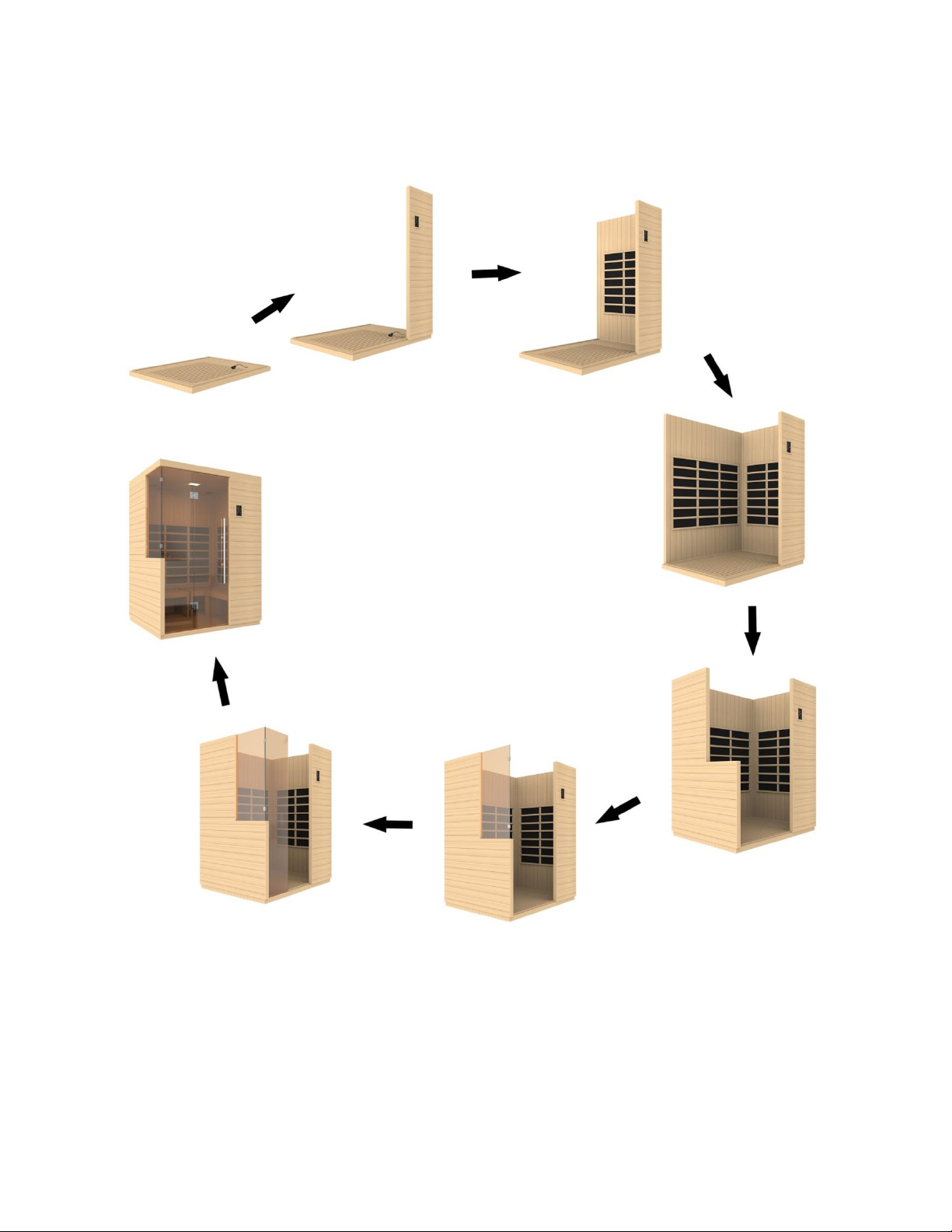

3. Installing the FRONT RIGHT PANEL and RIGHT SIDE PANEL
A. Place the FRONT RIGHT PANEL up and onto the FLOOR PANEL as seen in
Figure 8. There will be a guide molding on the FLOOR PANEL which the
FRONT RIGHT PANEL will go up against. One adult will need to hold the
FRONT RIGHT PANEL stationary as it stands on the FLOOR PANEL. The
second adult will need to lift the RIGHT SIDE PANEL up and onto the
FLOOR PANEL up against the FRONT RIGHT PANEL. Next, lift the RIGHT
SIDE PANEL upward and onto the guide insert brackets on the FRONT
RIGHT PANEL. You will need to line the three brackets up at the same time
and then you can insert the guide and guide inserts. Next, pull the wall panel
all the way down until the wall panels are flush at the top. (see Figures 10
and 11)
Figure 10 Figure 11
Page 14

4. Installing the REAR PANEL
A. One adult will need to hold the FRONT RIGHT PANEL and RIGHT SIDE
PANEL stationary while the second adult places the REAR PANEL up and
onto the FLOOR PANEL up against the RIGHT SIDE PANEL. After making
sure the top of the wall panels are flush, use the external buckles to fasten
the RIGHT SIDE PANEL to the REAR PANEL. Figure 6 shows the external
buckle. (see Figure 12)
Figure 12
5. Installing the LEFT SIDE PANEL and LEFT SIDE STATIONARY GLASS
A. Place the LEFT SIDE PANEL up and onto the FLOOR PANEL. Be sure that the
LEFT SIDE PANEL is up against the guide molding on the FLOOR PANEL. After
making sure the top of the wall panels are flush, use the external buckles to
fasten the LEFT SIDE PANEL to the REAR PANEL. Now you are ready to install
the LEFT SIDE STATIONARY GLASS. Note that on one of the corners of the
LEFT SIDE STATIONARY GLASS there is a cut out. This cut out will go towards
the front of the sauna. The cut out will be at the bottom of the glass. (see Figure
13 and 14)
Figure 13 Figure 14
Page 15

6. Installing the BENCHES
A. This model sauna is designed to be used with or without the benches,
depending on your application. If you are using the sauna for yoga, you will want
to remove the benches. The 3-person model comes with 3 removable benches
and the 6-person model comes with 4 removable benches. Use the provided
screws for assembling the bench panels. See Figure 15 for the order of
assembly of the bench panels. Figure 16 and 16a shows the bench layout within
the sauna. You will need to plug in the floor heater(s) before placing the
benches inside the sauna.
DYN-5830-01 DYN-5860-01
Figure 15 Figure 16 Figure 16a
7. Installing the FRONT SIDE STATIONARY GLASS with GLASS DOOR
A. Two adults will be needed mostly to assemble, but three adults will be
needed to install the FRONT SIDE STATIONARY GLASS with GLASS
DOOR. Be very careful when lifting the FRONT SIDE STATIONARY GLASS
with GLASS DOOR onto the FLOOR PANEL. You will see the cutout which
the STATIONARY GLASS will fit into along the bottom half of the LEFT
SIDE PANEL and the FLOOR PANEL. Use a piece of cardboard and slide
it between the GLASS DOOR and the FLOOR PANEL to keep the DOOR
GLASS balanced. Once in place, one adult will need to hold the FRONT
SIDE STATIONARY GLASS with GLASS DOOR in place while a second
adult uses the provided screws to mount the FRONT SIDE STATIONARY
GLASS to the LEFT SIDE STATIONARY GLASS. Be careful to make sure
the screws are tight, but do not overtighten. (see Figure 18)
Page 16

8. Installing the FRONT GLASS DOOR HANDLE
A. Next, the inner and outer door handles need to be mounted to the FRONT
GLASS DOOR. When screwing the wood knob to the metal handle, make sure
the white washer is placed next to the glass door on both sides. The glass door
will be in between the white washers. The natural finish wood knobs are the
interior door handle portion and the metal will be the exterior door handle
portion. (see Figure 17)
White White
Washer Washer
Exterior Interior
Handle Knob
Figure 17
Figure 18
9. Installing the ROOF PANEL
A. The side of the ROOF PANEL with the POWER SUPPLY is the topside of the
ROOF PANEL. Two adults can carefully lift the ROOF PANEL up and onto the
top of the sauna room. Be careful when setting the ROOF PANEL into place as
the cords and wire harness will need to be fed up to the topside of the ROOF
PANEL. (see Figure 18)
Page 17

10.Connecting the plugs on the ROOF PANEL
A. Connect the plugs according to their respective labels. (see Figure 19)
B. You will need to connect the right and left speaker connectors, the MP3
connector, and the CTRL (Panel Control) harness wire connector. (see Figure
20)
Before Connecting
Figure 19
After Connecting
Figure 20
11. Installing the TEMPERATURE SENSOR
A. Enter the sauna and remove the protective covering (tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is
vertical and pointing downward. (see Figure 21)
Page 18

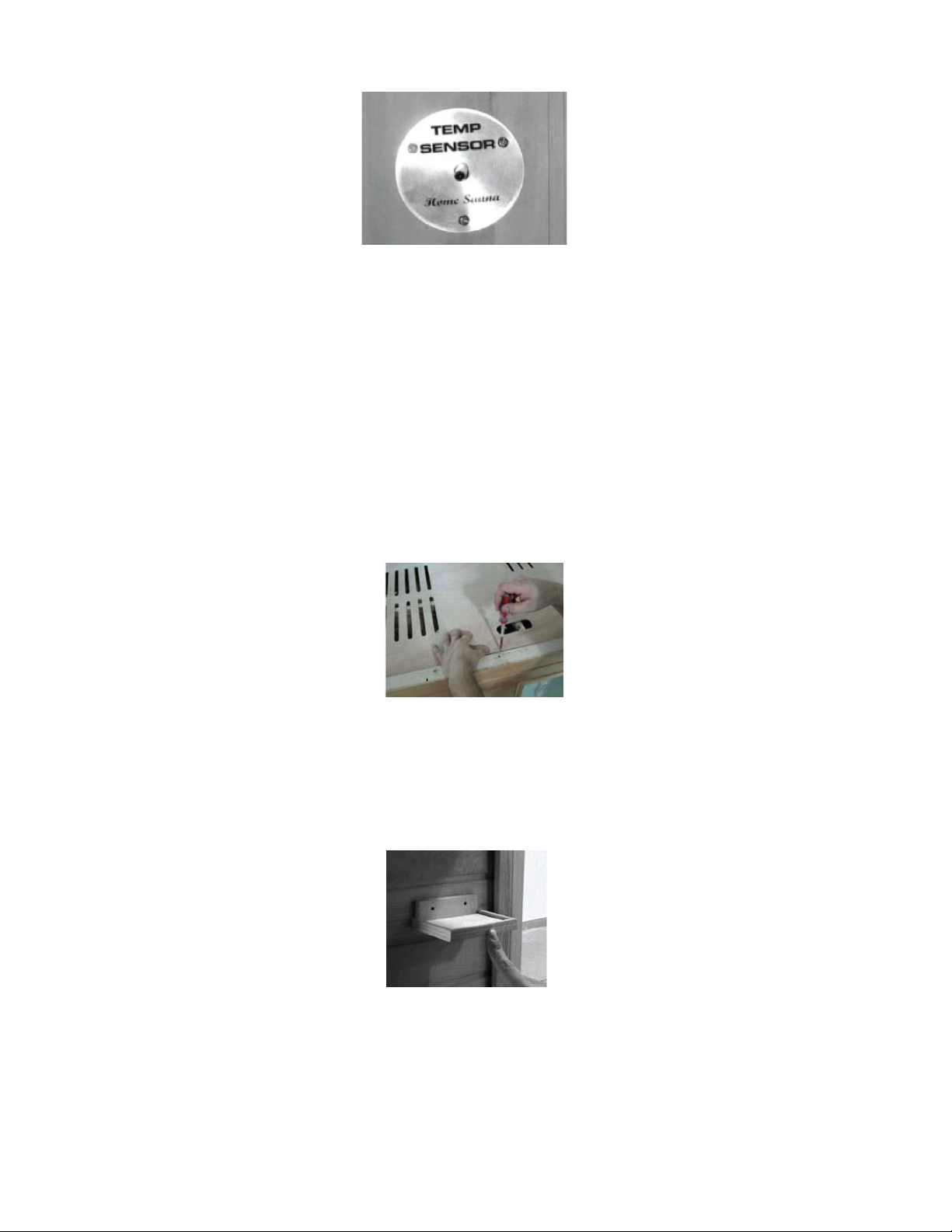

Figure 21
Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside
the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit.
The manufacturer decides this according to sauna models and packaging.
12. Installing the ROOF DUST COVER (optional to install)
A. Place the ROOF DUST COVER over the top of the ROOF PANEL. Be
cautious when pulling the power cord through the hole in the ROOF DUST
COVER. When the edges are aligned, screw the ROOF DUST COVER into place.
The installation of the ROOF DUST COVER is optional. (see Figure 22)
Figure 22
13. Installing the SHELF (sauna may or may not have this option)
A. If your sauna came with the optional MP3 shelf, use the two screws provided
to mount the shelf on either of the interior side wall panels. (see Figure 23)
Figure 23
Page 19
