Dynamic Saunas DYN-6108-01 User manual

DYN-6108-01 / DYN-6208-01 / DYN-6308-01
1, 2, & 3 Person FAR Infrared Saunas
Owner’s Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required (1&2 Person Models)
120VAC 20AMP Dedicated Circuit Required (3 Person Models)
Carefully and thoroughly read this Owner’s Manual before using/operating the
sauna. We recommend keeping this Owner’s Manual for regular review and
future reference.

What Are Infrared Rays?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the
naked eye, but we can feel this type of light in the form of heat. Our sun produces most of
its energy output in the infrared segment of the spectrum. Infrared rays heat your body
without having to heat the air in-between. This process is called conversion.

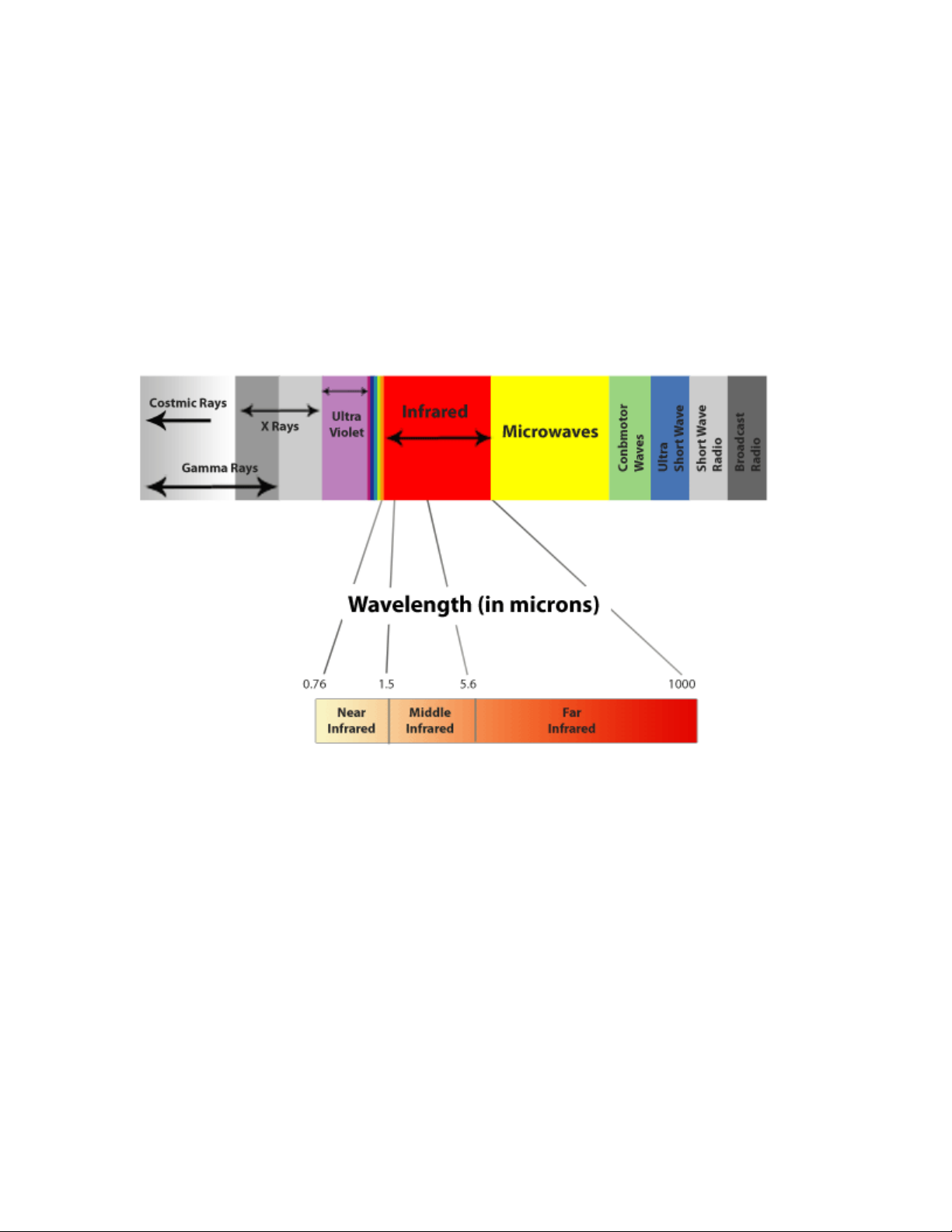

The infrared is divided into 3 segments by wavelengths measured in microns: Near
Infrared –0.76-1.5 microns; Middle Infrared –1.5-5.6 microns; and Far Infrared –5.6-1000
microns. Among these segments, Far Infrared penetrates organic substances such as the
human body two to three inches so that the warming effect is very uniform.
Health Benefits
Because infrared rays penetrate the body through conversion, there is a deep heating
effect in both the muscle tissues and internal organs without putting too much burden on
the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring.
Through the perspiration process, acid and waste residue like toxins, sodium, alcohol,
nicotine, cholesterol, and the potentially carcinogenic heavy metals are removed from the
cells (especially zinc, lead, nickel, cadmium, etc.). The pores of our skin open and
discharge waste products shedding any old skin cells leaving the skin glowing and clean,
with improved tone, elasticity, texture, and color.
Page 1

Health Benefits Include, But Are Not Limited To:
*Pain relief from Rheumatoid Arthritis
*Relaxes muscle spasms
*Increases blood circulation
*Cardiovascular conditioning
*Clears rashes, acne
*Reduces cellulite
*Removes toxins and mineral waste
*Reduces stress and fatigue
*Enhances skin tone
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible
therapeutic benefits based on research completed over the last 40 years from all around
the world. These benefits are presented for reference purposes only and no implication of
infrared saunas creating a cure for or treating any disease is implied nor should it be
inferred. If you have a medical/health condition, are taking prescription drugs, or have
acute joint injuries, please consult with your medical physician before using the sauna.
Persons with surgical implants (metal pins/rods, artificial joints, silicone, or other types of
surgical implants) typically do not experience any adverse effects, but should also consult
their medical physician or surgeon before using the sauna room.
What are electric and magnetic fields?
Electric and magnetic fields are a basic force of nature (like gravity), generated by
electricity. They are found almost everywhere. Electric and magnetic fields are found in
nature, where they are created by such things as lightning and static electricity. Manmade
fields are found wherever people use electricity, such as near powerlines and electrical
appliances. Like sound, electric and magnetic fields are made of a mixture of components
and so can be described in many different ways. Both have wave-like properties
such as strength and “frequency” (how often they cycle back and forth). Sound can be
loud (strong) or soft (weak), high or low pitched (different frequencies), suddenly loud or
constant in tone, and pure or jarring. Similarly, electric and magnetic fields are a mixture
of components. They can be strong or weak, have a high or low frequency, have sudden
increases in strength (“transients”) or a constant strength, and consist of one pure
frequency or several (called “harmonics”). For example, the strength of a field can be weak
and constant, as in most nighttime home environments, or it can be strong and vary from
high to low every few seconds, as from an electric blanket set on high. Powerlines and
wiring in buildings and appliances generate 50 and 60 Hertz fields, sometimes referred to
Page 2

as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the
number of wave cycles each second. The lower the frequency of a field, the lower its
energy. Power frequency fields are low frequency fields and have low energy levels.
Microwave and x-ray fields are high frequency fields and have high energy levels. Below
are some EMF measurements.

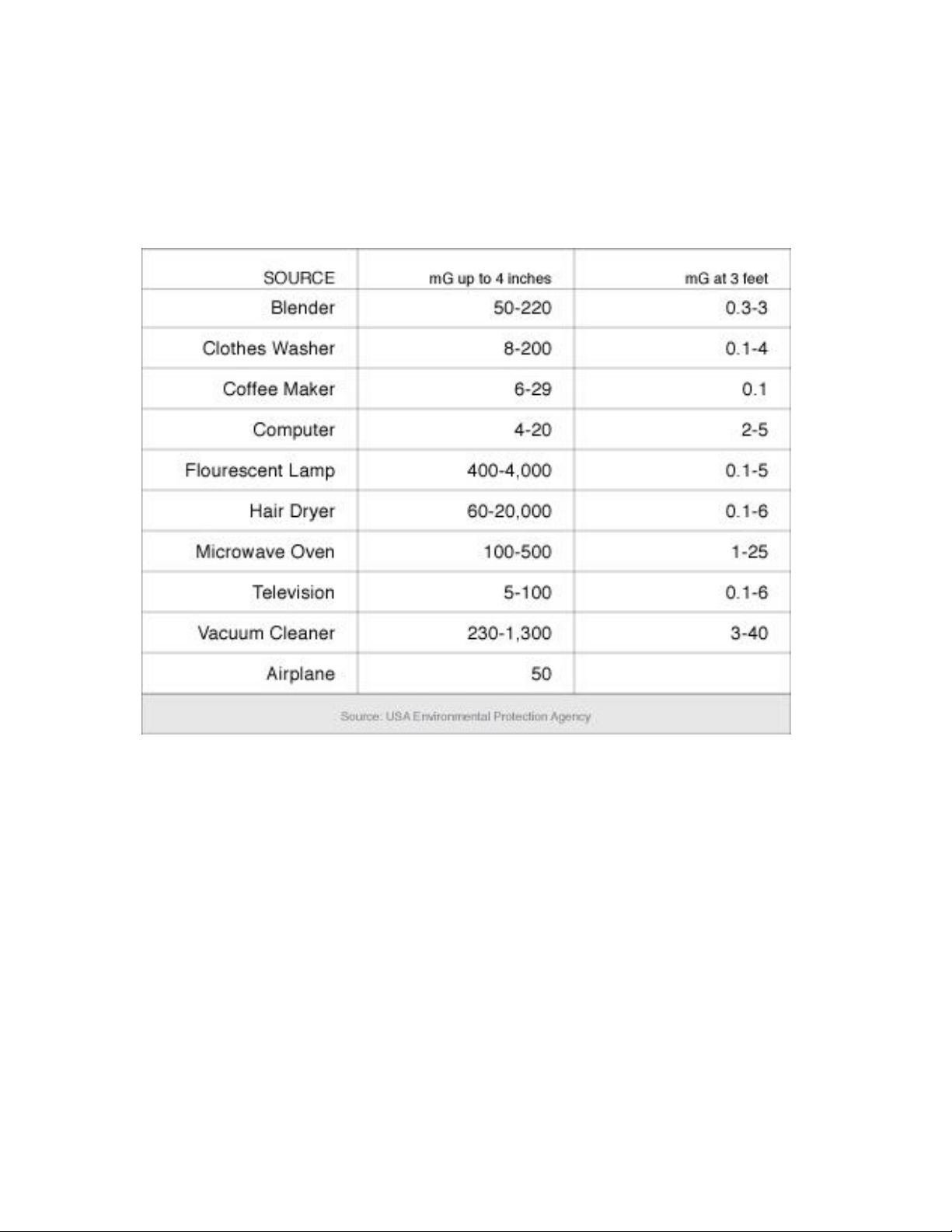

EMF Levels from Common Homes Sources
After many years and numerous studies on EMF exposure, no government body including
the Occupational Safety and Health Administration (OSHA) have established permissible
exposure limits (PEL). Currently, there is no consensus on the potential health hazard from
any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-
frequency, electromagnetic radiation associated with household currents like that of the
infrared sauna does not constitute a short or long term health hazard.
Sauna Maintenance
Since infrared saunas do not require hot rocks, water, or steam to operate, they require
very little maintenance. You can simply wipe it down with water –use a damp, soft, and
clean cloth. Do not use any chemical based cleaning agents as they can be absorbed
into the wood and be released into your sauna during use.
Page 3

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
DYN-6108-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 4

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
DYN-6208-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 5

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
DYN-6308-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 6

TABLEOFCONTENTS
ProductIntroduction 7
PartsDescription 8
AssemblyInstructions 14
OperatingtheSauna 20
TipsforUsingyourSauna 23
SafetyInstructions 24
SafeguardsforyourSauna 25
TroubleshootingGuide 26
Warranty 32
WarrantyCard 34
WARNING: Visually inspect all heaters before assembly to make sure they are
not damaged. Any excessive vibrations during transport could cause damage to
the heating elements. DO NOT START the sauna if damage is detected! Contact
your dealer or manufacturer for troubleshooting and replacement parts.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a
control system. The wood cabin includes a FRONT PANEL, REAR PANEL, LEFT
SIDE PANEL, RIGHT SIDE PANEL, BENCH, BENCH EMITTER PANEL, FLOOR
PANEL, ROOF PANEL, and ROOF COVER. The infrared sauna
comes with control panels, a drink shelf (optional), a reading lamp/color light, and
infrared heat emitters.
NOTE: Your model sauna has been completely assembled and tested prior to
packaging. The rear wall panel is intentional warped as part of the overall design.
Two adults will be needed to assemble the sauna room.
CAUTION: Exit Sauna Immediately If You Feel Dizzy, Sleepy, Or
Any Discomfort.
Page 7

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
DYN-6108-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 8

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
DYN-6208-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 9

*PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*
PARTS DESCRIPTION
DYN-6308-01
*THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE
VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN.
PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO
CHANGE.
Page 10

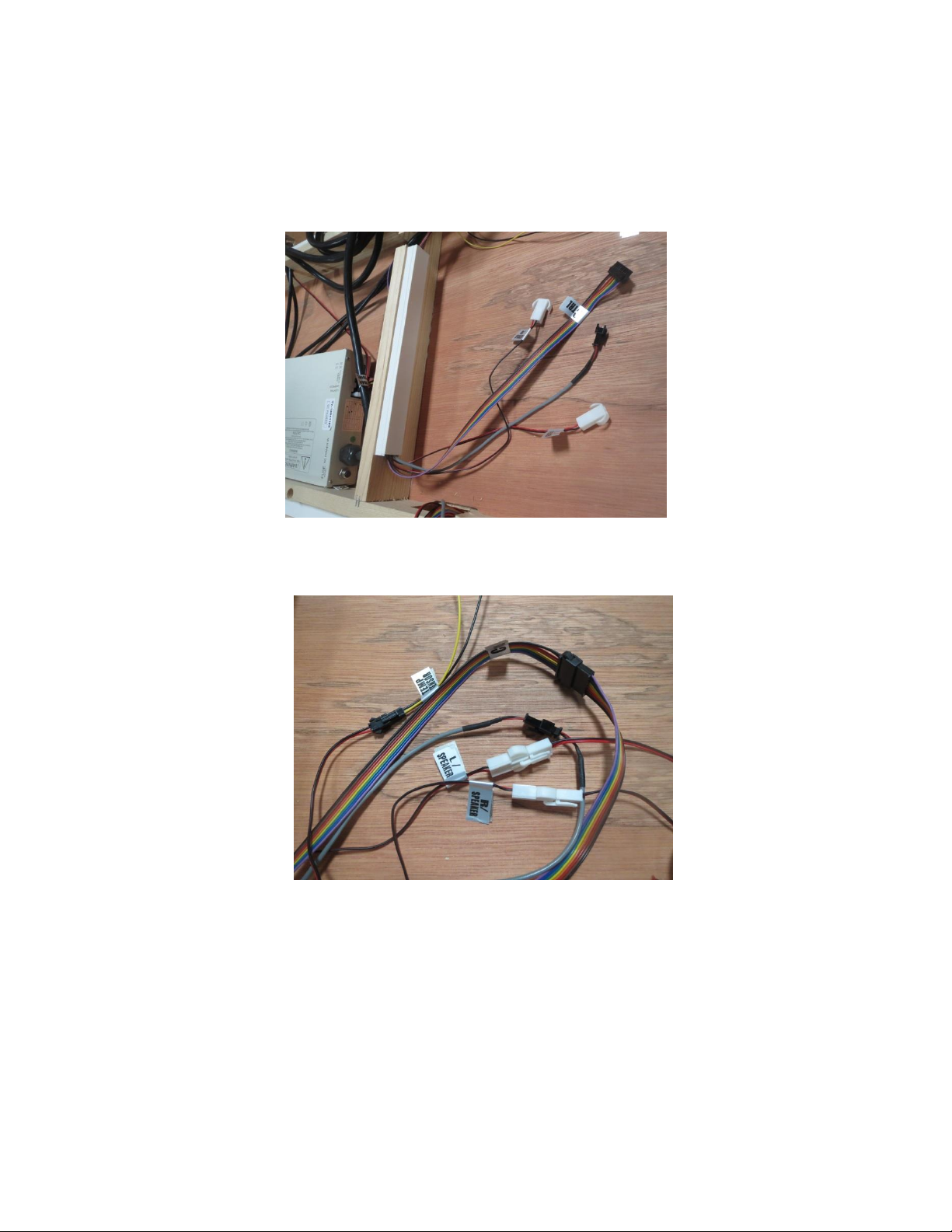

I. Power Supply (Control Box)
The POWER SUPPLY is the control center of the sauna room. It is installed on the
topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1)
Figure 1
POWER IN - main power of the sauna room
HT1, HT2, HT3, HT4, HT5, HT6 –heat emitter cords
LAMPROOF –roof lamp power (optional)
LIGHTING –chromotherapy lights
PANEL CONTROL –control panel
FUSE RESET –protects against power
II. Component Labeling
Power Cord –Main power cord connects the POWER SUPPLY to the
dedicated wall outlet
HT1, HT2, HT3, HT4, HT5, HT6 –Heater cords connect the heat emitters to
the POWER SUPPLY at these ports (HT5 & HT6 are not used on most
models)
Lighting –Connects the interior lighting to the POWER SUPPLY at this port
LampRoof –Connects the exterior roof lights to the POWER SUPPLY at this
port
Panel Control –Connects the Control Panel through the CTRL harness to
the Power Supply at this port
L/R Speakers –Connects the speakers through these wires to the Control
Panel

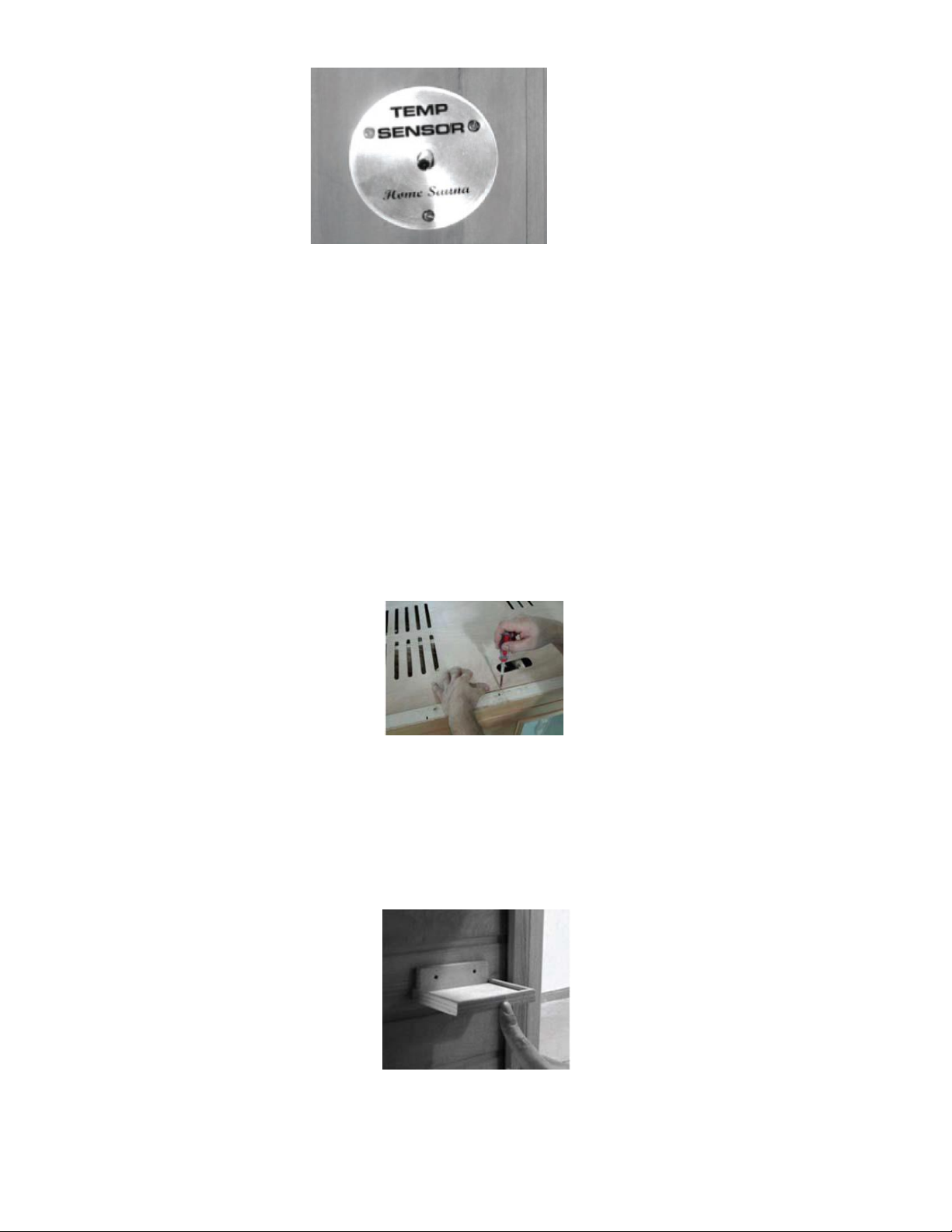

Temp Sensor –Connects the Temperature Sensor through this wire to the
Control Panel
Page 11

III. MP3 Auxiliary Port
The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the
auxiliary function to the speakers in the sauna room for your listening pleasure. (see
Figure 2)
Figure 2
IV. Buckles
A. External Buckles

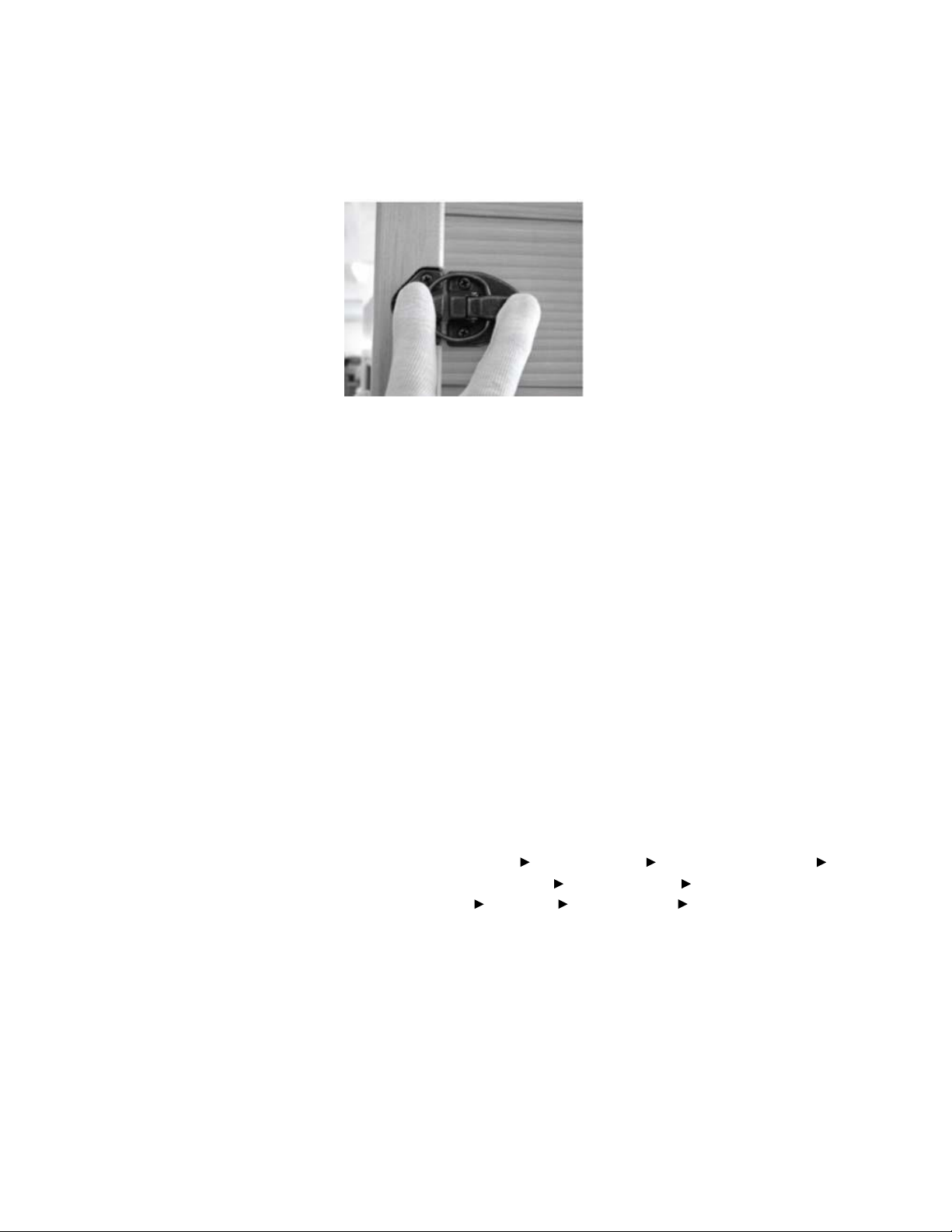

The external buckles are used to connect the LEFT and RIGHT SIDE
PANELS to the REAR PANEL. (see Figure 3)
Figure 3
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL
to the RIGHT SIDE PANEL and the LEFT SIDE PANEL. (see Figure
4)
Page 12

Figure 4
V. Panel Descriptions
For easier assembly, please understand and distinguish the differences between
each panel.
A. Floor Panel
When the FLOOR PANEL faces upward, you will find the floor heat
emitter(s) on the topside of the FLOOR PANEL. (see Figure 5)
B. Understanding the Difference Between the Top and Bottom of the
Wall Panels
The (4) panels are in the upright position when the moldings are at the
top. The moldings will be facing inward towards the interior of the
sauna room. You will see the heat emitter cords coming from the
topside of the wall panels. (see Figure 5)
Molding
Figure 5
Page 13

C. Rear Panel
The REAR PANEL is the panel with the buckles. The buckles are
mounted on the exterior side of the REAR PANEL. (see Figure 6)
Figure 6
D. Understanding the Difference Between the Inside and Outside of
the Rear Panel
You will find the heat emitters on the inside of the REAR PANEL.
Assembly Instructions

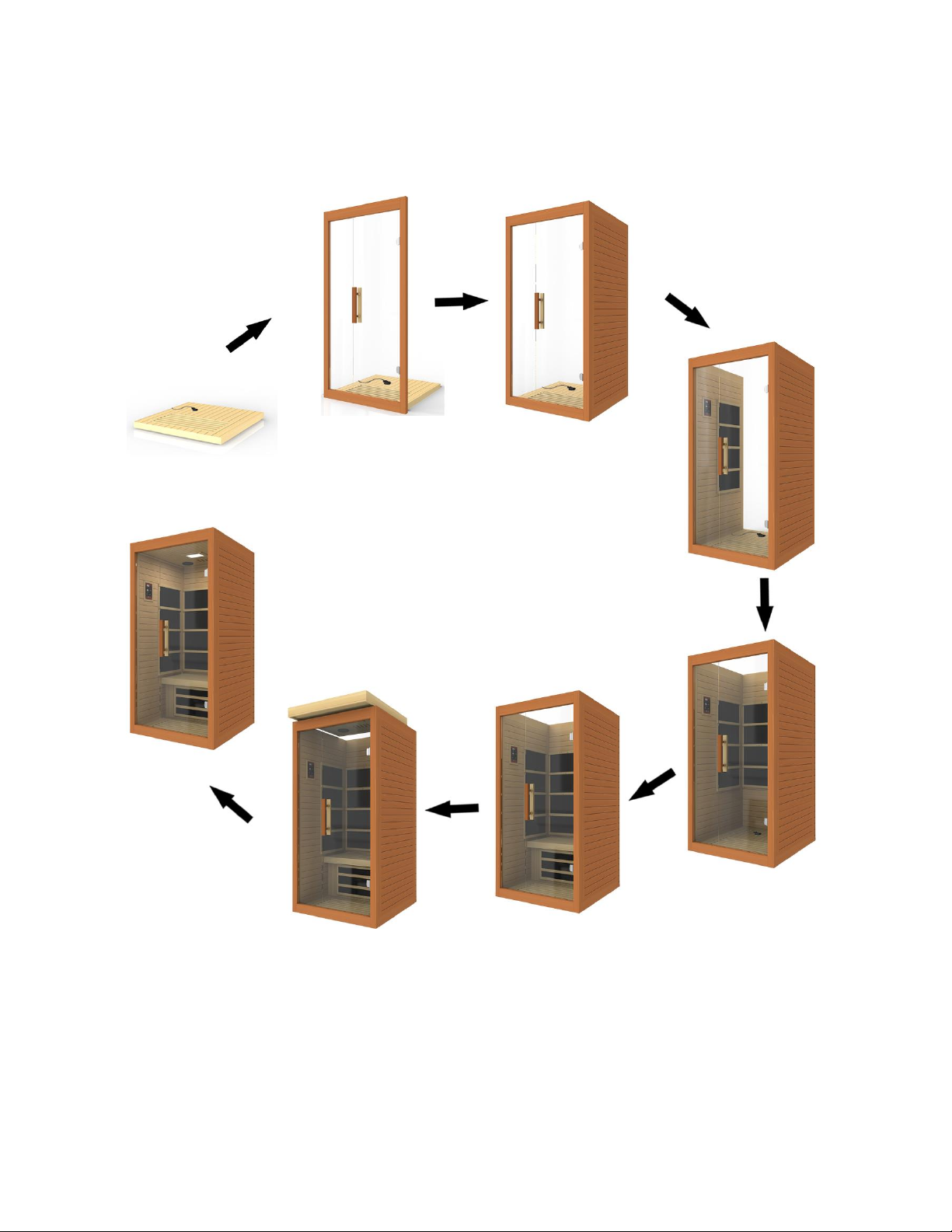

1. Choose a good location to assembly the sauna
a. The location must be dry, level, and away from any source of water.
b. The dedicated outlet must be easily accessible.
c. Two adults will be needed to assemble.
d. Wood Cabin Assembly: Floor Panel Front Panel Right Side Panel
Left Side Panel Rear Panel Bench Emitter
Panel Bench Roof Panel Roof Cover
The sauna can be assembled in different sequences, but the above is
recommended.
e. Tools Required: Philips screwdriver and ladder
Page 14

2. Installing the FLOOR PANEL
A. Place the FLOOR PANEL onto your floor where the sauna is to be
assembled. The side with the floor heat emitter panel will be facing up and
the floor heat emitter cord will be towards the left rear of the sauna. (see
Figure 7)
Figure 7
3. Installing the FRONT PANEL with the RIGHT SIDE PANEL with GLASS DOOR
A. Place the FRONT PANEL up against the FLOOR PANEL as seen in Figure
8. One adult will need to hold the FRONT PANEL stationary up against the
FLOOR PANEL. The second adult will need to lift the RIGHT SIDE PANEL
up and onto the FRONT WALL PANEL. Once the guide and guide insert
brackets are engaged, the RIGHT SIDE PANEL will need to be pulled
downward until the top of both wall panels is flush. Please see Figure 9.
Figure 10 shows the guide and guide insert brackets. Please note that the
“U” bracket that adheres to the door glass magnet (magnet is located on the
door jamb) will need to be moved to the top of the glass door.
Figure 10
Figure 8 Figure 9
4. Installing the LEFT SIDE PANEL
A. One adult will need to hold the FRONT WALL PANEL stationary while the
second adult places the LEFT SIDE PANEL up against the FLOOR PANEL.
Next, the second adult will need to lift the LEFT SIDE PANEL up and onto
the FRONT WALL PANEL. Once the guide and guide insert brackets are
engaged, the LEFT SIDE PANEL will need to be pulled downward until the
top of both wall panels is flush. (see Figure 11)
Page 15

Figure 11
5. Installing the REAR PANEL
A. Place the REAR PANEL up against the FLOOR PANEL. You may need to open
up the RIGHT SIDE PANEL and LEFT SIDE PANEL to fit the REAR PANEL
between the two. Please note that the REAR PANEL will fit with the RIGHT
SIDE PANEL and LEFT SIDE PANEL like a puzzle as it inserts into both side
panels. Once the REAR PANEL is in place, you can buckle the side panels to
the REAR PANEL using the external buckles. (see Figure 12)
Figure 12
6. Installing the BENCH HEAT EMITTER PANEL and BENCH
A. Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will
need to slide the BENCH HEAT EMITTER PANEL into place at an angle as
indicated in Figure 13. After the BENCH HEAT EMITTER PANEL is installed,
you can connect the BENCH HEAT EMITTER cord into the outlet on the RIGHT
SIDE PANEL and the FLOOR HEAT EMITTER cord into the LEFT SIDE
PANEL. See Figure 13a. Next, slide the BENCH over the BENCH HEAT
EMITTER PANEL. You will need to connect the bench LED light with the labeled
“LED Background Light” connection from the REAR PANEL. Make sure to slide
the BENCH all the way back. (see Figure 14)
Page 16

Figure 13
Figure 13a Figure 14
7. Installing the FRONT GLASS DOOR HANDLE
A. Next, the inner and outer door handles need to be mounted to the FRONT
GLASS DOOR. The natural finish side will be the interior door handle portion
and the one with the stain finish will be the exterior door handle portion. The
screws will be used to mount the door handle to the glass door.
8. Installing the ROOF PANEL
A. The side of the ROOF PANEL with the ceiling vent will be situated towards the
rear of the sauna. Two adults can carefully lift the ROOF PANEL up and onto
the top of the sauna room. Be careful when setting the ROOF PANEL into place
as the cords and wire harness will need to be fed up to the topside of the ROOF
PANEL. (see Figure 15)
Figure 15
Page 17

9. Connecting the plugs on the ROOF PANEL
A. Connect the plugs according to their respective labels. (see Figure 16)
B. You will need to connect the right and left speaker connectors, the MP3
connector, and the CTRL (Panel Control) harness wire connector. (see Figure
17)
Before Connecting
Figure 16
After Connecting
Figure 17
10. Installing the TEMPERATURE SENSOR
A. Enter the sauna and remove the protective covering (tape) from the
TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is
vertical and pointing downward. (see Figure 18)
Page 18

Figure 18
Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside
the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit.
The manufacturer decides this according to sauna models and packaging.
11. Installing the ROOF DUST COVER (optional)
A. Place the ROOF DUST COVER over the top of the ROOF PANEL. Be
cautious when pulling the power cord through the hole in the ROOF DUST
COVER. When the edges are aligned, screw the ROOF DUST COVER into
place. The installation of the ROOF DUST COVER is optional.
Figure 20
12. Installing the SHELF (sauna may or may not have this option)
A. If your sauna came with the optional MP3 shelf, use the two screws provided
to mount the shelf on either of the interior side wall panels. (see Figure 20)
Figure 20
Page 19
