Dynamic Saunas DYN-6240-02 User manual

1
DYN-6240-02 / DYN6340-02
2 and 3 Person Model Saunas
OWNER’S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
DYN-6240-02 - 120V 15 AMP DEDICATED CIRCUIT
DYN-6340-02 - 120V 20 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

2
TABLE OF CONTENTS
What Are Infrared Rays 3
Are Infrared Rays Safe 3
How It Works 4
Benefits 4
Sauna Maintenance 5
Product Introduction 5
Parts Description 6
Assembly Instructions 10
Operating the Sauna 16
Tips for Using Your Sauna 18
Safety Instructions 18
Safeguards for Your Sauna 19
Troubleshooting Guide 20
Warranty 21
Warranty Card 23
WARNING: Visually inspect all heaters before assembly to make sure they are not
damaged. Any excessive vibrations during transport could cause damage to the
heating elements. DO NOT START the sauna if damage is detected! Contact your
dealer or manufacturer for troubleshooting and replacement parts.

3
WHAT ARE INFRARED RAYS?
Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we
can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared
segment of the spectrum. Infrared rays heat your body without having to heat the air in-between. This process
is called conversion.

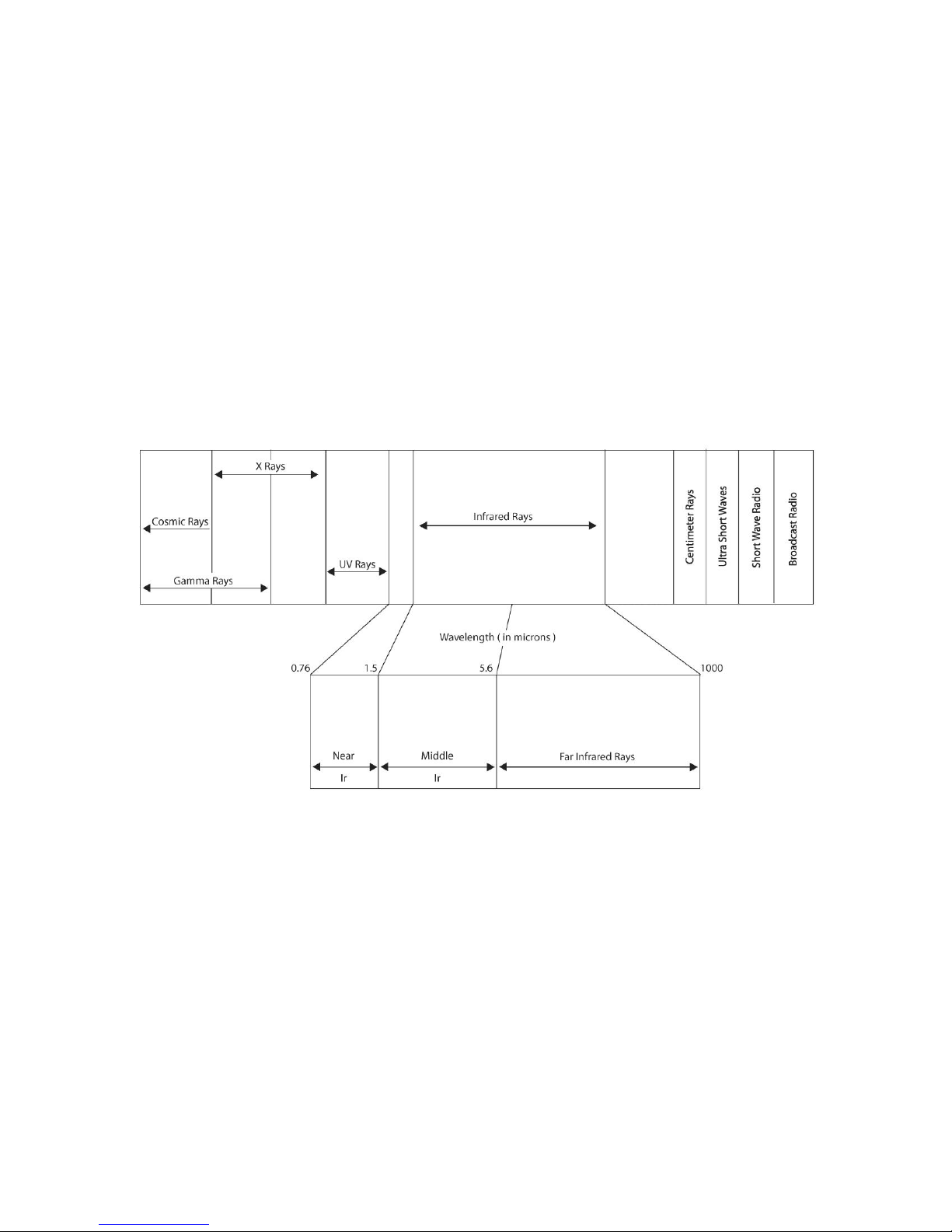

The infrared is divided into 3 segments by wavelengths measured in microns: near infrared: 0.76-1.5
microns; middle infrared: 1.5-5.6 microns; and far infrared: 5.6-1000 microns. Among these segments, only
far infrared penetrates organic substances such as the human body two to three inches so that the
warming effect is very uniform.
ARE INFRARED RAYS SAFE?
Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a
cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint
problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep
newborn babies warm.

4
HOW IT WORKS
Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into
the body's tissue to produce perspiration.
Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to
perspire. In order for this to be effective, temperatures would need to reach in the upwards of 190 degrees
Fahrenheit. Infrared saunas only need a temperature of up to 120 degrees Fahrenheit to obtain the same
effect. This lower temperature makes the environment more tolerable and allows you to breathe easier.
BENEFITS
Because infrared rays penetrate the body through conversion, there is a deep heating effect in both the muscle
tissues and internal organs without putting too much burden on the heart.
Our body reacts to the increased heating through the natural cooling process of perspiring. Through the
perspiration process, acid and waste residue like toxins, sodium, alcohol, nicotine, cholesterol and the
potentially carcinogenic heavy metals are removed from the cells (especially zinc, lead, nickel, cadmium,
etc). The pores of our skin open and discharge waste products shedding any old skin cells leaving the skin
glowing and clean, with improved tone, elasticity, texture, and color.
Over the last 25 years, Japanese and Chinese researchers and clinicians have completed extensive research
on infrared treatments and have reported many provocative findings. In Japan, there is an "infrared society"
composed of medical doctors and physical therapists dedicated to furthering infrared research. Their findings
support the health benefits of infrared therapy as a method of healing.
Benefits include, but are not limited to:
- Pain relief from Rheumatoid Arthritis
- Relaxing muscle spasms

5
- Increases blood circulation
- Cardiovascular conditioning
- Clears rashes, acne
- Reduces cellulite
- Removes toxins and mineral waste
- Reduces stress and fatigue
- Enhances skin tone
SAUNA MAINTENANCE
Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little
maintenance. You can simply wipe it down with water and a soft clean cloth. Do not use any cleaning
chemicals as they can be absorbed into the wood and be released into your sauna during use.
DISCLAIMER
The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits
based on research completed over the last 25 years from all around the world. These benefits are presented
for reference purposes only and no implication of infrared saunas creating a cure for or treating any disease is
implied nor should it be inferred. If you have a health condition, are taking prescription drugs, or have acute
joint injuries, please consult your physician before starting infrared therapy. Persons with surgical implants
(metal pins and rods, artificial joints, silicone, or other types of surgical implants) typically do not experience
any adverse effects, but should also consult their physician or surgeon before starting infrared therapy.
1. Product Introduction
The infrared sauna room is composed of a wood cabin, infrared heat emitters, and a control system. The
wood cabin includes a FLOOR PANEL, REAR WALL PANEL, RIGHT SIDE WALL PANEL, FRONT WALL
PANEL, LEFT SIDE WALL PANEL with GLASS DOOR, ROOF PANEL, FLOOR HEAT EMITTER PANEL,
BENCH HEAT EMITTER PANEL, and BENCH. The infrared sauna comes with an interior control panel,
chromotherapy/color therapy lighting,, drink shelf (optional), MP3 AUX Input jack, speakers, and infrared
heat emitters.
CAUTION: Exit sauna immediately if you feel dizzy,
sleepy, or any discomfort.
NOTE: The pictures and diagrams shown within this Owner’s Manual are
representations of this model. Actual model may vary.

6

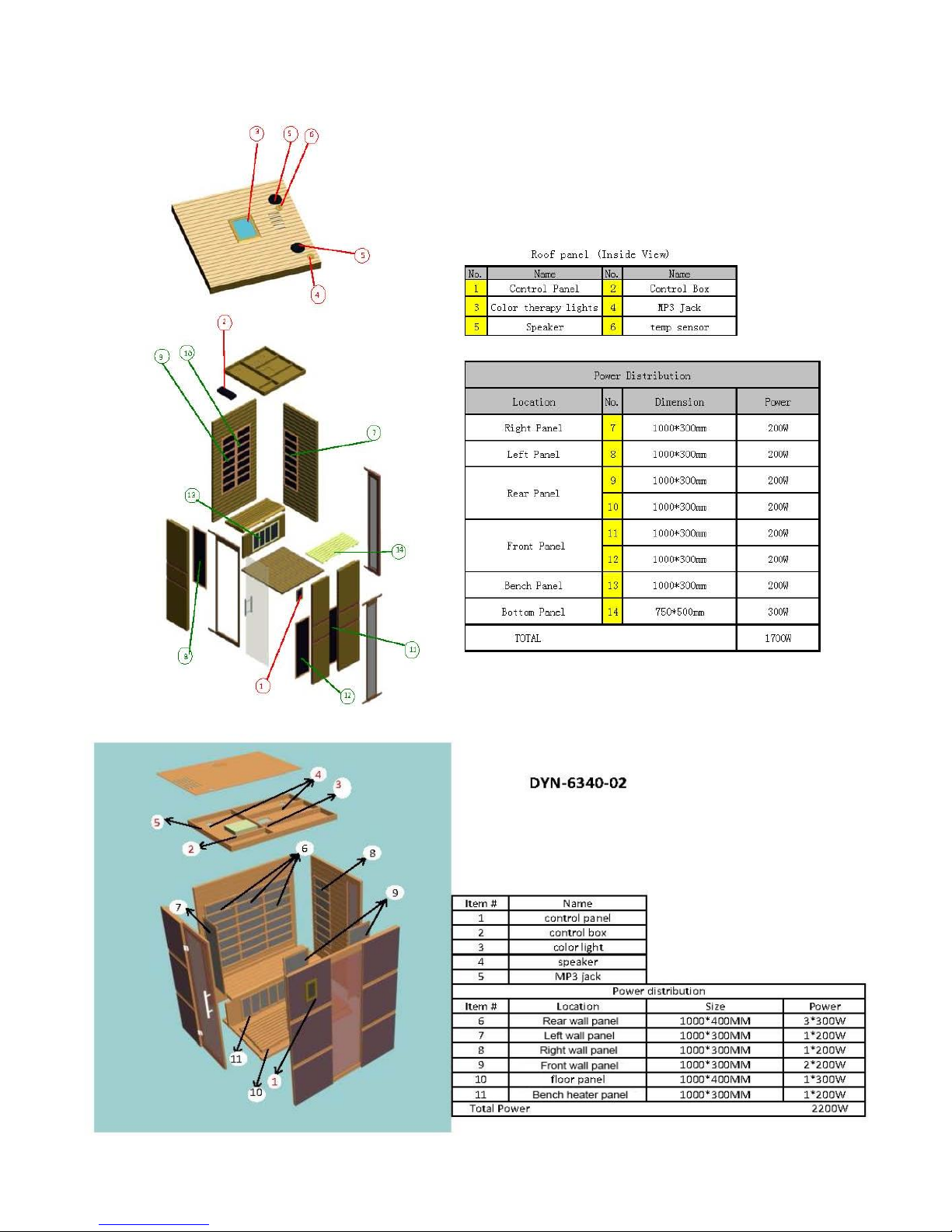

PARTS DESCRIPTION
DYN-6240-02

7
I. Power Supply (Control Box)
The POWER SUPPLY/CONTROL BOX is the control center of the sauna room. It is installed on the ROOF
PANEL near the LEFT SIDE WALL PANEL with GLASS DOOR of the sauna room and has input/outputs
connected to it as seen below. The power cord comes from the POWER SUPPLY/CONTROL BOX and is
about 8 feet in length. (see Figure 1)
Figure 1
MAIN POWER main power of the sauna room
HT1, HT2, HT3, HT4 emitter power output cords
LIGHT reading lamp power output cord
ROOF LAMP roof lamp power output cord (optional)
CTRL control panel connection
CD/SIG signal cable group
II. Component Labeling
POWER Power Cord
HT1, HT2, HT3, HT4 Emitter (heater) power cords
LIGHT Reading lamp connector
ROOF LAMP Roof lamp connector (not available on all models)
COLOR LAMP Color lamp connector (not available on all models)
CTRL Control panel connector
CD/SIG For speakers/temperature sensor/buzzer/etc. connectors
CD-POWER CD/radio power connector (not available on all models)
FAN-POWER CD/radio fan power connector (not available on all models)
ANALOG AUDIO Audio frequency signal connector
L/SPEAKER Left speaker connector
R/SPEAKER Right speaker connector
BUZZER Buzzer connector

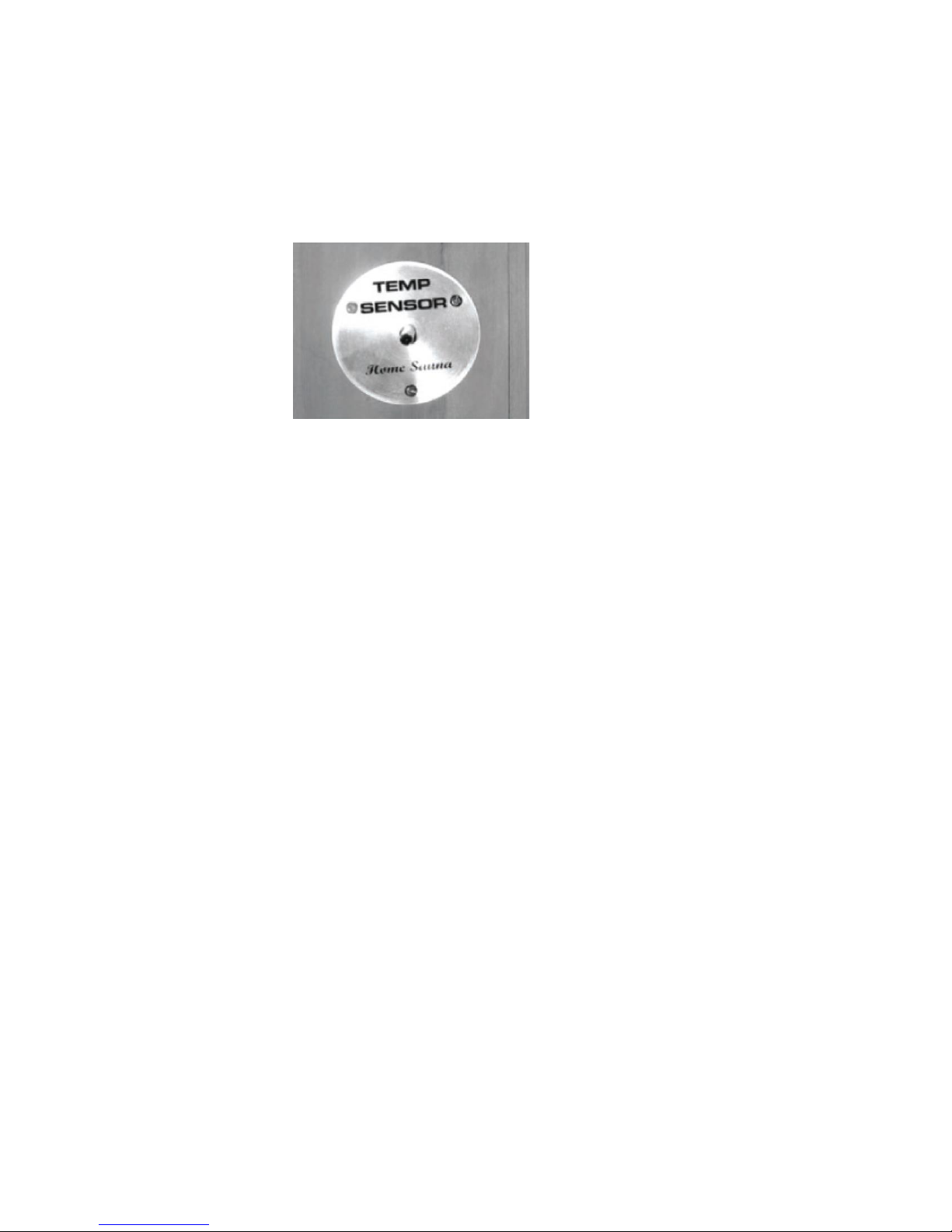

TEMP SENSOR Temperature sensor

8

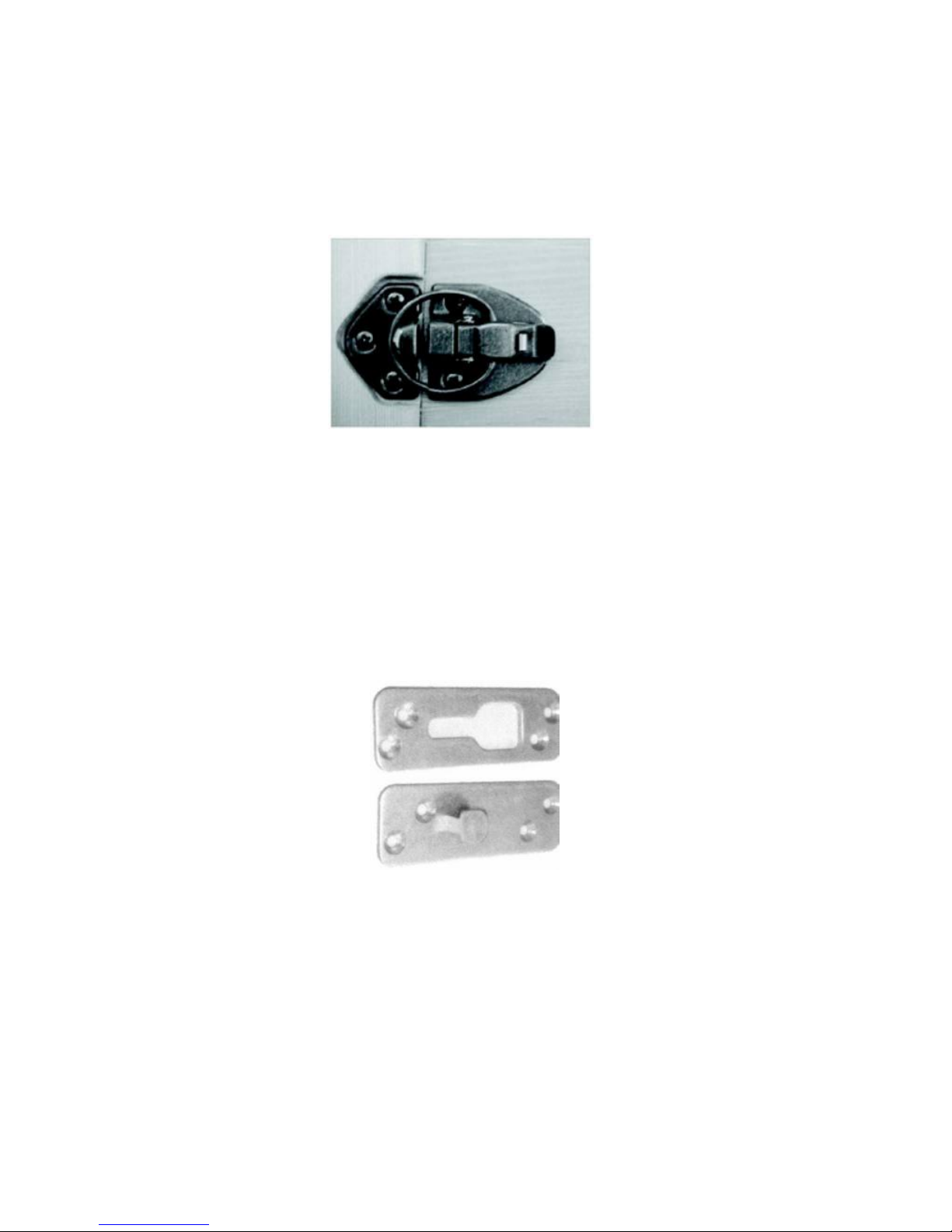

III. Buckles
A. External Buckles
The external buckles are used to connect the side wall panels to the REAR WALL PANEL. (see
figure 2)
Figure 2
B. Guide and Guide Inserts
The guide and guide inserts are used to connect the FRONT PANEL to the RIGHT SIDE
PANEL and the LEFT SIDE PANEL. (see figure 3)
Figure 3
IV. Panel Descriptions
For easier installation, please understand and distinguish the differences between each panel.
A. Floor Panel
When you place the FLOOR PANEL at its designated location, leave enough space so that you
are able to move around the FLOOR PANEL in order to install the sauna wall panels. To identify
the front of the FLOOR PANEL, pay special attention to the direction of the wood pattern. The
front and the rear will be identical as would the left and right sides. (see Figure 4)

9
Front of Sauna Room
Figure 4
B. Understanding The Wall Panels
The LEFT SIDE WALL PANEL with GLASS DOOR and FRONT WALL PANEL are displayed in
Figure 5. Please notice that the FRONT WALL PANEL has two heat emitter panels that are
toward the bottom of the wall panel. The RIGHT SIDE WALL PANEL has been added in Figure
6. The REAR WALL PANEL has been added in Figure 7. Please note that the REAR WALL
PANEL has two heat emitter panels for model DYN-6240-02 and three heat emitter panels for
model DYN-6340-02 which are towards the top of the wall panel. The ROOF PANEL has been
added in Figure 8.
Figure 5 Figure 6
Figure 7 Figure

10
C. Roof Panel
The ROOF PANEL houses the control box/power supply, speakers, MP3 AUX jack, and
chromotherapy/color therapy lighting. Once installed, all the wiring harnesses, plugs, and
connections will sit on the exterior side of the roof. (see Figure 9)
Figure 9
Assembly Instructions

11
A. Choose a good location to assemble the sauna
1. The location must be dry, leveled, and away from any source of water
2. POWER outlet must be easily accessible in order to plug the sauna cord in
3. Two adults are required for installation
4. Wood cabin installation order: FLOOR PANEL FRONT WALL PANELLEFT SIDE WALL
PANEL with GLASS DOOR REAR WALL PANEL RIGHT SIDE WALL PANEL 
FLOOR HEAT EMITTER PANEL BENCH HEAT EMITTER PANEL BENCH ROOF
ROOF COVER
5. Tools Required: Philips Screwdriver and Ladder
B. Installing the FLOOR PANEL
1. Place the FLOOR PANEL on the floor. (Note: The arrows indicate the front. Front and rear
are universal. (see Figure 10)
Figure 10
C. Installing the FRONT WALL PANEL with the LEFT SIDE WALL PANEL with GLASS DOOR
1. Place the FRONT SIDE WALL PANEL up against the FLOOR PANEL as seen in Figure 11.
One adult will need to hold the FRONT SIDE WALL PANEL stationary up against the FLOOR
PANEL. The second adult will need to place the LEFT SIDE WALL PANEL with GLASS
DOOR up against both the FLOOR PANEL and FRONT SIDE WALL PANEL. Please see
Figure 12. The wall panels are attached using the guide and guide inserts as seen in Figure
13.
Figure 11 Figure 12 Figure 13

12

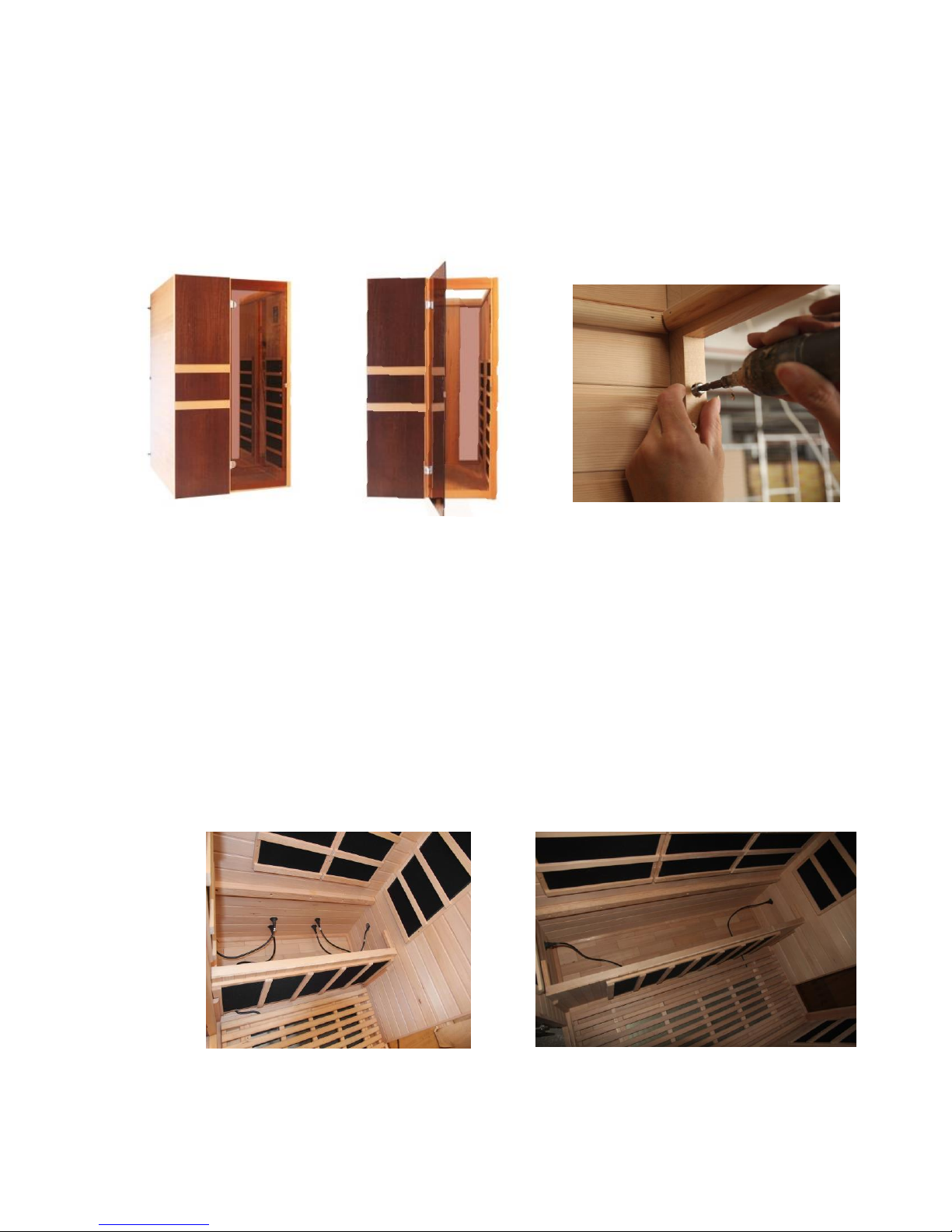

D. Installing the REAR WALL PANEL and RIGHT SIDE WALL PANEL
1. Now place the REAR WALL PANEL against both the FLOOR PANEL and LEFT SIDE WALL
PANEL with GLASS DOOR. Use the external buckles to attach the wall panels. Next, place the
RIGHT SIDE WALL PANEL up against the FLOOR PANEL, FRONT WALL PANEL, and REAR
WALL PANEL. First, attach the RIGHT SIDE WALL PANEL to the FRONT WALL PANEL using
the guide and guide inserts. Then attach the RIGHT SIDE WALL PANEL to the REAR WALL
PANEL using the external buckles. (see Figure 14 and Figure 15)
Figure 14 Figure 15 Figure 15a
Please Note: If your model has the pre-drilled holes on the LEFT SIDE WALL PANEL with GLASS DOOR
for mounting this panel to the FRONT WALL PANEL, please use the provided screws to mount these
two wall panels together. (see Figure 15a)
E. Installing the FLOOR HEAT EMITTER PANEL, BENCH HEAT EMITTER PANEL and BENCH
1. Installing the FLOOR HEAT EMITTER PANEL is as simple as laying it down on the FLOOR
PANEL as seen in Figure 16 and Figure 17. You can now connect the cords in their specific
outlets on the REAR WALL PANEL. Next, slide the BENCH HEAT EMITTER PANEL into
place as indicated in Figure 17. Please note that the slot on the BENCH HEAT EMITTER
PANEL is the bottom. The slot is for the FLOOR HEAT EMITTER PANEL cord to travel
underneath the BENCH HEAT EMITTER PANEL in order to be plugged into the outlet on the
REAR WALL PANEL. Proceed to plugging in the BENCH HEAT EMITTER PANEL.
Figure 16 (DYN-6240-02) Figure 17 (DYN-6340-02)

13
2. Install the BENCH at an angle as seen in Figure 18. Then slide it over the horizontal bench
guides on the side panels. Slide the BENCH all the way in and against the REAR WALL
PANEL. Make sure to install the BENCH with the flat side up against the REAR WALL
PANEL. (see Figure 19) The provided 1 ½” screws can be used to mount the bench using the
predrilled holes in the bench. (optional –only available on some models)
Figure 18 Figure 19
F. Installing the FRONT GLASS DOOR HANDLE
1. Next, the inner and outer door handles need to be mounted to the GLASS DOOR. Please
see Figure 20 and Figure 21. The GLASS DOOR must sit between the (2) white washers.
The screws are inserted from the inside of the GLASS DOOR and screwed into the outer
handle. BE SURE NOT TO OVER TIGHTEN THE SCREWS OR YOU WILL SHATTER THE
GLASS DOOR. Next, the inner door handle needs to be inserted over the screws. Used the
provided Hex Wrench to tighten the (4) hex screws. (see Figure 22)
Figure 21
Figure 20 Figure 22

14
G. Installing the ROOF PANEL
1. The side of the ROOF PANEL with the power supply (control box) is the top side of the ROOF
PANEL.
2. The edge nearest the power supply is the LEFT SIDE WALL PANEL. Be careful of the cords
coming up from the SIDE WALL PANELS and REAR PANEL to the ROOF PANEL when you
set the ROOF PANEL down onto the wall panels. You can flop the cords over the outside of
the wall panels to keep them out of the way. Feed the control wire harness (CTRL) and the
buzzer wire up through the ROOF PANEL.
3. Be careful not to force the ROOF PANEL into place. Make sure that the wires are properly
fed up and onto the ROOF PANEL. Use the included screws to mount the roof panel to the
wall panels using the predrilled holes. (optional –only available on some models) (It is not
necessary to mount the roof to the wall panels)

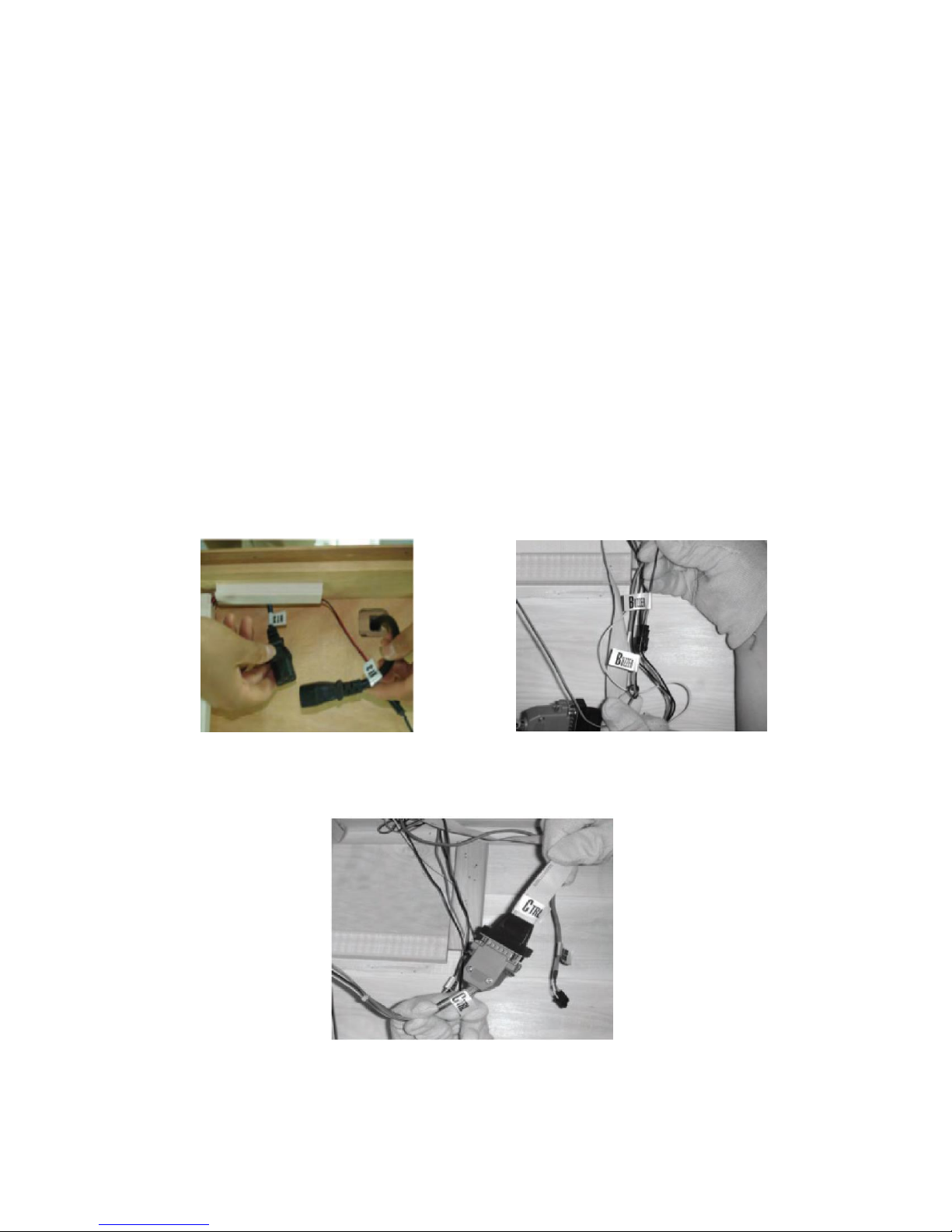

H. Connecting the plugs on the ROOF PANEL
1. Connect the cords according to their respective labels. (see Figure 23)
2. Connect the CTRL plug from the power supply/control box to the CTRL plug from the control
panel. Then screw together. (see Figure 24)
3. Connect the buzzer connection. (see Figure 25)
Figure 23 Figure 24
Figure 25

15
I. Installing the TEMPERATURE SENSOR
1. Enter the sauna and remove the protective covering (tape) from the TEMPERATURE
SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward.
(see Figure 26)
Figure 26
Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in
the case that the TEMPERATURE SENSOR is damaged during transit. The manufacturer
decides this according to sauna models and packaging.
J. Putting on the ROOF COVER
1. Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord
through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL.
When the edges are aligned, screw the ROOF COVER to the roof panel using the screws
attached to the ROOF COVER.

16
Operating the Sauna
NOTE: Before the sauna is turned on, remove plastic protective covering from the
CONTROL PANELS. Please check and confirm that the connections to the POWER
SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected
properly. The power supply voltage and frequency must match the requested voltage
and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP
Dedicated Circuit).
Since many materials absorb the infrared rays, minimal clothing is recommended for
maximum effect. The infrared sauna emitters are designed to heat you and not
necessarily the air inside the sauna. It is not a hot box like a traditional sauna. The
temperature gauge is a guide for your safety. It is recommended that you drink water
before, during, and after sauna use to prevent dehydration since body fluids will be lost
through perspiration. It is not recommended to shower after use since the pores in your
skin will be open and could possibly absorb anything in the water.
1. Plug the sauna into the outlet receptacle.
2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90
(minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel
will flash.
3. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the
sauna to remain on. Press the C/F button to choose between Celsius and Fahrenheit. Press the
up/down arrows under the TEMPERATURE DISPLAY to adjust the temperature setting. Once
you have set these adjustments to the desired settings, press the START/WORK button. If you
don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will
be memorized. The WORK and HEAT lights will now be on and the heat emitter panels will
generate heat. You will need to pre-heat the sauna room to the set temperature before entering.
Please keep in mind that you will increase the time it takes for the sauna room to reach the set
temperature if you enter the sauna room before it has reached the set temperature.
4. During your sauna session, set-up time will count down the minutes one by one. When the time
remaining is 5 minutes, the buzzer will make a warning sound for approximately 15 seconds letting
you know you only have 5 minutes remaining. At this point, you can let the time run out or adjust
the time by pressing the up/down arrows under the TIME DISPLAY. If you do choose to adjust the
time, the control panel will flash and the heat emitter panels will stop generating heat. Once you
set the time to the desired setting, then press the START/WORK button twice and the control
panel will stop flashing and heat will began coming from the heat emitter panels once again.
5. Heating times do vary. Generally, it will take approximately thirty-five minutes to preheat the
sauna to 50 degrees Celsius / 122 degrees Fahrenheit. When the ambient temperature is low,
heating requires additional time. Also, do not enter the sauna room until the set temperature is
reached or it will take longer for the sauna room to reach the set temperature. For the first few
times of use, you may use 46 degrees Celsius /115 degrees Fahrenheit as a reference starting
point for a time period of about 15 to 20 minutes (this represents the actual time you are in the
sauna at the desired temperature). As you become more comfortable and familiar with the sauna,
you can increase the temperature and time period according to personal preference.
6. When the temperature is at the set-up value, the digital control will maintain the set temperature.
The WORK light will remain on and the HEAT light will turn off. The emitters will stop generating
heat. Once the inside temperature drops approximately 4 degrees, the HEAT light will turn back

17
on and heat will again be generated by the emitters. With the digital control, the inside
temperature will always remain around the set-up value.
7. Chromotherapy/Color Therapy Lighting (optional) can be operated as follows. First, you will
need to install the battery. Once the battery has been inserted into the remote, you are ready to
operate the chromotherapy/color therapy lighting system. Press the READING LIGHT button on
the sauna control panel. The white light will come on. While pointing the remote at the ceiling
light, you can press any of the colors on the remote and that color will be displayed. You can use
the SHADE button on the remote to go through a sequence of colors. If you want to turn the light
off during your sauna session, you can press the POWER button on the remote. Please note:
You must be inside the sauna room for the remote to work. Remote may vary in
appearance.
CONTROL PANEL
Power On/Off: Press to control the main power of the sauna
Power Indicator: Indicates the status of the sauna’s main power
Work Start/Stop: Press to control the working functions of the sauna
Work Indicator: Indicates the working status of the sauna
Heat Indicator: Indicates the status of heating function
Light: Press to control the lighting function
Time Display: Displays the heating time of the sauna in minutes
Time: Press to adjust the setting of the timer
Temperature Display: Displays the actual interior temperature of the sauna room in 0C/0F
Temperature: Press to adjust the temperature setting
0C/0F: Press to change the temperature display between 0C/0F

18
Tips for using Your Sauna
1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience
more comfort.
2) Drink water prior to, during, and after your sauna session to replenish body fluids.
3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation
or leave the door open slightly. The roof ventilation is installed on the sauna and used based on
personal preference.
4) Use 2 towels during your sauna session. Fold one of the towels several times and place it on the
bench. This towel will absorb some of your perspiration while adding comfort as you sit on the bench.
Use the second towel to wipe perspiration from your body from time to time.
5) At the first sign of a cold or flu, increasing your sauna sessions may be beneficial in boosting your
immune system and decreasing the reproductive rate of viruses.
6) To help relieve sore and tense muscles, massage the affected areas during your sauna session.
7) To treat your ankles and feet more effectively, you can elevate them and move them close to one of the
heat emitters to achieve a deep heating effect.
8) To utilize the sauna's heat therapy effect, put oil or treatment into your hair and wrap it with a towel. After
your sauna session is over, rinse your hair thoroughly. Please follow the product directions for the
intended benefits.
9) The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
10) To conserve energy consumption, please unplug your sauna when not in use.
11) After the sauna session is over, do not jump into the shower or bath immediately. Because your body
was heated up during the sauna session, it will continue to perspire even after the heat emitters are off.
Sit in the sauna with the door open slightly and let your body cool down. Once your body has cooled
down and you feel comfortable, you can exit the sauna. After about twenty minutes and when your body
has completely cooled down, you can take a shower to rinse the perspiration off your body.
Safety Instructions
1. Read and follow all instructions carefully before using the sauna.
2. When installing and using the electrical equipment, safety precautions should always be followed.
3. To reduce the risk of injury, do not allow children to use the sauna unless they are closely supervised
at all times by an adult.
4. Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to
allow the body to cool down completely.
5. Pregnant or possibly pregnant women should contact their physician prior to using the sauna.
Excessive temperature has a high potential for causing fetal damage during pregnancy.
6. Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of
excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting. The effects of excessive
hyperthermia may include failure to perceive heat, physical inability to exit sauna, unawareness of
impending hazard, unconsciousness and fetal damage in pregnant women. Hyperthermia could make
your body's core temperature rise. Setting desired temperature to an excessively high temperature is
not recommended.
7. The use of alcohol, drugs, or medications prior to or during the sauna session may lead to
unconsciousness and/or other harmful physical injuries .
8. Persons suffering from obesity or with a medical history of heart disease, low or high blood

19
pressure, circulatory system problems, or diabetes should consult a physician prior to using
the sauna.
9. Persons using medications should consult a physician before using the sauna. Some medications
may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation.
10. Exercise care before and after sauna use.
11. Never sleep inside the sauna.
12. Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth and
water.
13. Do not stack or store any object on top or inside the sauna.
14. If the power supply cord becomes damaged, it must be replaced immediately by the manufacturer or
its agent . If you find the power cord is too hot or that the electrical equipment may be experiencing
technical problems, please contact the manufacturer or its agent immediately to avoid hazardous
conditions.
15. Do not use the sauna during an electrical storm to avoid risk of shock.
16. Do not continuously switch the power on and off as it will compromise the life of the electrical
components.
17. Your hands must be dry and free of moisture before plugging and unplugging cords and wiring
harnesses from the power supply and circuit boards. Never operate the sauna with wet hands or wet
feet to avoid risk of electric shock. Never touch the metal prongs of the plug.
18. Do not attempt to make any repairs yourself. If a problem occurs with the sauna, please contact seller,
distributor, or the manufacturer to avoid safety risks. Unauthorized repair attempts will void the
manufacturer’s warranty.
19. Please make sure the outlet power supply meets the specifications required. Failure to
meet the requirements may cause safety risks.
20. Some sauna models are equipped with reading and roof lamps. Because the lamp temperature will
become very hot once powered on, do not attempt to touch the lamp to avoid being burned. Do not
attempt to touch it for at least 20 minutes after it has been powered off.
21. Do not pour water or any other liquids on the infrared emitters. Do not bump, hit, or break
the heating elements as it may cause an electrical short and pose a safety risk.
22. Do not make any modifications to the sauna, the sauna structure, or the sauna components.
23. Prior to each sauna session, the sauna room is to be inspected for correct operation. If for
any reason your sauna room does not seem to be operating properly, discontinue use and
contact the manufacturer.
Safeguards For Your Sauna
1. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a
swimming pool.
2. Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet
before cleaning. Use plain water and a soft cloth for cleaning.
3. The power supply cord should be routed so that it is not walked on or pinched by any object that may be
placed against it.
4. When replacement parts are required, be sure they meet the specified requirements of the manufacturer.
Unauthorized substitutes may result in fire, electric shock, or other hazardous conditions. After any
repairs, please ask the service technician to perform safety checks to determine that your sauna is working
properly.
5. Do not use any wall receptacle adapter or extension cord between the sauna cord and wall receptacle.

20
Troubleshooting Guide
1. No Heat Coming From Some Of The Heat Emitters
Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to
the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat
emitter cords are properly connected to the cords on the roof and that those cords are properly
plugged into the power supply.
Solution: If some of the heat emitters are working, then the ones which are not working may have
been damaged. Do not continue to operate. Contact the manufacturer for
replacement parts.
Solution: If the heat emitters are not working but the control panel displays the time and temperature,
then the temperature sensor may not be plugged in properly or it may be damaged. Turn the control
panel off and then go to the roof of the sauna and locate the red and black wires near the air vent
towards the rear of the sauna. After you have located the red and black wires labeled “TEMP
SENSOR”, disconnect them. Connect the spare temperature sensor. For testing purposes, insert the
“TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna.
Then go to the control panel and press the power button. If the heat emitters now have heat, then the
“TEMP SENSOR” was the cause of the problem. You may have to wait about five minutes to
confirm if the heat emitters are generating heat. Remove the original temperature sensor from its
hole and replace it with the spare one.
2. Control Panel Malfunctioning
Solution: The control panel will not turn off, the power/work/or heat lights do not come on, or the
temperature and timer buttons do not work means the CTRL Wiring Harness you connected on the
roof may not have been connected properly. Disconnect the CTRL Wiring Harness and re-connect
making sure it is firm and tight. If problem continues, contact the manufacturer for more
troubleshooting.
3. Sauna Shows Signs Of No Power
Solution: There could be one of a few problems causing this. First, check to see if the cord from the
power supply is plugged into the wall outlet. Also check your main circuit breaker to confirm that it has
not tripped. Check the power supply on the roof of the sauna to make sure there are no signs of
malfunctioning, such as a high temperature, burning odor, or strange sounds. Also, check to make
sure none of the power cords are damaged. If the power supply is malfunctioning or power cords are
damaged, then unplug the sauna immediately and contact the manufacturer.
Solution: If your sauna is plugged in and you have no power at the control panel, then the power
supply may need to be reset. Go to the roof of the sauna and locate the power supply. Press the
RESET button to reset the power supply. The RESET button is on the same side of the power supply
as all the heater cord connections. Attempt to turn the sauna on at the control panel. Contact
the manufacturer for any additional troubleshooting.
Solution: There could be damage to the temperature sensor. If your sauna arrived with a spare
temperature sensor, turn the control panel off and go to the roof of the sauna and locate the red and
black wire near the air vent towards the rear of the sauna. After you have located the red and black
wires labeled “TEMP SENSOR”, disconnect them. Connect the spare temperature sensor. For testing
purposes, insert the “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now
inside the sauna. Then go to the control panel and press the power button. If the heat emitters now
heat, then the temperature sensor was the cause of the problem. You may have to wait about five
minutes to confirm if the heat emitters are generating heat. Remove the original temperature
sensor from its hole and replace it with the spare one.
Solution: Check the wiring harnesses coming from the power supply located on the roof of the sauna.
Make sure the wiring harness labeled “CTRL” is connected to the power supply at one end and
connected to another wiring harness labeled “CTRL” at the other end. If this wiring harness is not
properly connected, then the sauna will show signs of having no power.
