Dynamix 20km 10/100/1000WDM User manual

5. SPD/TX1000: be light shows twisted-pair
transmit speed is 1000Mbps, extinguish shows
twisted-pair transmit speed less than1000Mbps.
6.TX Link/Act: be light shows twisted-pair link
connected right, fulgurated shows twisted-pair
have data to transmit.
5. Mode choice function
LAN port Link speed would passed AN-DIS switch
may move to:
1.Push down LAN port’s Link speed is 1000Mpbs
2.Flip on LAN port Link speed is self-adapt
3.Configure state is Auto Negotiation leave
factory
6. Fiber part parameter
Dynamix -20km
10/100/1000
WDM(A/B)
Dynamix -60km
10/100/1000
WDM(A/B)
Connect type SC SC
Typical
distance 20 km 60 km
Fiber type Single-mode Single-mode
Wavelength 1310/1550nm 1310/1550nm
Min TX PWR -6.0 dBm 0.0 dBm
Max TX PWR 0.0 dBm +2.5 dBm
Sensitivity <-22 dBm <-26 dBm
Link Budget 16.0 dBm 26.0 dBm
6.Packing
1. Dynamix WDM Gigabit fiber optic media
converter
2. Power adapterAC220V/DC5V
3. User Manual
7.Pay attention to proceeding
1. Optical port working mode is 10/100/1000M Full
Duplex , LAN port is Auto Negotiation.
2.Twisted-pair interface initialization base to couple
equipment state to set self’s state. If can’t test
opponent state, that state is uncertainty.
3. Strictly prohibit use unaided eye to look at the TX
fiber transmit port when the media converter is electrify
state.
4. Please put dustproof cover on fiber interface, when
the fiber optic media converter is not used.
5. When the product connecting with other
equipment (router, switch, HUB, NIC), the
interconnection equipment’s optical interface’s
speed and mode must be consistent (multimode
and single-mode).
Between Interconnection equipment’s LAN port’s speed
should mismatch. (1000Base-TX/ 100Base-TX/
10Base-T)
www.godynamix.com
Dynamix WDM 10/100/1000M
Gigabit Ethernet
media converter
Dynamix -20km 10/100/1000WDM(A/B)
Dynamix -60km 10/100/1000WDM(A/B)
User Manual
V. 2.2

Dynamix Gigabit WDM Single fiber
dual-direction fiber optic media
converter
1.Overview
Dynamix single-fiber dual-direction fiber optic
media converter be used Ethernet’s electric
signal to transmit optic signal ‘s electricity signal
transceiver, the feature is adopt one fiber cable
can receive and transmit optic signal in-phase,
enhance one double transmit energy than existing
optical fiber, economized fiber cable’s source.
Dynamix single-mode single-fiber series is a self-
adapted single-fiber dual-direction fiber optic
media converter with 10/100/1000M, it’s protocol
IEEE802.3ab, IEEE802.3u,10Base-T,
100Base-TX, 1000Base-TX, 1000Base-SX,
1000Base-LX’s standard and passed the
information industry ministry’s telecom equipment
enter networking examination. Dynamix single-
mode single-fiber is a gigabit single-mode single-
fiber media converter with 1000M.
Due to single-fiber dual-direction media
converter’s transmit optic signal transmit
wavelength and receive wavelength are
difference, so must be use by pair - Dynamix -
20km 10/100/1000WDM A and Dynamix -20km
10/100/1000WDM B, for example. One TX and
one RX, be one pair, can’t use to wrong, If not
will can’t working normal. Singlemode single-
fiber’s transmit optic signal is wavelength
1550nm, receive optic signal is wavelength
1310nm; single-fiber dual-direction media
converter have one RJ-45 interface and one SC
single-core interface, separate by twisted-pair
and fiber to connecting. Single-fiber media
converter have 6 LED indicator: POWER,
SPDFX1000, SPDTX1000, FX Link/ACT,
TX Link/ACT, FDX.

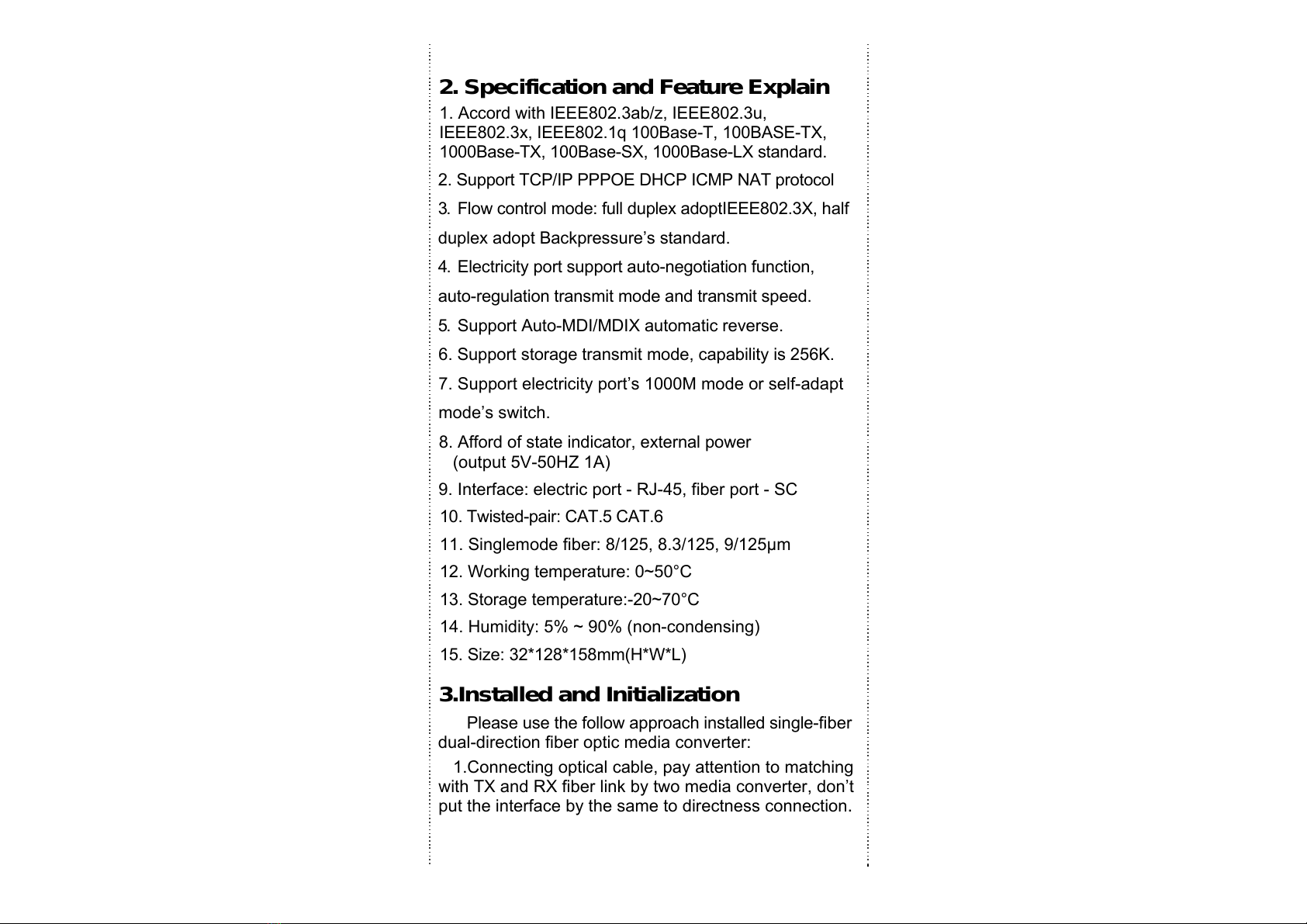

2. Specification and Feature Explain
1. Accord with IEEE802.3ab/z, IEEE802.3u,
IEEE802.3x, IEEE802.1q 100Base-T, 100BASE-TX,
1000Base-TX, 100Base-SX, 1000Base-LX standard.
2. Support TCP/IP PPPOE DHCP ICMP NAT protocol
3. Flow control mode: full duplex adoptIEEE802.3X, half
duplex adopt Backpressure’s standard.
4. Electricity port support auto-negotiation function,
auto-regulation transmit mode and transmit speed.
5. Support Auto-MDI/MDIX automatic reverse.
6. Support storage transmit mode, capability is 256K.
7. Support electricity port’s 1000M mode or self-adapt
mode’s switch.
8. Afford of state indicator, external power
(output 5V-50HZ 1A)
9. Interface: electric port - RJ-45, fiber port - SC
10. Twisted-pair: CAT.5 CAT.6
11. Singlemode fiber: 8/125, 8.3/125, 9/125µm
12. Working temperature: 0~50°С
13. Storage temperature:-20~70°С
14. Humidity: 5% ~ 90% (non-condensing)
15. Size: 32*128*158mm(H*W*L)
3.Installed and Initialization
Please use the follow approach installed single-fiber
dual-direction fiber optic media converter:
1.Connecting optical cable, pay attention to matching
with TX and RX fiber link by two media converter, don’t
put the interface by the same to directness connection.
2. Put UTP jump cable through networking
equipment connecting to single fiber media
converter’s RJ-45 interface, the media
converter’s electricity port can self-adapt
through line and intersection line.
3. Put power adapter’s DC plugs pin connect to
fiber optic media converter’s DC plugs pin, then
receptacle by the power adapter, next
connecting power.
4. Here you can put self-check gradation make
the indicator fulgurate, so the fiber optic media
converter’s power would be light, after self-
check you should warranted fiber optic media
converter’s test to decided media converter
electricity port’s working state and the couple
networking equipment electricity port state.
If can’t test the couple equipment, media
converter’s electricity port’s state uncertainty,
so TX Link and SPD/TX 1000 indicator can’t
light. If the electricity port connecting right, FX
Link SPD would be light.
4. LED Indicator
Single fiber dual-direction media converter have
6 LED indicator, they would be show media
converter’s working state, warranty, LED
shows, that would estimated, if the media
converter working normal or have any wrong,
that help us find the fault. the function will
separate explain as follow:
1. PWR: be light shows DC5V power adapter
working normal
2. Speed is 1000 Mbps, extinguish shows fiber
transmit speed less than 1000Mbps.
3. FX Link/Act: light fiber link connecting right,
fulgurate shows transmitting data.
4.FDX: be light shows fiber use full duplex mode
to transmitting data.
