DZOFILM VESPID PRIME User manual

VESPID PRIME CINE LENS
USER’S MANUAL
玄蜂定焦电影镜头使用说明书
www.dzofilm.com
电影镜头
CINE LENS

Introduction ...................................................................................1
Safety Notes..................................................................................1
Lens Parts ..................................................................................... 2
Lens Control.................................................................................. 3
Flange Back Adjustment............................................................ 4
1. Preparation........................................................................... 4
2. Flange Back Adjustment ................................................... 5
Specification................................................................................. 7
After-sales Service ...................................................................... 8
The Name and Content of Hazardous Substances.............10
Contents
Click to go
Users can read the table of content(TOC) to have an overview of the
Vespid Product Manual. Please click on the title or link to jump to the TOC
Search keyword
The Search-keyword Function is available in PDF Document. For example,
In WPS Office, Windows users can search keywords with the keyboard
shortcut <Ctrl+F> and Mac users can execute the same function with
shortcut <Command+F>
Note

1
Thank you for purchasing this product!
Vespid is DZOFILM’s high-performance full frame cinema prime lens. It
allows you to reproduce the details and color in filming. Clear images,
natural transition from in-focus to defocus and minimal breathing in
focusing...all these can be found in Vespid. A good companion for your
documentory/ TVC/ MV/ commercials/ online movie/ variety show/ Live/
independent films, etc.
Introduction
Safety Notes
● Please do not watch the sun or bright light source through the lens,
otherwise it will cause visually disabled；
●
Never use organic solvents such as paint thinner or benzene to clean
the lens；
● Attach the front and rear caps when the lens is not in use；
●
Store the lens and filter in cool, dry locations to prevent mold and rust.
Do not store in direct sunlight or with naphtha or camphor moth balls；
●
Please keep the lens dry and wipe the water droplets off if there are
water droplets on the glass surface；
●
Leaving the lens near heater or in other extremely hot locations could
cause damage or warping；
●
Use a blower to remove dust and lint from the glass surfaces of the
lens or filter. To remove smudges and fingerprints, apply a small amount of
lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean
from the center outwards using a circular motion. Do not leave smears or
touch the glass with your finger.
Back to Contents

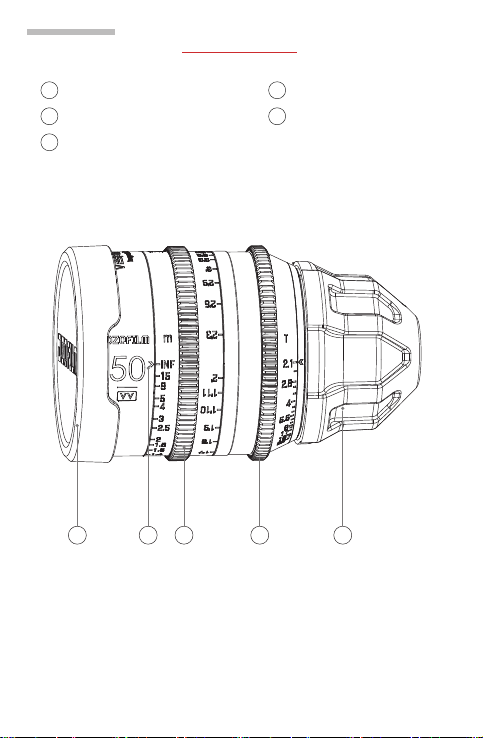

Front Cap
Lens Mark
Focusing Ring
Aperture Ring
Rear Cap
4
5
1
2
3
2
Lens Parts
542
13
Back to Contents

Focus Control
Rotate the focus ring to increase or decrease the focus distance.
Aperture Control
Rotate the aperture ring to stop aperture down, raising the T-stop and
narrowing the aperture, or lower the T-stop to widen the aperture.
3
Lens Control
Focusing Ring
Aperture Ring
Back to Contents

4
1.Preparation
Every Vespid lens will process flange back adjustment on standard.
But due to the tolerance of different cameras, to achieve the best
performance of this product and to match the cameras, please adjust
flange back of the product.
Take
Vespid 50mm as an example:
Step Two : Attach the lens to the camera and adjust the aperture to T4;
Step Three :

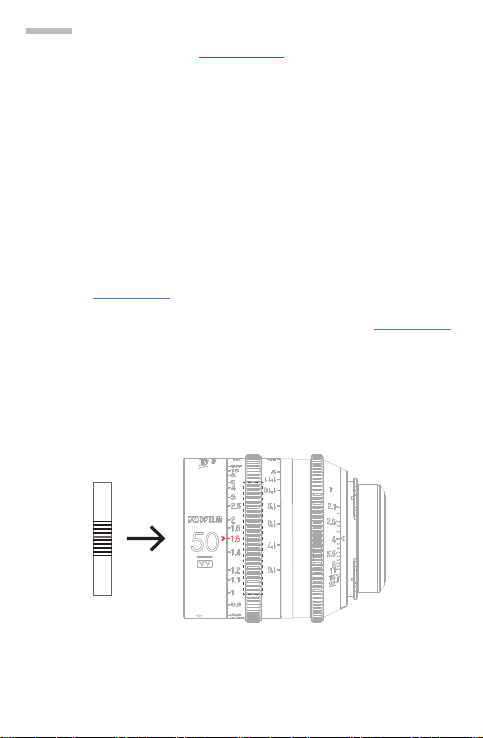

Make the pointer align with the 1.6m scale on focusing
ring, paste calibration tool on the ring with middle line of the tool
aligning the 1.6m scale and the scale pointer (or choose 5’ focusing scale).
Step One : Ready your subject and calibration tool. You can use a "Star
Chart", or other high-resolution black-and-white objects;download the
"Back focus Calibration Tool for Prime Lens"(short for “Calibration Tool”)
on the official website.
Note :
You can download and print the chart on DZOFILM website-Down-
load-Star Chart for Adjusting Back Flange（Click to jump to the website）
Flange Back Adjustment
Back to Contents

2.Flange Back Adjustment
Please adjust as the following steps:
Step Four :
Set the object 1.6m away from the camera sensor plane, and
adjust it to the center of the whole image.
Step One :
Rotate the focus ring until the image to its clearest. Take the
horizontal line in the middle of the calibration tool as the reference and
observe the position of the deviating scale pointer to get the number of
horizontal lines.
Step Two :
According to the deviation value and the reference below,
add or subtract the corresponding shim to complete the flange back
adjustment.
Note: The direction of infinity indicates positive deviation value.
The direction of the closest focusing distance indicates negative
deviation value.
If there are more than three horizontal lines, add or subtract the
corresponding value.
Example:
If the scale pointer points to 3spaces in the direction of the closest
focusing distance, the deviation value is -3.
If the scale pointer points to 4 spaces in the direction of infinity, the deviation
value is +4. At this situation, the shim value of "+3" needs to be added to the
shim value of "+1".

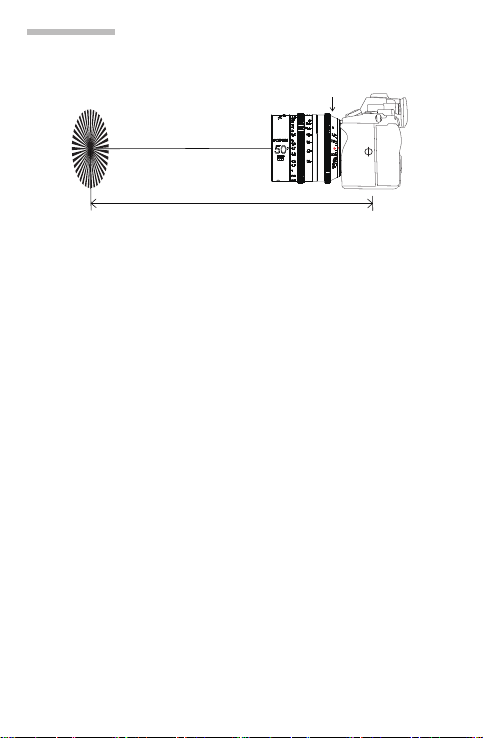

Set the object 1.6m away from the camera sensor
plane, and adjust it to the center of the whole image.
T4 Aperture
5
Φ
1.6m
Back to Contents

6
Shim adjustment: "+" means adding shims, and "-" decreasing shims.
Data in this sheet might have deviation and just for reference.
Please adjust based on actual situation.
Vespid Adjustment Reference
shim
adjustment
reference
（mm）
deviation
value
mark value
direction direction of infinity
focal
length
16mm
21mm
25mm
35mm
40mm
50mm
75mm
macro
90mm
100mm
125mm
-3 -2 -1 +1 +2 +3
direction of the closest
focusing distance
-0.06 -0.04 -0.02 0+0.02 +0.04 +0.06
0
-0.09 -0.06 -0.03 0+0.03 +0.06 +0.08
-0.09 -0.06 -0.03 0+0.04 +0.07 +0.1
-0.2 -0.14 -0.07 0+0.07 +0.13 +0.2
-0.22 -0.16 -0.08 0+0.08 +0.15 +0.23
-0.23 -0.15 -0.07 0+0.08 +0.16 +0.24
-0.3 -0.2 -0.1 0+0.1 +0.2 +0.3
-2.14 -1.4 -0.88 0+0.72 +1.48 +2.32
-0.45 -0.3 -0.15 0+0.14 +0.28 +0.42
-0.54 -0.36 -0.18 0+0.18 +0.36 +0.54
0.34m/1’2
0.291m/1’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.6m/5’
1.6m/5’
Note:
Back to Contents

Specification
Name
Colour
Focal Length
Mount
Aperture
Image Circle
Construction
of Optics
Flange Distance
Close Focus
（from sensor plane )
（metric/imperial）
Max.Mag. Ratio
Iris Control
Focus Control
Length
（metric/imperial）
Iris Blade
Filter Size
Gear Pitch
Material
Weight
Front Dia.
(metric/imperial)
7
Manual
（max50°）
Manual
（max270°）
Manual
（max300°）
Manual
（max270°）
Manual
（max68°）
Manual
（max68°）
Manual
（max68°）
Manual
（max83°）
Manual
（max84°）
Manual
（max58°）
Manual
（max63°）
∮80mm/3.15"
87mm/3.43" 100mm/3.94" 87mm/3.43" 112mm/4.41" 100mm/3.94"
16
/ M77
0.8 Mod
Aluminium alloy
930g 935g 940g 834g 943g 732g 865g 800g 890g 924g
/ /1.5 X
0.28m
/11in
0.25m
/10in
0.3m
/1ft
0.46m
/1.6ft6in
0.6m
/2ft
0.258m
/10.2in
0.7m
/2ft4in
0.79m
/2ft7in
52mm（PL）/44mm（EF）
PL/EF
∮46.5mm（VV/FF）
35mm 40mm 50mm 75mm macro 90mm 100mm 125mm16mm 21mm 25mm
14Elements in
10Groups
13Elements in
9Groups
12Elements in
11Groups
11Elements in
9Groups
10Elements in
9Groups
9Elements in
7Groups
9Elements in
7Groups
11Elements in
9Groups
9Elements in
7Groups
10Elements in
8Groups
Black
T2.8-22 T2.1-22 T2.8-22 T2.1-22
Vespid
Back to Contents

How to Obtain After-Sales Service
If a product does not function as warranted during the warranty period,
you may obtain after-sales service by contacting DZOFILM support team or
DZOFILM’s authorized dealers.Charges may apply for services not covered
by this After-Sales Policy.
The After-Sales Policy varies with the country or region of purchase. Please
contact DZOFILM for information specific to your location.
Warranty Service
DZOFILM grants a minimum warranty period of one year from the date of
purchase for lenses purchased through DZOFILM’s official dealers.
DZOFILM warrants that each DZOFILM product that you purchase will be
free from material and workmanship defects under normal use in
accordance with DZOFILM’s user manual and accompanying documenta-
tion during the warranty period. You may claim warranty service by
returning it to the point of purchase. The owner is responsible for all
shipping costs. The warranty period varies with the country or region of
purchase. Stored dated receipts or other proof of purchase in a safe place,
as you will need to provide a valid proof-of-purchase or receipt for the
warranty service. Parts replaced during the warranty service become
DZOFILM’s property.
Service Outside the Warranty Period
Request for after-sales service will normally be accepted within a period of
roughly 5 years following the end of production, during which time spares
will be kept on hand, although owners may be offered an equivalent
product during this period in the event that spares are not available. The
specific cost standard is subject to DZOFILM’s quotation. Compatibility with
consumables and accessories for the original product is not guaranteed. To
prevent waste, DZOFILM may collect returned parts or products.
Service Turn Around Time
After we receive the product, the after-sales service will generally be
completed within two weeks. This turn around time does not include the
time of return shipping. If there are special circumstances, we will notify
you in advance.
8
Aer-sales Service
Back to Contents

9
What This After-Sales Policy Does NOT Cover
This after-sales policy does not cover the following and charges may apply:
Privacy
DZOFILM obeys all applicable laws and regulations concerning the handling
of names, addresses, phone numbers, and other personal information
provided by users.
× No valid proof-of-purchase or receipt of the product;
× Damage caused by unauthorized modification, disassembly, or repair not
in accordance with official instructions or manuals.
× Damage caused by improper installation and operation not in accordance
with official instructions or manuals.
× Damage caused by the storage environment not in accordance with
official instructions or manuals.
× Damage caused by operation in bad weather or environment (i.e. rain,
sand/dust storms, humid environment, etc.).
× Damage caused by, any third party products, including those that
DZOFILM may provide or integrate into the DZOFILM product at your
request.
× Damage caused by any third-party product.
× Damage caused by force majeure;
× Consumable accessories and optional parts that come with this product.
Back to Contents

Hazardous Substances
Part Name
Lens Shell
Inner Mechanics
Optics
Other Parts
This table is formulated in accordance of SJ/T11364.
×: Indicates that the concentration of the hazardous substance of
at least one of all homogeneous materials in the parts may be
above the relevant threshold of the GB/T26572 standard.
Pb Hg Cd Cr(VI) PBB PBDE
○: Indicates that the concentration of the hazardous substance in
all homogeneous materials in the parts is below the relevant
threshold of the GB/T26572 standard.
The "×" in the above table indicates that there are one or more
exemptions are applied in the parts stated in RoHS (2011/65/EU).
10
The Name and Content of Hazardous Substances
Back to Contents

点击跳转
用户可以通过目录了解说明书整体结构，点击标题或链接即可跳转到相应页
面。
快速搜索关键词
PDF电子文档可以使用查找功能快速搜索关键词。例如在WPS PDF文档中，
Windows用户使用快捷键Ctrl+F，Mac用户使用Command+F即可快速搜索关
键词。
简介 ..................................................................................................1
安全注意事项....................................................................................1
镜头部件 .......................................................................................... 2
镜头控制 .......................................................................................... 3
后焦调节 .......................................................................................... 5
1.准备工作 ................................................................................... 5
2.调节后焦 .................................................................................. 6
技术规格 .......................................................................................... 7
售后服务 .......................................................................................... 8
产品中有害物质的名称及含量 ......................................................... 9
阅读小贴士
目录

感谢您购买本系列产品！
玄蜂（Vespid）系列是DZOFILM旗下的全画幅高性能定焦电影镜头，可以让您
在视频创作时还原拍摄细节，色彩通透、过渡均匀自然。适合在纪录片、MV、中
型商业片、网络电影、直播等场景使用，带来纯净而生动的电影质感，较小的呼吸
效应使画面焦点转换更自然。
1
简介
安全注意事项
● 请勿透过镜头或摄影机观看太阳或明亮的光源，否则会使视力受损；
● 切勿使用涂料稀释剂或苯等有机溶剂清洁镜头；
● 不使用镜头时，请盖上镜头前后盖；
●
● 请保持镜头干燥，如受潮或有水滴请擦拭干净后存放；
● 勿将镜头放置在加热器旁或其他极其炎热的地方，可能导致损坏或变形；
● 请使用吹气球去除镜头或滤镜玻璃表面的灰尘，若要去除污点和指纹，可使用一
块滴有少许镜头清洁剂的干净软绵布或镜头清洁纸，以圆周运动方式从里向外进
行清洁，注意不要留下污渍，也不要用手指触摸玻璃；
为防止发霉，请将镜头和滤镜存放在阴凉、干燥的地方，切不可存放在直射阳光
下，也不要与石脑油或樟脑丸放一起；
回到目录

镜头前盖
镜头标记
对焦环
光阑环
卡口后盖
4
5
1
2
3
2
5
421
镜头部件
3
回到目录

对焦控制
旋转对焦环，可增加或减少对焦距离，从而调整画面中的焦点位置。
对焦环
光圈环
光圈控制
旋转光圈环，可放大或缩小光孔直径，调整画面明暗度以及被摄主体的背景
虚化效果。
3
镜头控制
回到目录

1.准备工作
玄蜂（Vespid）系列在出厂前会按照标准调整后焦，但不同摄影机的法兰距
在出厂时可能会有一点不同，为了方便与不同的摄影机匹配，达到最佳成像效果 ，
需要进行后焦调节操作。
准备好拍摄对象和校准工具。可使用“星状测试图”，或使用其它黑白
相间的、对比度较高的拍摄对象。在官网下载“定焦镜头后焦校准工具”
以下操作以玄蜂（Vespid）系列50mm镜头为例。
步骤二 将镜头安装到相机或摄影机上并调整光圈为T4；
将“定焦镜头后焦校准工具”贴在1.6m对焦刻度处（或选择 5’ 的对
焦刻度线），刻度指针与“定焦镜头后焦校准工具”中间横线平齐；
步骤三
步骤一：
：
：
提 示 可前往 “DZOFILM官网-资料下载-后焦调整星图”处下载：（点击此处跳转）
（点击此处跳转）
4
后焦调节
回到目录

2.调节后焦
根据刻度偏移值，参考下表调整相应的垫片，即可完成后焦调整。
调节过程，请执行以下步骤。
将拍摄对象放置在距离相机成像面约1.6m处，并调整其位置在画面
中心。
步骤四：
步骤一 旋转对焦环直至画面达到清晰状态，以“定焦镜头后焦校准工具中”的
横线为基准，观察此刻刻度指针的位置，并观察刻度指针偏移的横线
条数；
：
：
步骤二
注 意 若偏向无穷远方向，则代表刻度偏移值为正数；
若偏向最近对焦距离方向，则代表刻度偏移值为负数；
若超过三格横线，则用对应数值加减即可。
：
举 例 若刻度指针指向的刻度线朝最近对焦距离方向偏移3格，则刻度偏移
值为-3；
若刻度指针指向的刻度线朝无限远距离方向偏移4格，则刻度偏移值
为+4，此时需把“+3”的垫片值加上“+1”的垫片值即可。
：
1.6m
将拍摄对象在距离相机成像画面“Φ”标记处约1.6m放置，
将拍摄对象位于画面中心。
T4光圈
5
Φ
回到目录

6
16mm
21mm
25mm
35mm
40mm
50mm
75mm
90mm
微距
100mm
125mm
后焦垫片调整
参考值(mm)
刻度偏移值刻度基准值
0.34m/1’2
0.291m/1’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.5m/5’
1.6m/5’
1.6m/5’
偏移方向 最近对焦距离方向偏移 无限远方向偏移
焦段
-0.06 -0.04 -0.02 0+0.02 +0.04 +0.06
-3 -2 -1 0+1 +2 +3
-0.09 -0.06 -0.03 0+0.03 +0.06 +0.08
-0.09 -0.06 -0.03 0+0.04 +0.07 +0.1
-0.2 -0.14 -0.07 0+0.07 +0.13 +0.2
-0.22 -0.16 -0.08 0+0.08 +0.15 +0.23
-0.23 -0.15 -0.07 0+0.08 +0.16 +0.24
-0.3 -0.2 -0.1 0+0.1 +0.2 +0.3
-2.14 -1.4 -0.88 0+0.72 +1.48 +2.32
-0.45 -0.3 -0.15 0+0.14 +0.28 +0.42
-0.54 -0.36 -0.18 0+0.18 +0.36 +0.54
提 示 后焦垫片调整值，“+”代表要增加垫片厚度，“-”代表减少垫片厚度。
本表格可能含有较小误差，仅供参考，请以实际调整情况为准。
：
玄蜂（Vespid）系列后焦调整表
回到目录

名称
颜色
焦距
卡口
光圈
最大像面
镜片组
法兰距
最近对焦距离
（米制/英制）
最大放大倍率
光圈控制
对焦控制
手动
（旋转最多50°）
手动
（旋转最多270°）
手动
（旋转最多68°）
手动
（旋转最多68°）
手动
（旋转最多68°）
手动
（旋转最多83°）
手动
（旋转最多300°）
手动
（旋转最多270°）
手动
（旋转最多84°）
手动
（旋转最多58°）
手动
（旋转最多63°）
长度
（米制/英制）
∮80mm/3.15"
叶片数量
87mm/3.43" 100mm/3.94" 87mm/3.43" 112mm/4.41" 100mm/3.94"
滤镜尺寸
16
齿轮齿距
/ M77
材质
模数 0.8
铝合金
重量 930g 935g 940g 834g 943g 732g 865g 800g 890g 924g
/ /1.5 X
0.28m
/11in
0.25m
/10in
0.3m
/1ft
0.46m
/1.6ft6in
0.6m
/2ft
0.258m
/10.2in
0.7m
/2ft4in
0.79m
/2ft7in
52mm（PL）/44mm（EF）
PL/EF
∮46.5mm（VV/FF）
35mm 40mm 50mm 75mm 微距90mm 100mm 125mm16mm 21mm 25mm
11片9组 10片9组 9片7组 9片7组 11片9组 9片7组 10片8组14片10组 13片9组 12片11组
黑色
T2.8-22 T2.1-22 T2.8-22 T2.1-22
前端直径
（米制/英制）
Vespid（玄蜂）
技术规格
7
回到目录
