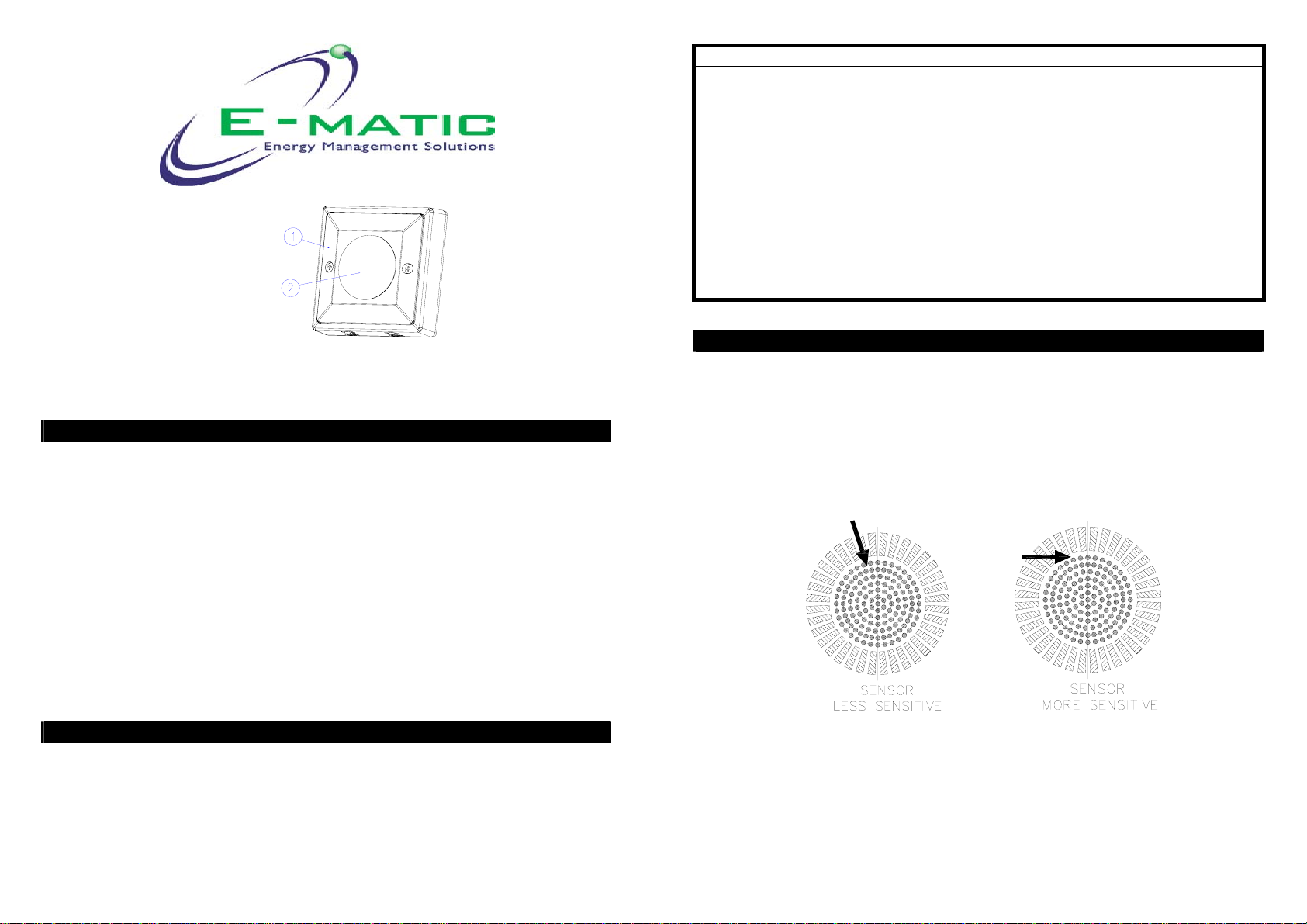

E-matic PMCS6 User manual

PMCS6
CEILING SENSOR
cMain Body
dLens
INTRODUCTION
The use of occupancy detectors in commercial and industrial applications can
significantly reduce energy usage lessening both energy costs and helping the
environment.
The PMCS6 360 degrees MICROSENSITIVE surface mount OCCUPANCY
DETECTOR uses passive infrared sensors (PIR) which react to changes in
temperature emitted by the slight motion of persons or objects passing through its
detection area. The PIR sensor automatically operates the connected load when
an area is occupied. After a preset time on non-activation (when an area is
vacated) the load will be switched off. In addition the built in photocell takes
natural light (daylight) into account when determining its activation.
Note : Read this entire manual before you start to install the system.
SAFETY PRECAUTIONS
zDo not install where it may be possible for water to access the fitting.
zBe sure to switch off power source before installing.
zMake sure that the power wiring comes from circuit with an external miniature
circuit breaker not higher than 10A for the short circuit protection or a suitable
fuse.
IMPORTANT
Installation must be performed by a skilled/competent person who is familiar with
the appropriate standards and technical requirements of the appliance and its
proper installation.
Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
CHOOSING A MOUNTING LOCATION
zAvoid aiming the motion sensor at heating vents, air conditioners or objects
which may change temperature rapidly.
zDo not allow sunlight to fall directly on the front of unit.
zThe motion sensor is more sensitive to objects moving across its field of view.
It is less sensitive to an object moving directly towards the sensor head.
(FIGURE 1)
FIGURE 1

INSTALLATION

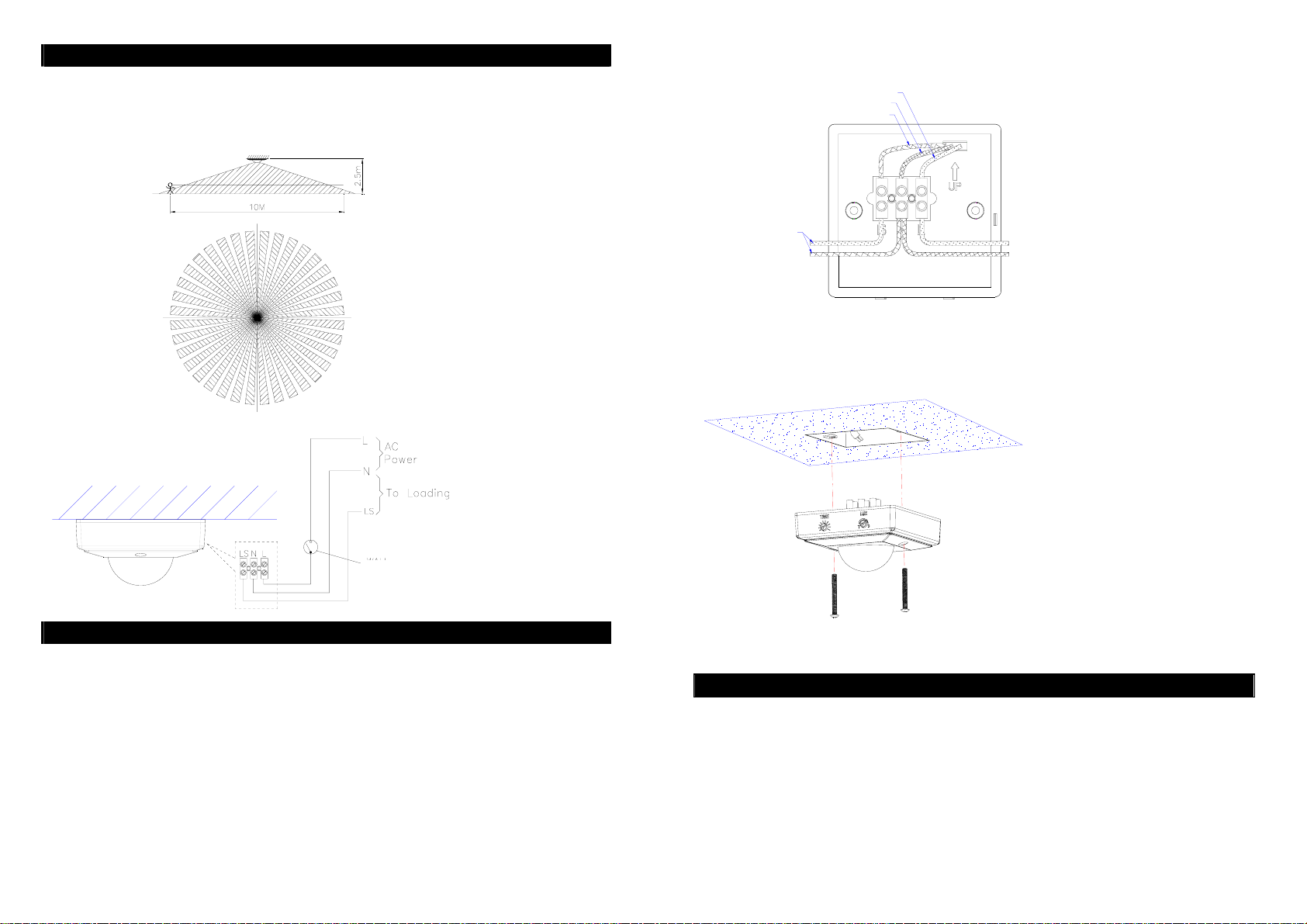

The unit has a sensing angle of 360°. It detects micro movement within a 3.5m
RADIUS (sitting zone) and can detect general movement up to 5M RADIUS at a
mounting height of 2.5 meters. (FIGURE 2)
.
FIGURE 2
SCHEMATIC
FIGURE3
WIRING INSTRUCTION
(1) Switch off the power source or wall switch.
(2) Strip approximately 6-8mm insulating part of the wires from the power cord.
(3) Connect the BROWN wire (Live wire) of power cord to the terminal block "L"
mark.
Connect the BLUE wire (Neutral wire) of power cord to the terminal block “N”
mark.
Connect the BROWN wire of lamp wire to the terminal block "LS" mark.
(FIGURE 4)
FIGURE 4
(4) Fit the main body to the wall box of the ceiling and secure it with two fixing
screws provided. (FIGURE 5)
FIGURE 5
The product is also designed to fit a standard UK spec pattress box.
SETTING THE LIGHTING SYSTEM
(1) TEST MODE
Turn the Lux control and the Time control counter-clockwise to the edge-the
TEST position. (FIGURE 6)
L
NAC POWER
Brown
Blue
Red
Loading
OPTIONAL

FIGURE6
Turn the power supply or wall switch on, the light will turn on immediately and
wait for about 1 minute to warm up the unit. After warm-up time is expired
and the light goes off, you may make a walk test and the light will turn on.
This confirms that the wiring was done properly and that the light is working.
Walk through the coverage area. The light will turn on for about 5 seconds
when motion is
detected and turn off shortly after the area is fully vacated.
(2) SETTINGS
TIME ADJUSTMENT
The TIME adjustment controls how long the light will stay on after motion has
been detected.
There are 10 selectable time settings including test ( 3 seconds ) 10, 20, 40, 80,
160 seconds and 5, 10, 20, 40 minutes. Adjust the time control knob clockwise to
increase the turn-off time ( 40 minutes maximum ) or counter-clockwise to
decrease the turn-off time ( 3 seconds minimum ) ( FIGURE 7 )
FIGURE 7
LUX ADJUSTMENT
The LUX adjustment determines at what light level the light will start operating
when you set the sensor to the AUTO mode.
FIGURE8
Provisionally turn the LUX Control Knob to the edge clockwise at the moon (dusk)
position. (FIGURE 8) In this provisional setting mode, the Motion Sensor remains
inactive during daylight. At dusk when you find it is the LUX level you desired for
operation, simply set the LUX control knob to the position that you tried
satisfactorily.
OPERATION
Automatic Operation
When the sensor detects motion, the light automatically turns on. The built-in
photocell turns
the sensor off and on according to the light level selected by the LUX adjustment.
TROUBLESHOOTING
Light does not turn on
zConfirm that you have made a correct “wiring connection”.
zMake sure that the bulbs have not burned out..
Light remains on
zMake sure the wiring connection is correct.
zCheck if the TIME setting is correct.
about 40minabout 5 sec

SPECIFICATIONS
Power Requirement AC 230V / 50Hz
Lighting Load
Max. Incandescent: 2000W
Max. Halogen: 2000W
Max. Fluorescent / Cos Ө=0.5: 1500W, For
quantity of fittings refer table
Max CFL/ PL/ LED : 10 pieces
Detection Angle 360°MICRO DETECTION
Micro movement:
Up to 3.5m radius at 25°C at
2.5m Height
Detection Distance
General movement:
Up to 5m radius at 25°C at 2.5m Height
Mounting Height Recommended 2.2 ~ 3m Ceiling Mount
Wall Switch Control Auto/Off
Time Adjustment Approx. 5 seconds to 40 minutes (5, 10, 20, 40, 80,
160 second & 5, 10, 20, 40 minute)
Lux Adjustment Approx. 30 ~ 200 Lux & test mode
Warm Up Time About 1 min
Protection Class Class II
Protection Degree IP44
Safety CE
Due to our policy of continuous improvement we reserve the right to change
specification without prior notice.
Errors and omissions excepted. These instructions have been carefully
checked prior to publication. However, no responsibility can be accepted
by E-Matic for any misinterpretation of these instructions.
Warning:
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities.
Contact your local government for information regarding the collection systems
available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging
your health and well-being.
E-Matic Energy Management Solutions,
4 Arkwright Court, Fylde Industrial Estate,
Blackpool, Lancashire, FY4 5DR.
Tel: [phone], Fax: [phone],
Web site: www.e-matic.co.uk
Email: [email protected]
A501111792R01
Rev03

Model PMCS6
Lighting Maximum Load For
Incandescent (CosΘ=1)
2000W/8A(@240VAC)
Lighting Maximum Load For
Halogen (CosΘ=1)
2000W/8A(@240VAC)
Lighting Maximum Load For
Fluorescent T8 (CosΘ＝0.5) 1500W/12A(@240VAC)
Lighting Maximum Load For
Fluorescent T5 (CosΘ≧0.9) 1500W/6.9A(@240VAC)
Lighting Load (number of fittings) for
Fluorescent T5
Conditions : Maximum quantity of ballasts and lamps listed
below;
Ballast Q'ty x (Lamp Q'ty x Watt)
22x(4x14W);
20x(2x21W);
20x(2x24W);
15x(2x28W);
15x(2x35W);
12x(2x39W);
12x(2x49W);
10x(2x54W);
10x(1x80W);
Lighting Load (Number of fittings) for
CFL & PL (Setup Conditions)
Conditions : Maximum quantity of lamps/wattage listed
below;
Lamp Q'ty x Watt
10x9W
10x11W or 10x13W or 10x19W ;
10x20W or 10x23W ;
10x24W or 10x26W or 10x27W ;
10x32W or 10x36W or 10x38W ;
10x42W or 10x50W or 10x55W ;
10x80W:
Lighting Load For 10 Qty parallel connection
LED 200W total (Max.)
