E-matic PMWS User manual

ES205
Main Body
Lens
Slide
Switch
INTRODUCTION
The PMWS 110 degrees Surface Mount
PIR
Wall
Switch
is a fully automatic indoor controller capable of
controlling up to 2
000W
incandescent or 6
00
W
fluorescent lighting. It uses a passive infrared sensor
which reacts to changes in temperature emitted by the
motion of persons or objects passing through its
detecting area. When you enter the room, it turns
on automatically the light to which it is connected and
the light remains lit as long as the wall switch senses
any activity in the detection area. It however will
automatically turn off the light after the preset
turn
-
off
time
has expired. During the day, the built-
in
photocell sensor saves electricity by deactivating the
light
.
The PMWS is a very handy device, which offers you
safety, security, convenience and energy saving. It
is also easy to install and is suitable for the following
places:
living room, family room, stairway
s, entrance hall
etc.
With this wall switch installed, you remove the
pr
oblem of searching in a dark hallway or staircase for
a light switch, thus avoiding danger for the elderly,
infirm and children at night or in dark areas.
Note : Read this entire manual before you start to
install the system.
SAFETY PRECAUTIONS
Be sure to switch off power source before
installing.
Make sure that the power wiring comes from
circuit with an external miniature circuit breaker
not higher than 16A fo
r the short circuit protection
or a suitable fuse.
This
unit can
not be installed
on t
he
ceili
ng.
(
FIGURE 1
)
FIGURE
1
IMPORTANT
Some local building codes may require installation
of this product by a qualified electrician.
Check your local codes as they apply to your
situation. If the house wiring is of aluminum,
consult with an
electrician about proper wiring
methods.
Before proceeding with the installation, TURN OFF
THE POWER TO THE LIGHTING CIRCUIT AT
THE CIRCUIT BREAKER OR FUSE BOX TO
AVOID ELECTRICAL SHOCK.
CHOOSING A MOUNTING LOCATION
For the best results, fix you
r s
ensor on a solid
surface,
1.2
~
1.5m
above the ground.
Avoid aiming the motion sensor at pools, heating
vents, air conditioners or objects which may
change temperature rapidly.
Do not allow sunlight to fall directly on the front of
unit.
Try to avoid point
ing
the unit
where the motion of
pets may be detected.
Prior to mounting, remember to position the
motion sensor so that a moving object cuts
across
its beams, not directly towards them.
(FIGURE 2)
FIGURE 2
PMWS
WALL SENSOR
1
I
NSTALLATION
The unit has a sensing angle of approx. 110° and
can detect up to
12
meters at the mounting height of
1.5
meter
or 6 meters at the mounting height of 1.2
meters.
(
FIGURE
3)
FIGURE 3
Install an external wall switch adjacent to the power
source (FIGUR
E
4). This helps you isolate the
light
with ease. See OPERATION for further information.
FIGURE 4
WIRING INSTRUCTION
(1)
Switch off the power source or
external wall
switch.
(2)
Strip approximately 6-
8mm
of the insulating part
of the wires
from the power cord
.
(3) Connect the BROWN wire (Live wire) of power
cord
t
o the terminal block "L" mark.
2
Connect the BLUE wire (Neutral wire) of power
cord
and lamp
to the terminal block N mark.
Connect the
BROWN
wire of lamp wire to the
terminal bloc
k "LS" mark.
(FIGURE 5)
2
FIGURE
5
(4)
Fit the
main body
to the wall box and secure it
with two fixing screws provided. (FIGURE 6)
FIGURE 6
SETTING THE LIGHTING SYSTEM
(1)
TEST MODE
Turn the L
ux
control and the Time control
counte
r-
clockwise to the e
dge
-
the TEST position
(FIGURE 7)
FIGURE 7
3
Turn the
external
wall switch on, the
light
will turn
on immediately and wait for about 1 minute
to
warm up the unit. After warming-up time ha
s
expired and the
light
goes off, you may make a
walk test and the l
ight
will turn on. This confirms
that the wiring was done properly and that the
l
ight
is working.
Walk through the coverage area. The
light
will
turn on for about 3 seconds when motion is
detected and turn off shortly after motion stops.
Wait for the
light
to turn off before moving again
to test the sensor.
(2)
SETTINGS
TIME ADJUSTMENT
The TIME adjustment controls how long the l
ight
will
stay on after motion has been detected.
Adjust the TIME Control Knob clockwise to
incre
ase
the turn-off time (
40
minutes maximum) or
counter
-clockwise to decrease the turn-off time (3
seconds mini
mum).
(FIGURE 8)
FIGURE 8
L
UX
ADJUSTMENT
The L
UX
adjustment determines at wha
t light level the
l
ight
will start opera
ting when you
set the sensor to the
AUTO
mode
.
FIGURE
9
Provisionally turn the L
UX
Control Knob to the edge
clockwise at the moon (dusk) position. (FIGURE 9) In
this provisional setting mode, the Motion Sensor
remains inactive during daylight. At dusk
when
you
find it is the LUX level you desired for operation,
simply set the LUX control knob to the position that
you tried satisfactorily.
O
PERATION
4
Automatic Operation
FIGURE 10
There is a
slide
switch located
on
b
ase
of the
PMWS
.
Slide the switch to AUTO position. (FIGURE 10)
When the sensor detects motion, the light
automatically turns on. The built-in photocell turns
the sensor off and on according to the light level
selected by the L
UX
adjustment.
Manual
Off
Sliding
the switch to OFF position will turn off the
connected light
.
(FIGURE 10) By using this OFF
switch to turn off the light without using the external
wall switch, the
sensor
won
t enter 1 minute warm-
up
period when switching back to the AUTO mod
e.
TROUBLESHOOTING
Light does not turn on
Confirm that you have made a correct wiring
connection .
Make sure th
at the lamps have not blown
..
Light remains on
Make sure the wiring connection is correct.
Check if the TIME setting is correct.
Others
The specification of protective shield shall
consult to local service agent.
about 3sec about 40min
5
SPECIFICATIONS
Power Requirement
AC 220 ~ 240V / 50Hz
Lighting Load
Max.
2
,000W Incandescent
or Max.
6
00
W
Fluorescent
Detection Angle
Up to
11
0°
at
25°C
at 1.5
m
Height
Detection Distance
Up to 1
2m
at 2
5°C
at 1.5
m
Height
Mounting Height
Recommended 1
.2 ~ 1.
5
m
(
3.9
~
4.9
Ft) Wall Mount
Wall Switch Control
Auto/
Off
Time Adjustment
Approx.
3
seconds to
40
minutes
Lux Adjustment
Approx. 5
~ 1000 Lux
& test
mode
Warm Up Time
About
1
min
Protection Class
Class I
I
Protection Degree
IP
44
Safety
CE, GS
Specifications are
subject to change without notice.
6
A501110412R
01
Warning:
Do not dispose of electrical appliances as unsorted
municipal w
aste, use separate collection facilities.
Contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging
your health and well
-
being.
E-Matic Energy Management Solutions,
4 Arkwright Court
, Fylde Industrial Estate,
Blackpool,
Lancashire
, FY4 5DR.
Tel: 01253 791888, Fax: 01253 791887,
Web site:
www.challenger.co.uk
,
Email:
[email protected]

Other E-matic Accessories manuals

E-matic PMCS6 User manual

E-matic

E-matic PMCS6 User manual

E-matic PMSCFMINI User manual

E-matic

E-matic PMSCFMINI User manual

E-matic PMSCF User manual

E-matic

E-matic PMSCF User manual

E-matic PM460LED User manual

E-matic

E-matic PM460LED User manual

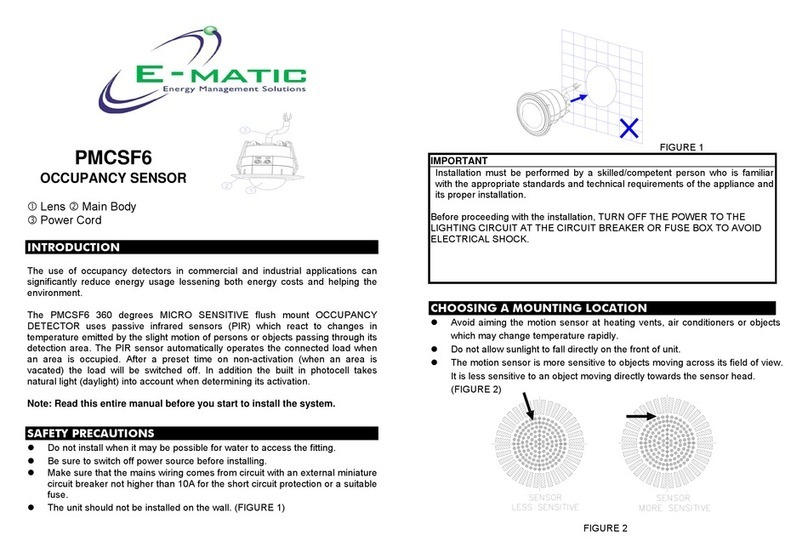

E-matic PMCSF6 User manual
