e-survey E800 User manual

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
E800 GNSS Receiver
User Manual
V2.0_202011

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
Contents
1. Introduction ..........................................................................................................1
1.1 Appearance ...................................................................................................1
1.2 Indicator........................................................................................................1
1.3 Interface........................................................................................................2
1.4 Pin definition.................................................................................................2
1.5 Power button ................................................................................................2
1.6 Touch Screen................................................................................................. 3
1.6.1 Main Screen ..........................................................................................3
1.6.2 Device Information ...............................................................................3
1.6.3 Work Mode Setting............................................................................... 3
2. Web User Interface...............................................................................................4
2.1 Position .........................................................................................................4
2.2 Satellites........................................................................................................5
2.3 Information ...................................................................................................5
2.4 Working Mode ..............................................................................................6
2.5 Satellite Setting .............................................................................................6
2.6 Device Configuration.....................................................................................7
2.7 NMEA Message .............................................................................................7
2.8 View Logs ......................................................................................................8
2.9 Raw Data .......................................................................................................8
2.10 Backup Data ..................................................................................................9
2.11 Management.................................................................................................9
3. Basic Operation...................................................................................................10
3.1 Insert SIM card............................................................................................10
3.2 Charge the battery ......................................................................................10
3.3 Insert radio antenna ...................................................................................10
3.4 Measure antenna height.............................................................................10
3.5 Sensor .........................................................................................................11
3.5.1 E-bubble Calibration ...........................................................................11
3.5.2 MEMS Tilt Survey ................................................................................11
4. Internal Radio......................................................................................................13
4.1 Default channel frequency..........................................................................13
4.2 Supported radio protocol ...........................................................................13
5. Standard Accessories ..........................................................................................14

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
6. Technical Specifications ......................................................................................15
6.1 E800 (P40 Version)......................................................................................15
6.2 E800 (BD990 Version) .................................................................................16
7. Warranty Policy...................................................................................................17

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
1. Introduction
This is the user manual for survey E800 GNSS receiver. It gives basic description and
operation guide which may help user to operate device properly.
1.1 Appearance
The E800 main body is designed with magnesium alloy material to provide durable
usage and better heat dispersion. The receiver is also equipped with 1.45” touch
screen and 5watt internal radio to meet different kind of working environment.
1.2 Indicator
Working status is viewable through the indicators. The meaning of each indicator:
Indicator
Color
Meaning
Satellite
Red and Green
•Off: no receiving satellites
•Flash red: receiving satellites but no
solution status
•Flash green: have solution but not fixed
•Solid green: fixed solution
•Flash red and green alternately: mainboard
abnormal
Data link
Green and Blue
•Solid green: datalink is ready to start
•Flash green: datalink is transmitting data
normally
•Flash Blue: when raw data recording is
enabled, the LED will flash according to the
interval
Bluetooth
Blue
•Off: no Bluetooth connection
•Solid blue: has Bluetooth connection
Battery
Green and Red
•Solid green: battery level between
30%~100%
•Flash green: battery level between
10%~30%, speaker will beep
•Flash red: battery level below 10%

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
1.3 Interface
E800 GNSS receive bottom interface is shown as below. The 5-pin port is used to
connect external radio and external power, or output NMEA messages. Type-C port
can be used for data download (internal storage access) or charging.
1.4 Pin definition
The 5-pin port is defined as below:
5 Pin
Front View
1
+12V
Power
2
GND
Power ground
3
TXD
Device out
4
SGD
Signal ground
5
RXD
Device in
1.5 Power button
There is a power button on E800 control panel, the main function as below:
Power On
Long press button for three seconds to power on
receiver, all the indicators will on.
Power Off
Long press button for two seconds then release,
will hear the voice “Power off?” Then press the
button again to confirm.
Broadcast Current Working
Mode
Receiver will broadcast current working mode
when press the power button.
Power Button
Type-C
5-Pin
SIM
SIM Card
5-Pin
Type-C
Indicators
UHF

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
Self-check
Long press button for two seconds then release,
will hear the voice “Power off?” Then long press
button for three seconds, will hear the voice “self-
check”.
1.6 Touch Screen
E800 1.45” colorful screen supports touch operation. User can view device status or
operate device by simply touch the screen. The screen includes three parts: the main
page, device information and work mode setting.
1.6.1 Main Screen
Press the power button to weak the screen, user will see the main page.
1.6.2 Device Information
Slide the screen to the right, the device information can be found. There are four
pages as below pictures. User can view basic position information, firmware version
and device expire date.
1.6.3 Work Mode Setting
Start
Start/Stop
Start/Stop current working mode
Mode
Static
Sample Interval
Cut-off Angle
Auto Record: Yes/No
Base
Auto Record: Yes/No
PDOP Limit
Base ID: Change from software
Current Mode
PDOP
VRMS
Solution
Satellites in Use
HRMS
Date
Time
Mode
Datalink
Battery

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
Rover
Change to rover setting
Datalink
Radio
Channel: Channel frequency
Power: Low(2W)/High(5W)
Protocol: Radio Protocol
GPRS
Auto APN: Yes/No
External Radio
Baud Rate
Diff
Diff Mode
Available in base mode
Setting
Setting
Backlight Time
Language: wait for 3 seconds to apply setting
2. Web User Interface
User can connect to receiver WIFI hotspot with PC, smart phone or tablet. The hotspot
name is the device serial number, can be found under the bottom of the device label.
Open web browser and input the IP address “192.168.10.1”. The default password is
“password”. From the website, user can manage working status, change working
mode, configurate basic settings, download raw data, update firmware and register
device.
2.1 Position
View basic position information, satellite number, PDOP and time. In static mode, can
start and stop recording here.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
2.2 Satellites
View satellite list and satellite map, set cut-off angle.
2.3 Information
View receiver information: firmware version, GNSS board, and network module.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
2.4 Working Mode
Configurate working mode: base, rover or static.
2.5 Satellite Setting
Configurate the satellites to be used.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
2.6 Device Configuration
Configurate receiver settings: User can set time zone. Sensor means MEMS sensor
data output. Also, the 5-pin port baud rate is changeable. Speaker “Smart voice
broadcast”can be disabled. Base Alert is enabled, the rover will receive message
when base is moved. When SIM card is insert and “WIFI share network” is enabled,
PC can surf the internet when connected to device hotspot by using SIM data.
2.7 NMEA Message
Configurate NMEA data output through Bluetooth or 5-pin port.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
2.8 View Logs
The log files can be used to diagnose issues. Click “download” to download the files.
2.9 Raw Data
Download raw data or convert data to RINEX format. User can use check box, then
click “Package” to download multiple files.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
2.10 Backup Data
The points collected in SurPad4.0 will be backup in receiver storage automatically to
avoid data loss. Can restore the data to SurPad software.
2.11 Management
User can update receiver and GNSS firmware as well as register device, format
internal disk, restore factory setting, restart device. To update the firmware, click
“Chose File” to import the firmware, then click “Upload File” to start updating.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
3. Basic Operation
This part shows user some basic operations to start working with E800.
3.1 Insert SIM card
E800 supports network working mode. Open the cover and insert Micro SIM card.
3.2 Charge the battery
E800 is equipped with Type-C charger which support maximum 45w PD quick charge.
The capacity is 13600mAh, fully charge the battery will take 8 hours typically. The
battery indicator is red when charging, will turn green when fully charged.
3.3 Insert radio antenna
The antenna is required in radio working mode.
3.4 Measure antenna height
In order to get correct elevation value, we need to know the correct phase center
height of the receiver. However, it is almost not possible to measure the phase center
directly. Normally, the software will read the receiver antenna offset parameters.
Once user input the measurement height, software will calculate the phase center
height automatically. Typically, there are two ways to measure the height:
A: Slant height (to measurement line)
•Centering and leveling the tripod on known point, then measure slant height from
the ground point to the arrow at the side of the receiver.
B: Pole height (straight height to device bottom)
•Read the straight pole height
A: Slant height Measurement Line B: Pole height

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
3.5 Sensor
The new E100 supports E-bubble and MEMS. It is determined by the activation code
for which sensor is activated. Please note only one of the sensors can be activated. If
you purchase E-bubble code, you can update to MEMS later by contacting with
salesman.
3.5.1 E-bubble Calibration

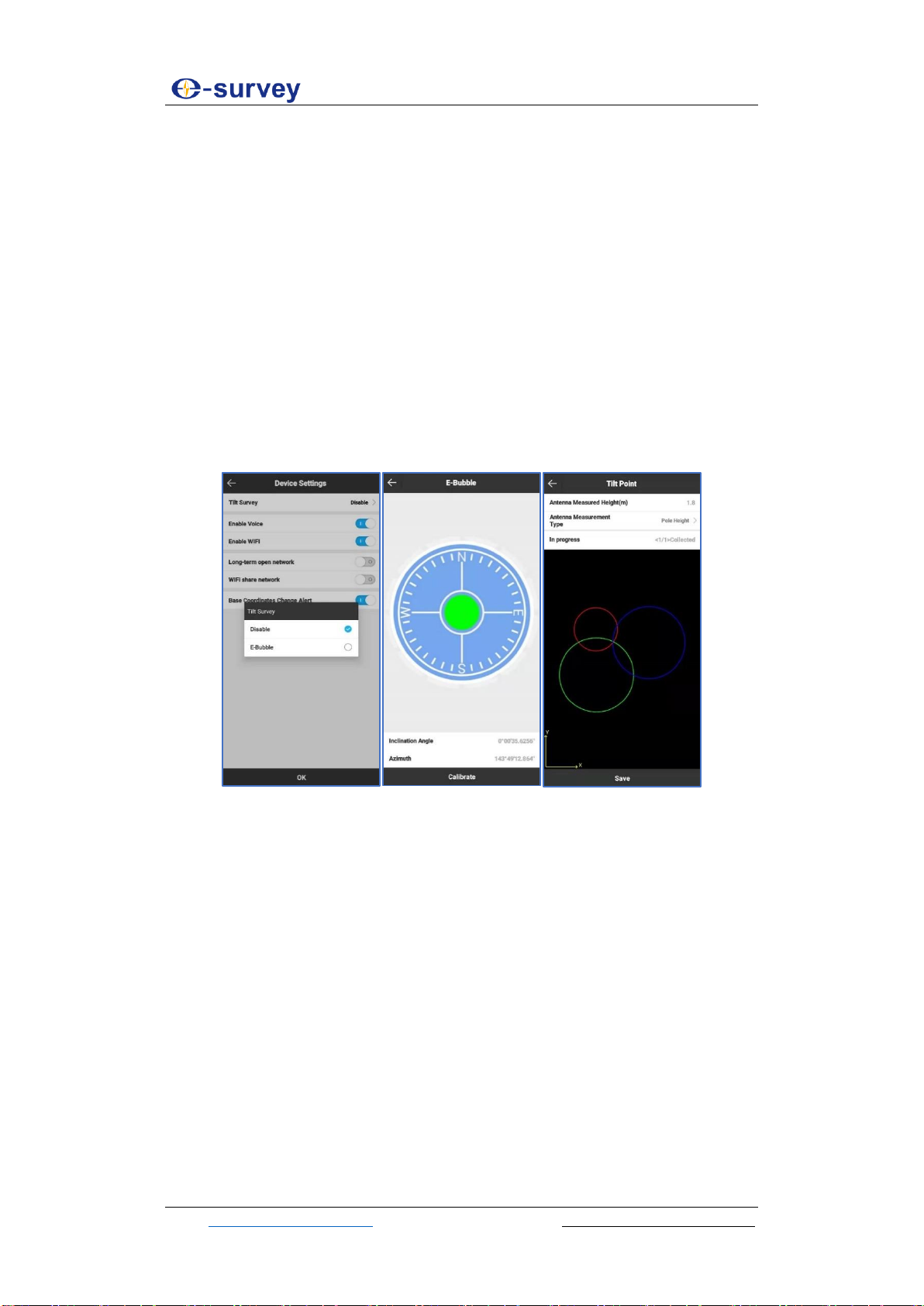

When e-bubble is activated on E100. To calibrate the e-bubble, put the device on flat
table or pole (ensure the bubble on the pole is normal before calibration, then
centering the pole bubble). In SurPad4.0 software, connect device and click “Device”
-> “Device Settings”, open “E-Bubble” function. Then, go to “Device” -> “Calibrate
Sensor”, click “Calibrate” to calibrate the e-bubble.
To use tilt survey function, go to “Survey” -> “Point Survey” page, select “Tilt Point”.
Then click survey button to start data collection. After collect three points on the same
location, the software will calculate a final result.
3.5.2 MEMS Tilt Survey
When MEMS sensor is activated on E100. To calibrate the MEMS sensor, receiver
must be in Fixed solution. In SurPad4.0 software, connect device and click “Device” ->
“Device Settings”, enable “Pole Tilt Correction” function. Then, go to “Survey” ->
“Point Survey” page. The software will guide user to calibrate the sensor.
•Input the correct pole height
•Draw circle on the ground using the pole
•Follow the guide and shake the pole back and forth for around 5-10 seconds or
walk in straight line around 10 meters until it shows “Ready”

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
4. Internal Radio
E800 is equipped with 5-watt internal radio. User can select the transmission power
2 watt (Low) or 5 watt (High). There are 8 default channel frequency and the
frequency of channel “8” is changeable. With new firmware update, lots of mainly
used protocols in survey industrial are supported.
4.1 Default channel frequency
Channel
Frequency/MHz
1
431
2
432
3
433
4
434
5
435
6
436
7
437
8
438, Changeable
4.2 Supported radio protocol
Some of the protocols may require firmware update.

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
5. Standard Accessories
E800 base and rover are using the same hard carrying case.
Base:
Rover:

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
6. Technical Specifications
6.1 E800 (P40 Version)

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
6.2 E800 (BD990 Version)

E800 User Manual
Web: www.esurvey-gnss.com Email: [e-mail]
7. Warranty Policy
The Guarantees Rights
e-survey supports free exchange or refund within 7 days from the day when you have
received the products, where the device appears "performance failure”, which confirmed
by e-survey repaircenter.
e-survey supports free maintenance or exchange within 15 days from the day when
you have received the products, where the device appears "performance failure”, which
confirmed bye-survey repair center.
e-survey supports free maintenance or exchange the same type of device within one year
from the day when you have received the products, where the device appears
"performance failure”, which is still not in working conditions after two repairs.
e-survey supports a 24-month warranty service for the device host and a 3-month free
warranty service for the accessory from the day when you have received the products.
Warranty service
If the device host meets the warranty conditions, the warranty service can be obtained
according to the warranty card and the purchasing invoice. If the proof of purchase and the
warranty card cannot be provided, and e-survey will use the delivery time as the standard
for the warranty period.
If it is a non-warranty product, and the repair center will handle the maintenance of the extra-
fee.
After the device is repaired, the same fault is con- firmed by the repair center and e-survey
will provide a 3-month free warranty service.
The transportation, delivery and disposal costs incurred during the delivery or
inspection of the product to e-survey shall be borne by the user. The freight generated by
the repair or inspection equipment returned to the user shall be borne by e-sur- vey.
Equipment that needs to be repaired or sent for inspection, please back up the data in the
machine in time.
During the warranty period, the parts normally used for maintenance are free.
The parts that have been replaced during the repair are owned by e-survey.
e-survey is not responsible for non-product standard and software or applications that are
not certified by the company.
Following conditions are not within the scope of the warranty and
service
The device host and accessories have been subjected to: abnormal or improper use,
improper storage of abnormal conditions, unauthorized disassembly or alteration,
accidents, damage caused by improper installation.
Damage caused by improper use of user, such as liquid injection, damage due to external
force, etc.
Failure to use, repair or transport caused by the equipment's instruction manual.
