E-Z Trench GroundSaw EZ9000 User manual

Owners Manual
E-Z Trench Manufacturing Co., Inc.
2315 S. Hwy. 701 • Loris, S.C. 29569
[phone]
Fax [phone]
www.eztrench.com
EZ-9000
1.
A WORD TO E-Z TRENCH OWNERS . . .
THIS MANUAL HAS BEEN PREPARED TO ACQUAINT YOU WITH THE
ASSEMBLY, OPERATION AND MAINTENANCE OF YOUR E-Z TRENCH
TRENCHING MACHINE, AND TO PROVIDE SAFETY INFORMATION.
WE URGE YOU TO READ IT CAREFULLY AND FOLLOW THE RECOM-
MENDATIONS CONTAINED TO HELP ASSURE THE MOST TROUBLE-
FREE OPERATION.
WE WOULD LIKE TO TAKE THIS OPPORTUNITYTO THANK YOU FOR
CHOOSING E-Z TRENCH, AND TO ASSURE YOU OF OUR
CONTINUING INTEREST IN YOUR NEEDS.
INDEX
4.-1. A WORD TO E-Z TRENCH OWNERS & SAFETY PRECAUTIONS
4.-2. OPERATING INSTRUCTIONS.
4.-3. MAINTENANCE SCHEDULE
4.-5. PARTS DRAWING / PARTS LIST
4.-6. TERMS AND WARRANTY
4.-7. WARRANTY REGISTRATION
4.-8. TROUBLE SHOOTING & BOLT SIZES.
WARNINGS! & SAFETY PRECAUTIONS
1. ALWAYS WEAR EYE PROTECTION.
2. STAY CLEAR FROM CUTTING BLADES.
3. KEEP HANDS AND FEET CLEAR OF PULLEYS AND BELTS
WHEN ENGINE IS RUNNING.
4. WHERE TRENCHER WILL BE USED, LOCATE ALL
UNDERGROUND POWER LINES, GAS LINES,
AND WATER LINES.
5. ENGINE R.P.M. SHOULD REMAIN AT 3600 R.P.M.

2.
EZ9000 OPERATING INSTRUCTIONS
1. FILL CRANKCASE WITH OIL. (SEE PAGE 3 MAINTENANCE
SCHEDULE. FOLLOW INSTRUCTIONS OF ENGINE
MANUFACTURER.
2. START ENGINE.
3. ENGAGE BELT DRIVE UNIT WITH HAND LEVER (EZ15) TO
ROTATE DIGGING BLADE.
4. SLOWLY LOWER THE BLADE BY TURNING DEPTH ADJUST
CRANK (8012) UNTIL DESIRED DEPTH IS REACHED.
5. PULL THE MACHINE BACKWARD. BEGIN TRENCHING SLOWLY
UNTIL FAMILIAR WITH THE MACHINE AND SOIL CONDITIONS.
6. TO PREVENT CLOGGING, KEEP INSIDE OF HOUSING CLEAN.

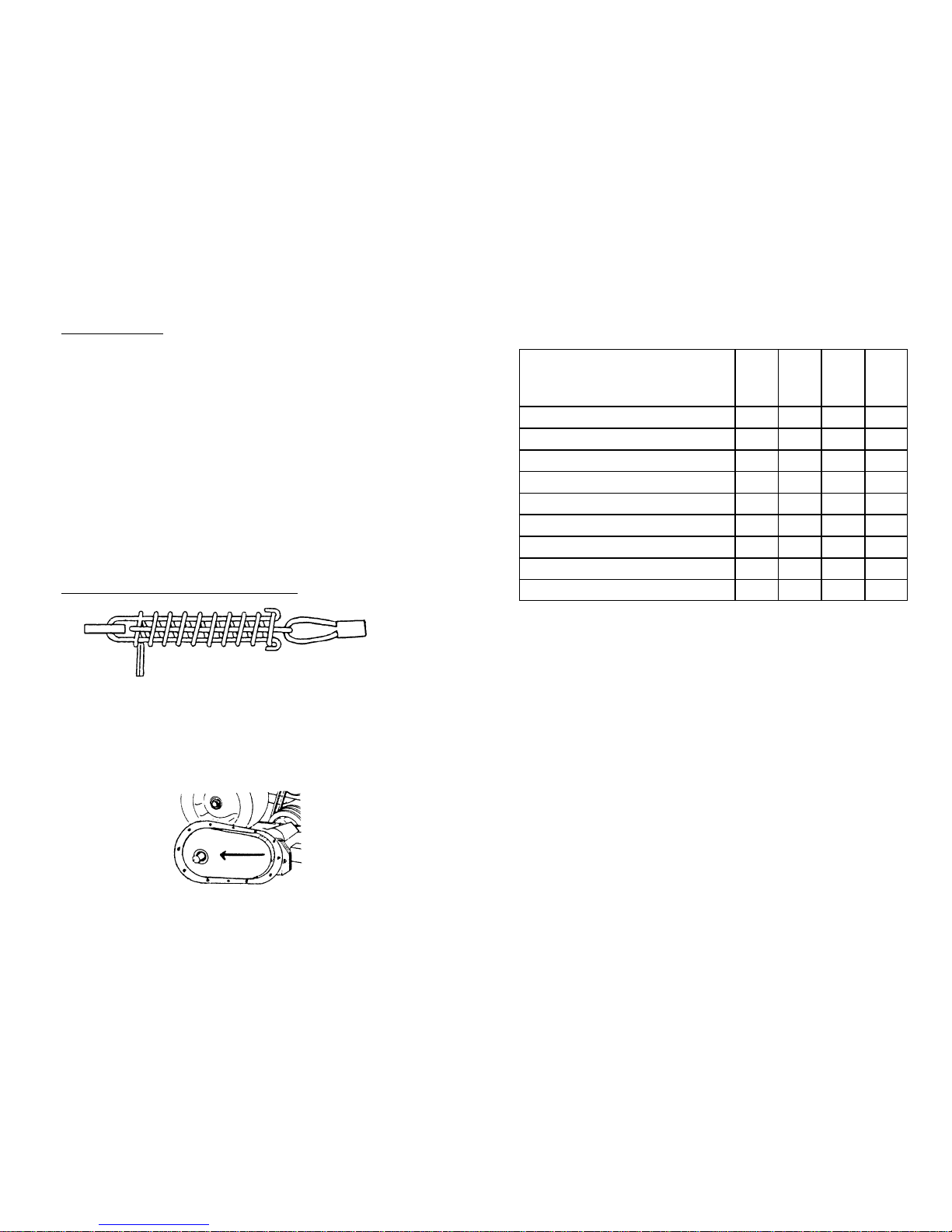

7. NOTE: PROPER BELT TENSION, 1/8” OR WHEN A DIME
WILL FIT SNUGLY BETWEEN COIL SPRING.
CAUTION: DO NOT OVER TIGHTEN BELT. (See Illustration).
ADJUST BELT TENSION WITH (8180) QUICK ADJ. ASSY.
8. AFTER MACHINE HAS RUN APPROXIMATELY ONE HOUR:
RE-ADJUST CHAIN IN GEAR BOX BY SLIDING GEAR BOX
DOWN. THIS IS DONE BY LOOSENING THE THREE BOLTS
AND PULLING THE GEAR BOX DOWN, AND TIGHTEN BOLTS.
➧
DIME
3.
EZ9000 GROUNDSAWTM
MAINTENANCE SCHEDULE
MAINTENANCE TIPS
1. DO NOT OVERTIGHTEN NUT ON BACKSIDE OF LARGE
PULLEY (EZ40). IT ONLY NEEDS TO BE SNUG.
2. KEEP CASTLE NUT ON TOP OF JACK SNUG.
3. TO REPLACE BITS:
A. INSERT 2 STRAIGHT BITS DIRECTLY ACROSS FROM
EACH OTHER.
B. NEXT, INSERT THE LEFT AND RIGHT BITS BY PLACING
THEM IN THE SLOT THAT BENDS IN THE SAME DIRECTION
AS THE BIT. (REMEMBER THAT THE CARBIDE SHOULD
FACE LEFT WHEN YOU ARE FACING THE MACHINE FROM
THE BLADE SIDE.)
Perform at every indicated month or
operating hour interval, whichever
comes first.
Check blade and bits* y
Check engine oil & air filter y
Lubricate pivot points after washing y
Snug castle nut on top of jack yy
Tighten any loose bolts y
Change engine oil** yy
Tighten chain in gearbox (pg 2) y
Check air pressure of tires y
Clean air filter or replace y
*Replace carbide bits before carbide tips are completely worn.
See tips below on proper bit installation.
**Break in engine with petroleum based oil, then switch to E-Z TrenchTM specially
formulated synthetic.
Every
Use
First
month
or
20 Hrs.
Every
3months
or
50 Hrs.
Every
6months
or
100 Hrs.

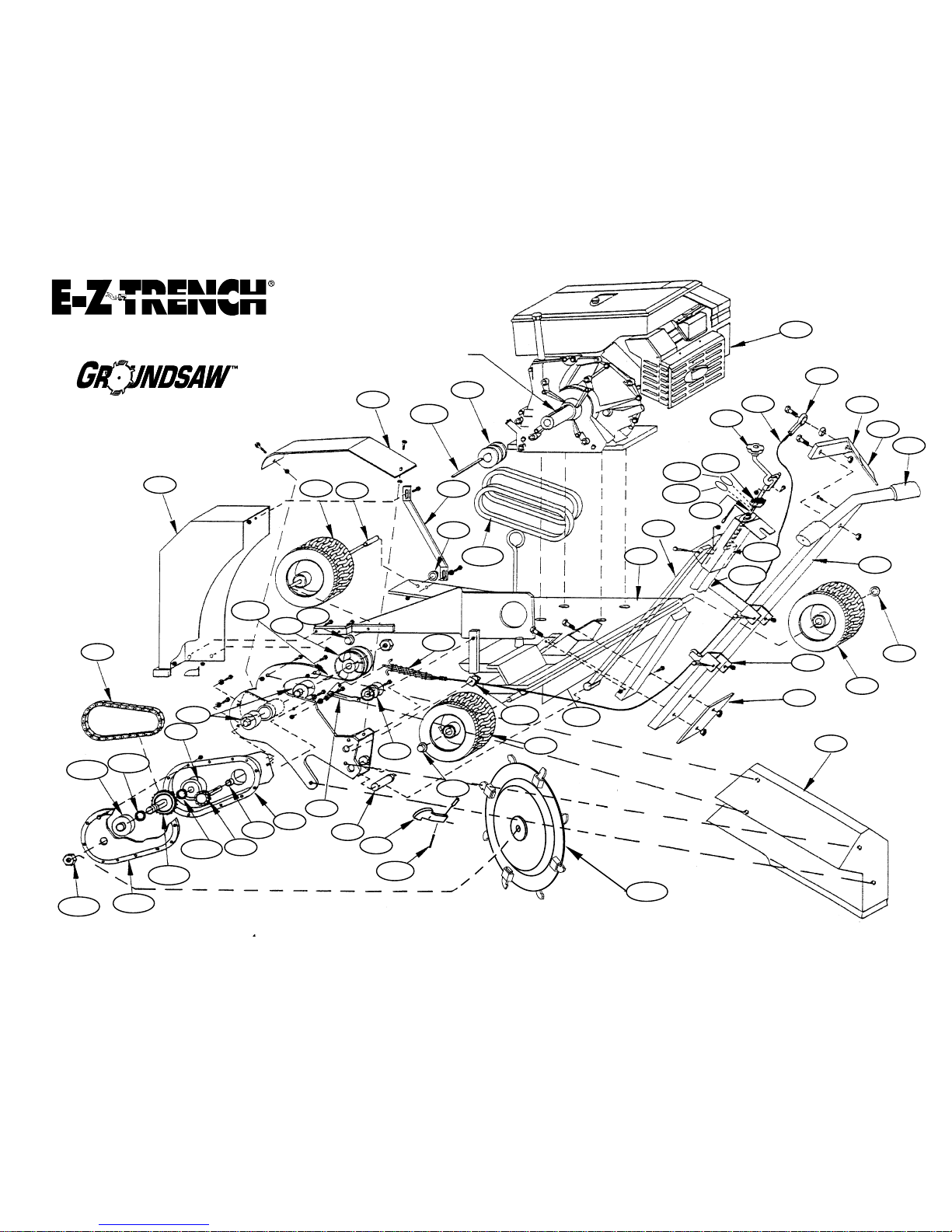

4. 5.
9017 9003 9039 9038
9004
9018 9042
9001
8013 8014
8012
9046
EZ20
EZ15
9019 EZ16
8160
9004
9003
8180
8016
9002
9009
9004
EZ40
9033
EZ22
9045
9030
9029 9027 EZ43
EZ70
9004
EZ10
9003
8015 9036
EZ90
9042B
8048B
8014B 8014A
8014C
8048A
9036A
9011A 9001A
9022V4
9034V4 9028V4
EZ6833
9031V4
9032V4
9035V4
9032V4
KEY WAY
843-756-6444
Model EZ9000

6.
TERMS AND CONDITIONS OF SALE
USE:
E-Z TRENCHER IS DESIGNED TO TRENCH IN SOIL ONLY. ANY
OTHER USE IS AT THE RISK OF THE OWNER.
PRICES:
Prices are subject to change without notice and will be invoiced at prices
in effect on date of order.
CHANGES:
E-Z TRENCH MANUFACTURING, Inc. reserves the right to discontinue
items, change specification, design, or prices at any time, without notice
and without incurring any obligation whatsoever.
FREIGHT POLICY:
All orders are F.O.B., Loris, South Carolina, USA. Title to goods and risk
of loss passed in Loris, South Carolina.
DAMAGED OR LOST SHIPMENTS:
All shipments must be carefully inspected. In case of damaged or loss,
accept the shipment, but have carrier note damages or loss on delivery
receipt. If it is concealed damage, call carrier for inspection. Make claim
for damage with carrier.
LIMITED WARRANTY:
The E-Z Trencher is warranted against defects in workmanship or mate-
rials for a period of one year. Blades, bits, belts and bearings, which are
normal wear items, are not warranted. This warranty covers replacement
of parts only, no consequential damages are covered. In the event of a
warranty claim contact E-Z Trench Manufacturing Company, Inc. This war-
ranty does not include products which have been subject to improper use,
or application, or misuse, neglect or accident; nor does it attend to prod-
ucts which have been repaired or altered by other than E-Z Trench
Manufacturing Company, Inc. All warranty repairs are F.O.B., Loris, S.C,
U.S.A. E-Z Trench Manufacturing Company, Inc. will not be responsible for
any transportation charges.
THERE IS NO OTHER EXPRESS WARRANTY. TO THE EXTENT
PERMITTED BY LAW ALL IMPLIED WARRANTIES INCLUDED THOSE
OF MERCHANTABILITYAND FITNESS FOR APARTICULAR PURPOSE
ARE EXCLUDED. LIABILITY FOR CONSEQUENTIAL DAMAGES
UNDER ANY AND ALL WARRANTIES ARE EXCLUDED TO THE
EXTENT THATEXCLUSION IS PERMITTED BY LAW. Some states do
not allow limitation on how long an implied warranty lasts, and some
Model EZ9000
PARTS LIST
Part# Description
#EZ10 Spring (Belt Tension)
#EZ15 Lever Handle
#EZ16 Handle Grips
#EZ20 Ball Assembly
#EZ22 Bearing
#EZ40 6”Pulley
#EZ43 Belt Idler
#EZ70 21/2”Idler Pulley
#EZ90 (Half Moon Key) Woodruff
#EZ6833 1/2”x 33”Powerated Belt
#8012 Depth Control Lever
#8013 Depth Linkage Rod
#8014 Depth Control
#8014A Castle Nut
#8014B Brass Bushing
#8014C Jack Shim
#8015 Linkage Pin
#8016 Spacer Plate
#8048 Complete Jack
#8048A Jack Bottom
#8048B Jack Top
#8160 Handle
#8180 Quick Belt Adj. Assy.
#9001 Frame
#9001A Soil Skirt
#9002 Hood
#9003 Wheel
#9004 Push Cap
#9009 Cable Only
#9017 Blade Guard
#9018 Belt Guard
#9019 Handle Cover
#9022V4 1”Sealed Bearing
#9027 Inside Half Gear Box
#9028V4 Outside Half Gear Box
#9029 Spacer Bushing
#9030 11 Tooth Sprocket
#9031V4 29 Tooth Sprocket
#9032V4 Washer
#9033 Chain
#9034V4 Nut (Blade)
#9035V4 Blade without Bits
#9036R Right Carbide Bit (blade requires 3)
#9036L Left Carbide Bit (blade requires 3)
#9036ST Straight Carbide Bit (blade requires 2)
#9036A Tension Pin (blade requires 8)
#9038 Hood Brace
#9039 Front Axle
#9042 21/2”Engine Pulley
#9042B Key
#9045 Bearing
#9046 Engine

8.
BOLT SIZES FOR EZ9000 GROUNDSAWTM
PART # QTY.SIZE ATTACHES PART...
516134 2 5⁄16 x 13⁄49006 to frame
516134 1 5⁄16 x 13⁄4EZ15 to 9006
51634 1 5⁄16 x 3⁄4EZ20 to EZ15
14234 1 1⁄4x 23⁄48180
14234 1 1⁄4x 23⁄48048A
382 1 3⁄8x 2 8048B to 8013
38214 1 3⁄8x 21⁄48048A to 9001
516134 4 5⁄16 x 13⁄4engine bolts
38134 1 3⁄8x 13⁄4EZ43
38112 1 3⁄8x 11⁄2EZ70 to EZ43
51612C 2 5⁄16 x 1⁄29018
51634 6 5⁄16 x 3⁄49002
51634 1 5⁄16 x 3⁄49038 to frame
5161 3 5⁄16 x 1 9017 to frame & 9038
1458 12 1⁄4x 5⁄89027 and 9028V4
3858G8 3 3⁄8x 5⁄8transfer case to carriage
14114 1 1⁄4x 11⁄48012 to 8014
14516ss 2 1⁄4x 5⁄16 set screws for large pulley
51638ss 2 5⁄16 x 3⁄8set screws for engine pulley
TROUBLE SHOOTING
PROBLEM SOLUTION
IRREGULAR OR 1. CHECK FOR PULLEY MISALIGNMENT.
EXCESSIVE BELT WEAR 2. USE OF OTHER THAN FACTORY
POWER-RATED BELTS.
3. RATE OF DIG IS TOO FAST FOR
SOIL CONDITION.
EXCESSIVE VIBRATION 1. LOOSE, BENT, OR BROKEN
BLADE OR BIT.
2. LOOSE ENGINE MOUNT BOLTS.
3. ENGINE R.P.M. SHOULD BE
3600 R.P.M.
HOUSING CLOGGING 1. SOIL IS TOO WET.
WITH DIRT 2. FOREIGN OBJECT IN HOUSING.
BENT OR BROKEN 1. STRIKING HARD OBJECTS, SUCH
DIGGING BLADE AS BRICKS, LARGE ROCKS, AND
STEEL OBJECTS.
7.
states do not allow the exclusion or limitation or incidental or consequential
damages, so the above limitation and exclusion may not apply to you. This
warranty gives you specific legal rights and you may also have other rights
which may vary from state to state.
E-Z Trench Manufacturing Company, Inc. does not warrant the engine but
the purchaser must look to the engine manufacturer for the warranty of the
engine.
NORMAL WEAR:
Warranty will not cover repair where normal use has exhausted the life of a
part. Trenchers, like all mechanical devices, need periodic parts replace-
ment and service to perform well. It should be remembered that the service
life of any trencher is dependent on the care it receives and the conditions
under which it has to operate. Trenchers operate in harsh conditions, which
can cause what appears to be premature wear. Such wear, when caused
by rocks or other abrasive material, is not covered by warranty.
E-Z TRENCH WARRANTY DOES NOT COVER THE FOLLOWING:
1. Bent or broken parts; Such damage is normally the result of abuse,
such as striking a solid object with the cutting blade.
2. Broken parts, which results from excessive vibration caused by loose
engine mounting, loose cutting blades, unbalanced blades, improperly
attaching equipment to trencher, overspeeding or abuse in operation.
3. Misuse, neglect, improper operation, damage or abuse.
4. Alteration or removal of name plates or serial numbers.
5. Modification or change of this product outside the factory.
STANDARD TERMS:
1. C.O.D./F.O.B., Loris, SC, USA
2. Cash, money order, certified check, or wire transfer with order.
3. 30 day with approved credit.
All sales are final with no right to return, price protection or implied con-
signment. No person, including agent, representative, or employee of E-Z
TRENCH MANUFACTURING, Inc. is authorized to assume for E-Z
TRENCH MANUFACTURING, Inc. any obligation or liability concerning
terms or conditions of sale other than that expressly stated herein.
EFFECTIVE MARCH 1, 1985
