1. WHAT’S IN THE BOX
1.1 DEVICE ACCESSORIES
➢Headset
➢Controller

5
➢Power Adapter & Cable
➢User Guide
➢Carrying Case
1.2 HEADSET

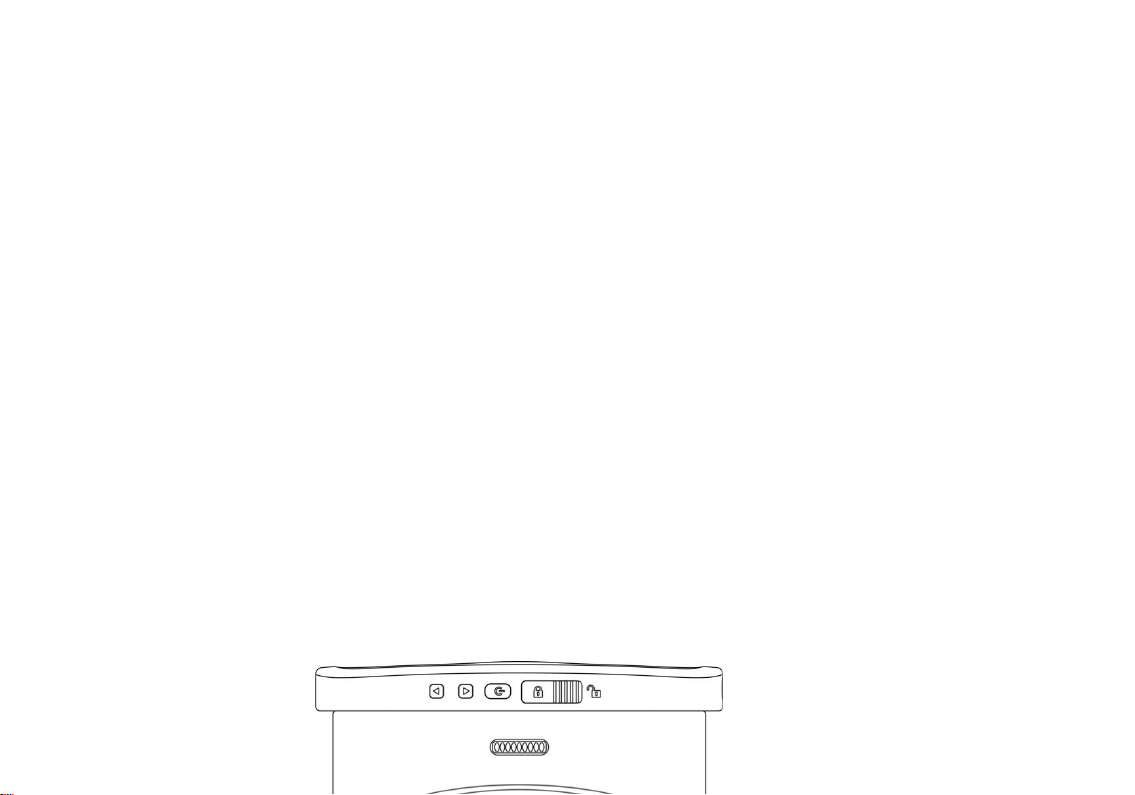

Arrow Buttons
Power Button
Toggle Button
Focus Wheel

6
1.3 CONTROLLER
Joystick
Focus lock/Menu
Mode/Power
Freeze/Find
Indicator light
Power Input
Camera
Screen

7
2. GETTING STARTED
2.1 PREPARING TO USE ACESIGHT VR
2.1.1 CHARGING THE DEVICE
➢HEADSET:
To charge the headset, connect the headset (power input port) with the
charger (included). When the battery icon on the Acesight VR screen

8
turns to , the battery level is low. Please charge the device. It takes
less than 1.5 hours to fully charge the battery.
Short press the Power Button two times to check the current battery
level.
➢CONTROLLER
The controller is non-rechargeable. Change the
AAA batteries in the controller when the
battery is in low power or runs out of power.
Remove the bottom cover by inserting a fingernail or
Clasp

9
small tool in order to replace the battery.
2.1.2 TURN ACESIGHT VR ON/OFF
Switching on Acesight VR:
Under regular circumstances a single press of the Power Button on the
headset is all that is required to wake Acesight VR from sleep mode. The
Power Button

10
first time you switch on the device, it may be necessary to press the Power
Button on the Headset for about 3 seconds. You may feel a slight vibration
to indicate the unit is starting up. This process takes about 15 seconds.
Acesight VR is ready when you see the image on the screen.
Switching Off Acesight VR:
Acesight VR will enter sleep mode when you press the power button, or
by removing the device from your head and placing it on a table or other
surface. After 5 minutes the screen will switch off and the device will enter
sleep mode automatically. Acesight VR can remain in Sleep mode for days

11
without any noticeable change in battery charge and woken up instantly
with a single press to the power button. It’s very convenient.
Acesight VR will shut off automatically when the battery runs out.
NOTE: To maintain a fully charged battery, leave Acesight VR connected
to power when not in use.
2.1.3 TURN THE CONTROLLER ON/OFF

12
Press the Power Button on the controller for 3 seconds to turn it on/off.
The indicator light on controller will flash blue one to two times before it
is connected with the headset successfully.
2.2 PUT ON THE HEADSET
2.2.1 WEARING THE HEADSET
Step 1: Place the headset over your eyes and pull the strap back over your
head.
Step 2: Adjust the strap to ensure a comfortable fit.
NOTE: Do not attempt to walk while wearing Acesight VR.
2.2.2 ADJUST THE FOCUS

13
Step 1: Pick an object or face at least 4 feet (1.2m) away to look at, such as
a picture on the wall.
Step 2: Rotate the Focus wheel on the top of the Acesight VR headset to
the left or right until the object is in focus.
3. BASIC FUNCTIONS
Focus Wheel

14
3.1 ACTIVATE/EXIT SLEEP MODE
When the unit has been powered on, press Power Button on the top of
the headset to activate or exit sleep mode. The screen will turn black when
the headset goes into sleep mode. The unit can also wake up by pressing
any button (joystick excluded) on the controller.
To save power, the headset will go into sleep mode automatically after 5
minutes of inactivity.
We recommend connecting Acesight VR to an electrical outlet when not
in use, to help ensure it is fully charged each time you wish to use it.

15
3.2 ZOOM IN/OUT
Push the joystick up or down to zoom in or zoom out.
The magnification range of Acesight VR is 1x to 16x.
3.3 FOCUS LOCK
In general, the camera of Acesight VR is auto-focus. However, if focus lock
function is needed, single click Focus Lock button to turn off auto focus.
And click it again to go back to auto focus. Icon or will appear
in the lower right corner of the screen when Focus Lock is on or off.

16
The icon indicates Focus Lock function activated.
The icon indicates Focus Lock function is off.
3.4 COLOR MODE &OUTLINE DISPLAY
3.4.1 CHANGE COLOR MODE &OUTLINE DISPLAY
Press the Mode Button to switch among Focus lock, 4 high contrast colors
and 3 outline displays:
➢4HIGH CONTRAST COLORS

17
➢3OUTLINE DISPLAYS
White on Black
Black on White
Black Outline on Full color
3.4.2 FAVORITE COLOR MODE

18
You can select favorite color mode in Menu. Please refer to the “Menu”
section on page 24 of this guide.
ADJUST THICKNESS OF OUTLINES/CONTRAST OF HIGH CONTRAST COLORS
The thickness of the outline and the range of the contrast in high contrast
color are adjustable in 5 levels by pushing the joystick left or right to adapt
to various eye conditions and environments.

19
4. ADVANCED FUNCTIONS
4.1 FREEZE IMAGE
Press the Freeze Button on the controller to freeze the image. You will see
the image you are viewing frozen, a pause icon will appear in the top
right corner of the screen.
4.1.1 VIEW THE FROZEN IMAGE

20
If the frozen image is magnified, move the joystick up/down/left/right to
pan around. If the magnification level is at 1X (no magnification) then the
Joystick has no function.
4.1.2 ZOOM IN/OUT THE FROZEN IMAGE
Press and hold the Freeze Button first and then push the joystick up/down
to zoom in/out the frozen image.
4.1.3 CHANGE THE COLOR MODE OR OUTLINE OF THE FROZEN IMAGE
Press and hold the Freeze Button first, and then push the joystick left/right
to change the color modes or outlines.
