OWNER’S MANUAL
HEATED CARPET SPOTTER
MODEL: DHS2
BEFORE YOU START:
• SAFETY
• OPERATION
• SERVICE
• PARTS
• TROUBLESHOOTING
• RETURN GOODS POLICY
You have just purchased one of the
finest and most desirable devices for
carpet spot extractions.
Read the following information to obtain maximum
performance and to acquaint you with your new Eagle
Power Products Carpet Extractor features.
READ and UNDERSTAND this material before operating or servicing this
equipment. Failure to understand how to safely operate this tool could
result in an accident causing serious injury or death.

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 2
Introduction
This manual is designed to make your job easier. However,
there is nothing more important than the safety aids and
instructions that are found throughout this document. The
Safety Alert Symbol is used to identify topics of primary
safety concern wherever they appear. Further, a separate
section has been included, “Important Safety Instructions,”
which deals mainly with accident prevention concepts.
User experience provides the best feedback. We, at Eagle
Power Products, welcome your comments and
suggestions.
Purpose of this Manual
This instruction manual is intended to familiarize operators
with safety and maintenance procedures of Eagle Power
Products.
This manual should be kept available to all operating and
maintenance personnel.
The symbol above is used to call your
attention to instructions concerning your
personal safety. Watch for this symbol. It
points out important safety precautions. It
means “ATTENTION! Become alert! Your
personal safety is involved!” Read the
message that follows and be alert to the
possibility of personal injury or death.
Safety is a critical factor in the design of Eagle Power Products equipment. The best program starts with a safety conscious
operator. The information highlighted in this bulletin describes operating practices for the benefit of the workers who will use
our equipment in their daily jobs. Comments from users are appreciated.
SAFETY
ALERT
SYMBOL
DANGER
Immediate hazards which, if not avoided, WILL
result in severe personal injury or death.
Hazards or unsafe practices which, if not avoided,
COULD result in severe personal injury or death.
Hazards or unsafe practices which, if not avoided,
COULD result in minor personal injury or property
damage.
WARNING
CAUTION
INDEX
Specifications ................................................................... 2
Safety Alert Symbols ........................................................ 2
Grounding Instructions .................................................... 3
Return Goods Policy ......................................................... 3
Important Safety Instructions ........................................... 4
Preparing For Use and Operating the Machine.................. 5
Know Your Machine .......................................................... 6
Troubleshooting .............................................................. 11
Warranty ......................................................................... 12
SPECIFICATIONS
200°F Heated Solution Tank (110°F water heats to 200°F
in 8 minutes)
Ready to use when dwell time on pre-spray is completed.
1-1/2 Gallon Solution Tank Capacity
2 Gallon Recovery Tank Capacity
Vacuum Lift 102"
Piston Pump delivers 60 PSI
1600 Watt Heating Element
Lights indicate when heating is in process and operating
temperature reached.
Automatic thermostat maintains maximum temperature
during standby periods.
Power Requirement less than 15 Amps
Single Power Cord
10 ft. 1-1/4" ID Flexible Vacuum Hose
10 ft. 3/16" ID Spray Hose
Weight of Spotter w/o solution 18 lbs.
Maneuvers easily on 2" Casters
Easily accessible to fill, empty, clean
Dimensions of Spotter: H-17"L-18" W-13"
Spotter furnished with transparent 3" Upholstery Detail Tool
Applications include auto detailing, commercial and
household carpet and upholstery cleaning

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 3
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having
an equipment grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER!
Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance. If it will not fit the outlet, have a proper Outlet installed by a qualified
electrician.

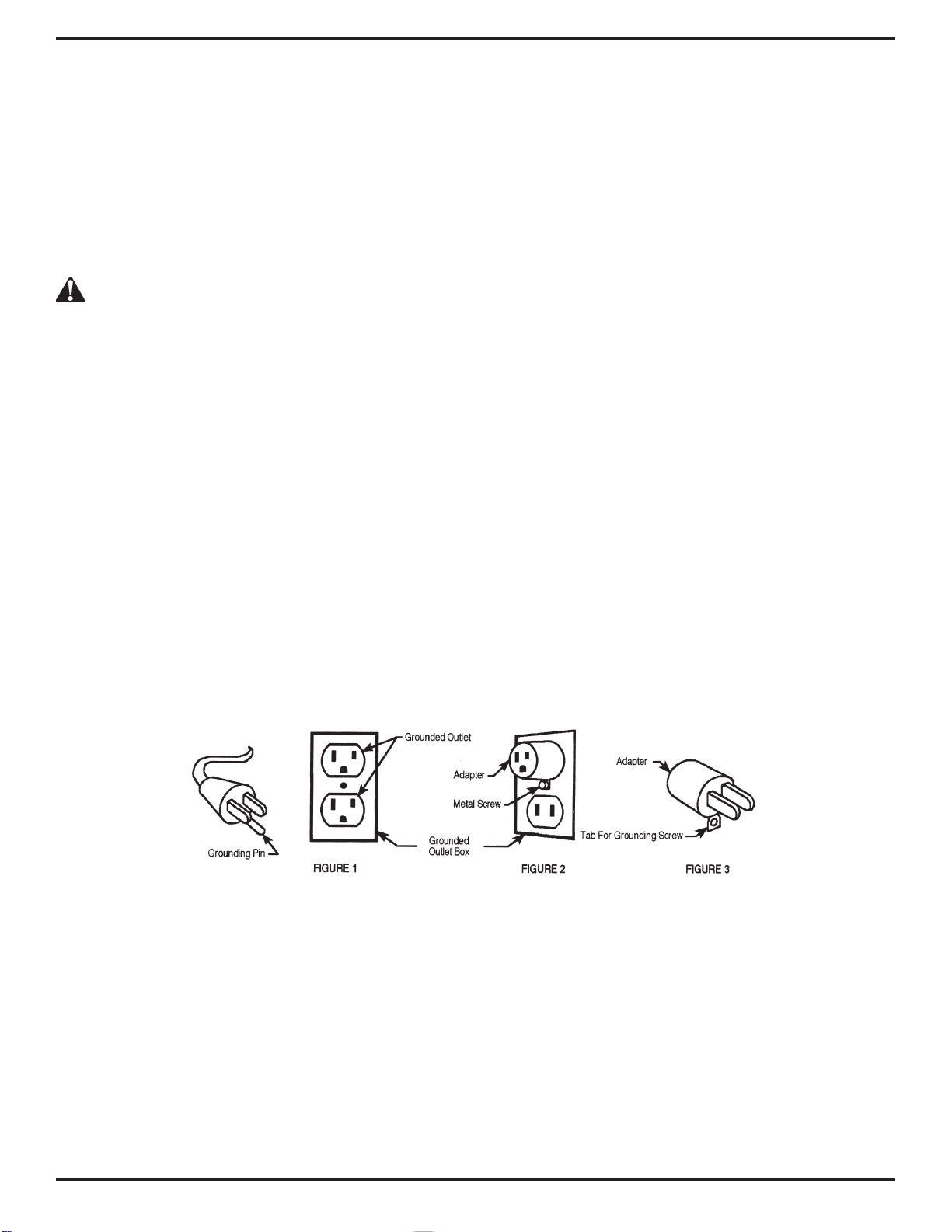

This appliance is for use on a nominal 120volt circuit, and has a grounding plug that looks like the plug illustrated
in Figure 1 below. A temporary adapter illustrated in Figures 2 and 3 may be used to connect this plug to a 2 pole
receptacle as shown in Figure 2 if a properly grounded outlet is not available. The temporary adapter should be
used only until a properly grounded outlet (Figure 1) can be installed by a qualified electrician. The green colored
rigid ear, tab, or the like extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. Grounding
adapters are not approved for use in Canada. Replace the plug if the grounding pin is damaged or broken. The
Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing a plug, this wire must be attached
to the grounding pin only. Extension cords connected to this machine should be 12 gauge, three wire cords with
three prong plugs and outlets. DO NOT use extension cords more than 50 feet (15 m) long.
PLEASE NOTE: FOR NORTH AMERICA ONLY

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 4
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING!
To reduce the risk of fire, electric shock, or injury:
•Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.
•To avoid electric shock, do not expose to rain. Store indoors.
•Do not allow to be used as a toy. Close attention is necessary when used near children.
•Use only as described in this manual. Use only the manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If the appliance is not working as it should be, has been dropped, damaged, left
outdoors or dropped into water, return it to a service center.
•Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp
edges or corners.
•Do not run the appliance over the cord. Keep the cord away from heated surfaces.
•Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
•Do not handle the plug, cord or appliance with wet hands.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
•Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or any health
endangering dusts.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as petrol or use in areas where they may be present.
•Anyone designated to operate this equipment must, without fail, read and understand these instructions before
attempting to operate the equipment.
•Always disconnect electrical cable from outlet before attempting adjustments or repairs.
•Always use a grounded electrical outlet.
•Never use out of doors or in the rain!
•Never put flammable or explosive materials in this equipment. Never operate equipment in an environment where these
materials are present.
•Never use equipment as a toy.
•Do not allow the unit to freeze.
•Do not operate in standing water.
•Do not operate if power cords, hoses, etc. are cracked, frayed, leaking or otherwise in need of repairs.
•Do not operate under any unsafe conditions.
WARNING
A person who has not read and does not understand all
operating instructions is not qualified to operate this tool.
Failure to read and understand safety instructions may
result in injury or death.
WARNING
Disconnect power before working.
Electric shock may occur.
SAVE THESE
INSTRUCTIONS
Additional copies of this manual
are available upon request at:
EAGLE POWER PRODUCTS
1174 Northland Drive
Mendota Heights, MN 55120

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 5
PREPARING FOR USE AND OPERATING THE MACHINE
SPOTTING PROCEDURES PRIOR TO OPERATING MACHINE
1 Soak up excess liquids with a towel.
2 Test cleaner on a small inconspicuous area to make sure it will not damage the carpet fibers.
3 Apply appropriate spotter, follow directions on bottle.
4 Start at outside edges of stain and work toward the center. Use a dabbing, not a rubbing action.
5 Repeat steps 3-4 if needed.
OPERATING THE MACHINE
WARNING!
Use only nonflammable commercial chemicals intended for machine application.
1 UNPLUG machine before attempting to fill with water and position switch to the middle "OFF" position.
2 Pour 1-1/2 gallons of the warmest water possible to shorten heating time.
BE SURE TO FILL WATER TO THE LID EDGE! It will not heat unless entirely full.
3 Toggle the power switch to "HEAT". The amber light will come on indicating the heating cycle has begun.
4 When water temperature reaches maximum degree of heat, the green light will indicate machine is ready for use.
5 Toggle the power switch to "Vacuum".
6 Release water from nozzle until hot water transfers through the length of vacuum hose. Remember, the remaining
water in the hose will be cold.
CAUTION!
Do not continue to use the machine after the Recovery Tank is FULL. This will damage the vacuum motor and is NOT
COVERED UNDER WARRANTY.
HOT WATER
AFTER USE
WARNING!
To reduce the risk electric shock or injury, unplug the power cord before servicing.
1 Toggle the Power Switch to the MIDDLE position to turn both the vacuum motor and the solution pump OFF.
2 DISCONNECT THE POWER CORD.
3 Move the machine to a designated waste water “DISPOSAL SITE”.
4 Disconnect the Hose Assembly from the machine.
5 Tip the Recovery Tank and drain through hose connection port.
6 Tip the Solution Tank and drain unused water or solution. Rinse the tank thoroughly if any cleaning chemical was used.
BE AWARE / WATER TEMPERATURE
MAY EXCEED 200°F.
USE CAUTION WHEN USING THIS MACHINE.

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 6

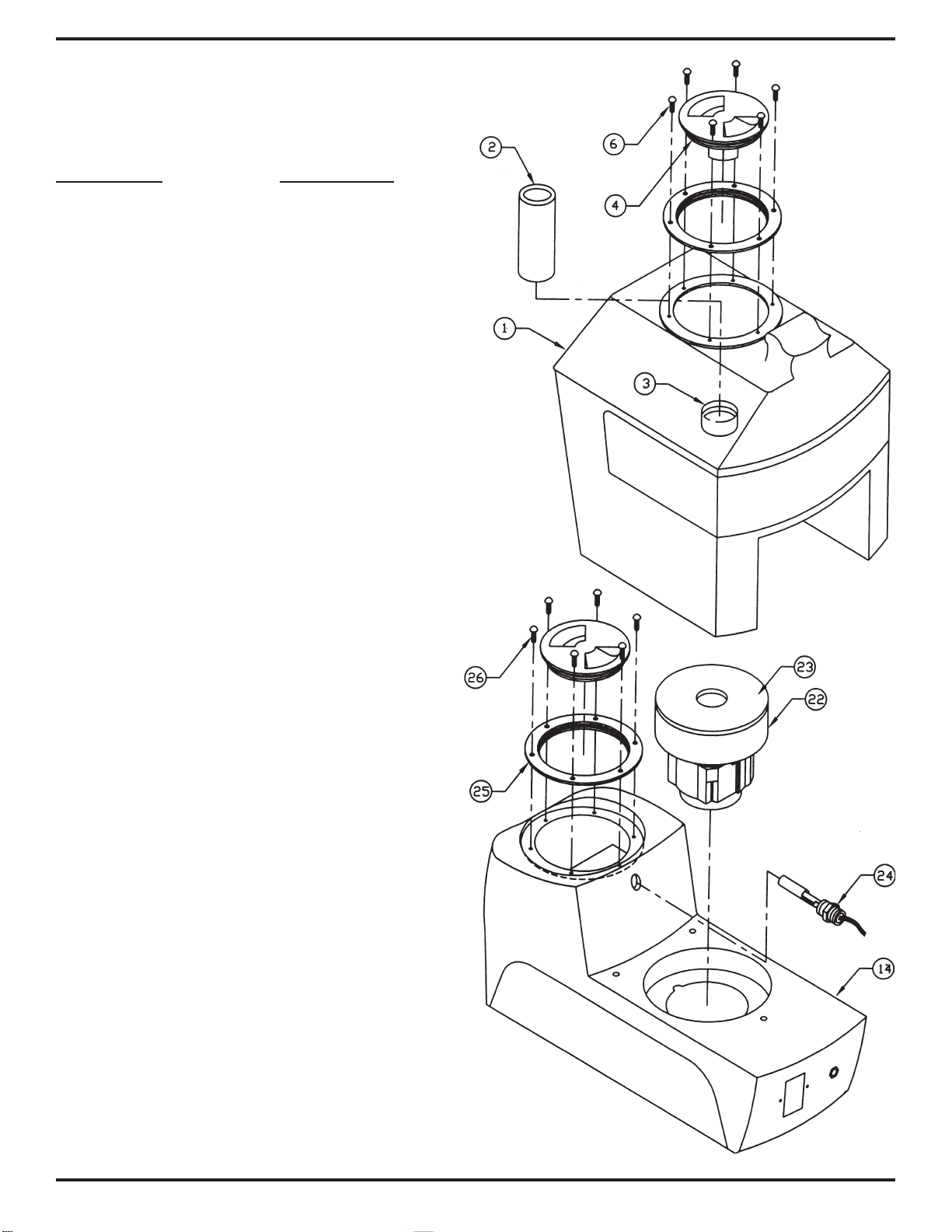

KNOW YOUR MACHINE
DESCRIPTION PART NUMBER
1. Recovery Tank DS2-01
2. Stack Tube DS2-002
3. Adaptor DS2-003
4. Lid DS2-041
6. Screw DS2-007
14. Solution Tank DS2-02
22. Vacuum Motor DS2-019
23. Gasket DS2-020
24. Float Switch DS2H-021
25. Ring DS2-039
26. Screw DS2-007

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 7

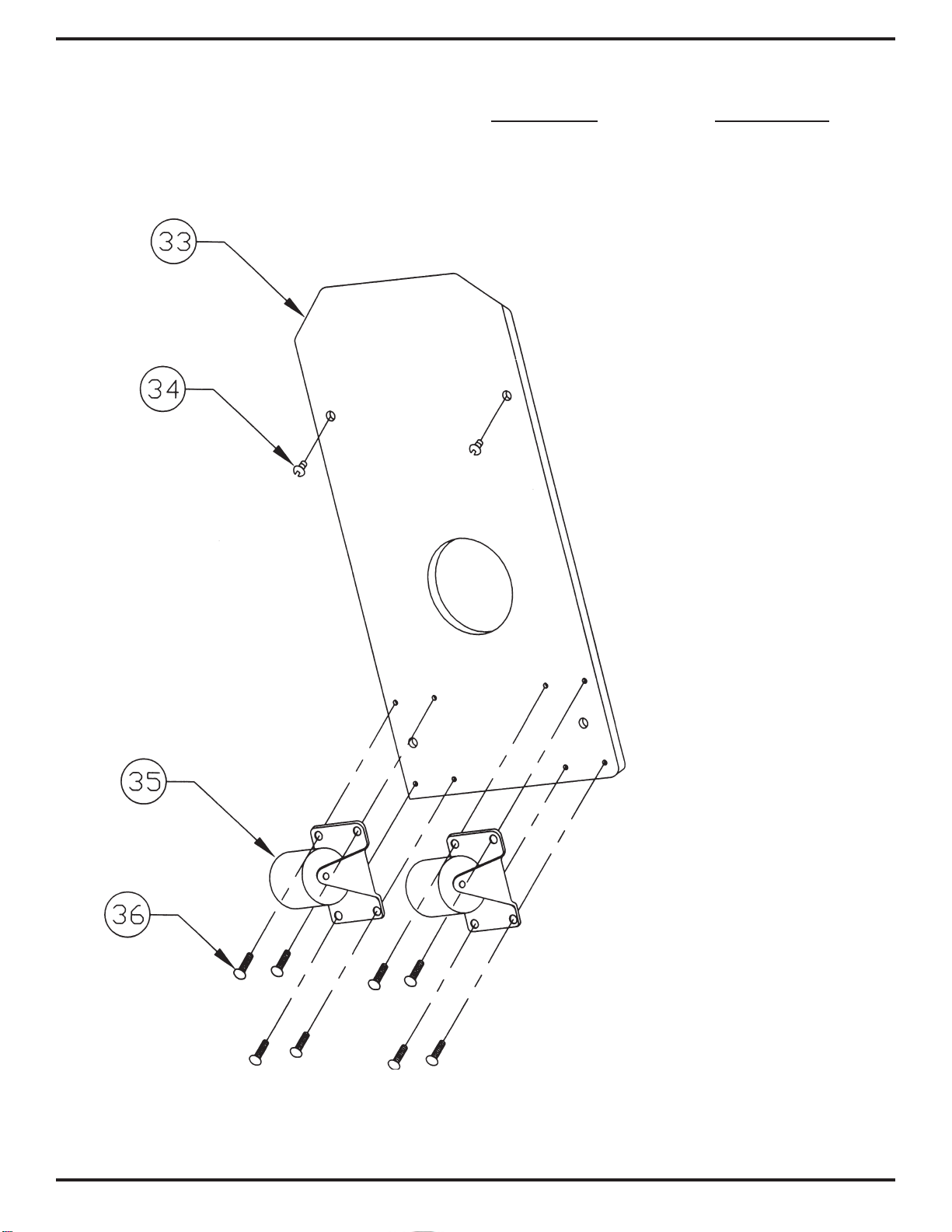

DESCRIPTION PART NUMBER
7. Stud DS2-008
8. Nut DS2-009
9. Caster DS2-010
10. Screw DS2-011
15. Plug DS2-012
16. Close Nipple DS2-013
17. Spacer DS2-014
28. Pump DS2-040
DESCRIPTION PART NUMBER
29. Close Nipple DS2-013
30. Barb DS2-024
31. Hose DS2-025
32. Clamp DS2-026
39. Relay DS2H-032
40. Screw DS2-028
41. Terminal Block DS2H-041
42. Screw DS2-030
DESCRIPTION PART NUMBER
43. Control Panel DS2H-031
44. Screw DS2-032
45. Pilot Light, Amber DS2H-033
46. Pilot Light, Green DS2H-034
47. Switch DS2H-035
48. Power Cord DS2-036
49. Strain Relief DS2-037
TYP. 3 PLACES

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 8
DESCRIPTION PART NUMBER
14. Solution Tank DS2-02
18. Heating Element DS2H-015
19. Thermostat DS2H-016
20. Nut DS2-017
21. Gasket DS2H-018
44. Nut DS2-032

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 9
HOSE AND WAND ASSEMBLY
DESCRIPTION PART NUMBER
52. Detail Tool DS2-038
54. Hose, Solution DS2-046
55. Hose, Vacuum DS2-047
56. Socket DS2-048
57. Barb DS2-024
58. Hose Clamp DS2-026
59. Cable Tie DS2-049

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 10
DESCRIPTION PART NUMBER
33. Bottom Cover DS2-027
34. Screw DS2-028
35. Caster-Fixed DS2-029
36. Screw DS2-030

FORM DHS2 EAGLE POWER PRODUCTS FLOOR EXTRACTOR (10-25-02) - 11
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY
Will not heat Water level too low. Fill water to top edge of lid ring.
(but vacuum comes on).
No solution from Nozzle tip plugged. Disassemble and clean.
spray nozzle tip.
Check quick-disconnect fitting. Reconnect fitting onto machine.
Solution tank empty. Refill to absolute top of lid ring.
Pump failed. Replacement required.
Kinked solution hose. Straighten hose.
Poor water pickup. Vacuum hose cuff is not Push hose cuff onto fitting.
firmly pushed onto Check for cracks in hose.
recovery tank fitting.
Vacuum motor intake Remove and clean filter.
filter is clogged.
Vacuum gasket between tanks Replace gasket.
is worn or damaged.
Recovery tank lid not sealing. Replace or tighten lid.
DEFECTIVE MACHINE! Unplug immediately and call factory
DO NOT ATTEMPT TO REPAIR! Service Center or the point of purchase.
Left exposed in freezing conditions. Refer to Service Center.
Defective pump seal. Replace pump.
Overheats and Float level switch in solution tank Replace float switch.
and boils water. may be damaged.
Thermostat Failure. Replace thermostat.
Plugged into outlet, Overloaded circuit breaker. Circuit breaker reset.
nothing comes on. Unplug other electrical items
on same circuit.

Warranty Policy
Limited Warranty
Eagle Power Products (EPP) warrants new cleaning equipment against defects in material and
workmanship under normal use and service to the original purchaser as detailed below.
1 Years
Subject to the conditions stated below, EPP warrants polyethylene tanks and housings to be
free from defects in materials and workmanship for a period of ten years.
3 Years
Subject to the conditions stated below, EPP warrants all automatic scrubber components to
be free from defects in materials and workmanship for a 3-year period. Parts replaced or
repaired are warranted for the remainder of the original warranty period.
1 Year
Subject to the conditions stated below, EPP warrants all other cleaning equipment
components to be free from defects in materials and workmanship for a 1-year period. Parts
replaced or repaired are warranted for the remainder of the original warranty period.
Batteries are prorated for one year.
EPP will furnish and charge for replacement parts, including transportation, to the original
owner through an EPP authorized service center. If the part is returned within 3 days and is
found defective, the owner will be credited for the cost of the replacement part including
shipping and handling.
Labor charges are covered for one year from the date of purchase if provided by an authorized
EPP service center. Travel is covered for 90 days for battery operated equipment only.
Wear items e empt from warranty include belts, carbon brushes, power cords, wheels, pad
drivers, clutch plates, brushes, pads, handle grips, filters, screens, throttle cables, and squeegees.
This warranty shall not apply to failures caused by misuse or abuse, improper
maintenance as stated in the operation manuals, use of unauthorized repair parts, repairs
by other than an EPP authorized service center, and damage in transit.
EPP disclaims and denies any liability for any direct, indirect, special incidental or consequential damage which may
be suffered as a result of sale, delivery, servicing, use, loss of any product, downtime, labor, freight, or other charges
not e pressly included herein.
Please be sure to record this information. This information will be necessary for future warranty claims.
Eagle Power Products Sales and Service Provided by:
1174 Northland Drive Mendota Heights, MN 55120
651.686.5399 Fa 651.686.5695
www.eaglepower.com
Serial Number:
Date Purchased:
Model Number:
