Eagle power Hospital S6101HQ-T Guide

HOSPITAL VAC
MODELS:
S6101HQ-T
S6101HQ-S
OPERATIONS AND PARTS MANUAL
IMPORTANT! READ THIS MANUAL PRIOR TO USE

TABLE OF CONTENTS
Important Safety Instructions ..................................................... 1
Operation ................................................................................... 4
Assembly Instructions ............................................................... 5
Maintenance ............................................................................... 6
Servicing the Vac Motor ............................................................. 7
Part Diagrams ............................................................................ 8
Warranty Information .................................................................. 14

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution must
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
WARNING
DANGER: The machine should never be immersed in water or a pressure jet of water be used for cleaning.
DANGER: Failure to read the Owner’s Manual prior to operating or attempting any service or maintenance
procedure to your machine could result in injury to you or to other personnel; damage to the machine or to other
property could occur as well.You must have training in the operation of this machine before using it. If you or your
operator(s) cannot read English, have this manual explained fully before attempting to operate this machine.
DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death. Read
and observe all DANGER statements found in your Owner’s Manual and on your machine.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or property damage.
Do not operate this machine until it is completely assembled. Inspect the machine carefully before operation. Use
only as described in this manual. Use only the manufacturer’s recommended attachments.
DANGER: Machines can cause an explosion when operated near flammable materials and vapors. Do not use this
machine with or near fuels, grain dust, solvents, thinners, or other flammable materials.
DANGER: Components used in packaging (ex: plastic bags) can be dangerous; keep away from children and animals.
DANGER: Do not pick up flammable fluids, dust or vapors.
DANGER: Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
DANGER: This machine is not suitable for picking up health endangering dust.
DANGER: Using a machine with a damaged power cord could result in an electrocution. Do not use the machine if
the power cord is damaged. Do not use the electrical cord to move the machine. Keep cord away from heated
surfaces. Do not unplug by pulling on the cord; grasp the plug, not the cord. Turn off all controls before unplugging.
Do not close a door on cord or pull around sharp edges or corners.
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly
disconnected from the power source. Disconnect the power supply before attempting any maintenance or service.
Page 1
CAUTION: Failure to read and observe all CAUTION statements could result in damage to the machine or to other
property. Read and observe all CAUTION statements found in your Owner’s Manual and on your machine.
WARNING: Failure to read and observe all WARNING statements could result in injury to you or to other
personnel; property damage could occur as well. Read and observe all WARNING statements found in your
Owner’s Manual and on your machine.
DANGER: Electrical components can “short-out” if exposed to water or moisture. Keep the electrical
components of the machine dry. Always store the machine in a dry area.

SAVE THESE INSTRUCTIONS
WARNING: Rotating fan blades inside the cover. Before opening cover, switch off machine.Wait until the fan/brush
stops completely or dust and debris may be ejected.
WARNING: Electrocution could occur if you handle the plug or appliance with wet hands. Do not handle plug or
appliance with wet hands.
WARNING: Damage could occur to machine if openings are blocked. Do not put any object into openings. Do not use
with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
WARNING: If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water,
return it to an Authorized service center.
WARNING: Injury to the operator and/or damage to the machine could occur when cleaning on stairs, unless extra
caution is used. Use extra caution when cleaning on stairs.
WARNING: To reduce the risk of electrical shock, always use a 3-wire electrical system connected to the electrical
ground. Whenever possible connect the machine to an outlet protected by a ground fault interrupter (GFCI). See
“Grounding Instructions.”
CAUTION: Should extension cords be used, ensure that the cable rating is suitable for use with the equipment. Do not
use the cable coiled as this could result in a voltage drop or overheating. Keep dry at all times.
WARNING: Use of this machine to move other objects or to climb on could result in injury to the operator or
damage to the machine. Do not use this machine as a step or furniture. Do not allow to be used as a toy. Close
attention is necessary when used by or near children.
Page 2
WARNING: Moving parts of this machine can cause injury and/or damage. Keep hands, feet, loose clothing, hair,
fingers, and all parts of the body away from openings and moving parts.
WARNING: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read
all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to
the machine. Get replacement labels and decals from the manufacturer’s distributor.
WARNING: Turn off all controls before unplugging.
WARNING: Do not use without dust bag and/or filters in place.
WARNING: Do not use outdoors or on wet surfaces. Do not expose to rain. Store indoors.

Page 3

WARNING: THE UNIT IS FOR DRY VACUUMING ONLY AND MUST BE
STORED IN A DRY LOCATION

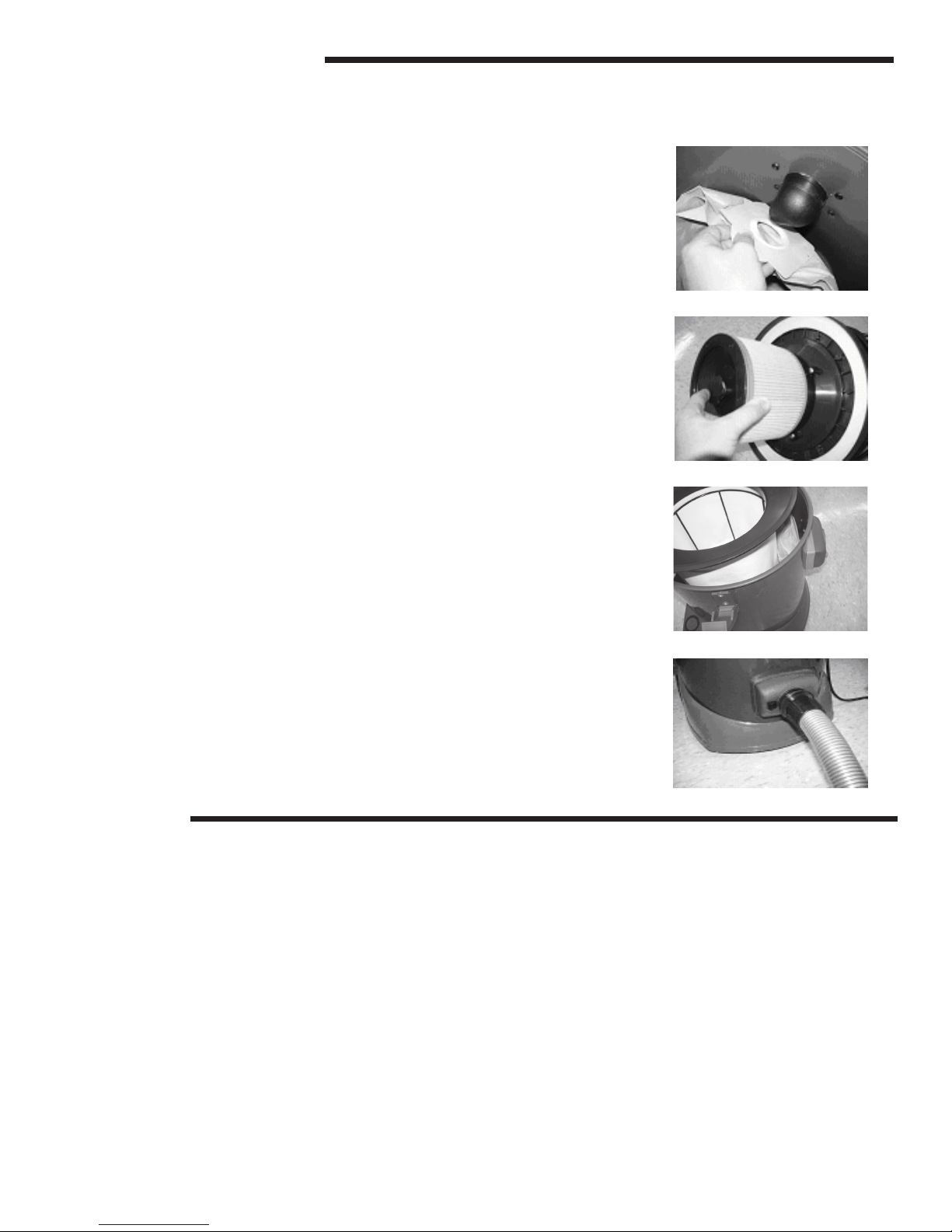

1. Attach paper bag to tank inlet deflector. See Figure 1.
2. Ensure that the cartridge filter is securely attached
to the bottom of the vacuum head. See Figure 2. For
S6101HQ-T units, insert basket filter into the tank.
See Figure 2-A.
3. Place vacuum head onto the tank and secure it with
the two clamps.
4. Insert hose into the tank inlet until it locks in. See Figure 3.
5. Attach appropriate cleaning tool. For optional power
brush attachment, see Power Head and Wand Assembly.
6. Activate the vacuum by pressing the switch on the vacuum head.
SET UP AND OPERATION
AFTER USE
1. Store the cord on the hook.
2. Store the appliance indoors, away from sources of heat.
3. This appliance is provided with an automatically reset
thermal limiter to avoid damage to motor. If thermal
limiter operates do one or more of the following:
• Change the bag
• Clean or replace the cartridge filter
• Check hose and tank inlet for any obstructions
•Wait a few minutes for the thermal limiter
to re-close the circuit
Page 4
Figure 2-A
Figure 2
Figure 3
Figure 1

Page 5
1. Slide on the two collars as pictured. See Figure 1
2. Insert wand into the power head neck until it stops. Slide
the small collar into the neck of the power head. Screw the
large collar onto the powerhead until tight. See Figure 2
3. Firmly press the two wands together.
4. Firmly press upper bent wand into the straight wand.
5. Attach two cord hangers to wand and cord.
See Figure 3
6. Evenly attach 3 cord hangers to the hose and cord.
7. Plug power head into the power head receptacle.
See Figure 4
POWER HEAD AND WAND ASSEMBLY INSTRUCTIONS
Locking Collars
Figure 1
Figure 2
Figure 3
Figure 4

SERVICING THE FILTER
SERVICING THE VAC MOTOR
PERIODIC MAINTENANCE
(Every six to twelve months):
1. Check filter for wear, replace dirt saturated filters that
do not respond to normal cleaning.
2. Inspect gasket seals and replace those which have
begun to leak.
Examine carbon motor bruhes and commutator.
The filter is accessed by lifting the head assembly off the tank.
Cartridge filters - Remove the filter retainer by turning the black knob 90 degrees counter-clockwise.
Cartridge filter will then slide off.
NOTE:
Be sure to frequently clean the filter
Worn filters can affect vacuum performance. Replace the filter when it becomes worn out and
norman cleaning will not restore vac performance.
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that attach the main cover to the head
assembly and set the cover to one side.
3. Disconnect the motor’s 2 red lead wires from the main switch.
4. Disconnect green/yellow wire by removing screws from motor core.
5. Remove the four motor mounting screws.
6. Remove motor plate and set aside.
7. Take out the motor and remove the upper and lower gaskets.
8. Inspect gaskets. If they show any wear or tear in the material, replace.
9. Install gaskets onto new motor. Make sure gaskets are properly seated.
10. Install the new motor. Make sure foam mufflers are positioned properly.
11. Attach motor plate to motor.
12. Connect green/yellow wire to motor core.
13. Connect motor’s 2 red lead wires to main switch.
14. Re-assemble vac cover.
15. Test for proper operation
Page 6

SERVICING THE VAC MOTOR

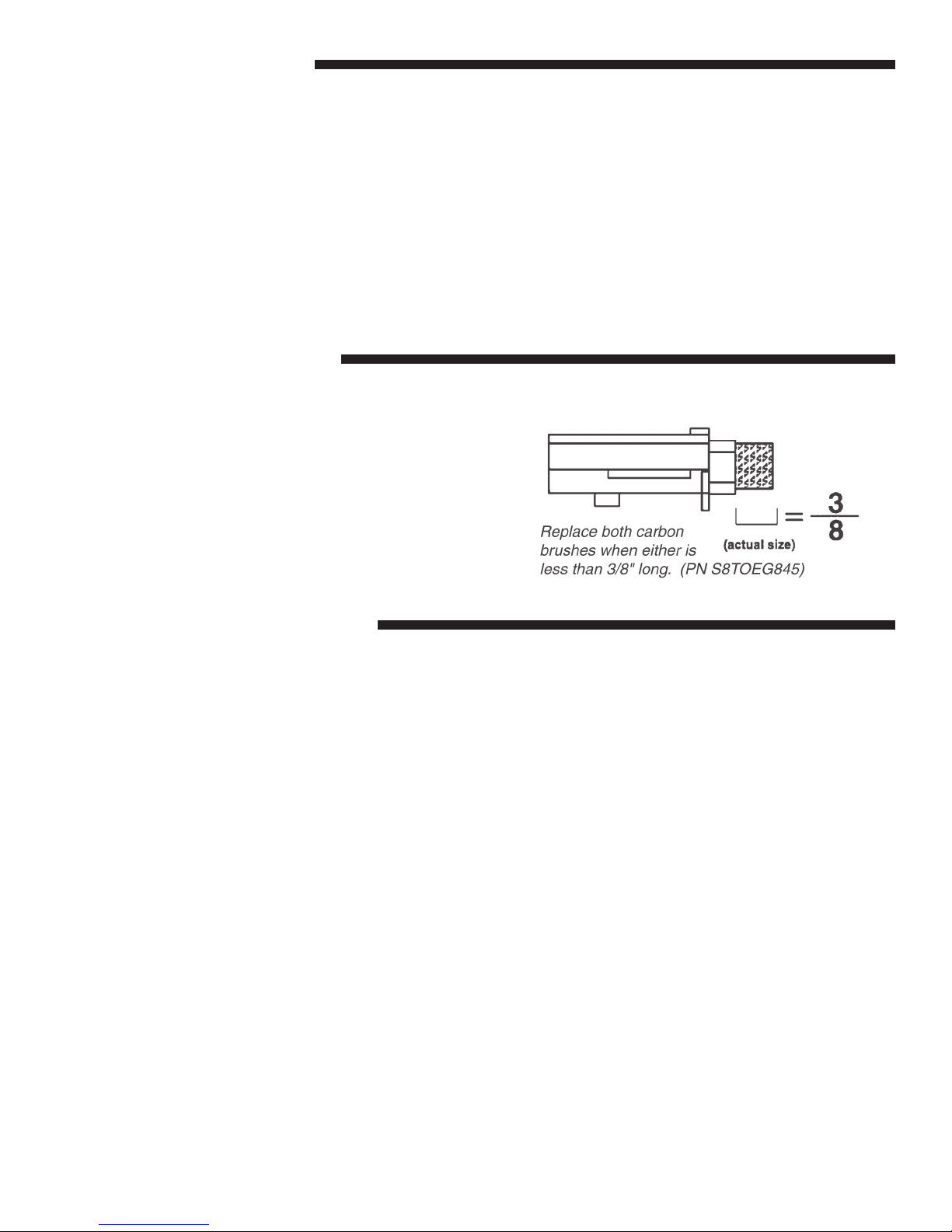

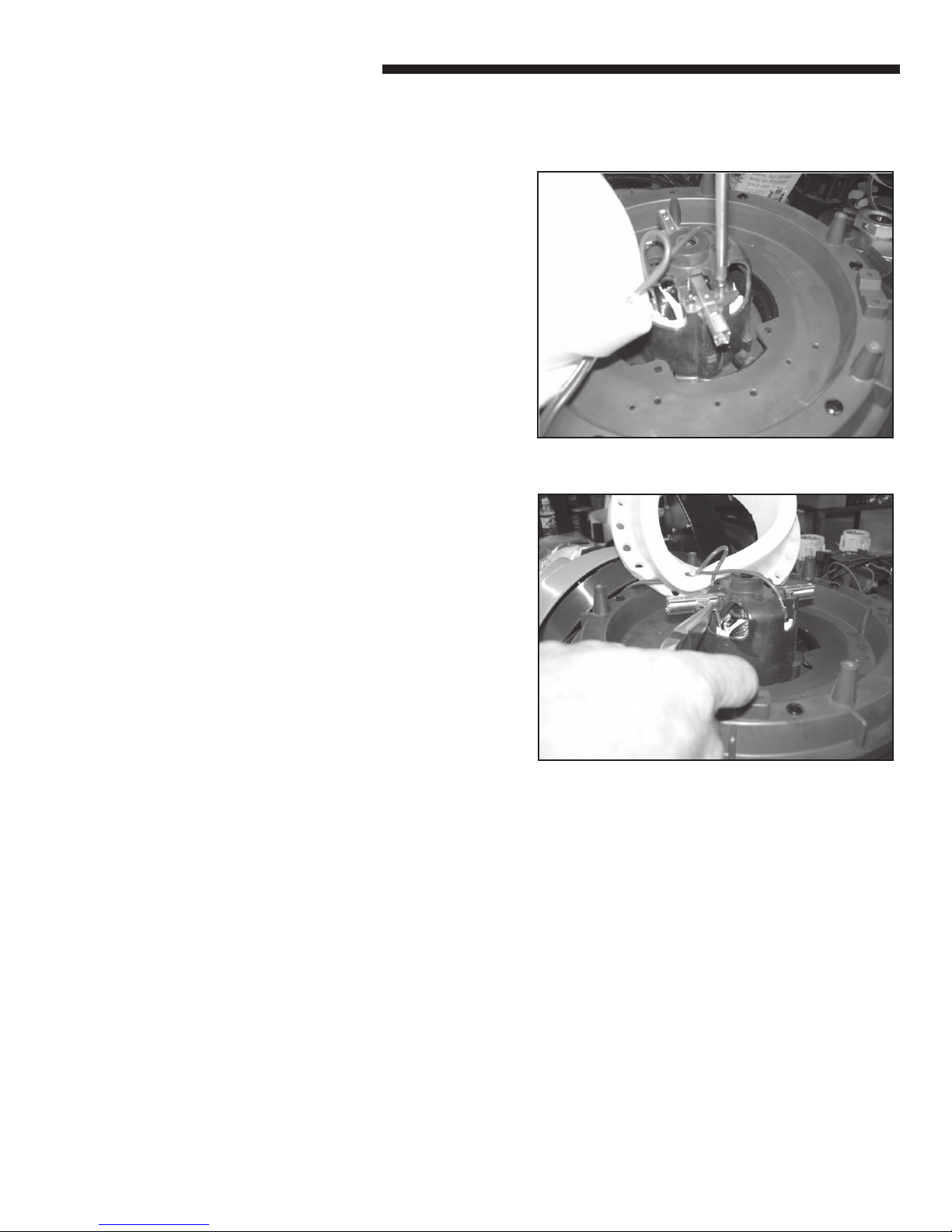

CARBON BRUSH REPLACEMENT
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that
attach the main cover to the head assembly and
set the cover to one side.
3. Remove the screws that attach the inner cover
to the head assembly and set aside.
4. Remove the carbon brush assembly by removing
the 2 screws that attach it to the vac motor.
See Figure 1
5. Slide off the carbon brush connector from the motor
terminal. See Figure 2
6. Inspect armature commutator. If it is extremely
pitted, grooved or not concentric then the motor
will need to be replaced or sent to a qualified
service center.
7. Reverse steps 6 through 4 to install new brush and
housing.
8. Repeat steps 4 through 7for the other carbon brush.
9. Reverse steps 3 and 2 for re-assembly.
10. Test for proper operation. Figure 2
Figure 1
Page 7
(Replacement Carbon Brushes: Part #S8053200)

POS. PART # DESCRIPTION QTY
1 S83706 BUSHING, 8 DIA. 4
2 S83724 SCREW, M5 X 25 4
3 S82822 BODY 1
4 S82881 HEPA FILTER, 175 X 144 X 125 1
5 S82855 RETAINER, FILTER CARTRIDGE 1
6 S83735 GASKET 1
Page 8

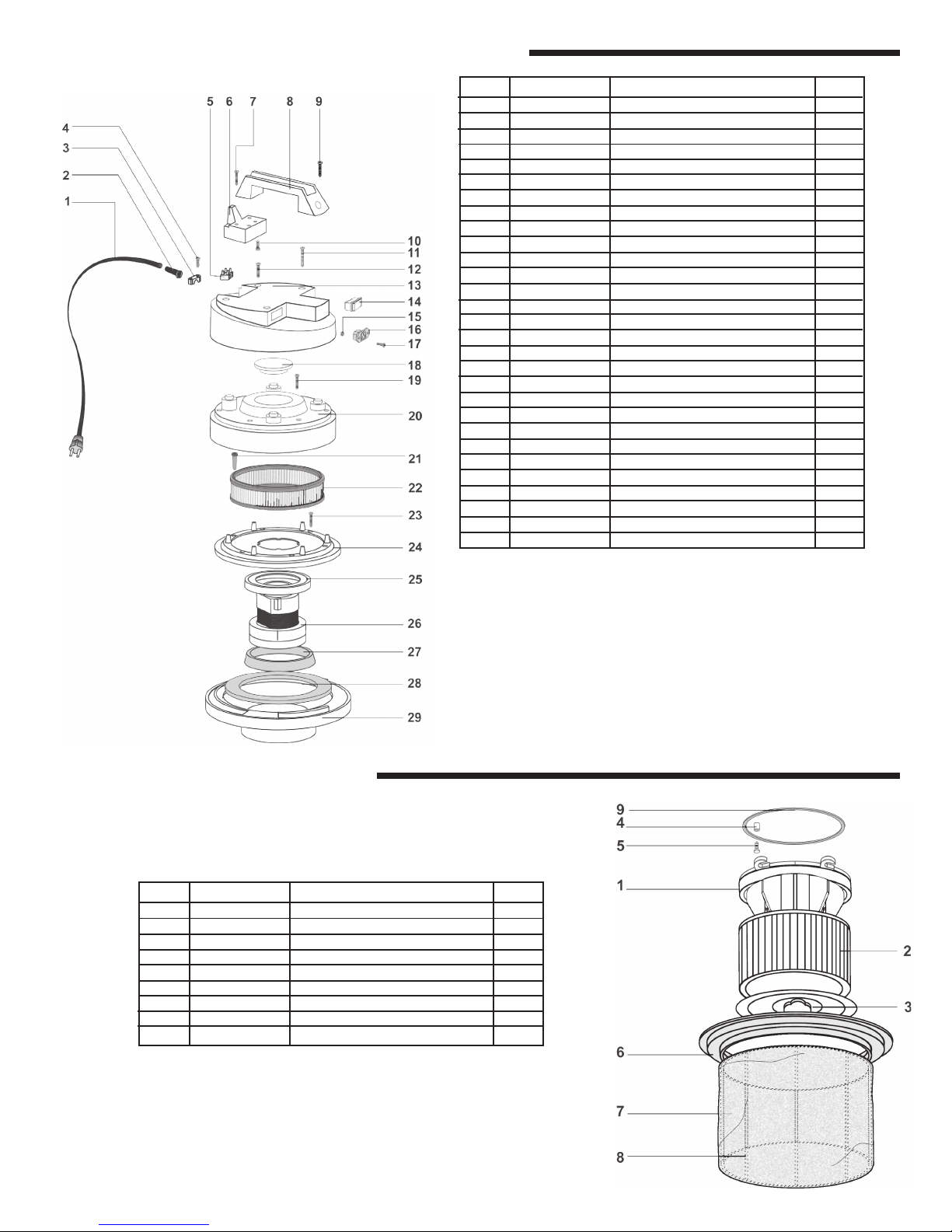

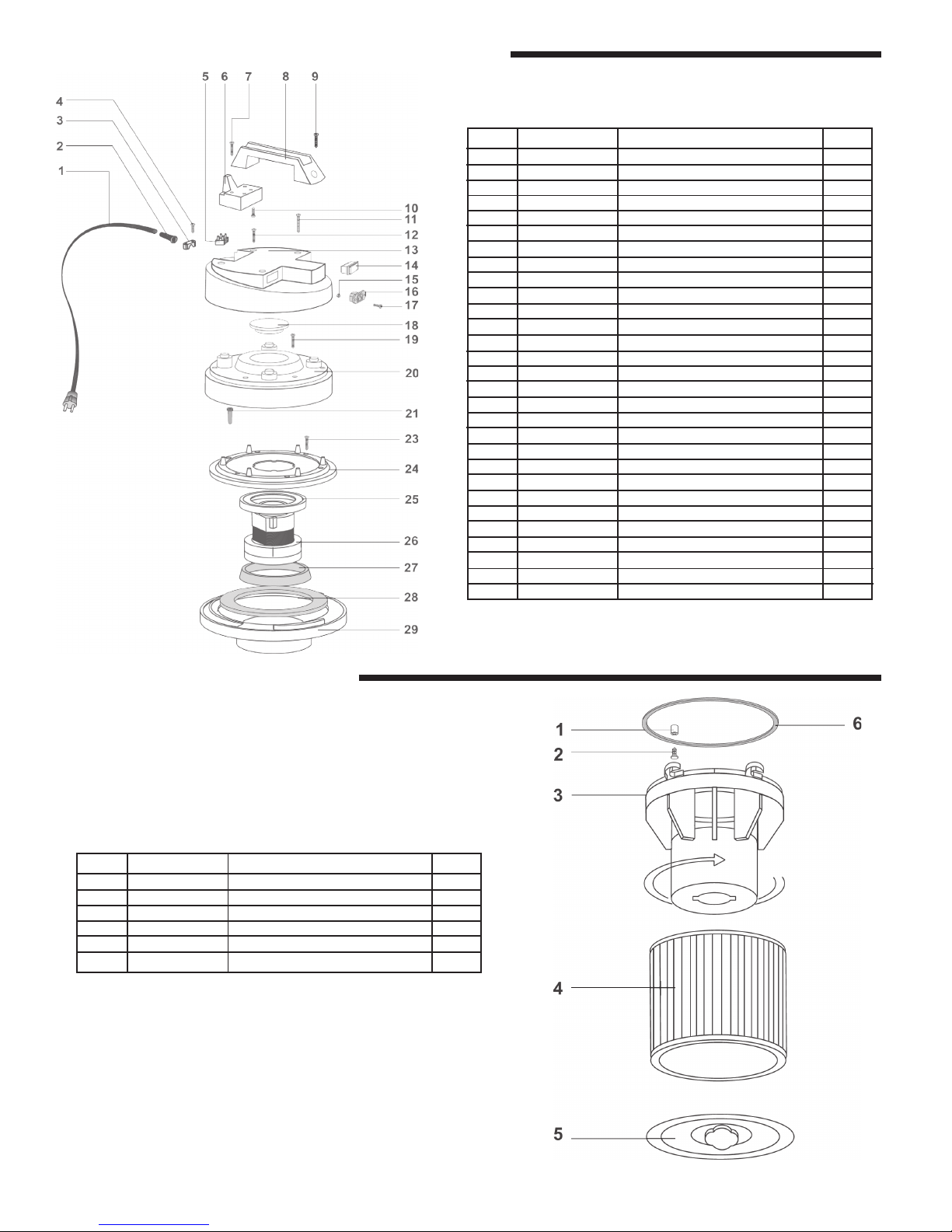

FILTER GROUP (S6101 HQ-S)
VACUUM MOTOR ASSEMBLY (S6101 HQ-S)
POS. PART # DESCRIPTION QTY
1 S81122 ELECTRIC CORD, 3 X 16 AWG 1
2 S80138L STRAIN RELIEF "L" 1
3 S80139 CLAMP, CORD 1
4 S81006 SCREW, (PHILLIPS) M5 X 20 2
5 S83444 TERMINAL BLOCK 1
6 S82928AU HANDLE BASE 1
7 S82627 SCREW, (PHILLIPS) M5 X 40 2
8 S82927 HANDLE, BLACK 1
9 S81026 SCREW, (PHILLIPS) M5 X 30 1
10 S81006 SCREW, (PHILLIPS) M5 X 20 2
11 S81054 SCREW, M5 X 50 2
12 S81026 SCREW, (PHILLIPS) M5 X 30 2
13 S83754AU LID 1
14 S80114 SWITCH 1
15 S81046 NUT 2
16 S80098 RECEPTICLE, ELECTRICAL 1
17 S82091 SCREW, M3 X 16 2
18 S83383AU PLUG 1
19 S81050 SCREW, M5 X 335 6
20 S82738AU MOTOR RETAINER TOP 1
21 S80138 FAIRLEAD 1
23 S82627 SCREW, (PHILLIPS) M5 X 40 6
24 S82591AU MOTOR RETAINER BOTTOM 1
25 S83935AU GASKET 1
26 S83888TP MOTOR, 1000W, 120V 1
27 S87630 GASKET 1
28 S87635 MUFFLER 1
29 S83190G BASE 1

POS. PART # DESCRIPTION QTY
1 S81122 ELECTRIC CORD, 3 X 16 AWG 1
2 S80138L STRAIN RELIEF "L" 1
3 S80139 CLAMP, CORD 1
4 S81006 SCREW, (PHILLIPS) M5 X 20 2
5 S83444 TERMINAL BLOCK 1
6 S82928AU HANDLE BASE 1
7 S82627 SCREW, (PHILLIPS) M5 X 40 2
8 S82927 HANDLE, BLACK 1
9 S81026 SCREW, (PHILLIPS) M5 X 30 1
10 S81006 SCREW, (PHILLIPS) M5 X 20 2
11 S81054 SCREW, M5 X 50 2
12 S81026 SCREW, (PHILLIPS) M5 X 30 2
13 S83754AU LID 1
14 S80114 SWITCH 1
15 S81046 NUT 2
16 S80098 RECEPTICLE, ELECTRICAL 1
17 S82091 SCREW, M3 X 16 2
18 S83383AU PLUG 1
19 S81050 SCREW, M5 X 335 6
20 S82738AU MOTOR RETAINER TOP 1
21 S80138 FAIRLEAD 1
22 S87708 HEPA FILTER, D. 224 X 167 H=70 1
23 S82627 SCREW, (PHILLIPS) M5 X 40 6
24 S82591AU MOTOR RETAINER BOTTOM 1
25 S83935AU GASKET 1
26 S83888TP MOTOR, 1000W, 120V 1
27 S87630 GASKET 1
28 S87635 MUFFLER 1
29 S83190G BASE 1
POS. PART # DESCRIPTION QTY
1 S82822 ANTI-FOAM BODY 1
2 S82881 HEPA FILTER, 175 X 144 X 125 1
3 S82855 RETAINER, FILTER CARTRIDGE 1
4 S83706 BUSHING, 8 DIA. 4
5 S83724 SCREW, M5 X 25 4
6 S80507 FILTER RING 1
7 S80771 POLY FILTER, HEPA 1
8 S82677 POLY BASKET, HEPA 1
9 S83735 GASKET, H2 ANTI-FOAM BODY 1
FILTER GROUP (S6101 HQ-T)
VACUUM MOTOR ASSEMBLY (S6101 HQ-T)
Page 9

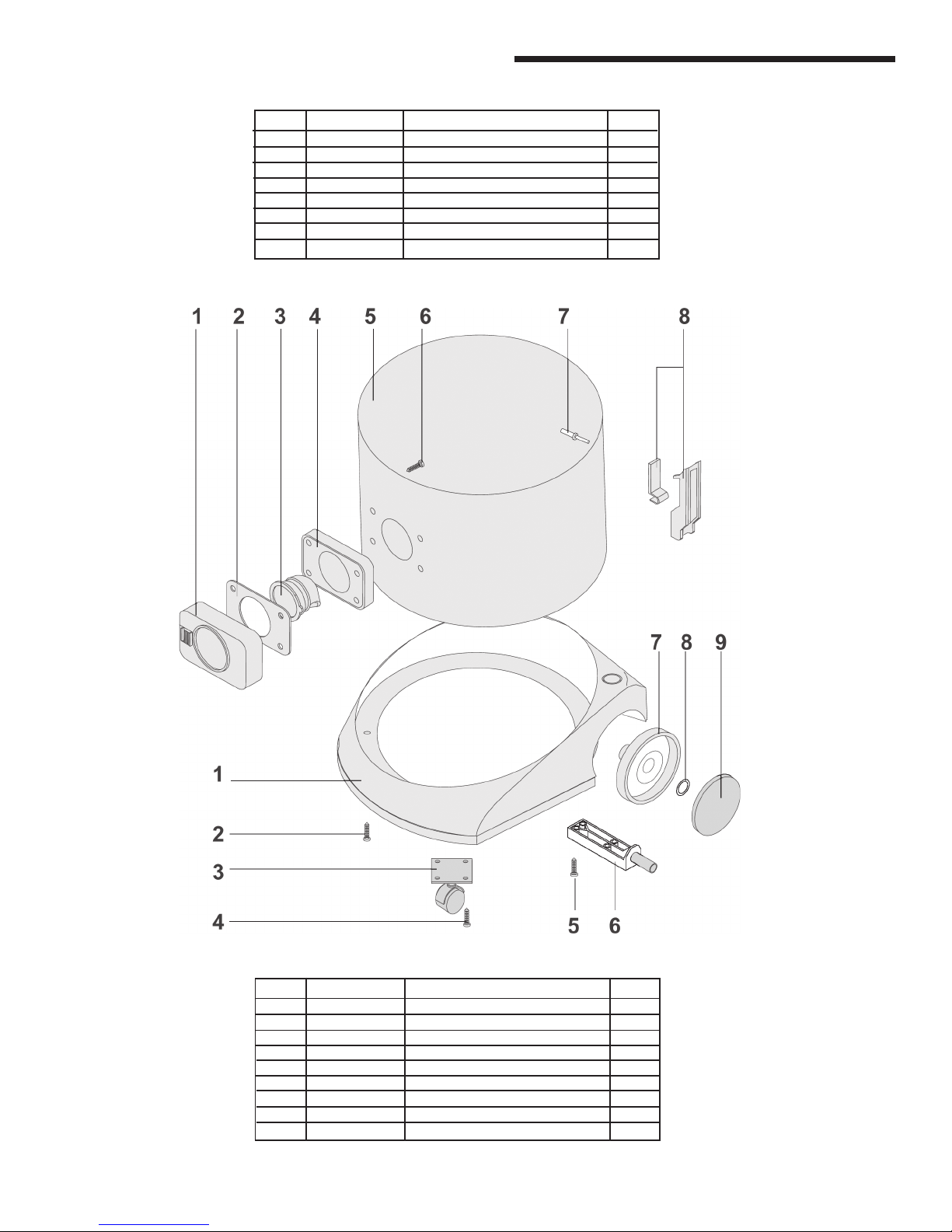

POS. PART # DESCRIPTION QTY

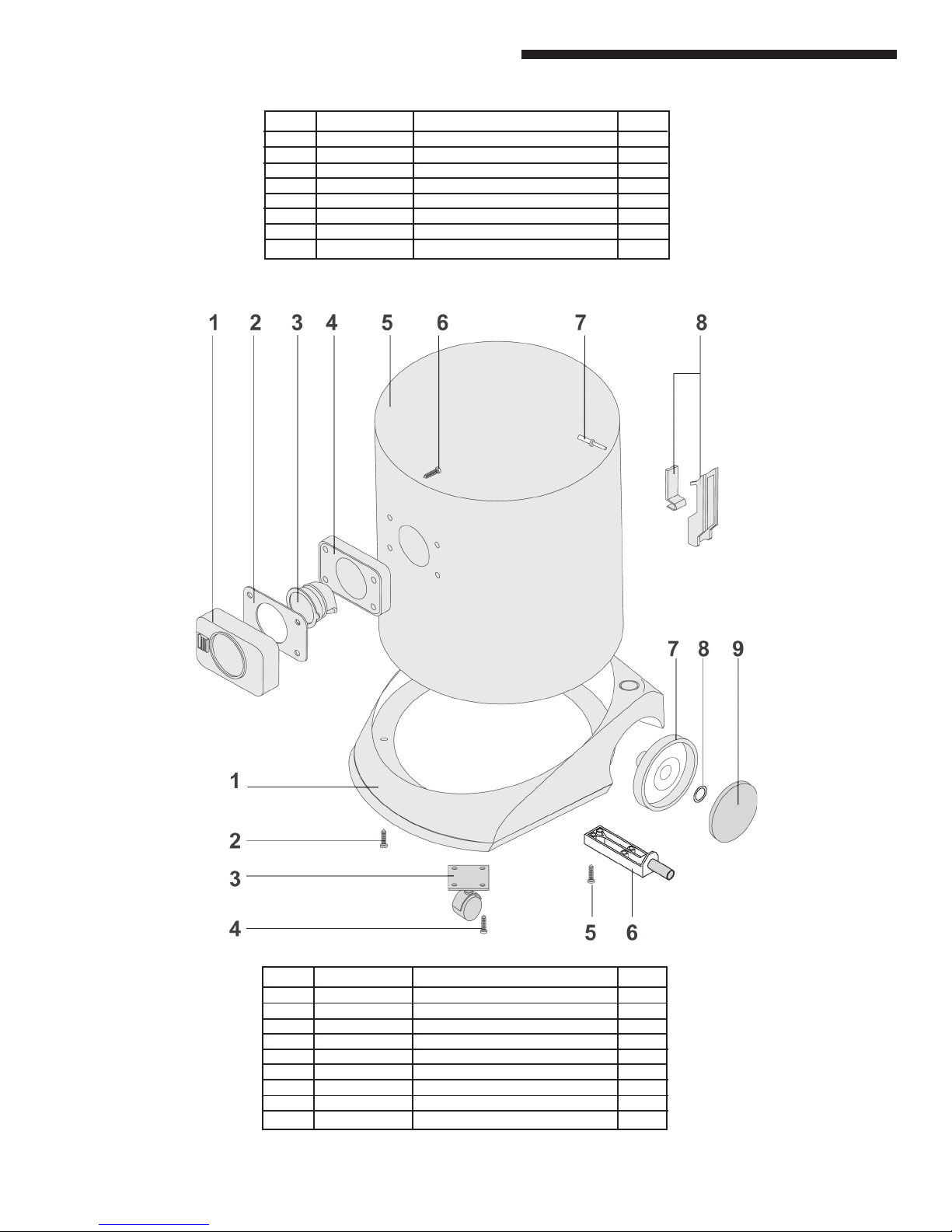

1 S82652A INLET COVER 1
2 S82846 GASKET 1
3 S82593 DEFLECTOR, TANK 1
4 S82585 RETAINER, TANK ADAPTOR 1
5
S86132G5-NE TANK 1
6 S81026 SCREW, (PHILLIPS) M5 X 30 4
7 S81302 RIVET, M5 X 19 4
8 S83602 CLAMP, TANK, COMPLETE 2
POS. PART # DESCRIPTION QTY
1 S86045 BASE 1
2 S81005 SCREW, M5 X 14 4
3 S86030 CASTER WHEEL 2
4 S82680 SCREW, M4 X 15 8
5 S81005 SCREW, M5 X 14 8
6 S86042 PIN, WHEEL 2
7 S86043 WHEEL 2
8 S82557 CAP, END 2
9 S86044 HUB CAP 2
TANK AND CART ASSEMBLY (S6101HQ-T)
Page 10

POS. PART # DESCRIPTION QTY
1 S82652A INLET COVER 1
2 S82846 GASKET 1
3 S82593 DEFLECTOR, TANK 1
4 S82585 RETAINER, TANK ADAPTOR 1
5 S86039G55-GP TANK 1
6 S81026 SCREW, (PHILLIPS) M5 X 30 4
7 S81302 RIVET, M5 X 19 4
8 S83602 CLAMP, TANK, COMPLETE 2
POS. PART # DESCRIPTION QTY
1 S86045 BASE 1
2 S81005 SCREW, M5 X 14 4
3 S86030 CASTER WHEEL 2
4 S82680 SCREW, M4 X 15 8
5 S81005 SCREW, M5 X 14 8
6 S86042 PIN, WHEEL 2
7 S86043 WHEEL 2
8 S82557 CAP, END 2
9 S86044 HUB CAP 2
TANK AND CART ASSEMBLY (S6101 HQ-S)
Page 11

POS. PART # DESCRIPTION QTY
1 VCA1BAS350 BASE 1
2 USE KIT VCSA8V TEL SCREW 3
3 VCA1SUPRSX RIGHT SIDE PLATE, ROLLER BRUSH 1
4 VC1108035000 BEARING 2
5 VCSA4R3N1 ROLLER BRUSH, COMPLETE (INCL 03, 04, & 05) 1
6 VCA1SUPRDX LEFT SIDE PLATE, ROLLER BRUSH 1
7 VCA2CTRU BELT, POLY V 1
8 VCA1CARNE3 CASE 1
9 VCA2GUPANE 14" BUMPER, DARK GREY 1
11 VCAPASB GROMMET, CORD 1
12 VCSA3CAESTC BASE, CORD 1
13 VCA1R57 WHEEL 2
14 VCA1PER PIN, WHEEL 2
15 VCSA1MIC MICROSWITCH, COMPLETE 1
16 VCA1CMICP MICROSWITCH COVER 1
17 USE KIT VCSA8VTEL SCREW 1
POS. PART # DESCRIPTION QTY
18 VCA1CFSNEP TOP COVER 1
19 USE KIT VCSA8VTEL SCREW 4
20 USE KIT VCSA8VTEL SCREW 2
21 VCA1CABCC CLAMP, CORD 1
22 VCSA3MO3P CONNECTING TERMINAL, COMPLETE 1
23 VCA1SMPA MOTOR SUPPORT, REAR 1
24 VCSA3MT2AC BRUSH MOTOR, COMPLETE 1
25 VCA1SMAA MOTOR SUPPORT, FRONT 1
26 VCA3CAMT CARBON BRUSH, MOTOR 2
27 VCA8MCMT CARBON SPRING, MOTOR 2
28 VCA1SNINE JOINT 1
29 VC11170070000 CLIPS 2
30 VCA1PSF NECK 1
31 VCA1AFSE COLLAR 1
32 VCA1GSEF COLLAR, LOCKING 1
* VCSA8VTEL HARDWARE KIT FOR BASE ASSEMBLY 1
POWER HEAD ASSEMBLY
Page 12

B
E
C
D
GA
F

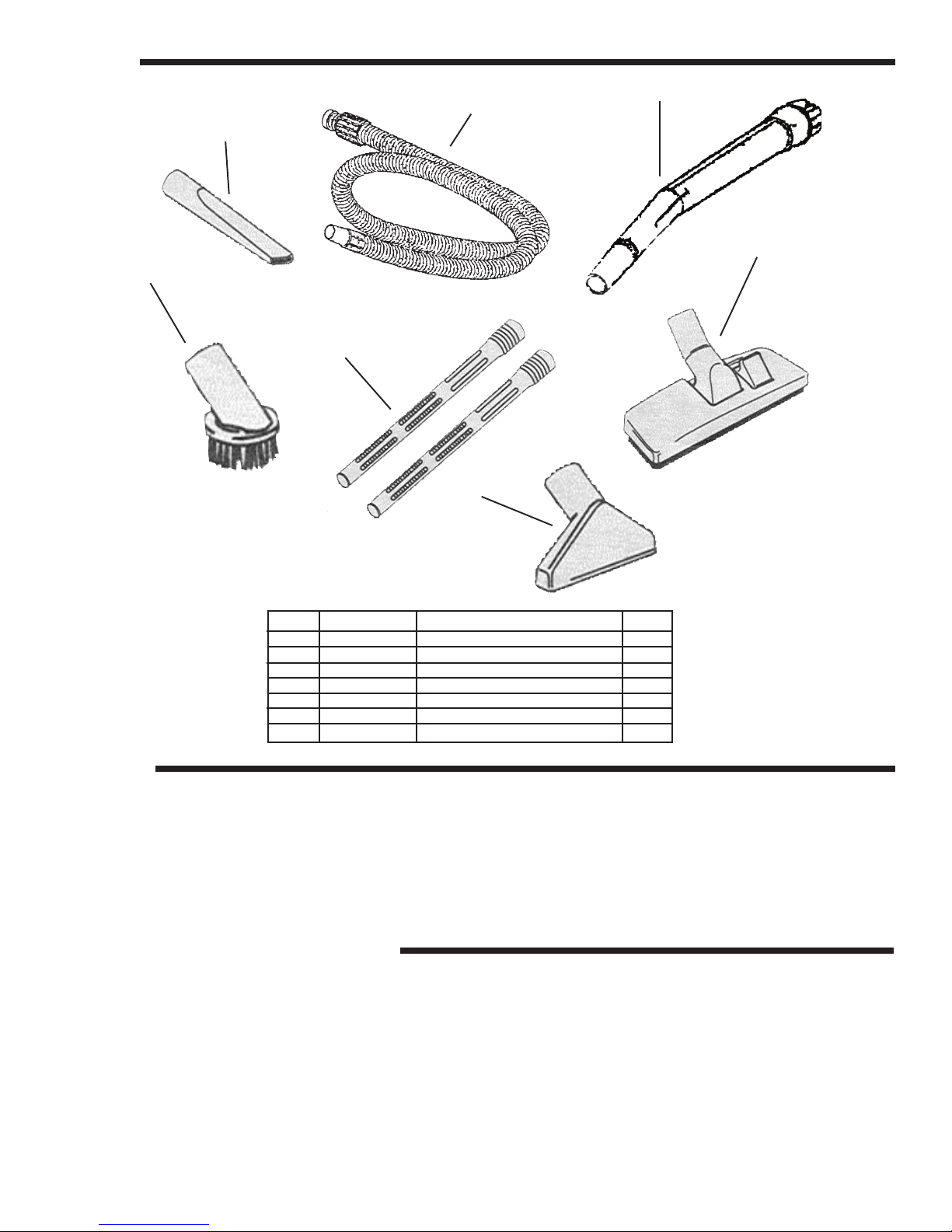

POS. PART # DESCRIPTION QTY
A S76158 WAND, CURVED 1
B S76240 WAND, STRAIGHT 1
C S70617 CREVICE TOOL 1
D S70004 ROUND BRUSH 1
E S70616 HAND TOOL 1
F S70632 DOUBLE USE BRUSH 1
G S71685 HOSE 1
TOOLS
FILTERS
RECOMMENDED SPARE PARTS
S80147 Paper Bags, Pack of 5
S82881 Hepa Filter, Cartridge
S82677 Poly Basket Filter
S8053200 Replacement Carbon Brushes
S80114 Switch On/Off
Page 13

Serial Number:
Date Purchased:
Model Number:
Eagle Power Products Sales and Service Provided by:
1174 Northland Drive Mendota Heights, MN 55120
651.686.5399 Fax [phone]
www.eaglepower.com
Warranty Policy
Limited Warranty
Eagle Power Products (EPP) warrants new cleaning equipment against defects in material and
workmanship under normal use and service to the original purchaser as detailed below.
10 Years
Subject to the conditions stated below, EPP warrants polyethylene tanks and housings to be
free from defects in materials and workmanship for a period of ten years.
3 Years
Subject to the conditions stated below, EPP warrants all automatic scrubber components to
be free from defects in materials and workmanship for a 3-year period. Parts replaced or
repaired are warranted for the remainder of the original warranty period.
1 Year
Subject to the conditions stated below, EPP warrants all other cleaning equipment
components to be free from defects in materials and workmanship for a 1-year period. Parts
replaced or repaired are warranted for the remainder of the original warranty period.
Batteries are prorated for one year.
EPP will furnish and charge for replacement parts, including transportation, to the original
owner through an EPP authorized service center. If the part is returned within 30 days and is
found defective, the owner will be credited for the cost of the replacement part including
shipping and handling.
Labor charges are covered for one year from the date of purchase if provided by an authorized
EPP service center. Travel is covered for 90 days for battery operated equipment only.
Wear items exempt from warranty include belts, carbon brushes, power cords, wheels, pad
drivers, clutch plates, brushes, pads, handle grips, filters, screens, throttle cables, and squeegees.
This warranty shall not apply to failures caused by misuse or abuse, improper
maintenance as stated in the operation manuals, use of unauthorized repair parts, repairs
by other than an EPP authorized service center, and damage in transit.
EPP disclaims and denies any liability for any direct, indirect, special incidental or consequential damage which may
be suffered as a result of sale, delivery, servicing, use, loss of any product, downtime, labor, freight, or other charges
not expressly included herein.
Please be sure to record this information. This information will be necessary for future warranty claims.
T9040 Rev.B 09/04
