Earth & Turf Products MultiSpread 220 User manual

OPERATOR’S MANUAL
Parts List and Warranty
For MultiSpread
™
Topdresser
Models 220/320
September 3, 2019

THIS WARRANTY IS MADE EXPRESSLY IN
LIEU OF ALL OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY AND FITNESS FOR USE AND
PURPOSE AND OF ALL OTHER OBLIGATIONS OR
LIABILITIES ON ITS PART AND ANY IMPLIED
PERSON TO ASSUME FOR IT, ANY OTHER
LIABILITY IN CONNECTION WITH A SALE OF
THESE PRODUCTS.
THIS WARRANTY SHALL NOT APPLY TO
THESE PRODUCTS OR TO ANY PART THEREOF
WHICH HAS BEEN SUBJECT TO ACCIDENT,
NEGLIGENCE, ALTERATION, ABUSE OR MISUSE.
MultiSpread™ Models 220/320
LIMITED WARRANTY
Earth & Turf Products, LLC warrants to the
original Purchaser, all Earth & Turf products,
manufactured by it, to be free from defects in both
material and workmanship under normal use and
service.
Earth & Turf Products, LLC obligation under
this Warranty shall be limited to replacement or repair
of any parts thereof, free of charge to the original
Purchaser, at its place of business, provided,
however, that the part(s) to be replaced or repaired,
shall within 2 years after delivery to the original
Purchaser, be demonstrated to be defective: which
determination shall be made by Company.
The said components or parts must be returned
through the Selling dealer or distributor directly to the
Company with all transportation charges prepaid.
Notice of defects shall be furnished in writing to
the Seller and to the agent through whom the
machinery was received, disclosing in full all known
defects and failure in operation and use, and
reasonable time shall be given to the Seller to
remedy any such defects and failures.
Failure to make such trial or to give such notice
shall be deemed an absolute acceptance by the
Buyer and satisfaction in full of this Limited Warranty.
Under no circumstances does this warranty
cover normal wear of any parts, components or
material which, in the opinion of the Seller and the
Company, have been subjected to neglect, misuse,
alteration, accident, or if repaired, with parts other
than those manufactured by and obtained from Earth
& Turf Products, LLC.
This Warranty does not cover components
which are already covered by a separate Warranty
provided by the supplier of said parts or components.
Earth & Turf Products, LLC’s obligation under
this Warranty is limited to repair or replacement, free
of charge to the original Purchaser, of any part which
in the judgement of the Company is defective.
CThe Company makes no warranty whatsoever in
respect to accessories or parts not supplied by the
Company.
• The term “original Purchaser”, as used in this
Warranty, shall be deemed to mean that person for whom
the product is originally supplied.
CThe Company, under this Warranty, cannot
guarantee that existing conditions beyond its control will
not affect its ability to obtain materials or manufacture
necessary replacement parts.
CThe Company reserves the right to make design
changes, or specifications at anytime, without any
contingent obligation on its parts to purchasers of
machines and parts previously sold.
No one is authorized to alter, modify or change the
terms of this Warranty in any manner.
CThe Company warrants the Construction of the
equipment sold herein and will replace it at its expense for
a period of two years from the date hereof, any parts
which prove defective as determined under the terms of
this Limited Warranty.
CThis Warranty shall apply only within the boundaries
of the continental United States.
2

TRACTOR REQUIREMENTS
OPERATION
MAINTENANCE
MultiSpread™ Models 220/320
INSTRUCTIONS
IMPORTANT SAFETY PRECAUTIONS
CAUTION!!!
OOperator must read before using unit.
1KEEP HANDS AWAY from any moving parts of the
spreader during operations.
2 NEVER run spreader unless all guards are
securely tightened in proper position.
3 NEVER repair any parts or make any adjustments
while machine is in motion.
4 NEVER wear loose clothing around any moving
parts of the machine.
5 NEVER allow anyone to ride spreader.
!
!!
! Failure to heed the above warnings may result in
personal injury or death.
Tractor Rating . . . . . 320 . . . . . . minimum 20 HP
Unit Mounting . . . . . . . . . . . . . . . Draw Bar Hitch
1Entire Unit must be washed thoroughly after
each use. Never store material in spreader.
2Maintain proper air pressure in tires to insure
proper operation.
3Drive Chain requires graphite lubrication.
4Keep proper tension on material conveyor
belt by tightening the two adjusting bolts at the
front of the spreader on both sides. It is
important that the tensioning bolts be adjusted
equally to maintain proper belt alignment.
Incorrect adjustment may cause premature
wear on the belt and damage to hopper sides.
IMPORTANT: Each season, remove the
conveyor belt and clean rollers and belt slide
area.
1Adjust the MultiSpread draw bar to the
proper length to allow room for the tractor to
make turns without the rear tractor wheel
contacting the spreader. With the unit secured
to avoid rolling or dropping on personnel
during adjustment, remove the bolt at the base
of the draw bar and position it in one of the
four holes. Reinstall bolt in the proper hole.
2Hook the completely assembled
MultiSpread to the tractor’s tow bar using a
hitch pin with a safety clip pin.
3 Adjust the spreader engagement handle to
the proper length by loosening the two wing
nuts and sliding the handle in or out for easy
operator access. Make sure handle does not
contact operator or tow unit during turns.
Retighten all hardware.
4Adjust the
metering gate at
the back of the
spreader to obtain
proper material flow
and to achieve the
desired spread
thickness. The
adjustment is
accomplished by
pulling the round knob to release the spring-
loaded catch pin from its hole in the disc, then
rotating the adjuster for proper endgate
height. Release the pin and make sure it has
been reset into one of the available
adjustment holes.
Loading the hopper can be accomplished
with a hand shovel or with a tractor type
loader. When loading with a tractor type
loader, avoid lifting bucket higher than
necessary to empty bucket. Discharge
material from the bucket slowly to avoid
damage to the spreader. Materials, such as
sand, may not be heaped above hopper
sides. Material, such as compost, will allow
for some heaping.
6Drive tractor to the spreading area.
Engage the traction drive lever. The traction
drive lever will allow a chain to drop onto a
drive sprocket, thus causing both wheels to
activate apron belt and beater, to begin
spreading hopper contents.
7Start forward motion to begin operation.
The faster the ground speed, the wider the
spread pattern and vise versa. Use a wide
turning radius to avoid damage to the unit.
Always be sure to slow down while engaging
and disengaging the spreader.
Important Note: Modifying the sides to hold
additional material may overload the unit and will
void the warranty.
3

LUBRICATION
1 There is one unmarked grease zerk on each
wheel hub. Maintenance level - twice during
seasonal use.
2 All other lubrication points on the
MultiSpread Models 220/320 are indicated
by the small decal shown above. This decal
points directly to the zerk to be greased.
3 Lubrication decals can be found at the
following locations on the topdresser:
4

MultiSpread™Model 320

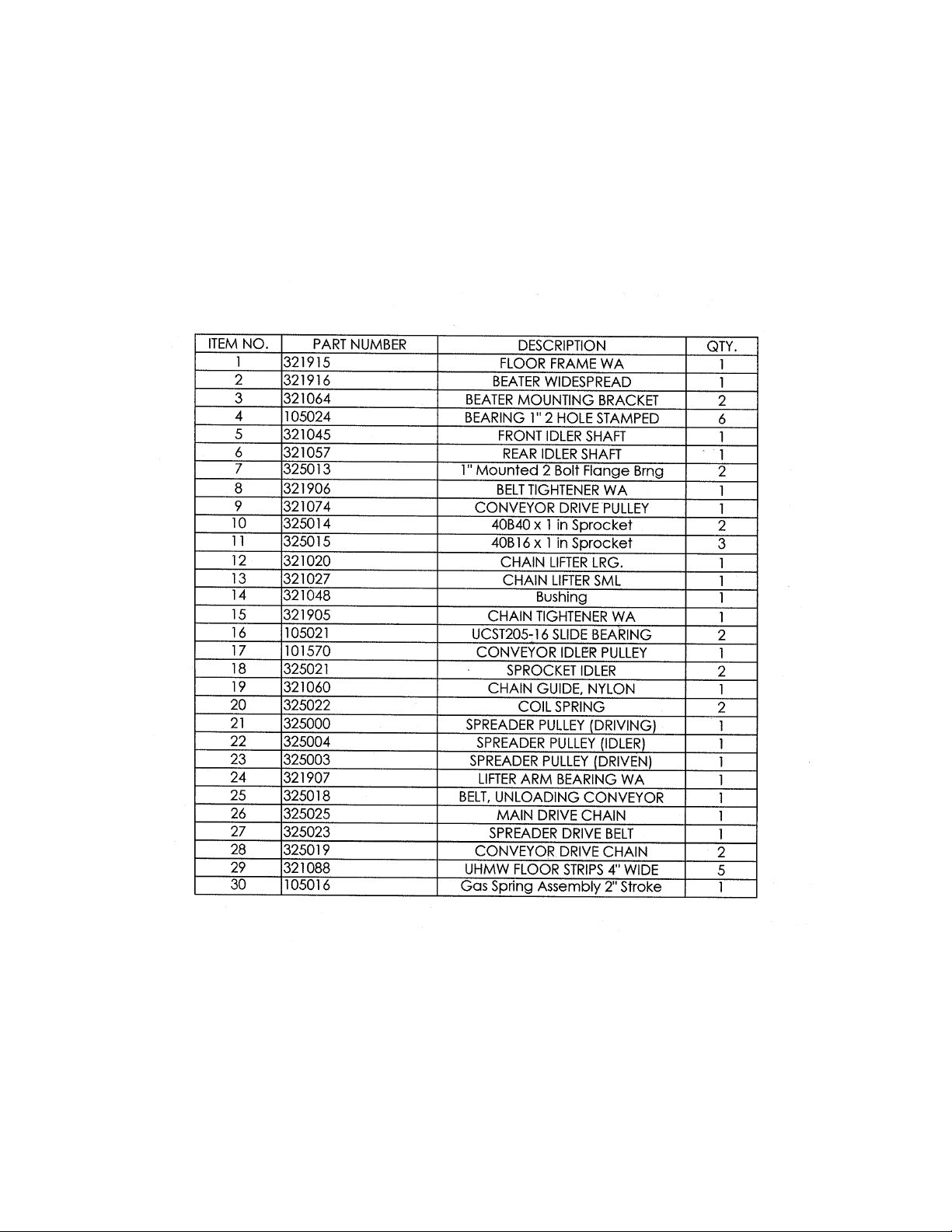

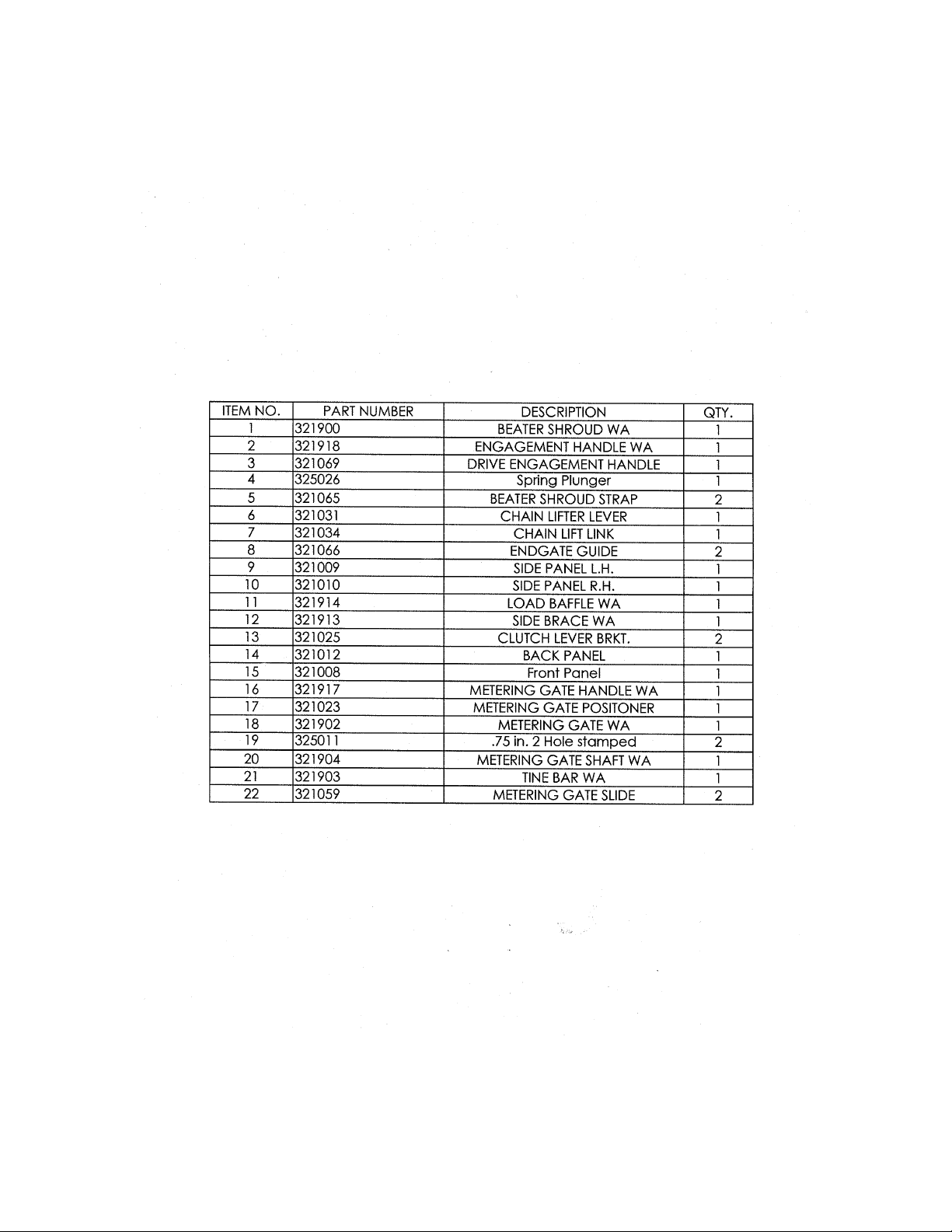

PARTS LISTING
WHEN ORDERING PARTS: Be ready to provide Item Numbers, Part Numbers, and Serial Number of the machine.
5

MultiSpread™Model 320

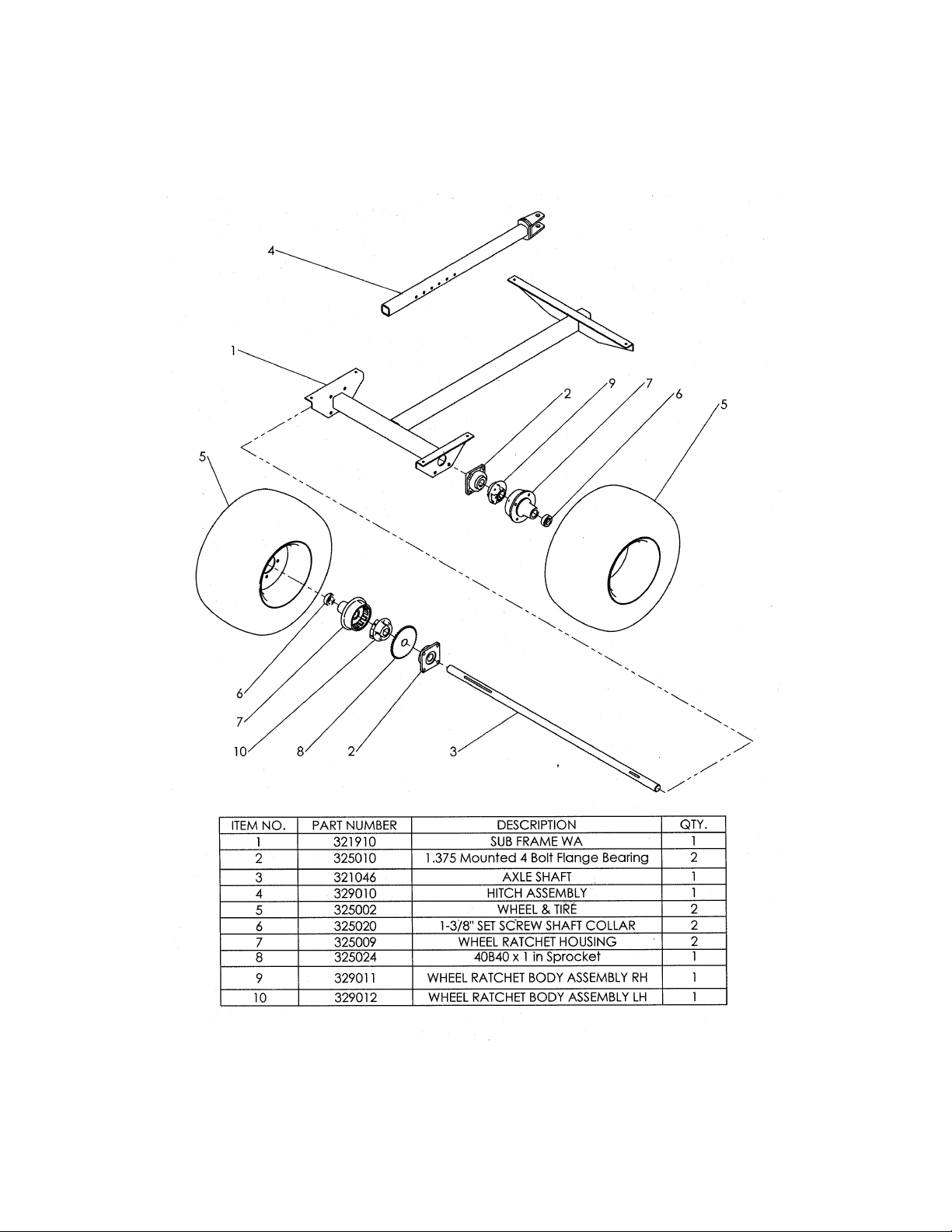

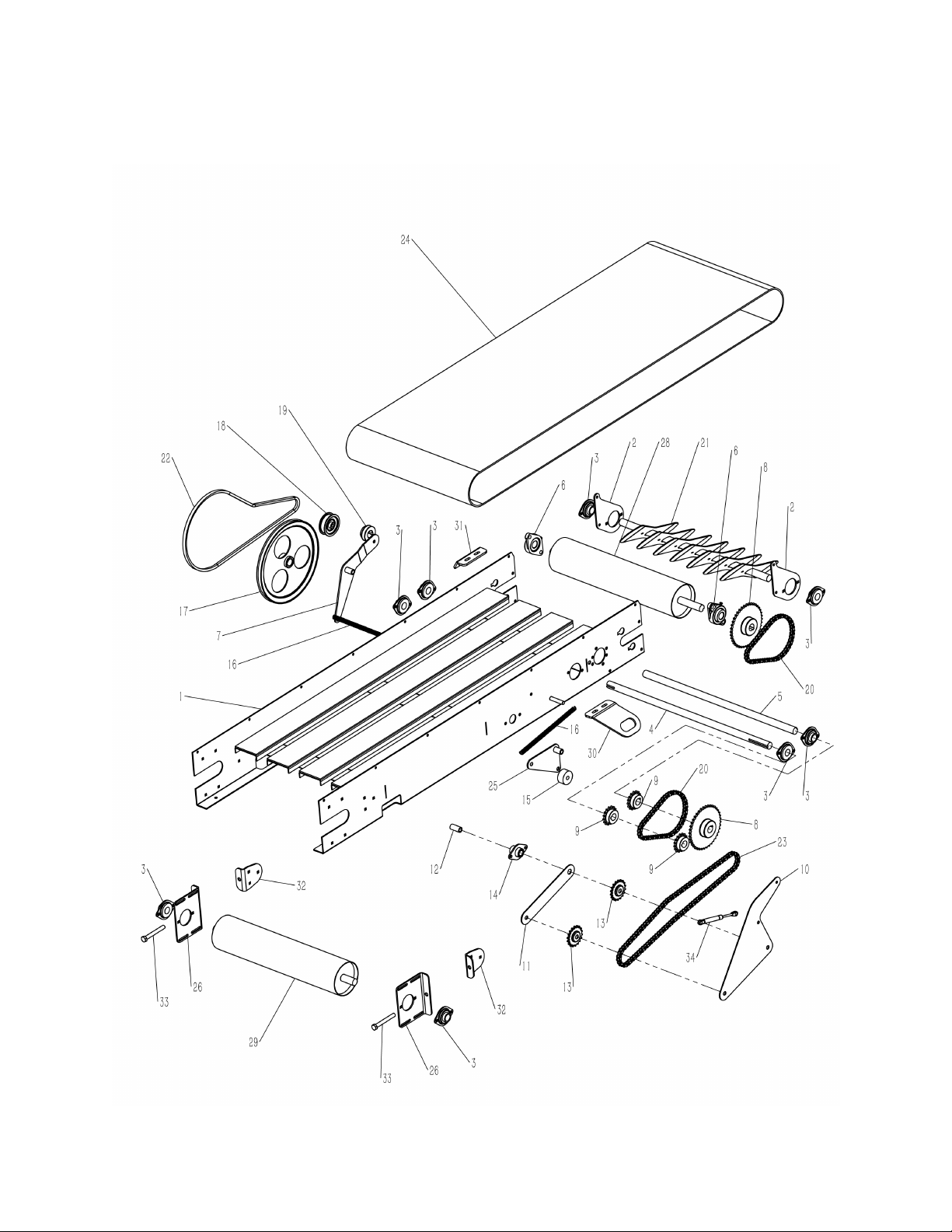

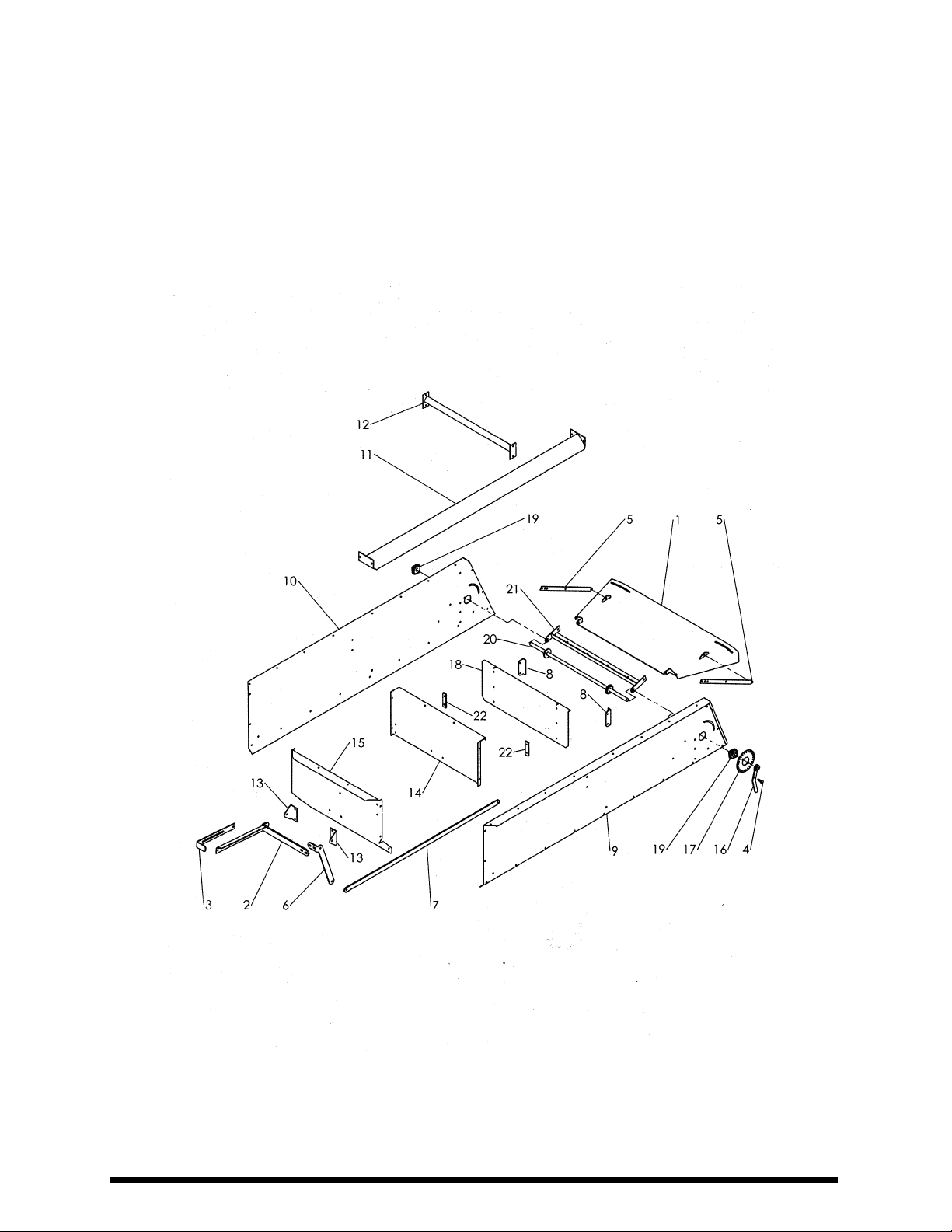

PARTS BREAKOUT
6

MultiSpread™Model 320
PARTS BREAKOUT
7

MultiSpread™Model 320
PARTS BREAKOUT
8

MultiSpread™Model 320
PARTS BREAKOUT
9

MultiSpread™Model 320
PARTS BREAKOUT
10

MultiSpread™Model 220

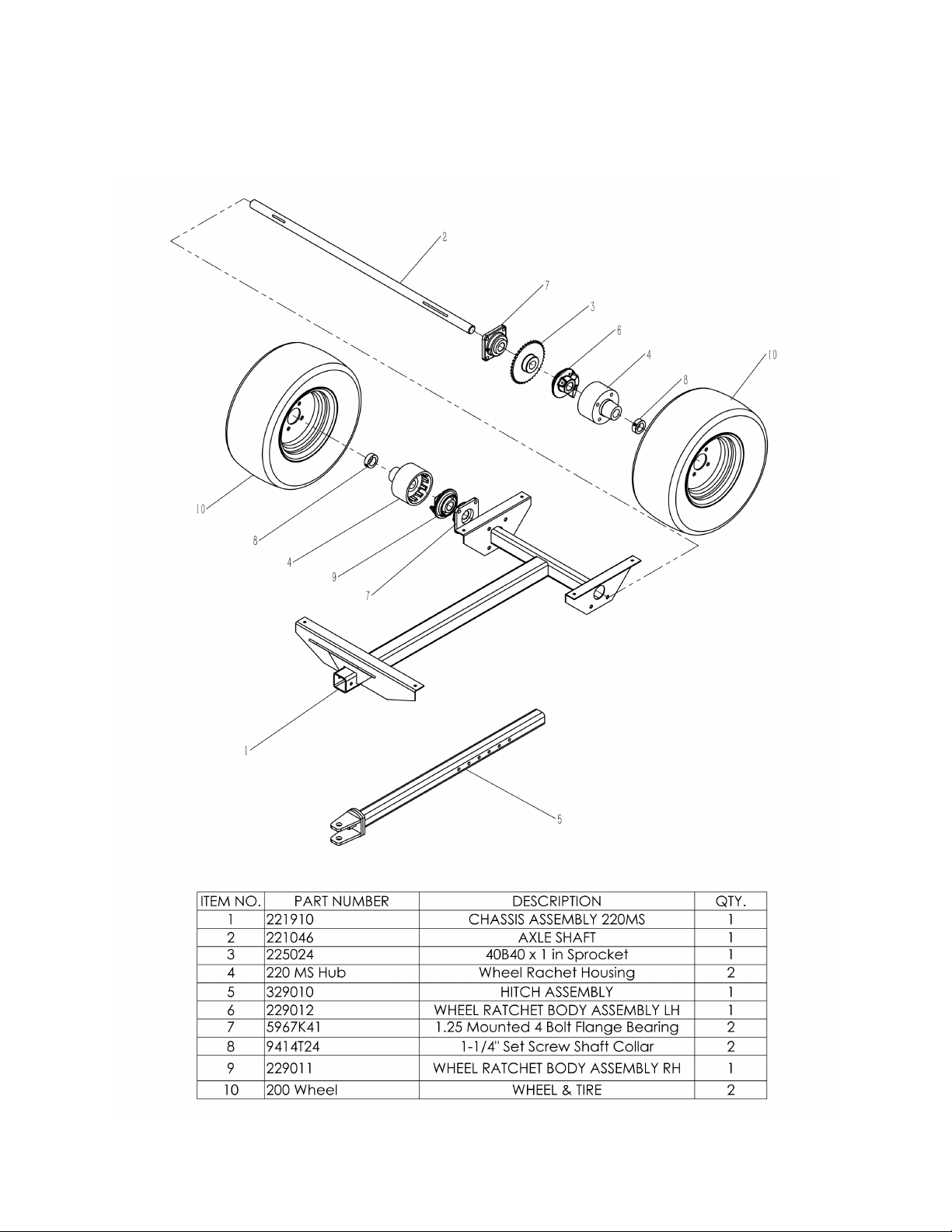

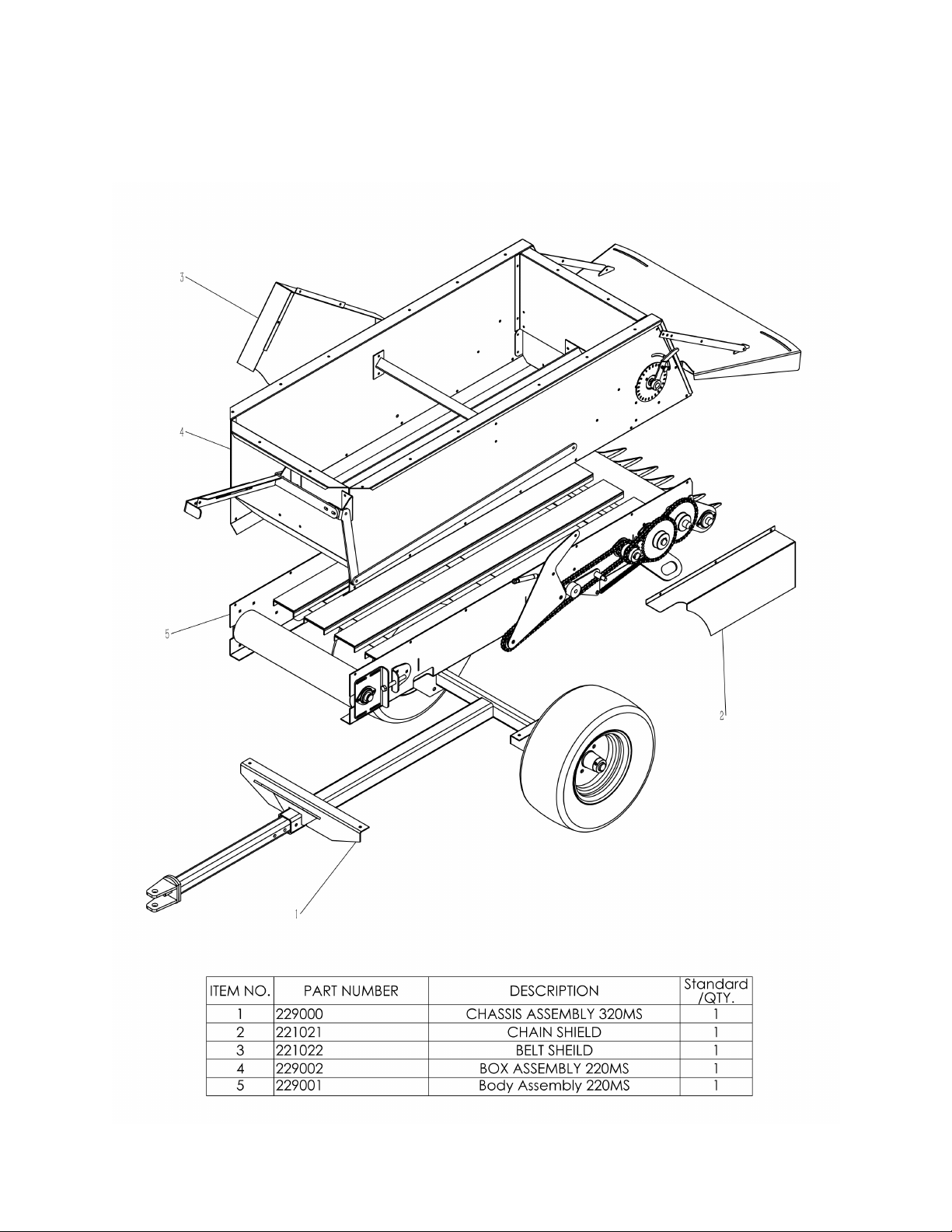

PARTS BREAKOUT
11

MultiSpread™Model 220
PARTS BREAKOUT
12

MultiSpread™Model 220
PARTS BREAKOUT
13

MultiSpread™Model 220
PARTS BREAKOUT
14

MultiSpread™Model 220
PARTS BREAKOUT
15

1867 Kirkwood Pike Kirkwood, PA
17536
Tel 717 C529 C0199
OPERATOR’S MANUAL
16
