EarthPulse v.5 Pro User manual

1
QuickStart Guide:
A) Getting Started Sleep on Command v.5 / v.5Pro;
Contents:

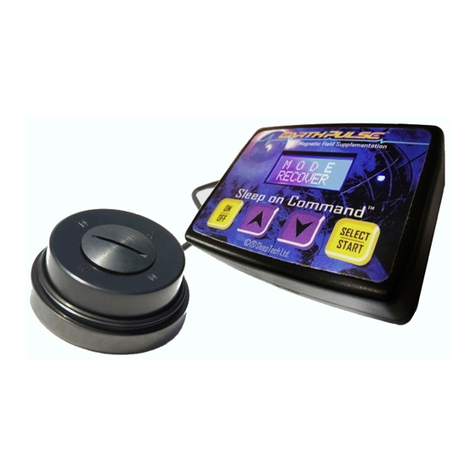

• Sleep on Command™ v.5 or v.5Pro controller
• power supply 100 - 240 volt AC to 12 volt DC
• one modular electromagnet (v.5) or two electromagnets (v.5Pro)
• international pin adapter for your shipping location
• padded carrying-case
1) Please complete at least one Resting-Breath-Hold (RBH) test
according to instructions BEFORE your initial session.
2) Plug the POWER-SUPPLY into wall outlet (100 - 240 volts AC / 50
or 60 Hz). Use international pin adapter if required.
3) Plug power-supply cable into the large jack on back of control unit.

BACK TO TABLE OF CONTENTS:
2
You’ll notice LCD screen lights momentarily as power is connected.
If not, check wall outlet.
4) Firmly plug electromagnet(s) into remaining jack(s).
Please familiarize yourself with electromagnet schematic diagram
so there is no confusion removing cross-polarity-ring, core & base-
plate for the initial session to be done with Air-Core magnet only.
5) Remove Electromagnet CROSS-POLARIZING ring so your mag-
net(s) look like the    on next page with
cross-polarity-ring removed.
6) Press ON/OFF button; CONTROLLER boots to RECOVER
-
ER again and press SELECT/START to select RECOVER; LCD then
displays TIME-REMAINING 8 Hours.
8) UP/DOWN arrows adjust TIME setting in 15 minute increments;
Set time now for 1 hour, or up to 3 hours. Press SELECT/START
Blue diode blinks in time with magnetic pulse. Controller is now ac-
tive at 70% amplitude.
9) UP/DOWN arrows adjust AMPLITUDE in 10% increments (only
while active and blue diode is blinking). Controller boots to 70% am-
plitude or approximately v.4.7 amplitude. Let your inner self guide you
on knowing how much amplitude is comfortable during initial session

on how you feel. Some will feel 50% is enough during initial session.
A small percentage of users are sensitive to EMF even at these low

10) SELECT/ENTER BUTTON becomes RESET button when AC-
TIVE MODE; press during runtime and see controller reboots to RE-
COVER allowing new program choice without turning off. UP/DOWN
arrows are amplitude control during runtime.

SLEEP
600 Gauss
CROSS-POLARITY
local application
750 Gauss
AIR-CORE
80 Gauss
BACK TO TABLE OF CONTENTS:
3
SOUTH POLE
NORTH POLE
B)

Testing magnet output
4
C) Testing Magnetic Output:
1) With blue-diode blinking; Lay the fatter rounded side of the ring
across the center of the solid electromagnet core (as shown in photo
below);
2) Raise ring 1/4-1/2 inch (1-2 cm) above core to feel pulsing signal;
3) Move to 3/4 inch or 2-3 cm above core and it is very weak if not
relatively unnoticeable;
4) Use UP/DOWN arrow keys in active mode while holding ring at
1/4 inch (1MM) position to feel amplitude change.
         
under feather pillow in Alert-Mode (maximum pulse rate). If this com-
pletely safe level of heat makes you uneasy, operate at lower ampli-
tude when magnet is trapped in bedding.
While it may feel hot to touch on the palm side of hand, it should feel
a bit more than warm to the back of hand. At boot amplitude (70%) it
will be slightly more powerful than our last version (v.4.7) with little to
no heat depending upon type of cushions and ambient temperature.

5
D) Initial 1-3 Hour Session: (please do baseline RBH test)
Please do this session as far from nighttime sleep as possible.
1) Remove Cross-Polarizing ring from magnet(s); refer to magnet
schematic;
-
ing up on top of mattress under a soft yet thin pillow. Position your
head to have the magnet directly below base of skull;
3) Boot controller -> RECOVER MODE; SELECT button to choose
program; UP/DOWN arrow to set timer at 1 - 3 hours; SELECT/
START button begins program. Blue diode is blinking;
Initial session v.5Pro
-
tress under base of spine (pad with folded towel if necessary
for comfort); make sure CROSS-POLARIZING ring is -OFF-
4) UP/DOWN arrows adjust amplitude; once program running w/
head on pillow, adjust amplitude up / down for comfort;
.
5) Get comfortable with magnet position(s); Close your eyes and

6) This session determines if RECOVER-MODE will provide sleep or
not. If NOT, you begin nighttime use with SLEEPEASY or SLEEP-3;
7) If you have neurological disease you should do some basic be-
fore/after tests like handwriting sample, let family member watch/
video tape your walking, getting in/out of your favorite chair, walking

will want to repeat this initial session with more and more amplitude
(adding core and base) every day until you plateau your performance
enhancement;
7a) Wait 20 minutes after completion of initial session to re-


BACK TO TABLE OF CONTENTS:
6
D1) Session Checklist;
1) BLUE BLINKING DIODE (ACTIVE OUTPUT);

3) BLINKING TIMER SHOWS 1HR or up to 3 HRS;

TOWARD BODY (NO METAL PARTS);
5) THIN PILLOW / PADDING FOR HEAD WITH MAGNET UNDER;
6) SET CONVENTIONAL ALARM-CLOCK COINCIDING W/
CONTROLLER TIMER LAPSE;
7) LAY DOWN ON BACK;


FACING LUMBAR W/SOME PADDING AS REQUIRED;
9) ADJUST AMPLITUDE SETTING USING UP/DOWN ARROWS
FOR COMFORT;

RECOVER-MODE / % = AMPLITUDE SETTING;
11) RELAX, CLOSE EYES AND ENJOY YOUR FIRST SESSION.
USING UP / DOWN ARROWS TO ADJUST AMPLITUDE FOR
COMFORT SHOULD YOU DECIDE YOU WANT MORE OR LESS
AMPLITUDE DURING THE SESSION;
12) USE EYE COVERS IF ROOM IS NOT COMPLETELY DARK;
tial accli-
mation session; PLEASE DO NOT SKIP IT!
