East Coast Datacom PDS-1/10G User manual
PDS-1/10G, Portable Emulator
CHASSIS USER’S MANUAL
Revision 1.0
PDS-1/10G Portable Delay Simulato
r
Chassis User's Manual
2
SAFETY WARNING
Always observe standard safety precautions during installation, operation and maintenance of this
product. To avoid the possibility of electrical shock, be sure to disconnect the power cord from the
power source before you remove the IEC power fuses or perform any repairs.
PROPRIETARY NOTICE
The information contained herein is proprietary to East Coast Datacom, Inc. Any reproduction or
redistribution of this publication, in whole or in part, is expressly prohibited unless written
authorization is provided by East Coast Datacom, Inc.
WARRANTY NOTICE
WARRANTIES: East Coast Datacom, Inc. (hereafter referred to as E.C.D.) warrants that its
equipment is free from any defects in materials and workmanship. The warranty period shall be
three (3) years from the date of shipment. E.C.D.'s sole obligation under its warranty is limited to
the repair or replacement of defective equipment, provided it is returned to E.C.D., transportation
prepaid, within a reasonable period. This warranty will not extend to equipment subjected to
accident, misuse, alterations or repair not made by E.C.D. or authorized by E.C.D. in writing.
PUBLICATION NOTICE
This manual has been compiled and checked for accuracy. The information in this manual does
not constitute a warranty of performance. E.C.D. reserves the right to revise this publication and
make changes from time to time in the content thereof. E.C.D. assumes no liability for losses
incurred as a result of out-of-date or incorrect information contained in this manual.
Preface
3
Preface
About this Manual
This manual is written for professional system integrators and PC technicians. It provides
information for the installation and use of the chassis. Installation and maintenance should
be performed by experienced technicians only.
This document lists compatible parts available when this document was published. Refer to
the ECDATA.COM web site for updates on supported parts and configurations.
This manual may be periodically updated without notice. Please check the ECDATA.COM
website for possible updates. (http://www.ECDATA.COM).
Notes
If you have any questions, please contact our support team at:
support (at) ecdata.com
Warning! Indicates important information given to prevent equipment/property damage
or personal injury.
Warning! Indicates high voltage may be encountered when performing a procedure.
PDS-1/10G Portable Delay Simulato
r
Chassis User's Manual
4
Contents
Chapter 1 Introduction
1.1 Features ...............................................................................................................................6
Front Features.....................................................................................................................7
Rear Features .....................................................................................................................8
1.2 Optional Mounting Brackets.................................................................................................9
Installing Optional Rack Mounting Brackets......................................................................9
Mounting on a Wall ...........................................................................................................10
1.3 Unpacking the System .......................................................................................................11
1.4 Where to get Replacement Components ...........................................................................11
1.5 Returning Merchandise for Service....................................................................................11
Chapter 2 Maintenance and Component Installation
2.1 Removing Power ................................................................................................................12
2.2 Accessing the
System
........................................................................................................13
2.3 Chassis Components .........................................................................................................14
Optional Storage Drive .....................................................................................................14
Changing PCIe NIC Cards ...............................................................................................15
System Cooling .................................................................................................................16
Appendix A Power Supply Specifications
Appendix B Standardized Warning Statements for AC Systems
Contents
5
Contacting ECDATA.COM
Headquarters
Address: East Coast Datacom, Inc.
245 Gus Hipp Blvd., STE 300
Rockledge, FL 32955 U.S.A.
Tel : +1 (321) 637-9922
Fax: +1 (321) 637-9980
Email: info (at) ECDATA.COM (General Information)
support (at) ECDATA.COM (Technical Support)
Website: www.ECDATA.COM
6
PDS-1/10G Portable Delay Simulator Chassis User's Manual
Chapter 1
Introduction
The PDS-1/10G Network Emulator is a compact embedded appliance, optimized for a Mini-
ITX motherboard. The system supports 32G of RAM, XEON E-2146G and M.2 Flash Drive.
The PDS-1/10G chassis is a state-of-the-art embedded system. During the warranty
period, DO NOT attempt to take apart the system for any repairs.
1.1 Features
The following table provides you with an overview of the main features of the PDS-1/10G.
Features
Chassis
PDS-1/10G
Drives
One M.2 Flash Drive
Power
One 120W AC/DC Power Supply, 12VDC-DC ATX Power Adapter Card
Cooling
Two 4-cm chassis fans for system cooling, One Active CPU Fan
Expansion Slots
One PCIe low profile x8 slot
Motherboard Form Factor
Flex-ATX and Mini-ITX
Dimensions
(WxHxD) 10 x 1.7 x 8.9 in. (254 x 43 x 226 mm)
Front Panel
Power button, Reset button, five LED status indicators
7
Chapte
r
1: Introduction
Front Features
The front of the chassis includes the control panel.
3 4 5 6 7
2 1
Figure 1-1. Chassis Front and Control Panel
Control Panel Features
Item Features Description
1
Power button
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
2
Reset button
Resets the system.
3
Information LED
Alerts operator to several states, as noted in the table below.
4 and 5
NIC LED
Indicates network activity on the LAN when flashing.
6
HDD LED
Indicates hard disk drive activity when flashing.
7
Power LED Indicates power is being supplied to the system power supply units. This LED is
illuminated when the system is operating normally.
8
PDS-1/10G Portable Delay Simulator Chassis User's Manual
Information LED
Status Description
Continuously on and
red
An overheat condition has occurred.
(This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz) Power failure, check for a non-operational power
supply.
Solid blue Local UID has been activated. Use this function
to locate the server in a rack mount environment.
Blinking blue Remote UID is on. Use this function to identify
the server from a remote location.
Rear Features
The chassis rear Panel holds input/output ports. ***Picture varies by model purchased***
5 4
3
1 2
Figure 1-2. Rear Chassis View
Rear Chassis Features
Item Features Description
1
Power Input
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
2
I/O ports
IPMI LAN, USB, LAN, SFP LAN, VGA
3
RJ45 window
Opening for an optional serial connector using an RJ45 jack
4
PCI window
Standard low-profile
5
K-slot for lock
Accepts a standard Kensington cable locking device (not included).
9
Chapte
r
1: Introduction
1.2 Optional 1U Rack Mounting Brackets
Installing Rack Mounting Brackets
The chassis can be mounted in a rack using two rack brackets and a two-part power adapter
shelf bracket (optional, MCP-290-10110-0B).
1. Attach the rack brackets using three screws through the holes in each bracket to secure
the bracket to the chassis.
2. Install the handles, using two screws through the bracket and into each handle.
Figure 1-5. Installing Rack Mounting Brackets
3. If you are using the optional power adapter bracket, install the power adapter on its bracket.
Place it as shown, then add the retention bracket using two screws.
4. Mount the power adapter bracket assembly on the right side of the chassis using three
screws.
10
PDS-1/10G Portable Delay Simulator Chassis User's Manual
Mounting on a Wall
Optionally, the chassis can be mounted directly on a wall, using holes in the bottom.
1. Measure and install two screws into the wall where you want to mount the server.
2. Hang the server on the screws with the Input/Output ports on the top.
Mounting Holes

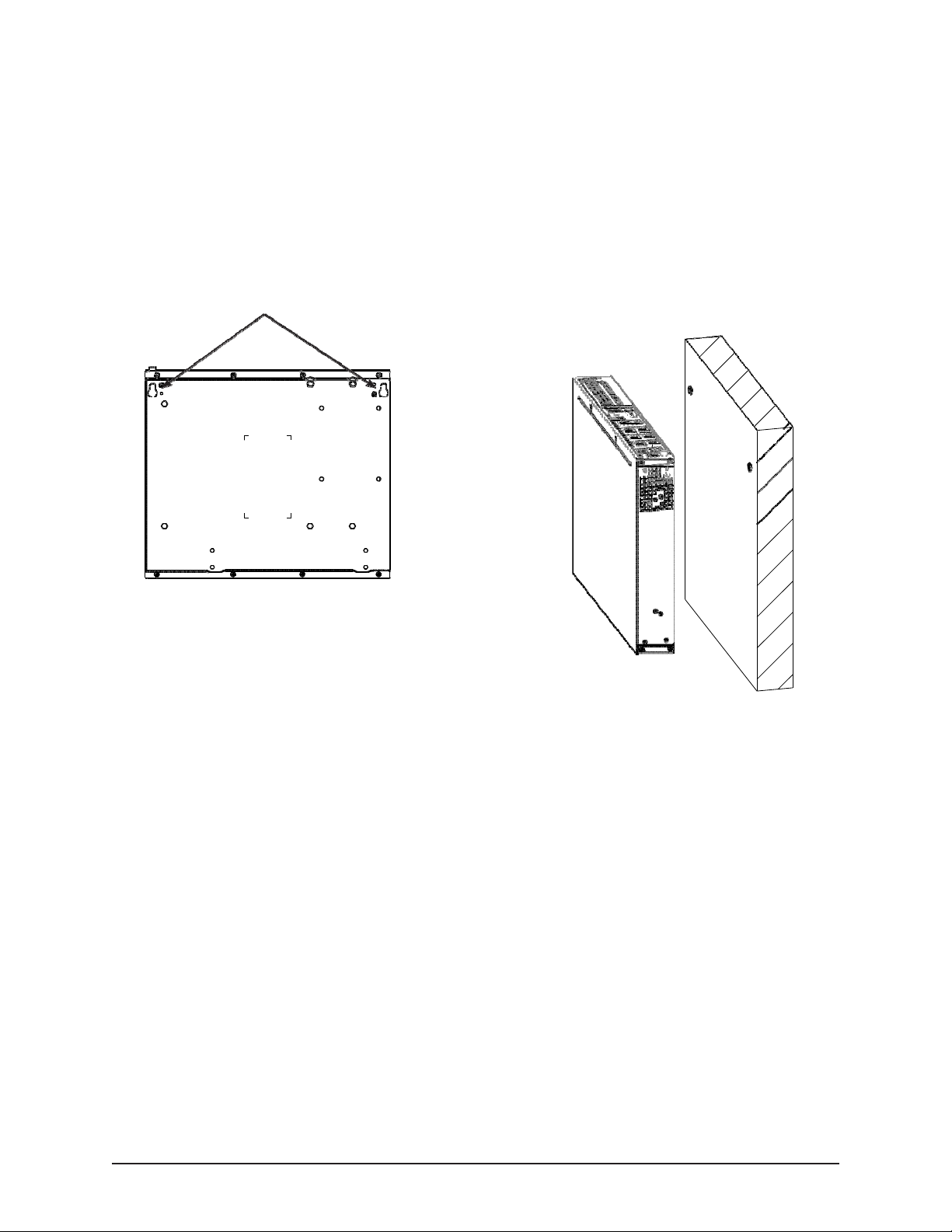

Figure 1-6. Mounting on a Wall
11
Chapte
r
1: Introduction
1.3 Unpacking the System
Inspect the box in which the chassis was shipped and note if it was damaged. If any
equipment appears damaged, file a damage claim with the carrier who delivered it.
1.4 Where to get Replacement Components
If you need replacement parts for your system, to ensure the highest level of professional
service and technical support, purchase exclusively from ECDATA.COM at:
https://www.ECDATA.COM.
1.5 Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required before any
warranty service will be rendered. You can obtain service by calling your vendor for a Returned
Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA
number should be prominently displayed on the outside of the shipping carton and mailed
prepaid or hand-carried. Shipping and handling charges will be applied for all orders that
must be mailed when service is complete.
Whenever possible, repack the chassis in the original ECDATA.COM carton, using the
original packaging material. If these are no longer available, be sure to pack the chassis
securely, using packaging material to surround the chassis so that it does not shift within the
carton and become damaged during shipping.
This warranty only covers normal consumer use and does not cover damages incurred in
shipping or from failure due to the alteration, misuse, abuse or improper maintenance of
products.
During the warranty period, contact your distributor first for any product problems.
12
PDS-1/10G Portable Delay Simulator Chassis User's Manual
Chapter 2
Maintenance and Component
Installation
This chapter provides instructions on installing and replacing main system components. To
prevent compatibility issues, only use components that match the specifications and/or part
numbers given.
Installation or replacement of most components require that power first be removed from the
system. Please follow the procedures given in each section.
2.1 Removing Power
Use the following procedure to ensure that power has been removed from the system. This
step is necessary when removing or installing non hot-swap components
Powering Down
1. Use the operating system to power down the system.
2. After the system has completely shut-down, disconnect the AC power cord from the
power source.
3. Disconnect the power cord from the chassis.
13
Chapte
r
2 Maintenance and Component Installation
2.2 Accessing the System
The PDS-1/10G features a removable top cover to access to the inside of the chassis.
2
3

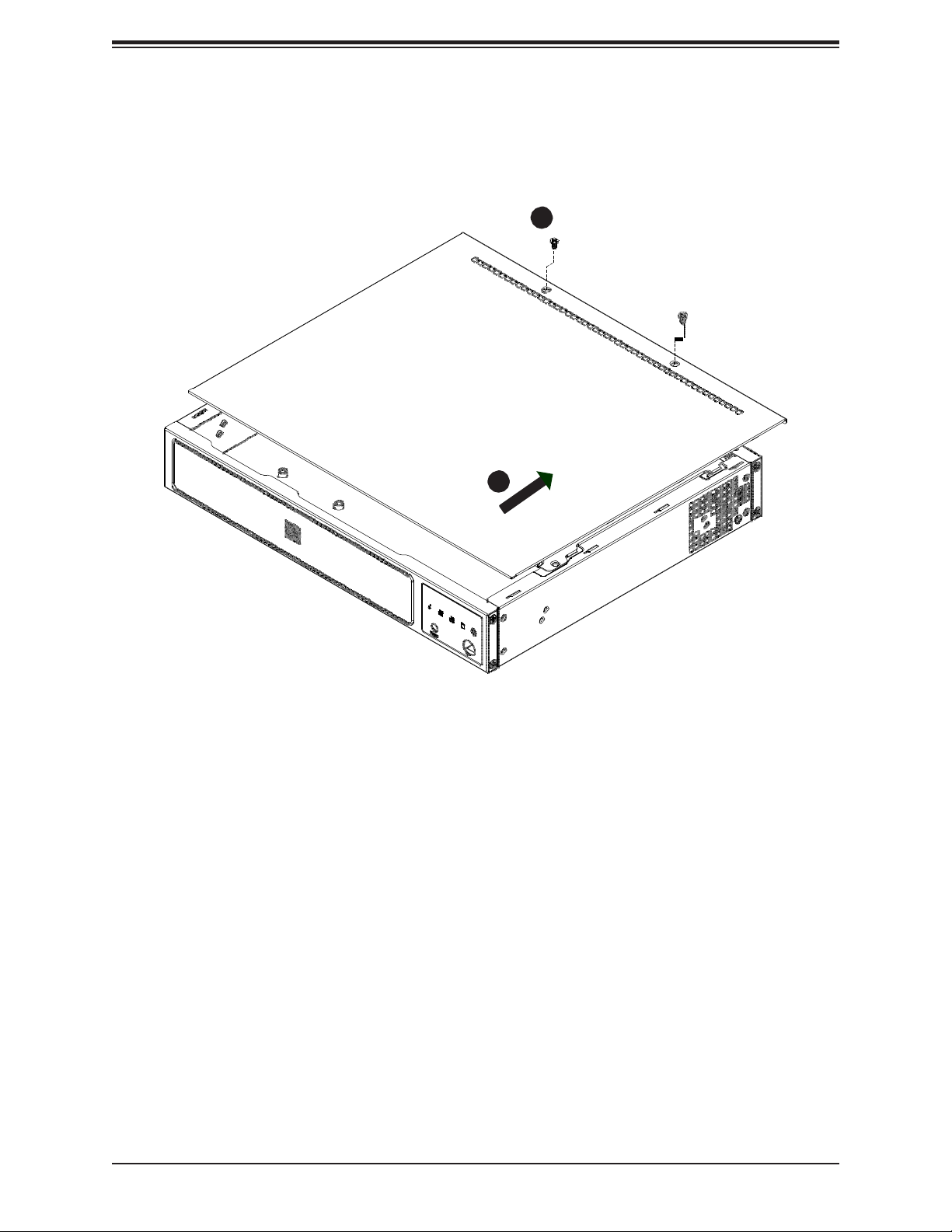

Figure 2-1. Removing the Chassis Cover
Removing the Top Cover
1. Power down the system as described in section 2.1.
2. Remove the two screws that hold the cover in place.
3. Slide the cover sideways as illustrated above to release the front and rear cover hooks
from the chassis.
4. Lift the cover up and off the chassis.
Caution: Except for short periods of time, do not operate the server without the cover in
place. The chassis cover must be in place to allow proper airflow and prevent overheating.
14
PDS-1/10G Portable Delay Simulator Chassis User's Manual
2.3 Chassis Components
Installing a Storage Drive(FACTORY OPTION ON SOME MODELS)
The PDS-1/10G ships with one M.2 Flash Storage Drive. It contains the Linux operating
system and the proprietary code of the Network Emulator. Users are not allowed to access
this code. The only user access is the GUI interface and GUI Scripting.
Installing the Hard Drive (For Ref ONLY)
The motherboard should be installed before installing the drive.
1. Make sure there is no power to the system as described in section 2.1 and remove the
chassis cover.
2. Remove the screws securing the hard drive tray to the support bracket and set them
aside for later use. Lift the tray out.
3. Place the drive into the tray and secure it to the tray with the screws provided with drive.
Position for Second HDD
One HDD

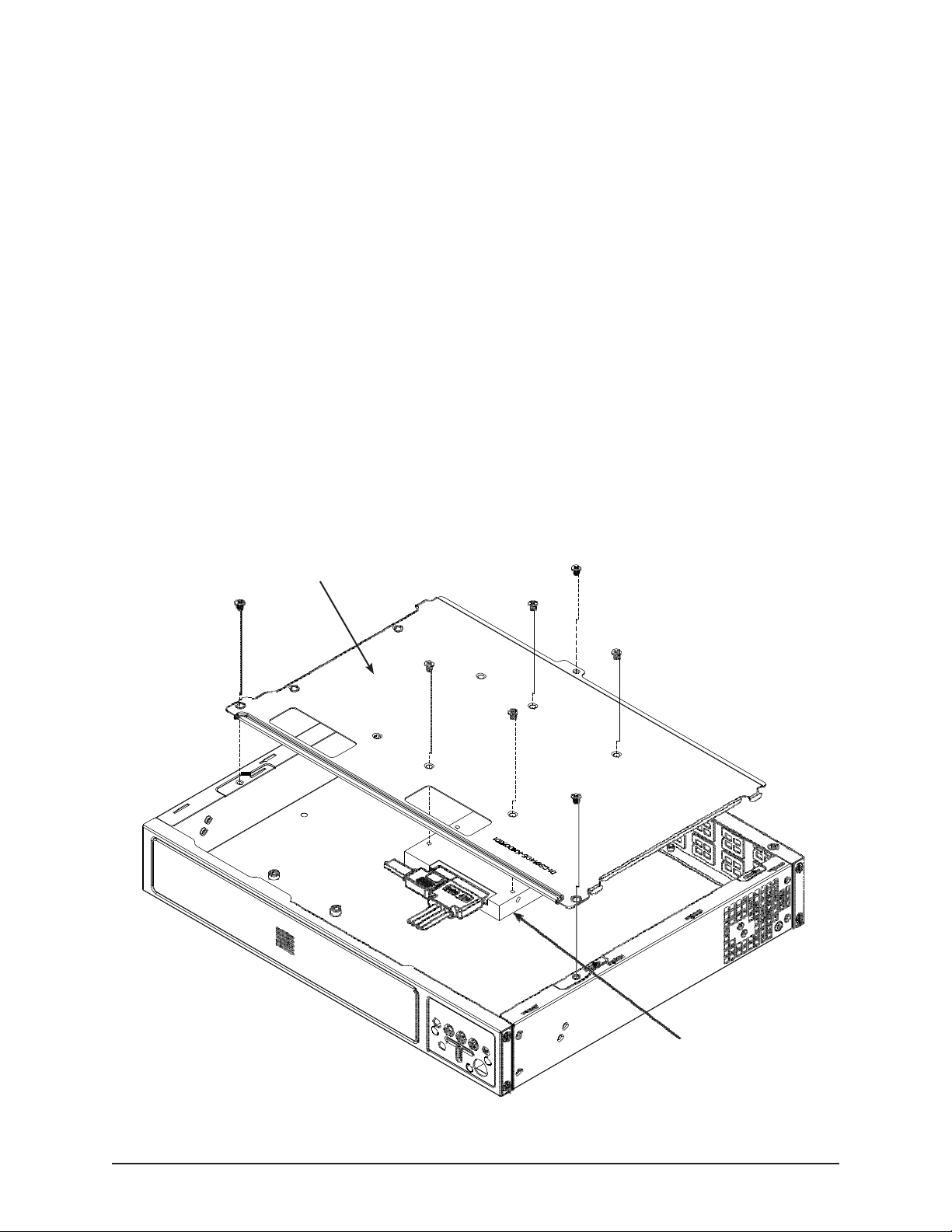

Figure 2-2. Installing the Hard Drive
15
Chapte
r
2 Maintenance and Component Installation
4. Return the drive tray assembly into the chassis, aligning the tabs of the tray with the
slots in the chassis. Secure the tray to the chassis support bracket with the screws
previously set aside.
5. Attach the cable SATA connector and to the motherboard connector. This cable carries
both the SATA signal and the SATA power.
6. Reinstall the chassis cover and power up the system.
REMOVING THE RISER CARD
The system supports one PCIe x8 expansion card. The riser card is inserted in the
expansion slot on the motherboard. Installation of the riser card and riser card bracket is
pictured below. To Change the PCIe 10/100/1000 Copper or 10G Fiber cards, REMOVE the
TOP 2 SCREWS and CAREFULLY remove the riser card and swap the NIC cards.
Riser Card Bracket
Riser Card
Figure 2-3. Changing the NIC Cards
16
PDS-1/10G Portable Delay Simulator Chassis User's Manual
System Cooling
The PDS-1/10G includes two replaceable 4-cm fan. Optional fans can be purchased. The
Fan speed can be adjusted from MAX to I/O Intense via the IPMI Port at 192.168.50.1 Login:
ADMIN Password: ADMIN (255.255.255.0)
Replacing the System Fan
1. Power down the system as described in section 2.1 and remove the AC power cord and
the chassis cover.
2. Remove the failed fan power cable from motherboard.
3. Remove the screws securing the fan to the chassis wall and save them.
4. Lift the fan out of the chassis.
5. Align the replacement fan with the holes in the wall of the chassis.
6. Secure the fan to the chassis wall using the screws previously set aside.
7. Reconnect the fan cable to motherboard.
8. Reinstall the chassis top cover, reconnect the AC power cord and power up the system.
Figure 2-4. System Fans (including optional fans)
17
Appendix A: POWER SUPPLY SPECIFICATIONS
Appendix A
Power Supply Specifications
This appendix lists power supply specifications for your chassis system.
External AC/DC 120W Adapter
MFR Part #
MCP-250-10127-0N
Input
120W AC to 12V DC power adapter with US power cord
18AWG
Internal DC/DC Converter
ECDATA Part # 711020
Input 150W-XT 12V DC-DC ATX power supply
18
Appendix B: STANDARD WARNING STATEMENTS
Appendix B
Standardized Warning Statements for AC
Systems
About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of
situations which have the potential for bodily injury. Should you have questions or experience
difficulty, contact ECDATA.COM's Technical Support department for assistance. Only
certified technicians should attempt to install or configure components.
Read this appendix in its entirety before installing or configuring components in the
ECDATA.COM chassis.
Warning Definition
Warning! This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards involved
with electrical circuitry and be familiar with standard practices for preventing accidents.
Installation Instructions
Warning! Read the installation instructions before connecting the system to the power
source.
Circuit Breaker
Warning! This product relies on the building's installation for short-circuit (overcurrent)
protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.
Power Disconnection Warning
Warning! The system must be disconnected from all sources of power and the power
cord removed from the power supply module(s) before accessing the chassis interior
to install or remove system components.
19
Appendix A: POWER SUPPLY SPECIFICATIONS
Equipment Installation
Warning! Only trained and qualified personnel should be allowed to install, replace,
or service this equipment.
Battery Handling
Warning! There is the danger of explosion if the battery is replaced incorrectly.
Replace the battery only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the manufacturer's instructions
Backplane Voltage
Warning! Hazardous voltage or energy is present on the backplane when the system
is operating. Use caution when servicing.
Comply with Local and National Electrical Codes
Warning! Installation of the equipment must comply with local and national electrical
codes.
Product Disposal
Warning! Ultimate disposal of this product should be handled according to all national
laws and regulations.
Power Cable and AC Adapter
Warning! When installing the product, use the provided or designated connection
cables, power cables and AC adaptors. Using any other cables and adaptors could
cause a malfunction or a fire.
Table of contents
