Eastern Tabletop 2800 User manual

MODEL #2800 INSTRUCTION MANUAL
Keep the instructions for future reference
OUTDOOR PORTABLE PATIO HEATERS
PROVIDE A WARM EXPERIENCE FOR YOUR GUEST UNDER THE STARS.
www.easterntabletop.com
Toll Free: [phone]

WARNlNG SAFETY RULES
PLEASE READ THE FOLLOWING SAFETY RULES PRlOR
TO OPERATION OF THE HEATER
FOR YOUR SAFETY
If you smell gas:
1．Shut off gas to the appliance. 2．
Extinguish any open flame.
3．If odor continues, immediately call your gas supplier or your fire
Department.
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammablevapors
and liquids in the vicinity of this or any otherappliance．
2. An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance．
WARNlNG
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of 25 % ofthe
surface area open.
The surface area is the sum of the walls surface.
WARNING：Improper installation, adjustment, alteration, service
or maintenance Can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

warning
Read the instructions before installation and use.
-This appliance must be installed and the gas cylinder stored in
accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving
the appliance;
-The tubing or the flexible hose must be changed within the
prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the
manufacturer;
The LP tank used with your patio heater must meet the following
requirements:
Purchase LP tanks only with these required measurements:
(30.5cm) (diameter) x 57.1 cm) (tall) with 23kg capacity maximum.
-In case of violent wind particular attention must be taken against
tilting of the appliance;

TABLE OF CONTENTS
Caution ………………………………………………………. 1
Heater Stand and Location ………………………………… 2
Gas Requirements ………………………………………….. 2
Leakage Test ………………………………………………… 2

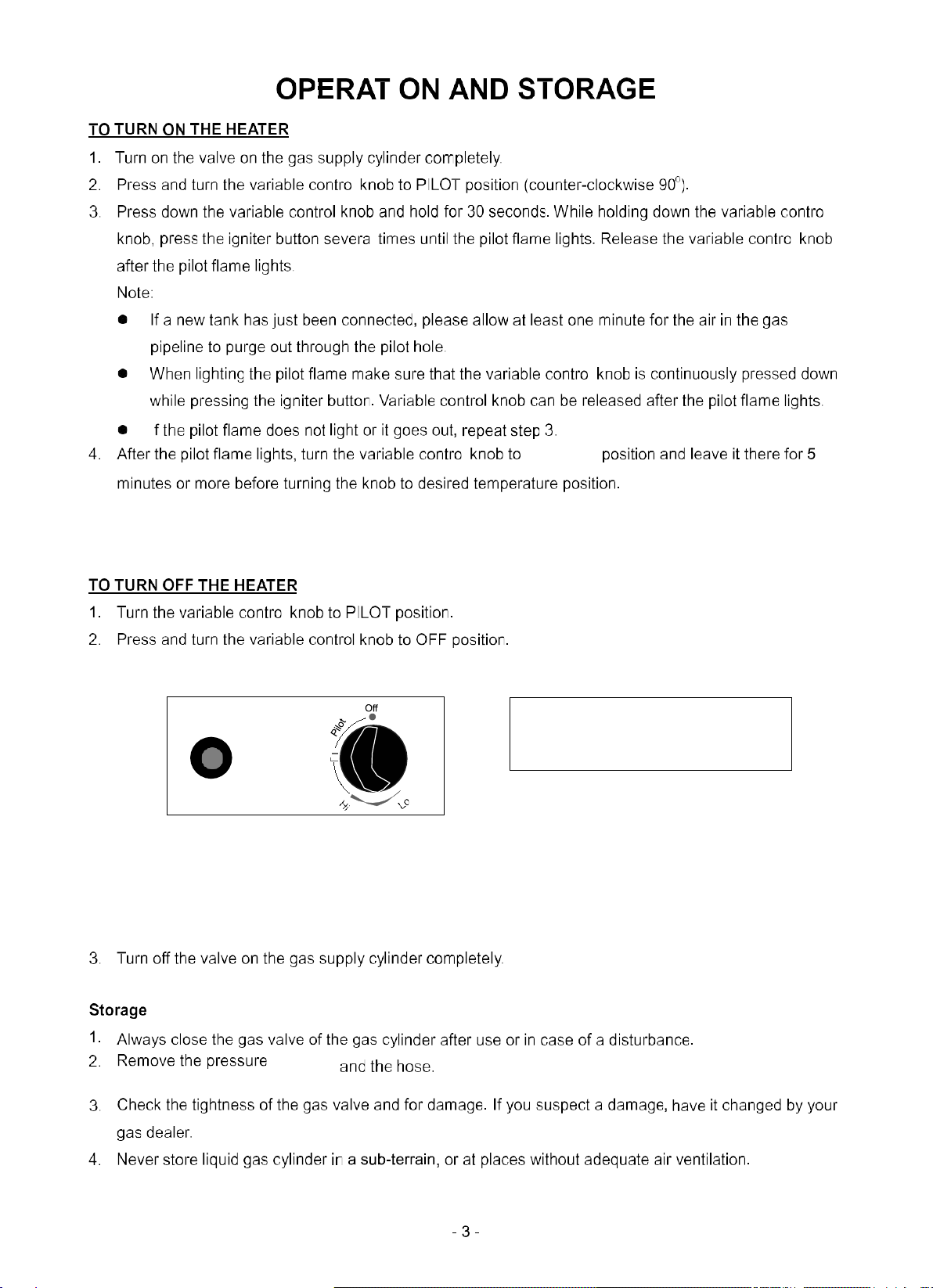

Operation and Storage ……………………………………... 3
Cleaning and Care ………………………………………….. 4
Parts and Specifications ..………………………………….. 4
Assembly Parts and Procedures ………………………….. 6
Problems Check List ………………………………………... 9
i

CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.
Do not use the patio heater for indoors, as it may cause personal injury or property damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before
use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
Do not use the heater until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/
Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing
should be returned to hose’s place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect,
reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder
valve is defective and should be returned to cylinder’s place ofpurchase.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled down.
Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be kept clean.
Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
-
The heater does not reach temperature.
-
The burner makes popping noise during use (a slight noise is normal when the burner isextinguished).
-
Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The LP regulator/hose assembly must be located out of pathways where people may trip over it or in
area where the hose will not be subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.
To change the gas cylinder in a amply ventilated area, away from any ignition
source (candle, cigarettes, other flame producing appliances, ...);

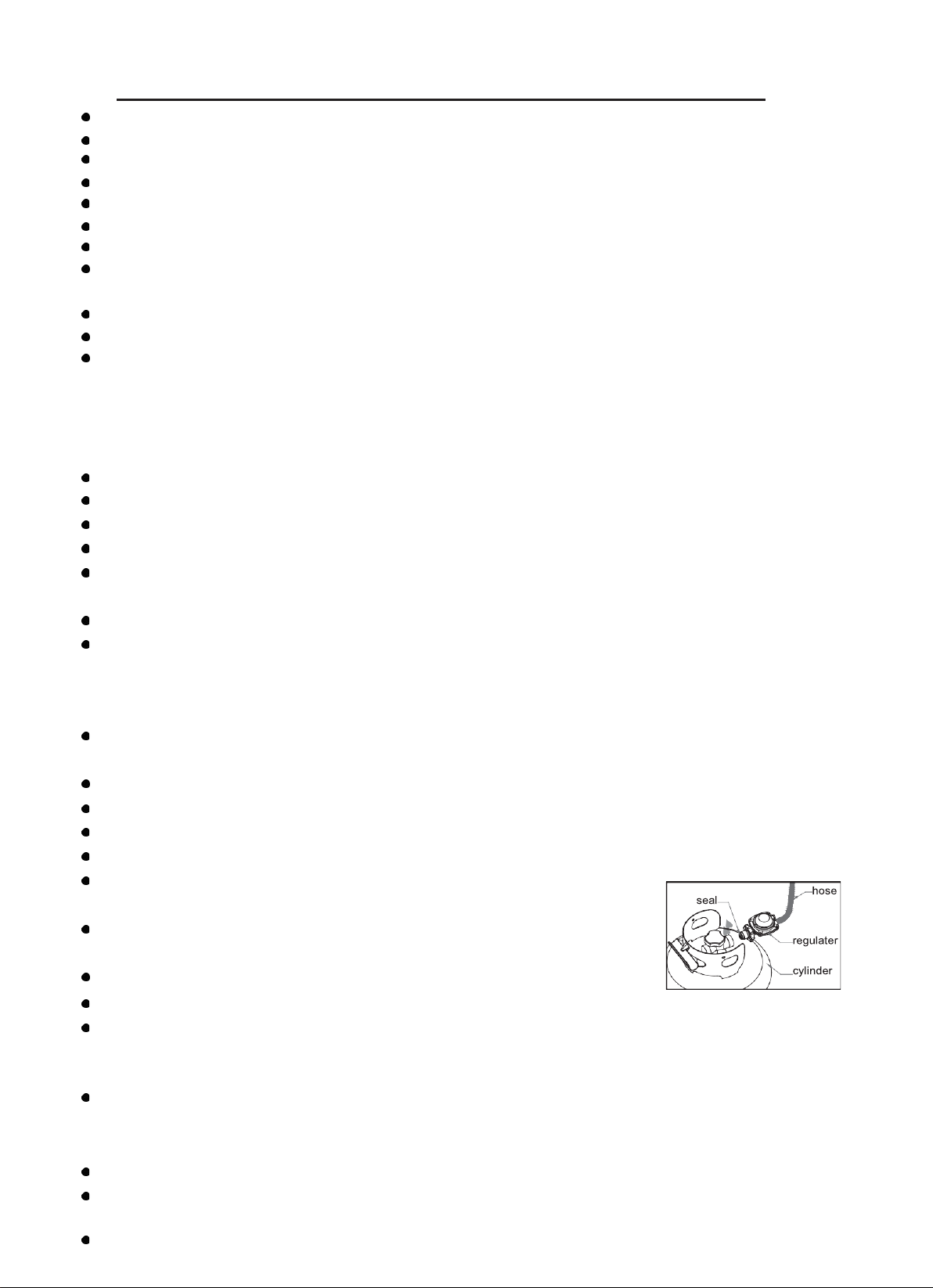

To check that the regulator seal is correctly fitted and able to fulfill its function
showed as photo right;
To not obstruct the ventilation holes of the cylinder housing;
To close the gas supply at the valve of the gas cylinder or the regulator after use;
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply
shall be shut off and the appliance shall be investigated and rectified before it is used again;
Hose/ Regulator connection and
Regulator / Cylinder connection
To check the hose at least once per month ， each time the cylinder is changed ， or each time before long time no use.
If it shows signs of cracking, splittingor other deterioration it shall be exchanged for new hose of the same length and of the
equivalent quality;
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
Read theinstructions before usingthisappliance. The appliancemustbe installed inaccordance withthe instructions and
local regulations.
For connection of hose and regulator,and connection of regulator and hose, please refer to photo showed above.
- 1 -

- 2 -
HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.
Always maintain proper clearance to non protected combustible materials
i.e. top 100 cm and sides 100 cmminimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the
ground with screws.
GAS REQUIREMENTS
Use propane,butane or their mixtures gas only.
The pressure regulator and hose assembly to be used must conform to local standard codes.
The installation must conform to local codes, or in the absence of local codes, with the standard for the
storage and handling of liquid petroleum gases.
A dented, rusted or damaged tank may be hazardous and should be checked by your tank
supplier. Never use a tank with a damaged valve connection.
The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
Never connect an unregulated tank to the heater.

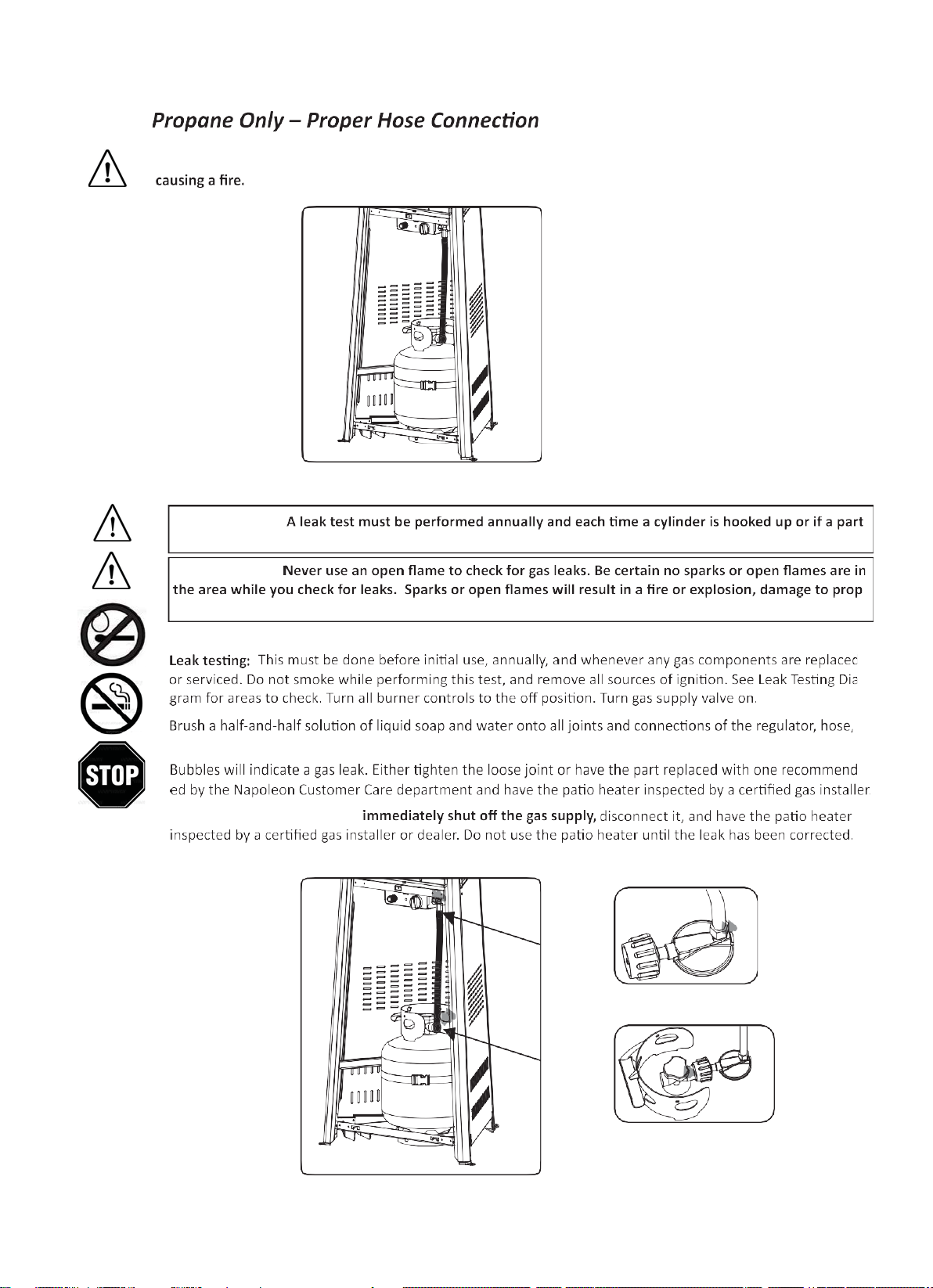

LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied
with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never leak test while smoking.
CEILING
WALL
100 cm

maximum
Warning：check that no broken on the glass is found before operation.
Igniter
Variable control knob
regulator
lgniter
Off: the heater stop work
Hi: maximum temperature position
Lo: minimum temperature position

- 4 -
Reflector
Glass Tube
Protective Guard
Upper Support
Front Panel
Side Panel
Lower Support
Bottom plate
Wheel Assy
600 mm
660 mm
940 mm
2340 mm

- 5 -
A. Construction and characteristics
Transportable terrace/garden heater with tank housing
Casing in steel with powder-coating(BSH-B) or in stainless steel(BSH-A).
Gas hose connections with metal clamp (screw caps for Germany)
Heat emission from reflector
B. Specifications
Use propane,butane or their mixtures gas only.
Max. wattage: 13000 watts
Min. wattage: 5000 watts
Consumption:
APPLIANCE CATEGORY:
I
3+(28-30/37)
I
3B/P(30)
I
3B/P(50)
I
3B/P(37)
TYPES OF GAS:
Butane Propane
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
GAS PRESSURE:
28-30mbar 37 mbar 30 mbar 50mbar 37mbar
OUTLET PRESSURE
OF REGULATOR: 30mbar 37 mbar 30 mbar 50mbar 37mbar
Using the proper regulator according to outlet pressure of regulator as showed in the table above.
C. Table of injector
APPLIANCE CATEGORY:
I
3+(28-30/37)
I
3B/P(30)
I
3B/P(50)
I
3B/P(37)
TYPES OF GAS:
Butane Propane
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
TOTAL HEAT
INPUT (Hs): (Qn)
13kW (945g/h)
INJECTOR SIZE: 1.88 mm for mainburner
0.18 mm for pilot burner
1.55 mm for mainburner
0.18mmforpilot burner
1.65mmfor mainburner
0.18 mm for pilotburner
The marking，for example，1.88 on the injector，indicates that the size of injector is 1.88mm
The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.
The appliance requires approved hose in 1.4m length.

- 6 -
Tools needed:

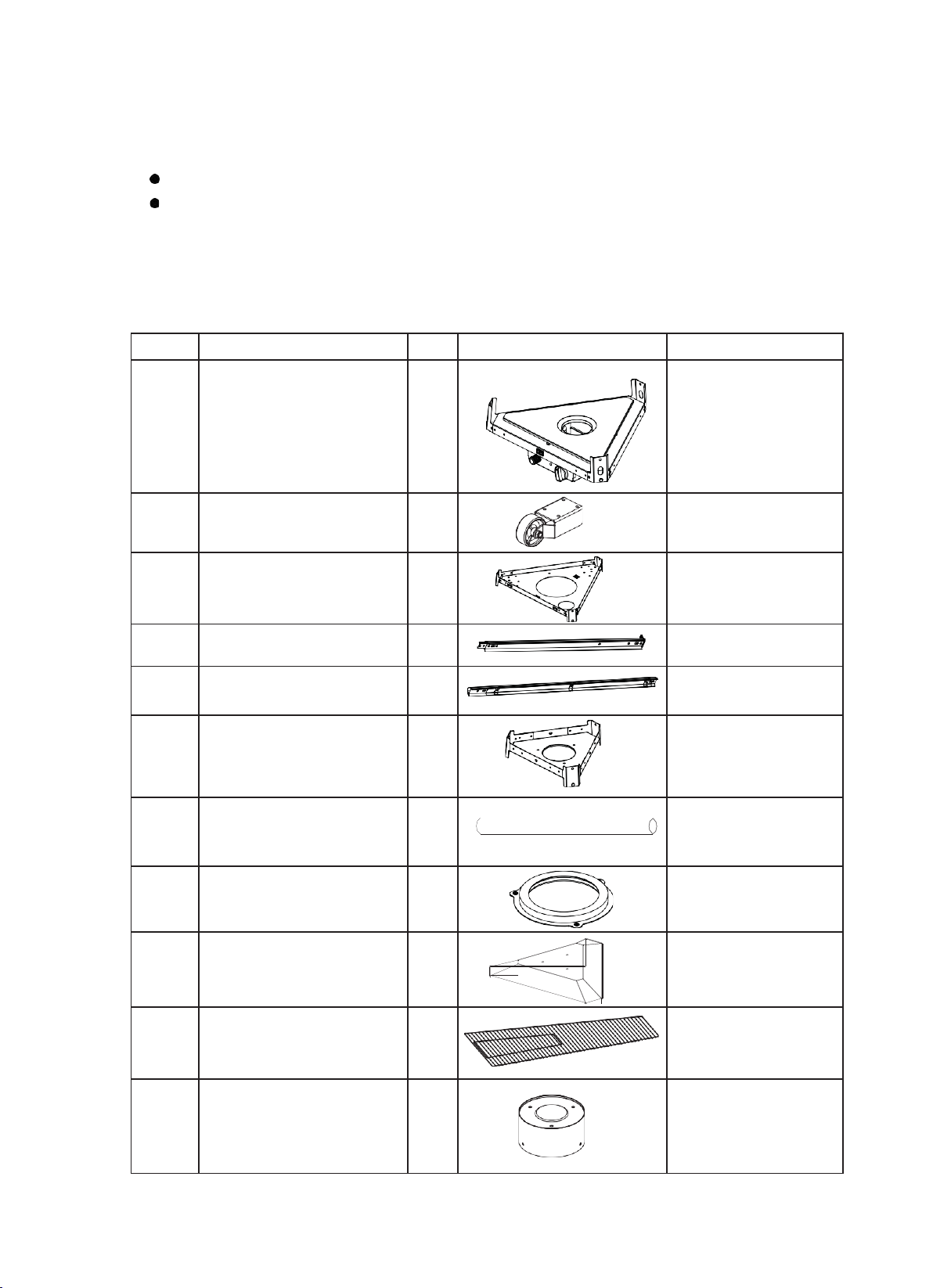

ASSEMBLY PARTS
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
Parts List:
Item #
Description/Part #
Qty
Comments
1Control Box Assy
Includes:
Burner,Pilot,Valve Assy,
Pilot Tube,Igniter,
Control Knob, Tip Switch
1
2
Wheel Assy
2
3
Bottom plate 1
4Lower Support 3
5Upper Support 3
6 Top Plate 1
7
Glass Tube
Black Silicone Ring
1
8
Damper 1
9 Reflector
1
10
Protective Guard 3
11
Mesh
1

- 7 -

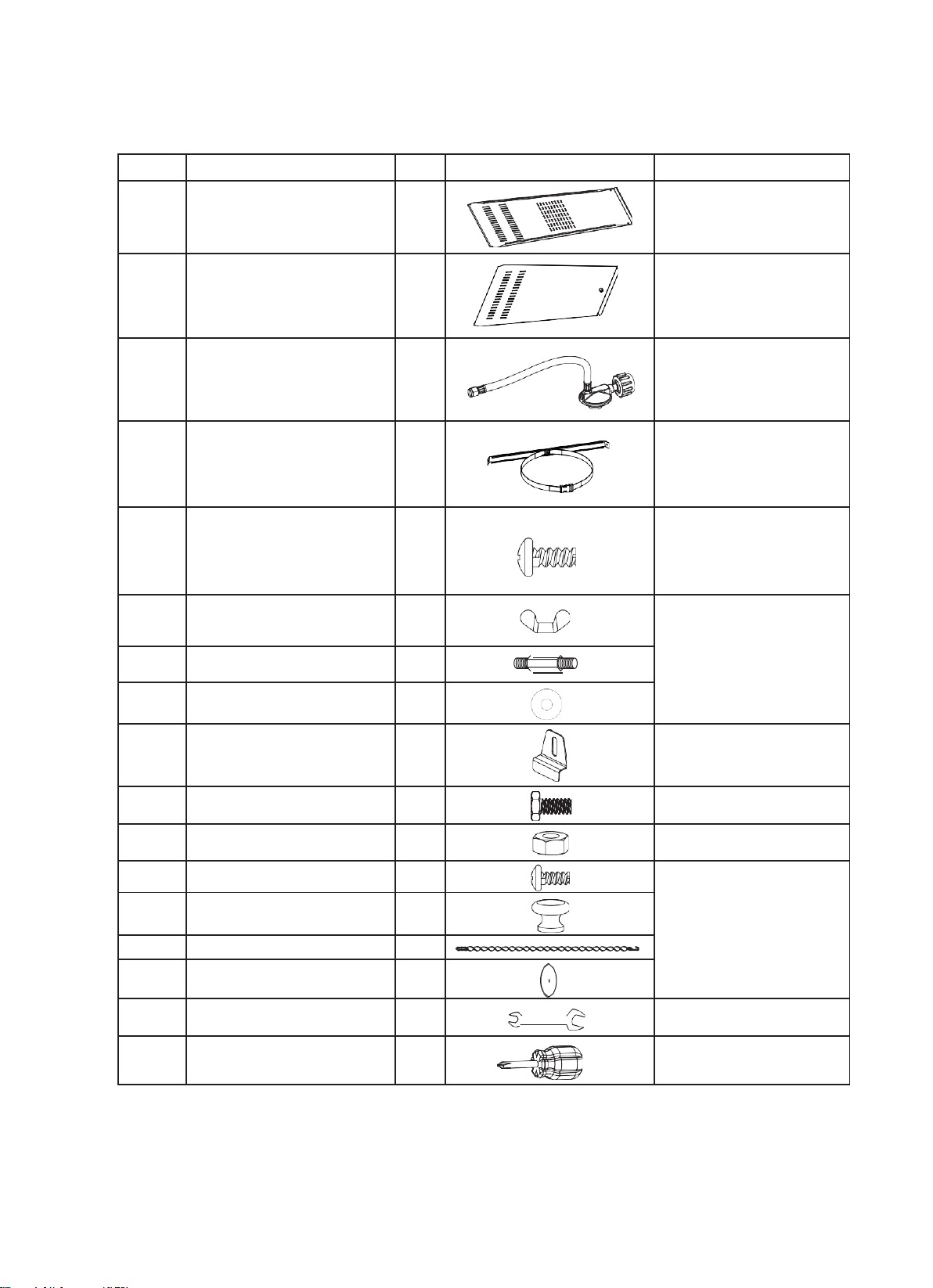

ASSEMBLY PARTS
Parts List:
Item #
Description/Part #
Qty
Comments
12
Side Panel 2
13
Front Panel
1
A chain will be attached
to the Front Panel
14
Propane Regulator Hose
1
15
Block Belt
1
Will be attched to the
Upper Support
16 Screw M5 x 12mm
28
17 Wing nut
3
Will be attched to the
Reflector
18 Stud 6
19 Small flat washer Φ8 6
20 Fixing Brackets
3
21 Bolt M6 X 10 8
22 Nut M4 1
23
Screw M4 x 10mm 1
Will be attched to the
Front Panel
24 Knob 1
25
Chain
1
26 Wafer 1
27
Wrench 1
28 Philips screwdriver 1

- 8 -
ASSEMBLY PROCEDURES
STEP 1 1 4
1-1. Insert the pin of bottom plate (3) to the lower holes of lower support (4).
1-2. Insert the pin of control box assy (1) to the upper holes of lower support.
Note: The side of control box assy which has the magnet should be
the same side of bottom plate which has the holes for front panel.
3
STEP 2
Insert three upper support (5) to the three lower support.
5

- 9 -

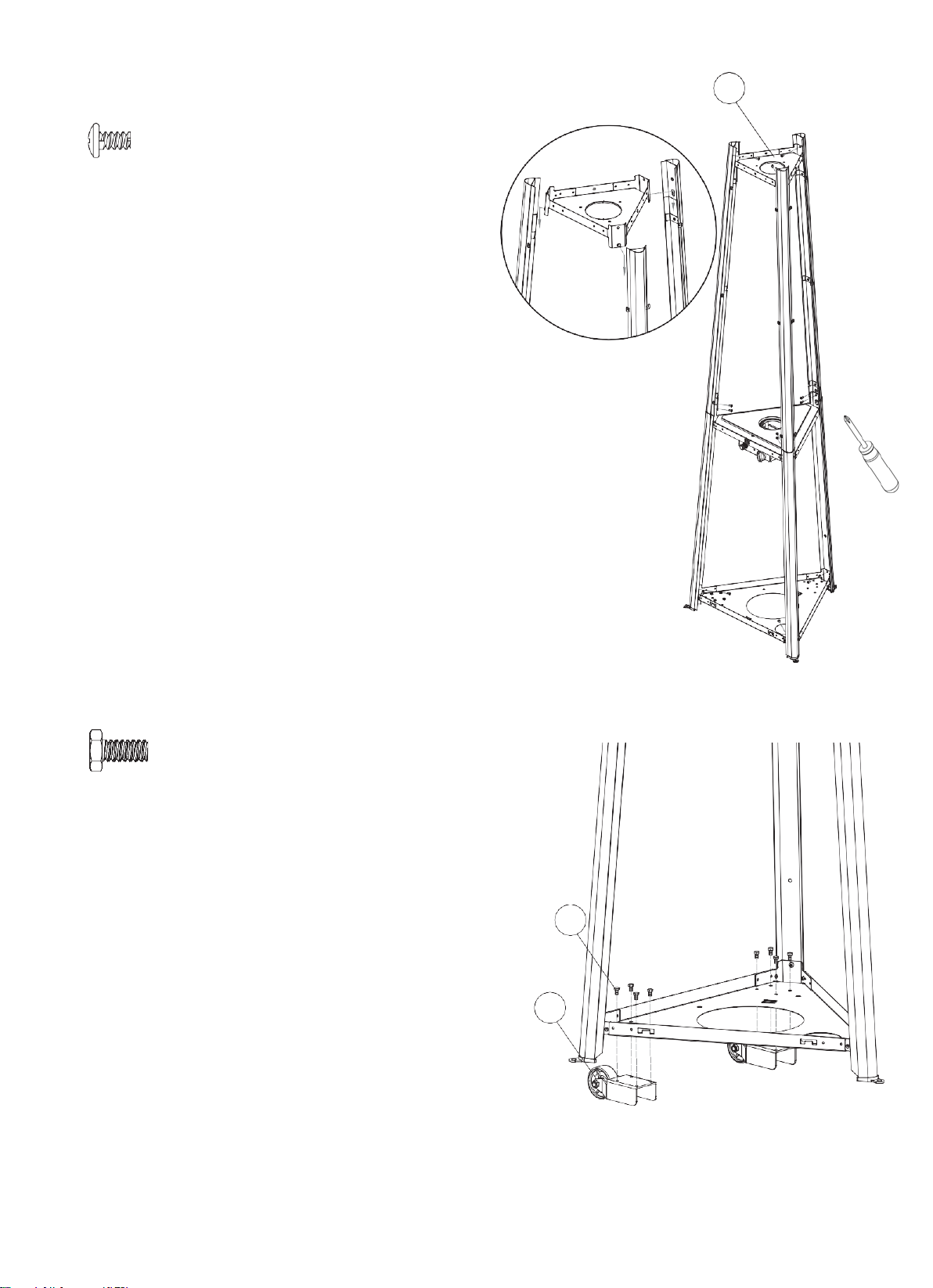

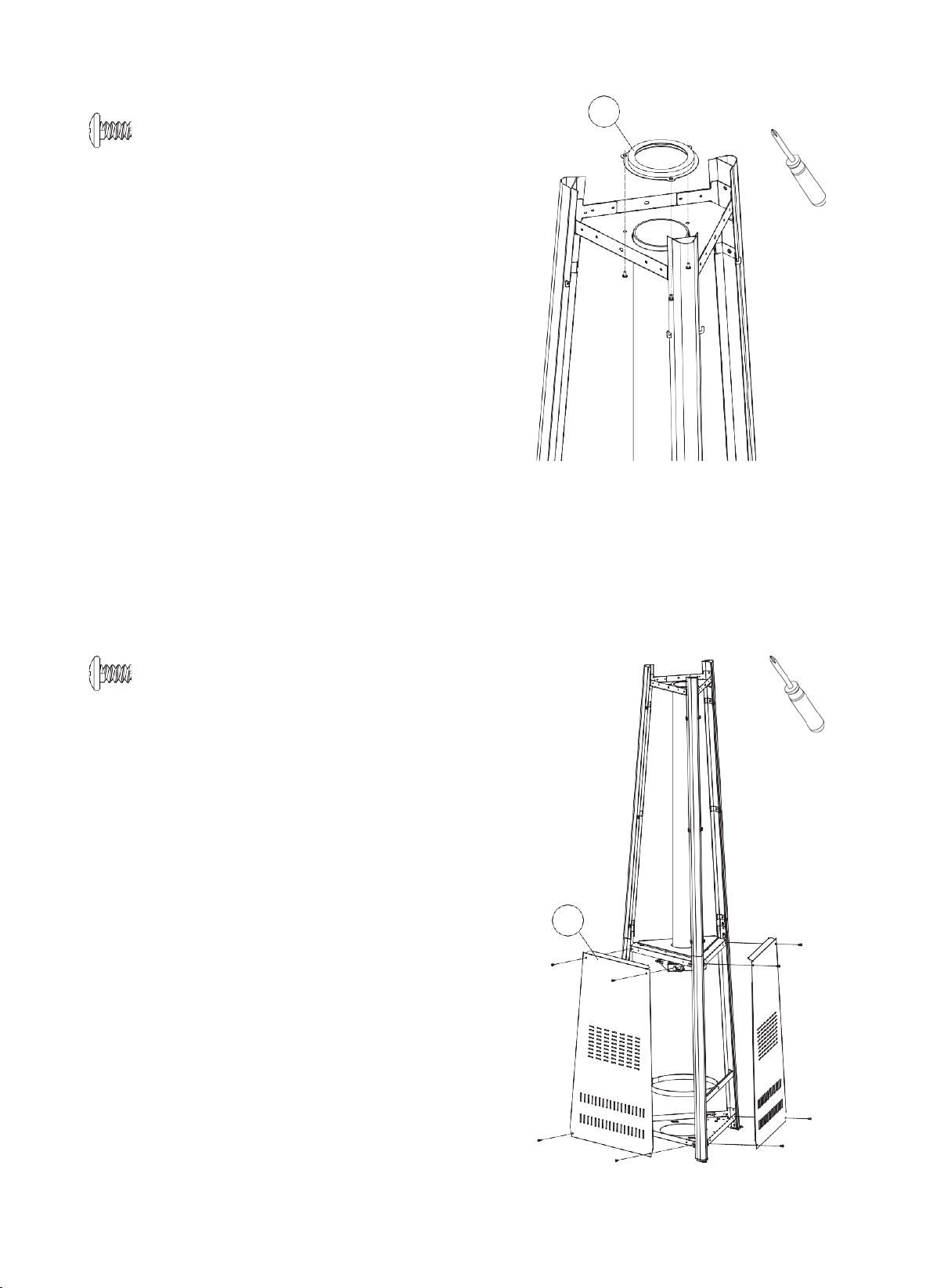

STEP 3
x 9
Screw M5 X 12
3-1. Assembly the top plate (6). Insert the pin of top plate
to the upper hole of upper support.
3-2. Secure the top plate, control box assy and bottom
plate with 9pcs M5X12 screw.
STEP 4
x 8
Bolt M6 X 10
Assemble the wheel assy (2) to the bottom plate using
8pcs M6x10 bolts (21).
6
21
2

STEP 5
x 2
Screw M5 X 12
Secure the block belt (15) to the lower
supports with 2pcs M5x12 screws (16).
STEP 6
Install the glass tube(7). Carefully install
the glass tube between central of top plate
and control box assy. Make sure to place the
lower end of the glass tube between the three
clips on the control box assembly.
-10-
15
16
7

- 11 -
STEP 7
8
x 3
Screw M5 X 12
7-1. Assembly the damper (8). Put the damper on the quartz tube,
press it and make sure the ceramic fibre in the damper is in the
outside of quartz tube.
7-2. Secure the damper with 3pcs M5X12 screws (16).
STEP 8
x 8
Screw M5 X 12
Install 2pcs side panels (12) with 8pcs M5x12 screws.
Note : Do not cover the front panel where the control knob is located.
12

- 12 -

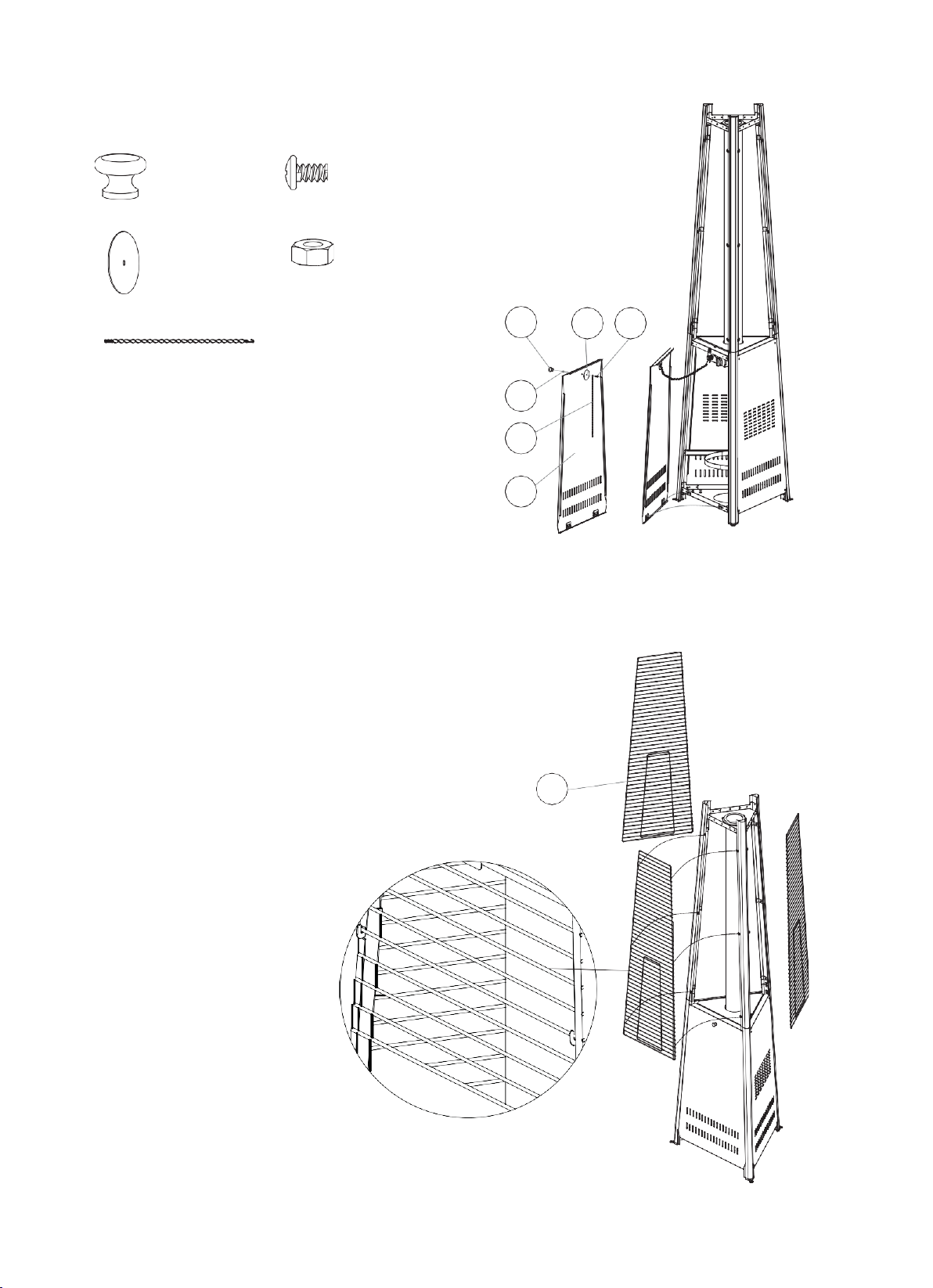

STEP 9
x 1
Knob
x 1
wafer
Chain
x 1
Screw M4 X 10
x 1
Nut M4
x 1
Assemble the chain (25) and wafer (26) to the inside of
front panel (13) with M4x10 screw (23) and M4 nut (22)
and then install the knob (24) to M4x10 screw. Hang
the chain to the hole on the control box assembly and
attach the pothook on front panel to the holes of
bottom plate.
STEP 10
Install the protective guard(10).
Hang the 3pcs protective guards on upper
supports. 10
24
26 22
23
25
13

- 13 -

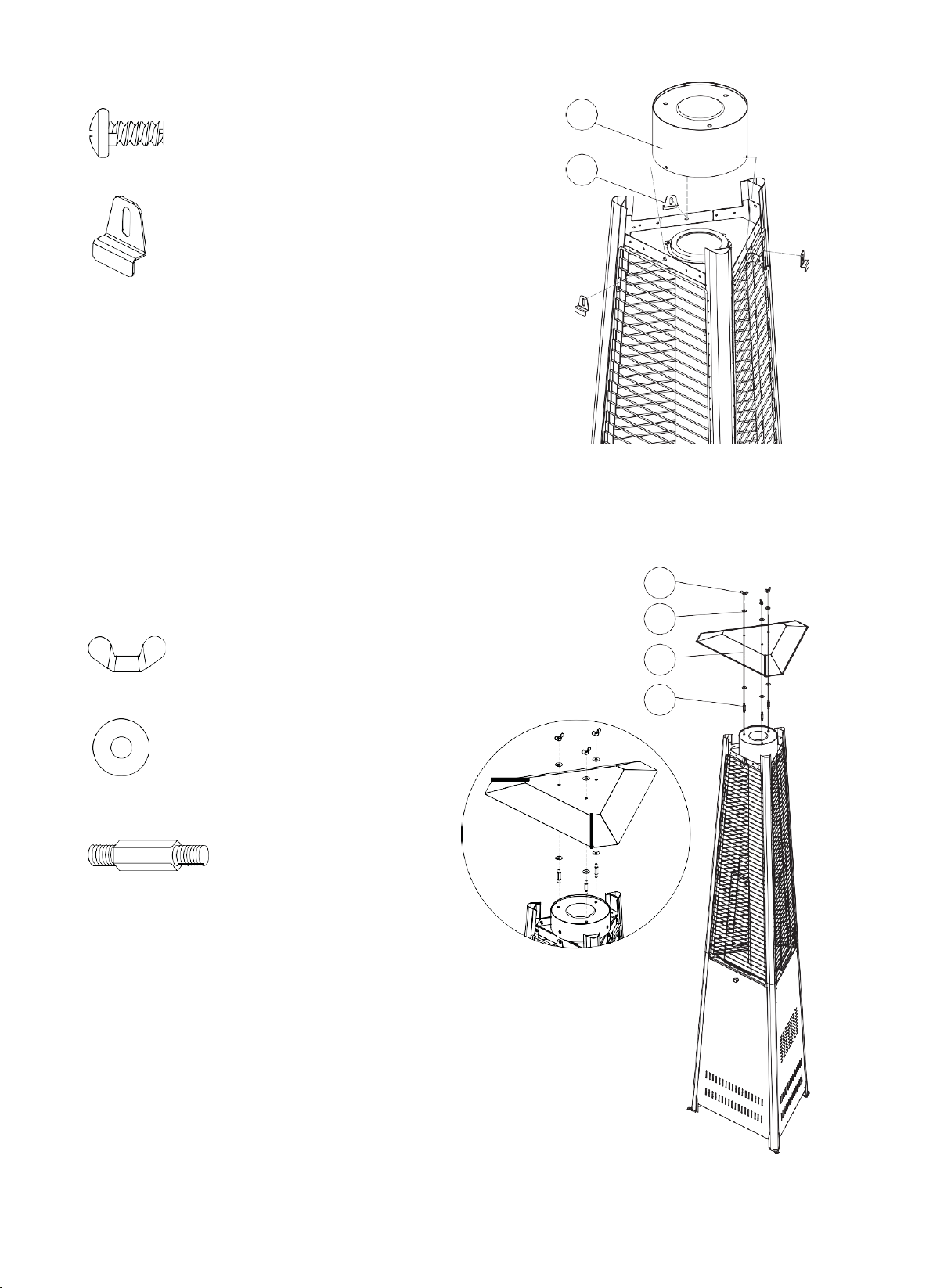

STEP 11
x 3
Screw M5 X 12
x 3
Fixing Bracket
11-1. Insert the mesh (11) on the top plate. Align the holes to the
holes of top plate.
11-2. Secure the mesh on the top plate with 3pcs M5X12 screws
and 3pcs fixing brackets (20).
STEP 12
x 3
Wing nut
x 6
Small flat
washer Φ8
x 3
Stud
12-1. Install the reflector(9) with 3pcs studs (18),
lean the heater carefully and attach the 3pcs small
flat washer Φ8(19) on top of the heater.
12-2. Put washer on each stud and fasten the
reflector with another washer and wing nut (17).
Return the heater carefully to upright position.
11
20
17
19
9
18

- 14 -
STEP 13
STEP 14
WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak
-
manifolds and valves.
Hose / Regulator
connection
Regulator / Cylinder
connection
-
If the leak cannot be stopped,
erty, serious bodily injury, or death.
-
WARNING!
WARNING!
of the gas system is replaced.

- 15 -
PROBLEMS CHECK LIST
PROBLEM
PROBABLE CAUSE
SOLUTION
Pilot will not light
Gas valve may be OFF
Tank fuel empty
Opening blocked
Air in supply system
Loose connections
Turn the gas valve ON
Refill LPG tank
Clean or replace opening
Purge air from lines
Check all fittings
Pilot will not stay on
Debris around pilot
Loose connections
Thermocouple bad
Gas leak in line
Lack of fuel pressure
Clean dirty area
Tighten connections
Replace thermocouple
Check connections
Tank near empty. Refill LPG tank.
Burner will not light
Pressure is low
Opening blocked
Control not ON
Thermocouple bad
Pilot light assembly bent
Not in correct location
Tank near empty. Refill LPG tank.
Remove and clean
Turn valve to ON
Replace thermocouple
Place pilot properly
Position properly and retry
If the appliance is in case of any defaults or problems of assembly or use，please don’t try to modify it by yourself，
contact your supplier or distributor to solve it.
