PORTABLE GENERATORS

INSTRUCTIONS FOR #30117 & #30118

30117

30118

WARRANTY

STATEMENT OF LIMITED WARRANTY

The Eastwood Company (hereinafter “Eastwood”) warrants to the end user (purchaser) of all new gasoline powered generating equipment (collectively called the “products”)

that it will be free of defects in workmanship and material. This warranty is void if the equipment has been subjected to improper installation, improper care or abnormal

operation. This warranty is non-transferrable and is only valid to the initial purchaser of the product.

WARRANTY PERIOD:

All warranty periods begin on the date of purchase from Eastwood. Warranty Periods are listed below, along with the products covered during those warranty periods:

2 Year Warranty on Material, Workmanship, and Defects:

• 30117 - Eastwood 3000 Watt Portable Generator and 30118 - Eastwood 7500 Watt Portable Generator

CONDITIONS OF WARRANTY TO OBTAIN WARRANTY COVERAGE:

Purchaser must ﬁrst contact Eastwood at 1-800-345-1178 for an authorization number before Eastwood will accept any Generator repair claim. Final determination of

warranty on generating equipment will be made by Eastwood. At no time will Eastwood accept a return on a generator. All Sales are Final.

WARRANTY REPAIR:

If Eastwood conﬁrms the existence of a defect covered under this warranty plan, Eastwood will determine whether repair or replacement is the most suitable option to rectify

the defect. At Eastwood’s request, the purchaser must take the faulty product to an Eastwood approved repair facility for a complete diagnostic inspection to determine the

cause of the failure. The cost of the diagnostic inspection will not be covered by Eastwood unless there is a determination that there is a coverable repair. Once the repair

facility has determined the cause of the failure, the repair facility will call 1-800-345-1178 with the authorization number to report their ﬁndings. If there is a coverable

repair, Eastwood will cover all repair costs including diagnosis and parts. Eastwood holds the right to send original equipment replacement parts to the repair facility to be

used in the warranty repair of a faulty product. Service repair facility replacement parts will only be used if approved by Eastwood.

FREIGHT COSTS:

If the product is authorized to be taken to a local repair facility for inspection/repair, the purchaser is responsible for the transfer of the generator to and from the repair facility.

WARRANTY LIMITATIONS:

EASTWOOD WILL NOT ACCEPT RESPONSIBILITY OR LIABILITY FOR REPAIRS UNLESS MADE BY OR AUTHORIZED BY EASTWOOD. EASTWOOD’S LIABILITY UNDER THIS

WARRANTY SHALL NOT EXCEED THE COST OF CORRECTING THE DEFECT OF THE EASTWOOD PRODUCT. EASTWOOD WILL NOT BE LIABLE FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES (SUCH AS LOSS OF BUSINESS, DAMAGE TO PERSONAL PROPERTY, ETC.) CAUSED BY THE DEFECT OR THE TIME INVOLVED TO CORRECT

THE DEFECT. THIS WRITTEN WARRANTY IS THE ONLY EXPRESS WARRANTY PROVIDED BY EASTWOOD WITH RESPECT TO ITS PRODUCTS. WARRANTIES IMPLIED BY LAW

SUCH AS THE WARRANTY OF MERCHANTABILITY ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY FOR THE EQUIPMENT INVOLVED. THIS WARRANTY GIVES

THE PURCHASER SPECIFIC LEGAL RIGHTS. THE PURCHASER MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

ITEMS NOT COVERED UNDER THIS WARRANTY:

• Maintainable parts and accessories such as spark plugs, air ﬁlters, fuel ﬁlters, gas caps, oil ﬁll caps, recoil starter and tires.

• Products sold as reconditioned are not warrantable

• Products that have been used as commercial rental equipment are not warrantable.

• Any costs associated with the assembly of the product, required oil or fuel, adjustments or any other installation/start-up costs.

• Products that have become damaged or inoperable due ordinary wear, misuse, rain, freeze damage, use of improper chemicals,

negligence, failure to operate in accordance with the instruction manual, improper maintenance or unauthorized repair or alterations.

2Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 15

EASTWOOD GAS POWERED GENERATORS are speciﬁcally designed to deliver reliable power while delivering maximum efﬁciency and ease of use.

The included space-saving folding handle and wheels provide handling convenience and a heavy-duty commercial engine allows for a trouble-free, long life.

EASTWOOD GAS POWERED GENERATORS are CARB/EPA certiﬁed so they are 50-state compliant and are very fuel efﬁcient for longer run times. The electric

generator on the EASTWOOD GAS POWERED GENERATORS use only pure copper-wound heads to provide a very reliable generator that will run at full load for

extended periods of time without overheating.

SPECIFICATIONS

Model #30118 #30117

Generator

Type Single-Phase With Brush Single-Phase With Brush

Voltage Regulator Type AVR AVR

Frequency (Hz) 60 60

Rated AC Voltage (V) 120V/240V 120V

Running AC Output (Watts) 7200 2800

Peak AC Output (Watts) 7500 3000

Engine

Type 4-Stroke, OHV, Air-Cooled 4-Stroke, OHV, Air-Cooled

Displacement (cc) 420 208

Compression Ratio 8:0:1 8.5:1

Max. Output (HP/RPM) 15/3600 7/3600

Fuel Unleaded Gasoline Unleaded Gasoline

Fuel Tank Capacity (Gallon/Liters) 6.6/25 4/15

Continuous Operating (Hours per Tank) 911

Oil Capacity (quarts/liters) 1.16 /1.1 0.63/0.6

Operating Noise Level (7m)dB(A) 73 68

Electric Start Battery Requirement (not included) 12 Volt, 18 AH (Interstate DCM0018

or equivalent) N/A

Fuse Requirement (included) 5 Amp Automotive Blade Type N/A

Includes

(1) Generator

(1) Wheels and Attaching Hardware

(1) Rear Legs

(1) Handle Lock Knob

(1) Oil

(1) Spark Plug Socket

(1) Battery Tray and Hardware

(1) 12 Volt, 5 amp Blade Fuse

(1) Ignition Keys

(1) Generator

(1) Wheels and Attaching Hardware

(1) Rear Legs

(1) Handle Lock Knob

(1) Oil

(1) Spark Plug Socket Hardware

(1) 12 Volt, 5 amp Blade Fuse

(1) Ignition Keys

REPLACEMENT ITEMS

FOR #30117, 3000-WATT GENERATOR

#30723 Complete Carb Kit

#30725 Air Filter

#30727 Oil Cap

#30729 Gas Cap

#30740 Carb-To-Engine Gasket

#30745 Fuel Filter & Petcock Gasket

ADDITIONAL ITEMS

#30497 6 Circuit Transfer Switch

#30498 10 Circuit Transfer Switch

#12736Z Eastwood Fuel Stabilizer

#70468 30 LED Retractable Worklight

#70248 Rechargeable LED Worklight

#30189 6 LED Penlight

FOR #30118, 7500-WATT GENERATOR

#30724 Complete Carb Kit

#30726 Air Filter

#30728 Oil Cap

#30729 Gas Cap

#30741 Carb-To-Engine Gasket

#30745 Fuel Filter & Petcock Gasket

14 Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 3

READ AND UNDERSTAND INSTRUCTIONS COMPLETELY!

Thoroughly read and understand this instruction manual before using. Save manual for future reference.

SAFETY INFORMATION

CARBON MONOXIDE POISONING HAZARD!

This generator burns gasoline which produces dangerous levels of Carbon Monoxide gas. Carbon Monoxide is a colorless, odorless gas

which can quickly cause dizziness, unconsciousness and death.

•Using a generator indoors WILL KILL YOU IN MINUTES. Exhaust contains carbon monoxide, a poisonous gas you cannot see or smell.

•NEVER use in the home, or in partly enclosed areas such as garages. ONLY use outdoors and far from open windows, doors, vents

and in an area that will not accumulate deadly exhaust gas.

•Always disconnect the spark plug wire and place the wire where it cannot contact the spark plug to prevent accidental starting when

setting up, transporting, adjusting or making repairs to the generator.

TROUBLESHOOTING

The following chart is intended to provide solutions to the most frequent problems encountered when operating your Eastwood gasoline powered generator. Other

more serious mechanical or electrical malfunctions may be present and can require the attention of a professional small-engine repair facility.

Do not attempt to alter carburetor fuel or throttle settings as your generator has been individually run and tuned at the factory to produce the correct voltage

output levels @ 60hz.

Fuel degradation – It has been determined that the majority of no-start or poor running issues result from old gasoline. Today’s modern gasoline formulas con-

taining ethanol quickly degrade, absorb moisture and can partially gel when left in storage. Often, this can occur within months. While the use of fuel stabilizer

is extremely helpful, fuel degradation still occurs. It is extremely important to drain all unused fuel from the tank and carburetor following generator use. The

procedure for doing so is found in the “Prepare for Storage After Use” section of this manual.

Overloading – The second most frequently encountered cause of generator problems is electrical overloading. Overloading can cause poor running, excessive

fuel consumption and engine overheating resulting in permanent damage. Always calculate your total electrical load in Watts or AMPS and make sure it does not

exceed the constant generator output.

Problem Probable Cause Solution

Engine stops while running

and will not restart

Out of fuel Check fuel gauge and add gasoline

Dirt or water in fuel Drain and replace fuel

Low oil level Check oil level

Choke closed Open choke

Engine switched to OFF position Switch to ON position

Spark plug wire disconnected Reattach plug wire

Engine will not start after storage.

Out of Fuel Check fuel gauge and add gasoline

Dirt or water in fuel Drain and replace fuel

Stale or expired fuel Drain and replace fuel. Clean carburetor bowl

Low oil level Check Oil Level

Engine switched to OFF position Switch to ON position

Air ﬁlter clogged Clean/replace air ﬁlter

Spark plug dirty Clean/replace spark plug

Circuit Breaker Tripped Overload or short circuit condition Eliminate overload or short circuit condition

& reset breaker

No power at outlets Circuit breaker tripped. Eliminate overload or short circuit condition & reset breaker

Labored engine/ dimmed lights/

under performing appliances

Electrical overload Condition. Reduce electrical load.

4Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 13

BURN HAZARD!

•Do Not touch mufﬂer, exhaust components or adjacent areas.

•Do Not touch cylinder head or adjacent areas.

•Maintain at least 4 feet of open area around generator for proper cooling.

•Keep at least 6 feet from any combustible materials, shrubs, wooden structures, vinyl siding, furniture etc.

•Keep children and pets away from the operating Generator.

CAUTION!

•Operate Generator on a secure, stable and dry surface. Dry, level concrete is preferred.

•Do Not place on a table, platform or on any potentially unstable surface.

•Never leave the Generator unattended while running.

•The RPM level and phasing is set at the factory to produce 60 Hz. Never tamper with the governor or throttle assembly or damage to

electronic devises may occur.

SPARK PLUG

CAUTION: ALLOW ENGINE TO COOL BEFORE SERVICING SPARK PLUG OR SEVERE BURNS

COULD OCCUR.

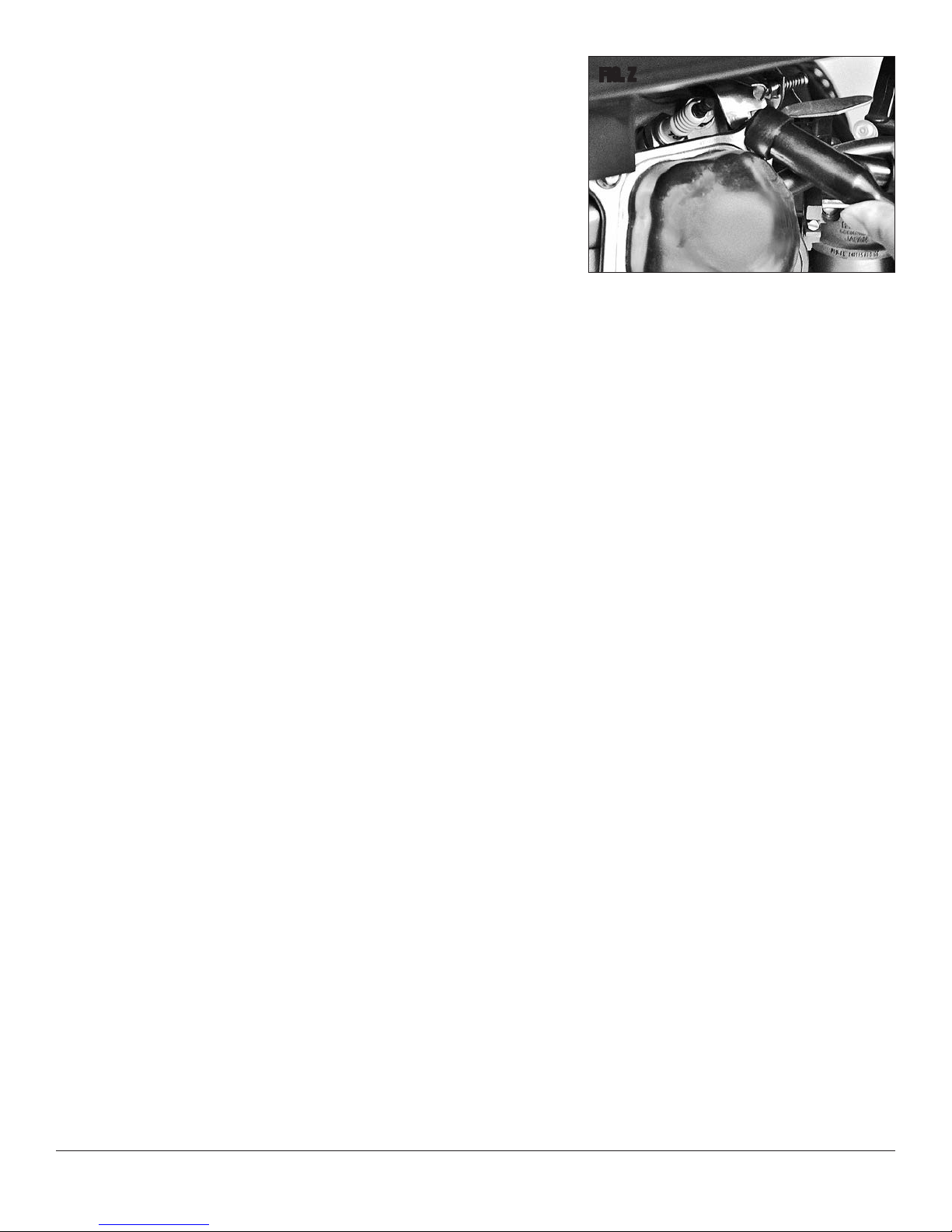

1. Locate the Spark Plug Cable and Boot at rear of Generator (Fig Z).

2. Grip the Boot ﬁrmly (DO NOT PULL ON PLUG WIRE) and with a slight side-to-side twisting

motion, pull the Boot directly off the Spark Plug.

3. Remove Spark Plug with (included) spark plug socket.

4. Inspect Spark Plug for visible breakage or burnt electrodes and replace if necessary with:

NGK #BPR6ES or Nippondenso #W20EPR-U.

5. If in good condition, the Spark Plug electrodes may be cleaned with a ﬁne wire brush or a

piece of P400 grit sandpaper folded over. NOTE: Blow off any remaining grit or dirt from the

Spark Plug before reinstalling. Foreign matter can damage the engine.

6. Measure Spark Plug electrode gap with Spark Plug Gap Gauge before reinstalling.

The proper gap is: 0.028 to 0.031 inch (0.70 to 0.80 mm).

7. Install Spark Plug by threading in BY HAND to avoid possible cross-threading.

8. Final tightening:

New Plug: 1/2 Turn after Spark Plug seats to fully compress sealing washer.

Used Plug: 1/8 to 1/4 Turn after Spark Plug seats to fully compress sealing washer.

9. Reinstall Spark Plug Boot by pushing onto plug and seating it securely.

NOTE: Failure to fully seat Spark Plug Boot will prevent Plug from sparking.

FIG. Z

ELECTRIC SHOCK HAZARD!

•Keep Generator Dry.

•Do Not place generator in a wet area, on wet grass or near standing water.

•Do Not stand on wet grass, or near standing water when operating Generator.

•Do Not expose Generator to rain or allow to become wet. If emergency operation during storm conditions becomes necessary, the

use of well secured, open sided, minimum 8’ high, canopy-like structure is acceptable. Do Not remain under canopy with generator

running. Be sure hands are dry before touching generator, cords or connected appliances.

•If using Generator for emergency backup power, the Generator MUST BE isolated from electrical utility power grid. Failure to do so

could cause electrocution of utility workers or neighbors. Consult a licensed electrician to install specialized switching equipment

when connecting to house wiring.

•Plug appliances directly into Generator outlet panel or use a heavy-duty, “W-A” or “W” outdoor-rated extension cord rated to accept

the total load (in watts or amps) equal to or exceeding the total of all power demands of appliances in use. All cords must have ground

connections.

•When using Generator, allow engine to reach operating temperature and output to stabilize before connecting to a load.

•Keep all appliances OFF before connecting to Generator then turn them ON with Generator running.

•Before performing any maintenance on the generator, disconnect its battery cables to prevent accidental start up. Disconnect the

cable from the battery terminal indicated by a NEGATIVE, NEG or ( - ) ﬁrst. Reconnect that cable last.

•The National Electric Code requires the frame and external electrically conductive parts of the generator be properly connected to an

approved earth ground. Local electrical codes may also require proper grounding of the generator. Consult with a local electrician for

grounding requirements in the area.

•Do Not use worn, bare, frayed or otherwise damaged electrical cord sets with generator.

FIRE AND EXPLOSION HAZARD!

This generator runs on gasoline which emits highly explosive vapors. The generation of electricity and electrical connections can produce sparks.

•Never store generator with fuel in tank where gasoline vapors might reach an open ﬂame, spark or pilot light (as on a furnace,

water heater or clothes dryer). FIRE or EXPLOSION may result.

•Be sure all fuel connections are leak free and fuel cap is kept tightly closed

•Before refueling, turn generator OFF and allow to cool several minutes before removing fuel cap.

•If fuel is spilled in vicinity of generator, remove all traces before starting.

•Fill Tank to Proper Level, Do Not Overﬁll. Vibration and expansion can cause leakage.

•Operate Generator on level surfaces only.

•Do Not Smoke in vicinity of generator or gasoline container.

12 Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 5

MAINTENANCE

CAUTION: ALLOW ENGINE TO COOL BEFORE SERVICING OR SEVERE BURNS COULD OCCUR.

CHECKING ENGINE OIL LEVEL

1. Locate and remove Oil Fill/Dipstick from the lower front of the engine (under Control Panel).

2. Wipe clean and reinstall seating the Dipstick fully. Remove again and read level (Fig W).

The cross-hatched area should be covered with clean oil. If level is low, add small amounts

of good quality, automotive grade motor oil meeting and labeled with SG, SF/CC, CD

requirements (see chart on page 8). Check as required until level reads full.

DO NOT OVERFILL.

CHANGING ENGINE OIL

1. Using a suitable container, place it under the Oil Drain Plug from the lower front of the

engine (under Control Panel). Remove Drain Plug with a 12mm wrench and allow it to drain

fully into the container. NOTE: Tilting the Generator forward slightly will help any remaining

oil to drain.

2. Replace Drain Plug, tighten ﬁrmly but do not overtighten.

3. Fill with a good quality, automotive grade motor oil meeting and labeled with

SG, SF/CC, CD requirements (see chart on page 8). Check as required until level reads full.

DO NOT OVERFILL.

AIR FILTER

1. Locate the Air Filter on the left side of the Generator (Fig X).

2. Unsnap the Cover Clips by lifting and rotating inward. Remove foam air cleaner element.

3. Wash the Element in a solution of household detergent and warm water.

4. Rinse in clean water and allow to DRY THOROUGHLY.

5. Soak the Element in clean engine oil then squeeze to remove excess oil.

NOTE: Excess oil left in Element will cause engine smoking during start up.

6. Reinstall Element and Cover making sure the Clips are latched securely (Fig X).

CARBURETOR FUEL BOWL CLEANING

1. Locate and close Fuel Shut Off Valve on rear of the Generator.

2. Locate Carburetor Fuel Bowl on rear of the Generator at the underside of the

Carburetor (Fig Y). Using a 10mm wrench, remove Drain Plug on underside of

Carburetor Fuel Bowl. NOTE: Do not lose the sealing washer under Drain Plug head.

3. Remove Fuel Bowl. NOTE: Do Not lose or damage the large sealing O-Ring between Fuel

Bowl and Carburetor body.

4. Clean any sediment, gum or other deposits from the inside of the Fuel Bowl with a suitable

carburetor solvent. DO NOT USE GASOLINE.

5. Carefully reinstall Fuel Bowl and O-Ring using care not to pinch it.

6. Reinstall Drain Plug and tighten ﬁrmly but not over tight.

7. Open Fuel Valve. Check for leaks.

FIG. W

FIG. X

FIG. Y

Volts Hz Hours Low Oil

Display

Selector

✓

(A) Engine Ignition/Run Switch

(B) Engine On Light

(D) 12V DC Power Outlet

(E) 12V DC Circuit Breaker

(F) 5-20R 120V Receptacle

(G) 20A Circuit Breaker

(H) L5-30R 120V Circuit Breaker

(I) L5-30R 120V Twist Lock Receptacle

(J) L14-30R 120/240 V Twist Lock Receptacle

(K) Main Circuit Breaker

(L) Ground Post

(B)

✓

(A)

✓

(C)

✓

(D)

✓

(E)

✓

(F) (G)

✓

(H) (I)

✓

(J) (K)

✓

(L)

✓

#30118 - 7500 Watt

Air Filter

CONTROL PANEL FEATURES

(A) Engine Ignition/Run Switch

(B) 12V DC Outlet

(D) 12V DC Circuit Breaker

(E) 5-20R 120V Receptacle

(F) 20A Circuit Breakers

(G) L5-30R 120V AC Twist Lock Receptacle

(H) Main Circuit Breaker

(I) Low Oil Warning Lamp

(J) Ground Post

✓

(A)

✓

(F)(E)

✓

(E)

✓

(G) (H)

✓

(I) (J)

✓

(B)

✓

#30117 - 3000 Watt

✓

6Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 11

PREPARING FOR STORAGE AFTER USE

1. Close Fuel Valve and start the Generator to clear out any remaining fuel from the carburetor

and engine.

2. Drain Gasoline – With the Fuel Valve “Open” (Fig U), place a suitable container capable

of receiving the amount of gasoline in the tank under the Carburetor then with a 10mm

wrench, remove Drain Plug on underside of Carburetor Fuel Bowl (Fig V).

NOTE: Do not lose the sealing washer under Drain Plug head.

- Replace Drain Plug and tighten ﬁrmly but not over tight.

- Close Fuel Valve.

NOTE: Fuel removal is very important and any remaining fuel can quickly degrade and absorb

atmospheric moisture causing gum and debris to develop in the carburetor, lines and tank

which will prevent engine starting at future usage times.

The use of fuel stabilizer products are not recommended for storage periods lasting more

than several months as lost volatility of gasoline may affect future Generator starting

and performance.

3. If the Generator was used for an extended time or heavily loaded, check the Oil Level and

add or change as necessary (refer to “Maintenance” section for procedure).

4. If the Generator was used for an extended time or in a dirty, dusty or wet environment,

check the Air Filter and replace if necessary (refer to “Maintenance” section for procedure)

5. Set Choke to the “Closed” position to help prevent atmospheric moisture from entering

engine.

6. After Generator is completely cooled, move it to a clean, dry location and cover with a

suitable cover. NOTE: A small barbecue grill cover will work well.

7. #30118 Only – Disconnect Battery Terminals for short-term storage. Remove battery for

long-term and storage in sub-freezing temperatures.

FIG. U

FIG. V

REFUELING THE GENERATOR

CAUTION: Before refueling, turn generator OFF and allow several minutes cooling before removing fuel cap. NEVER attempt to refuel a running engine!

•Turn off all connected appliances.

•Switch Main Breaker to the “OFF” Position.

•Turn Engine Switch to the “OFF” Position. NOTE: Never shut down engine by closing choke.

•Remove Fuel Cap located on top of Generator unit and ﬁll tank with fresh, good quality 87 octane gasoline or until Fuel Gauge reads FULL.

DO NOT OVERFILL.

NOTE: Always use fresh fuel. Never use fuel that is stale or of unknown age as it may cause poor running or prevent starting of engine. Avoid getting rain or

moisture in fuel tank as it may cause poor running or prevent starting of engine. If fuel is spilled in vicinity of generator, remove all traces before starting.

•Replace Fuel Cap and tighten ﬁrmly by hand.

SHUTTING DOWN THE GENERATOR

•Turn off all connected appliances.

•Switch Main Breaker to the “OFF” Position.

•Turn Engine Switch to the “OFF” Position. NOTE: Never shut down engine by closing choke.

GENERATOR ASSEMBLY & SET-UP

1. Set the Generator on a clean, level & dry ﬂoor surface and remove the entire carton and all

packaging materials.

2. Check for any external damage and/or missing parts.

3. Install Wheels (Fig A).

- Raise the Front of the Generator Frame approx. 4” and support it securely.

- Insert a Stub Axle (Item 1) through an Axle Tube with the end containing the

drilled hole inward (Fig B).

- Align the horizontal hole in the Axle Tube with the hole in the Stub Axle and slide

a Cotter Pin (Item 2) through.

- Bend the legs of the Cotter Pin apart to retain it in place.

- Place a Wheel (Item 3) on the exposed end of the Stub Axle with the offset protrusion

facing inward.

- Slide a Washer, followed by a Snap Ring (Item 4) over the groove near the end of the

Stub Axle (Fig C).

NOTE: Pliers may be helpful in seating the Snap Ring.

- Repeat above procedure for opposite side.

4. Attach Front Legs (Fig A).

- Raise the Rear of the Generator Frame approx. 4” and support it securely.

- Place a Front Leg (Item 5) with curved edge inward and rubber foot downward over

bend in lower Generator Frame (Fig D).

- Insert two 6mm x 1.75” long screws (Item 6) through the holes in the Leg and

Generator Frame. Tighten with a 10mm wrench on nut and 8mm wrench on

screw head.

- Repeat above procedure for opposite side.

5. Handle

- Rotate handle to the up position then place the 4mm threaded portion of the Handle

Retaining Knob (Item 7) into hole on right upper side of Generator Frame at Handle

base (Fig E). Thread into the spring-loaded, retractable button and tighten

Knob securely.

FIG. A

FIG. B

FIG. C

FIG. D

FIG. E

Knob (7)

✓

10 Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 7

ELECTRICAL LOADING

The following chart is provided as a guide to average power require-

ments in Watts for some of the most common electrical demand

items that may be used when operating your Eastwood gasoline

powered generator.

Select the items to be powered, add the column “Surge Watts” and

make sure the total DOES NOT exceed the capacity of the generator.

For absolute certainty, check the label on your individual appliances

for actual power requirements.

Appliance/Tool Running

Watts

Surge Watts

(Starting)

100 Watt Light Bulb

1/3 HP Sump Pump

18 cu. ft. Refrigerator/Freezer

1/3 HP Well Water Pump

Fluorescent Lamp, 40 Watt

Space Heater

1/2 HP Garage Door Opener

40 Gallon Hot Water Heater

Microwave Oven, 1000 Watt

Electric Range (each burner)

Coffee Maker

Window Air Conditioner, 10,000 BTU

Home Furnace & Blower

Personal Computer

46” TV, LED

1/2 HP Drill

7-1/4” Circular Saw

10” Table Saw

100

800

1000

1500

480

4000

1000

1500

1200

800

500

1000

1500

2000

100

1200

1600

2000

1500

520

4000

1000

1500

1800

1300

800

500

1000

1500

2000

EXTENSION CORDS

Use only “W-A” or “W” designated outdoor-rated extension cords of

maximum length & wire gauge requirements to meet load demands.

Refer to chart at right.

NOTE: Using undersized wire gauge and/or excessive cord lengths

will cause poor appliance performance or possible damage and may

trip generator breaker. Add and calculate total amperage require-

ments needed for appliances to be used. Do Not exceed total allow-

able amperage for generator and extension cords.

Cord Lengths / Required Wire Gauge

Total Amp

Demand 0’ to 50’ 50’ to 100’ 100’ to 150’ 150’ to 200’

0 – 5 16 ga. 16 ga. 12 ga. 12 ga.

5.1 – 8 16 ga. 14 ga. 10 ga. N/A

8.1 –12 14 ga. 12 ga. N/A N/A

12.1 – 15 12 ga. 10 ga. N/A N/A

15 – 20 10 ga. 10 ga. N/A N/A

CONNECTING TO ELECTRICAL LOAD

1. With engine at operating temperature and at a stabilized speed, add the electrical load by plugging into the appropriate 120Volt AC or 220Volt AC

generator outlets located on the Front Panel.

2. Keep all appliances turned OFF before connecting to Generator then turn them ON with Generator running.

3. Be sure the Circuit Breaker is in the “ON” position.

NOTE: The engine will speed up and become louder as an electrical load is applied. This is normal and the internal voltage regulator and governor are

functioning as intended.

DANGER! ELECTRICAL HAZARD! SHOCK HAZARD!

- Keep Generator Dry.

- Do Not place generator in a wet area, on wet grass or near standing water.

- Do Not stand on wet grass, or near standing water when operating Generator.

- Do Not expose Generator to rain or allow to become wet. If emergency operation during storm conditions becomes necessary, the use of well secured,

open sided, minimum 8’ high, canopy-like structure is acceptable. Do Not remain under canopy with generator running. Be sure hands are dry before

touching generator, cords or connected appliances.

- If using Generator for emergency backup power, the Generator MUST BE isolated from electrical utility power grid. Failure to do so could cause

electrocution of utility workers or neighbors. Consult a licensed electrician to install specialized switching equipment when connecting to house wiring.

- Plug appliances directly into Generator outlet panel or use a heavy-duty, “W-A” or “W” outdoor-rated extension cord rated to accept the total load (in

watts or amps) equal to or exceeding the total of all power demands of appliances in use. All cords must have ground connections.

6. Battery Tray assembly (#30118 ONLY) (Fig F)

- Attach Angle Bracket (3) to weld-nut on underside of Battery Tray (1) with a 4mm screw

(Fig G) NOTE: Orient angle toward ﬂanged side of Battery Tray.

- Attach inverted “Y” Bracket (2) to the Battery tray (two tabs on “Y” must be placed on

outside of Battery Tray side ﬂanges) with 4mm screws and nuts with the short leg of

the “Y” toward the ﬂanged edge of the tray (Fig G). NOTE: Place screw heads inward

to avoid possible battery case contact.

- Attach opposite side “Y” bracket.

7. Battery Tray attachment to Frame (#30118 ONLY)

- Attach tabs of “Y” Brackets (2) to threaded holes in upper rail of Generator Frame with

two 4mm screws (Fig H).

- Attach tab of Angle Bracket to through hole in lower rail of Generator Frame with two

4mm x 1.75” long screws and nuts (Fig G).

8. Add Battery (#30118 ONLY)

- Place Battery (Interstate # DCM0018 or equivalent, not included) in Battery Tray with

Positive Terminal to the left.

- Place the Battery Hold-down Bracket over the upper front edge of the Battery case.

NOTE: The angled ﬂats of the Hold-down with holes must be angled toward the outer

edge of the Battery Tray.

- Place a “J” Bolt hook into hole of Battery Tray and the upper

threaded end through the corresponding hole in the angled ﬂat of the Battery

Hold-down Bracket and secure with a 4mm nut (Fig I).

- Repeat “J” Bolt assembly for opposite side.

9. Attach Battery Cables (#30118 ONLY)

- Attach Positive Battery Cable (Red + ) ﬁrst then attach Negative Cable (Black – )

and secure to battery terminals.

10. Install Fuse (#30118 ONLY)

Place 5-Amp Blade Fuse (Included) into Fuse Holder and close tightly (Fig J).

NOTE: If you are not using the Electric Starter feature and are not installing the Battery,

Do Not install the Fuse.

11. Move generator to a dry, level, ﬁrm, OUTDOOR ONLY area away from any doors, windows

or building ventilation.

12. Ground Cable (Required by many local electrical codes, check for your speciﬁc area)

- Connect a 6 Ga. copper ground wire (not included) to the Ground Terminal lug located

on the lower right of the Control Panel (“M” on # 30118 Panel, “J” on #30117 Panel).

- Attach the opposite end of the ground wire to a copper or brass grounding rod

(not included) driven at least 24” into the earth.

FIG. F

FIG. G

FIG. H

FIG. I

FIG. J

5 Amp

Fuse

8Eastwood Technical Assistance: 800.544.5118 >> techelp@eastwood.com To order parts and supplies: 800.345.1178 >> eastwood.com 9

5. Recoil Start

#30117 ONLY

- Engine Switch - Turn the Engine Switch located on the left side of the Control Panel to

the “RUN” position (Fig P).

#30118 ONLY

- Remove 5 Amp Fuse (if previously installed) (Fig Q) if no battery is connected

to Generator.

- Key Start Switch - Turn the Ignition Key Switch located on the left side of the Control

Panel to the “RUN” position (Fig R).

- Pull the Starter Handgrip located on the left side of the generator (Fig S) lightly until

some resistance is felt then let it gently return to the seated position. Grip securely

and pull ﬁrmly in one smooth, rapid motion. NOTE: On a cold engine, several pull

cycles may be required for starting.

6. Electric Start #30118 ONLY

Turn the Ignition Key to the “START” position to engage electric starter and release to

“RUN” when engine starts. NOTE: Do not operate electric starter for periods longer than

5 seconds at a time or starter motor overheating could occur.

7. Choke Opening – Allow the engine to reach operating temperature and during the 1st min-

ute or so of running, gradually open the Choke to the full open position (Fig T).

NOTE: If the engine falters or runs rough, the choke is being opened too quickly. Partially

close until the engine running smooths out.

DANGER! CARBON MONOXIDE POISONING HAZARD!

As the engine runs, it produces dangerous levels of Carbon Monoxide gas. Carbon

Monoxide is a colorless, odorless gas which can quickly cause dizziness, unconsciousness

and death.

- Never run the generator in an enclosed or partially enclosed area! This includes all

garages, porches, patios, sheds, basements, vehicles, trailers, tents etc. even with

all doors and windows open!

- Only run outdoors and keep away from open windows, doors, ventilation openings or

anywhere that exhaust can migrate indoors.

8. Stop Engine –

#30117 ONLY

- Engine Switch - Turn the Engine Switch located on the left side of the Control Panel

to the “STOP” position (Fig P).

#30118 ONLY

- Key Start Switch - Turn the Ignition Key Switch located on the left side of the

Control Panel to the “STOP” position (Fig R).

DO NOT close choke to shut off engine.

FIG. P

FIG. R

FIG. S

FIG. T

FIG. Q

13 Add 10W30 Oil (included) - Remove the Yellow Oil Fill Plug/Dipstick from the lower front

of the engine (under Control Panel) (Fig K) and ﬁll oil to the full level marking on the oil

dipstick. When adding oil or when changing oil in the generator, always use a good quality

automotive grade motor oil meeting and labeled with SG, SF/CC. CD requirements. See

chart below for alternate viscosities while operating in lower or higher temperatures. Refer

to speciﬁc generator model speciﬁcations for engine oil capacities. DO NOT OVERFILL.

14. Check oil level by ﬁrst wiping the dipstick free of oil, inserting it fully into oil then pulling it

out and reading the oil level on it. It should be equal to the upper cross-hatching mark of

the dipstick (Fig L).

15. Add Gasoline - Remove Fuel Cap located on top of Generator unit and ﬁll tank with fresh,

good quality 87 octane gasoline or until Fuel Gauge reads FULL. DO NOT OVERFILL.

NOTE: Always use fresh fuel. Never use fuel that is stale or of unknown age as it may

cause poor running or prevent starting of engine. Avoid getting rain or moisture in fuel tank

as it may cause poor running or prevent starting of engine. Do not use fuel with greater

than 10% ethanol or reduced engine performance and damage can occur.

DANGER! EXPLOSION AND FIRE HAZARD!

This generator runs on gasoline which emits highly explosive vapors. The generation of

electricity and electrical connections can produce sparks.

- Be sure all fuel connections are leak free and fuel cap is kept tightly closed.

- Before refueling, turn generator OFF and allow cooling several minutes before

removing fuel cap.

- If fuel is spilled in vicinity of generator, remove all traces before starting.

- FILL TANK TO PROPER LEVEL, DO NOT OVERFILL. Vibration and expansion can

cause leakage.

- Operate Generator on level surfaces only.

- Do Not Smoke in vicinity of generator or gasoline container.

16. Replace Fuel Cap and tighten ﬁrmly by hand.

FIG. K

FIG. L

FIG. M

FIG. N

FIG. O

STARTING THE GENERATOR

1. Move generator to a dry, level, ﬁrm, OUTDOOR ONLY area away from any doors, windows

or building ventilation. Make sure there is at last 4’ of clear space around the generator for

proper cooling.

2. Do not connect any cords or electrical loads until after engine is running for several min-

utes and is stabilized. Never attempt to start and engine with appliances plugged in and

switched on!

3. Fuel Valve (Fig M) - Turn the Fuel Valve lever located to the rear of the generator between

the Fuel Tank and Carburetor to the “ON” position (Fig N). Be sure to always turn this valve

to the “OFF” position after shutting off engine.

4. Choke - Move the Choke lever located to the rear of the generator on the Carburetor to the

“CLOSED” position (Fig O). NOTE: With a warm engine being restarted after refueling,

it may not necessary to close the Choke before starting.

Oil Fill/Dipstick

✓

Air Filter

Choke Fuel Valve Recoil

Start

✓

Choke

Closed

Open

°F

104

-4

-22

°C

-10

-20

-30

Synthetic 5W30

SAE 30*

10W30**

5W30

* Below 40°F (4°C) the use of SAE 30 will result in hard starting.

** Above 80°F (27°C) the use of 10W30 may cause increased oil

consumption. Check oil level more frequently.

Choke

Closed

Open

Starter

Handgrip

✓
