Eastwood 31455 User manual

1/2" X 18" PROFESSIONAL
MINI BELT SANDER
INSTRUCTIONS
Part #31455

2Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
The EASTWOOD MINI BELT SANDER is a professional quality tool ruggedly designed for many years
of reliable service. It features an infinitely adjustable sanding arm through a 120° range of belt position
for maximum versatility and a generous 8-1/2” long Abrasive Arm allows reach into confined spaces.
A high-torque, ball bearing supported, 4 vane motor provides smooth operation and long life. Speed is
easily controlled with a variable speed control lever while motor activation is by paddle control.
CONTENTS
(1) Mini Belt Sander
(1) 4 mm Hex-Key Wrench
(1) 1.5 mm Hex-Key Wrench
(1) 80 Grit, 1/2” x 18” Abrasive Belt
(1) 100 Grit, 1/2” x 18” Abrasive Belt
(1) 1/4” NPT Air Inlet Coupling
SPECIFICATIONS
• RPM: 16,000 free speed
• Air Motor: Variable speed, 4 vane, ball bearing
• Air Consumption: 7.1 CFM [201 L/min]
• Inlet thread size: 1/4” FNPT
• Required Belt Size: 1/2” x 18”, minimum 16,000 RPM
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling,
and on all other information provided with this product:

To order parts and supplies: 800.345.1178 >> eastwood.com 3
READ INSTRUCTIONS
• Thoroughly read and understand these product instructions before using
this tool. Failure to follow all warnings can result in tool damage or serious
physical injury.
• Keep these product instructions for future reference.
HEALTH AND INJURY HAZARDS!
• This tool has high-speed, highly abrasive surfaces which can quickly cause
severe injury. Keep fingers and hands away from moving parts when operat-
ing. Wear thick, well-fitting work gloves and keep loose clothing, sleeves,
cords, jewelry and hair away from moving parts.
• Hazardous dust is generated during the grinding/sanding process.
Wear appropriate NIOSH approved respiratory protection.
• Metal particles and dust can be ejected during the grinding/sanding process.
Always wear ANSI approved eye and ear protection when operating this tool.
• Do not force tool or exert side forces on belt drive while grinding or sanding
as the tool body can suddenly kick back or twist causing severe hand or
wrist injury. Belts can also be torn with excessive side force causing them
to disintegrate and eject sharp pieces at high velocity.
• This tool will vibrate during use! Repeated exposure to vibration may
cause physical injury.
• Always disconnect tool from air supply when changing abrasive belts to
prevent accidental tool starting and potential serious injury.
• Always make sure the workpiece being sanded/ground is securely clamped
or anchored to avoid sudden movements which could result in injury.
• Frequently inspect belt condition. If tears or holes develop, discontinue tool
use immediately and replace damaged belt. ONLY USE replacement belts
rated for 16,000 RPM or greater use otherwise serious injury or death can
result in the event of belt failure.
CUT HAZARD!
• Handling sharp metal can cause cuts. Wear thick work gloves and
long sleeves when using this tool.
EXPLOSION HAZARD!
• Do not exceed 90 psi (6.3 bar) of tool inlet pressure. Permanent tool
damage and/or explosion could occur and cause personal injury.
SAFETY INFORMATION

4Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
SET-UP & CONNECTION
1. Be sure that the air supply to the tool is clean and dry. Moisture in the supply line will quickly
damage the motor and valves.
2. A minimum 3/8” I.D. air line should be used for optimal performance.
3. Thread the included 1/4" Male Quick-Disconnect Fitting into the tool using TFE thread sealing
tape (not included).
OPERATION

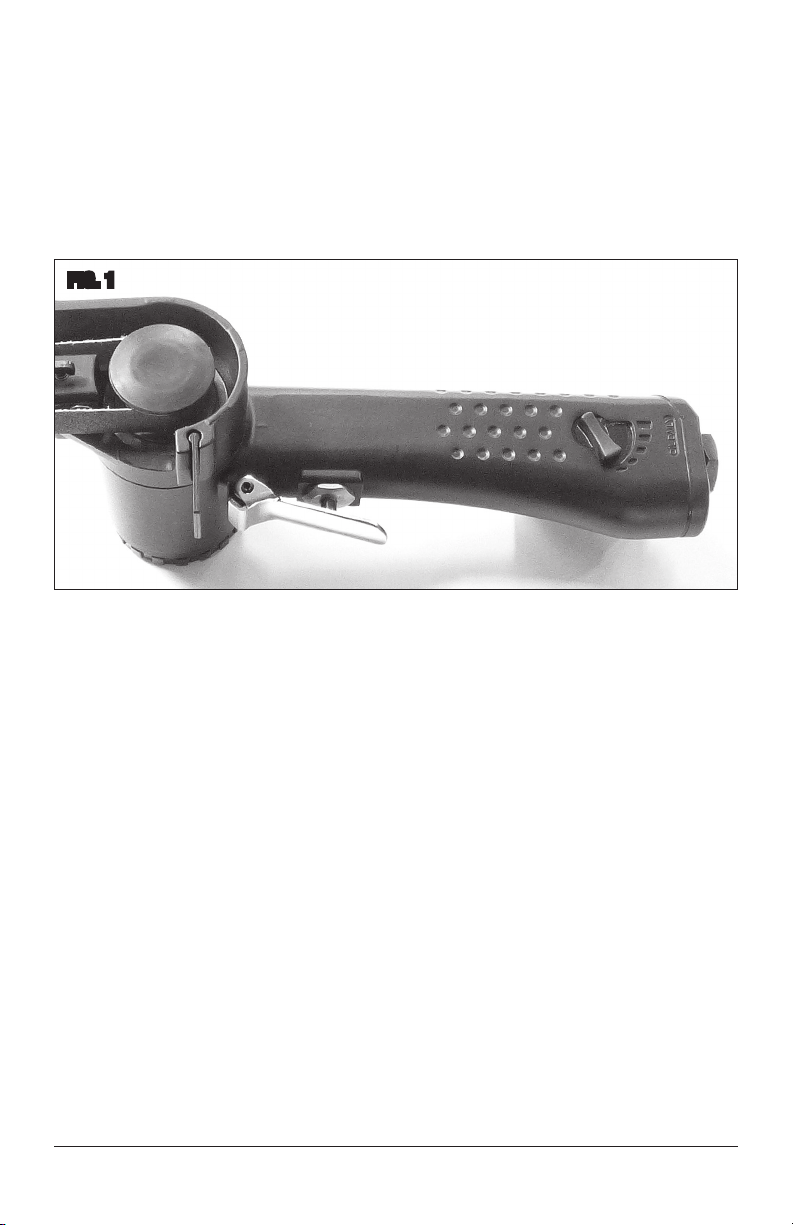

• Rotate the lever located at the left rear of the tool handle to regulate motor speed (FIG 1).
Note that the “down” position will result in slower speed while “up” will increase speed.
• Depress Throttle Paddle inward with fingers to operate tool..
• Keep the broad work surface of the Abrasive Belt parallel to the work surface whenever
possible to minimize uneven wear and maximize usable life.
• Always maintain a firm grip while operating tool, do not force but allow the rotational speed
of the Abrasive Belt to do the work.
• Be sure that the workpiece is clamped down or held securely to minimize the danger of
injury while operating tool.
FIG. 1

To order parts and supplies: 800.345.1178 >> eastwood.com 5
ABRASIVE BELT REPLACEMENT
The Abrasive Belts are quickly and easily changed. No tools are required.
The following steps describe how to do this:
1. Disconnect air supply from
the tool to prevent acciden-
tal starting and potential
injury while removing or
installing an Abrasive Belt.

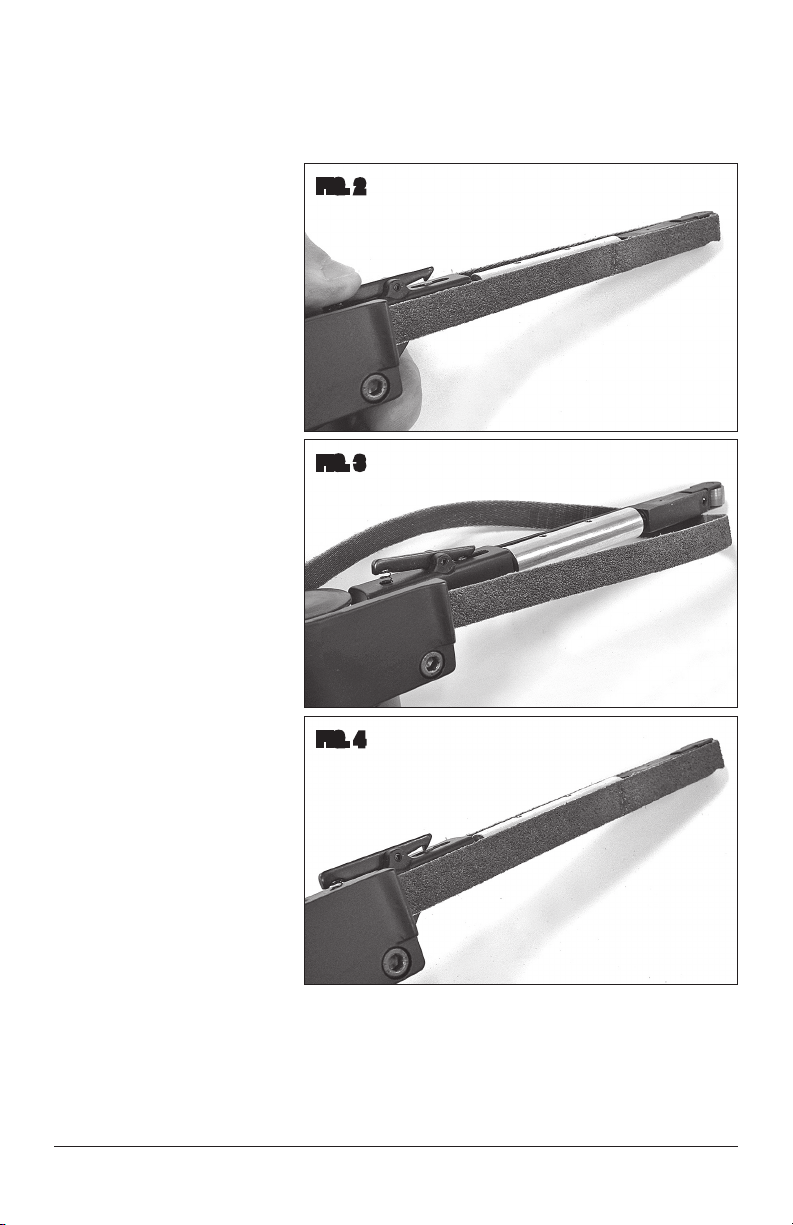

2. The end of the Abrasive
Belt Arm is spring loaded to
keep the proper tension on
the Abrasive Belts. While
holding the tool firmly, push
inward on the end of the
Abrasive Belt Arm while de-
pressing the Thumb-Lever
Latch (FIG 2).
NOTE: The Guide Pin will
move inward until it locates
under the Latch portion
of the Thumb-Lever Latch
holding it in the retracted
position while the Abrasive
Belt is changed (FIG 3).
3. Pull the worn Abrasive Belt
free of the Drive Drum and
discard.
4. Slide the replacement
Abrasive Belt over the
Drive Drum and Idle Roller
at the end of the Abrasive
Belt Arm (FIG 4).
NOTE: Be sure the Abrasive
Belt is slid fully over the
Guide Bar located on the
upper surface of the
Abrasive Belt Arm.
5. Depress the Thumb-Lever Latch to release the Guide Pin restoring full spring pressure.
FIG. 2
FIG. 3
FIG. 4

6Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
ADJUSTING SANDING ARM ANGLE
1. Disconnect air supply from
the tool to prevent acciden-
tal starting and potential
injury while adjusting the
Abrasive Belt Arm Angle.
2. Using the included 4mm
Hex Key, loosen the Angle
Adjusting Screw located
on the upper side of the
Abrasive Arm Assembly
(FIG 5), rotate Arm to
desired position then
tighten screw securely.
ADJUSTING ABRASIVE BELT TRACKING
1. Disconnect air supply from
the tool to prevent acciden-
tal starting and potential
injury while adjusting the
Abrasive Belt Tracking. The
Tracking Adjustment Screw
is located at the outer right
side of the Abrasive Arm
Assembly (FIG 6).
2. Using the included 1.5mm
Hex Key, turning the screw
clockwise (as viewed from
the right side) will cause the belt to track left while turning the screw counter-clockwise
will cause the belt to track right.
FIG. 5
FIG. 6

To order parts and supplies: 800.345.1178 >> eastwood.com 7
MAINTENANCE
• Add several drops of air tool oil before each use by dropping directly into the air inlet.
• If tool is to be unused for an extended period, add 10 drops of air tool oil directly to the air
inlet, rotate the tool motor by hand several times to distribute the oil throughout the motor and
gearbox then store the tool, handle up.
• Periodically, with the air supply disconnected, check belt condition and Angle Adjusting Screw
tightness.
TROUBLESHOOTING
PROBLEM CAUSE CORRECTION
Tool Doesn’t
Respond
to Trigger
Depression
Insufficient
Air Supply
Verify sufficient air supply.
Should be 7.1 cfm or more.
Moisture in
Air Line Check for moisture in air line and tool inlet.
Tool
Performance
is Slow or
Sluggish
Insufficient
Air Supply
Verify sufficient air supply.
Should be 7.1 cfm or more.
Moisture in
Air Line Check for moisture in air line and tool inlet.
Tool Vibrates
Excessively
During Use
Split or
Torn Belt
STOP USE IMMEDIATELY!
Replace Belt.
Loose Angle
Adjustment
Screw
STOP USE IMMEDIATELY!
Tighten Angle Adjustment Screw
Tool Emits
Excessive
Noise During
Use
Tool Lacks
Lubrication
STOP USE IMMEDIATELY!
Add air tool oil directly to air inlet.

© Copyright 2016 Easthill Group, Inc. 5/16 Instruction item #31455Q Rev 0
If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: [e-mail]
PDF version of this manual is available online >> eastwood.com/31455manual
The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA
US and Canada: 800.345.1178 Outside US: 610.718.8335
Fax: [phone] eastwood.com
ADDITIONAL ITEMS
#31458 5 Pack of 40 Grit, 1/2” x 18” Abrasive Belts
#31456 5 Pack of 80 Grit, 1/2” x 18” Abrasive Belts
#31457 5 Pack of 120 Grit, 1/2” x 18” Abrasive Belts
