Easylinkin G200 series User manual

G200

USER MANUAL

Contents

1. PRODUCT OVERVIEW.............................................................................................................1

1.1 Brief Introduction............................................................................................................ 1

1.2 Features.............................................................................................................................. 1

2. INTERFACE AND LED.............................................................................................................. 2

2.1 Interface............................................................................................................................. 2

2.2 LED Status Indications....................................................................................................2

3. SPECIFICATION.........................................................................................................................2

4. CONFIGURATION.....................................................................................................................3

4.1 Getting Started.................................................................................................................3

4.2 Modifying Network Parameters..................................................................................5

4.3 Modifying LoRa Parameters.......................................................................................11

4.4 LoRa Customized Configuration...............................................................................13

4.5 Setting APN Parameters..............................................................................................16

4.6 Timezone Configuration............................................................................................. 16

4.7 Rebooting Gateway...................................................................................................... 16

5. INSTALLATION........................................................................................................................ 17

5.1 Wall Mounting................................................................................................................17

5.2 Ceiling Mounting...........................................................................................................19

6. PACKAGE LIST........................................................................................................................ 19

7. FCC STATEMENT.................................................................................................................... 20

8. SUPPORT.................................................................................................................................. 21

1. PRODUCT OVERVIEW

1.1 Brief Introduction

G200 series gateway is a portable indoor gateway and complies with LoRaWAN™ protocol to provide

low power, stable and secure wireless connectivity for devices and sensors.

G200 adopts star topology deployment and provide WiFi, 4G or Ethernet connection to network server.

The gateway is used in a wide area of applications such as smart energy, smart cities and smart

agriculture etc.

G200 meets the network requirements of long-range communications, strong anti-interference ability,

high sensitivity and low power for many dispersed sensors to provide a low cost and high reliability

indoor IoT solution.

1.2 Features

•Low Cost

Compact and portable, easy to install, cost effective for LoRa network deployment.

•Stable Network

The legal nodes can move freely within gateway coverage.When one gateway is abnormal in the

multi-gateway

network, nodes can access network through adjacent gateway.

•Multiple Backhaul Options

Support 4G/Ethernet/WiFi which switch dynamically.

•Easy Maintenance

Support remote troubleshooting and firmware upgrades, support local connection for debugging.

2. INTERFACE AND LED

2.1 Interface

Port 1: LoRa Antenna (SMA-female) Port 2: RESET

Port 3: SIM Card Slot Port 4: Micro USB

Port 5: Ethernet (RJ45) Port 6: DC12V DC_IN

Port 7: 4G/WiFi Antenna (SMA-female)

Note :

Port 2: RESET, long press the RESET button for about 6 seconds,release it and G200 restore factory settings.

2.2 LED Status Indications

LED

Function definition

Blue and green flash every 1 second

•Normal NS connection

•Normal data forward

Red and blue flash every 1 second

•Abnormal NS connection

•Normal data forward

Red flash every 1 second

•Abnormal NS connection

•Abnormal data forward

White lights up for 1 minute

Gateway power on,system initialization

Off

Gateway is not powered on

3. SPECIFICATION

LoRa Parameters

Frequency Band

470MHz/868MHz/915MHz/923MHz

Communication

LoRaWAN, Star Network

Modulation

LoRa/FSK

Mode

Half duplex

Sensitivity

-137dBm @SF12/BW 125KHz

Transmit Power

17 dBm (Typical)

Bandwidth

125KHz/250KHz/500MHz Configurable

Uplink

Ethernet/WiFi/4G

Communication Distance

Suburban 5Km, urban 3Km

Physical

IP Grade

IP30

Size

142mm*142mm*35mm

Color

Off white

Material

PC+ABS

Input Voltage

DC12V(11.0 VDC ~ 14.0 VDC)

Installation

Desktop/Wall mount/Ceiling mount

Operating Temperature

0-60℃

Operating Humidity

0-90%RH

Heat Dissipation

Radiator grille

Hardware

Processor

MIPS 550MHz

RAM

128MB RAM

Flash

16MB

WiFi

QCA9513

Security System

System Encryption

AES128

Remote Management

Open WRT

Upgrade and Maintenance

Remote monitoring of network status

Support remote firmware upgrade, configuration backup

and recovery

4. CONFIGURATION

G200 provides a friendly and easy way to configure network parameters and LoRa parameters. After the

configuration/modification is completed, you need to click the Save & Apply button at the bottom right of

the page. After all the configuration/modifications are completed, you need to restart the gateway to take

effect.

4.1 Getting Started

Please follow the steps below to log in:

Step 1: Search AP ELI-G200-XXXXXX(XXXXXX is the last six hex number of G200 MAC) for G200, password：

easylinkin，click to connect.

Step 2: If connection is successful, open browser (recommend IE browser) and input IP

address:192.168.3.1

Step 3: After entering login page, input username and password. Then enter the overview page as shown

below.

Username: admin (default) Password: admin default)

Status, System, Service, Network, Apn, LoRa and Logout tabs are displayed at the top of the page. If you

want to change the initial login password, please click System-Administration then input the new

password and click Save & Apply button.

4.2 Modifying Network Parameters

Please follow below steps to modify network parameters:

Step1: Click Network-Interface, Ethernet and WiFi configuration can be found in this page.

Step 2: Click WAN-Edit, the General Setup (Ethernet static IP configuration or DHCP configuration) can be

modified. The default configuration is DHCP mode.

Step 3: Use gateway metric need to be set 5 in DHCP mode.

Step 4: Set up static IP address.

Step 5: Click Save and Apply button to make the changes take effect.

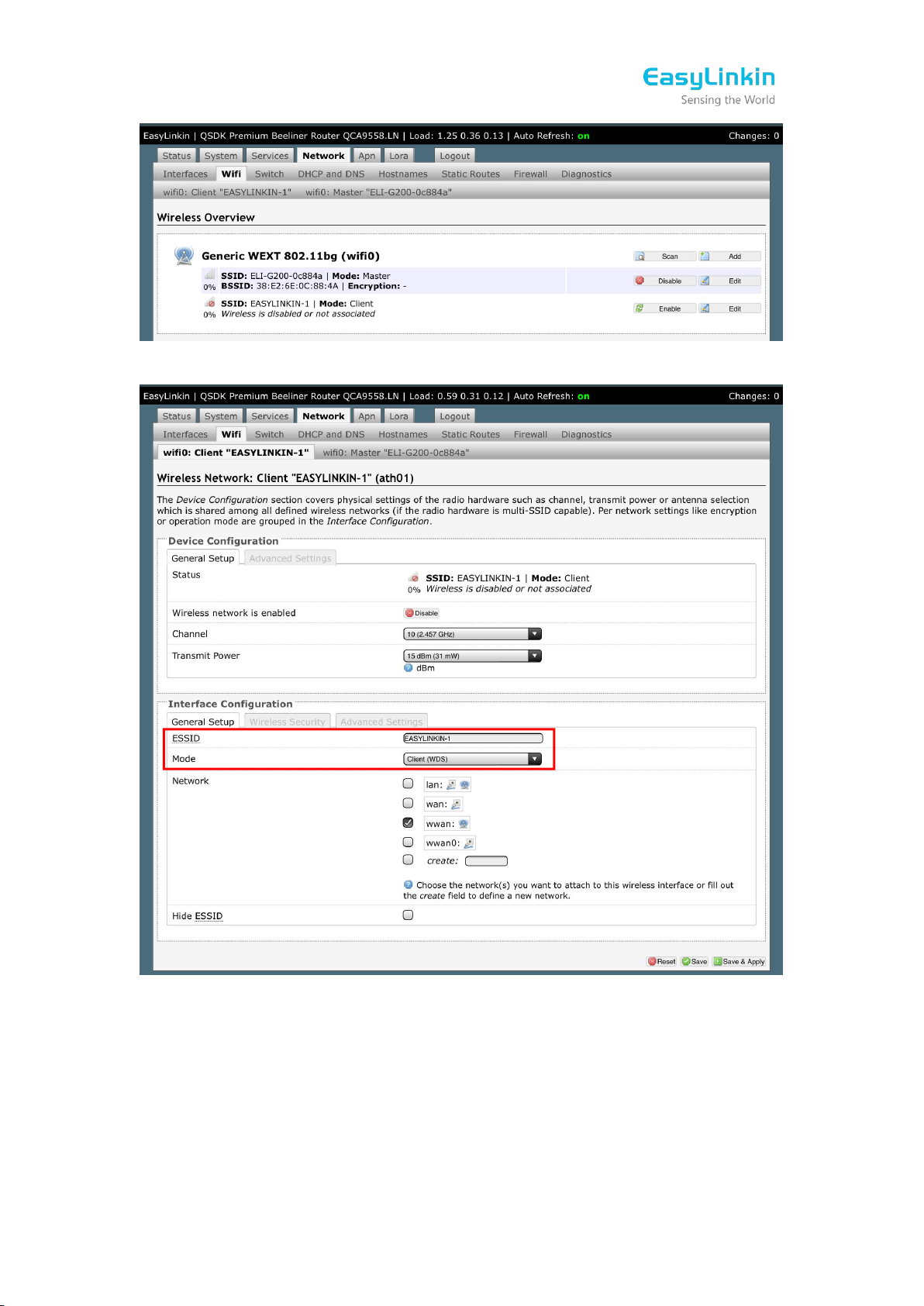

Step 6: Click Network- WiFi to enter the WiFi configuration page, there are two methods to configure WiFi.

① Click Edit in the Client mode, set the ESSID of the AP to be connected, and choose Client（WDS）mode.

② Click the Scan button, and a list of available WiFi networks will appear. After selecting one to join, click

the submit button to enter the WiFi configuration interface, and select Client (WDS) in the Mode

drop-down box.

Step 7: Click Wireless Security, enter key, then click Save & Apply waiting for connecting.

Step 8: If WiFi configuration is done, the AP connected can be displayed in Wireless Overview in WiFi page.

Note:

The Master mode is only used by technicians, so please do not do any modification under this mode.

4.3 Modifying LoRa Parameters

Please follow below steps to modify LoRa parameters:

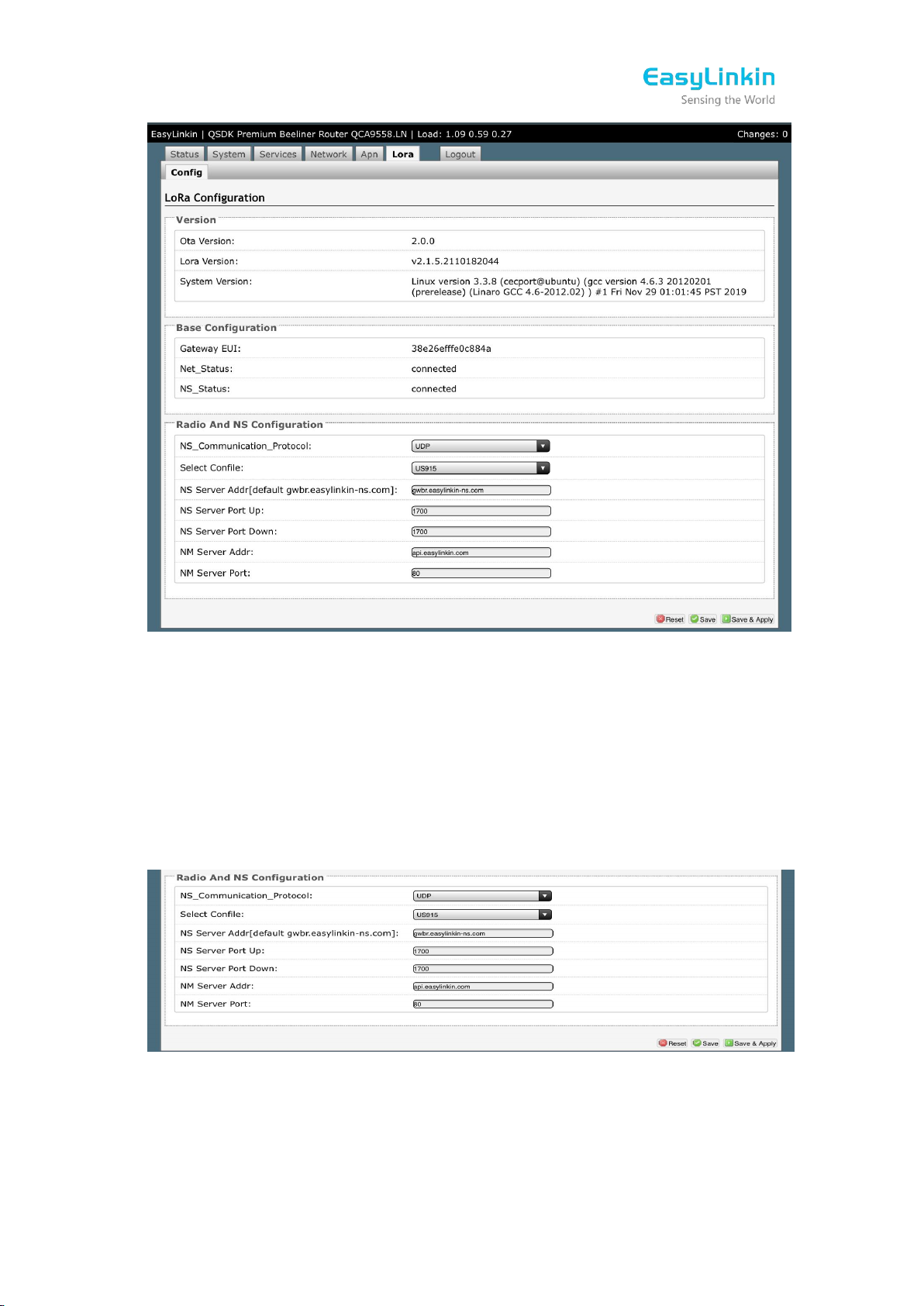

Step1: Click LoRa in the tab and enter LoRa configuration page, which is composed of three parts: Version,

Base Configuration, Radio And NS Server Configuration.

Step 2: Gateway EUI, network connection and NS connection status can be shown in Base Configuration.

Step 3: In Radio And NS Configuration,UDP and MQTT communication modes are supported and different

LoRa frequency band can be chosen.

In UDP mode, you can select the actual Lora band from the drop-down menu, and configure the NS Server

addr (default: gwbr.easylinkin-ns.com ), NS Server Port up(default:1700)，NS Server Port down(default:1700，

NM Server Addr(default: api.easylink.com）, and NM Server Port（default:80 )

In MQTT mode, you can configure the information of the MQTT proxy server. MQTT protbuf_coding_method

is true for protobuf encoding and false for JSON encoding.

After configuration, click the Save & Apply button in the bottom right of the page.

Note:

Only UDP mode can configure ns server addr, and mqtt does not have this configuration item;

4.4 LoRa Customized Configuration

Step 1: Click Select Confile, select CUSTOMIZE, following information pop up .

UDP mode:

MQTT mode:

Step 2: Users can customize frequency, heartbeat packet period and status packet period of the NS

server according to actual needs.

Step 3: After configuration, click Save & Apply button.

4.5 Setting APN Parameters

Click Apn in the tab and set Apn name, User name and Password of the SIM card in below window.

4.6 Timezone Configuration

Step 1: Click System->System and enter System configuration page.

Step 2: Select corresponding time zone as needed.

Step 3: After configuration, click Save & Apply button.

4.7 Rebooting Gateway

After all configurations/modifications are completed, select System->Reboot, and click the Perform reboot

button to restart the gateway. All configurations/modifications will take effect after the gateway restarts.

5. INSTALLATION

There are three installation methods of G200 gateway:

•Desktop: Put the gateway on a table and then adjust antenna direction accordingly, which is suitable

for temporary demonstration and debugging.

•Wall mounting: Install the gateway on the wall through expansion pipes and screws and then

adjust antenna direction accordingly.

•Ceiling mounting: Fix the gateway on the ceiling with expansion pipes and screws and then adjust

antenna direction accordingly.

5.1 Wall Mounting

Install gateway bracket:

Step 1:Select installation position on wall and mark the locations of the screw holes.

Step 2: Drill holes (Φ5) in the wall and plug in plastic extension pipes (PA4.0*30mm), then place the gateway

bracket onto the marked location with holes aligned.

Step 3: Tighten the screws.

Place gateway into bracket:

Step 1: Connect WiFi/LoRa antennas.

Step 2: Connect power adapter, connect Ethernet cable or insert SIM card. When the gateway is power on,

check the LED status. Make sure the gateway is working normally.

Step 3: Place gateway hook in the to the bracket grooves, push the gateway upward ( in a direction shown

with a blue arrow ) and lock it to the racket.
