EasyPro Vianti Falls HB11K User manual

Installation Manual
Thank you for your purchase of the Vianti Falls system from EasyPro. Please read through
all instructions before beginning assembly of your Vianti Falls system. Be sure that all
components are included before assembly.
HB11K • HB11KB • HB11KW • HB11KEX • HB11KBEX • HB11KWEX
by
Vianti Falls Kit Parts List
29" Rectangle Basin (24" x 291/2" x 131/2"h) 1 - RBH29
Vianti Falls Spillway 1 – SSS11 or 1 - SSS611 (single inlet)
Pump 1 – EP850 (3 yr. warranty, 16' cord)
LED Light (15' cord) with 10 watt transformer HB11K (EX) (No light)
HB11KB (EX) – LED11CB (blue light)
HB11KW (EX)– LED11WW (white light)
1" Flexible black PVC pipe 6'
Pump discharge assembly with ball valve 1
PVC Glue – 4 oz 1
1" PVC male adaptor (mpt x slip) 1
1" PVC 90 deg elbow (slip x slip) 1
3/4" Bulkhead tting 1
3/4" Swivel Fitting (fht x mpt) 1
3/4" x 1" Reducing Male Adapter (mpt x slp) 1
Mag Drive Pump
1" 90º PVC
Elbow
Pump Discharge
Assembly
3/4" Bulkhead
Fitting
LED Light Strip with Transformer
Flexible PVC
Basin with Splash Mat Spillway - 2" or 6" lip
Reducing Male
Adapter
1" PVC Male
Adapter
3/4" Swivel
Fitting

4

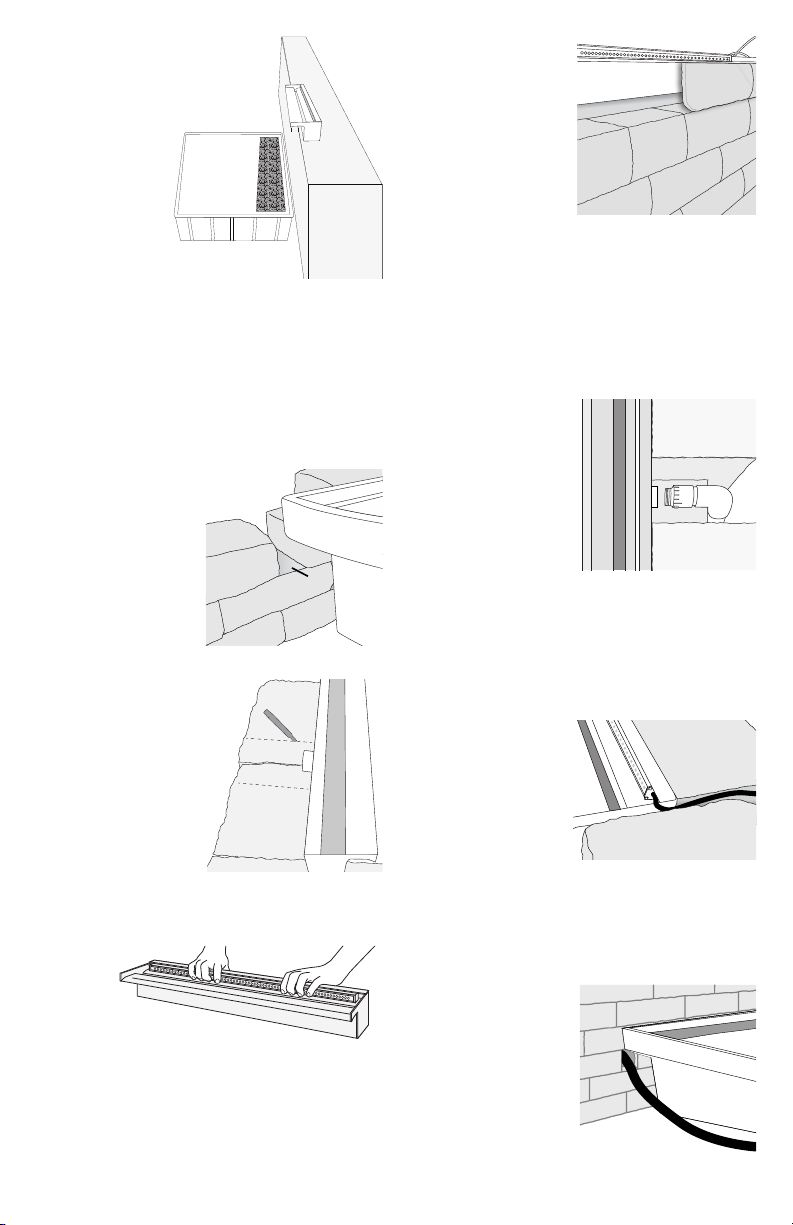

If the
lighting
option is
purchased
the LED light
strip can be tted into the
back of the spillway. There are brackets on the
ends of the light bars with holes in them.
These brackets are for other applications.
The LED light bar should t snuggly into the
back of the spillway. If necessary, a small
amount of silicone can be used as an adhesive
to hold the bar in place.
1
Determine the
placement of
the Vianti Falls
system. Prepare
the base for
the 24" x 291/2"
basin by properly
compacting
and leveling the
area. The Vianti
Falls spillway
is designed
to be placed
approximately
12" to 30" above the basin. The center of the
spillway and the basin must be aligned. The
spillway must be positioned in the wall to allow
for the lip to protrude past the wall at least
11/4" (assuming the wall is plumb). This is to
ensure water will land in the 6" x 19" splash mat
included with the basin.
2
When building
the block wall,
a section of wall
must be left out
to accommodate
the plumbing and
electrical cord for the
pump.
Holefor
Plumbing
andPump
PowerCord
3
Once the spillway
placement has
been determined in the
block wall, the block
will need to be cut to
allow for the plumbing
connections on the
back of the spillway.
Use appropriate tools
and extreme care when
cutting block. Consult
block manufacturer recommendations for
properly cutting block being used.
5 The block that
goes around the
spillway will need
to be cut to ensure
proper leveling and
look of the spillway
in the wall. The type
of block being used
will determined the
methods used. A lentil
may be required for longer spillways or in walls
that would require additional weight bearing
support. Consult a qualied professional for
specic installation requirements and codes.
The spillway should be “dry t” to ensure the
spillway is level from side to side and front to back.
6
Once the spillway
is level and “dry t”
the plumbing can now
be tted. Use the 1"
PVC male adaptor and
the ttings provided
to connect spillway to
the exible PVC pipe.
Wrap the threads of the
PVC male adaptor with
Teon tape and thread into the spillway inlet(s).
Determine the placement of additional ttings
(elbows, tees, and extra pipe). Cut and glue all
the pieces together to t the application.
7
The cord for the
LED light strip can
be tucked into the
notch in the spillway.
A dab of silicone
should be used to seal
the notch on opposing
side. Tuck the cord
between the blocks to run the cord to the power
source.
8
Run the 1" black
exible PVC through
the hole previously
provided in the block
wall. Carefully measure
and cut PVC pipe to
proper length. Take
extra care to verify the
spillway has remained
in its level position
while measuring and cutting the pipe.
11/4"
Splash
Mat

12
After making sure all plumbing ttings
are properly installed, ll the basin with
water. Install basin supports and lid according
to basin assembly instructions. The spillway
should be tested for proper operation when
the wall construction allows. Before nal wall
installation and covering the basin with rock, the
proper ow of the waterfall should be adjusted
(if needed) with the ball valve on the pump
discharge assembly.
Teon is a registered trademark of DuPont.
9
Assemble the
pump discharge
assembly into the
3/4" bulkhead tting
in the side of the
basin. Make sure
the bulkhead is
installed so the rubber gasket is inside the tub
and the nut with the plastic washer is outside
the tub. Take care not to cross thread or over
tighten the pump outlet assembly. Since this
connection should always be below water,
Teon tape and over tightening is not required.
10
Install the
3/4" swivel
tting onto the
pump then carefully
lower the pump into
the basin. Connect
the pump discharge
assembly with the
3/4" swivel tting and ensure all connections are
snug.
11
Install
reducing
male adaptor in
bulkhead tting on
outside of basin.
Wrap male threads
of tting with
Teon tape. Before
gluing black exible PVC pipe verify all ttings
are tight. Place basin into position, cut the
black exible PVC pipe to length and glue into
reducing male adaptor.
13
Once proper
adjustment
of the spillway has
be determined, put
the pump cover in
place. The power
cord for the pump
can run through
the notch in the pump cover. The pump cover
can be placed in position as shown or reversed.
Place the splash mat underneath the waterfall.
14
Finish
construction
of the block wall
and any other
decorative stone
covering the basin.
Be sure to leave
rock o the area
of the splash mat
on the basin where
the water naturally wants to fall. This will reduce
splash and help retain water in the basin.
Care:
The water used in the Vianti Falls system can be treated with EasyPro All-Season
Bacteria and EasyPro Barley Straw Extract to help prevent odors and keep the water
clear. A liquid algaecide such as Pond Care’s Algae Fix or Microbe-Lift’s Algaway 5.4 can
also be used. Use of chlorine is not recommended, as this may have negative impact on
the submersible pump parts.
If water ow appears to be less than normal, water may need to be added to the basin
(bubbles in the waterfall typically indicate low water in the basin). A physical inspection
of the pump may be necessary. Clean o any debris that may have accumulated on the
pump housing or inside the pump. Consult instructions of pump for more information.
Do not run pump dry.
Staining on the spillway should not be an issue. Surface staining can often be remedied
with baking soda and lime juice application or non-abrasive products such as Bar
Keepers Friend. Be sure to follow manufacturer’s directions and keep product from
entering water with sh and plants.
Should the splash mat need to be replaced, contact your local EasyPro dealer to
purchase replacement (part #HB11KM - 6" x 19" black splash mat).

800-448-3873 • Grant, Michigan • www.easypro.com
5636 • 10/19
Winterization:
In freezing climates the pump will need to be removed from the basin in the winter.
The basin typically does not need to be drained completely in the winter, but in certain
climates this may be recommended.
The water level in the basin should be lowered below the outgoing bulkhead tting.
The stainless steel spillway does not need to be removed for the winter. Water naturally
drains from the spillway when the pump is not in use.
EasyPro Pond Products Limited Warranty
EasyPro Pond Products (“EasyPro”) warrants to the purchaser that this product (“Product”) will
be free from any mechanical or material defects for a period of:
Vianti Falls Stainless Steel Spillway: three years from the date of purchase
Basin: ten years from the date of purchase.
(tub only)
LED Light Strip – three
years from the date of purchase.
Pump – three years from the date of purchase (see pump owners manual for details)
Splash mat, pump cover and additional pre-installed ttings are considered wearable items and
are not covered by this warranty. This warranty only covers properly installed and maintained
Products sold by authorized EasyPro Sellers who are subject to and follow EasyPro’s quality
control standards. Please note that because EasyPro is unable to control the quality of Products
sold by unauthorized sellers, unless otherwise prohibited by law, this warranty does not cover
Products purchased from unauthorized sellers.
This warranty does not cover normal wear and tear, nor any deterioration suered through
overloading, improper use, negligence, improper installation, acts of God or accident. Similarly,
any modication made by the purchaser to the Product will cause the warranty to be null and
void. This warranty does not cover any cost associated with the installation or removal of the
Product subject to a warranty claim.
All returned items will be inspected to determine cause of failure before a warranty claim is
approved. The exclusive remedies provided hereunder shall, upon EasyPro’s inspection and
option, be either repair or replacement of the Product or parts covered under this warranty.
Making a Claim: A Return Authorization (“RA”) number must rst be obtained by calling EasyPro
at 800-448-3873 or via email at [email protected]. It is the purchaser’s responsibility to pay
the return shipping charges. Be sure to include the RA number, original receipt (in the form of an
invoice or sales receipt), your name, your return address and your phone number inside of the
package. No warranty claims will be honored without the original receipt that shows that your
purchase was made from an Authorized EasyPro Seller. Ensure the product is properly packaged
and insured for the replacement value. Damage due to improper packaging is the responsibility
of the sender.
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING MERCHANTABILITY OF FITNESS FOR A
PARTICULAR PURPOSE ARE HEAREBY LIMITED IN DURATION TO THE DURATION OF THE WARRANTY AS
DESCRIBED ABOVE. Some States do not allow limitations on how long an implied warranty lasts, so the above
limitations may not apply to you.
EasyPro shall not be held liable for any damages caused by defective components or materials of this
Product; or for loss incurred because of the interruption of service; or any consequential/incidental damages
and expenses arising from the production, sale, use or misuse of this Product. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
EasyPro shall not be held liable for any loss of sh, plants or any other livestock as a result of any failure or
defect of this Product. This warranty gives you specic legal rights, and you may also have other rights that
vary from State to State.
