EasyStand Glider User manual

Owner’s Manual
Glider

800.342.8968 www.easystand.com

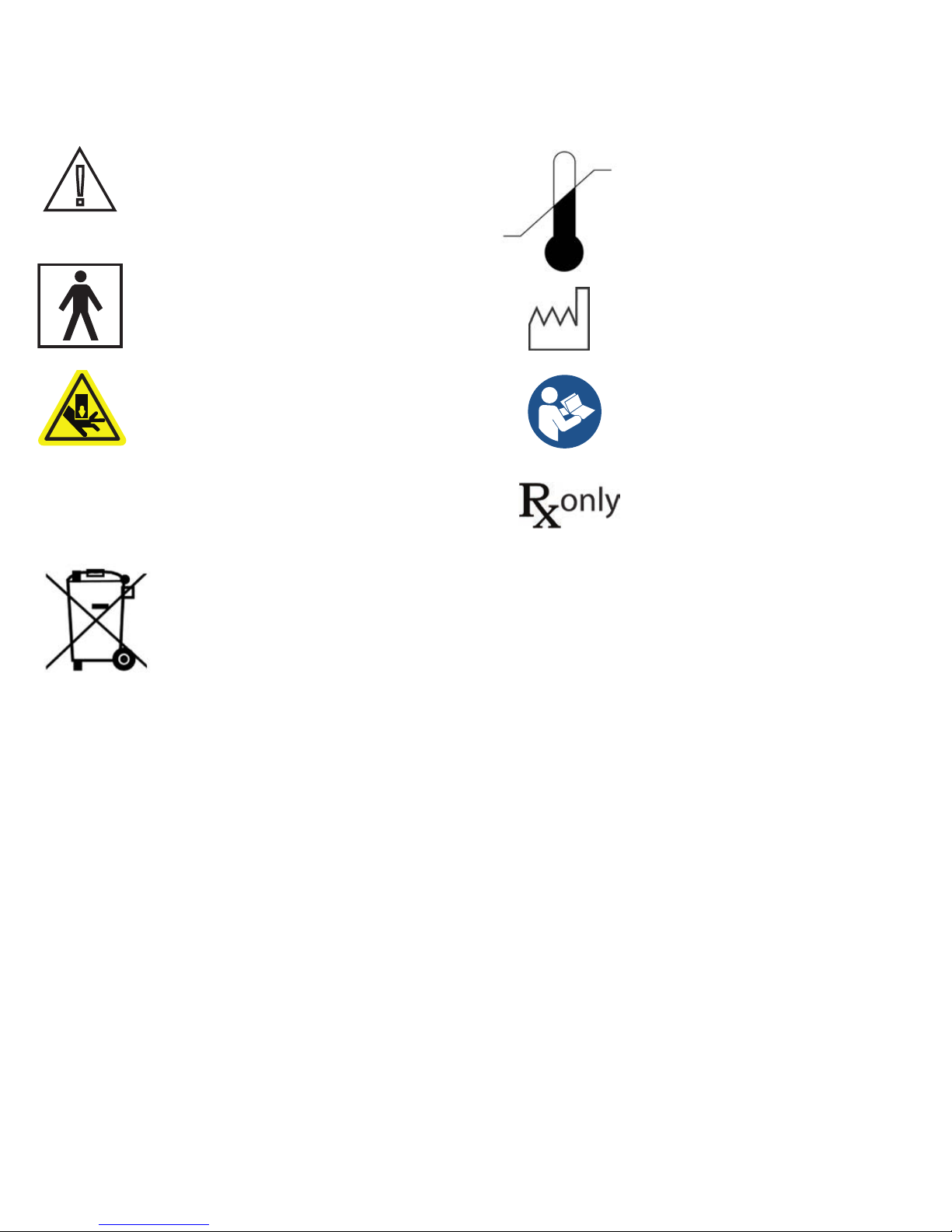

SYMBOL LEGEND
!CAUTION/ATTENTION
PINCH POINT
SERIAL NUMBER
SN
ENVIRONMENTAL
CONDITIONS
DATE OF MANUFACTURE
Please be environmentally responsible and recycle this product through your recycling facility at its end of
life.
Afin de préserver l’environnement, veuillez confier ce produit à votre centre de recyclage à la fin de sa
durée de vie.
Nachdem dieses Produkt ausgedient hat, entsorgen Sie es bitte auf umweltfreundliche Weise, indem Sie es zu der
entsprechenden Recyclingstelle bringen.
Wees a.u.b. milieubewust en recycleer dit product via uw recycleerder na het verstrijken van de levensduur.
Sea responsable con respecto al medio ambiente y recicle este producto al finalizar su vida útil en el lugar de reciclaje
correspondiente.
Siate responsabili verso l’ambiente e riciclate questo prodotto, al termine della sua vita d’uso, presso la vostra sede di
riciclaggio.
Kierrätä tämä tuote sen käyttöiän lopussa ympäristövastuullisella tavalla paikallisella kierrätyslaitoksella.
Var miljömedveten och återvinn denna produkt efter dess användning.
Vi ber deg ta hensyn til miljøet og resyklere dette produktet ved hjelp av de rette resykleringsfasilitetene når produktet
ikke lenger kan brukes.
Vis venligst hensyn til miljøet ved at levere produktet til det nærmeste genbrugsanlæg, når det ikke længere fungerer.
Por favor, assuma responsabilidade ambiental, reciclando este produto em suas instalações de reciclagem no final de
sua vida útil.
SEE INSTRUCTIONS FOR USE
TYPE BF APPLIED PART
PRESCRIBED FOR USE

Introduction .............................1
Safety Precautions ........................ 2
EasyStand Glider Assembly ................. 3
Adjustments ............................ 4
Options Assembly ........................ 5
Pow’r Up Lift Option ..................... 11
Adjusting Your Glider .....................16
Glider Options & Parts Detail ............... 17
Perfect Fit Guide ........................ 19
Transferring ............................ 20
Standing............................... 21
Maintenance ............................22
Troubleshooting .........................23
Limited Warranty ....................... .24
Videos on assembly & fitting can be viewed at www.easystand.com/videos
Date Purchased Serial #

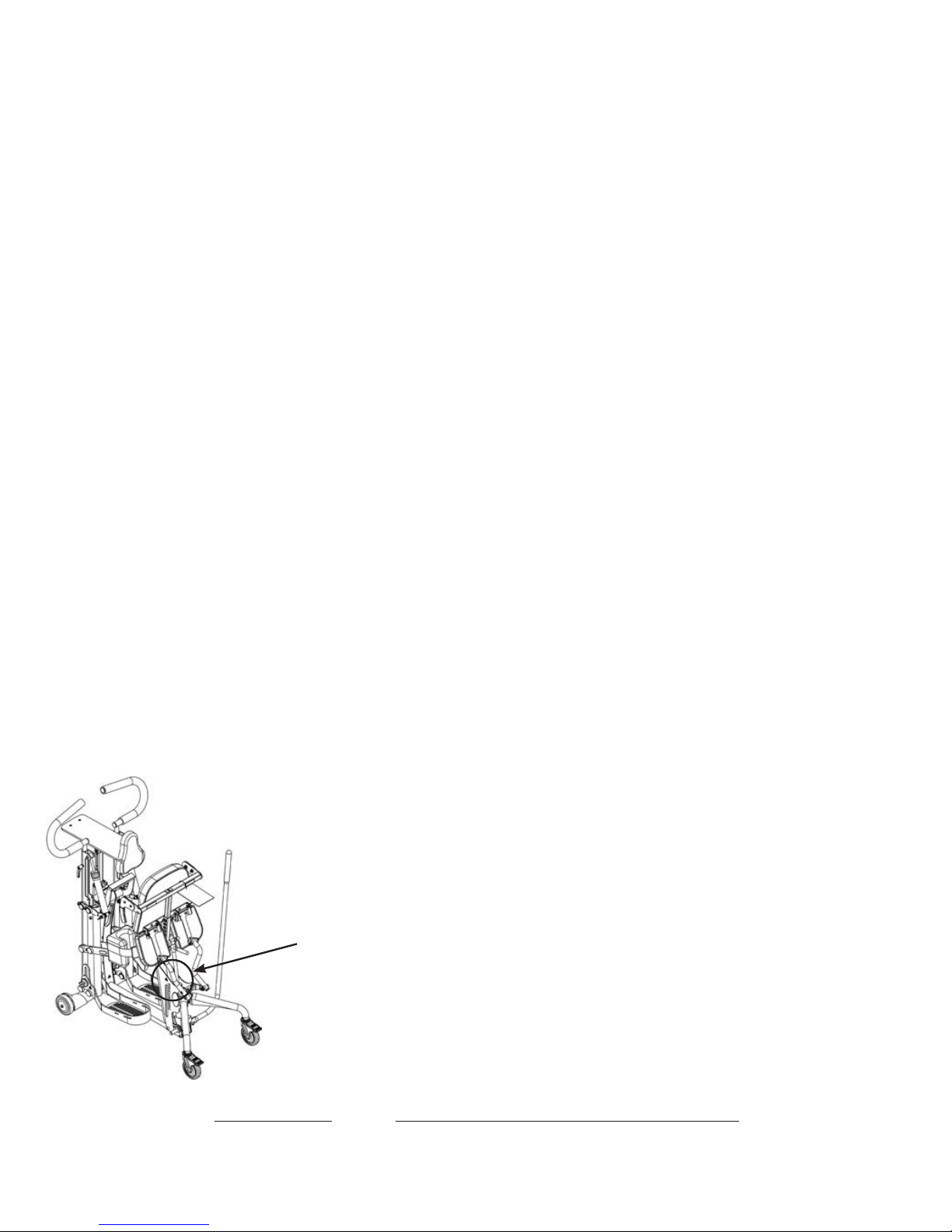

Note: The serial number is located under the seat in the seat column.
Table of Contents

Congratulations on your purchase of an EasyStand standing frame. We at Altimate Medical have
designed the EasyStand with your comfort and happiness in mind.
EasyStand Description
The EasyStand line of products is intended for individuals who are able to transfer independently or with
assistance from a caregiver and/or lifting device. It is a useful tool for rehabilitation, home, school, and
work use. EasyStand standing frames support the user from sitting to the standing position. Various
options such as support, choice of manual or Pow’r Up Lift may be added to facilitate individual needs.
Indications for Use
The EasyStand Glider line of products is intended to assist individuals who have difficulty rising from a
seated position to a standing position and is indicated for individuals weighing up to 200 lbs. (Medium),
280 lbs. (Large).
This manual is an integral part of your standing system and should be read completely and
thoroughly by anyone that will be operating the unit. This will ensure the EasyStand is assembled
properly and used in the most beneficial manner.
Altimate Medical recommends that an attendant be present when the EasyStand is being used. Should
any problem arise that you cannot solve by reading this manual, please contact your local supplier or
call Atimate Medical, Inc., at 800-342-8968 or 507-697-6393.
It is necessary that you inspect your EasyStand Glider at least weekly to ensure it is in safe
operating condition. EasyStand adjustments that are listed in the product owner’s manual can be
made by the operator by following the instructions for use. After an adjustment is made, inspect the
EasyStand to ensure all hardware and adjustable components are properly secured per the instructions
for use. Replacement of worn parts, major adjustments, or any other important corrections should be
handled by an authorized supplier or service center. Only Altimate Medical, Inc. approved replacement
parts should be used to ensure safety and performance.
Do not use the EasyStand without consulting your physician. Failure to consult a qualified
physician prior to using the EasyStand could lead to severe medical problems. We recommend
that a good standing program be established and supervised by a qualified physician or physical
therapist.
Join the Standing Community!
Our goal is simple - to empower people with disabilities to stand up for their health. Connect, share, and
learn from other people with disabilities, special needs parents, clinical professionals, and the experts in
standing on one of our social networking communities. By keeping your standing program “top of mind”
you will have the greatest chance of maintaining a standing routine that maximizes all the benefits of
standing!
Read, share, and comment on the EasyStand Blog at blog.easystand.com
Find EasyStand on these social networking sites:
Introduction
Page 1 - Introduction

Safety Precautions
• If a user does not meet these specifications and has not been properly fitted by a qualified therapist or physician, Altimate
Medical, Inc., does not recommend using the EasyStand.
Glider Medium - is designed to accommodate most individuals from 4’0”-5’6” (122-168cm) and up to 200 lbs. (90 kg)
Glider Large - is designed to accommodate most individuals from 5’0”-6’2” (152-188cm) and up to 280 lbs. (127 kg)
For more detailed specifications visit our website www.easystand.com
• Altimate Medical, Inc., recommends consulting with a therapist or physician prior to starting a standing program.
• Check the EasyStand periodically ensure that all nuts, bolts and adjustable parts are tightened securely.
• Never make adjustments to the EasyStand while a user is in the standing position.
• Never reposition the foot plates while a user is in the standing position. Consult with a therapist or physician for proper foot
placement and angle.
• It is necessary to inspect the EasyStand Glider at least weekly to ensure it is in safe operating condition. Pay particular attention for
loose hardware. If the EasyStand is equipped with the optional Pow’r up lift please inspect the electrical cables for any wear and to
ensure they are attached properly. Replacement of worn parts, major adjustments, or any other important corrections should be
handled by an authorized dealer or service center. Only Altimate Medical, Inc., approved replacement parts should be used to ensure
safety and performance.
• If the EasyStand is being used in the home environment, please inspect the unit prior to each use to ensure there is no damage or
unexpected wear to the EasyStand that may have been caused unintentionally by pets, pests or children.
• If the unit was exposed to temperatures of less than 50˚F (10˚C), the unit must warm to room temperature before use.
• Operating Conditions: Temperature: 41˚F (5˚C) -104˚F (40˚C), Relative humidity: 20% - 90% at 86˚F (30˚C), Atmospheric
Pressure: 700 to 1060hPa.
• Storage/Transport Conditions: Temperature: 14˚F (-10˚C) -122˚F (50˚C), Relative humidity: 20% - 90% at 86˚F (30˚C),
Atmospheric Pressure: 700 to 1060hPa.
• The EasyStand can be used at a maximum altitude of 3,050 meters (10,000 feet).
• The expected service life of an EasyStand is considered 5 years under normal use conditions. Note: This may vary based upon use.
• Use body weight to lower the seat. Do not use excessive force.
• The EasyStand is for indoor use on level surfaces only.
• Violently thrusting in the EasyStand may cause it to tip.
• Always put the rear casters and/or wheels in the locked position before transferring into the EasyStand. Use these locks to keep the
EasyStand stationary.
• The EasyStand Glider meets EN12182:1999 (test standard) for strength, durability and tipping stability.
• Please contact Altimate Medical, Inc., for relevant clinical data and literature, strength, durability and test results as applicable.
• The EasyStand Glider Electric Lift meets the requirements of IEC 60601-1 and 60601-2.*
• Altimate Medical products are specifically designed to be used with Altimate Medical accessories and options. Unless otherwise
noted, accessories and options from other manufacturers have not been tested by Altimate Medical and are not recommended for
use with Altimate Medical products.
• Product Modifications made without express written consent (including, but not limited to, modification through the use of
unauthorized parts or attachments) are not recommended and will void the product warranty.
Caution: This equipment is designed to accommodate a range of users; therefore the unit has various adjustment slots and holes.
Avoid placing fingers or other body parts in any of these areas.
Caution: While in use this equipment has various moving parts, familiarize yourself with your unit and avoid placing hands or fingers
near any of these areas.
Caution: Advise bystanders to keep clear of the unit while in use.
* Pow’r Up Lift Option Only
!
!
!
Safety Precautions - Page 2

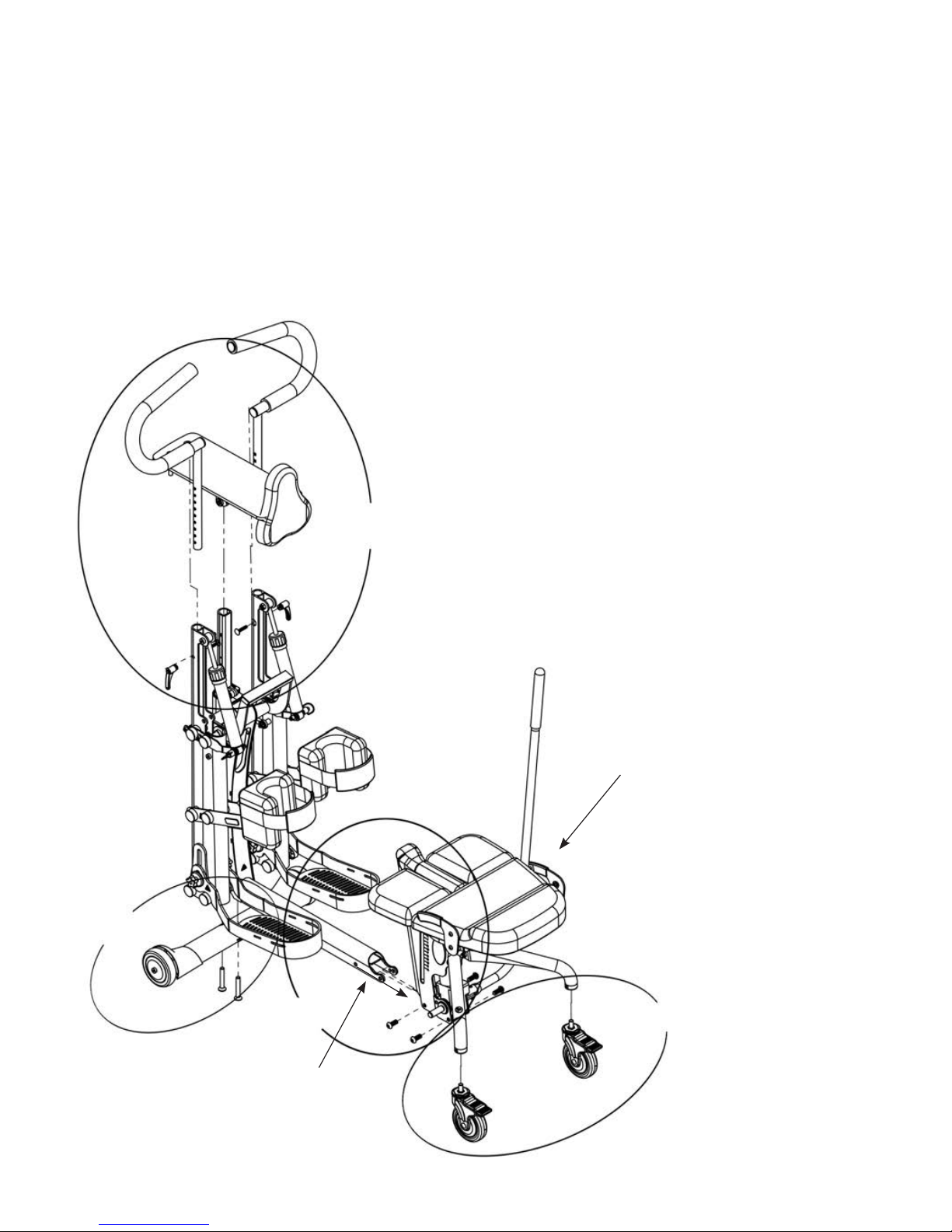

EasyStand Glider Assembly
FIG. 4
FIG. 1
FIG. 1- For International orders only: Attach the front caster
frame to the front frame with bolts and tighten securely.
FIG. 2- Attach the casters to the rear base frame. Tighten
securely using the provided wrench. Ensure the casters are
flush with the rear base frame. The casters are supplied with
a locking compound pre-applied to the threaded stem. Do not
remove this material, it is important to prevent the casters
from loosening over time.
FIG. 3- Place the front frame and the seat assembly on its
side, slide the front frame into the opening of the seat assem-
bly as shown. Line up holes and insert all four bolts first, then
place nuts onto bolts and tighten securely with hex wrench
and 19mm open-ended wrench. Place unit upright on its
wheels.
FIG. 4- Remove the ratchet handles and bolts from the glide
handles, slide the glide handles into the slots. Tighten secure-
ly. If any additional options were ordered, please refer to the
drawings on pp. 5-10. Install the seat onto the seat assembly
after all other options are added.
Front Frame
Seat Assembly
®®
Videos on EasyStand assembly & fitting can be viewed at www.easystand.com/videos
Page 3 - Assembly
FIG. 3 FIG. 2

FIG. 3- To adjust the height of the glide handles, loosen ratchet clamps. Adjust the handles to the
user’s desired position and tighten the clamps securely.
The resistance cylinders are individually adjustable to provide eleven different resistance settings. Turn
the cap of the cylinders to the desired resistance. The resistance cylinders can also be disconnected
by disengaging the pull pin.
FIG. 4- Adjust the foot plates by loosening the two knobs on each foot plate (for easier access to the
inside knob, swing the leg assembly forward), so the user’s knees are centered in the knee pads and
the femur is resting on the seat. Tighten securely.
Caution: Never reposition the foot plates while a user is in the standing position.
Caution: Avoid placing fingers in the adjustment slot.
FIG. 5- Often, proper fit can be achieved by adjusting the foot plate height. When necessary, the knee
pads are independently adjustable with five adjustments. To adjust the knee pads, remove the hex key
bolts from the knee pads and adjust to the desired position. Replace the bolts and tighten securely.
FIG. 6- Before transferring, flip up the knee pads to allow easier access.
Caution: Never make adjustments to the EasyStand while a user is in the standing position.
Caution: While using the Glider, advise bystanders to keep hands and feet clear of the Glider
mechanism.
Caution: While using the Glider, keep hands clear of the resistance cylinders’ upper and lower
mounting points.
FIG. 3 FIG. 5
Adjustments
FIG. 6
!
!
!
FIG. 4
Adjustments - Page 4
!
!

Removable Back Option
PNG50171, PNG50172,
PNG50173, PNG50174
To attach the Removable Back to the
unit, slide the back assembly into the
seat assembly as shown. Insert
hardware into back tubes with tabs
facing upward and toward the back.
Tighten securely with knobs provided.
NOTE: Make sure
hardware is placed
into back as shown.
Back Option
PNG50062, PNG50066,
PNG50067, PNG50068
To assemble your back option, slide
the back assembly into the seat
assembly as shown. Tighten secure-
ly with bolts provided, then add the
swing-away arms. Remove the nut
from the arm. Place the arm onto
the unit keeping the arm assembly
together. Place nut onto bolt on the
inside of the unit. Tighten securely.
Option Assembly
Page 5 - Option Assembly

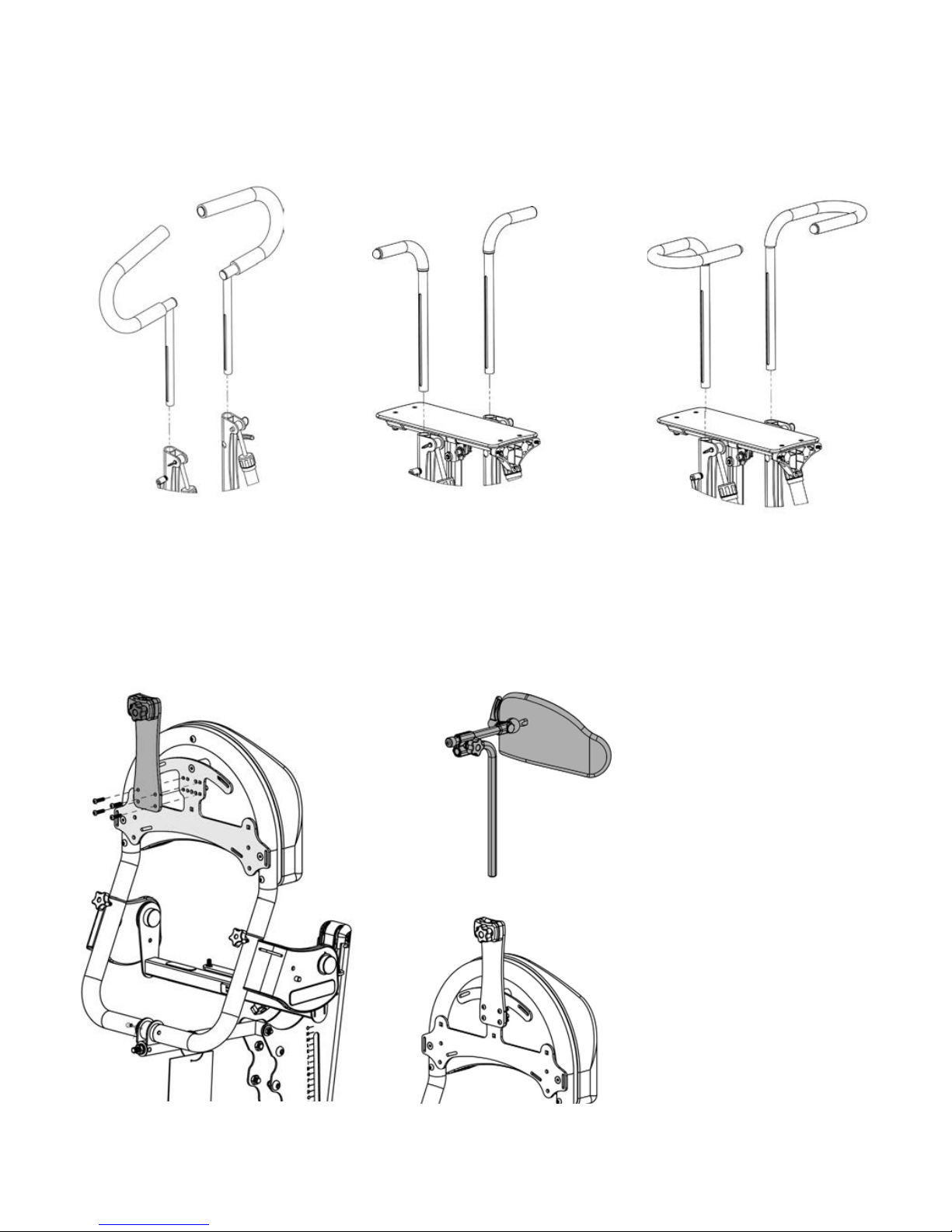

Glide Handles
PNG10177
(Medium only)
Glide Handle Extensions
PNG50251
(Medium only)
Glide Handles
Left Side-PNG10194
Right Side-PNG10196
(Large only)
Head Support-Short
21”-30”H
PNG50240
Head Support-Tall
25”-34”H
PNG50037
If you ordered the high
mount chest vest bracket
see p. 9.
FIG A- Place head support
bracket onto accessories
mounting bracket as shown.
Insert 4 bolts and nuts and
tighten securely.
FIG B- Insert the head
support onto the unit and
tighten securely.
FIG A FIG B
Option Assembly - Page 6

A
B
CDE
A
Standard
Actuator
Left Handle
PNG50126
B
Standard
Actuator
Right Handle
PNG50059
C
Adjustable/
Removable Handle
Universal Left/Right
PNG50328
D
T-Style
Handle
Extension
PNG50070

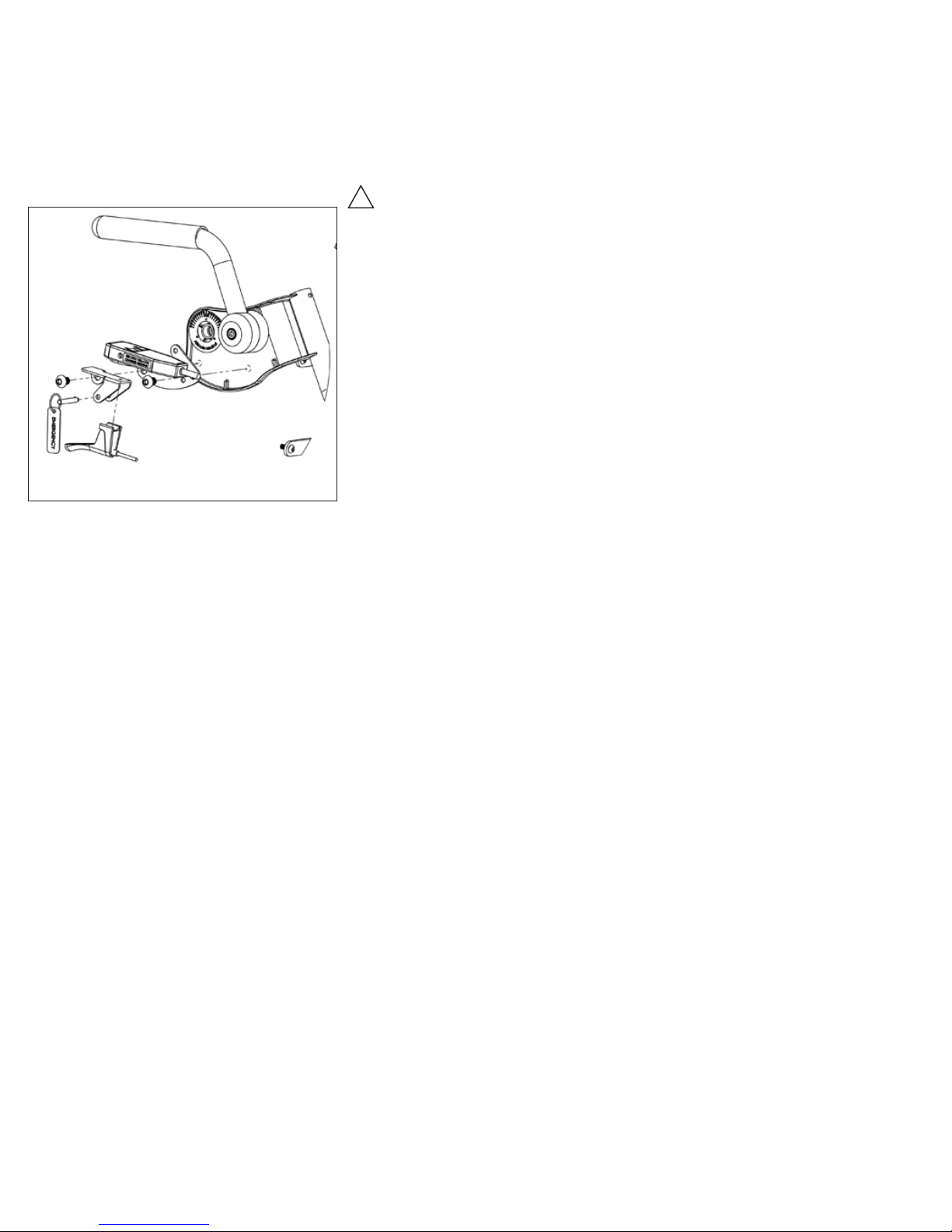

Remove the nuts and bolts from the pump handle. Insert the handle onto the
pump. Line up holes and insert bolts, place nuts onto bolts. Tighten securely.
E
Quad Grip
Handle
Extension
PNG50044
Page 7 - Option Assembly

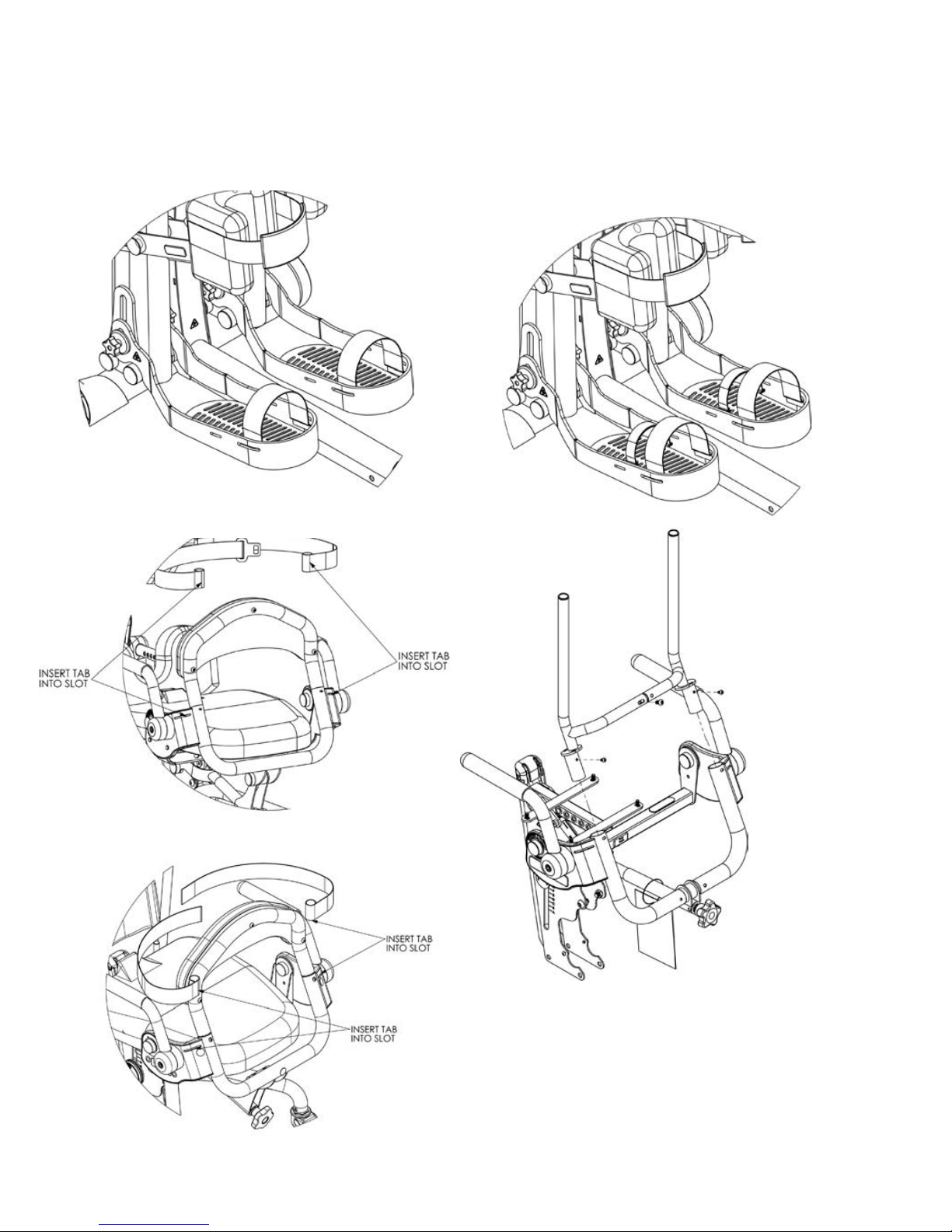

Foot Straps
PNG30030
Secure Foot
Straps
PNG30031
Airline Buckle
Hip Belt
PNG30028
Velcro Hip Belt
PNG30029
Cane Back
16”Wx21”H
PNG50492
Cane Back
18”Wx21”H
PNG50493
To assemble the cane back option,
slide the back assembly into the seat
assembly as shown. Tighten securely
with bolts provided.
Option Assembly - Page 8

Y-Style
Chest Vest
Medium-PNG30171
Large-PNG30021
X-Style
Chest Vest
Medium-PNG30170
Large-PNG30056
Chest Strap
Small-PNG50192
Large-PNG50193
High Mount Chest
Vest Bracket
PNG11212
High Mount Chest Vest Bracket
with Head Support Bracket
If you ordered the high mount chest vest bracket
and head support, place the head support
bracket and the high mount chest vest bracket
on the unit as shown. Insert 4 bolts and nuts
and tighten securely. See p. 6 for head support
assembly.
Page 9 - Option Assembly

Lateral Supports
12”-18”W
PNG50176
Lateral Supports
9”-15”W
PNG50224
Slide each lateral support onto notch
and knob on the accessories mounting
bracket. Tighten knobs securely.
Slide hip supports onto notch and knob under seat.
Tighten knob securely.
If adding hip supports off-unit, remove plastic plugs from top and
bottom of the seat frame.
Hip Supports
Glider Medium-PNG50345
Glider Large-PNG50374
Roho®Seat
Glider Medium-PNG50351
Glider Large-PNG50353
Option Assembly - Page 10

Charging the Battery
The EasyStand Pow’r Up Lift uses two 12 volt sealed lead batteries rated at 2.9 amps each. An
EasyStand can be lifted approximately 100 times on one full battery charge. An audible alarm will
sound when the battery is low. Please charge the battery after the alarm sounds. A battery needing
to be fully recharged will take approximately 8 hours. The EasyStand
can be raised to the standing position while being charged. The
function of the charger is to detect a full battery and then provide a
constant potential power supply to hold the battery at a full condi-
tion without overcharging. When the battery EMF rises to a factory
preset point, the charger circuit will not allow the peak output volt-
age to exceed that value. This factory setting protects a battery from
excessive depletion of electrolyte, which can occur from overcharg-
ing. The charger can be found in the tool pouch on the back of the
unit.
CAUTION: Use only the Linak charger, model numbers 00CH01-XX
OR 10CH01S-00, provided by Altimate Medical with the Pow’r Up
option.
1. Plug the receptacle into a wall outlet. The light on the charger will
be green indicating an open circuit.
2. FIG. 7- Plug the charger cord into the side of the hand control.
The light on the charger will turn yellow indicating the batteries are
being charged.
3. FIG. 8- The unit will arrive unplugged from the battery, plug in the
white cord that supplies power to the actuator and the black cord
that supplies power to the remote. The black cord has a notch on it
to orient the connector properly. Fully charge battery before use.
Note: The white cord has a rubber washer on it, which makes it
very sticky and sometimes will not get pushed in completely, make
sure to push the cord all the way into the battery.
4. When the batteries are charged, the light on the charger will turn
green.
5. Fully charge the batteries every three months or less during periods of intermittent or non-use.
CAUTION: Ensure the cables are attached properly per the instructions for use. Do not allow the
cables to drag on the floor or to catch on objects.
FIG. 7
FIG. 8
!
!
Pow’r Up Lift Option
The hand pendant
is a Type BF applied
part.
Page 11 - Pow’r Up Lift Option

FIG. 9 !
Assembly of the Hand Control
FIG. 9- Assemble the hand control as illustrated.
CAUTION: The Pow’r Up Option is not designed for
continuous use. Duty Cycle 5% Max, 1 min. / 19 min.
Raising the Lift - Press the UP (arrow up) button on the hand
control to lift the seat.
Lowering the Lift - Press the DOWN (arrow down) button on
the hand control to lower the seat.
Battery Replacement
The batteries are enclosed in the control box of the Pow’r Up
Lift (the black box where the cords are plugged in). Once the
batteries have reached the end of their life and need to be
replaced, do not open the control box; please contact Altimate
Medical Customer Service or your medical equipment dealer for
information about purchasing a replacement control box. It is
recommended that the batteries be replaced every four years.
Please contact your local recycling authority for information
about disposing of the old batteries.
IP Rating
The IP rating is a classification system indicating the protection
degree from dust, water and impact for electrical equipment
and enclosures. Pow’r Up Lift components are rated at IP21.
The definition for IP21 is as follows:
First character definition: 2 - Protected against solid foreign
objects of 12.5mm diameter and greater.
Second character definition: 1 - Protected against vertically
falling water drops.
Electromagnetic compatibility
Pow’r Up Option components have been designed and tested
to meet the applicable EMC requirements. Problems with the
EasyStand due to inadequate electromagnetic compatibility is
unlikely, however, if any unusual (such as intermittent)
behavior of the Pow’r Up option and the EasyStand is noticed
and it is being used next to possible interfering equipment such
as mobile phones, microwaves, or radio broadcast masts, this
could be an indication of electromagnetic interference. If such
behavior occurs, use the mechanical release to lower the unit
to the seated position and move the EasyStand away from the
interfering equipment. Please report any instance of
possible electromagnetic interference to AMI’s Customer
Service Department.
Pow’r Up Lift Option - Page 12

Guidance and Manufacturer’s Declaration - Electromagnetic Emissions
The Easystand Glider is intended for use in the electromagnetic environment specified below. The customer or the user
of the Easystand Glider should assure that it is used in such an environment.
Emissions Test
RF emissions CISPR 11 Group 1 The Easystand Glider uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any interference
in nearby electronic equipment.
The Easystand Glider is suitable for use in all estab-
lishments, including domestic establishments and
those directly connected to the public low-voltage
power supply network that supplies buildings used
for domestic purposes.
Compliance Electromagnetic Environment - Guidance
RF emissions CISPR 11 Class B
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/
Flicker emissions
IEC 61000-3-3
Complies
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity
The Easystand Glider is intended for use in the electromagnetic environment specified below. The customer or the
user of the Easystand Glider should assure that it is used in such an environment.
Immunity Test
Electrostatic
Discharge (ESD)
IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, concrete, or ceramic tile. If
floors are covered with synthetic material, the rela-
tive humidity should be at least 30 %.
Mains power quality should be that of a typical com-
mercial or hospital environment.
IEC 60601
Test Level
Electromagnetic Environment - Guidance
Electrical Fast
Transient/Burst
IEC 61000-4-4
± 2 kV for power
supply lines
± 1 kV for input/
output
lines
Surge
IEC 61000-4-5
± 1 kV line(s) to
line(s)
± 2 kV line(s) to
earth
Compliance
Level
± 2 kV for power
supply lines
± 1 kV for input/
output
lines
± 1 kV line(s) to
line(s)
± 2 kV line(s) to
earth
Mains power quality should be that of a
typical commercial or hospital environment.
Voltage dips, short
interruptions and
voltage variations on
power supply input
lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 s
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 s
Mains power quality should be that of a typical
commercial or hospital environment. If the user of
the Easystand Glider requires continued operation
during power mains interruptions, it is recommended
that the Easystand Glider be powered from an
uninterruptible power supply or a battery.
Power frequency
(50/60 Hz) magnetic
field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic fields should be at levels
characteristic of a typical location in a typical
commercial or hospital environment.
NOTE: UTis the a.c. mains voltage prior to application of the test level.
Page 13 - Pow’r Up Lift Option

Portable and mobile RF communications equipment
should be used no closer to any part of the Easystand
Glider, including cables, than the recommended
separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance
d= 1.2 √P
d= 1.2 √P80 MHz to 800 MHz
d= 2.3 √P800 MHz to 2.5 GHz
Where Pis the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and dis the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters, as deter-
mined by an electromagnetic site surveya, should
be less than the compliance level in each frequency
range.b
Interference may occur in the vicinity of equipment
marked with the following symbol:
Guidance and Manufacturer’s Declaration - Electromagnetic Immunity
The Easystand Glider is intended for use in the electromagnetic environment specified below. The customer or the
user of the Easystand Glider should assure that it is used in such an environment.
Immunity Test
Conducted RF
IEC 61000-4-6
3 Vrms
150 kHz to 80
MHz
3 Vrms
IEC 60601
Test Level
Electromagnetic Environment - Guidance
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects, and people.
Compliance
Level
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to 2.5
GHz
3 V/m
aField strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the Easystand Glider is used exceeds the
applicable RF compliance level above, the Easystand Glider should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as re-orienting or relocating the
Easystand Glider.
bOver the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Pow’r Up Lift Option - Page 14

Recommended separation distances between
portable and mobile RF communications equipment and the Easystand Glider
The Easystand Glider is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the Easystand Glider can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the
Easystand Glider as recommended below, according to the maximum output power of the communications
equipment.
Rated maximum output
power of transmitter
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz
Separation distance according to frequency of transmitter
d= 1.2 √P
m
d= 1.2 √Pd= 2.3 √P
.12 .12 .23
.38 .38 .73
1.2 1.2 2.3
3.8 3.8 7.3
12 12 23
W
0.01
0.1
1
10
100
NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects, and people.
For transmitters rated at a maximum output power not listed above, the recommended separation distance din meters
(m) can be estimated using the equation applicable to the frequency of the transmitter, where Pis the maximum output
power rating of the transmitter in watts (W) according to the transmitter manufacturer.
FIG. 10
!
Activating the Mechanical Emergency Release
All Altimate Medical electric lift products are equipped with a
mechanical release to be used in emergency situations.
CAUTION: Using the emergency mechanical release as the
primary means to return to the seated position can cause
damage to the unit. Only use the mechanical release in
emergency situations.
FIG. 10- The release allows the user to be lowered to a seat-
ed position in the unlikely occurrence of the battery losing
charge while the user is in a standing position. The actuator
only retracts if the release is pulled and there is weight on
the seat. The release is located on the left side of the seat
and is signified by a red tag with the word “EMERGENCY.”
1. To activate the emergency mechanical release pull out the
quick release pin located on the left side of the seat.
2. Squeeze the handle and if necessary, push down on the
seat.
Page 15 - Pow’r Up Lift Option

Adjusting - Page 16
FIG. 11
FIG. 12
Seat Depth/Back Angle
Caution: These adjustments are only to be made while the unit is in
the seated position.
FIG. 11- Loosen the knob on the seat tube located under the seat. Do
not unscrew seat depth knob all the way when adjusting the seat.
Depress the spring button and position the back so that the hip pivot
is located as close as possible to the user’s hips. Tighten the seat
depth knob securely.
Note: Adjust back angle after each seat depth position change.
FIG. 12- To adjust the back angle, use the knob located on the
following arm. Before standing, the back angle must be set so the
indicator on the side of the unit is in the green.
FIG. 13- The back/seat angle locator is located on the side of the unit.
When the unit is in the seated position, the green area indicates the
back angle. Before standing, the indicator must be in the green.
Caution: Before standing, the seat/back angle indicator must be in the
green. Failure to set the back angle in green prior to standing could
cause the unit to lock in a standing position, causing damage to your
unit.
Tray/Front Pad
FIG. 14- To adjust the height of the tray/front pad, loosen the clamp
located just above the front column. Lift the tray to the user’s desired
height level and tighten the clamp.
To adjust the depth of the tray/front pad, loosen the clamp located
just below the tray. Move the front pad to the user’s desired position
and tighten the clamp.
Caution: While lowering the tray height, keep hands clear of the area
underneath the tray.
!
FIG. 13
FIG. 14
!
Green Area
!
Adjusting Your Glider®

Page 17 - Options & Part Detail

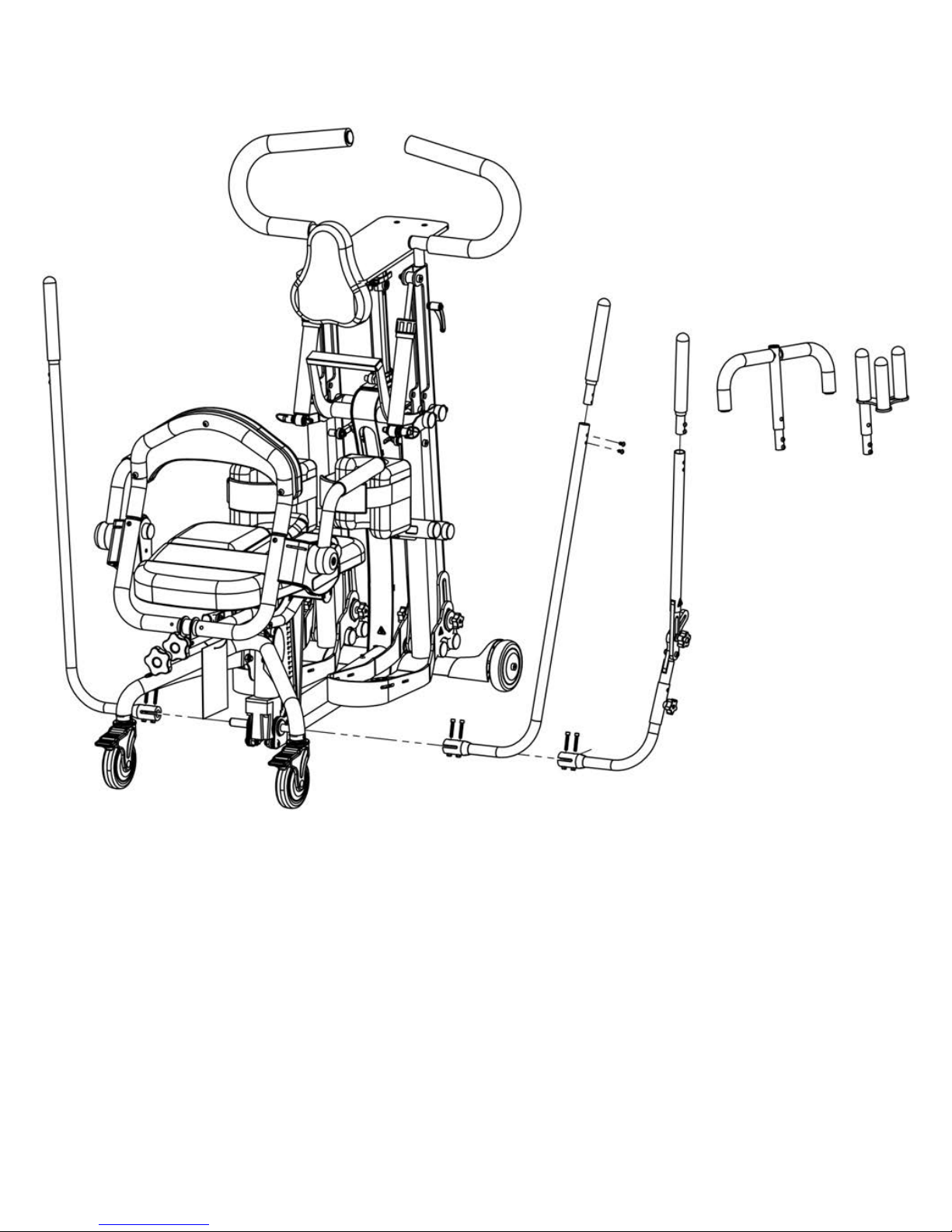

Glider Options & Parts Detail
®
