Eaton Compressor POLAR AIR P01IXXXP07V080VXXXX User manual
Polar Air Electric Operated, Piston Compressors
1
Operating Instructions
2
Polar Air designs and manufactures products for safe operation. However, operators and maintenance persons
are responsible for maintaining safety. All safety precautions are included to provide a guideline for minimizing
the possibility of accidents and property damage while equipment is in operation. Keep these instructions for
reference.
ELECTRIC OPERATED,
PISTON COMPRESSORS
Polar Air Electric Operated, Piston Compressors
3
Model PP05H080I1 PP07H080V1 PP10H120Y1 PP07H080V3 PP10H120Y3
Tank Type
Dimensions
Horizontal
76 x 30 x 56
Horizontal
76 x 30 x 56
Horizontal
78 x 32 x 50
Horizontal
76 x 30 x 56
Horizontal
78 x 32 x 50
Model PP05V080I1 PP07V080V1 PP10V120Y1 PP07V080V3 PP10V120Y3
Tank Type
Dimensions
Vertical
34 x 24 x 72
Vertical
34 x 24 x 72
Vertical
50 x 32 x 78
Vertical
34 x 24 x 72
Vertical
50 x 32 x 78
Tank Size 80 Gallon 80 Gallon 120 Gallon 80 Gallon 120 Gallon
Description 5HP
Single Phase
7.5HP
Single Phase
10HP
Single Phase
7.5HP
Three Phase
10HP
Three Phase
SCFM @ 175 psi 17.0 26.0 35.0 26.0 35.0
Max PSI 175 175 175 175 175
Motor HP 5HP 7.5HP 10HP 7.5HP 10HP
Motor RPM 1750 1750 1750 1750 1750
Voltage 208V/230V 208V/230V 208V/230V 208/230/460/575 208/230/460/575
Pump Model APP2I0524T APP4V1043T APP3Y1544T APP4V1043T APP3Y1544T
Pump RPM 650 640 600 640 600
Noise DB(A) 73 73 76 73 76
Outlet Connection NPT 3/4” NPT 3/4” NPT 1” NPT 3/4” NPT 1”
Weight (±5 lbs.) 715 958 1095 958 1095
Shipping Weight 800 1043 1242 1043 1242
Model Specication Charts . . . . . . . . . . . . .3-4
Description . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information . . . . . . . . . . . . . . . . . . . 5
TagDenitions....................5
BasicGuidelines.................5
BreathableAir....................6
PressurizedComponents..............6
PersonalProtectiveEquipment..........6
Inspection.........................6
ForkliftSafety.....................7
LiftingSafety......................7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . 8
Area...........................8
PipingSafety.....................8

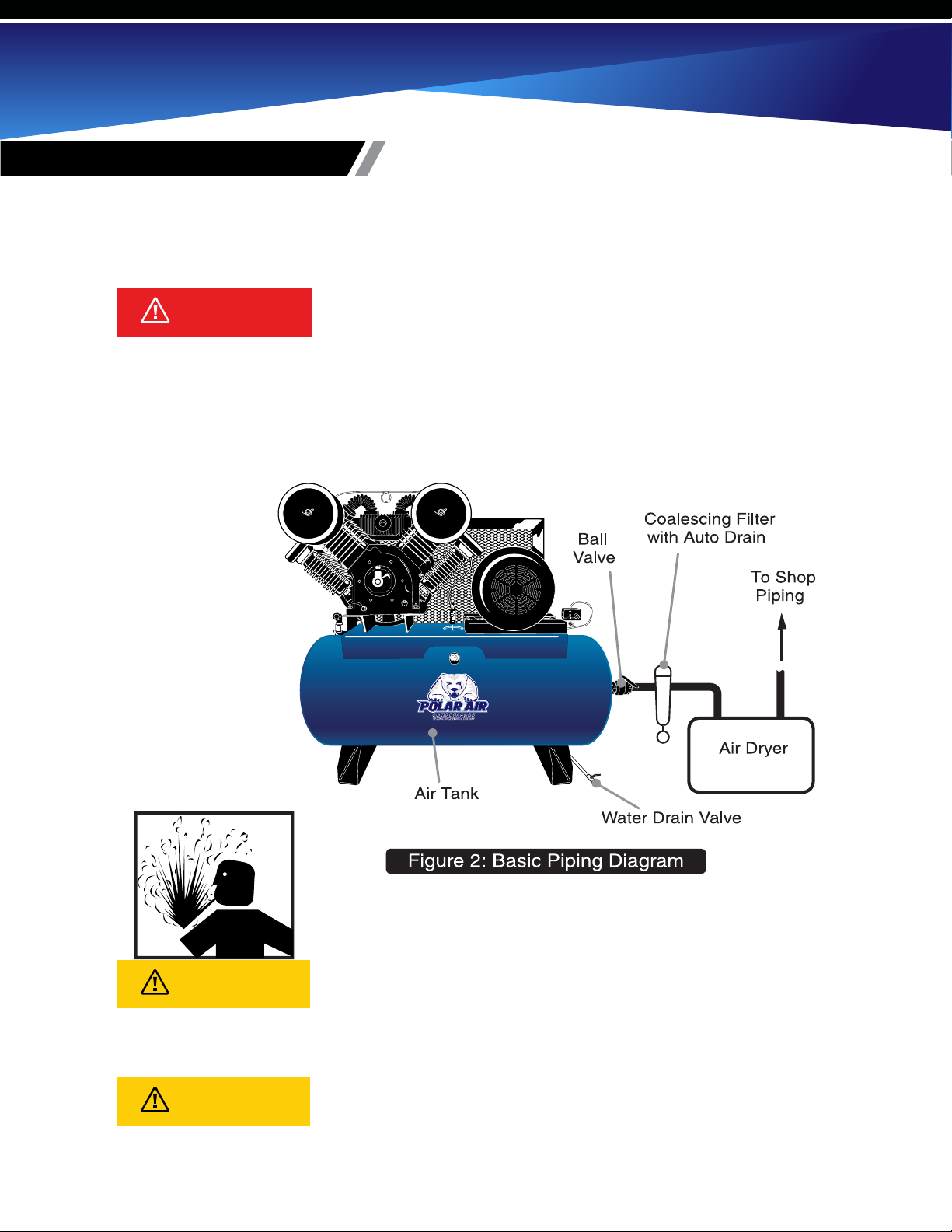

Piping/TankInstallation.............9
ElectronicAutoDrain(ifequipped)....10
ElectricalSafety...................11
WiringInstallation..................12
Operation..........................13
SafetyRules......................13
StartUp........................14
ContinuousRunFeature..........15
Maintenance........................15
SafetySteps......................15

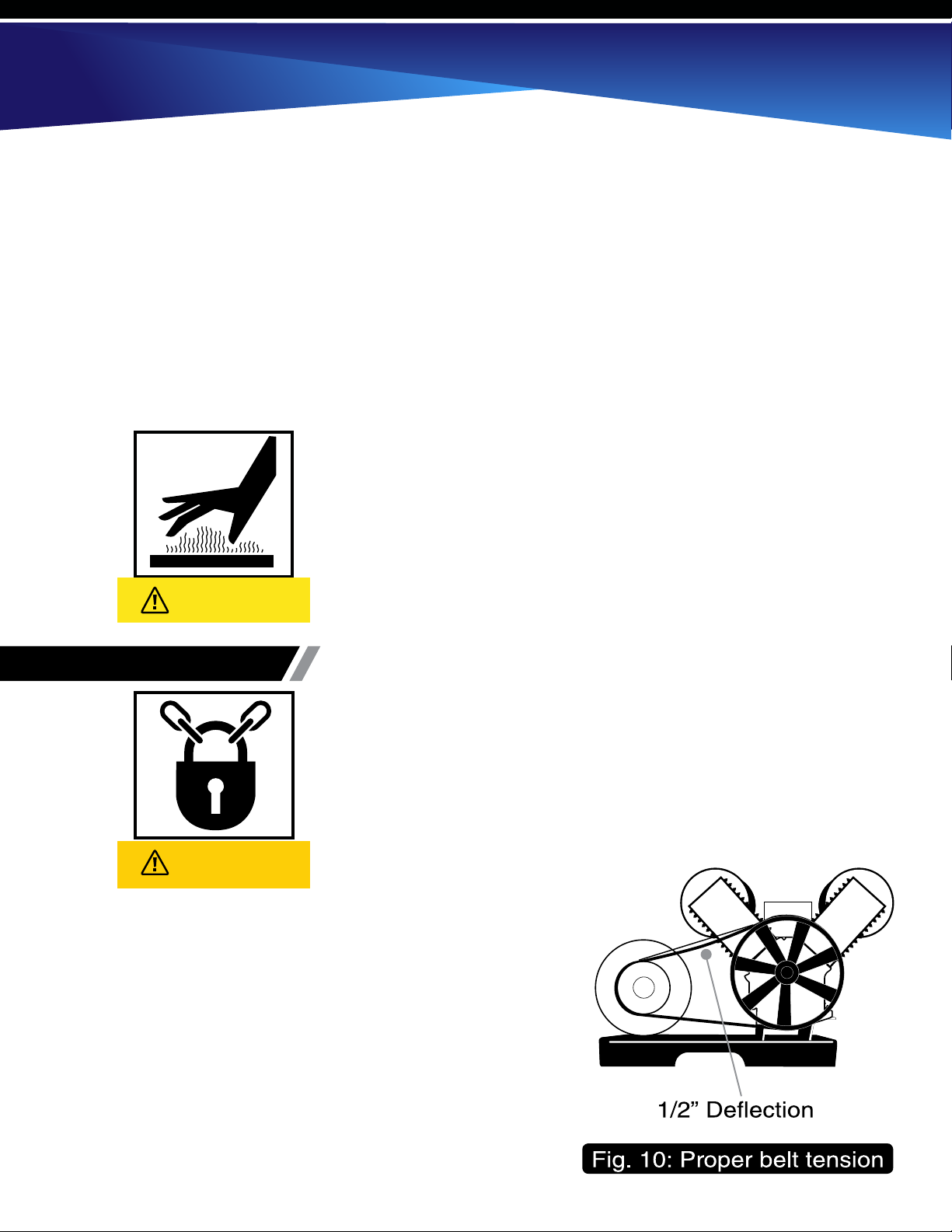

BeltAdjustment..................16
ChangingOil.....................17
SafetyValve.....................17
Tank.......................17
Maintenance Schedule................18
Troubleshooting....................18
Warranty..........................19
Contents
Polar Air Electric Operated, Two-Stage, 5-10 Hp Piston Air Compressors
L•W•H
(inches)
L•W•H
(inches)
Operating Instructions
4
Model PP15V120Y3 PP15H120Y3 PP20H120V3 PP25H120V3
Description 15 Hp
Three Phase
15 Hp
Three Phase
20 Hp
Three Phase
25 Hp
Three Phase
SCFM @ 175 psi 52.0 52.0 68.0 89.0
Max PSI 175 175 175 175
Motor HP 15 Hp 15 Hp 20 Hp 25 Hp
Motor RPM 1750 1750 1750 1750
Voltage 208/230/460/575 208/230/460/575 208/230/460/575 208/230/460/575
Tank Size 120 Gallon
Vertical
120 Gallon
Horizontal
120 Gallon
Horizontal
120 Gallon
Horizontal
Pump Model APP3Y2062T APP3Y2062T APP4V2598T APP4V2598T
Pump RPM 640 640 640 740
Noise DB(A) 76 76 78 79
Outlet Connection NPT 1” NPT 1” NPT 1” NPT 2”
Dimensions 33 x 24 x 73 79 x 32 x 62 72 x 30 x 51 72 x 30 x 51
Weight (lbs.) 1410 1410 1500 1703
Shipping Weight 1512 1512 1609 1810
Polar Air Electric Operated, Two-Stage, 5-10 Hp Piston Air Compressors

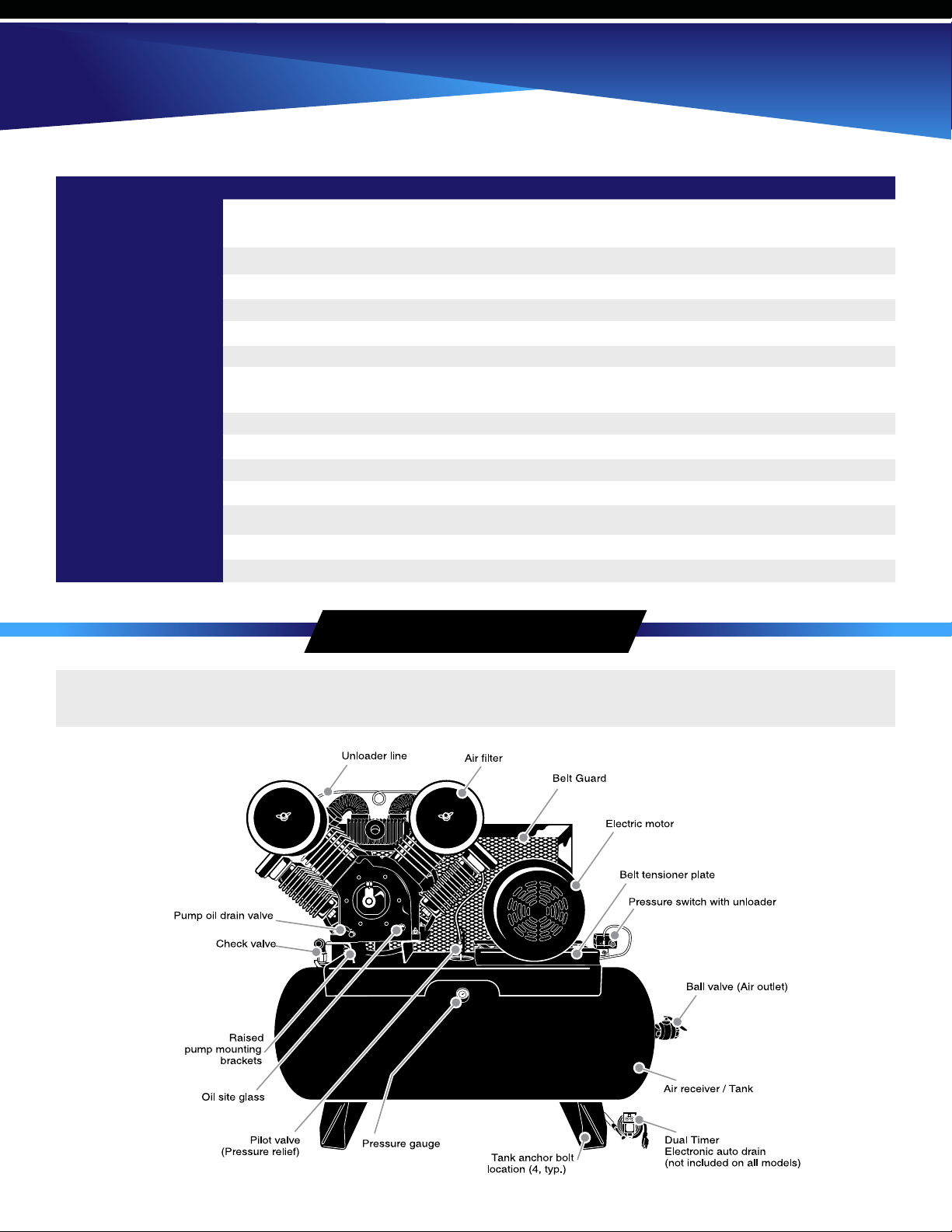

Unit conguration and appearance varies by model.
Callouts are for general identication.
Description
L•W•H
(inches)
Polar Air Electric Operated, Piston Compressors
5
CALIFORNIA PROPOSITION 65
This manual contains very important information to know and understand. This is provided for SAFETY and to
PREVENT EQUIPMENT PROBLEMS. To help understand this information, observe the following:
This product or its power cord may contain chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm. Wash
hands after handling.
1. Allow only trained, authorized persons who have read and understood these operating instructions to use
this compressor. Failure to follow the instructions, procedures and safety precautions in this manual can
result in accidents and injuries.
2. NEVER start or operate the compressor under unsafe conditions. Tag the compressor, disconnect and lock
out all power to it to prevent accidental start-up until the condition is corrected.
3. Install, use and operate the compressor only in full compliance with all pertinent OSHA regulations and all
applicable Federal, State & Local codes, standards and regulations.
4. NEVER modify the compressor and/or controls in any way.
5. Keep a rst aid kit in a convenient place. Seek medical assistance promptly in case of injury. Avoid infection
by caring for any small cuts and burns promptly.
Danger indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
Notice indicates important information, that if not followed, may
cause damage to equipment.
Read all manuals included with this product carefully. Be
thoroughly familiar with the controls and the proper use of the
equipment.
DANGER
WARNING
WARNING
CAUTION
NOTICE
Safety Information
Basic Guidelines
This manual suits for next models
