Eaton PMINT Quick start guide

Effective April 2010 2A11998H01
04/10 AWB1230-1621
PMINT—PROFIBUS DP translator
module—installation and use
Contents
Description Page
Listoffigures ............................2
Listoftables.............................2
Section 1: General description . . . . . . . . . . . . . . . 3
Section2:Features........................3
Section 3: Installation . . . . . . . . . . . . . . . . . . . . . . 3
INCOMconnection ......................3
PROFIBUS DP RS-485 network. . . . . . . . . . . . . 3
Section 4: PMINT connections . . . . . . . . . . . . . . . 4
Power connector (TB1) . . . . . . . . . . . . . . . . . . . 4
INCOM/circuit breaker position
switch connector (TB2) . . . . . . . . . . . . . . . . . . . 4
PROFIBUS DP RS-485 connector . . . . . . . . . . . 4
Section 5: Switches and indicator LEDs . . . . . . . . 4
PROFIBUS SYSFAULT LED (red) . . . . . . . . . . . . 4
PROFIBUS BUSFAULT LED (red). . . . . . . . . . . . 4
INCOM connection Tx LED (green) . . . . . . . . . . 4
StatusLED(green).......................4
Remote enable switch (SW1-1) . . . . . . . . . . . . . 5
Section 6: PROFIBUS DP GSD file . . . . . . . . . . . . 5
Section 7: PROFIBUS DP-V0 profiles . . . . . . . . . . 5
Cyclic data exchange command
structureformat.........................5
Cyclic data exchange monitoring
structureformats........................5
Section 8: PROFIBUS DP-V0 diagnostics . . . . . . . 7
AppendixA ..............................8
PROFIBUS DP-V0 GSD Profile Document. . . . . 8
AppendixB .............................10
Primary/Secondary/Cause . . . . . . . . . . . . . . . . 10

2
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
04/10 AWB1230-1621
Effective April 2010
Figure 1. PROFIBUS DP Translator Module . . . . . . . . . . . . . . . . . .3
Figure 2. Connections and Switches. . . . . . . . . . . . . . . . . . . . . . . . 4
List of figures
Description Page
Table 1. Power Connector Pin Outs . . . . . . . . . . . . . . . . . . . . . . . . 4
Table 2. INCOM/Circuit Breaker Position Switch
ConnectorPinOuts.....................................4
Table 3. PROFIBUS DP RS-485 Connector Pin Outs . . . . . . . . . . .4
Table 4. PROFIBUS DP LED States . . . . . . . . . . . . . . . . . . . . . . . .4
Table 5. Remote Enable Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Table6. CFGDataFormats...............................5
Table 7. Cyclic Data Exchange Command Format 0. . . . . . . . . . . .5
Table 8. Cyclic Data Exchange Monitoring Format 0 . . . . . . . . . . .6
Table 9. Cyclic Data Exchange Monitoring Format 1 . . . . . . . . . . .6
Table 10. Cyclic Data Exchange Monitoring Format 2 . . . . . . . . . .6
Table 11. Cyclic Data Exchange Monitoring Format 3 . . . . . . . . . .6
Table 12. Cyclic Data Exchange Monitoring Format 4 . . . . . . . . . .7
Table 13. DP-V0 Unit Diagnostics Definitions. . . . . . . . . . . . . . . . . 7
Table 14. Primary Status Code Definitions . . . . . . . . . . . . . . . . . . 10
Table 15. Secondary Status Code Definitions. . . . . . . . . . . . . . . .10
Table 16. Cause-of-Status Code Definitions . . . . . . . . . . . . . . . . . 11
List of tables
Description Page

3
04/10 AWB1230-1621
Effective April 2010
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
Section 1: General description
The PMINT (PROFIBUSTDP—Master INCOMEnetwork translator)
Module, as seen in Figure 1, is a Moeller accessory product that
will provide communications between a PROFIBUS DP network
master and an INCOM (INdustrial COMmunications) based
IZM...U... (Digitrip 520MC) or IZM...P... (Digitrip 1150). The module
is transparent to the PROFIBUS network master. It communicates
to a master on the PROFIBUS network using the PROFIBUS-DP-V0
protocol. It communicates to a slave trip unit device on INCOM.

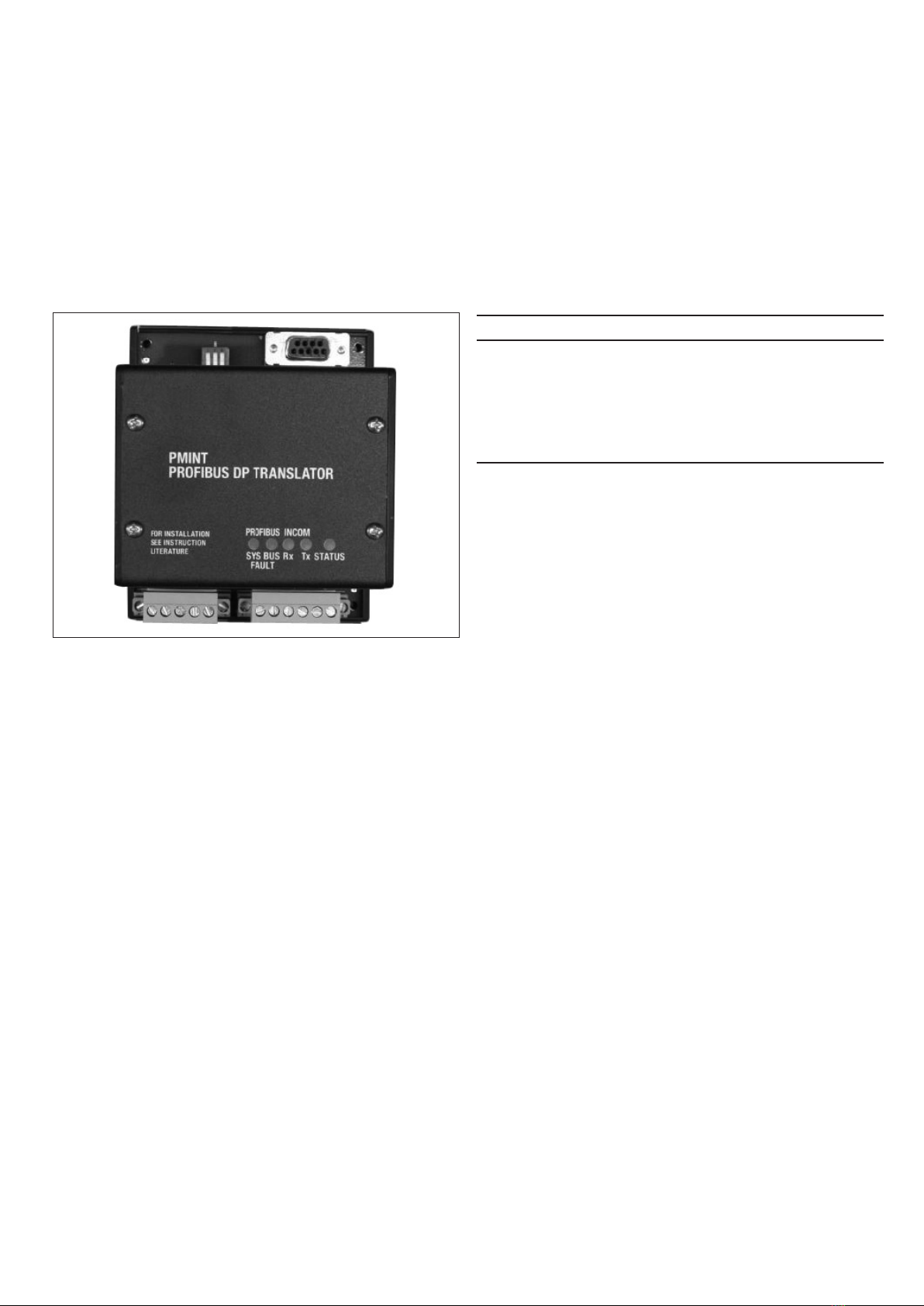

Figure 1. PROFIBUS DP Translator Module
Section 2: Features
The PMINT module is a slave device on the PROFIBUS network
and as such requires a PROFIBUS master that will interrogate the
PMINT module.
• The PMINT uses the VPC3+C ProfiChip integrated circuit,
providing PROFIBUS communications support with automatic
recognition of data transfer rates up to 12 Mbits/s
• Flashing Status LED to indicate an active module
• LED indicators for PROFIBUS SYSFAULT and BUSFAULT
• LED indicators for INCOM transmit and receive
communications exchanges
• Input power for the module from either 100 to 240 Vac or
24 to 150 Vdc
• DIN rail mount package
• –40°C to 85°C ambient operation
Section 3: Installation
The PMINT module is designed to be installed, operated, and
maintained by adequately trained personnel. These instructions
do not cover all of the details or variations of the equipment for
its storage, delivery, installation, checkout, safe operation, or
maintenance. When mounting the PMINT, verify that a “C” Shape
32 mm or Standard 35/7.5 mm DIN rail is used and that it is within
an enclosed space.
mWARNING
DO NOT ATTEMPT TO INSTALL OR PERFORM MAINTENANCE ON
EQUIPMENT WHILE IT IS ENERGIZED. DEATH OR SEVERE PERSONAL
INJURY CAN RESULT FROM CONTACT WITH ENERGIZED EQUIPMENT.
ALWAYS VERIFY THAT NO VOLTAGE IS PRESENT BEFORE PROCEEDING.
ALWAYS FOLLOW SAFETY PROCEDURES. MOELLER IS NOT LIABLE FOR THE
MISAPPLICATION OR MISINSTALLATION OF ITS PRODUCTS.
INCOM connection
INCOM communications is based on a master-slave protocol.
The PMINT is a master on the INCOM connection and
continually obtains data from the attached trip unit.
The following simplified rules apply to a given system consisting of
an INCOM master and the slave trip unit.
• Recommended INCOM cable styles are Belden 3073F or Eaton
style 2A957805G01
• A 100 ohm terminating resistor is required across the INCOM
carrier signal pair at the trip unit
• The maximum system capacity is 3 km of communications cable
on an INCOM network under the PMINT
Make sure that there is twisted pair wire that is recommended for
INCOM network use. Use shielded twisted pair wire to connect
between the PMINT and the INCOM communications based trip
unit. The polarity of the twisted pair is not important.
PROFIBUS DP RS-485 network
Reference material pertaining to PROFIBUS can be obtained from
the http://PROFIBUS.com Web site. Refer to the PROFIBUS DP
standard for transmission using copper cables (RS-485). A 9-pin
D-SUB connector interface is provided.

4
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
04/10 AWB1230-1621
Effective April 2010
Section 4: PMINT connections
Refer to Figure 2 and the following three pin-out tables for
installation specifics.
Figure 2. Connections and Switches
Power connector (TB1)
Module power uses a 5-pin input connector. Power requirements
are 100–240 Vac, 50/60 Hz or 24–150 Vdc. Refer to Table 1.
Table 1. Power Connector Pin Outs
Pin No. Input Power
1 Chassis ground
2 and 3 Vac neut./Vdc common
4 and 5 Vac line/Vdc+
INCOM/circuit breaker position switch connector (TB2)
This 6-pin connector provides the interface to both the INCOM
network and the circuit breaker position switches. Refer to Table 2.
Table 2. INCOM/Circuit Breaker Position Switch
Connector Pin Outs
Pin No. Input/Output Signal
1 INCOM carrier network
2 INCOM carrier network
3 INCOM shield
4 Circuit breaker position switch 1
5 Circuit breaker position switch 2
6 Circuit breaker position switch GND
SW1
5 4 3 2 1 6 5 4 3 2 1
1 2 3
RS-485
PROFIBUS DP
4.25
(108.0)
3.54
(89.9)
24–125 Vdc
100–240 Vac
50/60 Hz
INCOM
GND
CBSW2 CBSW1
Shield
COMM
Unused
Remote
Enable
Open
Connect the INCOM Shield wire to ground at master device (PMINT)
end only.
PROFIBUS DP RS-485 connector
This DB9 connector provides the interface to the PROFIBUS DP
RS-485 network. The polarity of the RxD/TxD data lines is “critically”
important. Refer to Table 3.
Table 3. PROFIBUS DP RS-485 Connector Pin Outs
Pin No. Input/Output Signal
1 Shield a
2 M24 (ground for +24V output) a
3 RxD/TxD-P (B-dataline)
4 CNTR-P/RTS
5 DGND (data-ground)
6 VP (plus for 5V supply)
7 P24 (plus for 24V output) a
8 RxD/TxD-N (A-dataline)
9 CNTR-N a
a PROFIBUS signals that are not connected on the PMINT.
Section 5: Switches and indicator LEDs
Refer to Figure 1 to locate the LEDs and configuration switches on
the PMINT.
PROFIBUS SYSFAULT LED (red)
The LED will be illuminated as described in Table 4.
PROFIBUS BUSFAULT LED (red)
The LED will be illuminated as described in Table 4.
Table 4. PROFIBUS DP LED States
SYS F BUS F PROFIBUS State
Off Off Everything OK
Off On No communications
Off Blinking Communications, but not in data exchange
On On Configuration not OK
INCOM connection Rx LED (green)
The LED will be illuminated whenever the PMINT is receiving
messages from the trip unit on the INCOM connection.
INCOM connection Tx LED (green)
The LED will be illuminated whenever the PMINT is transmitting
messages to the trip unit on the INCOM connection.
Status LED (green)
This indicator will begin flashing after the module has powered up,
its processor has performed its RAM tests, and the microcontroller
is executing instructions.
This indicator will flash at a rate of approximately five times a
second while attempting to learn the trip unit device on the INCOM
connection.
When communicating with the trip unit, this indicator will flash at a
rate of approximately 1 second ON/1 second OFF.

5
04/10 AWB1230-1621
Effective April 2010
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
Remote enable switch (SW1-1)
The PMINT provides a REMOTE ENABLE switch (see Figure 2)
that will enable/disable access by a PROFIBUS master to control
the opening/closing of the circuit breaker by communications. Refer
to Table 5.
Table 5. Remote Enable Switch
SW1-1 SW1-2 SW1-3
Remote disable Open X X
Remote enable Close X X
Reserved switches (SW1-2 and SW1-3)
Switches SW1-2 and SW1-3 on the PMINT are reserved for
future use.
Section 6: PROFIBUS DP GSD file
The current GSD file for the PMINT is listed in Appendix A.
PROFIBUS DP-V0 cyclic data transfers are supported.
Section 7: PROFIBUS DP-V0 profiles
The PMINT supports the PROFIBUS DP profile for low voltage
switchgear devices (LVSG): Circuit Breaker Device Classification.
This classification provides cyclic data exchange structures for
one command (outputs from the PROFIBUS master to the PMINT
slave device) format (Format 0) and four monitoring (inputs from
the PMINT slave device to the PROFIBUS master) formats (Format
0–Format 3). The PMINT also supports an added monitoring format
(Format 4), similar to Format 3, except the active energy value is
provided with a higher resolution.
Cyclic data exchange command structure format
Command structure Format 0 for cyclic data exchange from the
PROFIBUS master supported by the PMINT is described in Table 6.
The bits are defined as bit 0 is bit 0 of byte 0; bit 8 is bit 0 of byte 1.
Cyclic data exchange monitoring structure formats
Monitoring structure Formats 0–4 for cyclic data exchange returned
from the PMINT to the PROFIBUS master are described in Table 7
through Table 11, respectively.
The state information bytes are required in all monitoring formats.
The bits are defined as bit 0 is bit 0 of state byte 0; bit 8 is bit 0
of state byte 1. The definitions are deciphered from the Primary/
Secondary/Cause-Of-Status information reported from the Trip Unit
(see Table 13, Table 14, and Table 15, respectively).
The multi-byte measurement values of Formats 1–4 are transmitted
most significant byte first, as required by the PROFIBUS protocol.
Table 6. Cyclic Data Exchange Command Format 0
Byte Bit(s) Description Implementation
0 1–0 Circuit breaker:
00 = no change
01 = switch OFF
10 = switch ON
11 = no change
Open breaker (if remote enabled, see Section 5)
Close breaker (if remote enabled, see Section 5)
2 Clear last trip “Reset Trip” issued to trip unit
3 Output 0 Not implemented
4 Output 1 Not implemented
5 Output 2 Not implemented
6 Output 3 Not implemented
7 Output 4 Not implemented
1 9–8 Test mode:
00 = no test
01 = w/o release
10 = with release
11 = with warning
No trip phase current self-test at 3.0 per unit
issued to Digitrip 1150 trip unit only
Not implemented
Not implemented
10 Delete history
memory
Not implemented
11 Reset min./max.
memory
“Reset all min./max. values” issued to trip unit
12 Reset temperature
min./max. memory
Not implemented
13 Output 5 Not implemented
14 Reset maintenance
information
“Reset trip unit health buffer” issued to trip unit
15 Clock synchronization Not implemented

6
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
04/10 AWB1230-1621
Effective April 2010
Table 7. Cyclic Data Exchange Monitoring Format 0
Byte Bit(s) Description Implementation
0 1–0 Position of circuit breaker:
00 = disconnected
01 = operational
10 = test
11 = not present
(see Circuit breaker position switch,
Section 4)
00 if switch 1 AND switch 2 both OFF
01 if switch 1 AND switch 2 both ON
10 if either switch 1 OR switch 2 ON,
but not both
3–2 State of circuit breaker:
00 = Init
01 = OFF
10 = ON
11 = Tripped
00 = communications with trip unit not
yet established
01 = Primary status: open
10 = Primary status: closed, alarm, pickup
11 = Primary status: tripped
4 Ready to switch on 1 = (not implemented)
5 Undervoltage release 1 = Primary status: tripped, cause: 12
6 Spring loaded 1 = (not implemented)
7 Overload warning 1 = Primary status: alarm, cause: 61, OR
Primary status: pickup
1 8 Setpoint activated 1 = Primary status: alarm, cause: 11, 12,
15, 16, 17, 18, 26, 27, 28
9 Warning 1 = Primary status: alarm, cause: all
except 61
10 Write protection activated 1 if Digitrip 1150 trip unit AND remote
enabled, see Section 5
11 Input 0 0 = (not implemented)
14–12 Release reason:
000 = no release
001 = L(ongtime) release
010 = I(nstantaneous) release
011 = S(horttime) release
100 = earth fault
101 = extended protection
110 = over-current in N-wire
111 = no device information
000 = Primary status: NOT tripped
001 = Primary status: tripped, causes:
7, 10, 61 (with In< all other currents)
010 = Primary status: tripped, causes:
3, 5, 6, 53, 66, 76
011 = Primary status: tripped, causes: 62
100 = Primary status: tripped, causes:
4, 8, 84, 85, 112
101 = Primary status: tripped, causes: all
other remaining
110 = Primary status: tripped, causes:
9, 80, 61 (with In> all other currents)
111 = communications with trip unit not
yet established
15 Load rejection 1 = Primary status: alarm, cause: 26
Table 8. Cyclic Data Exchange Monitoring Format 1
Byte(s) Data Type Description Resolution
0 Unsigned8 State 0 (byte 0 of monitoring Format 0, Table 7)
1 Unsigned8 State 1 (byte 1 of monitoring Format 0, Table 7)
3–2 Unsigned16 IL1 (Phase A current) Amps
5–4 Unsigned16 IL2 (Phase B current) Amps
7–6 Unsigned16 IL3 (Phase C current) Amps
9–8 Unsigned16 IL max (maximum value of IL1, IL2, IL3) Amps
Table 9. Cyclic Data Exchange Monitoring Format 2
Byte(s) Data Type Description Resolution
0 Unsigned8 State 0 (byte 0 of monitoring Format 0, Table 7)
1 Unsigned8 State 1 (byte 1 of monitoring Format 0, Table 7)
3–2 Unsigned16 IL1 (Phase A current) Amps
5–4 Unsigned16 IL2 (Phase B current) Amps
7–6 Unsigned16 IL3 (Phase C current) Amps
9–8 Unsigned16 IL max (maximum value of IL1, IL2, IL3) Amps
11–10 Unsigned16 IN(neutral current) Amps
13–12 Unsigned16 VLL avg (average line-to-line voltage) Volts
15–14 Integer16 cos phiavg (average of apparent power factor) 0–1000
17–16 Unsigned16 Energy MWh
Table 10. Cyclic Data Exchange Monitoring Format 3
Byte(s) Data Type Description Resolution
0 Unsigned8 State 0 (byte 0 of monitoring Format 0, Table 7)
1 Unsigned8 State 1 (byte 1 of monitoring Format 0, Table 7)
3–2 Unsigned16 IL1 (Phase A current) Amps
5–4 Unsigned16 IL2 (Phase B current) Amps
7–6 Unsigned16 IL3 (Phase C current) Amps
9–8 Unsigned16 IL max (maximum value of IL1, IL2, IL3) Amps
11–10 Unsigned16 IN(neutral current) Amps
13–12 Unsigned16 VL1-L2 (VAB line-to-line voltage) Volts
15–14 Unsigned16 VL2-L3 (VBC line-to-line voltage) Volts
17–16 Unsigned16 VL3-L1 (VCA line-to-line voltage) Volts
19–18 Unsigned16 VL1-N (VAN line-to-neutral voltage) Volts
21–20 Unsigned16 VL2-N (VBN line-to-neutral voltage) Volts
23–22 Unsigned16 VL3-N (VCN line-to-neutral voltage) Volts
25–24 Integer16 cos phiavg (average of apparent power factor) 0–1000
27–26 Unsigned16 Energy MWh
29–28 Unsigned16 Stotal (total apparent power) kVA

7
04/10 AWB1230-1621
Effective April 2010
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
Table 11. Cyclic Data Exchange Monitoring Format 4
Byte(s) Data Type Description Resolution
0 Unsigned8 State 0 (byte 0 of monitoring Format 0, Table 7)
1 Unsigned8 State 1 (byte 1 of monitoring Format 0, Table 7)
3–2 Unsigned16 IL1 (Phase A current) Amps
5–4 Unsigned16 IL2 (Phase B current) Amps
7–6 Unsigned16 IL3 (Phase C current) Amps
9–8 Unsigned16 IL max (maximum value of IL1, IL2, IL3) Amps
11–10 Unsigned16 IN(neutral current) Amps
13–12 Unsigned16 VL1-L2 (VAB line-to-line voltage) Volts
15–14 Unsigned16 VL2-L3 (VBC line-to-line voltage) Volts
17–16 Unsigned16 VL3-L1 (VCA line-to-line voltage) Volts
19–18 Unsigned16 VL1-N (VAN line-to-neutral voltage) Volts
21–20 Unsigned16 VL2-N (VBN line-to-neutral voltage) Volts
23–22 Unsigned16 VL3-N (VCN line-to-neutral voltage) Volts
25–24 Integer16 cos phiavg (average of apparent power factor) 0–1000
29–26 Unsigned32 Energy kWh
31–30 Unsigned16 Stotal (total apparent power) kVA
Section 8: PROFIBUS DP-V0 diagnostics
Until the PMINT is parameterized and configured by the PROFIBUS
master, a request for diagnostics by the master will result in
the PMINT returning only the mandatory 6-byte PROFIBUS
diagnostics information.
Once successfully parameterized and configured, the PMINT will
append additional device-related diagnostics information to the
mandatory PROFIBUS diagnostics information, as described in
Table 12. The diagnostics user data, starting at bit 24, is also
described in the GSD file (Appendix A).
ote:N Configuration is required before this additional information can be
included because the user-defined “Data Object X invalid” bits are defined
by and dependent upon the cyclic data exchange monitoring format selected.
Any change in the PMINT diagnostic information is signaled to the PROFIBUS
master when the PMINT returns a high priority cyclic data exchange.
Table 12. DP-V0 Unit Diagnostics Definitions
Byte Bit(s) Value Description
7 08H Header: device related diagnostics, length (8 bytes)
8 7–0 81H Type (status message)
9 15–8 00H Slot
10 23–16 00H Specifier
11 24 1 No communications with trip unit
25 1 Data Object 1 invalid (Monitoring Formats 1-4: IL1)
26 1 Data Object 2 invalid (Monitoring Formats 1-4: IL2)
27 1 Data Object 3 invalid (Monitoring Formats 1-4: IL3)
28 1 Data Object 4 invalid (Monitoring Formats 1-4: IL max)
29 1 Data Object 5 invalid (Monitoring Formats 2-4: IN)
30 1 Data Object 6 invalid (Monitoring Formats 2: VLL avg)
(Monitoring Formats 3-4: VL1-L2)
31 1 Data Object 7 invalid (Monitoring Formats 2: cos phiavg)
(Monitoring Formats 3-4: VL2-L3)
12 32 1 Data Object 8 invalid (Monitoring Formats 2: Energy)
(Monitoring Formats 3-4: VL3-L1)
33 1 Data Object 9 invalid (Monitoring Formats 3-4: VL1-N)
34 1 Data Object 10 invalid (Monitoring Formats 3-4: VL2-N)
35 1 Data Object 11 invalid (Monitoring Formats 3-4: VL3-N)
36 1 Data Object 12 invalid (Monitoring Formats 3-4: cos phiavg)
37 1 Data Object 13 invalid (Monitoring Formats 3-4: Energy)
38 1 Data Object 14 invalid (Monitoring Formats 3-4: Stotal)
39 1 Remote open/closed not enabled (i.e., remote enable switch
disabled, see Section 5)
13 40 1 EEROM error alarm (primary status: alarm, cause: 43)
41 1 RAM error alarm (primary status: alarm, cause: 39)
42 1 Setpoints error alarm (primary status: alarm, cause: 77)
43 1 Watchdog alarm (primary status: alarm, cause: 4)
44 1 Check aux. switch alarm (primary status: alarm, cause: 148)
45 1 Breaker mechanism fault (primary status: alarm, cause: 154)
46 1 Breaker shunt trip problem (primary status: alarm, cause: 157)
47 1 Operations count alarm (primary status: alarm, cause: 31)
14 48 1 Earth fault alarm (primary status: alarm, cause: 84, 85)
49 1 Low power factor alarm (primary status: alarm, cause: 19)
50 1 Total harmonic distortion alarm (primary status: alarm, cause: 30)
51 1 Frequency out of bounds alarm (primary status: alarm, cause: 146)
52 1 Historic trip occurred (primary status: closed, cause: 82)
53 1 Breaker in Maintenance Mode (cause: 47, 153)

8
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
04/10 AWB1230-1621
Effective April 2010
Appendix A
PROFIBUS DP-V0 GSD Profile Document
;==============================================
; GSD File for Eaton Low Voltage Circuit Breakers
;
; English Version 1.0
; Date: 2009-02-03
; revised by CC-TDH/P. Thiessmeier
; Changes:
; support of mandatory profile 1 (F0)
; changed to modular slave for better support of intel-based plcs
; Date: 2009-02-17
; revised by A.A. Anderson
; Changes:
; User_Prm_Data_Len = 3, to eventually support DP-V1
; Added Unit_Diag_Bit(0024-0052)
; Date: 2009-06-04
; revised by A.A. Anderson
; Changes:
; Added Module = “Add. Data of profile type 4” 0xDE
; Date: 2009-06-29
; revised by A.A. Anderson
; Changes:
; Comments (Slave related Key Words) Only
;==============================================
#PROFIBUS_DP
;
;==============================================
;General parameters
;==============================================
GSD_Revision = 3
Vendor_Name = “Eaton Corporation”
Model_Name = “Magnum,IZM,NRX” ;”Low Voltage Circuit Breaker”
Revision = “V1.0” ;Revision version of device
;Revision_Number = ;Must agree with RevNum in slave-specific diag
Ident_Number = 0x0BF4
Protocol_Ident = 0 ;0=PROFIBUS DP
Station_Type = 0 ;0=DP Slave
FMS_supp = 0 ;0=Not FMS/DP mixed device
Hardware_Release = “V1.0” ;Hardware release of device
Software_Release = “V1.0” ;Software release of device
9.6_supp = 1
19.2_supp = 1
31.25_supp = 0
45.45_supp = 1
93.75_supp = 1
187.5_supp = 1
500_supp = 1
1.5M_supp = 1
3M_supp = 1
6M_supp = 1
12M_supp = 1
MaxTsdr_9.6 = 60 ; Bit Time
MaxTsdr_19.2 = 60 ; Bit Time
MaxTsdr_31.25 = 60 ; Bit Time
MaxTsdr_45.45 = 60 ; Bit Time
MaxTsdr_93.75 = 60 ; Bit Time
MaxTsdr_187.5 = 60 ; Bit Time
MaxTsdr_500 = 100 ; Bit Time
MaxTsdr_1.5M = 150 ; Bit Time
MaxTsdr_3M = 250 ; Bit Time
MaxTsdr_6M = 450 ; Bit Time
MaxTsdr_12M = 800 ; Bit Time
Redundancy = 0 ;0=Redundant Xmission NotSupported
Repeater_Ctrl_Sig = 2 ;CNTR-P bus signal:
; 0=NotConnected, 1=RS485 2=TTL
24V_Pins = 0 ;M24V & P24V bus signals:
; 0=NotConnected, 1=Input, 2=Output
Implementation_Type = “SPC3” ;Optional
;Bitmap_Device = “DIB_????” ;Optional
;Bitmap_Diag = “DIB_????” ;Optional
;Bitmap_SF = “DIB_????” ;Optional
;==============================================
;Physical Interface parameters (optional)
;==============================================
;Physical_Interface = 0 ;Optional RS485-intrinsic
;Transmission_Delay_9.6 = 0 ; Bit Time
;Transmission_Delay_19.2 = 0 ; Bit Time
;Transmission_Delay_31.25 = 0 ; Bit Time
;Transmission_Delay_45.45 = 0 ; Bit Time
;Transmission_Delay_93.75 = 0 ; Bit Time
;Transmission_Delay_187.5 = 0 ; Bit Time
;Transmission_Delay_500 = 0 ; Bit Time
;Transmission_Delay_1.5M = 0 ; Bit Time
;Transmission_Delay_3M = 0 ; Bit Time
;Transmission_Delay_6M = 0 ; Bit Time
;Transmission_Delay_12M = 0 ; Bit Time
;Reaction_Delay_9.6 = 0 ; Bit Time
;Reaction_Delay_19.2 = 0 ; Bit Time
;Reaction_Delay_31.25 = 0 ; Bit Time
;Reaction_Delay_45.45 = 0 ; Bit Time
;Reaction_Delay_93.75 = 0 ; Bit Time
;Reaction_Delay_187.5 = 0 ; Bit Time
;Reaction_Delay_500 = 0 ; Bit Time
;Reaction_Delay_1.5M = 0 ; Bit Time
;Reaction_Delay_3M = 0 ; Bit Time
;Reaction_Delay_6M = 0 ; Bit Time

9
04/10 AWB1230-1621
Effective April 2010
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
;Reaction_Delay_12M = 0 ; Bit Time
;End_Physical_Interface
;==============================================
; Slave-Specification
;==============================================
Freeze_Mode_supp = 1 ;1=Supported
Sync_Mode_supp = 1 ;1=Supported
Auto_Baud_supp = 1 ;1=Supported
Set_Slave_Add_supp = 0 ;0=NotSupported (INCOM address setting)
User_Prm_Data_Len = 3
User_Prm_Data = 0x00,0x00,0x00
Max_User_Prm_Data_Len = 3
;Ext_User_Prm_Data_Const(0) = 0x00,0x00,0x00
Min_Slave_Intervall = 1 ;Min interval between two slave list cycles
; Time base: 100us
Modular_Station = 1 ;0=Compact, 1=Modular device
Max_Module = 2 ;
Max_Input_Len = 32 ;Circuit Breaker Profile input, format 4
Max_Output_Len = 2 ;Circuit Breaker Profile output
Max_Data_Len = 34
Fail_Safe = 0 ;0=DataMsg with data=0 in CLEAR mode
Modul_Offset = 0 ;Slot number to appear in Cfg tool
Slave_Family = 2@CircuitBreaker@Digitrip
Diag_Update_Delay = 0
Fail_Safe_required = 0
;Info_Text = “ “ ;Optional additional info about device
Max_Diag_Data_Len = 14 ;6 Bytes Mandatory by PROFIBUS
Unit_Diag_Bit(0024) = “No Communications with DigiTrip”
Unit_Diag_Bit(0025) = “Data Object 1 invalid”
Unit_Diag_Bit(0026) = “Data Object 2 invalid”
Unit_Diag_Bit(0027) = “Data Object 3 invalid”
Unit_Diag_Bit(0028) = “Data Object 4 invalid”
Unit_Diag_Bit(0029) = “Data Object 5 invalid”
Unit_Diag_Bit(0030) = “Data Object 6 invalid”
Unit_Diag_Bit(0031) = “Data Object 7 invalid”
Unit_Diag_Bit(0032) = “Data Object 8 invalid”
Unit_Diag_Bit(0033) = “Data Object 9 invalid”
Unit_Diag_Bit(0034) = “Data Object 10 invalid”
Unit_Diag_Bit(0035) = “Data Object 11 invalid”
Unit_Diag_Bit(0036) = “Data Object 12 invalid”
Unit_Diag_Bit(0037) = “Data Object 13 invalid”
Unit_Diag_Bit(0038) = “Data Object 14 invalid”
Unit_Diag_Bit(0039) = “Remote Open/Closed Not Enabled”
Unit_Diag_Bit(0040) = “EEROM Error Alarm”
Unit_Diag_Bit(0041) = “RAM Error Alarm”
Unit_Diag_Bit(0042) = “Setpoints Error Alarm”
Unit_Diag_Bit(0043) = “Watchdog Alarm”
Unit_Diag_Bit(0044) = “Check Aux Switch Alarm”
Unit_Diag_Bit(0045) = “Breaker Mechanism Fault”
Unit_Diag_Bit(0046) = “Breaker Shunt Trip Problem”
Unit_Diag_Bit(0047) = “Operations Count Alarm”
Unit_Diag_Bit(0048) = “Earth Fault Alarm”
Unit_Diag_Bit(0049) = “Low Power Factor Alarm”
Unit_Diag_Bit(0050) = “Total Harmonic Distortion Alarm”
Unit_Diag_Bit(0051) = “Frequency Out Of Bounds Alarm”
Unit_Diag_Bit(0052) = “Historic Trip Occurred”
Unit_Diag_Bit(0053) = “Breaker In Maintenance Mode”
;******************************************************
;** Slave related Key Words for DP extensions **
;******************************************************
DPV1_Slave = 0
;C1_Read_Write_supp = 1
;C2_Read_Write_supp = 1
;C1_Max_Data_Len = 22
;C2_Max_Data_Len = 48
;C1_Response_Timeout = 50 ;in units of 10ms, optional
;C2_Response_Timeout = 50 ;in units of 10ms, optional
;C1_Read_Write_required = 0
;C2_Read_Write_required = 0
;C2_Max_Count_Channels = 1
;Max_Initiate_PDU_Length = 52
;Diagnostic_Alarm_supp = 0
;Process_Alarm_supp = 0
;Pull_Plug_Alarm_supp = 0
;Status_Alarm_supp = 0
;Update_Alarm_supp = 0
;Manufacturer_Specific_Alarm_supp = 0
;Extra_Alarm_SAP_supp = 0
;Alarm_Sequence_Mode_Count = 0
;Alarm_Type_Mode_supp = 0
;Diagnostic_Alarm_required = 0
;Process_Alarm_required = 0
;Pull_Plug_Alarm_required = 0
;Status_Alarm_required = 0
;Update_Alarm_required = 0
;Manufacturer_Specific_Alarm_required = 0
;DPV1_Data_Types = 0
;WD_Base_1ms_supp = 1
;Check_Cfg_Mode = 0
;Publisher_supp = 0

10
PMINT—PROFIBUS DP translator
module—installation and use
EATON CORPORATION www.moeller.net/en/support
04/10 AWB1230-1621
Effective April 2010
;==============================================
; Module Definition List
;==============================================
Module = “Profile type 1” 0x31
1
EndModule
Module = “Add. data of profile type 2” 0xD3
2
Ext_Module_Prm_Data_Len = 0
EndModule
Module = “Add. Data of profile type 3” 0xD7
3
Ext_Module_Prm_Data_Len = 0
EndModule
Module = “Add. Data of profile type 4” 0xDD
4
Ext_Module_Prm_Data_Len = 0
EndModule
Module = “Add. Data of profile type 5” 0xDE
5
Ext_Module_Prm_Data_Len = 0
EndModule
Module = “No additional data” 0x00
6
EndModule
SlotDefinition
Slot (1) = “Profile type 1” 1 1-1
Slot (2) = “Additional data” 2 2-6
EndSlotDefinition
Appendix B
Primary/Secondary/Cause
The Primary/Secondary/Cause status information are binary encoded
values. The definition of primary status byte is listed in Table 13.
The definition of the secondary status byte is listed in Table 14. The
definition of the cause–of–status word (pertaining to the primary
status) is listed in Table 15.
Table 13. Primary Status Code Definitions
Code Definition Code Definition
0 Unknown 19 Phase A alarm
1 Open 20 Phase B alarm
2 Closed 21 Phase C alarm
3 Tripped 22 Neutral alarm
4 Alarmed 23 Ground/earth alarm
5 On 24 Phase AB alarm
6 Off 25 Phase BC alarm
7 Ready 26 Phase CA alarm
8 Starting 27 On good source
9 Operational 28 Running
10 Stopped Reserved 29 … 251
11 Locked-out
12 Transferred
13 Picked-up
14 Phase A trip
15 Phase B trip 252 Product specific code 252
16 Phase C trip 253 Product specific code 253
17 Neutral trip 254 Product specific code 254
18 Ground/earth trip 255 Product specific code 255
Table 14. Secondary Status Code Definitions
Code Definition Code Definition
0 Unknown 9 Reserved 9 … 27
1 Not applicable
2 Program mode
3 Test mode
4 Disabled
5 Disarmed 28 Product specific code 28
6 Controlled device failed to operate 27 Product specific code 29
7 Powered up 30 Product specific code 30
8 Alarm 31 Product specific code 31
