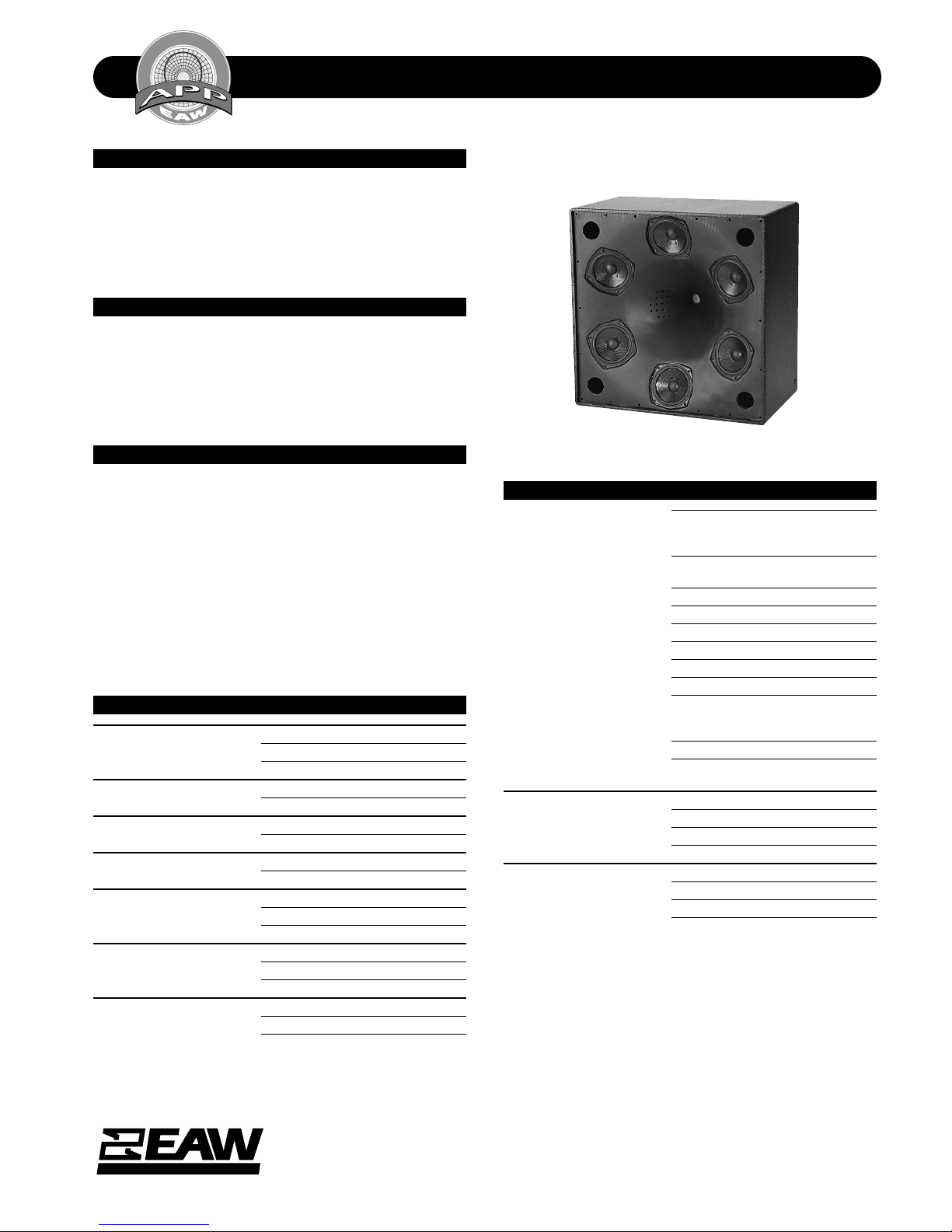

SPECIFICATIONS CP621
FEATURES
• High performance passive ceiling-mount system
• Concentric Phase Aligned Array(tm) solve coaxial
design problems
• 6x 5.25-in woofers couple to act like a 21-in woofer
• 1-in exit HF on large format 60°(conical) horn
• 2x phase aligned 5.25-in woofers in horn-throat
• Optional 70 volt transformer available
DESCRIPTION
A 2-way/coaxial passive full range system for permanent in-
stallation in 24-in square ceiling grids. Includes 6x concen-
trically arrayed 5.25-in woofers plus 2x phase aligned 5.25-
in woofers and 1-in exit compression driver on a 60°(coni-
cal) constant directivity horn in a vented enclosure. Avail-
able with optional installed 70 Volt transformer (CP621T).
APPLICATIONS
The CP621 uses Concentric Phase Alinged Array Technology
to acheive even response over a large defined area. Excel-
lent power handling lets it cover a larger area than tradi-
tional ceiling mounted loudspeakers with higher quality
sound. Easy installation in 24-in or 600 mm ceiling grids.
Six year warranty.
Applications include:
Gymnasiums
Convention Centers
Transportation Centers
Major Malls
Major Retail Spaces
PHYSICAL
LF Subsystem 6x 5.25-in. concentrically arrayed
cones, vented plus 2x 5.25-in
phase aligned cones
HF Subsystem 1x 1-in exit compression driver on
constant directivity horn
Configuration Full range 2-way coaxial system
Powering Passive LF/HF crossover
Cabinet Type (shape) Rectangular
Enclosure Materials Baltic birch plywood
Finish Black catalyzed polyurethane
Connectors 2-Terminal barrier strip
Suspension Hardware (8) 3/8"-16 threaded mounting
points (2 each right and left side,
4 on top)
Grille Vinyl coated perforated steel
Options 70 volt transformer version
(CP621T)
Dimensions Inches Millimeters
Height 23.8 605
Width 23.8 605
Depth 13.6 345
Weights Pounds Kilograms
Net Weight 75 34.1
Shipping Weight 79 35.9
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 db 75Hz to 18kHz
-10 dB 60Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
101
Impedance (Ohms)
4
Power Handling, AES Standard (Watts)
Full Range 300
Calculated Maximum Output (dB SPL @ 1m)
Peak 131.8
Long Term 125.8
Nominal Coverage Angle , -6 dB Points (degrees)
Horizontal 60
Vertical 60
Recommended High-Pass Frequency
24 dB/Octave 65Hz

Acoustic Performance Partnership Eastern Acoustic Works CP621
One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
SPECIFICATIONS CP621
DIMENSIONAL DRAWINGS
DIMENSIONAL DRAWING A & E SPECIFICATIONS
The 2-way full range ceiling mounted coaxial loudspeaker
systems shall incorporate 6x 5.25-in concentrically arrayed
LF transducers plus 2x 5.25-in phase aligned LF transducers
and a 1-in exit compression driver HF transducer.
The LF drivers shall be mounted in a vented enclosure tuned
for optimum low frequency response. The HF driver shall be
loaded on an axis symmetrical constant directivity horn with
a nominal coverage pattern of 60°(conical). An internal
passive filter network shall provide fourth order acoustical
crossover and system equalization.
System frequency response shall vary no more than ±3 dB
from 75Hz to 18kHz measured on axis. The loudspeaker shall
produce a Sound Pressure Level (SPL) of 101 dB SPL on axis
at 1 meter with a power input of 1 Watt, and shall be ca-
pable of producing a peak output of 131.8 SPL on axis at 1
meter. The loudspeaker shall handle 300 of amplifier power
(AES Standard) and shall have a nominal impedance of 4
Ohms.
The loudspeaker enclosure shall be rectangular in shape and
shall be designed to mount in a 24-in ceiling grid. It shall be
constructed of 1/2-in thickness void-free cross-grain-lami-
nated Baltic birch plywood. It shall be finished in black cata-
lyzed polyurethane. Input connectors shall be 2-terminal
barrier strip type. A total of eight 3/8"-16 threaded mount-
ing points (2 each right and left side, 4 on back) shall be
provided. The front of the loudspeaker shall be covered with
a vinyl coated perforated steel grille.
The 2-way full range ceiling mounted coaxial loudspeaker
shall be the EAW model CP621.
11.65
12.03
6.38
TOP
23.31
23.31
12.03
RIGHT
19.38
4.5 2.75
1.65
13.87
(1.97)
(1.97)
19.36
BACK
LEFT
.5
.25
BOTTOM
FRONT (BAFFLE)
CP621
510175
EXP 4/1/97 SHB
MOUNTING POINT, 3/8"-16 THREADED HOLE
CENTER OF GRAVITY.
ALL DIMENSIONS IN INCHES UNLESS OTHERWISE SPECIFIED.
