EAW KF650is User manual
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • BBS (800) 889-2540
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# KF650is/C5/7/25/94 • Printed In USA
Technical Specifications KF650is
APPLICATIONS
The KF650is’ combination of compact size, high output and broad, well
defined coverage pattern make the system a good choice for applica-
tions that require even coverage of a wide area with a relatively short
throw. With optional weatherproofing, the KF650is can also be used as
part of a permanently installed outdoor system. Available in R (road)
and P (permanent) configurations.
• Performing Arts Facilities • Theaters
• Corporate AV • Touring Shows
• Churches • Clubs
• Lecture Halls • Theme Parks
Frequency Response
System Only 70 to 17 kHz ±2.5 dB
LF Limit -3 dB 65 Hz
LF Limit -10 dB 50 Hz
Optional Subwoofer
SB528/SB600 -3dB 31 Hz to 18 kHz
Efficiency / Axial Sensitivity
LF SPL 1w @ 1m 102 dB
MF SPL 1w @ 1m 107 dB
HF SPL 1w @ 1m 107 dB
Impedance
Nominal LF/MF/HF 8Ω/8Ω/8Ω
Power Handling
AES LF 1000 Watts
AES MF 400 Watts
AES LF 200 Watts
100 Hour Sine Wave LF 400 Watts
100 Hour Sine Wave MF 150 Watts
100 Hour Sine Wave HF 80 Watts
Maximum Output
Peak LF 132 dB SPL
Peak MF 133 dB SPL
Peak HF 130 dB SPL
Long Term LF 128 dB SPL
Long Term MF 128 dB SPL
Long Term HF 126 dB SPL
Nominal Coverage Angles (-6 dB)
Horizontal 60 degrees
Vertical 40 degrees
Additional Descriptive Data
LF Subsystem 1x15-in Wave Guide Cavity
MF Subsystem 1x10-in Cone Horn Loaded
HF Subsystem EAW CD5001 2-in Exit/Horn
CCEPTM Configuration MX300i-653
Powering Mode Switchable Tri-Amp or Bi-Amp
Finish Black Catalyzed Polyurethane
“P” Connectors AP6 M&F & Barrier Strip
“R” Connectors AP4 M&F, AP6 M&F
Grill Vinyl Coated Perforated Steel
Preliminary Dimensions & Weights
Height 33.25 in (845 mm)
Width 24.63 in (623 mm)
Depth 19.75 in (502 mm)
Net Weight 154 lbs (78.2 kg)
Shipping Weight 162 lbs (79.5 kg)
SPECIFICATIONS
The 3-way full range loudspeaker system shall incorporate a 15-in LF
cone transducer, a 10-in midrange cone transducer and a 2-in com-
pression driver mounted to a constant directivity HF horn. The system
shall have frequency response of 70 Hz to 20 kHz ±2.5 dB; axial
sensitivity (1W@1m) of 102 dB SPL (LF), 107 dB SPL (MF), 107 dB SPL
(HF); 100 hour sine wave power handling of 400 Watts (LF), 150 Watts
(MF), 80 Watts (HF); horizontal coverage of 60°between -6 dB points;
vertical coverage of 40°between -6 dB points.
The system’s LF driver shall be mounted directly behind the high
frequency horn and shall be loaded into a vented wave guide cavity.
The midrange driver shall be loaded into a constant horizontal cover-
age horn constructed of 3 mm cross-grain-laminated birch hardwood,
reinforced with high-density polyurethane foam incorporating a cen-
ter displacement plug. The HF driver shall utilize a titanium diaphragm
not less than 88mm in diameter. An ARCTM device shall be mounted in
the woofer cavity to control reflections of refracted HF energy.
The trapezoidal enclosure shall be constructed of void-free cross-grain-
laminated birch plywood with integral bracing, and shall be tapered
so as to simplify construction of arrays. It shall be finished in black
catalyzed polyurethane. All external hardware shall be stainless steel or
shall be coated to protect against rust and corrosion. The front of the
system shall be covered with perforated steel grill, coated with vinyl to
dampen resonance and backed with open cell foam to protect against
dust. Hanging fixture attachment points shall be installed in the top
and bottom of the enclosure and mating clips shall be included. The
three-way full range loudspeaker system shall be the EAW model
KF650isR.
ARCHITECTS’ & ENGINEERS’ SPECIFICATIONS
ARCHITECTS’ & ENGINEERS’ SPECIFICATIONS
• Group C Hardware Technical Specifications
• Group C Price Lists
• APP Testing Procedures
• Weather Proofing Technical Specifications
• Structural/Mechanical Technical Specifications
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 2
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Drawings KF650is
DIMENSIONAL DRAWINGS INPUT PLATES
KF650isP MOUNTING POINTS 3/8"-16 NUTS WELDED TO A 2"x 2" STEEL PLATE
ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED
SIDES
17.00
19.75
2.00
TOP/BOTTOM
BACK
FRONT
9.88
6.38
19.75
6.38
11.13
10.50
1.25
33.25
2.00
1.88
12.28
2.50
14.18
4.97
2.78
19.75
1.13
2.00
5.38
29.25
10.00
10°
4.13
5.38
12.75
BACK TOP/BOTTOM
KF650isR ALL DIMENSIONS ARE IN INCHES UNLESS OTHERWISE NOTED
BACK
SIDES BACK
TOP
FRONT
19.75
8.00
14.18
33.25
12.28
4.97
19.75 10.50
1.13
4.13
BOTTOM
4.50
11.13
2.50
6.38
1.25
5.38
14.18
10°
12.75
FLY ANCHOR MOUNTING POINTS
KF-650isP
NO.
EASTERN ACOUSTIC WORKS
-- +
LOW -- +
MID -- +
HIGH
ARC™
Patent Pending
MADE IN USA
Virtual Array
TM
TECHNOLOGY
BI-AMP
...
...
--
+
PIN 1
PIN 2
LOW
LOW
...
...
--
+
MID/HIGH
MID/HIGH
PIN 5
PIN 6
TRI-AMP
PIN 5
PIN 6
HIGH
HIGH
...
...
--
+
PIN 3
PIN 4
MID
MID
...
...
--
+
PIN 1
PIN 2
LOW
LOW
...
...
--
+
CANNON
1
2
3
4
5
6
CANNON
1
2
3
4
56
-- +-- + MID/HIGHLOW
KF-650isR
NO.
EASTERN ACOUSTIC WORKS
BI-AMP
...
...
--
+
PIN 1
PIN 2
LOW
LOW
...
...
--
+
MID/HIGH
MID/HIGH
PIN 3
PIN 4
TRI-AMP
PIN 5
PIN 6
HIGH
HIGH
...
...
--
+
PIN 3
PIN 4
MID
MID
...
...
--
+
PIN 1
PIN 2
LOW
LOW
...
...
--
+
ARC™
Patent Pending
MADE IN USA
Virtual Array
TM
TECHNOLOGY
1
23
4
CANNON
1
23
4
CANNON
CANNON
1
2
3
4
5
6
CANNON
1
2
3
4
56
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 3
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Performance Data KF650is
FREQUENCY RESPONSE
60
80
100
120
200 1000 10000 20000
dB SPL
Frequency (Hz)
KF650is with MX300i-653
Beamwidth Delimited Power Response
K
B
BEAMWIDTH
Freq Hor Q Ver Q Tot Q Hor Beamwidth Ver Beamwidth
100 1.8 1.7 1.7 360 360
125 1.6 1.5 1.5 360 360
160 2.5 2.6 2.5 188 183
200 2.4 2.4 2.4 213 360
250 3.2 4.7 3.8 163 117
315 3.1 2.6 2.8 187 260
400 4.2 3.1 3.4 122 148
500 5.5 4.3 4.7 104 124
630 7.3 5 5.9 94 117
800 11.9 7 8.7 71 93
1000 17.3 9.5 12.1 57 82
1250 18.2 18.5 18.3 56 56
1600 10.3 10.7 9.3 77 72
2000 5.3 10.4 6.7 116 72
2500 5.3 12.3 7.6 116 69
3150 6.2 15.9 8.9 103 55
4000 9.7 20.2 13.1 78 54
5000 12.7 28.5 17.6 67 40
6300 16 37.1 22.3 53 33
8000 15.3 17.2 16.2 52 61
10000 15.5 31.6 20.8 61 42
12500 11.6 41.8 18.2 70 27
16000 11.4 26.6 15.9 80 43
20000 37.3 58.3 45.5 28 24
Q & BEAMWIDTH BY FREQUENCY
0
30
60
90
120
150
180
210
240
270
300
330
360
200 1000 10000
Degrees
Frequency (Hz)
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
KF650is with MX300i-653 Beamwidth vs Frequency
K
B
INPUT IMPEDANCE
0
5
10
15
20
20 100 1000 10000 20000
Ohms
Frequency (Hz)
HF Tri-Amp Input Impedance (Magnitude)
MF Tri-Amp Input Impedance (Magnitude)
LF Tri-Amp Input Impedance (Magnitude)
KF650is with MX300i-653
Tri-Amp Input Impedance (Magnitude)
K
B
Q & DIRECTIVITY INDEX (DI)
1
10
100
0
2
4
6
8
10
12
14
16
18
20
200 1000 10000
Q
Directivity Index
Frequency (Hz)
Horizontal Q and Directivity (1/3 Octave)
Vertical Q and Directivity (1/3 Octave)
Total Q and Directivity (1/3 Octave)
KF650is with MX300i-653 Q and Directivity
K
B
0
20
40
60
80
100
120
140
200 1000 10000
dB SPL
Frequency (Hz)
Fundamental at 1% Power (raised 10 dB)
2nd Harmonic at 1% Power (raised 10 dB)
3rd Harmonic at 1% Power (raised 10 dB)
Fundamental at 10% Power
2nd Harmonic at 10% Power
3rd Harmonic at 10% Power
KF650is with MX300i-653 Harmonic Content
K
B
DISTORTION
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 4
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P

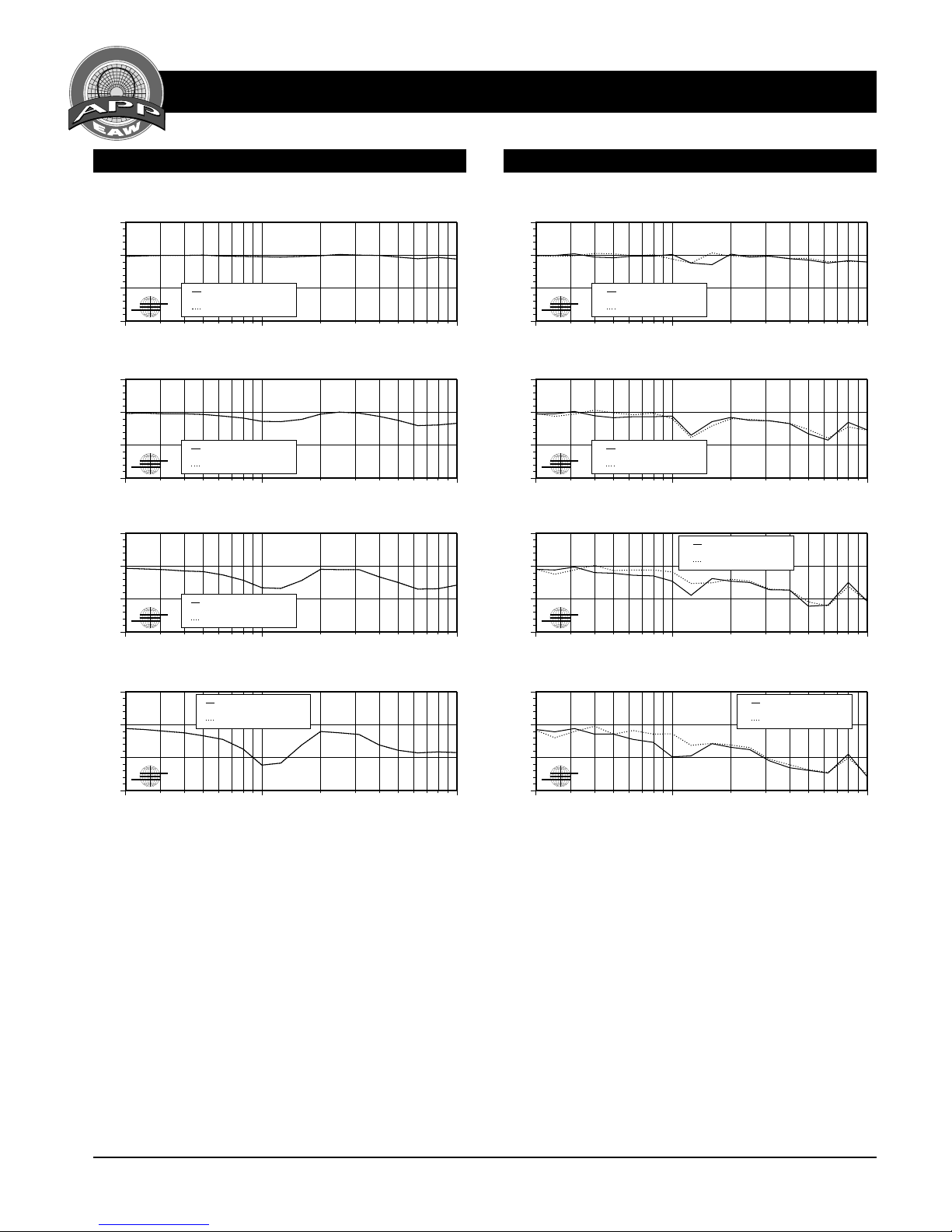

VERTICAL OFF-AXIS RESPONSE
Performance Data KF650is
On-axis response normalized to 0 dB. On-axis response normalized to 0 dB.
HORIZONTAL OFF-AXIS RESPONSE
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +10 degrees
Horizontal -10 degrees
KF650is with MX300i-653 Horizontal ±10°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +20 degrees
Horizontal -20 degrees
KF650is with MX300i-653 Horizontal ±20°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +30 degrees
Horizontal -30 degrees
KF650is with MX300i-653 Horizontal ±30°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Horizontal +40 degrees
Horizontal -40 degrees
KF650is with MX300i-653 ±40°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +10 degrees
Vertical -10 degrees
KF650is with MX300i-653 ±10°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +20 degrees
Vertical -20 degrees
KF650is with MX300i-653 ±20°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +30 degrees
Vertical -30 degrees
KF650is Vertical ±30°
K
B
-20
-10
0
10
200 1000 10000
Attenuation in dB
Frequency (Hz)
Vertical +40 degrees
Vertical -40 degrees
KF650is with MX300i-653 ±40°
K
B
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 5
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P

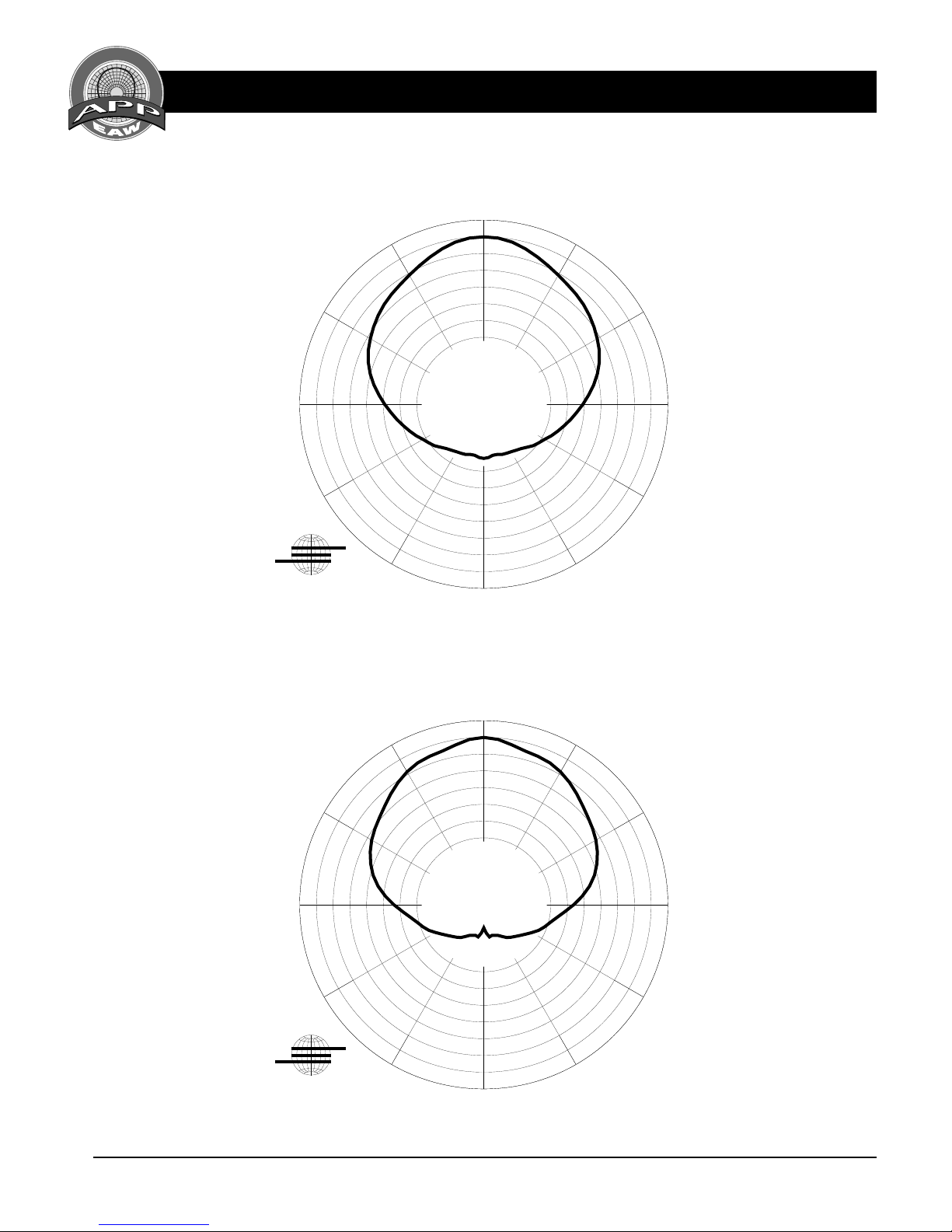

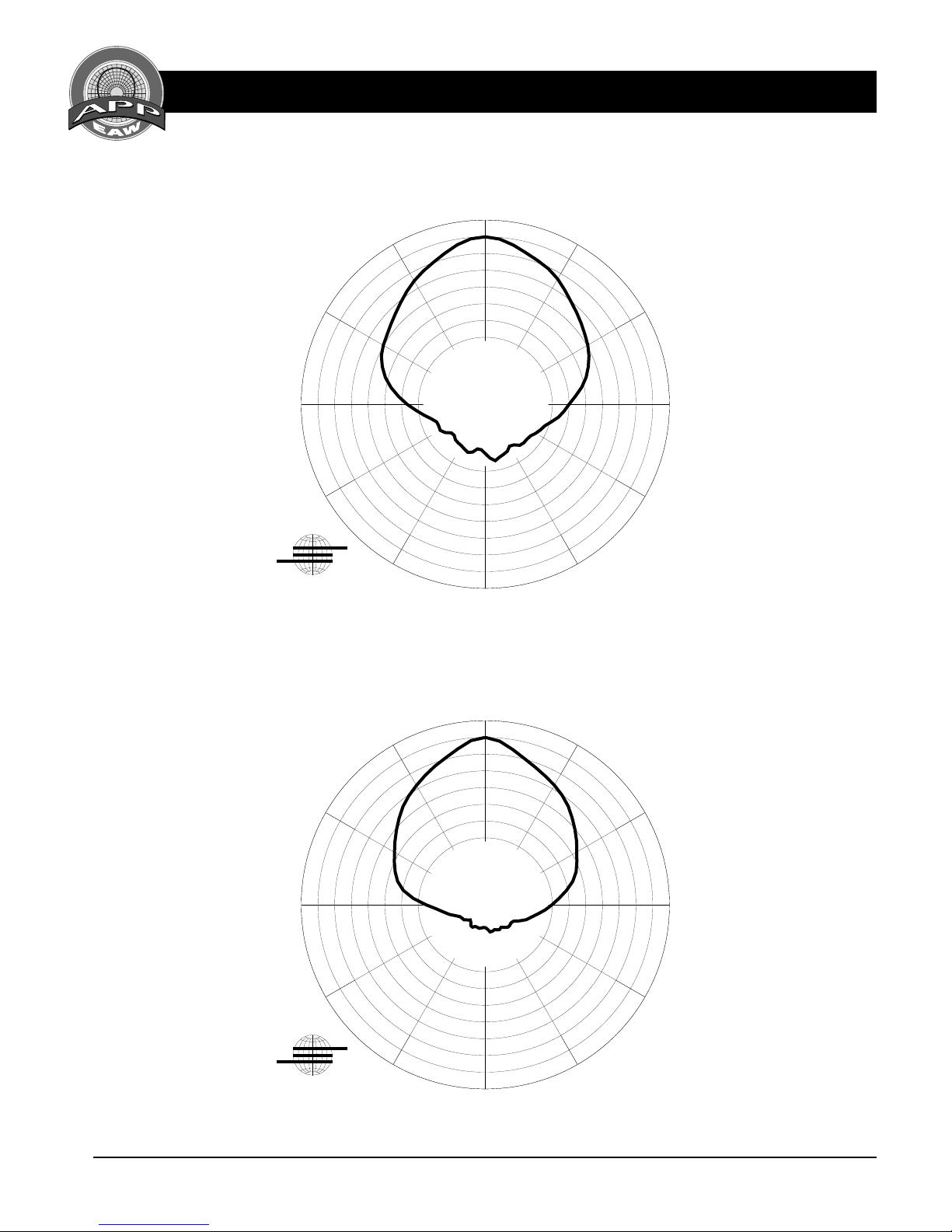

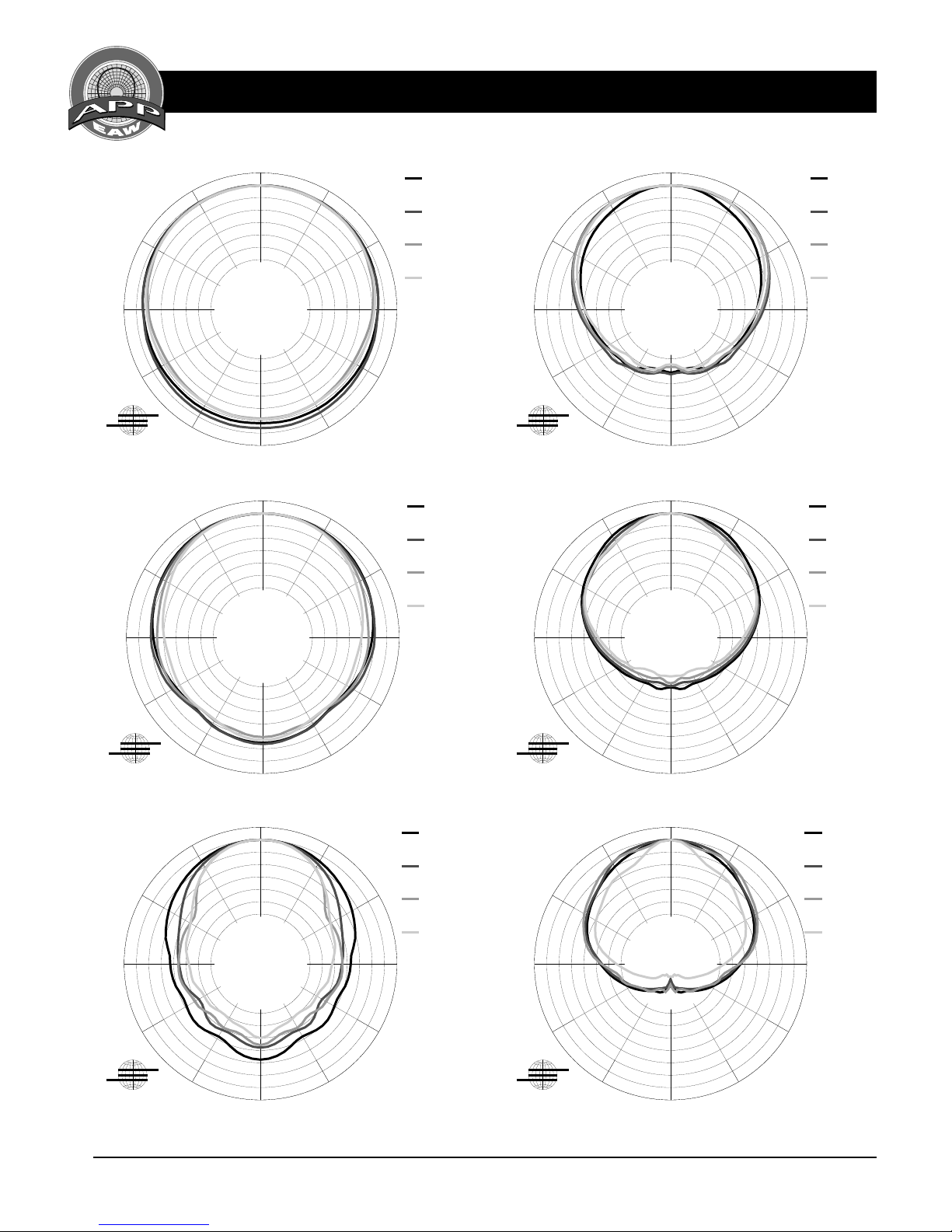

Horizontal 1/3 Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
100
125
160
200
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
10000
12500
16000
20000
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°4000
5000
6300
8000
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
1600
2000
2500
3150
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
250
315
400
500
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
630
800
1000
1250
K
B
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 6
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Vertical 1/3 Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
100
125
160
200
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
10000
12500
16000
20000
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°4000
5000
6300
8000
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
1600
2000
2500
3150
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
250
315
400
500
K
B
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
630
800
1000
1250
K
B
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 7
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Horizontal Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 125 Hz Horizontal Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 250 Hz Horizontal Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 8
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Horizontal Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 500 Hz Horizontal Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 1000 Hz Horizontal Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 9
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Horizontal Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 2000 Hz Horizontal Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 4000 Hz Horizontal Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 10
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Horizontal Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 8000 Hz Horizontal Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 16000 Hz Horizontal Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 11
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Vertical Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 125 Hz Vertical Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 250 Hz Vertical Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 12
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Vertical Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 500 Hz Vertical Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 1000 Hz Vertical Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 13
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Vertical Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 2000 Hz Vertical Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 4000 Hz Vertical Octave Polar Data
6 db/div.
Acoustic Partnership Performance Eastern Acoustic Works KF650is Page 14
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • BBS 800/889-2540
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
Vertical Octave Polar Data KF650is
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 8000 Hz Vertical Octave Polar Data
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
K
B
KF650is 16000 Hz Vertical Octave Polar Data
6 db/div.
Table of contents
Other EAW Speakers System manuals
