TECHNICAL SPECIFICATIONS SB850F
DESCRIPTION
A dedicated subwoofer system with 2x 18-in transducers in a
trapezoidal enclosure. Each driver is in its own optimally
ventedsubenclosure.“F” flown arrayversionfeatureshandles,
flytracks and internal counterweights.
APPLICATIONS
The SB850 high output Stadium Array subwoofer integrates
with KF Series Stadium Array systems to form extended range
flown arrays. 19-position flytracks and internal counter-
weights ensure a “dead hang.” Tuned enclosure venting ex-
tends LF response and minimizes driver strain. MX Series
processors extend LF response and safeguard against cone
excursion damage. Six Year Warranty.
Applications include:
Concert Tours
Major Televised Events
Corporate Events
DESCRIPTIVE DATA
Part Number 999106
Product Group S
Sub Subsystem & Loading 2x 18-in, Separate Vented
Subenclosures
Ststem Configuration Dedicated Subwoofer for Flown
Arrays
Recommended High-Pass
Frequency (24 dB/Octave) 20Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 1 each male and female AP4
Suspension Hardware 4x 19 position flytrack (2 each top
and bottom)
Grill Vinyl Coated Perforated Steel with
foam backing
Options 179001 Flyclip with ring
179002 Flyclip with hook
CP850 Caster Pallet (255010)
NOMINAL DATA
Frequency Response (Hz)
±3 db 32Hz (39Hz w/out CCEP) to 150Hz
-10 dB 27Hz (30Hz w/out CCEP)
Axial Sensitivity (dB SPL/1 Watt/1m)
Sub 99
Impedance (Ohms) Sub 4 or 2 x 8
Power Handling (Watts)
Sub AES Standard 2000
Calculated Maximum Output (dB SPL, @ 1m)
Sub Peak 138.0
Sub Long Term 132.0
Dimensions inches millimeters
Height 42 1067
Width 26.375 670
Width (Front) 26.375 670
Width (Rear) 16.5 419
Depth 29.5 749
Trapezoid Angle 9.5 degrees per side
Weights pounds kilograms
Net Weight ??? 0.5
Shipping Weight ??? 0.5
R version shown

Acoustic Performance Partnership Eastern Acoustic Works SB850F
One Main Street, Whitinsville MA, 01588 USA • Phone [phone] • Toll Free 800/992-5013 • Fax [phone] • Web http://www.eaw.com • email [e-mail]
A
C
O
U
S
T
I
C
A
L
P
E
R
F
O
R
M
A
N
C
E
P
A
R
T
N
E
R
S
H
I
P
TECHNICAL SPECIFICATIONS SB850F

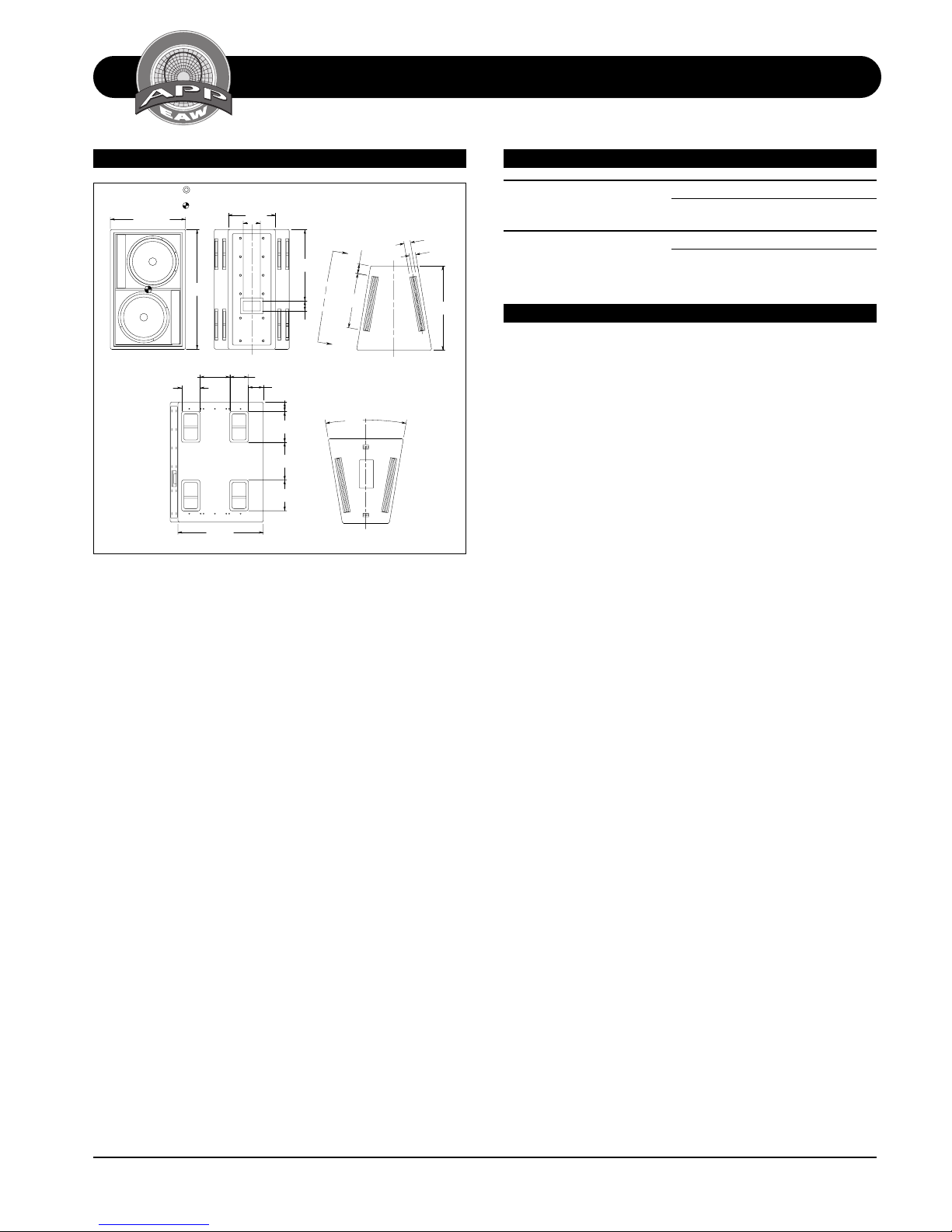

DIMENSIONAL DRAWINGS
DIMENSIONAL DRAWING
2.25
2.25
C
L
3.41
A
A
13.25
10.81
6
16.5
10.5
6.44 5.25
3.25
26.38
TOP
MOUNTING POINT, 3/8"-16 THREADED HOLE.
CABINET IS SYMMETRICAL ABOUT CENTERLINES.
BACK
BOTTOM
FRONT
25.06
19.25 29.5
29.91
VIEW A-A
6.44
19°
10.75
3.5
42
CENTER OF BALANCE.
SB850F
510149
EXP 3/9/97 SHB
C
L
C
L
SERVICE ITEMS
Sub: Complete Cone Driver
EAW Part No. 804041(R,RD2)
804059(F)
Filter/Crossover Network: Complete Assembly
EAW Part No. 201073(RD2)
201273(FD2)
201425(R [NL4])
ARCHITECTURAL SPECIFICATIONS
The sub bass loudspeaker systems shall incorporate 2x 18-in
LF transducers mounted in separate vented subenclosures
tuned for optimum low frequency response.
System frequency response shall vary no more than ±3 dB
from 32 Hz to 150 Hz measured on axis with appropriate
signal processing. The loudspeaker shall produce a Sound
Pressure Level (SPL) of 99 dB SPL on axis at 1 meter with a
power input of 1 Watt, and shall be capable of producing a
peak output of 138 SPL on axis at 1 meter. The loudspeaker
shall handle 2000 Watts of amplifier power (AES Standard)
and shall have a nominal impedance of 4 (2x 8) Ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of 15mm thickness void-free cross-grain-
laminated Baltic birch plywood and shall employ extensive
internal bracing. It shall be finished in black catalyzed poly-
urethane. Input connectors shall be one each male and fe-
male AP4. A total of 4x 19-position flytracks (2 each top and
bottom) shall be provided. The front of the loudspeaker shall
be covered with a vinyl coated perforated steel grill backed
with open cell foam to protect against dust.
The sub bass loudspeaker shall be the EAW model SB850F.
