Echo ES-255 SHRED 'N' VAC User manual

Specifications, descriptions and illustrative material in this literature are as accurate as known at the time
of publication, but are subject to change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
Operator’s Manual
X7501180708
© 5/2015 ECHO Inc.
X7722271404 / X772000164

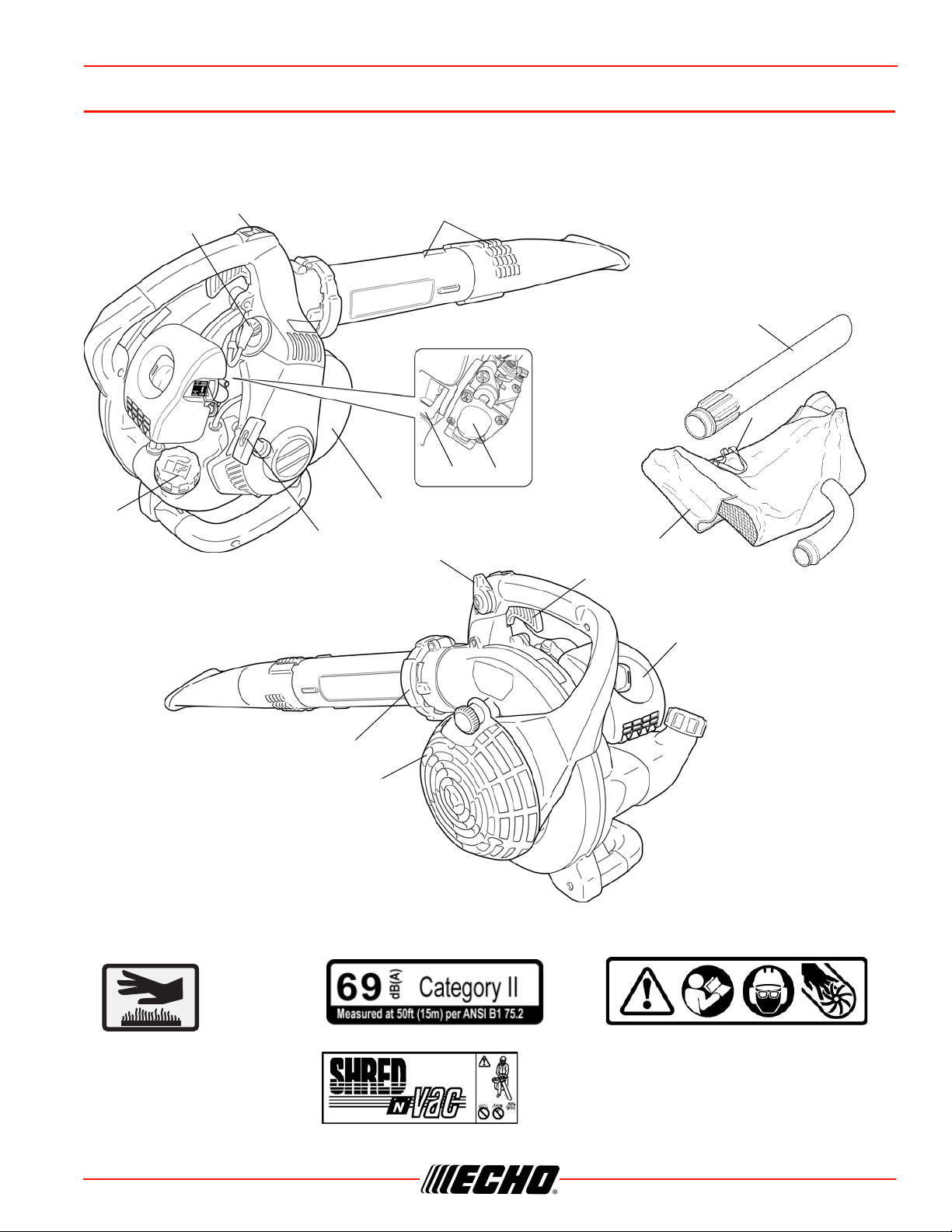

ES-255
SHRED ‘N’ VAC®
Burn Hazard
The muffler or catalytic muffler and surrounding cover may become extremely hot.
Always keep clear of exhaust and muffler area, otherwise serious personal injury may
occur.
The engine exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Users of this equipment risk injury to themselves and others if the unit is used
improperly and/or safety precautions are not followed. ECHO provides an operator’s
manual. It must be read and understood for proper and safe operation. Failure to do so
could result in serious injury.

2X7501180708
© 5/2015 ECHO Inc.
TABLE OF CONTENTS ES-255
TABLE OF CONTENTS
Table of contents ............................................................................................................................... 2
Introduction ........................................................................................................................................ 3
The Operator’s Manual ................................................................................................................ 3
Servicing information ......................................................................................................................... 3
Parts/Serial Number..................................................................................................................... 3
Service......................................................................................................................................... 3
Echo Consumer Product Support ................................................................................................ 3
Product Registration .................................................................................................................... 3
Additional or Replacement Manuals ............................................................................................ 3
Safety................................................................................................................................................. 4
Manual Safety Symbols and Important Information..................................................................... 4
International Symbols .................................................................................................................. 5
Personal Condition and Safety Equipment .................................................................................. 6
Equipment.................................................................................................................................... 9
Emission Control (Exhaust / Evaporative) ....................................................................................... 10
EPA 2010 and Later .................................................................................................................. 10
Description....................................................................................................................................... 11
Contents .......................................................................................................................................... 13
Assembly ......................................................................................................................................... 14
Blower Application ..................................................................................................................... 14
Install Blower Pipes ................................................................................................................... 14
Remove Blower Pipes ............................................................................................................... 15
Vacuum/Shredding Application.................................................................................................. 16
Operation ......................................................................................................................................... 17
Fuel............................................................................................................................................ 18
Starting Cold Engine.................................................................................................................. 19
Starting Warm Engine................................................................................................................ 20
Stopping Engine......................................................................................................................... 21
Operating Blower ....................................................................................................................... 21
SHRED ‘ N’ VAC® Operation .................................................................................................... 23
SHRED ‘ N’ VAC® Troubleshooting ........................................................................................ 23
Maintenance .................................................................................................................................... 24
Skill Levels................................................................................................................................. 24
Maintenance Intervals................................................................................................................ 24
Air Filter...................................................................................................................................... 25
Fuel Filter................................................................................................................................... 25
Spark Plug ................................................................................................................................. 26
Cooling System.......................................................................................................................... 26
Exhaust System......................................................................................................................... 27
Carburetor Adjustment............................................................................................................... 28
Shredder Blade.......................................................................................................................... 29
Debris Bag ................................................................................................................................. 29
Troubleshooting ............................................................................................................................... 30
Storage ............................................................................................................................................ 31
Long Term Storage (Over 30 Days)........................................................................................... 31
Specifications................................................................................................................................... 32
Warranty Statements ....................................................................................................................... 33
Product Registration ........................................................................................................................ 35
Notes ............................................................................................................................................... 36

ES-255 INTRODUCTION
X7501180708
© 5/2015 ECHO Inc.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and
on-the-job dependability. Read and understand this manual. You will find it easy to use and full of helpful
operating tips and SAFETY messages.
The Operator’s Manual
Keep it in a safe place for future reference. Contains specifications and information for safety, operation,
maintenance, storage and assembly specific to this product.
SERVICING INFORMATION
Parts/Serial Number
Genuine ECHO Parts and ECHO REPOWER™ Parts and
Assemblies for your ECHO products are available only from an
Authorized ECHO Dealer. When you do need to buy parts always
have the Model Number and Serial Number of the unit with you. You
can find these numbers on the engine housing. For future reference,
write them in the space provided below.
Model No. _________________ SN. ___________________
Service
Service of this product during the warranty period must be performed by an Authorized ECHO Service
Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or
call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site. When presenting your
unit for Warranty service/repairs, proof of purchase is required.
Echo Consumer Product Support
If you require assistance or have questions concerning the application, operation or maintenance of this
product you may call the ECHO Consumer Product Support Department at 1-800-673-1558 from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling, please know the model and serial
number of your unit.
Product Registration
To ensure trouble free warranty coverage it is important that you register your ECHO equipment on-line at
www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your
product confirms your warranty coverage and provides a direct link between you and ECHO if we find it
necessary to contact you.
Additional or Replacement Manuals
Replacement Operator, Safety Manuals, and Parts Catalogs
are available from your ECHO dealer or at www.echo-usa.com
or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich,
IL 60047 (800-673-1558). Always check the ECHO Web Site for
updated information.
Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video.
For more information
scan this QR code.

4X7501180708
© 5/2015 ECHO Inc.
SAFETY ES-255
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts and helpful, informational
messages preceded by symbols or key words. The following is an explanation of those symbols and key
words and what they mean to you.
The safety alert symbol accompanied by the word “DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING” calls attention to an act or condition
which CAN lead to serious personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal injury if not avoided.
The enclosed message provides information necessary for the protection of the unit.
Note: This enclosed message provides tips for use, care and maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result
in serious or fatal injury.

ES-255 SAFETY
X7501180708
© 5/2015 ECHO Inc.

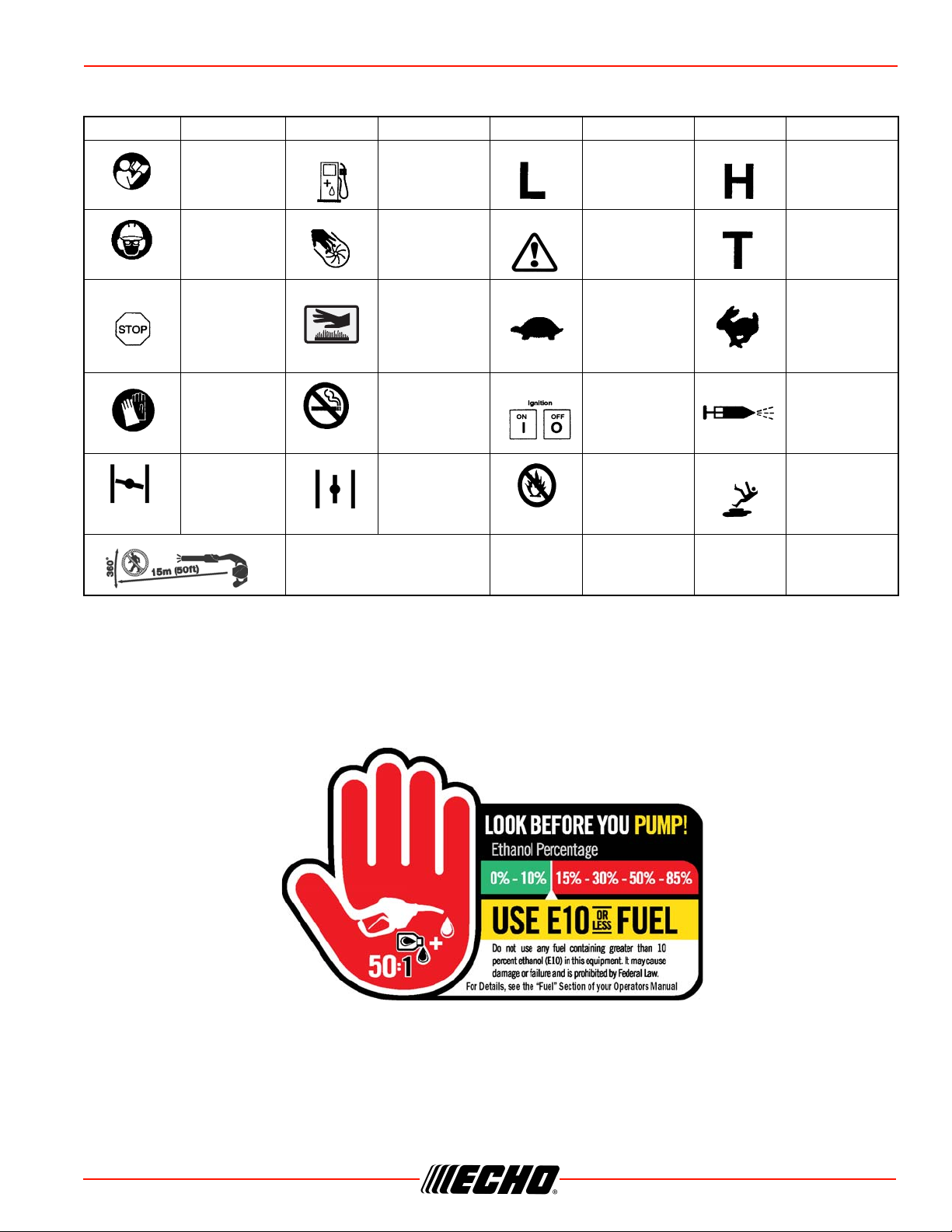

International Symbols
Symbol Description Symbol Description Symbol Description Symbol Description
Read and
understand
owners
manual.
Fuel and oil
mixture
Carburetor
Adjustment -
Low speed
mixture
Carburetor
Adjustment -
High speed
mixture
Wear eye, ear
and head
protection
Finger severing Safety/Alert
Carburetor
Adjustment -
Idle speed
Emergency
Stop Hot Surface Idle Speed Fast speed
Wear hand
protection.
Use two
handed
DO NOT smoke
near fuel
Ignition
ON / OFF Primer Bulb
Choke Control
COLD START
Position
(Choke
Closed)
Choke Control
“RUN” Position
(Choke Open)
DO NOT allow
flames or
sparks near fuel
Wear slip
resistant
footwear
Keep bystanders and helpers
away 15 m (50 ft.).

6X7501180708
© 5/2015 ECHO Inc.
SAFETY ES-255
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the unit is used improperly and/or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick.
• If you are taking medication.
• If you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
•Eye protection that meets ANSI Z87.1 or CE requirements must be worn whenever you operate the
unit.
•For additional safety, a full-face shield may be worn over safety glasses or goggles to provide
protection from sharp branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles. Gloves also provide protection
against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to
prevent inhaling these materials while operating unit. Dust masks can provide protection against dust, plant
debris, and other plant matter such as pollen. Make sure the mask does not impair your vision, and replace
the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or hanging items that could become
entangled in moving parts or surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.

ES-255 SAFETY
X7501180708
© 5/2015 ECHO Inc.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to heat stroke. Schedule heavy
work for early morning or late afternoon hours when temperatures are cooler.
The components of this machine generate an electromagnetic field during operation, which may
interfere with some pacemakers.To reduce the risk of serious or fatal injury, persons with
pacemakers should consult with their physician and the pacemaker manufacturer before operating
this machine.In the absence of such information, ECHO does not recommend the use of this
machine by anyone who has a pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in injury. Read and follow all safety and
operation instructions to minimize risk of injury. Failure to follow instructions may result in painful
wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects the fingers of certain individuals,
may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling
and burning sensations, followed by loss of color and numbness in the fingers. The following precautions are
strongly recommended, because the minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks, and also by not
smoking.
• Limit the hours of operation. Try to fill each day with jobs
where operating the unit or other hand-held power equipment
is not required.
• If you experience discomfort, redness, and swelling of the
fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to
cold and vibration.

8X7501180708
© 5/2015 ECHO Inc.
SAFETY ES-255
Repetitive Stress Injuries (RSI)
It is believed that overusing the muscles and tendons of the fingers,
hands, arms, and shoulders may cause soreness, swelling,
numbness, weakness, and extreme pain in those areas. Certain
repetitive hand activities may put you at a high risk for developing a
Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal
Tunnel Syndrome (CTS), which could occur when your wrist swells
and squeezes a vital nerve that runs through the area. Some believe
that prolonged exposure to vibration may contribute to CTS. CTS
can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position.
Instead try to maintain a straight wrist position. Also, when
grasping, use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercise to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you feel tingling, numbness, or pain in
the fingers, hands, wrists, or arms. The sooner RSI/CTS is diagnosed, the more likely permanent nerve
and muscle damage can be prevented.
All over head electrical conductors and communications wires can have electricity flow with high
voltages. This unit is not insulated against electrical current. Never touch wires directly or indirectly,
otherwise serious injury or death may result.
Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains
poisonous emissions and can cause serious injury or death.
Read the Manual
• Provide all users of this equipment with the Operator’s Manual for instructions on Safe Operation.
Clear the Work Area
• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets
outside a 15 m (50 ft) radius; outside the 15 m (50 ft) zone, there is still a risk of injury from thrown objects.
Bystanders should be encouraged to wear eye protection. If you are approached, stop the engine.
• Avoid blowing debris towards people, pets, open windows, or vehicles when using unit.
• Review area to be cleared. Look for potential hazards such as stones or metal objects.
Keep a Firm Grip
• Hold the handle in one hand, with thumb and fingers encircling the handle.

ES-255 SAFETY
X7501180708
© 5/2015 ECHO Inc.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery, uneven or unstable surfaces. Do not
work in odd positions or on ladders. Do not over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of flammable debris. Avoid contact
during and immediately after operation.
Equipment
Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment
combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or
accessories which have not been tested and approved by ECHO. Read and comply with all safety
instructions listed in this manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed.
• Do not use blower if any part is missing or damaged.
• Have repairs done only by an authorized ECHO Service dealer.
Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects
away from all openings.
•ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a
complete stop before removing obstructions, clearing debris, or servicing unit.
•DO NOT start or operate unit unless all guards and protective covers are properly assembled to
unit.
•NEVER reach into any opening while the engine is running. Moving parts may not be visible
through openings.
Check fuel system for leaks due to fuel tank damage, especially if the unit is dropped. If damage or
leaks are found, do not use unit, otherwise serious personal injury or property damage may occur.
Have unit repaired by an authorized servicing dealer before using.

10 X7501180708
© 5/2015 ECHO Inc.
EMISSION CONTROL (EXHAUST / EVAPORATIVE) ES-255
EMISSION CONTROL (EXHAUST / EVAPORATIVE)
EPA 2010 and Later
The emission control system for the engine is EM (engine modification)
and, if the second to last character of the Engine Family on the Emission
Control Information label (sample below) is “C”, “K”, or “T”, the emission
control system is EM and TWC (3-way catalyst). The fuel tank/fuel line
emission control system is EVAP (evaporative emissions). Evaporative
emissions for California models are only applicable to fuel tanks
An Emission Control Label is located on the engine. (This is an
EXAMPLE ONLY, information on label varies by engine FAMILY).
Product Emission Durability (Emission Compliance Period)
The 50 or 300 hour emission compliance period is the time span
selected by the manufacturer certifying the engine emissions output
meets applicable emissions regulations, provided that approved
maintenance procedures are followed as listed in the Maintenance
Section of this manual.

ES-255 DESCRIPTION
X7501180708
© 5/2015 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow
the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See
PARTS ORDERING instructions for specific information.
1
2
3
4
5
67
8
910
11
12
13
14
15
16
Sound Label
Hot Decal General Warning Decal
Suction Tube Warning Label

12 X7501180708
© 5/2015 ECHO Inc.
DESCRIPTION ES-255
1. STOP SWITCH - “SLIDE SWITCH” mounted on top of throttle handle. Push forward to start and run.
Slide back to stop.
2. SPARK PLUG - Provides spark to ignite fuel mixture.
3. FUEL TANK CAP - Covers and seals fuel tank.
4. RECOIL STARTER HANDLE - Pull recoil handle slowly until recoil starter engages, then quickly and
firmly. When engine starts, return handle slowly. DO NOT let handle snap back or damage to unit will
occur.
5. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER WITH CATALYST -The muffler
controls exhaust noise and emission. The spark arrestor screen prevents hot, glowing particles of
carbon from leaving the muffler. Keep exhaust area clear of flammable debris.
6. CHOKE - The choke control lever is located on the front of the air cleaner case. Move choke lever to
COLD START ()to close the choke for Cold Starting. Move choke lever to RUN ()position to
open choke.
7. PURGE BULB - Pumping purge bulb before starting engine draws fresh fuel from the fuel tank, purging
air from the carburetor. Pump purge bulb until fuel is visible and flows freely in the clear fuel tank return
line. Pump purge bulb an additional 4 or 5 times.
8. BLOWER PIPES - Exclusive positive locking system.
9. THROTTLE POSITION LEVER - Pull back to increase engine speed. Friction washers maintain throttle
lever setting.
10. THROTTLE TRIGGER - Spring loaded to return to idle when released. During acceleration, press trigger
gradually for best operating technique.
11. AIR CLEANER - Contains replaceable air filter element.
12. LOCKING RING - Locks blower pipe.
13. SHOULDER STRAP - Secures debris bag to shoulder.
14. VACUUM TUBE - Sucks in materials to be shredded.
15. DEBRIS BAG - Collects shredded material
16. FAN/SHREDDER BLADE COVER - Covers blade area and activates safety interlock switch when
closed. Engine will not run if safety switch is not activated.

ES-255 CONTENTS
X7501180708
© 5/2015 ECHO Inc.
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging
restrictions, some assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or
missing parts. Use the contents list to check for missing parts.
____ 1 - Power Head
____ 1 - Blower Pipe (upper)
____ 1 - Blower Pipe (lower)
____ 1 - SHRED 'N' VAC®Suction Tube
____ 1 - Elbow Pipe
____ 1 - Debris Bag
____ 1 - Operator's Manual
____ 1 - Emission Control Warranty Statement
____ 1 - Echo Power Blend X TM 2-stroke oil sample

14 X7501180708
© 5/2015 ECHO Inc.
ASSEMBLY ES-255
ASSEMBLY
Blower Application
Never perform maintenance or assembly procedures with engine running or serious personal injury
may result.
Install Blower Pipes
1. Stand unit upright on blower base.
2. Release locking ring (C) with a coin or screwdriver, and
rotate so that lock symbol (A) is at top of ring.
3. Align locking ribs (E) on main blower pipe with recesses (D)
in locking ring, and slide main blower pipe into locking ring.

ES-255 ASSEMBLY
X7501180708
© 5/2015 ECHO Inc.
4. After inserting main blower pipe into fan case so that line (F)
meets locking ring (C), rotate locking ring clockwise 1/8 turn
to lock main blower pipe in place.
5. Align groove (H) in fan-head pipe with tabs (G), and slide
fan-head pipe over main pipe until there is light resistance.
Do not force connection.
6. Hold main pipe, and turn fan-head pipe clockwise, engaging
positive locking channels until connection is firm.
Note: Blower use will eventually loosen pipe connections.
Exclusive positive locking system allows pipes to be
tightened. If loosening occurs, remove fan-head pipe,
and install according to instructions 5 & 6.
Remove Blower Pipes
1. Release locking ring (C) with a coin or screwdriver, and
rotate ring so that lock symbol (A) is at top of ring.
2. Remove pipes from locking ring.
Blower Pipe (main)
Blower Pipe
G
H

16 X7501180708
© 5/2015 ECHO Inc.
ASSEMBLY ES-255
Vacuum/Shredding Application
Install Vacuum Tube
1. Turn knob (I) counter clockwise until hinged housing cover is
free to open for vacuum tube installation.
2. Open housing cover, slide recess (J) on vacuum tube into
locking rib (K), and turn the vacuum tube clockwise so that it
is locked.
Note: Engine will not start/operate unless safety interlock
switch (K) is activated by the vacuum tube.
Install Bag
1. Stand unit upright on blower base.
2. Release locking ring (C) with a coin or screwdriver, and
rotate so that lock symbol (A) is at top of ring.
3. Align locking ribs (L) on elbow with recesses (D) in locking
ring, and slide elbow into locking ring.

ES-255 OPERATION
X7501180708
© 5/2015 ECHO Inc.
4. After inserting elbow into fan case so that line (M) meets
locking ring (C), rotate locking ring clockwise 1/8 turn to
lock elbow in place.
5. Place debris bag opening over flared end of elbow, and
cinch bag (O) securely at the position (N) with Velcro strap.
OPERATION
Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects
away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts
have come to a complete stop before removing obstructions, clearing debris, or servicing unit.
Blower housing may contain shredder blades and other sharp edges that can cause serious injuries
if touched, even if engine is off and blades are not moving. Wear gloves to protect hands from sharp
edges and hot surfaces.
Operation of this equipment may create sparks that can start fires. This unit is equipped with a spark
arrestor to prevent discharge of hot particles from the engine. Metal cutters can also create sparks if
the cutter strikes rocks, metal, or other hard objects. Contact local fire authorities for laws or
regulations regarding fire prevention requirements.

18 X7501180708
© 5/2015 ECHO Inc.
OPERATION ES-255
Fuel
Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO
requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels
may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended
machine operation, including, but not limited to, improper clutch engagement. Alternative fuels may
also cause premature deterioration of fuel lines, gaskets, carburetors and other engine components.
Fuel Requirements
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may
contain up to 10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing
methanol (wood alcohol) is NOT approved. ECHO brand Power Fuel™is 93 octane, ethanol-free fuel
premixed with ECHO Red Armor®engine oil at 50:1 ratio. Use of ECHO Power Fuel™is recommended to
extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards
must be used. Echo brand premium Power Blend X™Universal 2-Stroke Oil meets these standards. Engine
problems due to inadequate lubrication caused by failure to use an ISO-L-EGD (ISO/CD 13738) and
J.A.S.O. M345-FD certified oil, such as Echo premium Power Blend X™, will void the two-stroke engine
warranty.
Echo premium Power Blend X™Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo
engines sold in the past regardless of ratio specified in those manuals.
Handling Fuel
Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal
injury may result.
•Use an approved fuel container.
•DO NOT smoke near fuel.
•DO NOT allow flames or sparks near fuel.
•Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to
equalize.
•NEVER refuel a unit when the engine is HOT or RUNNING!
•DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors over bare ground.
•DO NOT overfill fuel tank. Wipe up spills immediately.
•Securely tighten fuel tank cap and close fuel container after refueling.
•Inspect for fuel leakage. If fuel leakage is found, do not start or operate unit until leakage is
repaired.
•Move at least 3 m (10 ft.) from refueling location before starting the engine.

ES-255 OPERATION
X7501180708
© 5/2015 ECHO Inc.
Mixing Instructions
1. Fill an approved fuel container with half of the required
amount of gasoline.
2. Add the proper amount of 2-stroke oil to gasoline.
3. Close container and shake to mix oil with gasoline.
4. Add remaining gasoline, close fuel container, and remix.
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers
to reduce fuel spillage.
After use
• DO NOT store a unit with fuel in its tank. Leaks can occur.
Return unused fuel to an approved fuel storage container.
Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area.
As a precaution, store fuel in an approved, airtight container. Store in a well-ventilated, unoccupied building,
away from sparks and flames.
Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days, ninety (90) days when a
fuel stabilizer is added.
Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use.
Starting Cold Engine
1. Stop Switch
Move stop switch (A) away from the STOP position.
2. Throttle Position Lever
Move throttle position lever (B) midway between idle and full
throttle positions.
3. Choke
Move choke (C) to COLD START ( ) (closed) position.
For more information
scan this QR code.
A
BB
A

20 X7501180708
© 5/2015 ECHO Inc.
OPERATION ES-255
4. Purge Bulb
Pump purge bulb (D) until fuel is visible and flows freely in the
clear fuel tank return line.
Recoil starter: Use short pulls - only 1/2 - 2/3 of rope for
starting. Do not allow the rope to snap back in. Always hold the
unit firmly.
5. Recoil Starter
Place the unit on a flat, clear area. Firmly grasp throttle handle
with left hand and rapidly pull recoil starter handle/rope (E)
until engine fires, or maximum 5 pulls.
6. Choke
Move choke lever (C) to RUN ( ) position, and if necessary,
restart engine.
Note: If engine does not start with choke in RUN position after 5
pulls, repeat instructions 3 - 6.
7. Throttle Position Lever
After engine starts, move throttle position lever to idle position, and allow engine to warm up for 3 minutes
before use.
8. Throttle Trigger
After engine warms up, depress throttle trigger or move throttle position lever to increase engine RPM to
operating speed.
Starting Warm Engine
The starting procedure is the same as Cold Start except DO
NOT close the choke.
1. Stop Switch
Move stop switch (A) away from the STOP position.
2. Throttle Position Lever
Move throttle position lever (B) midway between idle and full
throttle positions.
C
D
E
A
BB
A
