Echo PB-460LN User manual

WARNING DANGER
Readrulesforsafeoperationandallinstructionscarefully. ECHOprovidesthis
Operator'sManualwhichmustbereadandunderstoodforproperandsafeoperation.
X750006700
12/03
X7501128900
Power Blower
Operator'sManual
MODEL PB-460LN
Serial Number 02001001 - 02999999

2
TABLE OF CONTENTS
Introduction ...............................................................2
- The Operator's Manual .......................................2
Manual Safety Symbols and Important Information ..3
Safety .........................................................................3
- Decals .................................................................3
- InternationalSymbols .........................................4
Safety Instructions ....................................................4
- Personal Condition and Safety Equipment .........4
- ExtendedOperation/ExtremeConditions ............5
- Equipment ...........................................................5
- SafeOperation ....................................................6
EmissionControl ........................................................6
Description ................................................................7
- Contents .............................................................7
Specifications.............................................................9
Assembly ................................................................. 10
- InstallBlower Pipes/ StickHandle ................... 10
Pre-Operation ........................................................... 11
- Fuel ................................................................... 11
Operation ................................................................. 12
- StartingColdEngine ......................................... 12
- StartingWarmEngine ....................................... 13
- Stopping Engine ............................................... 13
- OperatingBlower .............................................. 14
Maintenance ............................................................ 15
- SkillLevels ........................................................ 15
- Maintenance Intervals ...................................... 15
- Airfilter............................................................. 16
- FuelFilter .......................................................... 16
- SparkPlug ......................................................... 17
- CoolingSystem................................................. 17
- ExhaustSystem................................................. 18
- Carburetor Adjustment ..................................... 19
Troubleshooting ...................................................... 21
Storage..................................................................... 22
ServicingInformation............................................... 24
- Parts.................................................................. 24
- Service .............................................................. 24
- Customer Assistance........................................ 24
- Warranty Card .................................................. 24
- Additional or Replacement Manuals ................ 24
- Manual Ordering Instructions .......................... 24
Specifications, descriptions and illustrative material in this
literature are as accurate as known at the time of publica-
tion, but are subject to change without notice. Illustrations
may include optional equipment and accessories, and may
not include all standard equipment.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job
dependability. Read and understand this manual. You will find it easy to use and full of helpful operating tips and
SAFETYmessages.
THE OPERATOR'SMANUAL
Read and understand this manual before operation. Keep it in a safe
place for future reference. It contains specifications and information for
operation, starting, stopping, maintenance, storage and assembly
specific to this product.
CopyRight©2003ByEcho,Incorporated
All Rights Reserved.

3
POWER BLOWER
OPERATOR'SMANUAL
IMPORTANT
NOTE
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key words
and what they mean to you.
This symbol accompanied by the words WARN-
INGandDANGERcallsattentiontoanactor
condition that can lead to serious personal injury to
operator and bystanders.
The circle with the slash symbol means whatever is
shown within the circle is prohibited.
IMPORTANT Theenclosedmes-
sage provides information necessary
for the protection of the unit.
NOTE This enclosed message
provides tips for use, care and
maintenance of the unit.
SAFETY
DECALS

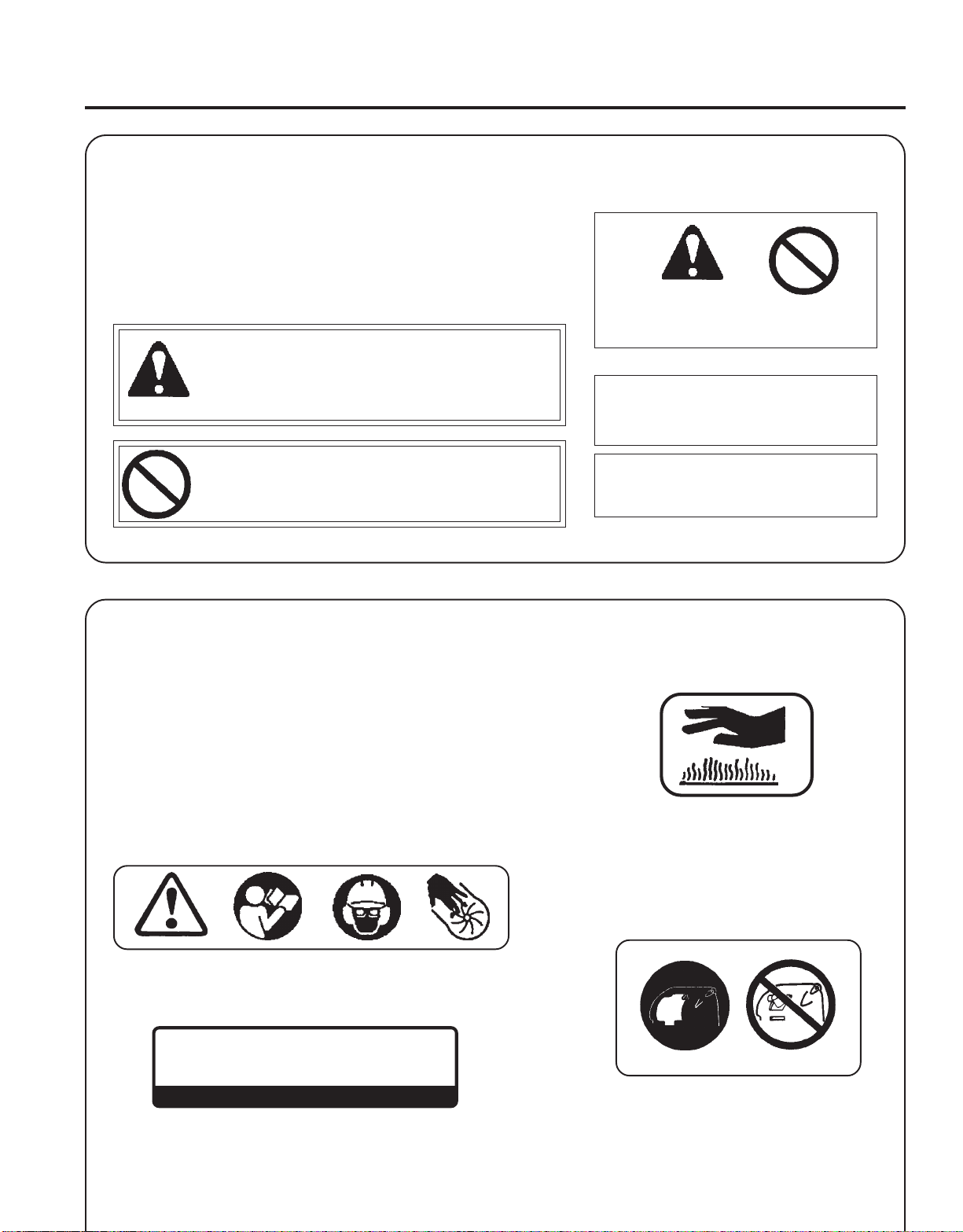

Locate these safety decals on your unit. Make sure the decals are
legible and that you understand and follow the instructions on them.
If a decal cannot be read, a new one can be ordered from your ECHO
dealer. SeePARTSORDERINGinstructionsforspecificinformation.
P/N89016006361
P/N89016009461
65 Category I
dB(A)
Measured at 50 ft. (15m) per ANSI B175.2 P/N89061721260
P/NX508000120
Spark Plug Cover Label
Hot Decal (near muffler)
General Warning Decal (located on top of blower)
Sound Label (located on blower housing)

4
INTERNATIONAL SYMBOLS
SAFETYINSTRUCTIONS
PERSONAL CONDITION AND SAFETY EQUIPMENT
WARNING DANGER
Power Blower users risk injury to themselves and others if the power blower is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a blower.
Physical Condition
Your judgment and physical dexterity may not be good:
- if you are tired or sick,
-if youare taking medication,
- if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CE require-
ments whenever you operate the blower.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the blower handle. Gloves also reduce the
transmission of machine vibration to your hands.
Breathing Protection
Wear a face mask to protect against dust.
Hearing Protection
ECHOrecommendswearinghearingprotectionwhenever
unit is used.
Proper Clothing
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARVES,JEWELRY.
Wear sturdy work shoes with nonskid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.
Keep long hair away from engine and blower intake.
Retain hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue
which may lead to heat stroke. Schedule heavy work for
early morning or late afternoon hours when temperatures
arecooler.

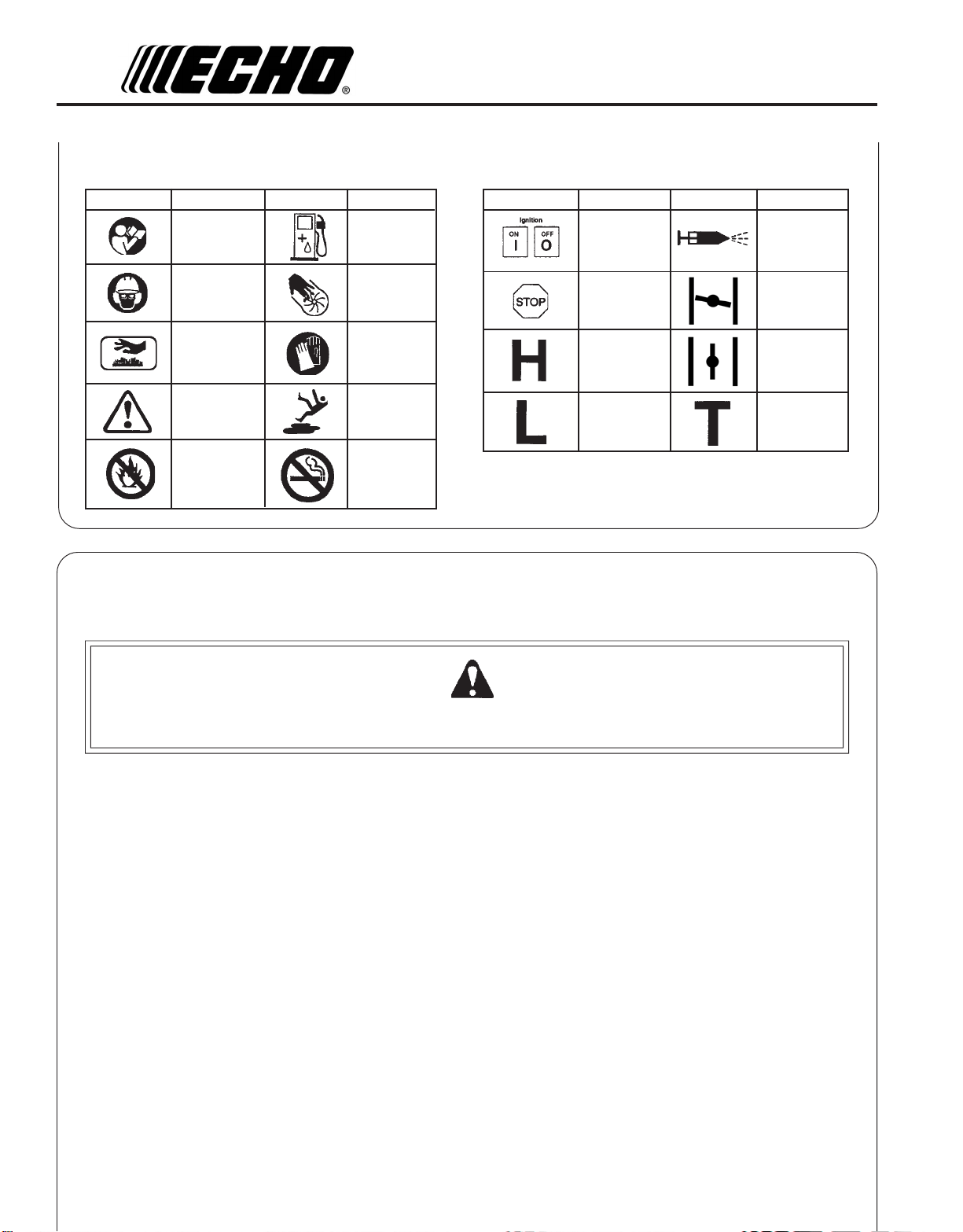

SYMBOL
Carburetor
Adjustment
-Idlespeed
Carburetor
Adjustment
-Highspeed
mixture
Emergency
Stop
Carburetor
adjustment
-Low speed
mixture
Ignition
ON/OFF Primer
Bulb
Choke Control
"Cold Start"
Position
(ChokeClosed)
Choke Control
"Run"
Position
(ChokeOpen)
DESCRIPTION SYMBOL DESCRIPTION
Hot
Surface
Read and under-
stand Operator's
Manual.
Weareyes,ears
andhead
protection
Fueland oil
mixture
Finger
Severing
Safety/Alert
Wearhand
protection.Use
twohanded.
DONOTsmoke
nearfuel.
DONOT allow
flamesorsparks
nearfuel.
Wearslip
resistantfoot
wear.
SYMBOL DESCRIPTION SYMBOL DESCRIPTION

5
POWER BLOWER
OPERATOR'SMANUAL
EXTENDEDOPERATION/EXTREMECONDITIONS
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommendedbecausethe minimum exposure whichmighttriggerthe
ailmentisunknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm exer-
cises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the blower or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.

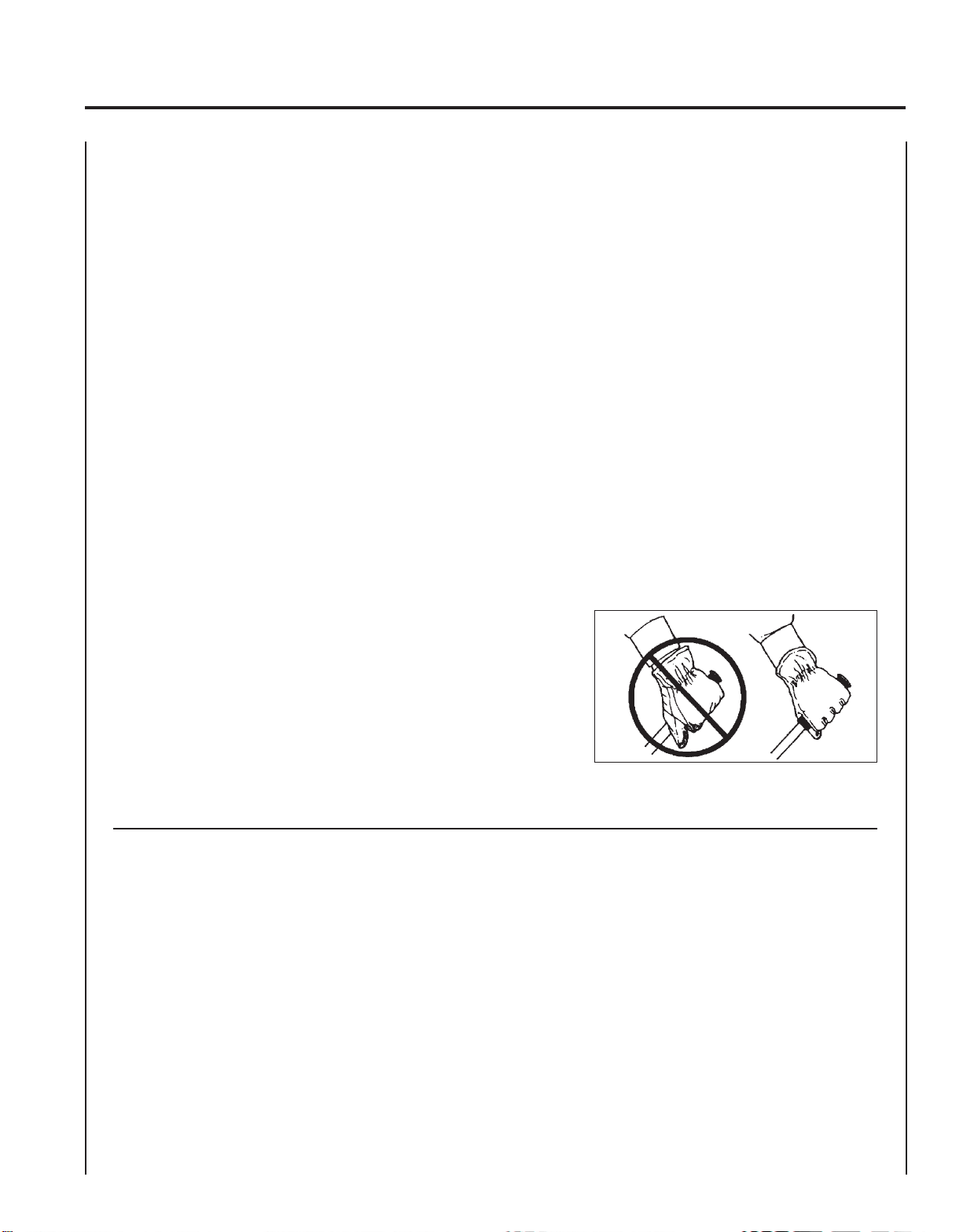

To reduce the risk of RSI/CTS, do the
following:
• Avoid using your wrist in a bent, extended
or twisted position. Instead try to maintain
a straight wrist position. Also, when
grasping, use your whole hand, not just
the thumb and index finger.
• Takeperiodicbreakstominimizerepetition
and rest your hands.
• Reduce the speed & force in which you do
therepetitive movement.
• Do exercises to strengthen the hand and
armmuscles.
• Immediately stop using all power equip-
ment and consult a doctor if you feel
tingling, numbness or pain in the fingers,
hands, wrists or arms. The sooner RSI/
CTSisdiagnosed,themore likely perma-
nent nerve and muscle damage can be
prevented.
EQUIPMENT
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.

6
PRODUCTEMISSIONDURABILITY
The 300 hour emission durability compliance period is the time span selected by the manufacturer certifying the
engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are
followed as listed in the Maintenance Section of this manual.
SAFE OPERATION
WARNING DANGER
Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous
emissions and can cause serious injury or death.
NoiseControl
• Follow local noise regulations on sound
levels and hours of operations. Use only
during appropriate hours.
• Never use a higher speed setting then
necessary to perform a task. The higher
the engine speed the louder the blower
noise.
• Be a good neighbor.
AvoidHotSurfaces
• Duringoperation, the muffler orcatalytic
muffler and surrounding cover may
become extremely hot. Avoid contact
duringandimmediatelyafteroperation.
Always keep exhaust area clear of
flammabledebris.
DetermineOperationArea
• Review area to be cleared. Look for potential hazards such as stones
or metal objects.
• Take wind conditions into account: avoid open doors and windows.
• Do not point blower at people or animals.
• Start unit on ground with throttle at idle. Check that blower pipe is
not blocked by the ground or by any objects.
ReadtheManuals
• Provide all users of this equipment with the Operator's Manual and
Safety Manual for instructions on Safe Operation.
KeepAFirmGrip
• Hold handle with fingers together encircling the handle.
CleartheWorkArea
• Spectators and fellow workers must be warned, and children and
animalspreventedfromcoming nearer than 15m(50ft.) while the unit
is in use.
KeepASolidStance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders.
• Do not perform Maintenance or Assembly procedures with engine
running.
EMISSION CONTROL
EPA Phase 2
The emission control system for this engine is EM/TWC (Engine
Modification and Catalyst).
AnEmissionControl Labelis located on the unit. (This is an EX-
AMPLEONLY,informationonlabelvariesbyengineFAMILY).
IMPORTANTENGINEINFORMATION
ENGINEFAMILY: 4EHXS.0444CA DISPLACEMENT: 44.0CC
EMISSIONCOMPLIANCEPERIOD: 300 HRS.
THISENGINE MEETS U.S. EPAPH2AND 2000 AND LATER
CALIFORNIAEMISSIONREGULATIONSFOR S.O.R.E. REFER
TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICA-
TIONS AND ADJUSTMENTS.

7
POWER BLOWER
OPERATOR'SMANUAL
__ 1 - PowerHead
__ 1 - FlexPipe
__ 1 - PipewithSwivel
__ 1 - StraightPipe
__ 1 - CurvedPipe
__ 1 - Operator's Manual
__ 1 - Warranty Registration Card
__ 1 - ECHOEmissionsandWarrantyStatement
__ 2 - Clampsw/screws
__ 1 - StickHandle Assembly
__ 1 - EchoPowerBlendTM 2-strokeoilsample
4
5
6
7
8
13
14
DESCRIPTION
CONTENTS

8
1. AIRCLEANER-Containsreplaceableairfilterelement.
2. SPARKPLUG- Providesspark to ignitefuel mixture. Sparkplug is locatedunder the coveron LN models.
3. SPARKARRESTOR-CATALYTICMUFFLER/MUFFLER-Themufflerorcatalyticmufflercontrolsexhaust
noise and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler.
Keepexhaust areaclearofflammable debris.
4. RECOILSTARTERHANDLE-Pullrecoilhandleslowlyuntilstarterengages,thenquicklyandfirmly. When
engine starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
5. PRIMERBULB-Pumpingprimerbulbbefore startingenginedrawsfresh fuelfromthefuel tankprimingthe
carburetor for starting. Pump primer bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump
bulb an additional 4 or 5 times.
6. CHOKE - Move lever up to Cold Start ( ) starting position and for emergency stopping. Move lever down to
Run position ( ).
7. FUELTANKCAP-Coversandsealsfueltank.
8. BLOWERPIPES-Twistlockdesign.
9. THROTTLEPOSITIONLEVER/STOPSWITCH-Combinationstopswitchandvariablespeedthrottlelever.
When the lever is moved all the way forward the blower is at Wide Open Throttle (W.O.T.). When the lever is
moved rearward to detent, the blower is at idle. When the lever is moved rearward past the idle detent the blower will
stop.
10. SAFETYDECAL-Listsimportantsafetyprecautions.
11. THROTTLEHANDLE-Rotatesdownwardforthrottlecontrolaccess.Springloadedforflexibleoperation.
12. SHOULDER HARNESS - Supports unit on operator's back. Pull down on loose ends of straps to position unit for
comfortable operation. Loosen straps to remove the unit.
13. FLEXIBLEPIPE-Allowsforfullrangeofmovement.
14. STICKHANDLE- Providescomfortablegripfordirectingairflow.

9
POWER BLOWER
OPERATOR'SMANUAL
SPECIFICATIONS
MODEL -----------------------------------------------------PB-460LN
Length-------------------------------------------------------320mm(12.6in.)
Width--------------------------------------------------------460mm (18.1in.)
Height -------------------------------------------------------440mm(17.3in.)
Weight (dry) ------------------------------------------------11.8 kg(26.1lb.)
Engine Type ------------------------------------------------Air cooled, two-stroke, single cylinder gasoline engine
Displacement -----------------------------------------------44.0cc(2.69cu.in.)
Bore----------------------------------------------------------40.0mm(1.57in.)
Stroke--------------------------------------------------------35.0mm(1.378in.)
Carburetor --------------------------------------------------ZamaDiaphragmmodelw/primerbulb
Ignition System -------------------------------------------- Flywheel Magneto, capacitor discharge ignition type
SparkPlug --------------------------------------------------NGKBPM-8YGap0.65mm(0.026in.)
ExhaustSystem -------------------------------------------- Spark Arrestor Muffler w/ Catalyst
Fuel ----------------------------------------------------------Mixed(GasolineandTwo-strokeOil)
Fuel/OilRatio -----------------------------------------------50:1 two-strokeaircooledengineoil
Gasoline -----------------------------------------------------89 Octane unleaded. DO NOT use fuel containing methyl alcohol,
morethan 10% ethylalcoholor15%MTBE.
Oil ------------------------------------------------------------PowerBlendTM PremiumUniversal2-StrokeOil
FuelTankCapacity ----------------------------------------1.9lit.(64.3USfl.oz.)
RecoilStarterSystem --------------------------------------AutomaticRecoilStarterCentrifugalType
Idle Speed---------------------------------------------------2,300-3,200 (RPM)
Wide Open Throttle Speed -------------------------------6,200-7,200 (RPM)
Maximum Air Speed (Measured at pipe end) ----------277KM/H (172mph)
Average Air Volume (Measured at pipe end) ----------11.1cu.m/min.(390cu.ft./min.)
SoundLevel at50ft.dB(A)scaleperANSIB175.2----65dB(A)

10
ASSEMBLY
WARNING DANGER
Never perform maintenance or assembly procedures with engine
running or serious personal injury may result.
INSTALL BLOWER PIPES / STICK HANDLE
1. Assemble straightpipewithswivel(A)into flexible pipe (B).
2. Assembleflexiblepipe(B)toelbow(D)onblower.
3. Assemble clamps (C) onto both ends of flexible pipe (B) and
tighten.
NOTE
A light lubricant may be used to ease assembly of flexible pipe to
blowerelbow.
4. Loosen wing nut (E) completely and expand stick handle clamp
(F).
5. Align notches (G) in handle clamp with pipe pegs (H). Stick handle
should be angled away from operator.
6. Slide stick handle onto swivel pipe (C).
7. Position stick handle for comfortable operation and tighten wing
nut(E).
8. Assemble straight pipe (J) to swivel pipe (C), turning straight pipe
counter-clockwise to lock in place.
9. Assemble curved pipe (K) to straight pipe (J) turning curved pipe
(K)counter-clockwisetolockinplace.
C
HGF
E
J
K
C
A
C
B
C
D

11
POWER BLOWER
OPERATOR'SMANUAL
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline-Use 89 Octane [R+M/2](mid grade orhigher) gasoline known
to be good quality. Gasoline may contain up to 15% MTBE (methyl
tertiary-butylether). Gasoholcontaining methyl(wood) alcohol is NOT
approved.
TwoStrokeOil-Atwo-strokeengineoilmeetingISO-L-EGD(ISO/CD
13738)and J.A.S.O. FCStandardsmust be used.Echo brand premium
Power Blend TM Universal 2-Stroke Oil meets these standards. Engine
problems due to inadequate lubrication caused by failure to use an ISO-
L-EGDandJ.A.S.O.FCcertifiedoil,suchasEchopremiumPowerBlend
TM, will void the two-stroke engine warranty. (Emission related parts
only are covered for two years, regardless of two-stroke oil used, per
the statement listed in the Emission Defect Warranty Explanation.)
IMPORTANT
EchopremiumPowerBlendTM Universal2-StrokeOilmaybemixed
at 50:1 ratio for application in all Echo engines sold in the past
regardless of ratio specified in those manuals.
Mixing Instructions
1. Fill an approved fuel container with half of the required amount of
gasoline.
2. Add the proper amount of 2-stroke oil to gasoline.
3. Close container and shake to mix oil with gasoline.
4. Addremaininggasolineandremix.
5. Install fuel container cap and wipe any spilled fuel from container
and surrounding area.
Handling Fuel
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesorsparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuelaunitwhentheengineisHOT!
• NEVERrefuelaunitwiththeenginerunning.
• DONOT fill fuel tanks indoors.ALWAYS fill fuel tanks outdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Spilled fuel is a leading cause of
hydrocarbon emissions. Some states
may require the use of automatic fuel
shut-off containers to reduce fuel
spillage.ContactyourECHOdealer
fororderinginformation.
After Refueling -
• Wipe any spilled fuel from the unit.
• Moveatleast3m(10ft.)fromrefueling
location before starting.
Afteruse -
• DO NOT store a unit with fuel in its tank.
Leaks can occur. Return unused fuel to an
approved fuel storage container.
Storage -
Fuel storage laws vary by locality. Contact
your local government for the laws affecting
your area. As a precaution, store fuel in an
approved, air tight container. Store in a well
ventilated, unoccupied building, away from
sparks and flames. Do not store fuel longer
than 30 days.
IMPORTANT
Storedfuelages. Do not mixmorefuel
than you expect to use in thirty (30)
days, ninety (90) days when a fuel
stabilizeris added.
Stored two-stroke fuel may separate.
ALWAYS shake fuel container thor-
oughly before each use.

12
OPERATION
• Recoil starter: Use short pulls - only 1/2-2/3 of rope length for
starting. Do not allow the rope to snap back in. Always hold the unit
firmly.
• Rotate throttle handle downward to a comfortable operating position.
STARTING COLD ENGINE
1. Throttle Lever
Movethrottle lever(A)toIDLEDETENT position.
2. Choke
Move choke (B) up to Cold Start position ( ).
3. Primer Bulb
Pumpprimer bulb (C)until fuel isvisible and flows freelyin the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
4. Recoil Starter
Pullrecoilstarterhandle(D)untilenginefires(maximum5 pulls).
5. Choke
Move choke (B) down to run position ( ), and if necessary,
restart engine.
NOTE
If engine does not start after 5 pulls, use cold start procedures.
NOTE
Allow engine to warm up before use.
A
D
B
C

13
POWER BLOWER
OPERATOR'SMANUAL
STARTING WARM ENGINE
1. Throttle Lever
Movethrottle lever(A)toIDLEDETENT position.
2. Primer Bulb
Pumpprimer bulb (C)until fuel isvisible and flows freelyin the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
3. Recoil Starter
Pull recoil starter handle (D) and engine should start. Do not use
choke(B).
NOTE
If engine does not start after 5 pulls, use cold start procedures.
STOPPING ENGINE
1. Throttle Lever
Move throttle lever (A) to idle detent position and allow engine to
return to idle before shutting off engine.
2. Move throttle lever (A) to "O" (Stop) position.
WARNING DANGER
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using blower
again.
A
A
C
D

14
OPERATING BLOWER
WARNING DANGER
Always wear safety glasses, hearing protection, a face filter mask
and take all safety precautions or serious personal injury may
result.
Do not point the blower pipe in the direction of people or pets.
Read the Safety Section carefully.
IMPORTANT
To avoid engine damage due to over-revving, do not block
blower pipe opening.
1. Use only during appropriate hours.
2. Make sure all blower pipes are installed.
3. Allow the engine to warm up at a fast idle for a few minutes.
4. Set engine speed with throttle (A).
5. Use lower speed to blow dry grass and leaves from walks, patios
and drives.
6. Additional speed may be necessary to clean leaves from a lawn or
flowerbed.
7. Higher speed may be necessary to move gravel, dirt, snow, bottles
or cans from a driveway, street, parking lot or stadium.
NOTE
Never use a higher speed setting than necessary to perform a task.
Remember, the higher the engine speed, the louder the blower noise.
Minimize dust by using blower at lower speeds and by dampening
material with water/mist when necessary. Keep debris on your
property.
Be Smart - be a good neighbor.
A

15
POWER BLOWER
OPERATOR'SMANUAL
MAINTENANCE
Your ECHO blower is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
your blower achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your
unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the
ECHO Dealer do it, each maintenance task has been graded. If task is not listed, see your ECHO Dealer for repairs.
SKILL LEVELS
Level1= Easy to do. Most required tools come with unit.
Level2= Moderatedifficulty. Some specialized tools maybe required.
Level3= Experiencerequired.Specializedtoolsarerequired.Echorecommends
the unit be returned to your Echo Dealer for servicing.
ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
/TNENOPMOC
METSYS
ECNANETNIAM
ERUDECORP
D'QER
LLIKS
LEVEL
YLIAD
RO
EROFEB
ESU
YREVE
LEUFER
3
SHTNOM
09RO
SRUOH
6
SHTNOM
072RO
SRUOH
YLRAEY
serudecorPecnanetniaMrelaeDohcEdednemmoceR
troPtsuahxErednilyCnobraceD/naelC/tcepsnI 3C/I
serudecorPecnan
etniaMflesruoY-tI-oD
retliFriAecalpeR/naelC/tcepsnI 1C/I*R
ekohCnaelC/tcepsnI 2C/I
retliFleuFecalpeR/tcepsnI 1I*
R
skaeL,metsySleuFecalpeR/tcepsnI 1I*R/I
metsySgnilooCnaelC/tcepsnI 2C/I
rotserrAkrapSrelffuMecalpeR/tcepsnI 2*
R/I
epoRretratSlioceRnaelC/tcepsnI 1C/I*R/I
gulPkrapSnaelC/tcepsnI 2C/I*R
stloB/stuN/swercSecalpeR/nethgiT/tcep
snI 1*R/I
SEDOCRETTELERUDECORPECNANETNIAM NAELC=C,ECALPER=R,TCEPSNI=I:
-ETONTNATROPMI deriuqerfoycneuqerfehtenimretedlliwecneirepxeruoydnaesulaut
cA.mumixameranwohsslavretniemiT
.ecnanetniam
:SETONERUDECORPECNANETNIAM
*.noitcepsnignirudraewroegamadfognidnifehtnodesaberaecalperotsnoitadnemmocerllA
MAINTENANCE INTERVALS

16
WARNING DANGER
Allow the engine and muffler to completely cool before performing
any maintenance activity.
AIR FILTER
Level1.
Tools required: 25mm-50mm(1-2in.)cleaningbrush.
Parts required: TuneUpKitP/N90071
NOTE
Cleandaily.
1. Close choke, remove air cleaner cover, air filter, and silencer.
2. Clean and inspect air filter for damage. If element is fuel soaked
and very dirty, replace.
3. If element can be cleaned and reused, be certain it:
•still fits the cavity in the air cleaner cover.
•is installed with the original side out.
4. Wash silencer in suitable solvent such as dish washing solution.
5. Drysilencerbeforereinstalling.
FUEL FILTER
Level1.
Tools required: 200-250mm(8-10in.)lengthofwirewithoneend
bent into a hook, clean rag, funnel, and an approved
fuelcontainer.
Parts required: TuneUpKitP/N90071
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling.
1. Use a clean rag to remove loose dirt from around fuel cap and
emptyfueltank.
2. Use the “fuel line hook” to pull the fuel line and filter from the
tank.
3. Remove thefilter from the lineandinstall the newfilter.

17
POWER BLOWER
OPERATOR'SMANUAL
SPARK PLUG
Level2.
Tools required: 3/4 in. Spark Plug deep socket, Feeler gauge
Parts Required: TuneUpKitP/N90071
1. Remove spark plug cover and spark plug, check for fouling, worn
and rounded center electrode.
2. Clean the plug or replace with a new one. DO NOT sand blast to
clean.Remainingsandwilldamageengine.
3. Adjust spark plug gap by bending outer electrode.
4. Tightensparkplugto145-155kg/cm(125-135in.lb.).
5. Install spark plug cover.
IMPORTANT
Always reinstall spark plug cover, otherwise engine cooling will
be greatly reduced, and engine failure will result.
COOLING SYSTEMS CLEANING
Level2.
Tools required: 25- 50mm (1 - 2in.) cleaning brush, cross head
screwdriver
Parts Required: None, if you are careful.
IMPORTANT
To maintain proper engine operating temperatures, cooling air
mustpass freely through the cylinder fin area. This flow of air
carriescombustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build-up
insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
Cleaning Grill

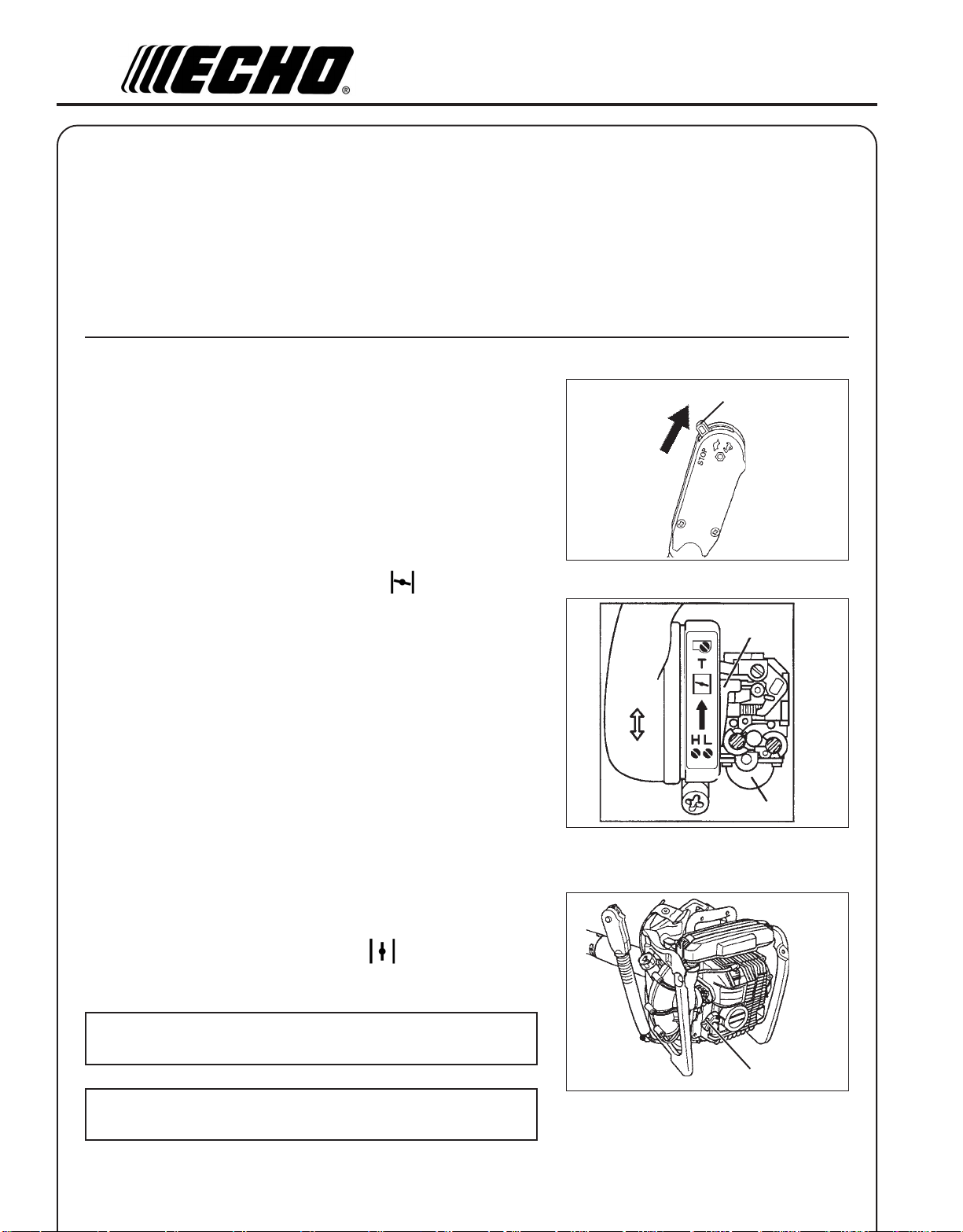

1. Remove accumulateddebrisfromintakegrillbetweenbackpack
frame and blower housing.
INTAKE
GRILL
0.65 mm
(0.026 in.)

18
Cleaning Cylinder Fins
1. Remove spark plug cover and spark plug.
2. Remove engine cover (five screws), pull cover away from engine,
and tie temporary knot in starter rope. Clean cylinder fins to allow
cooling air to pass freely.
IMPORTANT
Always reinstall spark plug cover, otherwise engine cooling will
be greatly reduced, and engine failure will result.
EXHAUST SYSTEM
Spark Arrestor Screen
Level2.
Tools required: Cross head screwdriver, Soft metal brush
Parts Required: SparkarrestorscreenP/N14586206720,
(3)GasketsP/NV104000231,V104000290,V104000300
IMPORTANT
Carbon deposits in muffler will cause a drop in engine output and
overheating. Spark arrestor screen must be checked periodically.
1. Remove spark plug and engine covers (five screws).
1. Remove spark plug and engine cover (five screws).
IMPORTANT
Exactplacementofexhaustgasketsonmuffleriscritical.Carefully
note orientation of each gasket when removing and installing.
2. Remove spark arrestor cover (A), gaskets (B), (C), (D), and spark
arrestorscreen(E)frommuffler.
NOTE
When cleaning carbon deposit, be careful not to damage the
catalytic body.
3. Clean carbon deposits from muffler components.
NOTE
The exhaust gasket outlets should be partially restricted. The
gaskets will be properly assembled when all six (6) small round holes
areinalignment.
4. Replace screen if it is cracked, plugged, or has holes burned
through.
5. Assemble components in reverse order.
DCB
A
E

19
POWER BLOWER
OPERATOR'SMANUAL
CARBURETORADJUSTMENT
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
High altitude adjustment may be required for proper operation of this
engine.
IMPORTANT
For engine operation above 2,000 feet, turn the high-speed needle
lean (CW) until the engine runs between 6,200 and 7,200 RPM. Then
turn the low-speed needle lean (CW) until the engine does not
hesitate on acceleration.
For engine operation below 2,000 feet, turn the high-speed needle
rich(CCW)until the engine runsbetween 6,200and7,200 RPM.
Then turn the low-speed needle rich (CCW) until the engine does
not hesitate on acceleration.
DONOTREMOVELIMITERCAPS!
Level2.
Tools required: Screwdriver,tachometer(EchoP/N99051130017)
Parts required: None.
NOTE
Do not adjust carburetor unless necessary. If you have difficulty,
seeyourECHOdealer.
Cylinder Exhaust Port
Level3.
IMPORTANT
The cylinder exhaust port must be inspected and cleaned of
excess carbon every 3 months or 90 hours of operation in order
to maintain this engine within the emissions durability period.
ECHO strongly recommends that you return your unit to your
ECHOdealerforthisimportantmaintenanceservice.

20

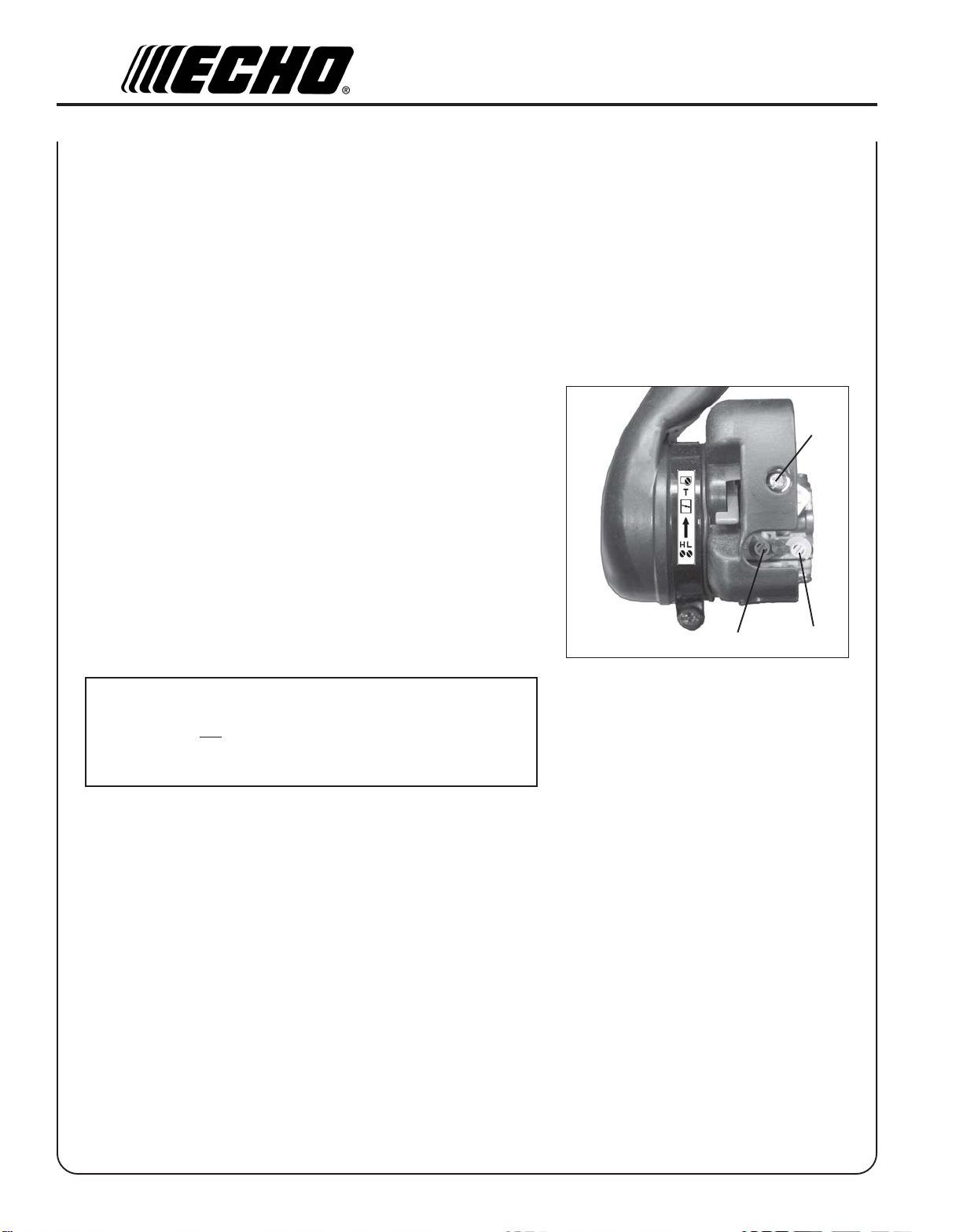

Adjustment Screws
Idle Speed (A) Control throttle opening at idle.
Low(LO)Speed(B) Controls amount of fuel at low speed and
supplementary fuel for smooth progression from
idle to high speed.
High(HI)Speed(C) Controls amount of fuel at full throttle
Before Adjustment
Checkthat:
• Air filter is clean and properly installed.
• Spark arrestor screen and exhaust port are free of carbon
• Blowerpipesareinstalled
Initial Adjustment
1. With engine off, turn HI speed screw (C) counterclockwise to
stop.
2. Turn LO speed screw (B) midway between stops.
3. Turn idle screw (A) until tip of screw just touches throttle plate;
then turn three (3) turns clockwise.
Final Adjustment
IMPORTANT
Limitercapsprevent exceeding emission limitsandoverrich
adjustment, but not over lean adjustment, which can cause
engine failure: Do not exceed recommended HI speed engine
R.P.M. during operation, or for long periods during adjustment.
1. Start engine, run at idle for one minute.
2. Complete warm up by running at full throttle for 5 minutes,
operating choke twice to clear air from carburetor chambers.
3. Run at idle and accelerate to check for smooth transition from idle
to high speed; if engine hesitates, turn LO speed screw (B)
counterclockwise 1/8th of a turn at a time until acceleration is
smooth.
4. Use a tachometer to adjust idle speed to specifications found on
page 9.
A
B
C
